Tension fabric extr. | M 1325.01

for double sided fabric
aluminium
for double sided fabric (with silicone edge M 1313), for mounting in system groove with fixing set M 1345, with 13 × hole 18 mm dia.
L 6000 × W 80 × H 9 mm

Available Material

matt anodized, silver (E6/EV1)

!

in connection M 1345

Technical Data.

Length:

6000 mm

Weight:

5.33 kg

Width:

80 mm

Height:

9 mm

M_1325.pdf
M_1325.dwg
M_1325.dxf
XM_1325.pdf

Accessories.

Silicone edge

M 1313.50

100 meter roll

for fabric

W 14 × H 3 mm

Fixing set

M 1345.37

for M 1310/M 1325/M 1330

L 28 × W 24 × H 24 mm

Technical Informations.

Ceiling elements with fabric covering "Solution for frame construction"

TI-M-59.0 TI-M-59.0

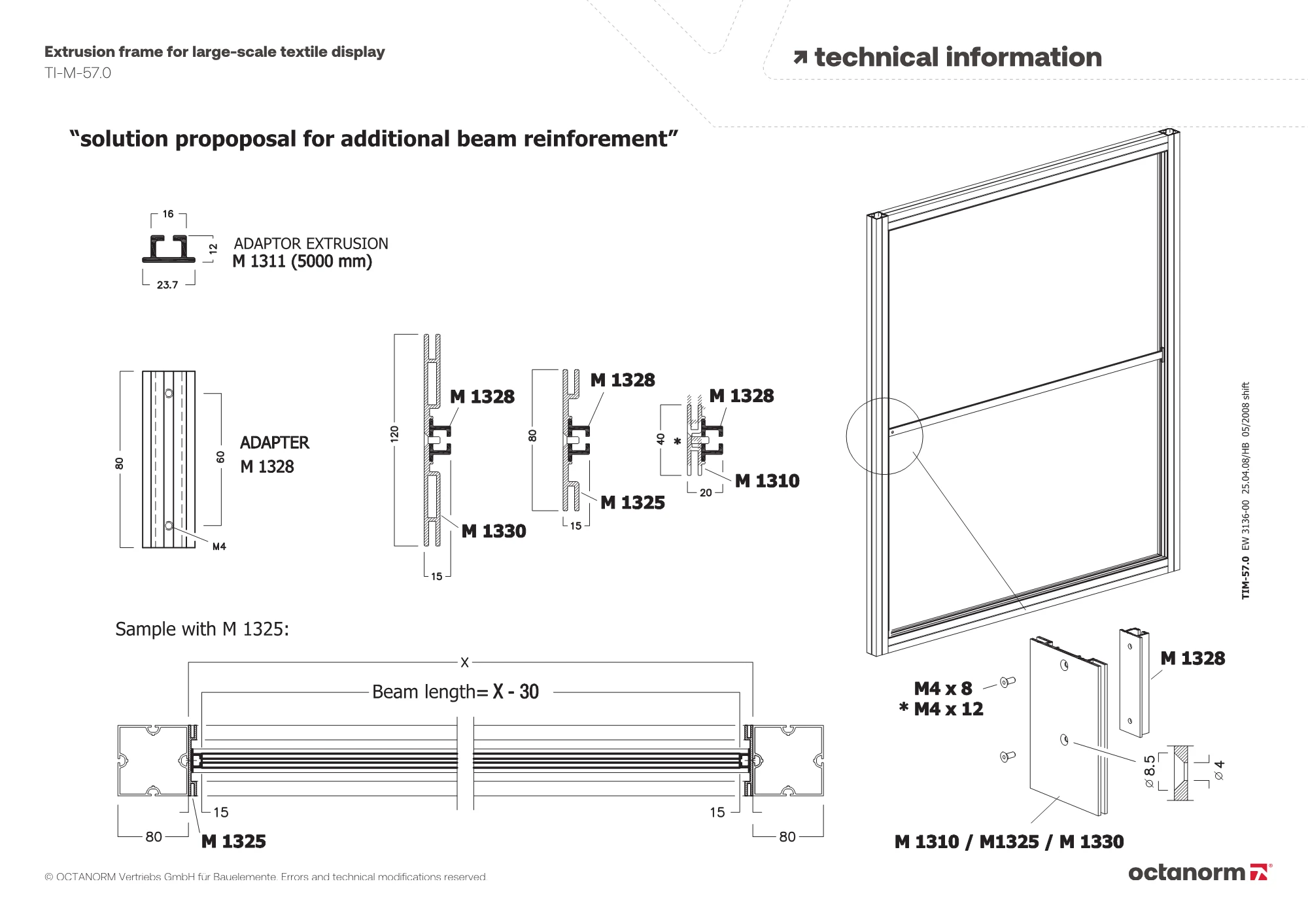

Extrusion frame for large-scale textile display

TI-M-57.0 TI-M-57.0

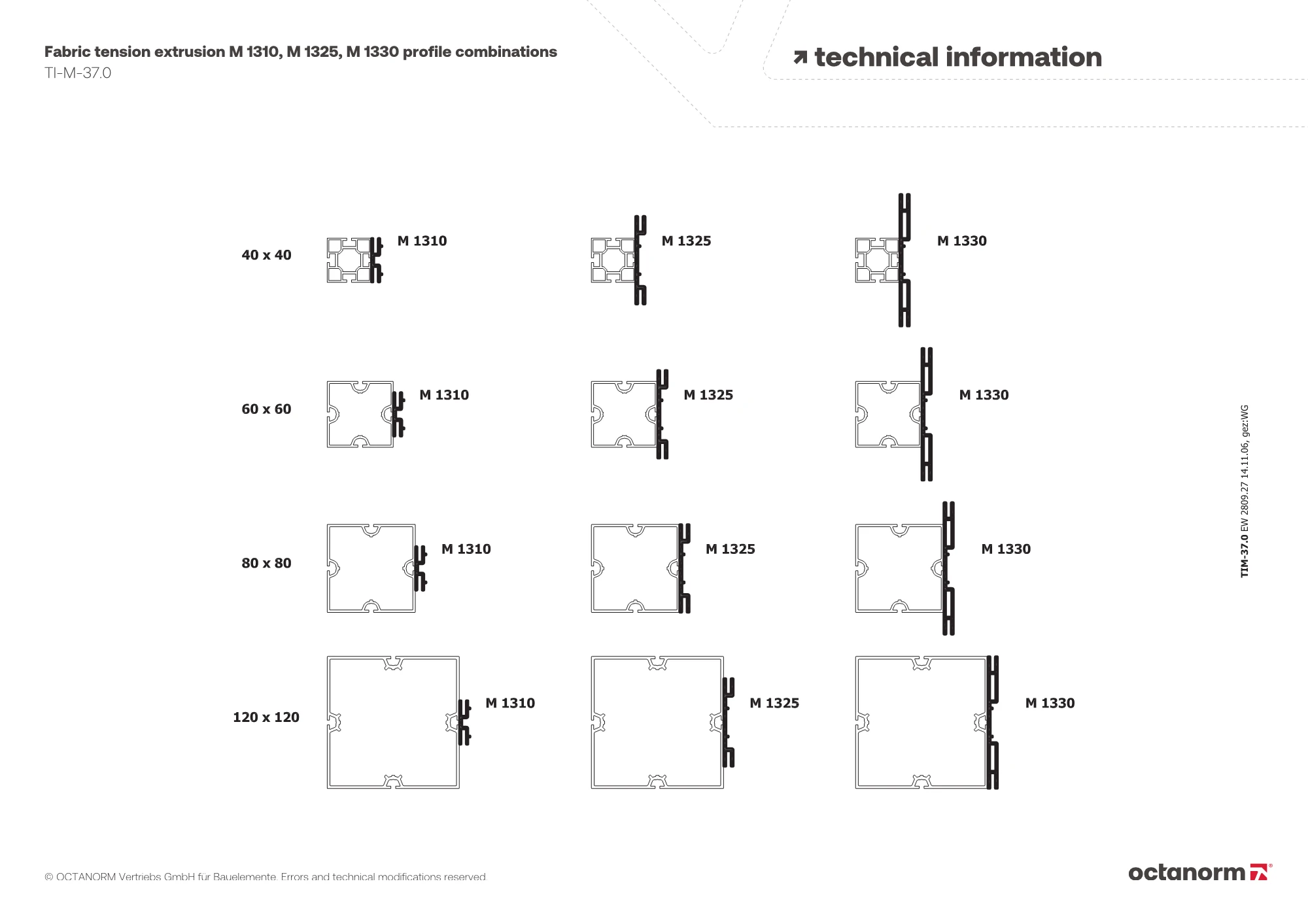

Fabric tension extrusion M 1310, M 1325, M 1330 profile combinations

TI-M-37.0 TI-M-37.0
