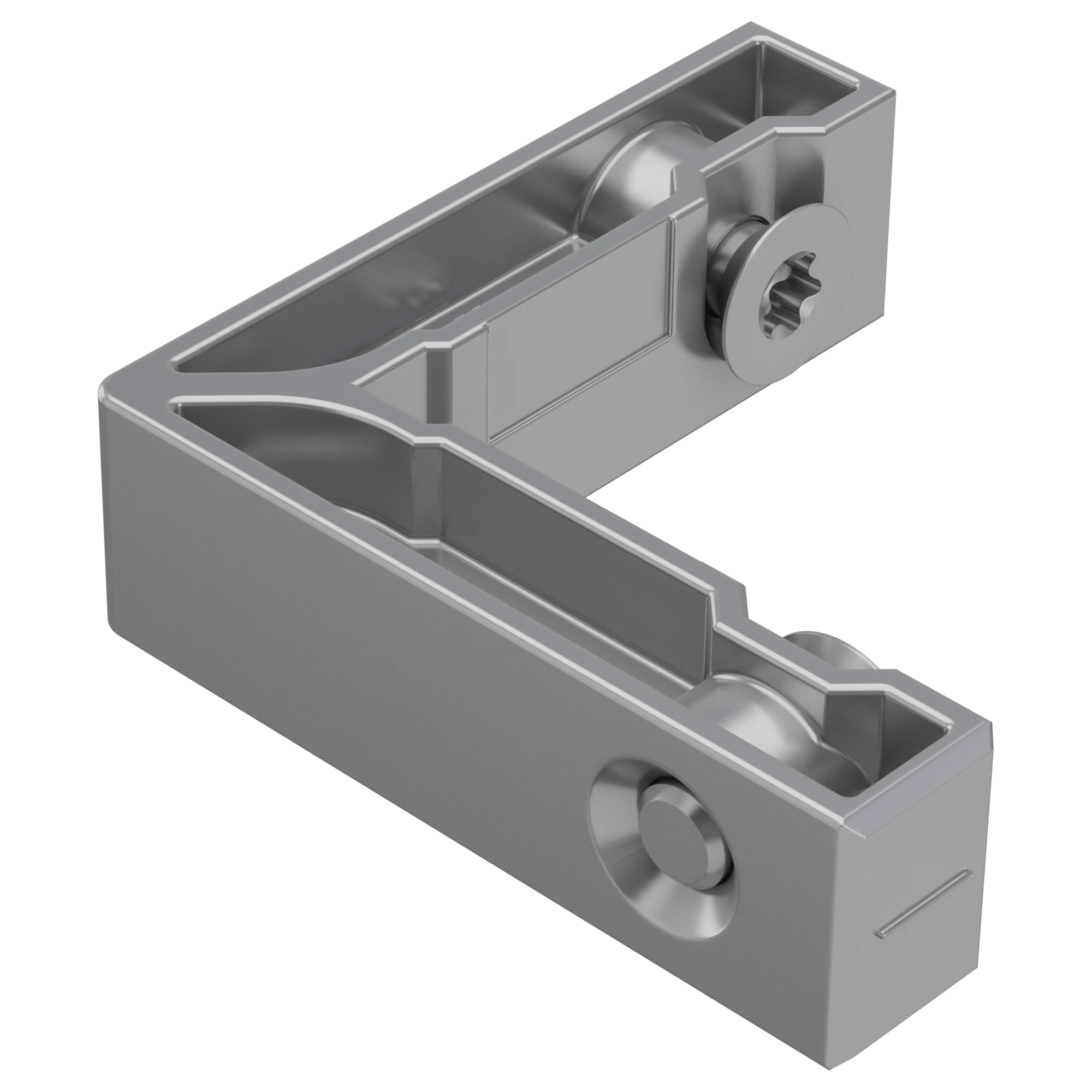

Corner connector

M 1965B.00

90°

lock chamber 16 × 12 mm

L 55 × W 55 × H 16 mm

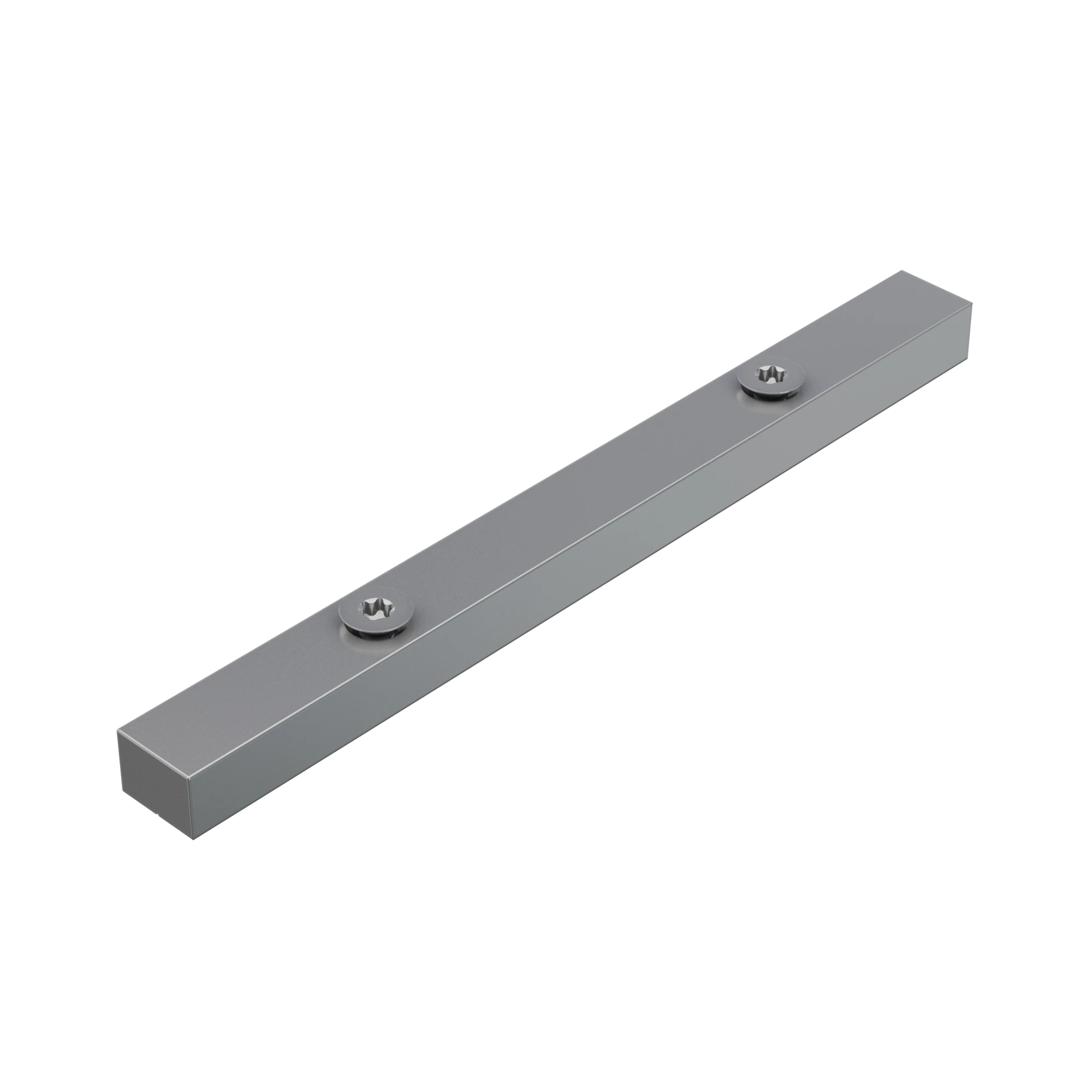

Internal connector

M 1967.00

straight

for extrusions M 1925 / M 1935

L 180 × W 16 × H 12 mm

Square extrusion

M 225.01

4 system grooves

L 5000 × W 120 × H 120 mm

5000 mm long

Square extrusion

M 226.01

L 6000 × W 120 × H 120 mm

6000 mm long

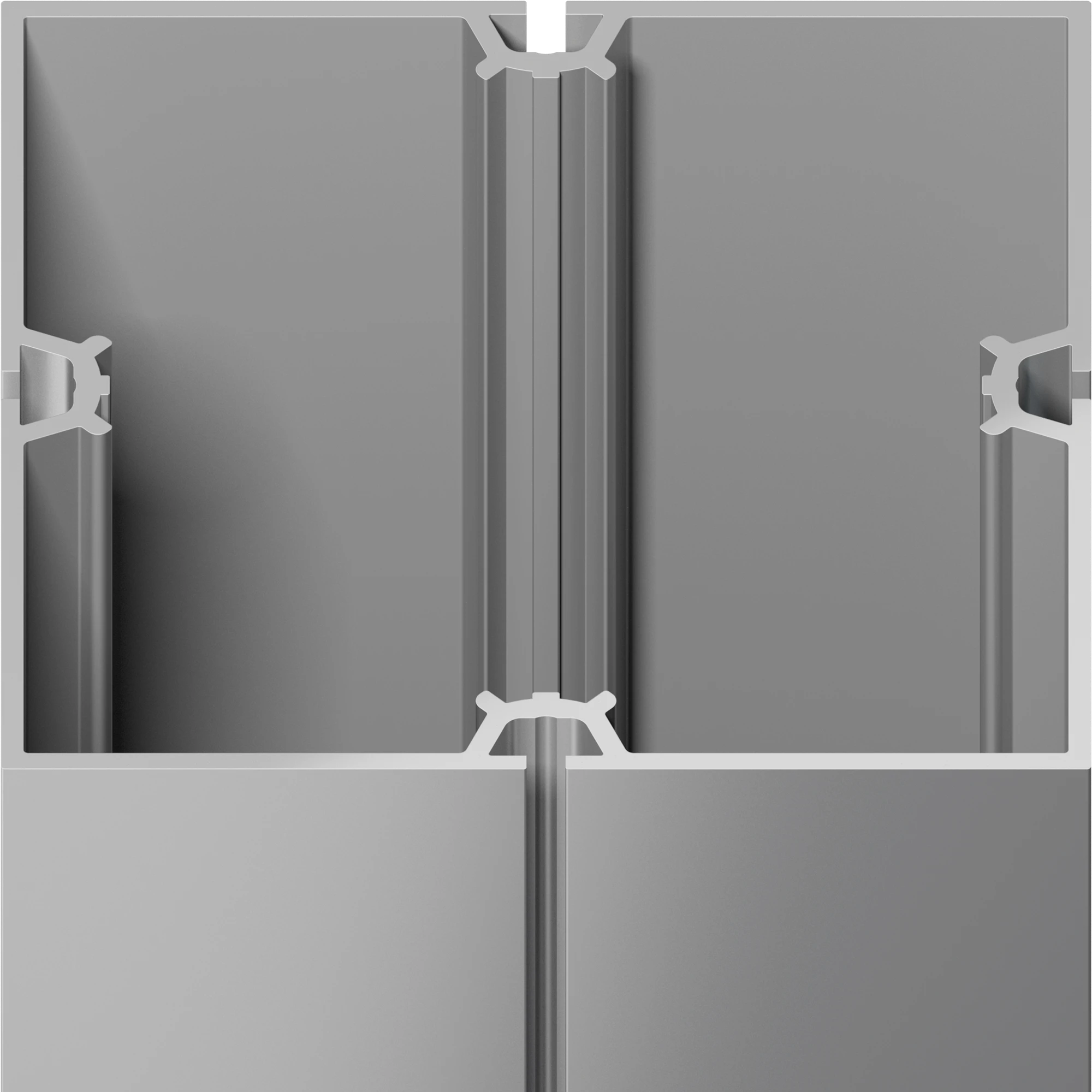

Corner upright

M 253.01

90°

without W 2850

L 120 × W 120 × H 2480 mm

Corner upright extrusion

M 260.01

90° corner, round

L 6000 × W 120 × H 120 mm

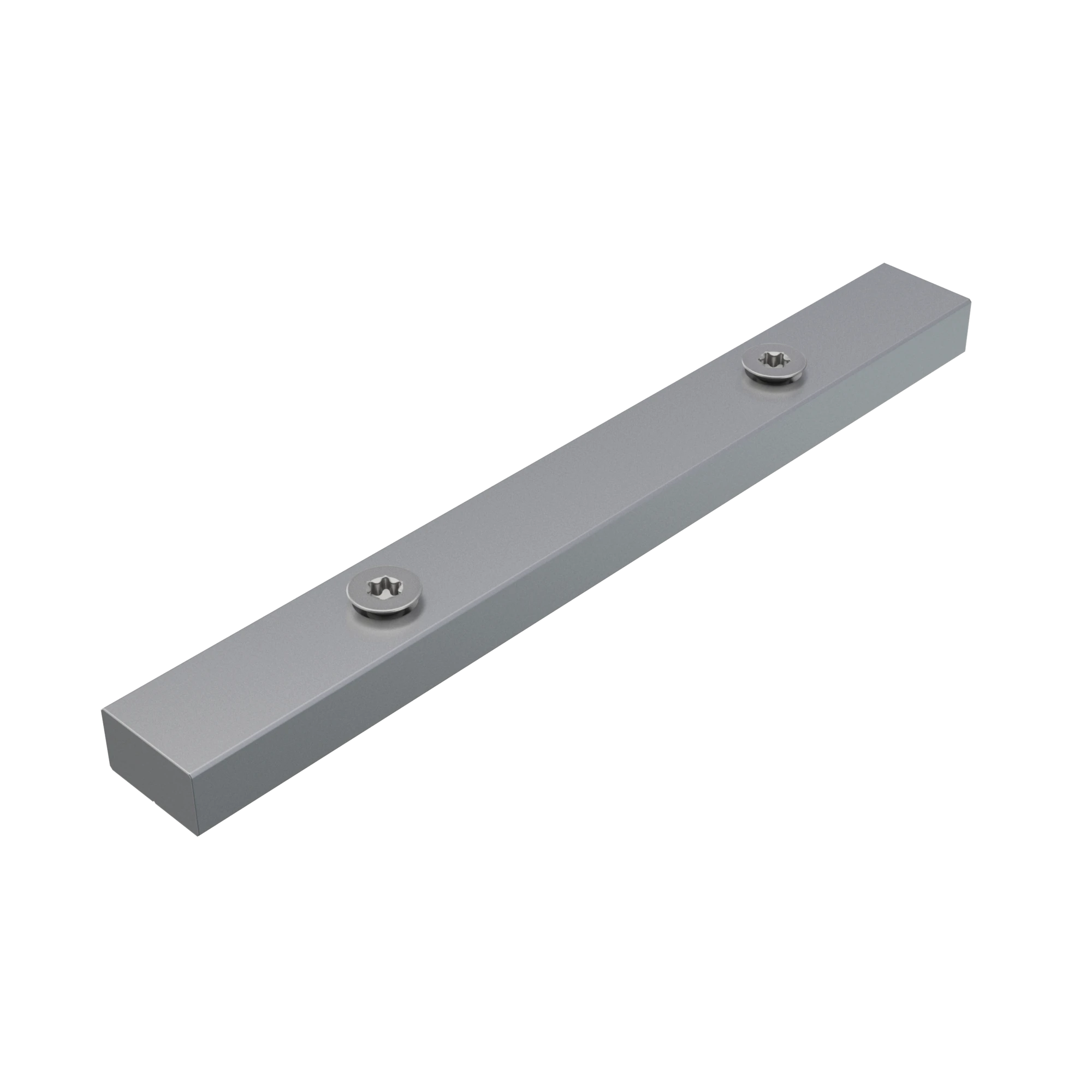

Internal connector

OL 240.00

straight

lock chamber 21 × 12 mm

L 180 × W 21 × H 12 mm

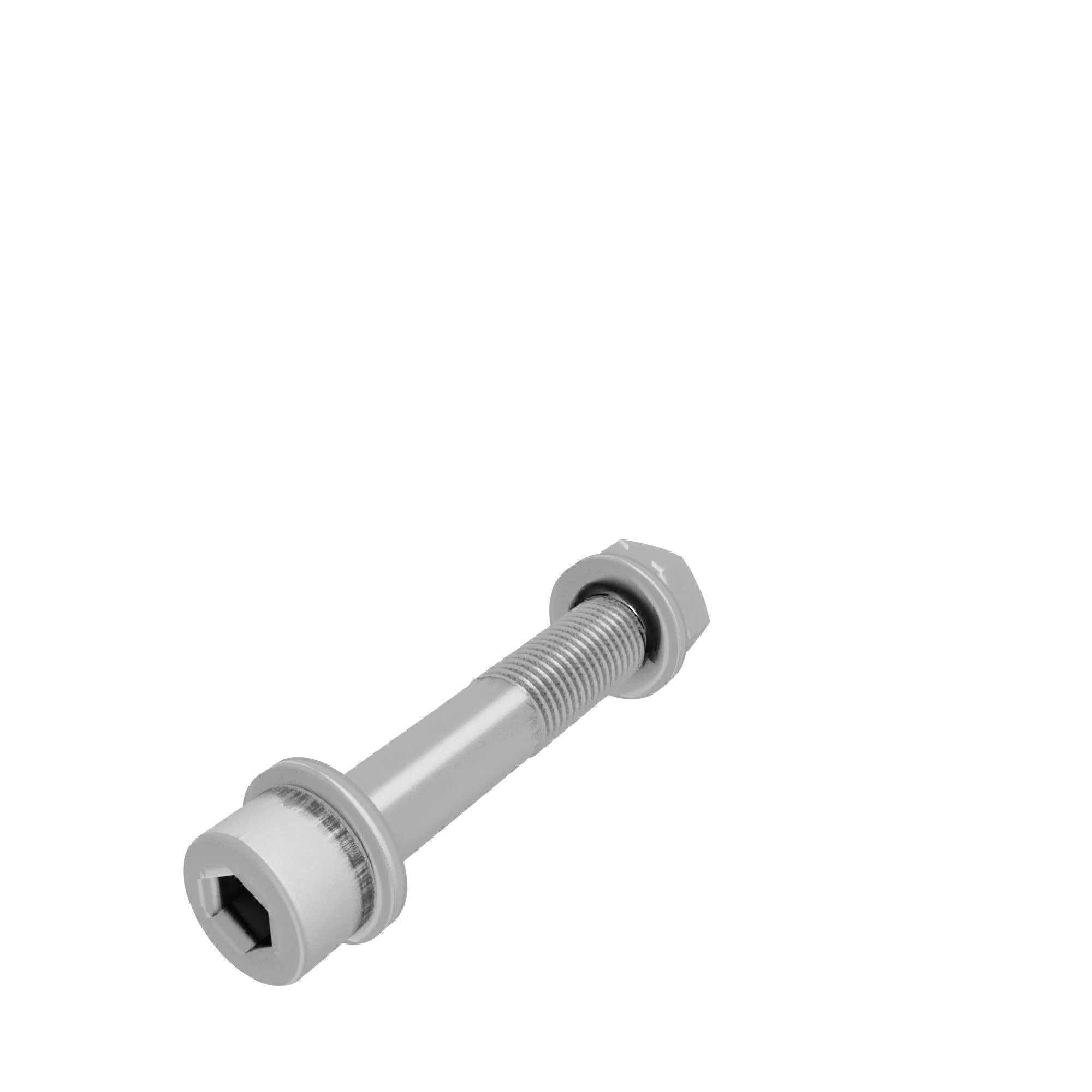

Fixing set

OL 2860.37

for octalumina plus frames

M6 × 40 mm

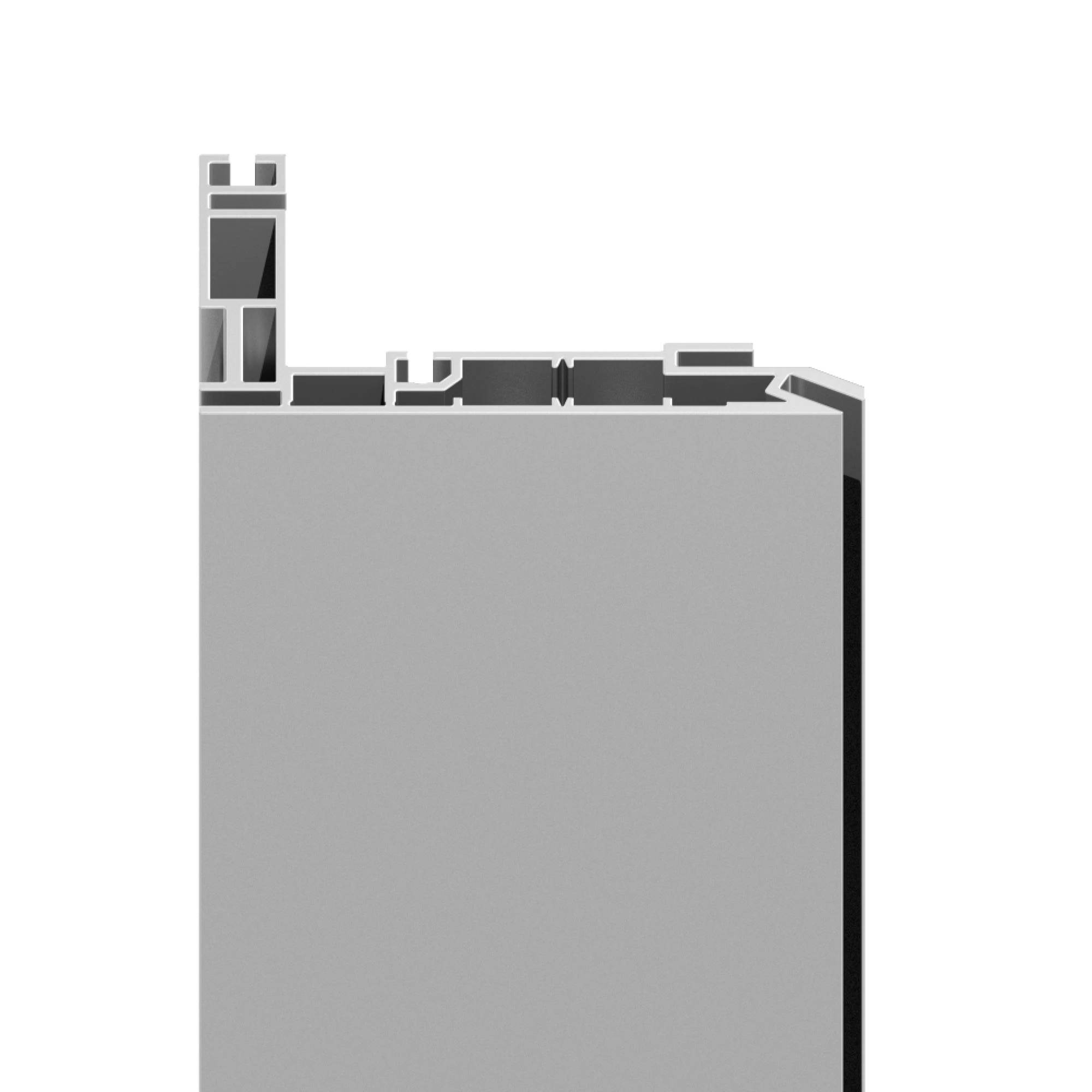

Tension fabric extr.

U 1060.01

plus, 90°

for several fabric layers

L 6000 × W 120 × H 66 mm

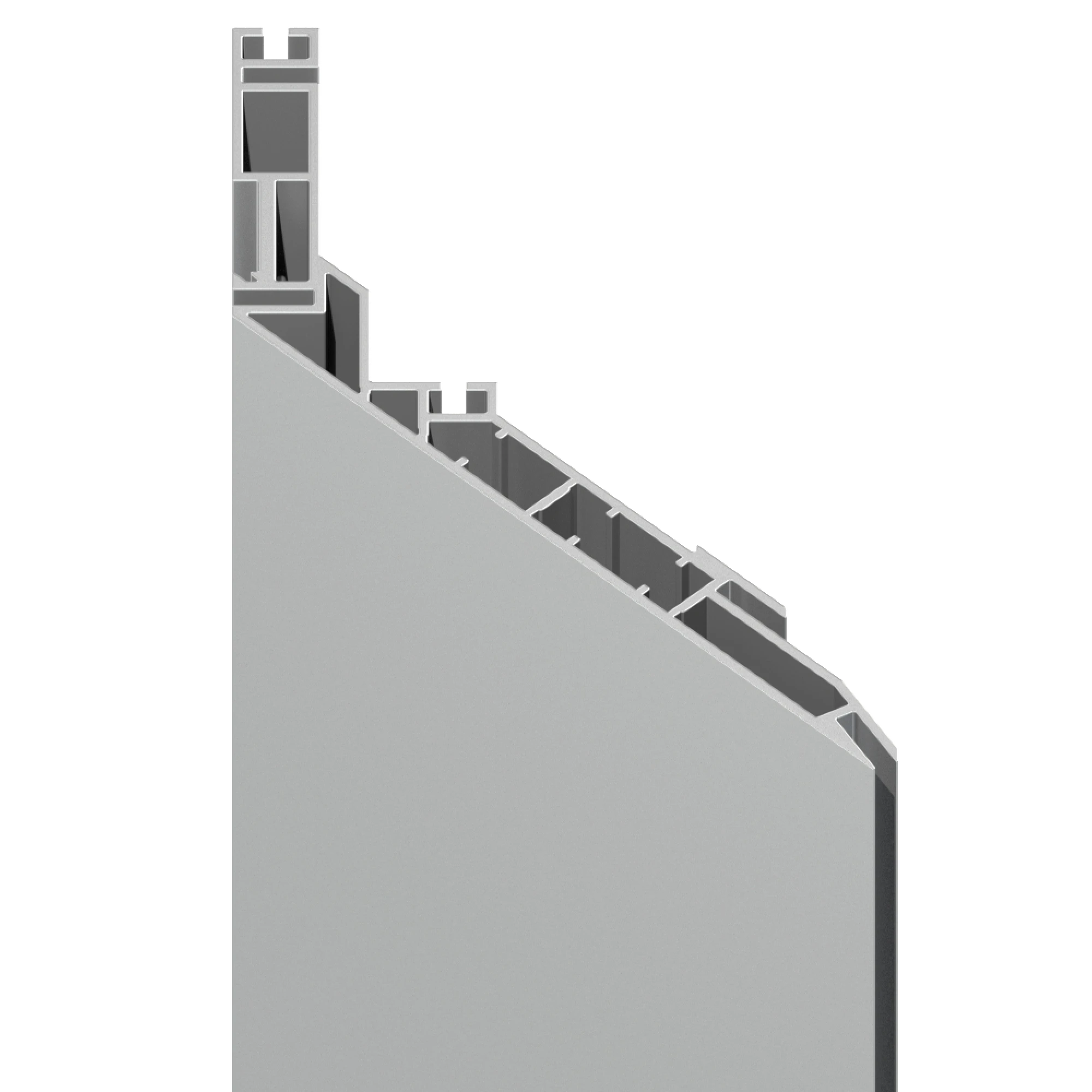

Tension fabric extr.

U 1063.01

plus, 45°

for several fabric layers

L 6000 × W 120 × H 73 mm

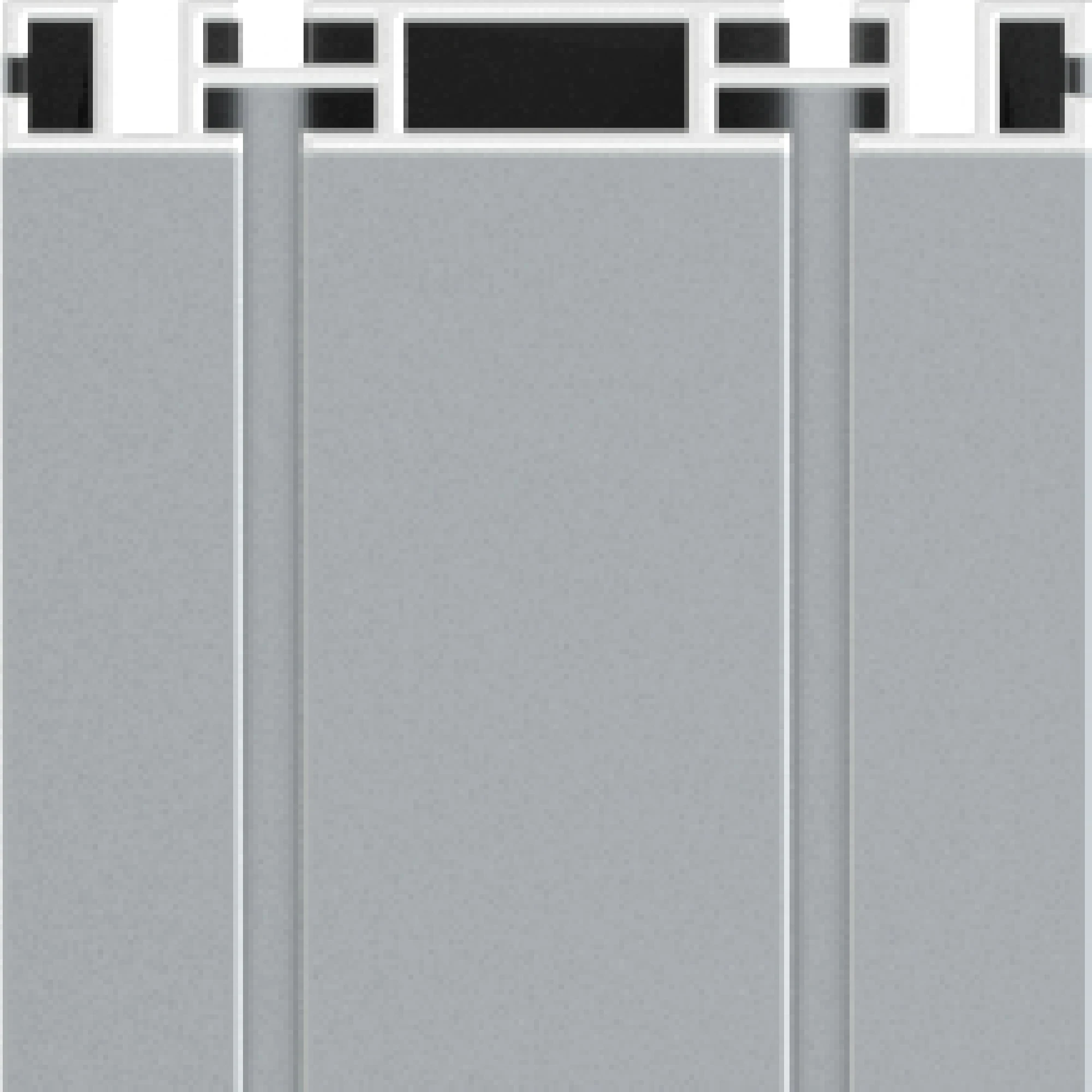

Tension fabric extr.

U 1066.85

Bracing

L 6000 × W 80 × H 16 mm

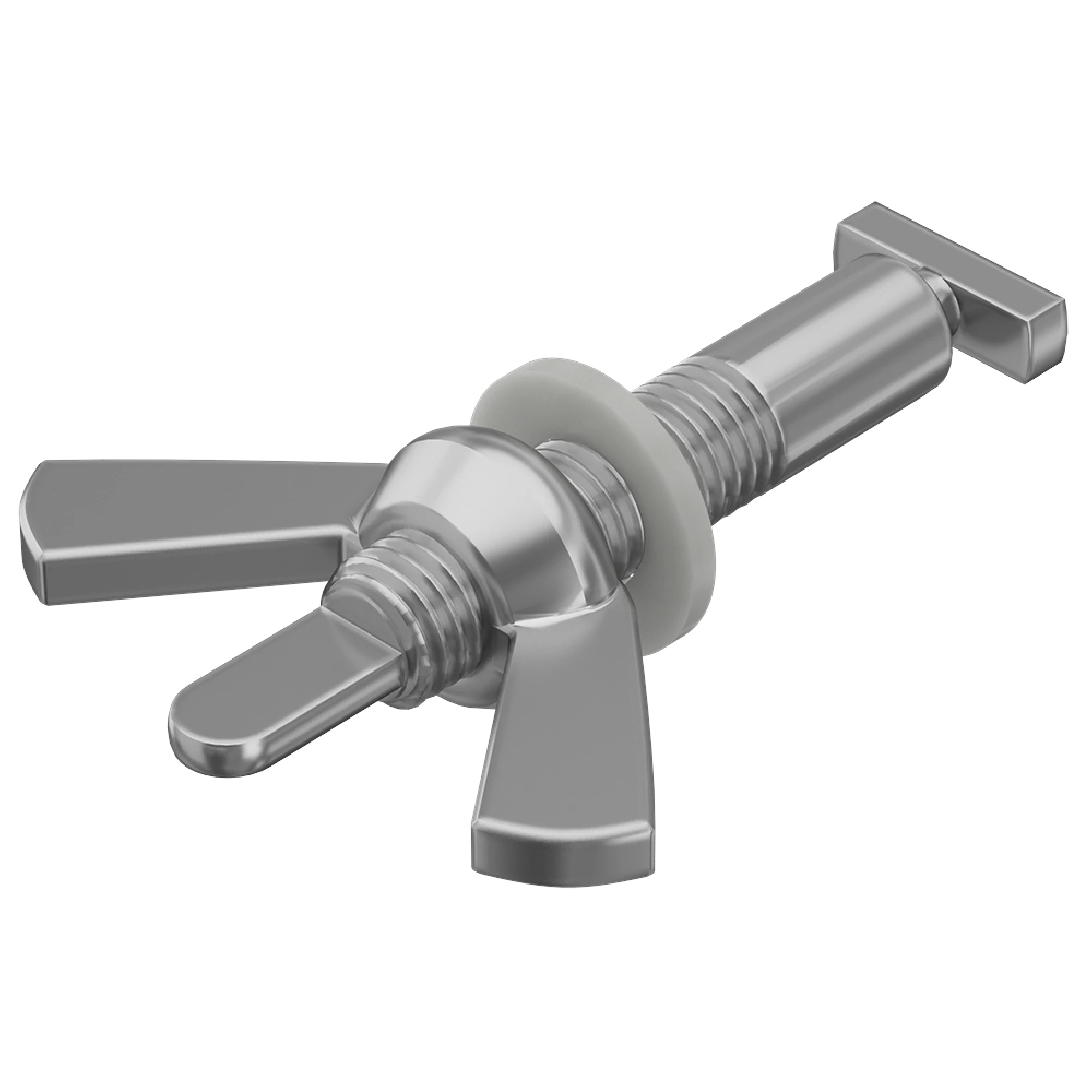

Fixing set

W 835.37

for octalumina frames

L 57 × W 30 × H 30 mm

Beam extrusion

Z 4400.01

2 system grooves

L 5000 × W 40 × H 16 mm

Tension lock

Z 961/13.00

13 mm

L 70 × W 21 × H 13 mm

Internal connector

Z 977.90

straight, toolless

lock chamber 21 × 12 mm

L 180 × W 21 × H 12 mm

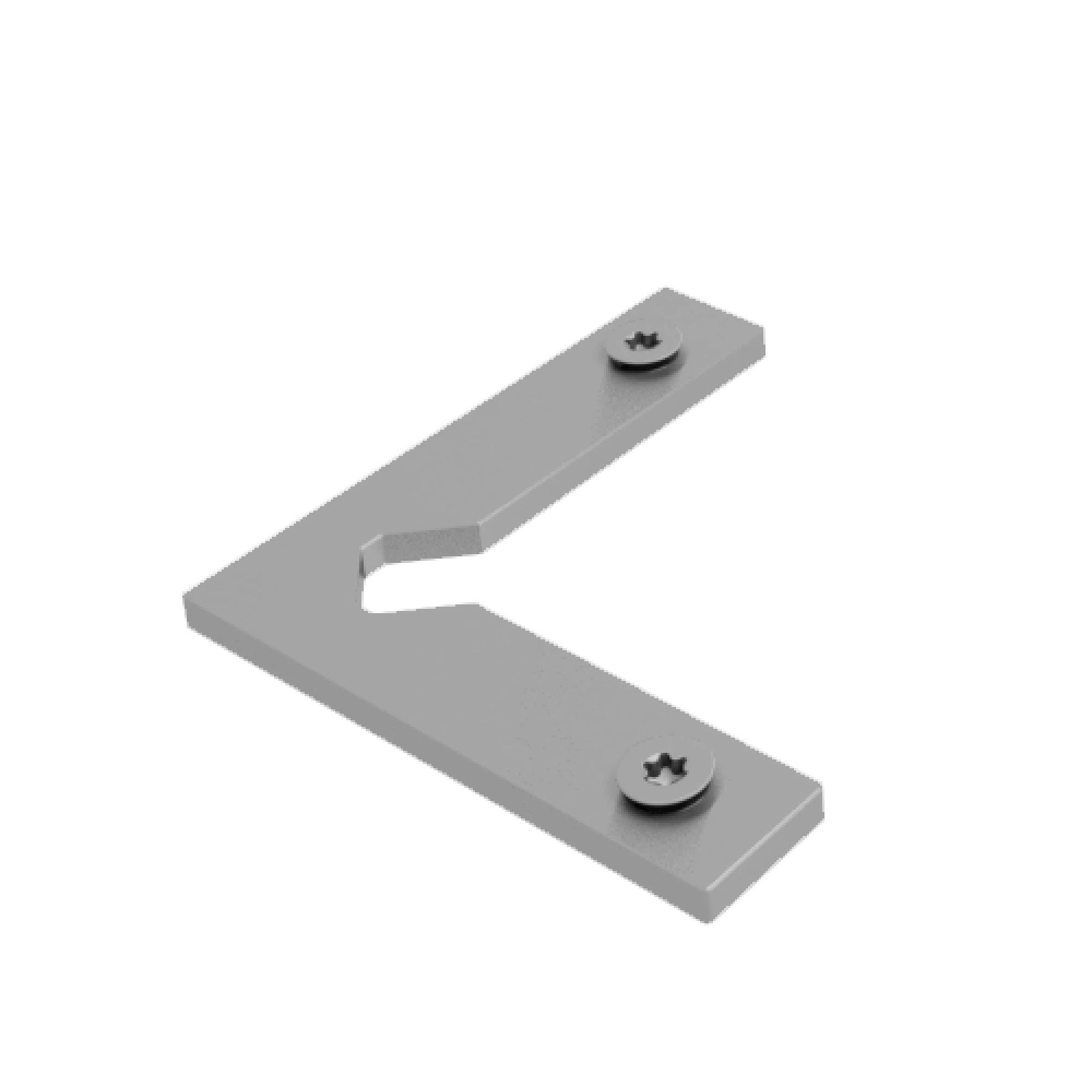

Corner connector

Z 981.37

90°

for extrusion U 1060 / U 1063

L 90 × W 90 × H 5 mm

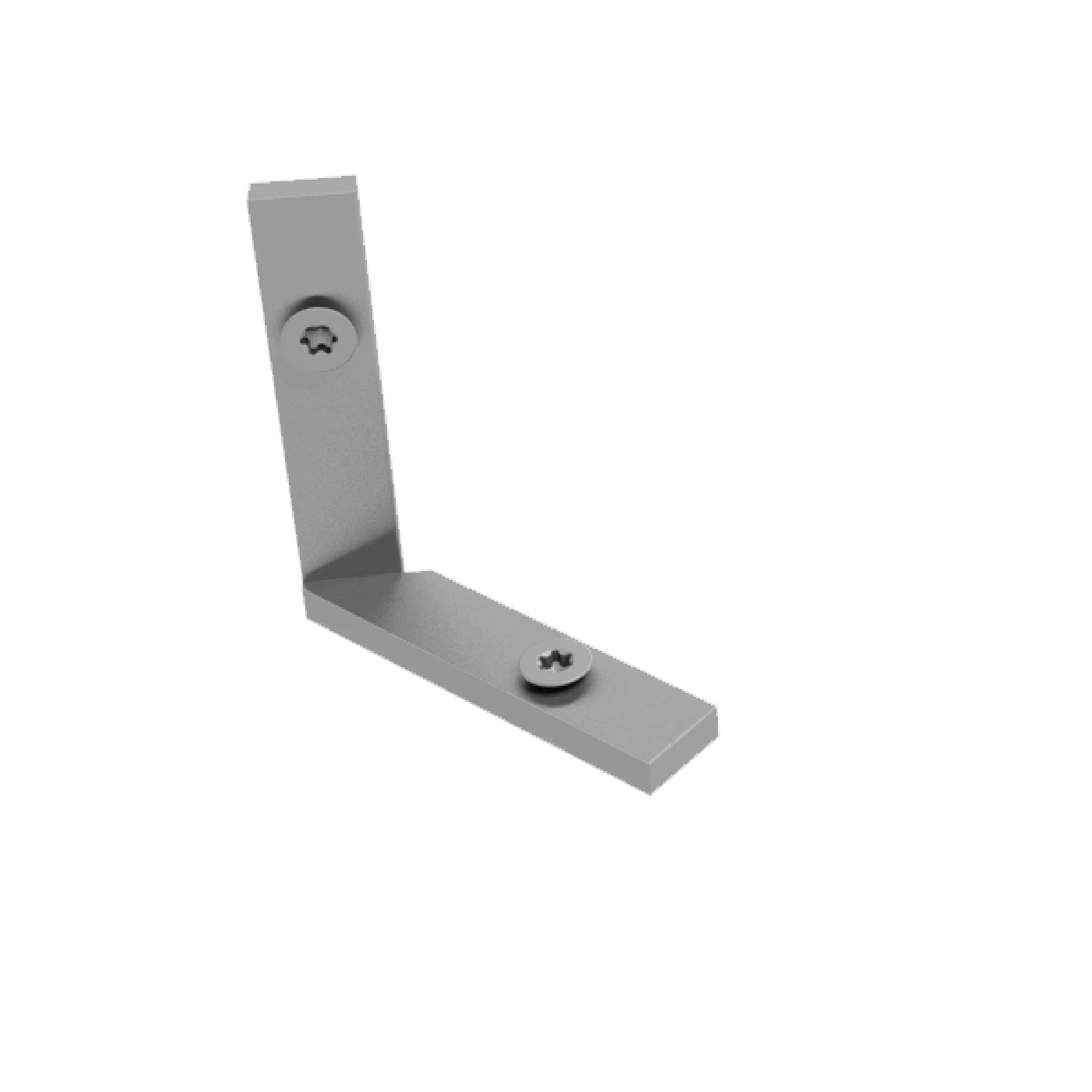

Corner connector

Z 982.00

90°, left

for extrusion U 1060 / U 1063

L 75 × W 73 × H 5 mm

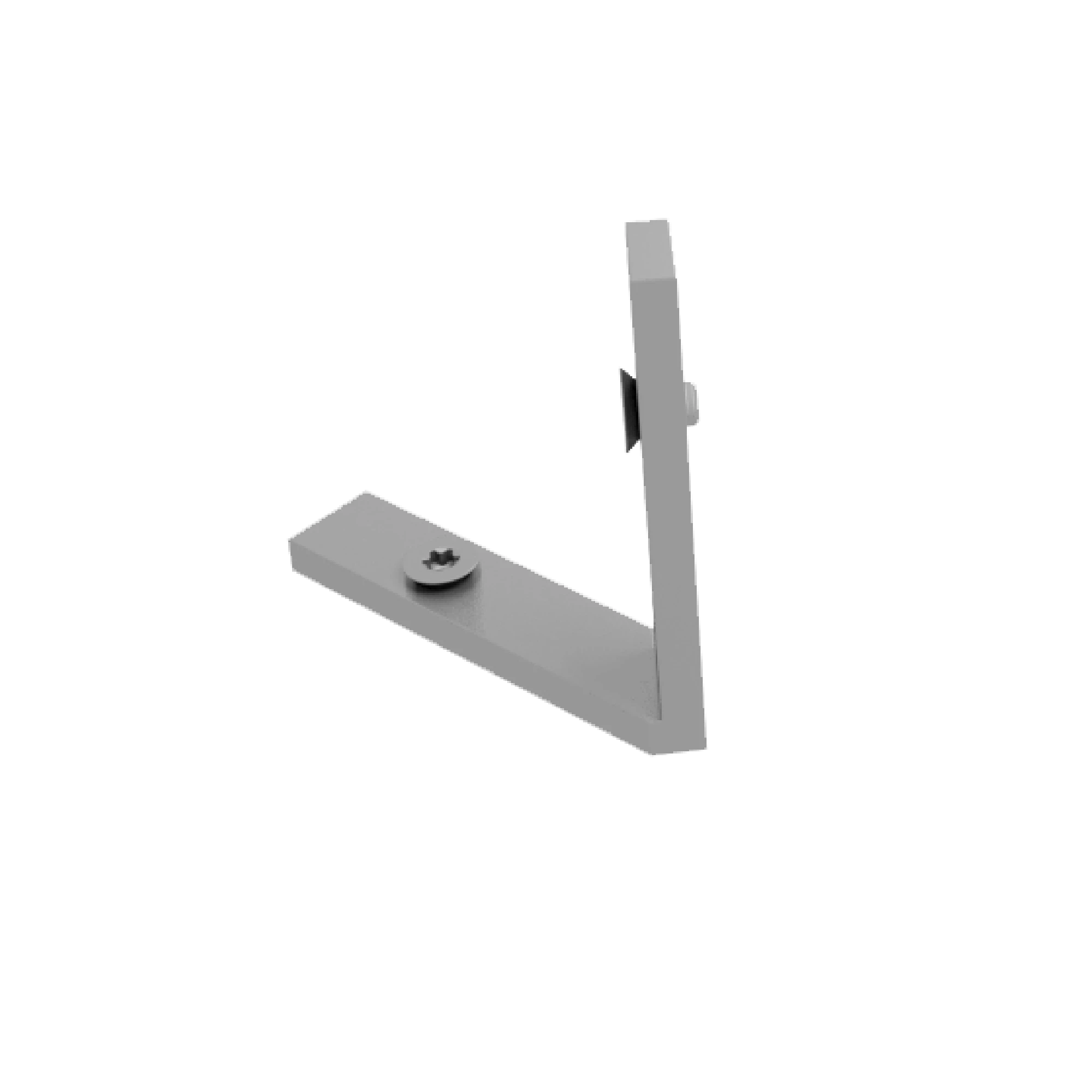

Corner connector

Z 983.00

90°, right

for extrusion U 1060 / U 1063

L 75 × W 73 × H 5 mm

Corner connector

Z 990.00

90°

lock chamber 21 × 12 mm

L 96 × W 96 × H 12 mm

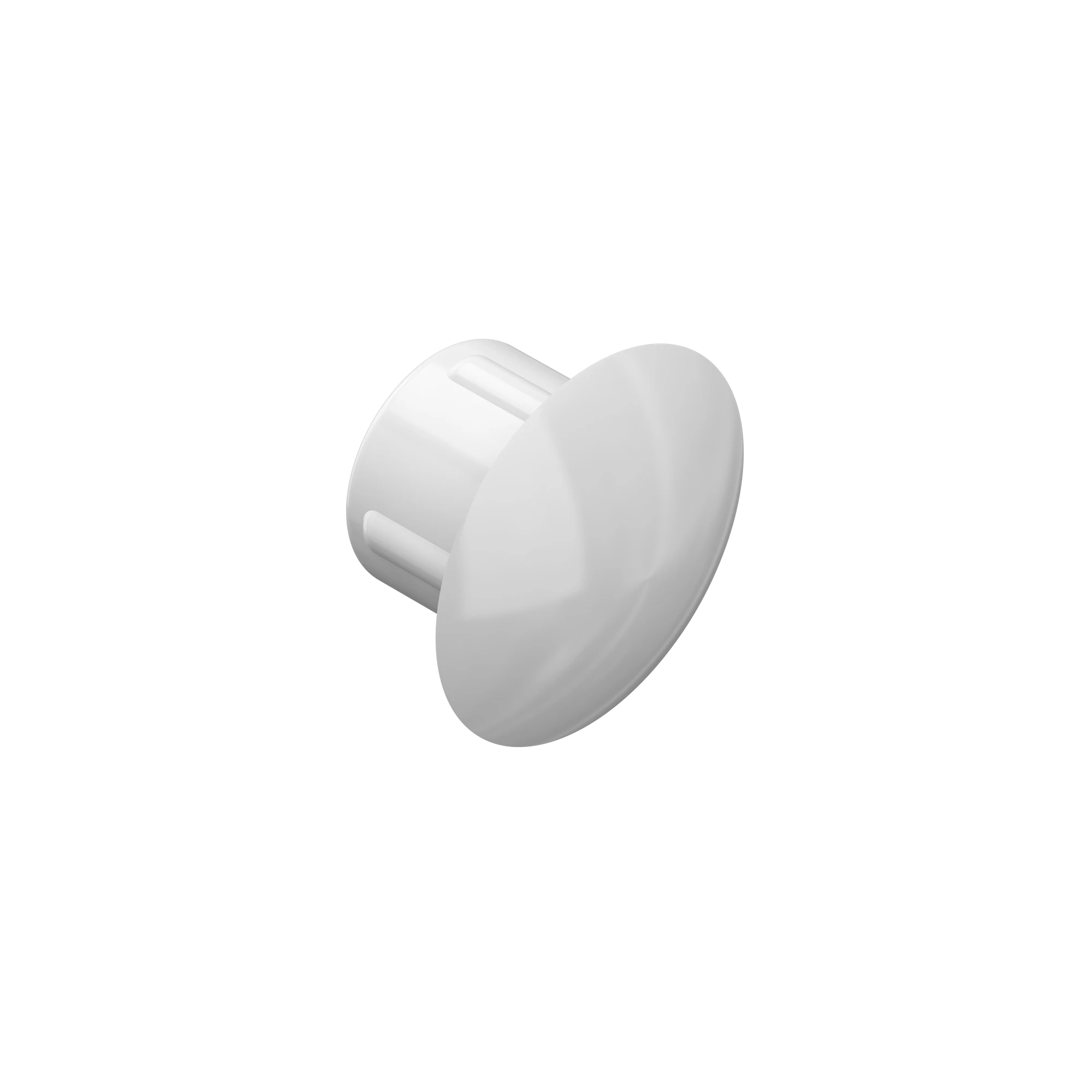

End cap

M 1491.35

for drill hole 8 mm dia.

L 13 × W 13 × H 12 mm

End plate

M 261.21

for 80 mm extrusions

for M 260

L 120 × W 120 × H 6 mm

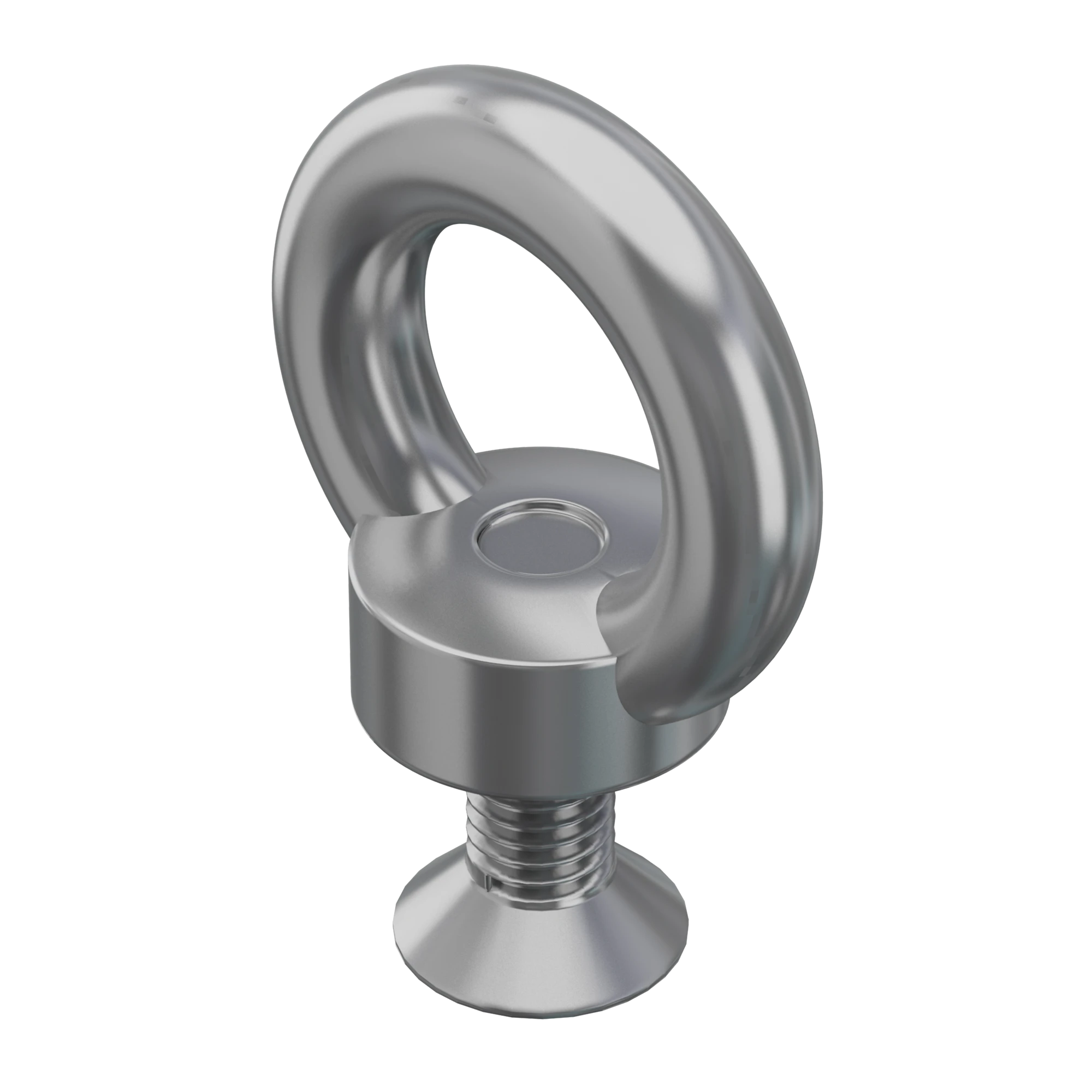

Screw eye

OL 220.37

opening 20 mm dia.

for ceiling suspension

L 36 × W 36 × H 25 mm

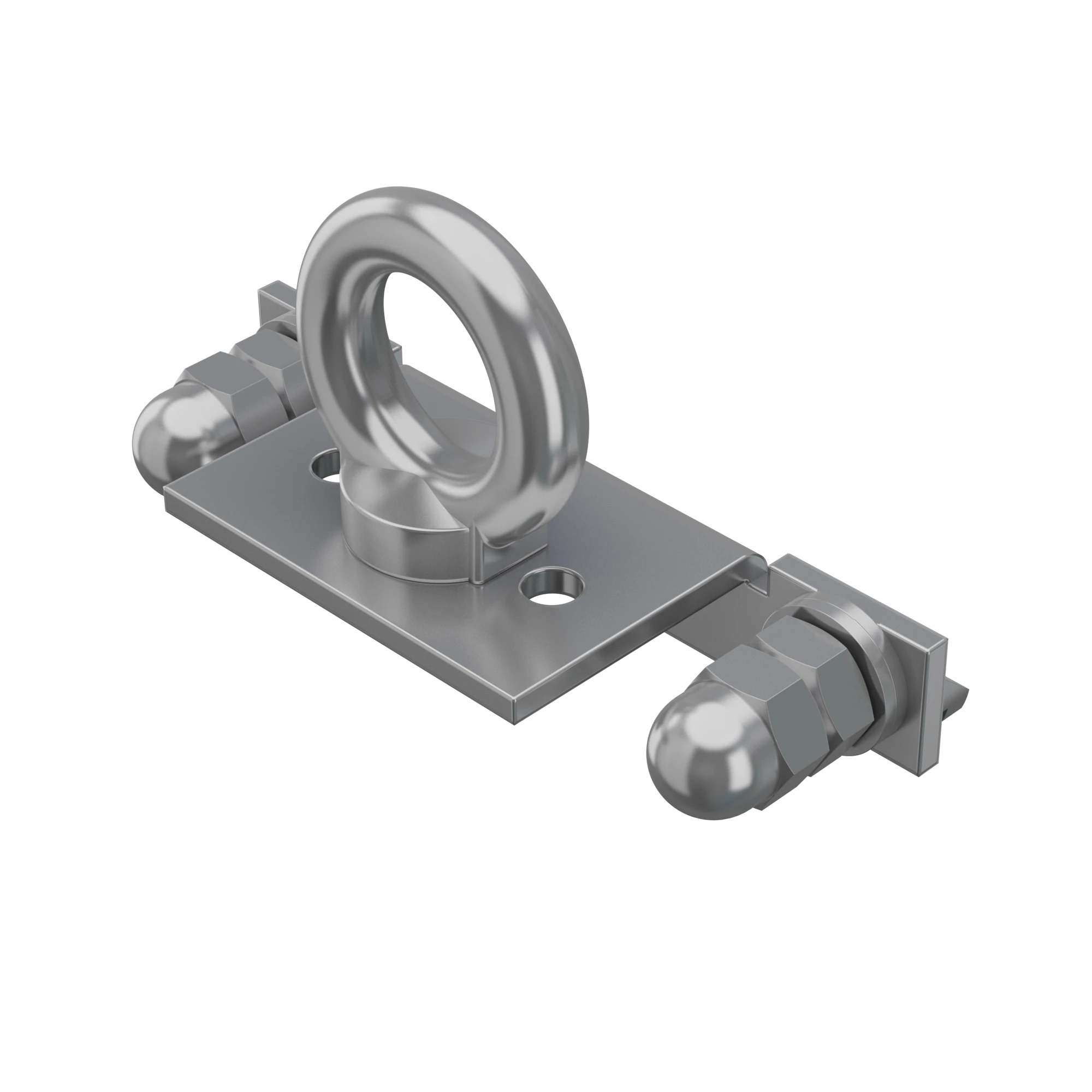

Universal retainer

OL 234.37

ceiiling suspension/wall mount

for extrusions M 1915/M 1935

L 95 × W 35 × H 35 mm

Adjustable foot

W 2850.37

M10

L 60 × W 60 × H 75 mm

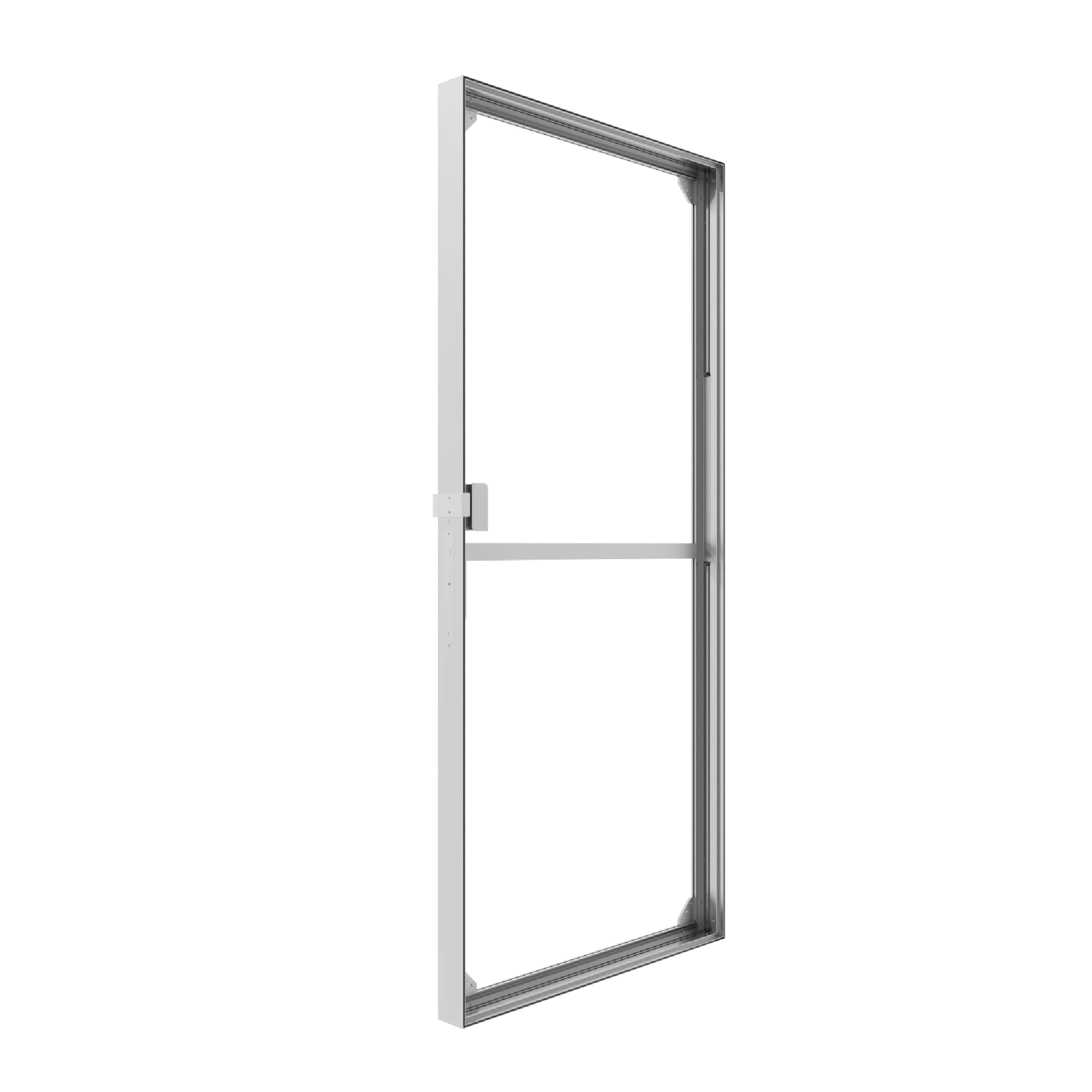

Door

OL 895.90

without illumination

W 896 × H 1991 × D 80 mm

Door frame

OL 897.90

W 1046 × H 2066 × D 80 mm

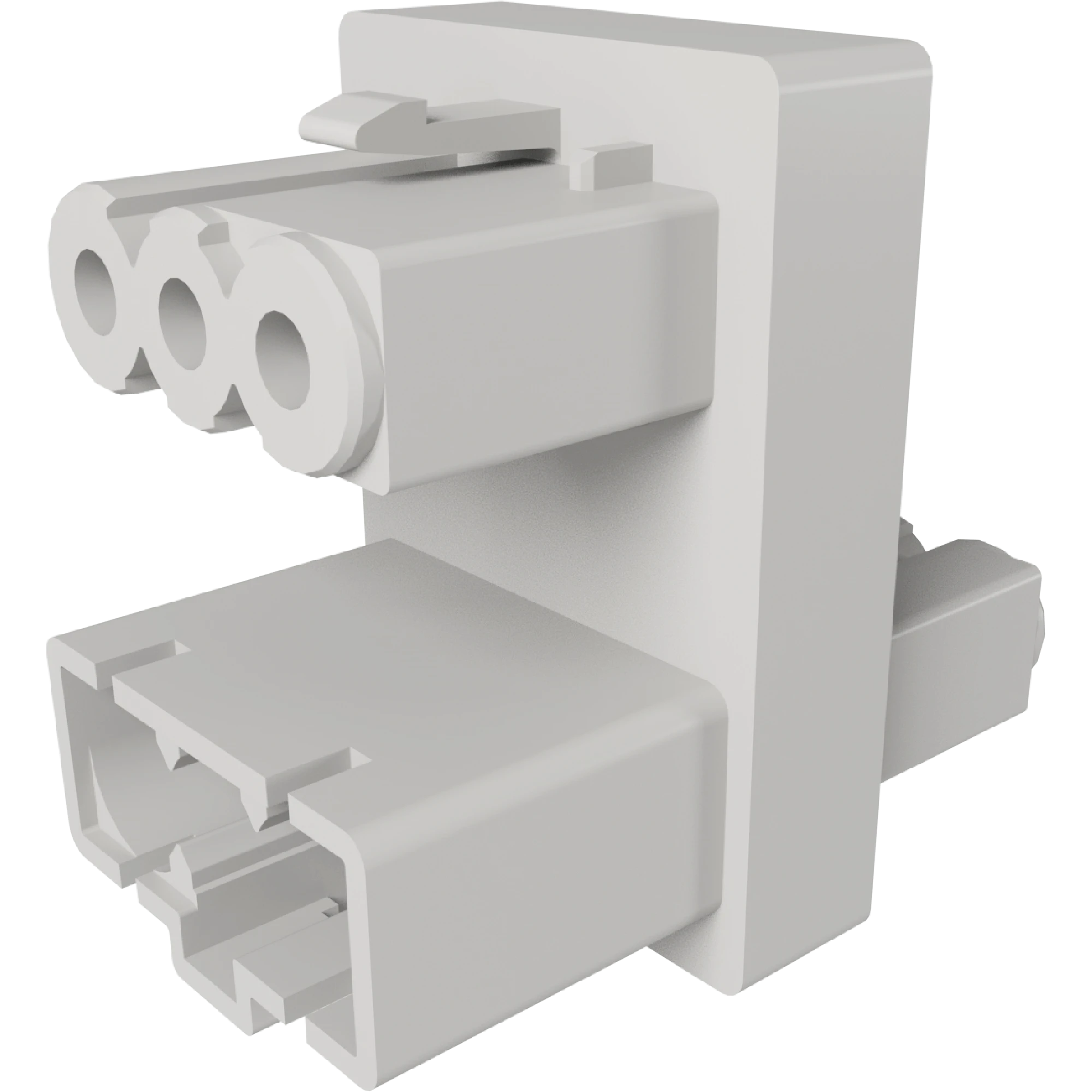

Distributor block

DL 142.90

250 V/16 A

for 3 × PSU

L 36 × W 22 × H 33 mm

Power supply

OL 100.90

100 W

for LEDs

L 200 × W 65 × H 39 mm

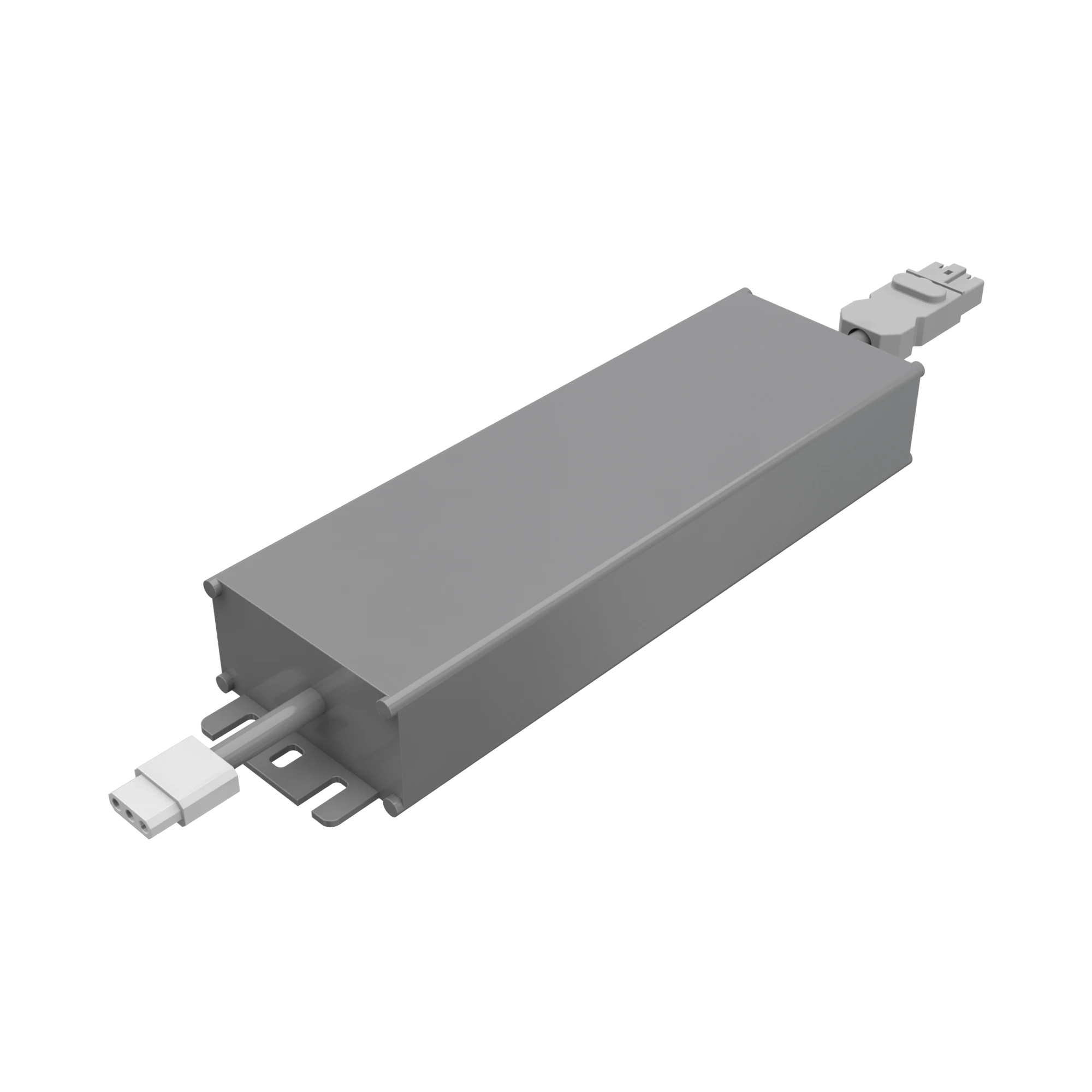

Power supply

OL 102.90

150 W

for LEDs

L 228 × W 68 × H 39 mm

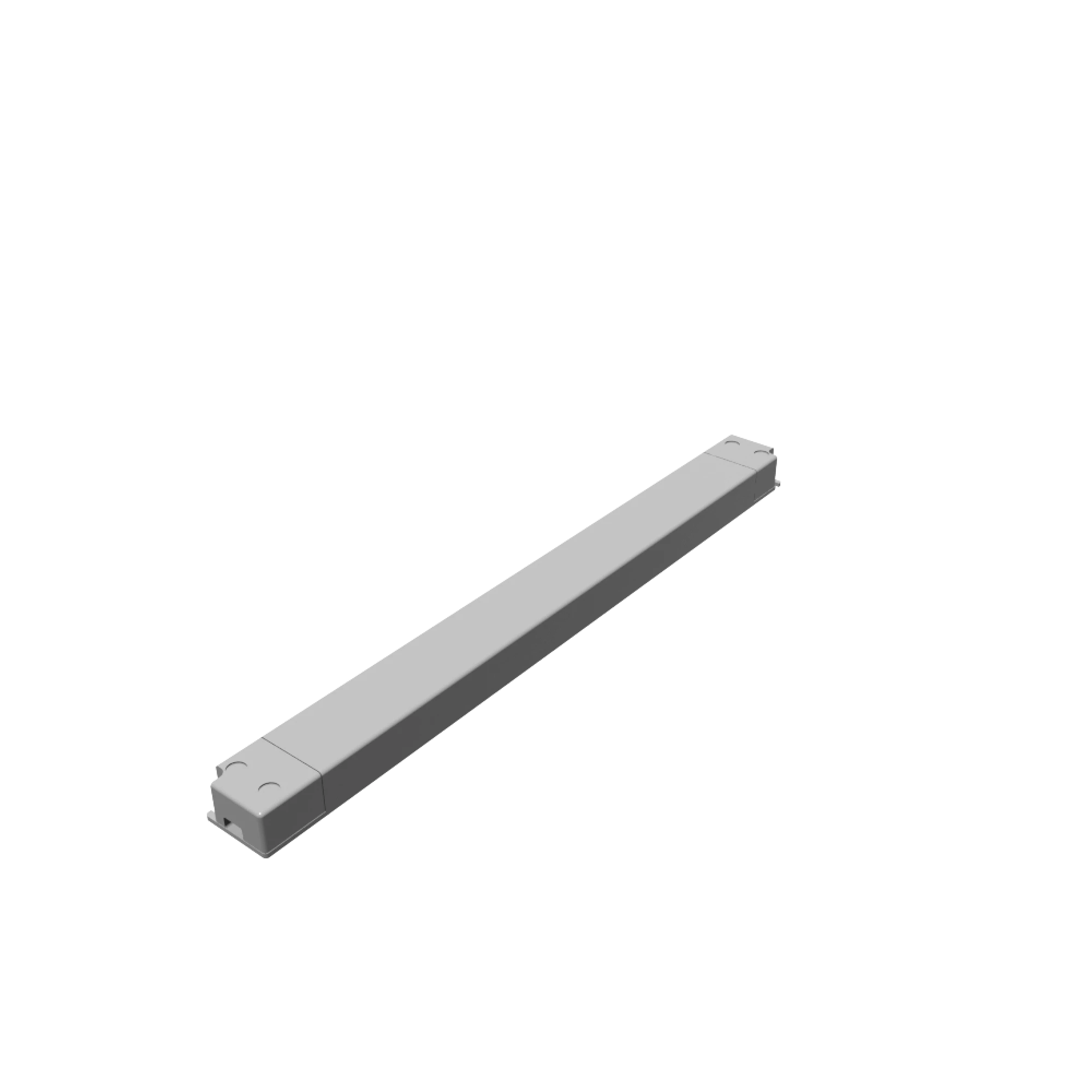

Power supply

OL 104/1.90

100 W (Slim Line)

installation in frame

L 298 × W 30 × H 16.5 mm

Power supply

OL 106/1.90

150 W (Slim Line)

installation in frame

L 320 × W 30 × H 22 mm

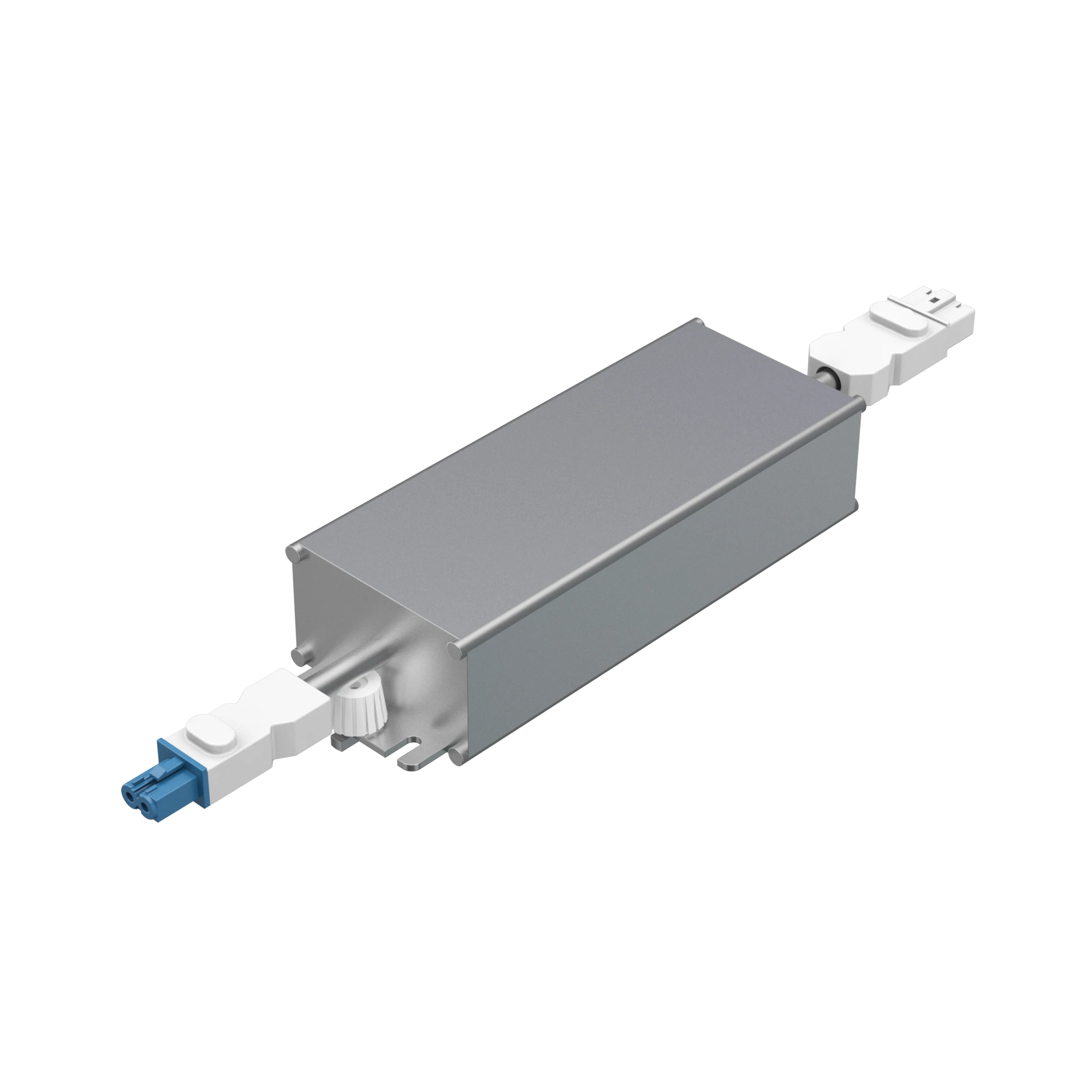

Power supply

OL 108.90

60 W

for LEDs

L 171 × W 62 × H 37 mm

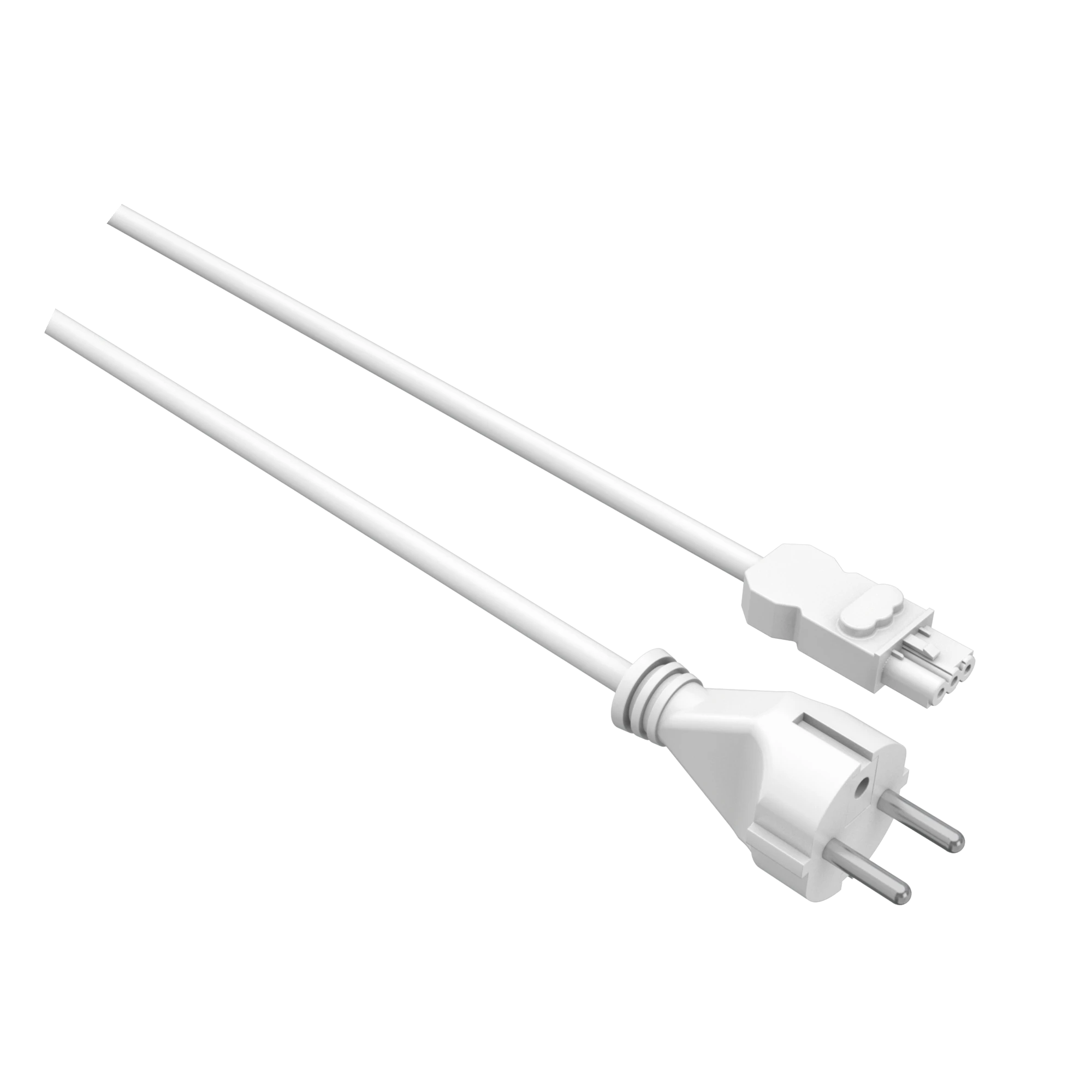

Power cable

OL 122.90

for LED PSU

2000 mm long

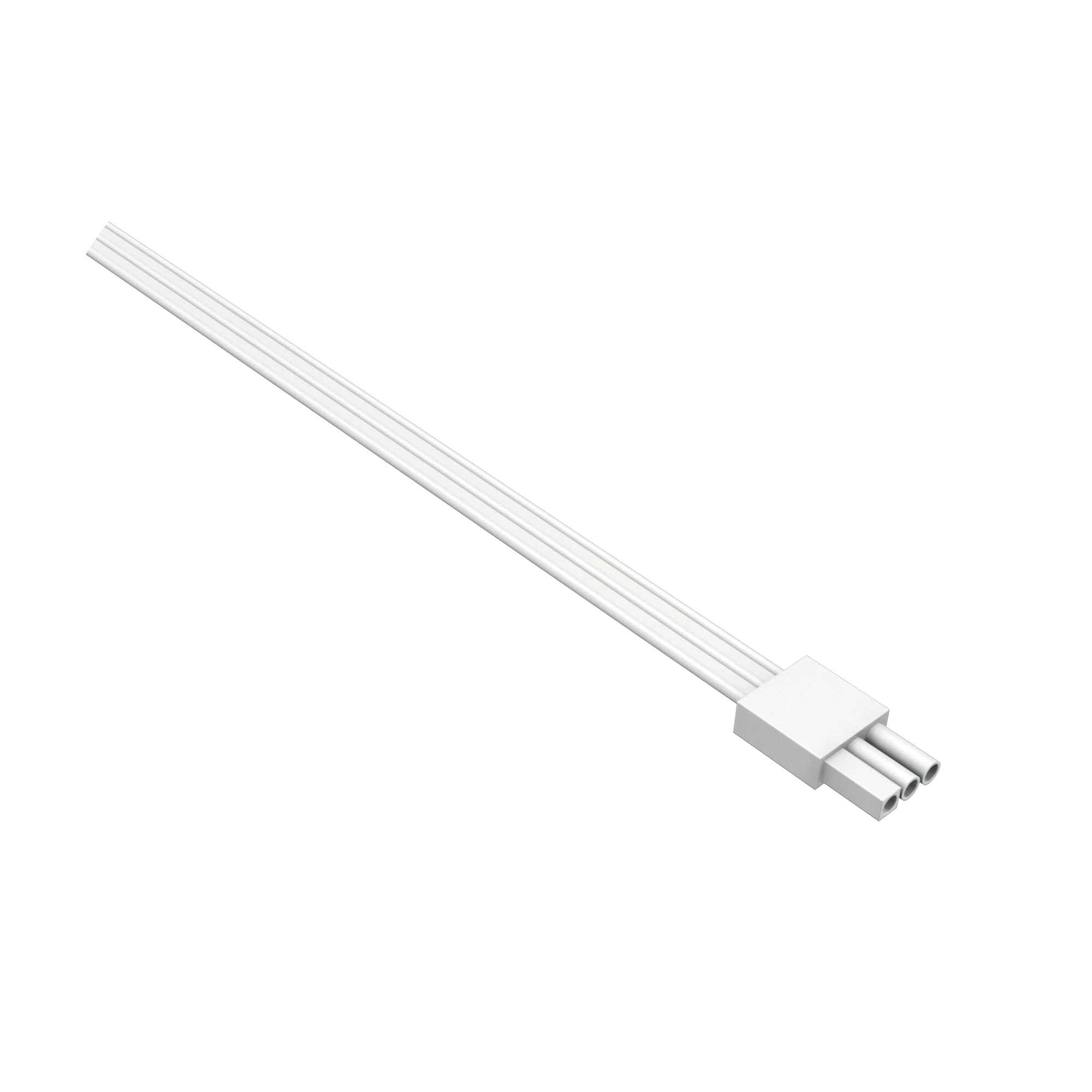

Extension cable

OL 131-1.90

internal, 24 V

300 mm long

Extension cable

OL 133-1.90

internal, 24 V

500 mm long

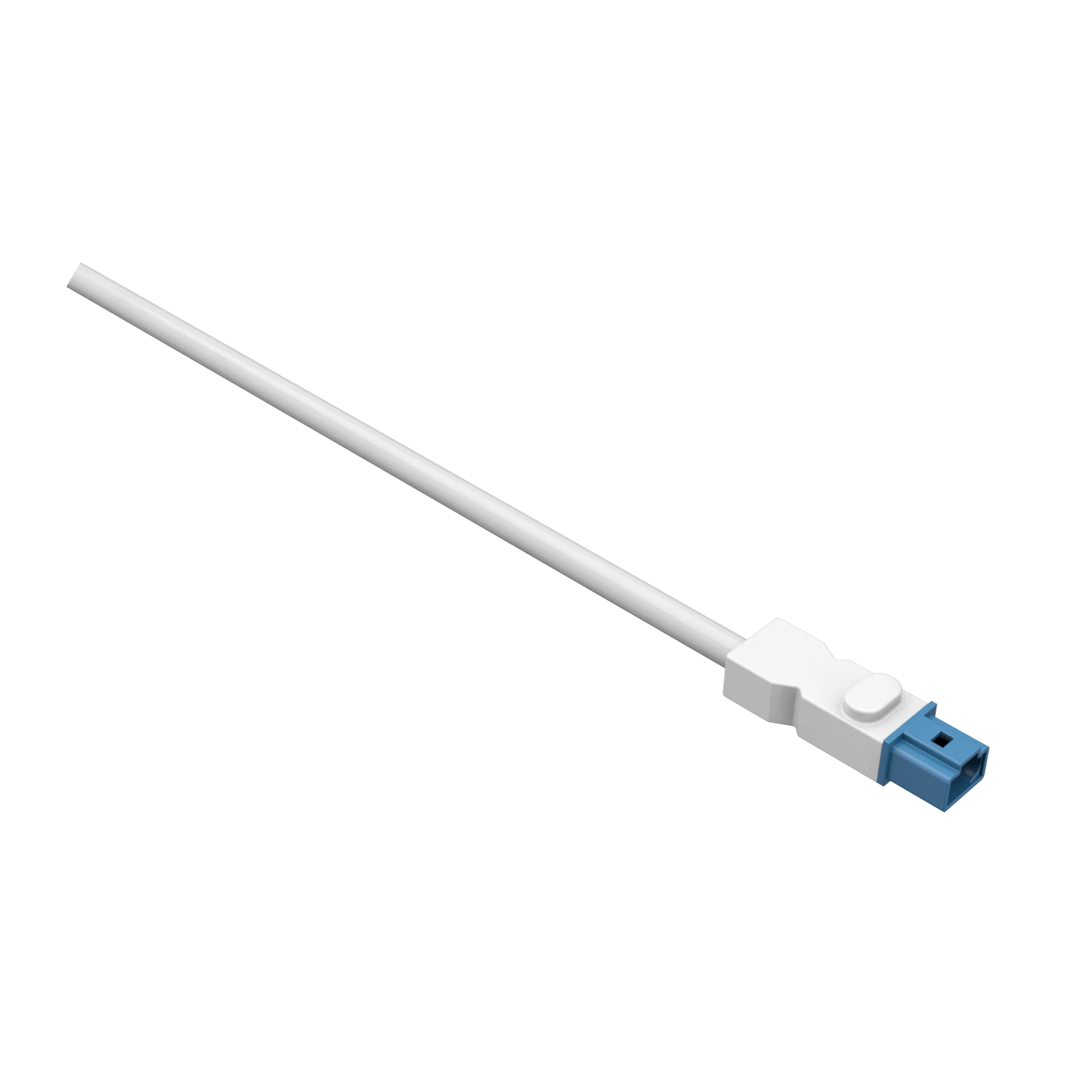

Connecting cable

OL 139.30

external, 24V

1000 mm long

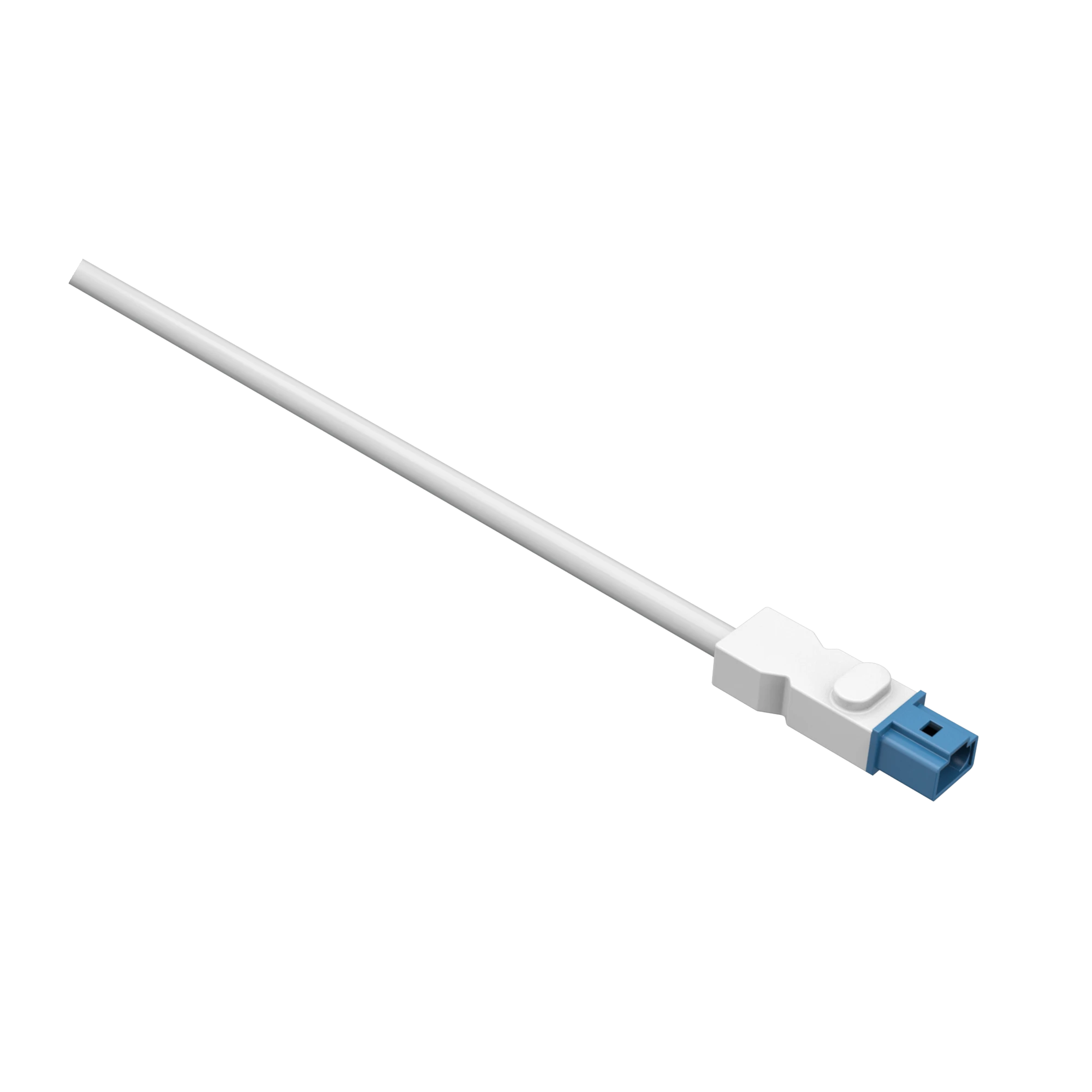

Connecting cable

OL 140.30

external, 24V

3000 mm long

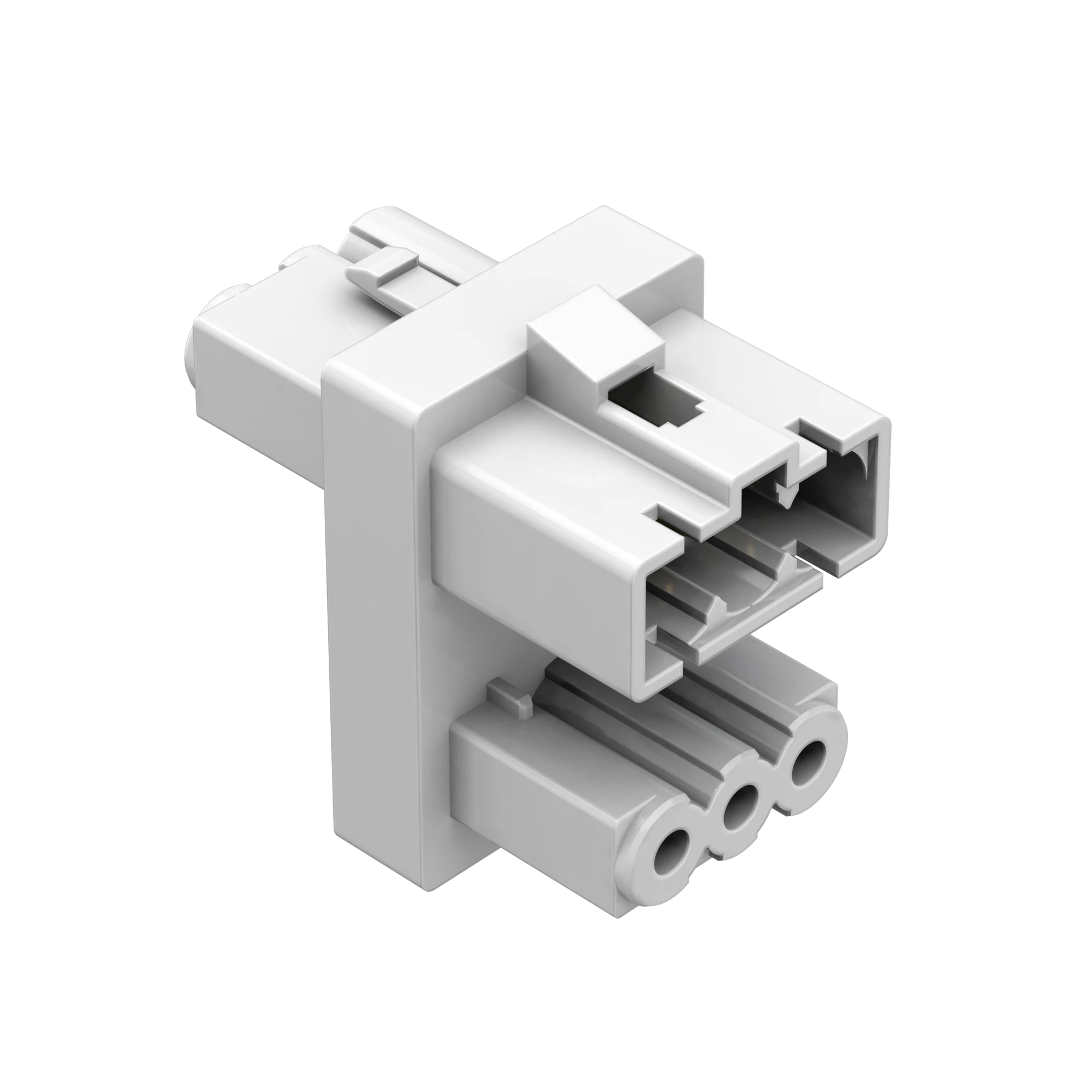

Distributor block

OL 142.90

250 V/16 A

for 2 × PSU

L 32 × W 22 × H 35 mm

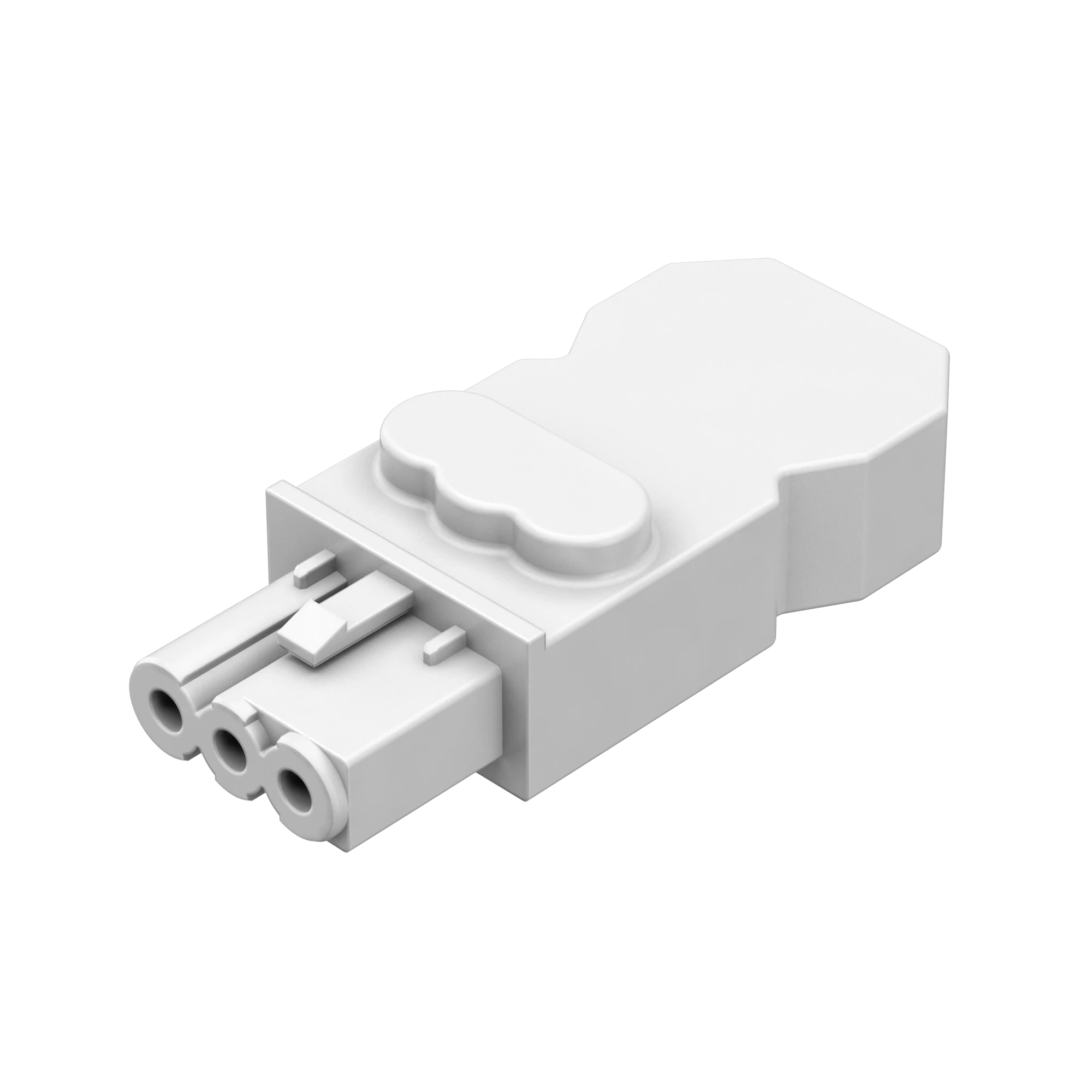

Female connector

OL 144.30

250V / 16A

for DIY assembly

L 53 × W 23 × H 14 mm

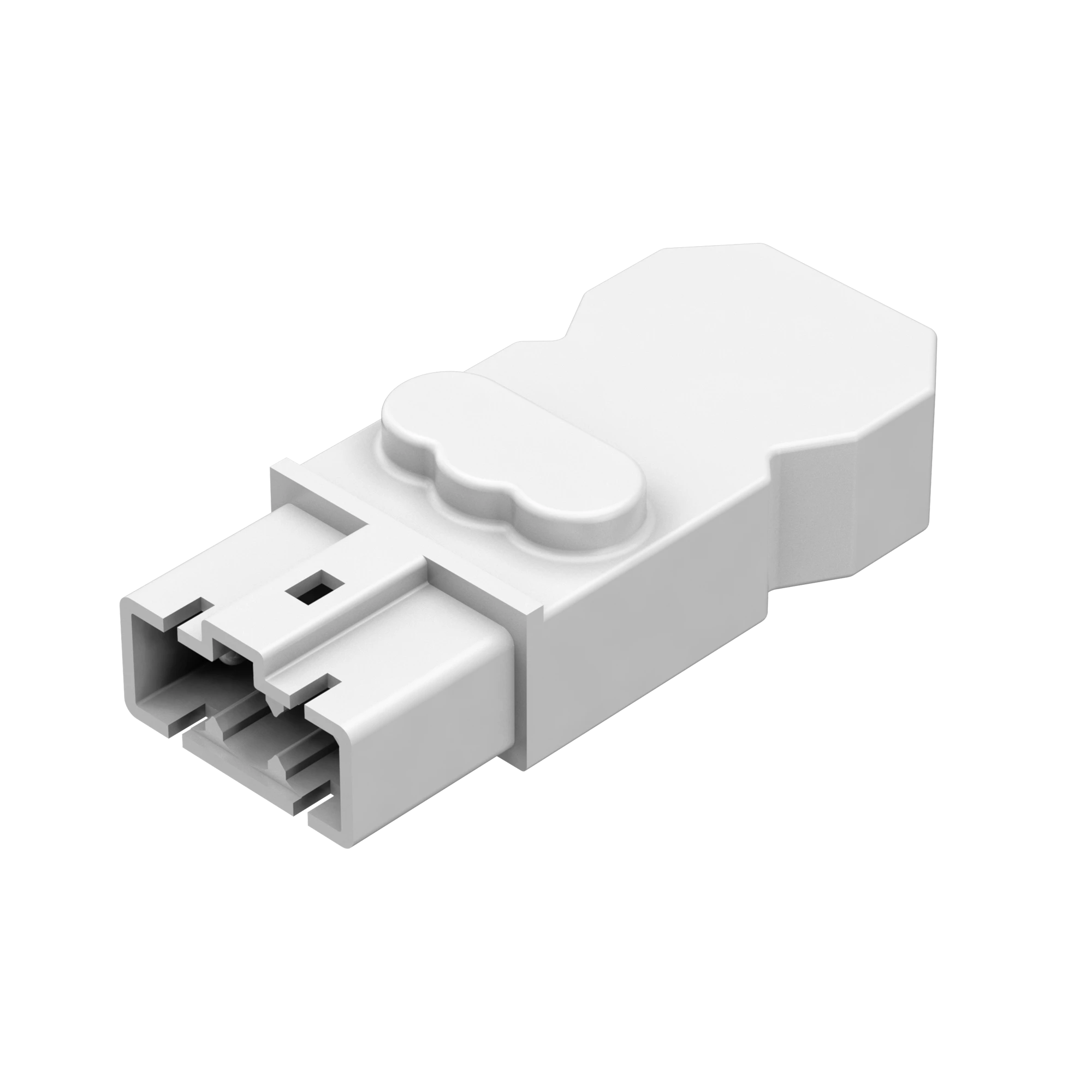

Male plug

OL 146.30

250V / 16A

for DIY assembly

L 53 × W 23 × H 14 mm

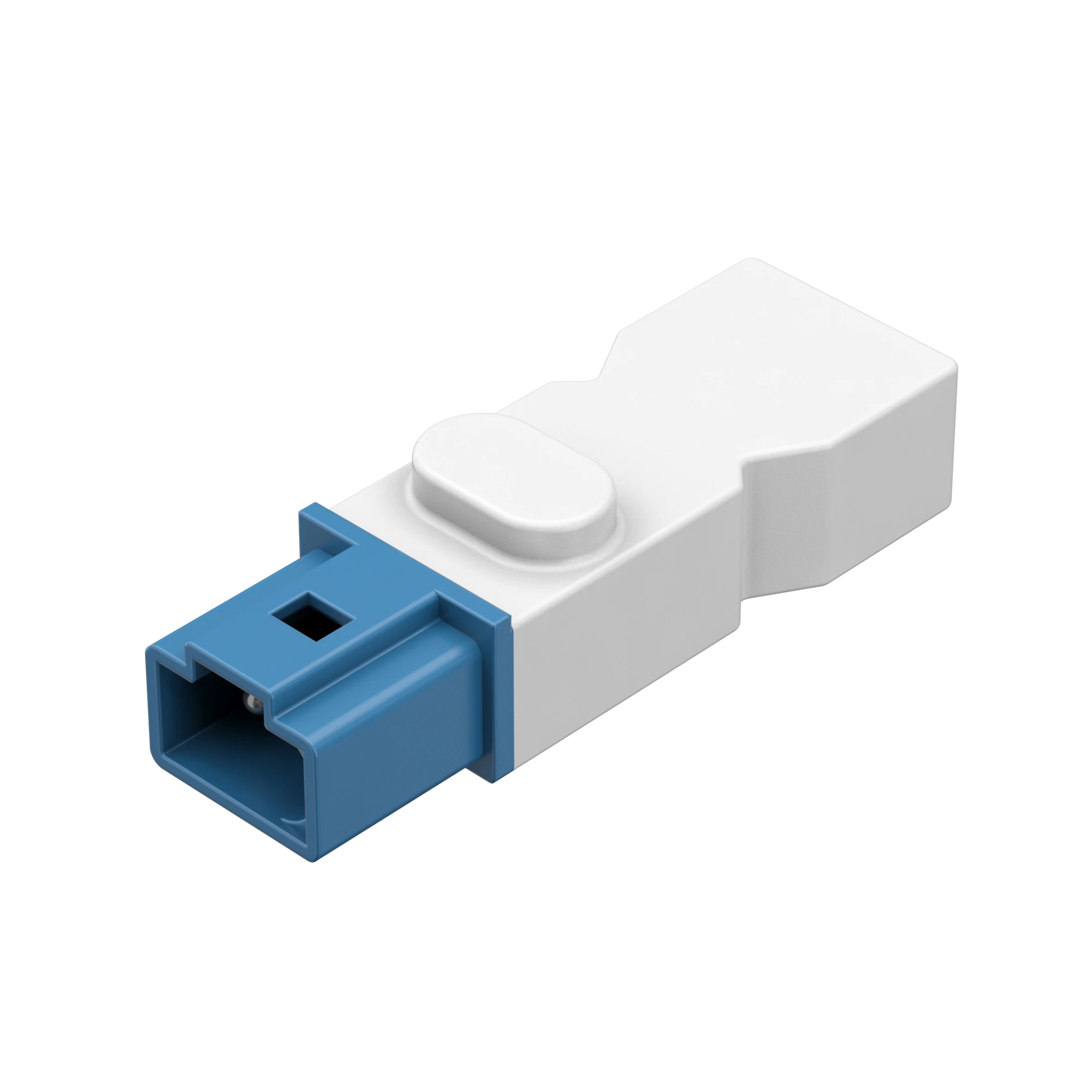

Male plug

OL 148.90

24V / 16A

for DIY assembly

L 53 × W 18 × H 14 mm

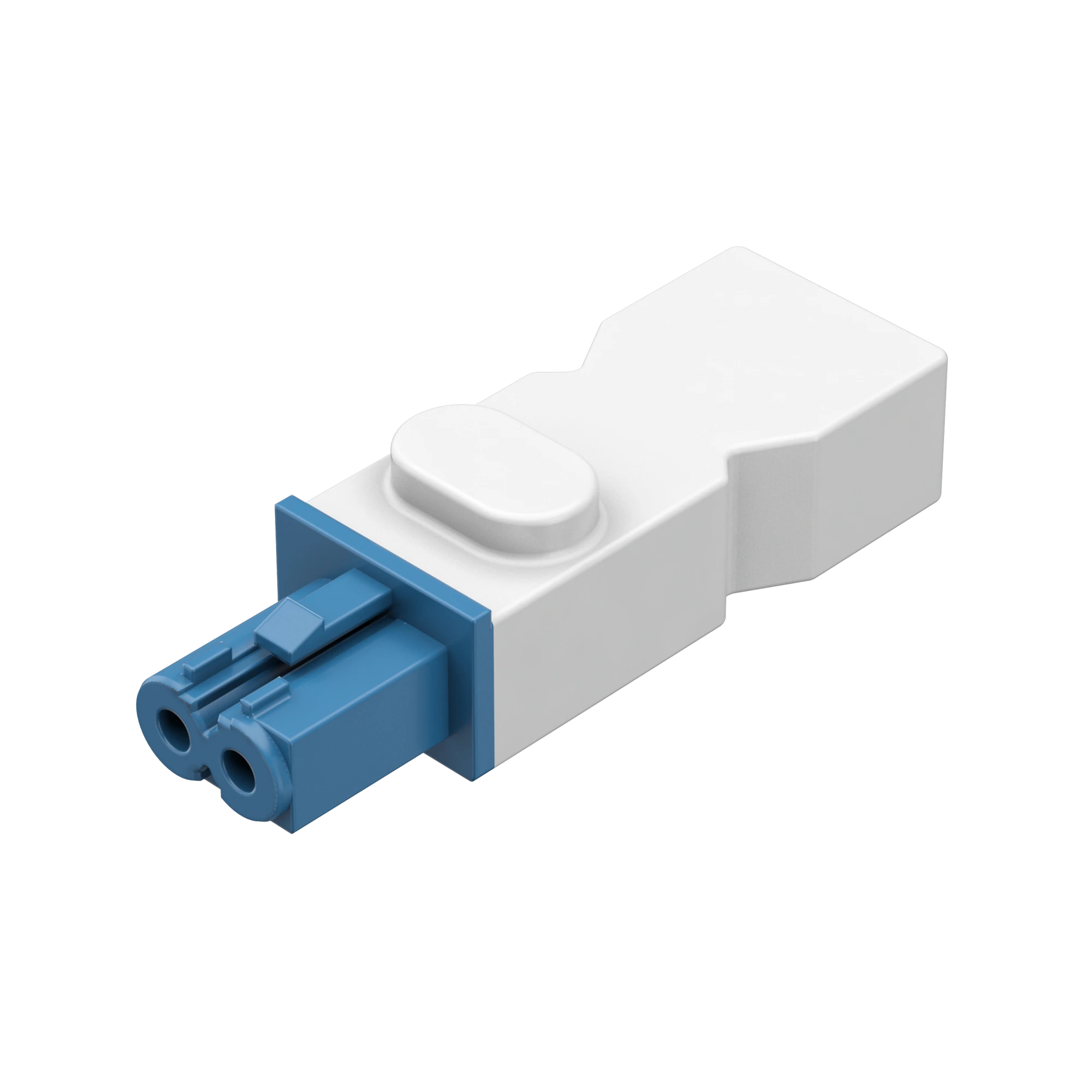

Female connector

OL 149.90

24V / 16A

for DIY assembly

L 53 × W 18 × H 14 mm

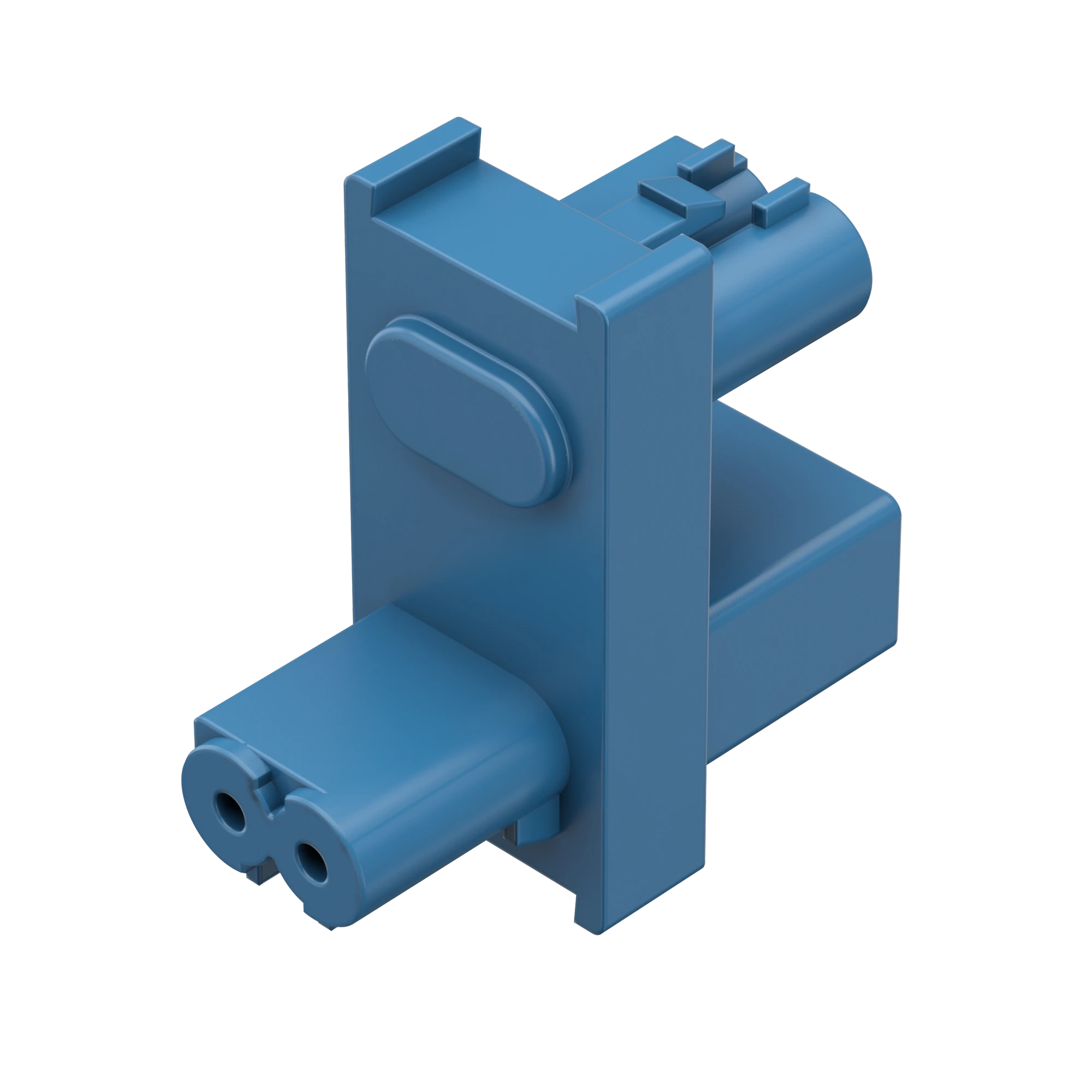

Distributor block

OL 150.30

24V / 16A

for 2 × LED module

L 35 × W 34 × H 16 mm

PWM Dimmer

OL 182.90

for OL 323-329, OL 501-504

L 135 × W 30 × H 20 mm

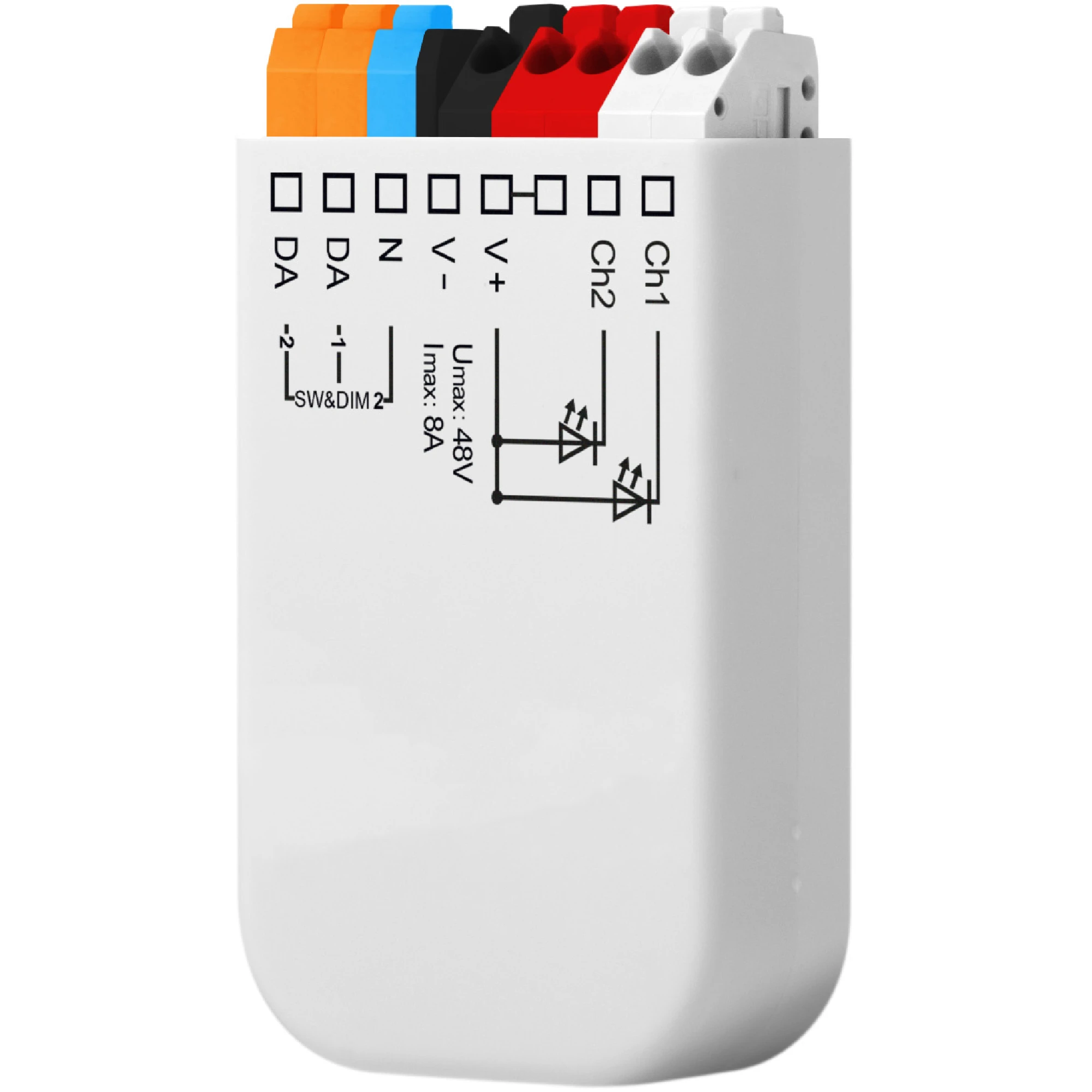

Dimmer

OL 183.90

Dali LED

for OL 323 - OL 329

L 59 × W 33 × H 15 mm

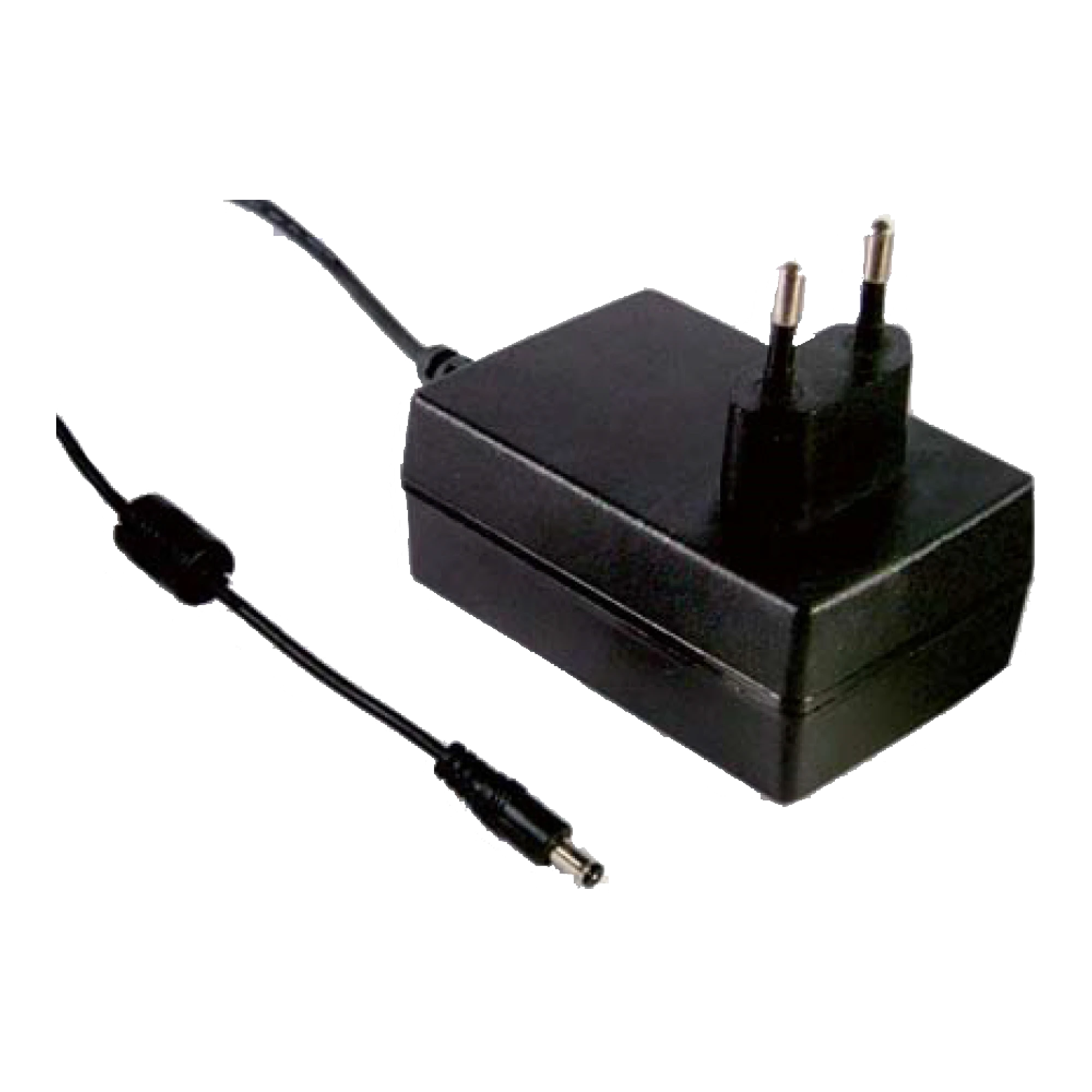

Power supply

OL 191.90

36 W

for LEDs

L 79 × W 54 × H 33 mm

Power supply

OL 206/1.90

200 W (Slim Line)

installation in frame

L 360 × W 30 × H 23 mm

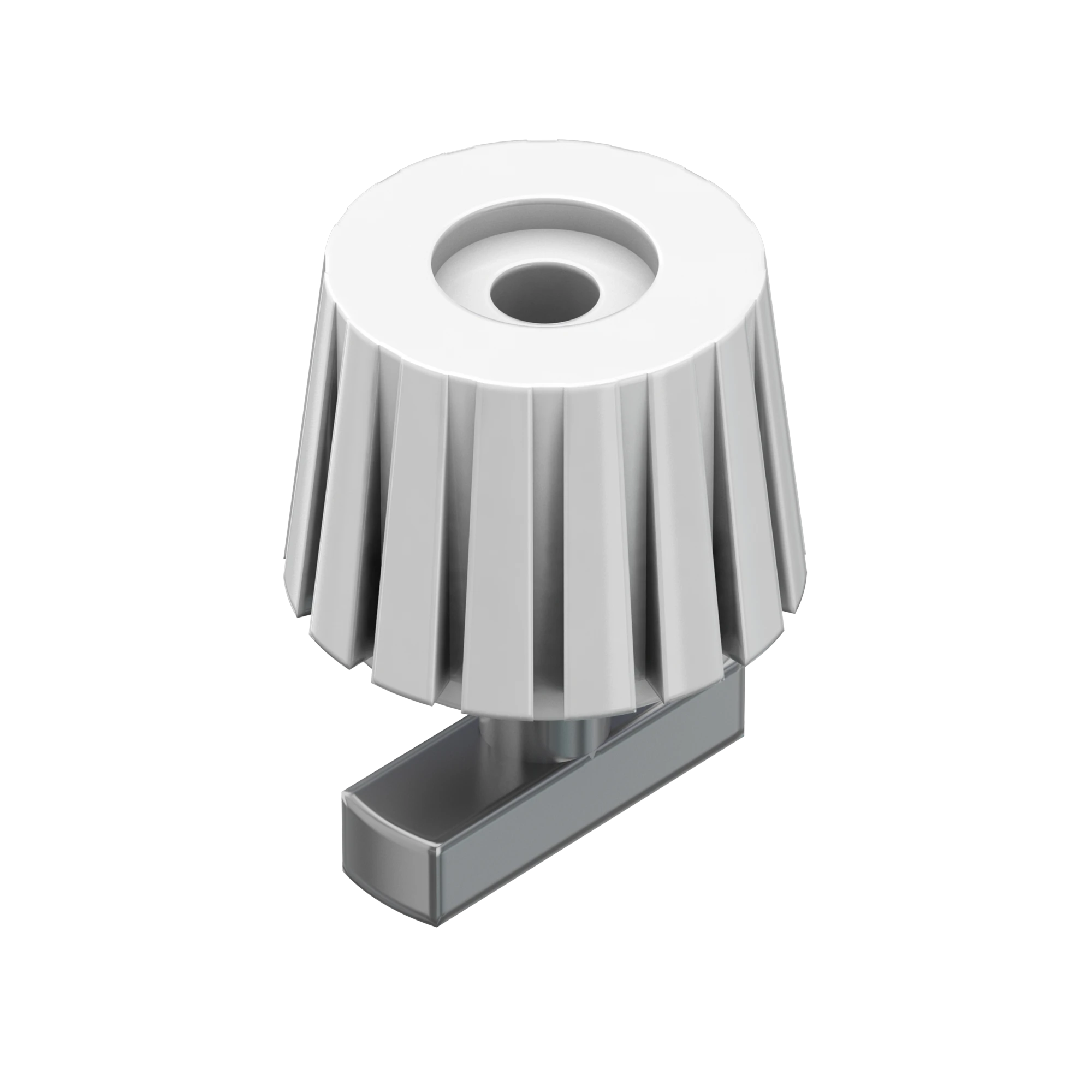

Fixing set

OL 252.90

for LEDs / PSU

L 14 × W 14 × H 12 mm

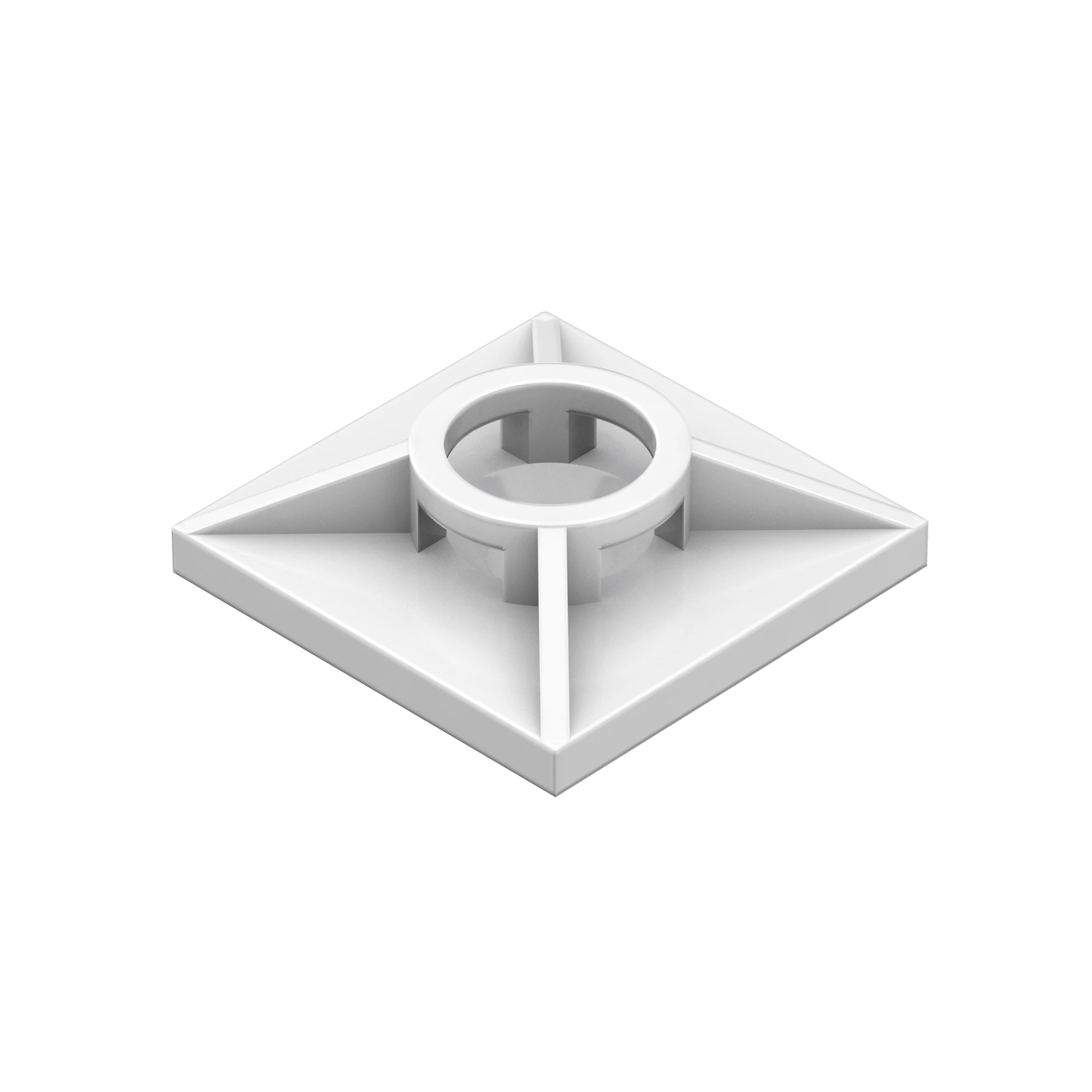

Adhesive base

OL 254.90

100 pcs

for cable ties OL 255

L 19 × W 19 × H 5 mm

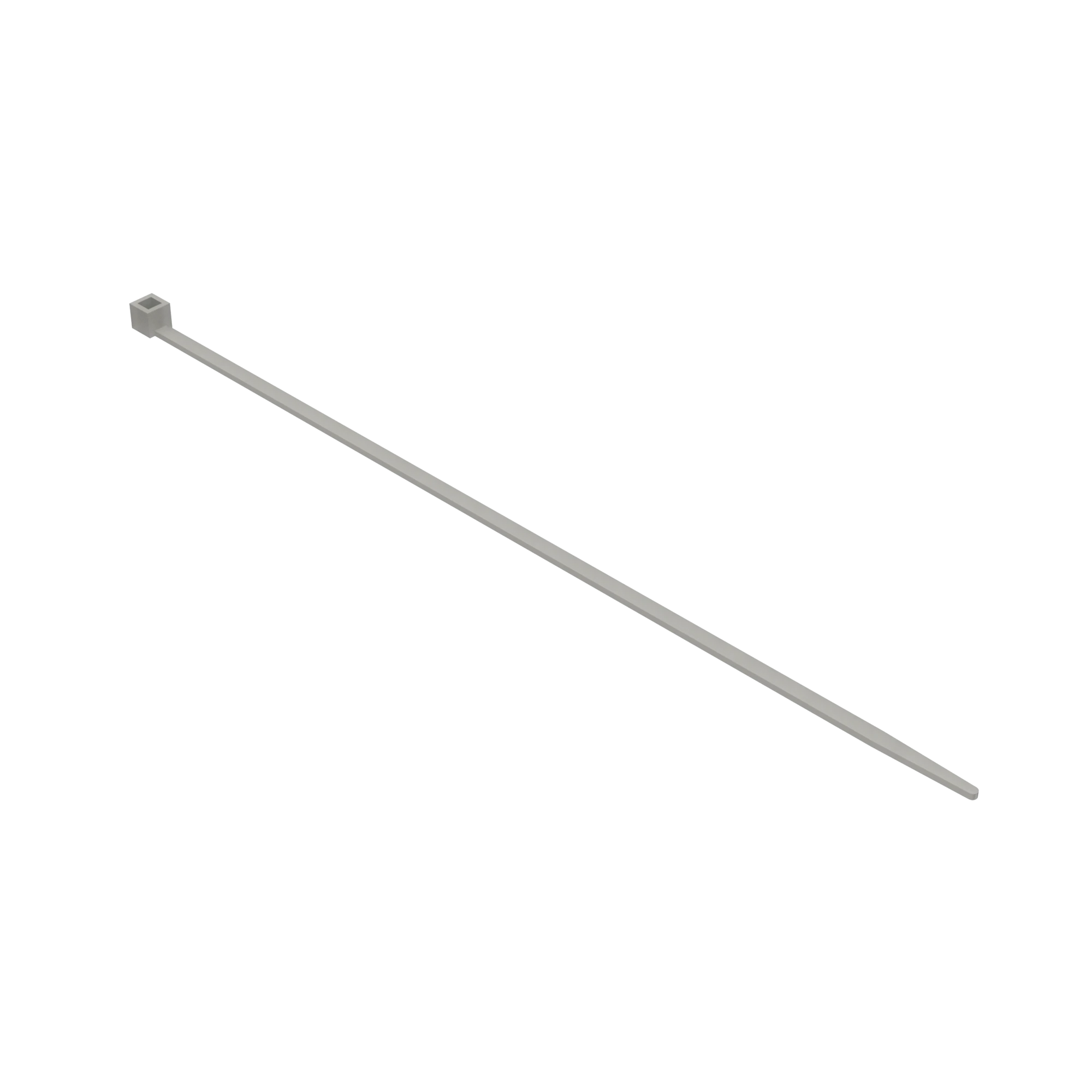

Cable tie

OL 255.90

100 pcs

L 155 × W 2.5 mm

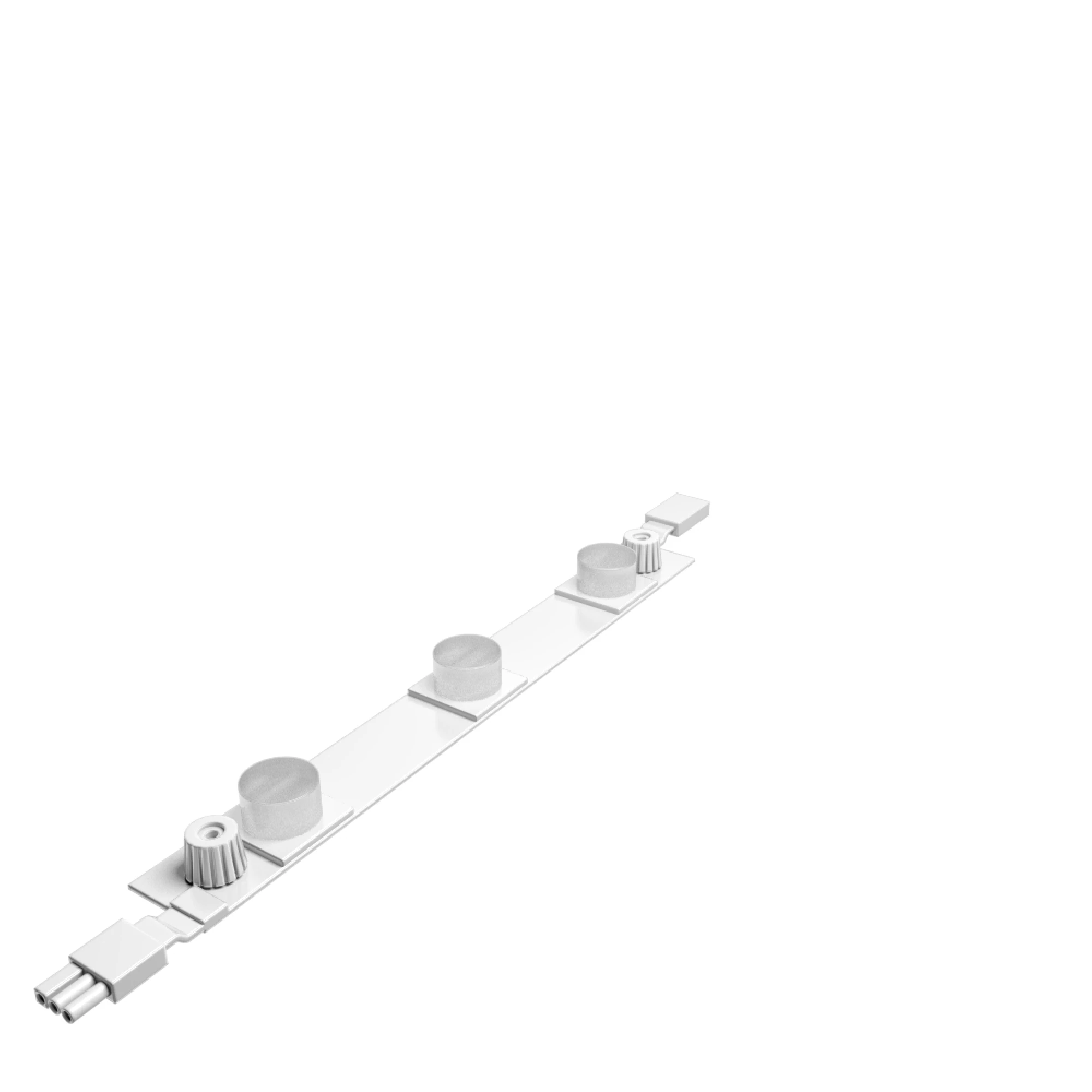

LED module

OL 323.90

3 LEDs

768 lm / 6,48 W / 24 V

L 240 × W 28 × H 15 mm

240 mm long

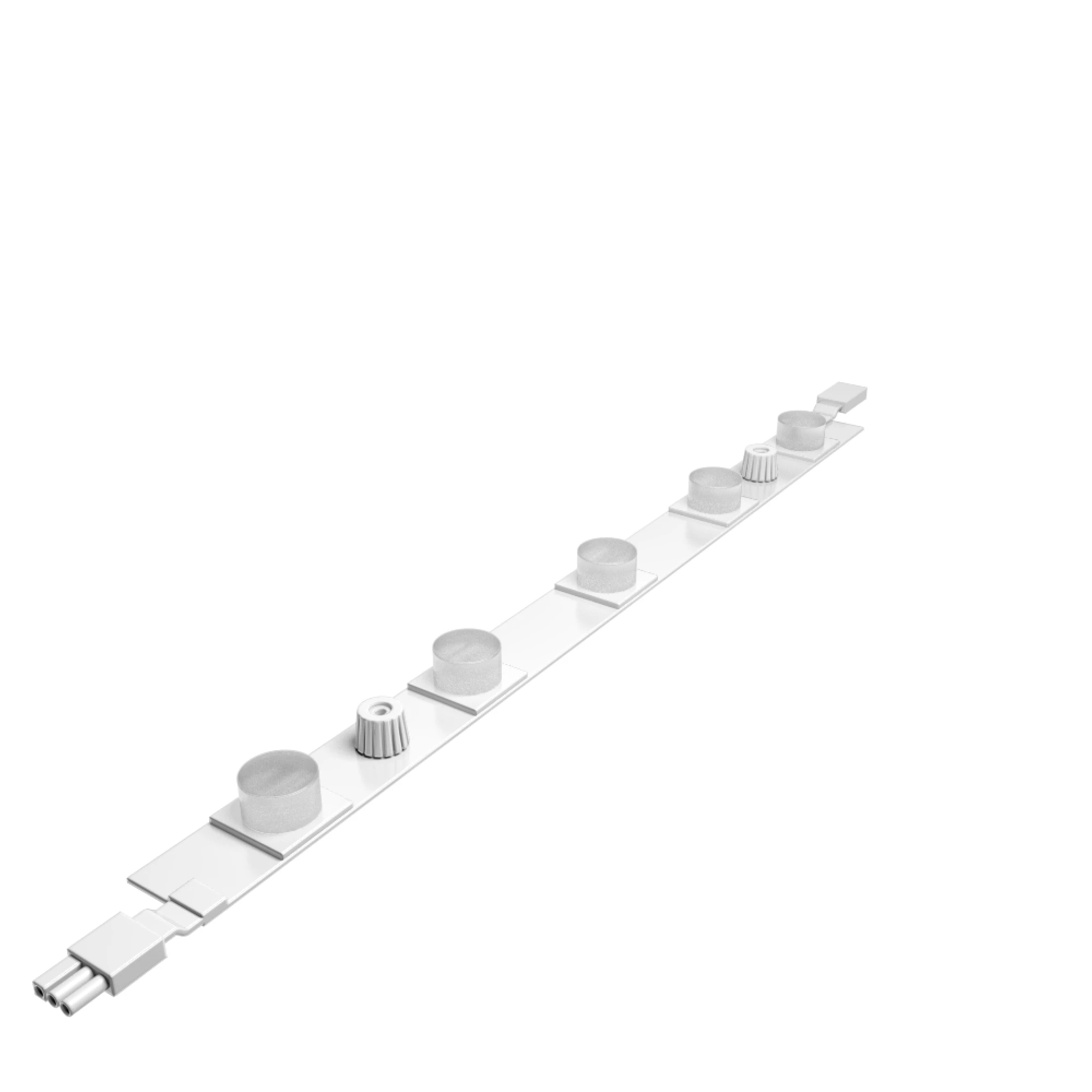

LED module

OL 325.90

5 LEDs

1280 lm / 10,8 W / 24 V

L 400 × W 28 × H 15 mm

400 mm long

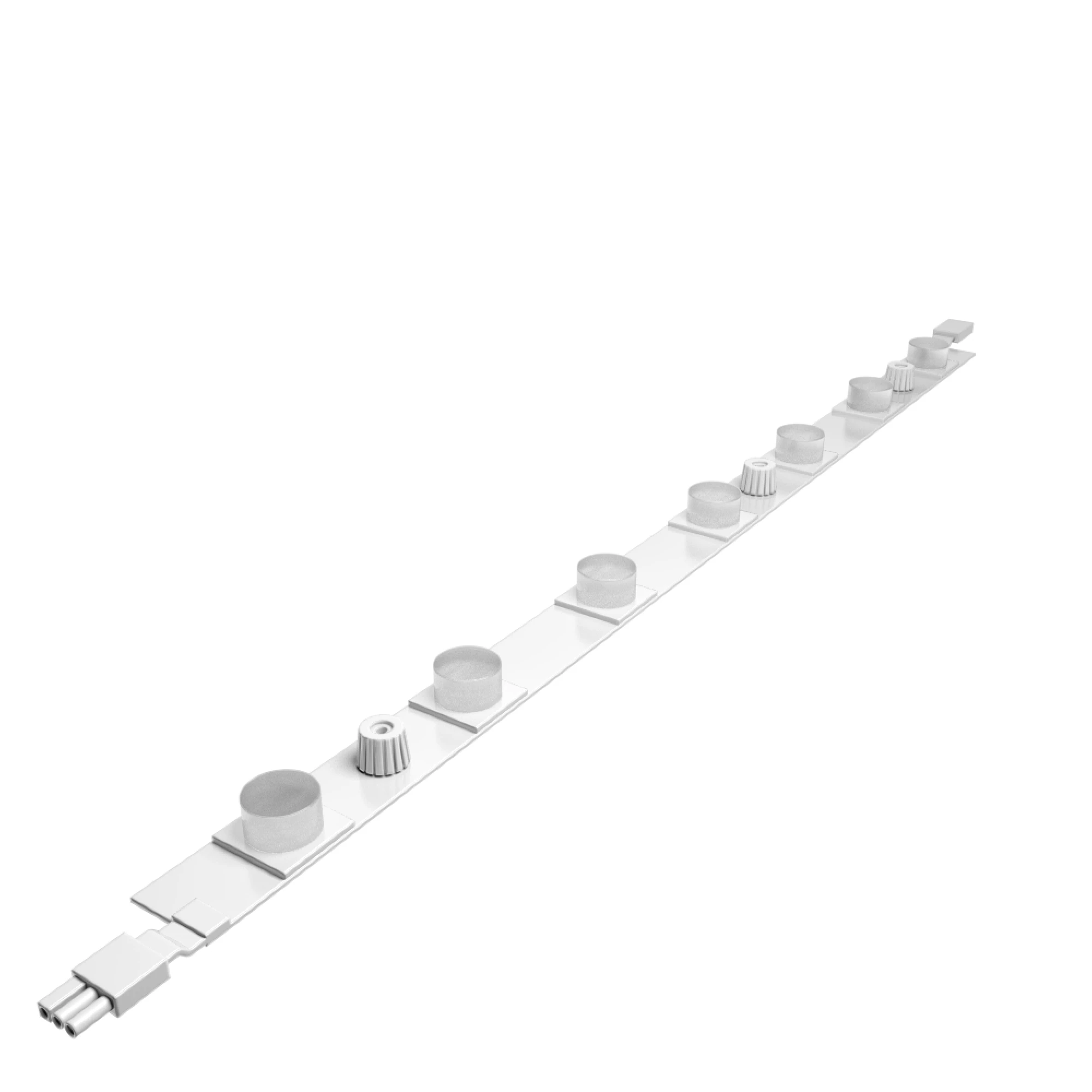

LED module

OL 327.90

7 LEDs

1792 lm / 15,12 W / 24 V

L 560 × W 28 × H 15 mm

560 mm long

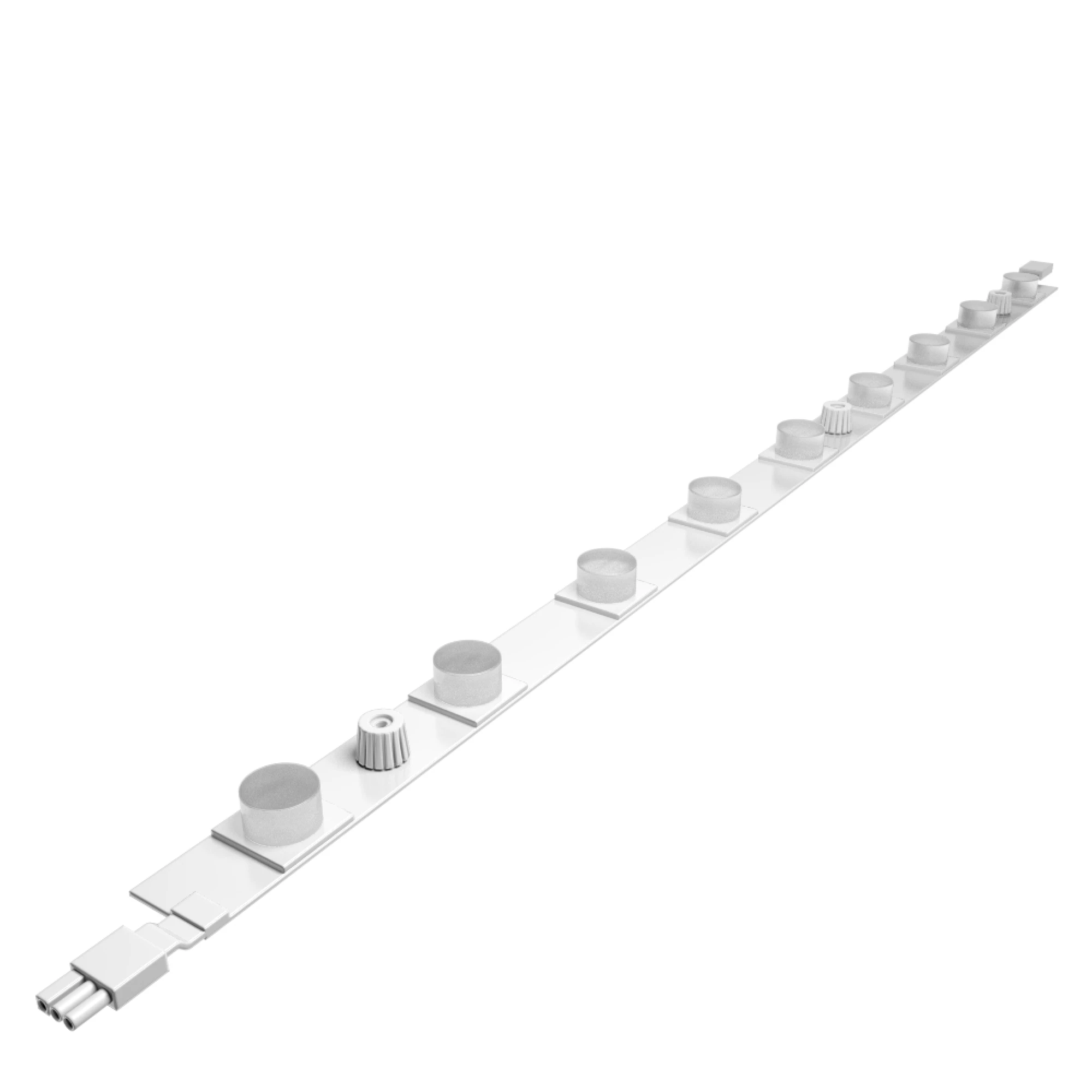

LED module

OL 329.90

9 LEDs

2300 lm / 19,52 W / 24 V

L 720 × W 28 × H 15 mm

720 mm long

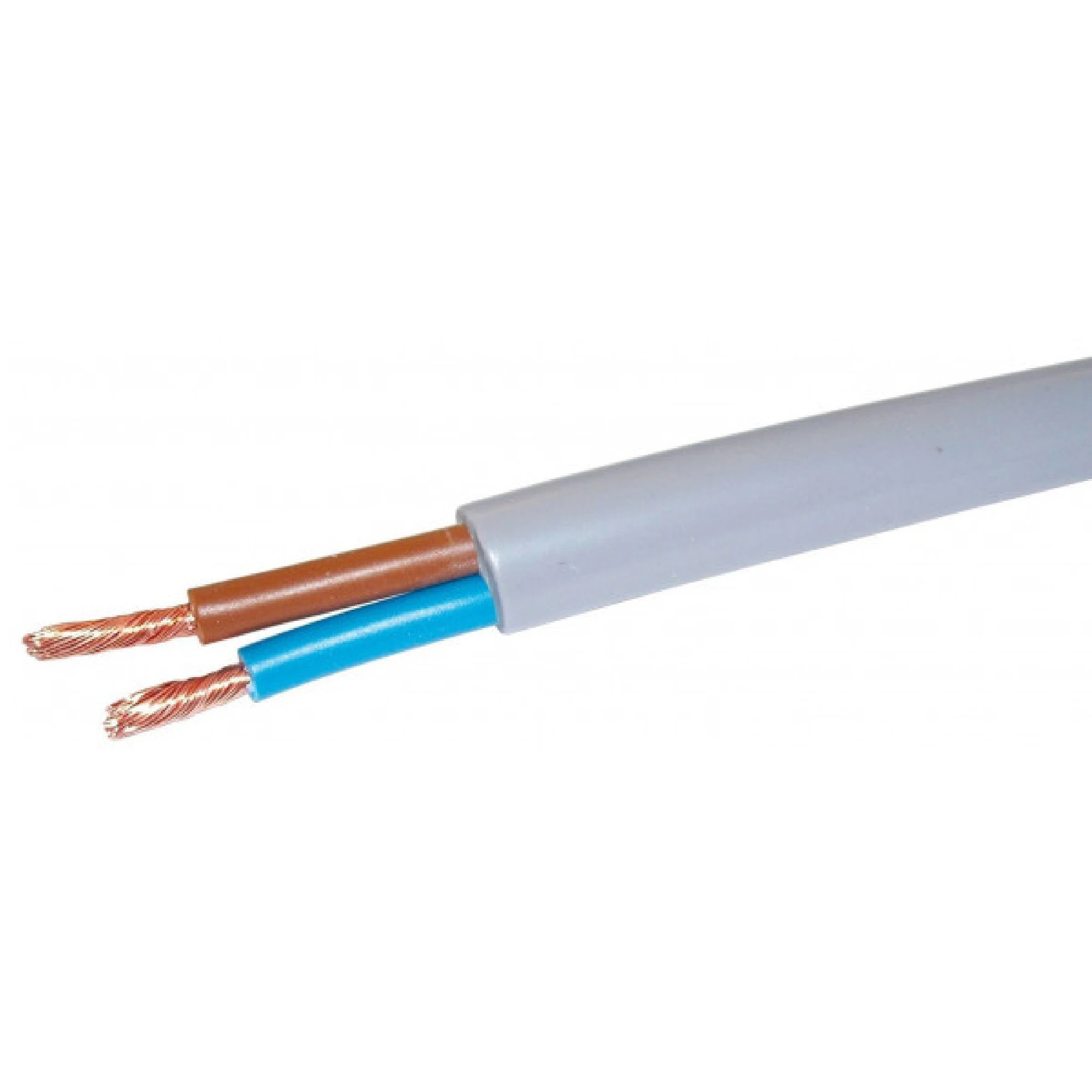

Connecting cable

OL 359-1.90

2-wire

1000 mm long

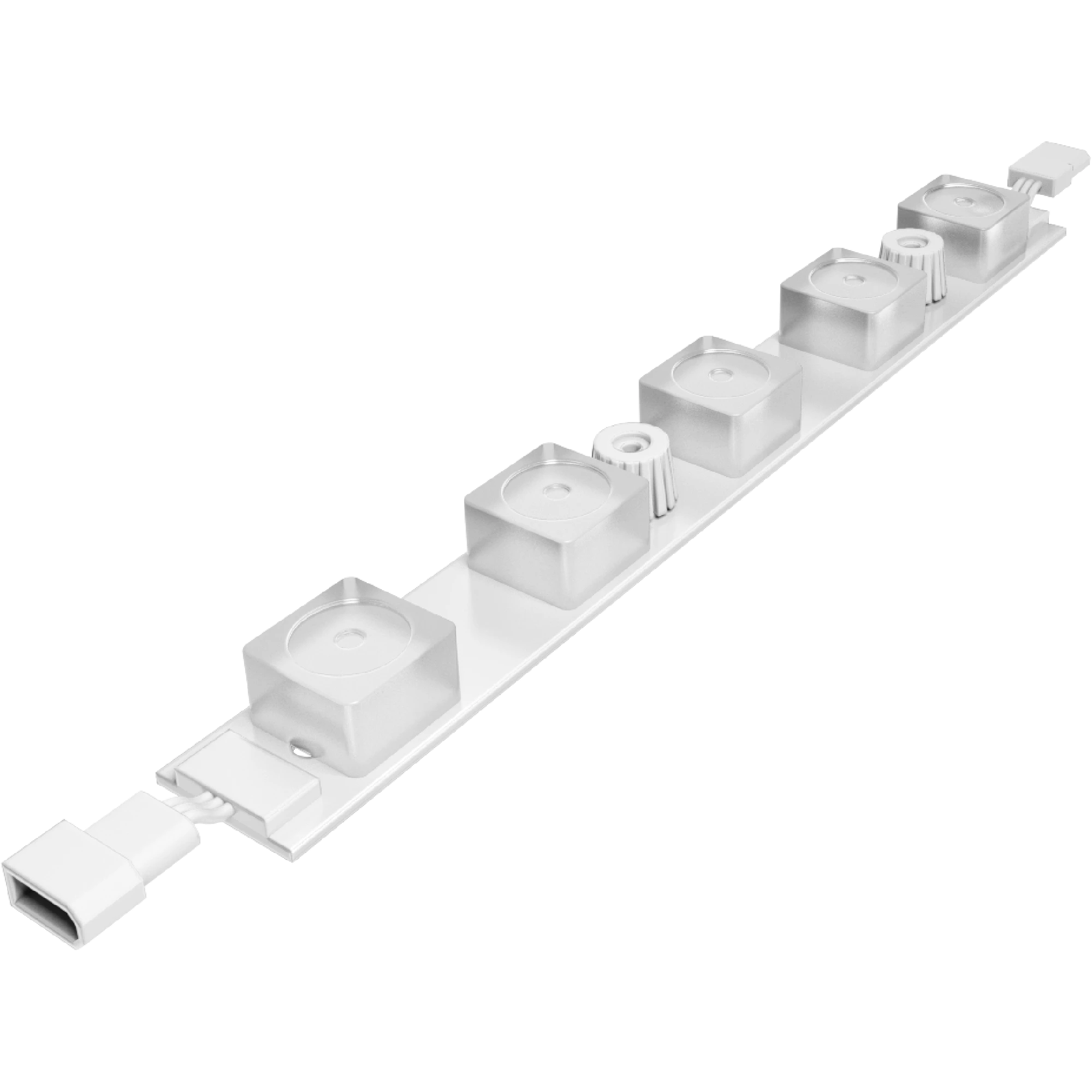

LED module

OL 501.90

5 LEDs

1554 lm / 15 W / 24 V

L 240 × W 24 × H 15 mm

240 mm long

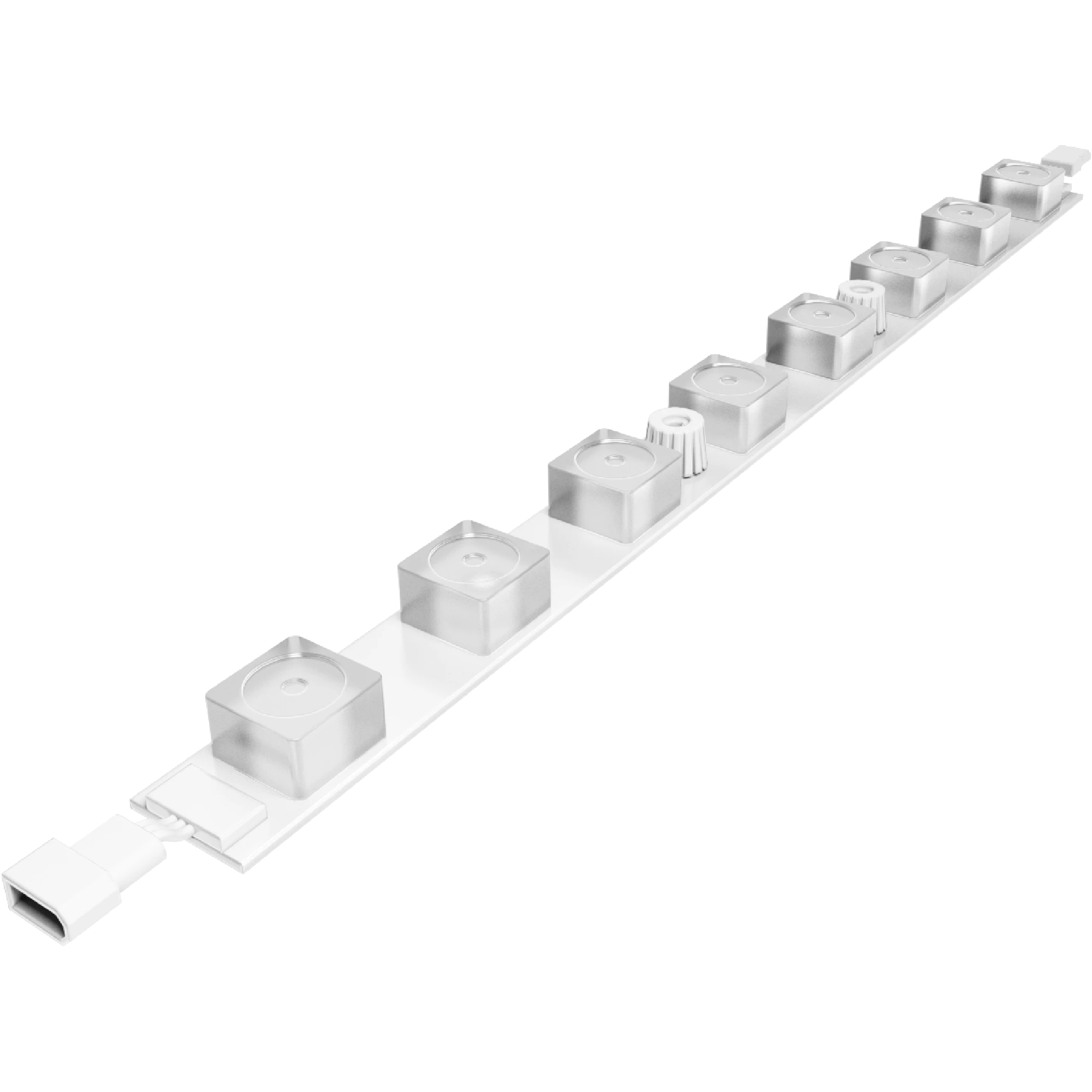

LED module

OL 502.90

8 LEDs

2552 lm / 24 W / 24 V

L 400 × W 24 × H 15 mm

400 mm long

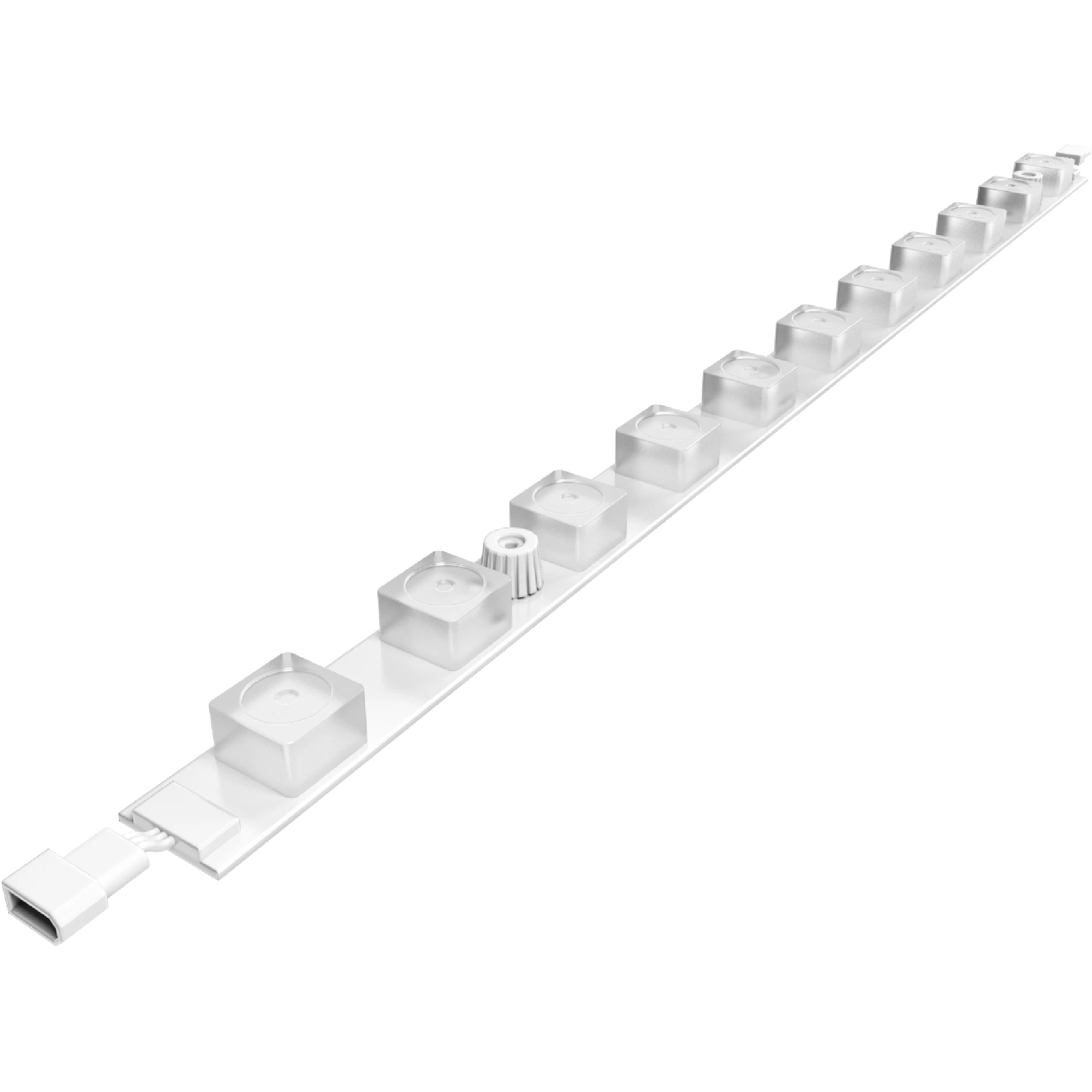

LED module

OL 503.90

11 LEDs

3540 lm / 33 W / 24 V

L 560 × W 24 × H 15 mm

560 mm long

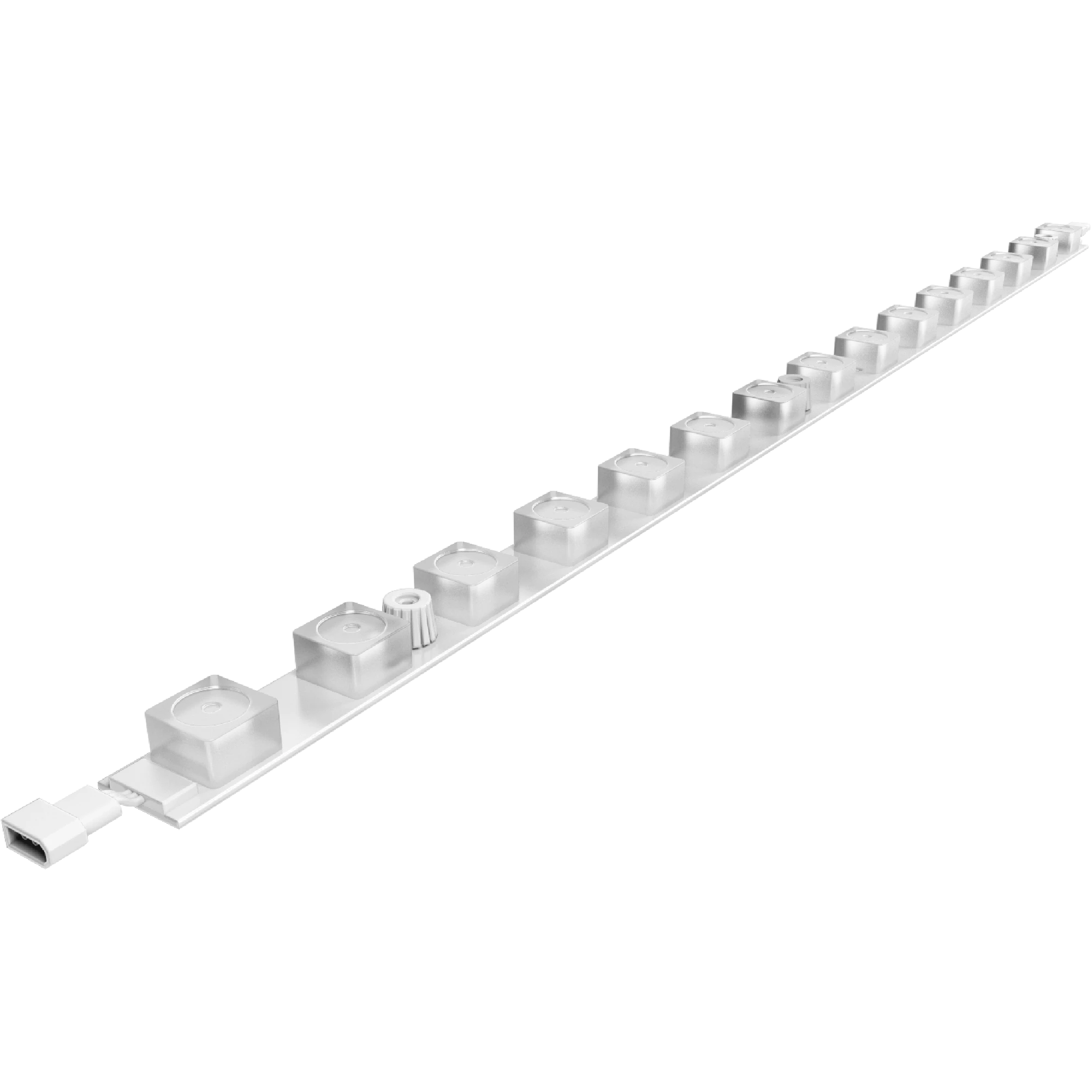

LED module

OL 504.90

15 LEDs

4604 lm / 45 W / 24 V

L 720 × W 24 × H 15 mm

720 mm long

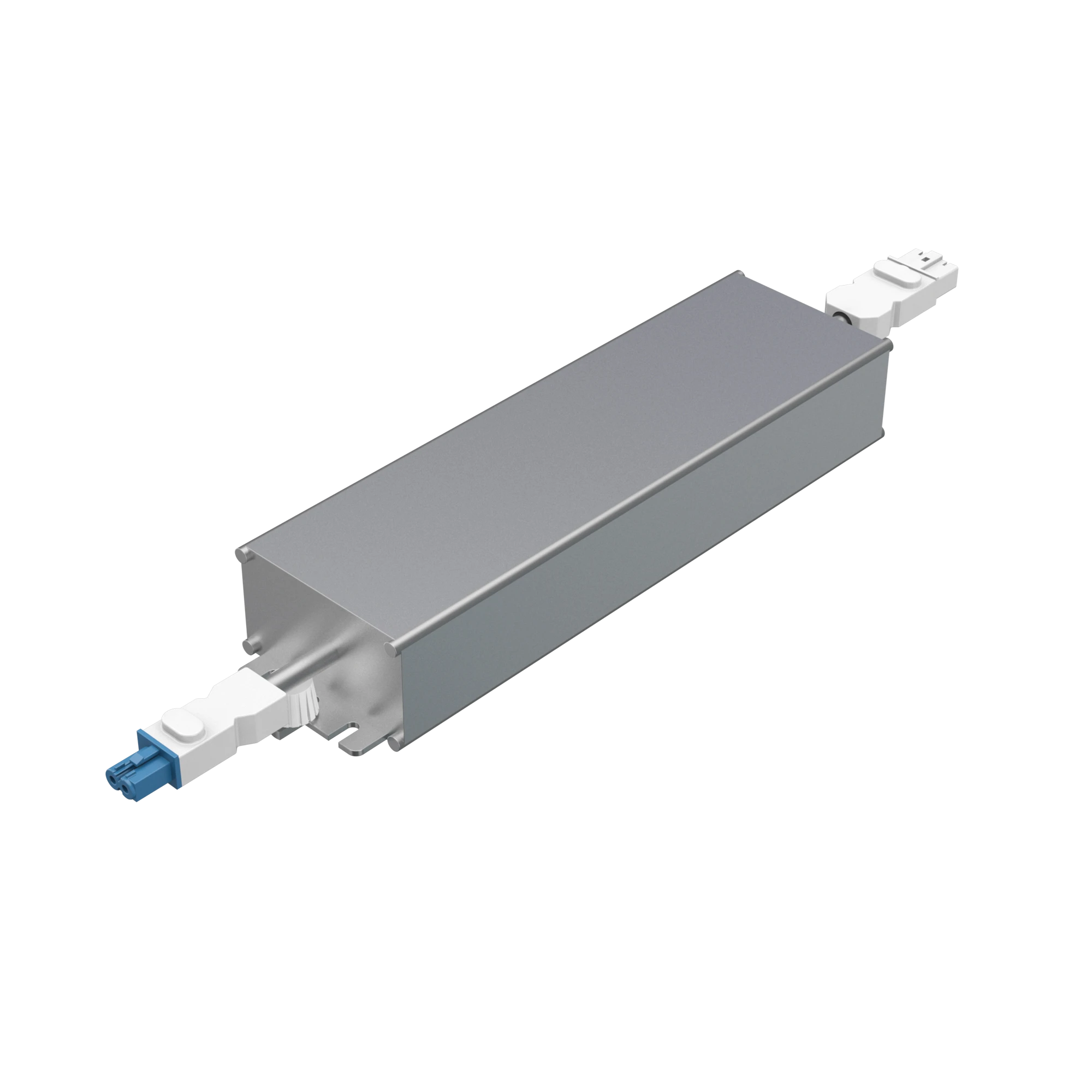

Power supply

OL 98.90

240 W

for LEDs

L 244 × W 68 × H 39 mm
