This item is a discontinued product and will soon no longer be available.

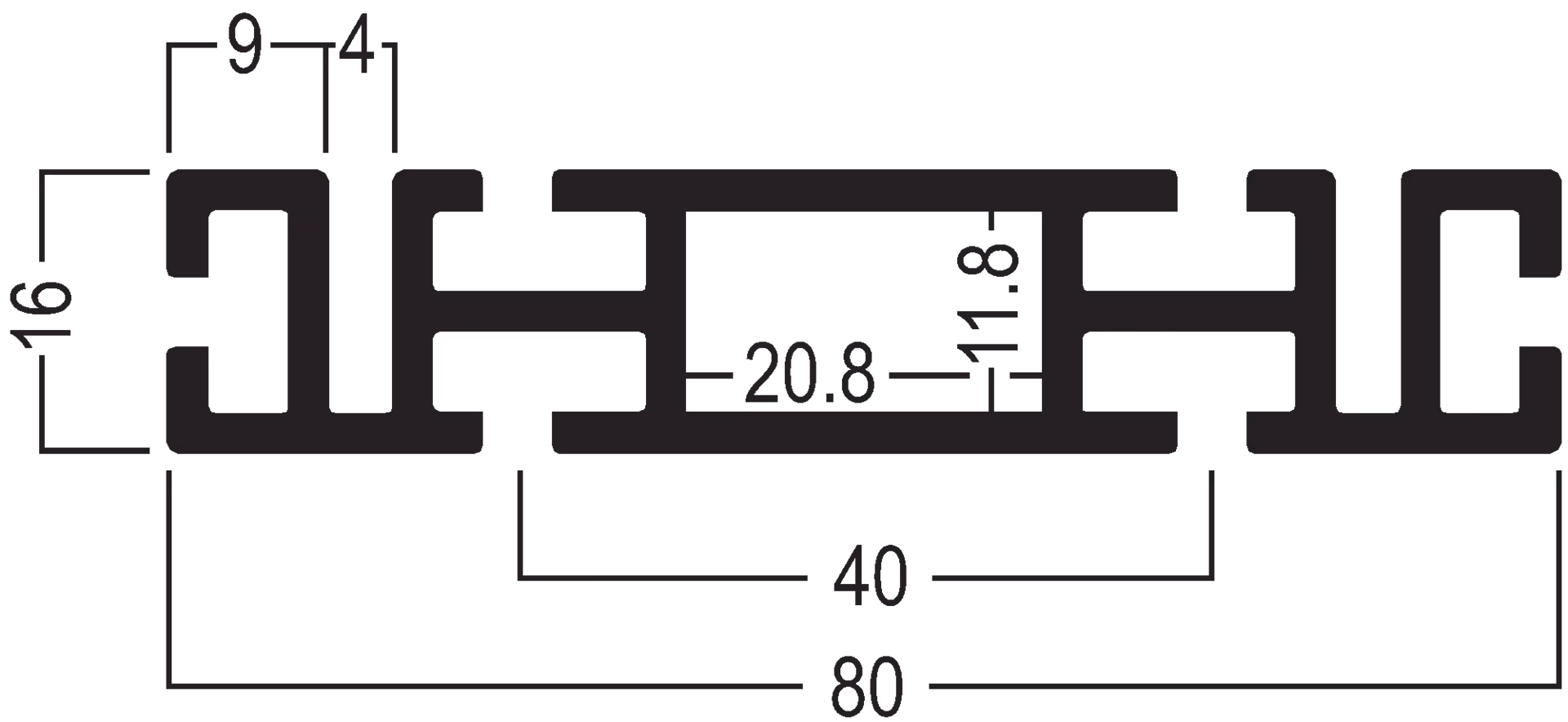

Tension fabric extr. | U 1066.85

aluminium

bracing for seamless frames, for single sided illumination graphics with silicone edge M 1313, installation of Z 961/13 tension lock possible

L 6000 × W 80 × H 16 mm

Available Material

white powder-coated (RAL 9016 matt, polish grade 30)

Order now.

Technical Data.

Length:

6000 mm

Weight:

8.254 kg

Width:

80 mm

Height:

16 mm

U_1066.pdf

XU_1066.pdf

U_1066.dwg

U_1066.dxf

Accessories.

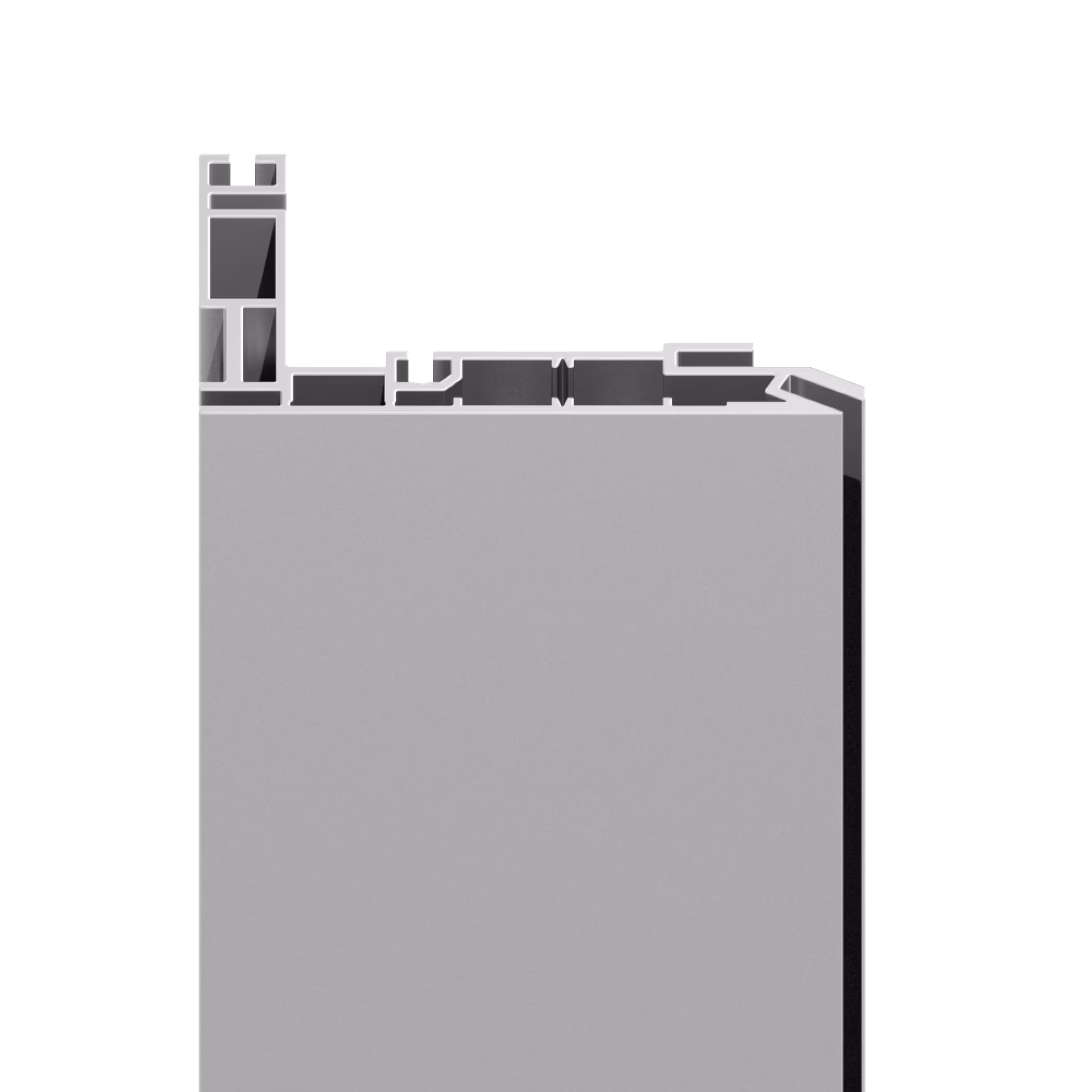

Tension fabric extr.

U 1060.01

plus, 90°

for several fabric layers

L 6000 × W 120 × H 66 mm

Product Brochures

AW 887 / General Catalog / July 2026

AW 8810 / Extrusions Catalog / October 2024

Technical Information

TI-OL-6.0 / octalumina plus bracing of frame / September 2017

Technical Info Brochures

AW 7950 T / octalumina Technical Info / June 2026

Assembly Instructions / User Manuals

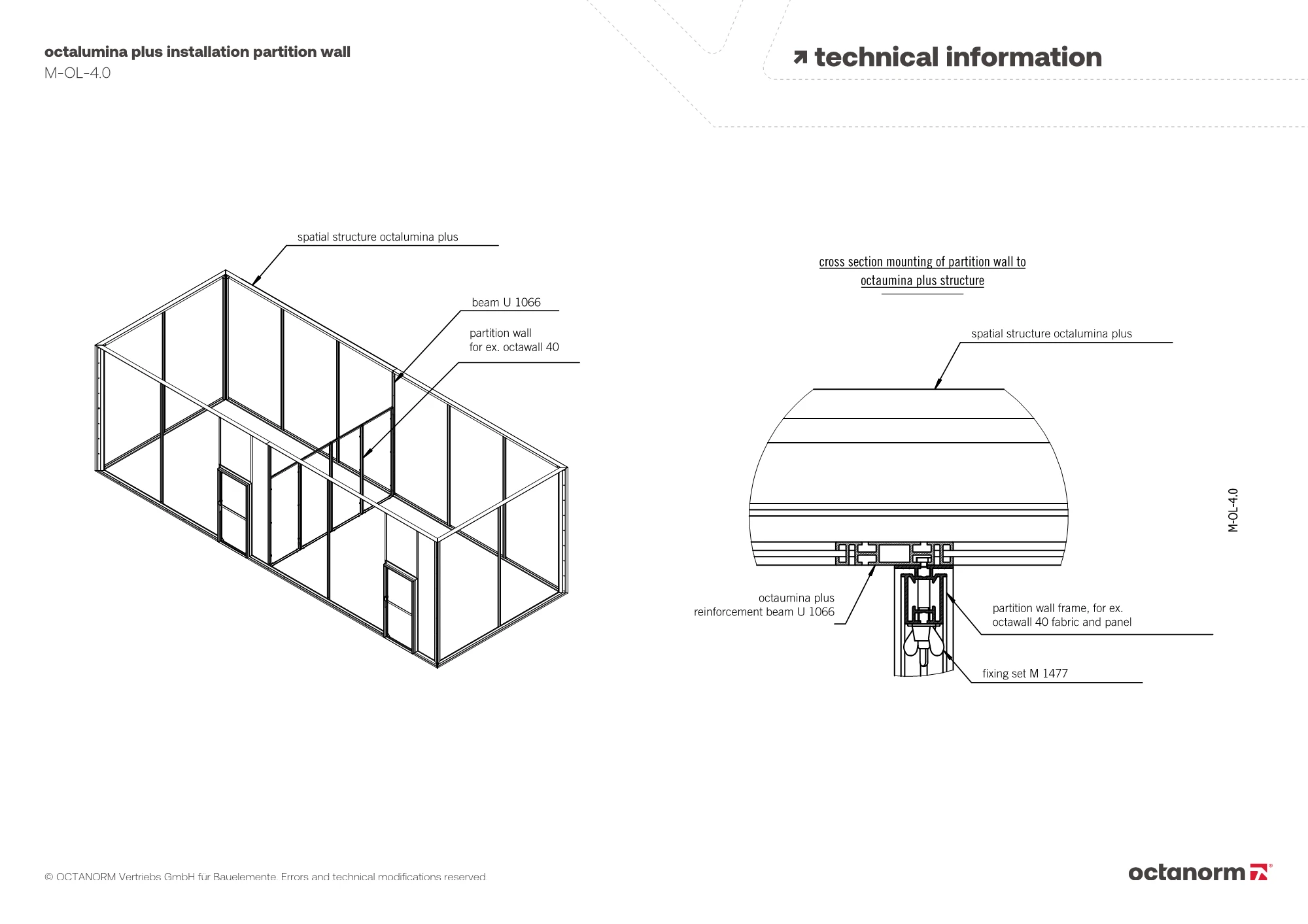

M-OL-4.0 / octalumina plus installation partition wall / September 2017
