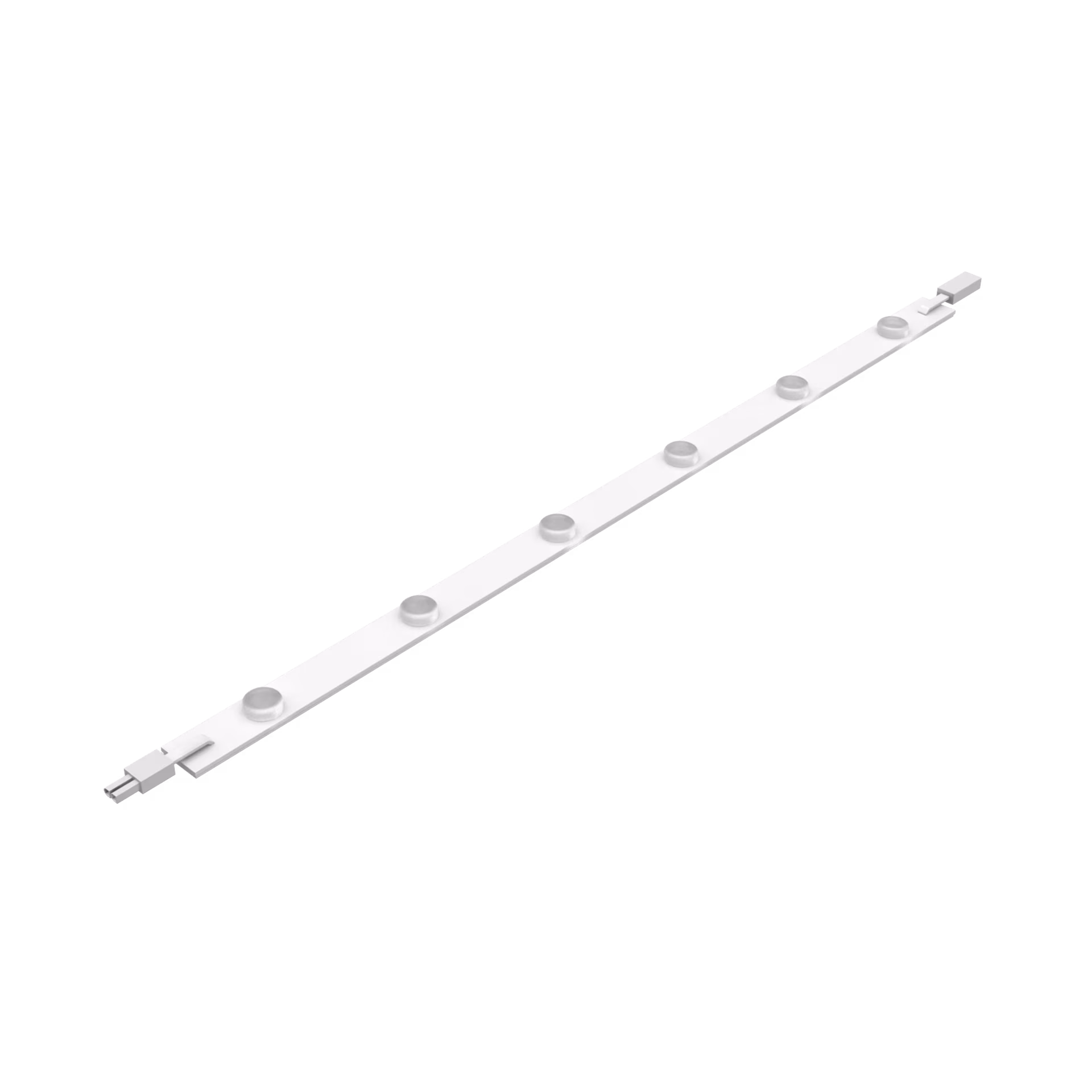

LED module | OL 306.90

708 lm / 7,5 W / 24 V

aluminium/plastic

6 LEDs per unit 7.5 W / 24 V, 6500 K, 708 lm, incl. wiring pluggable (plug/bush) back side self-adhesive

L 480 × W 20 × H 9 mm

Available Material

as catalogue desciption

Order now.

Technical Data.

Length:

480 mm

Weight:

0.065 kg

Width:

20 mm

Height:

9 mm

OL_306.pdf

Accessories.

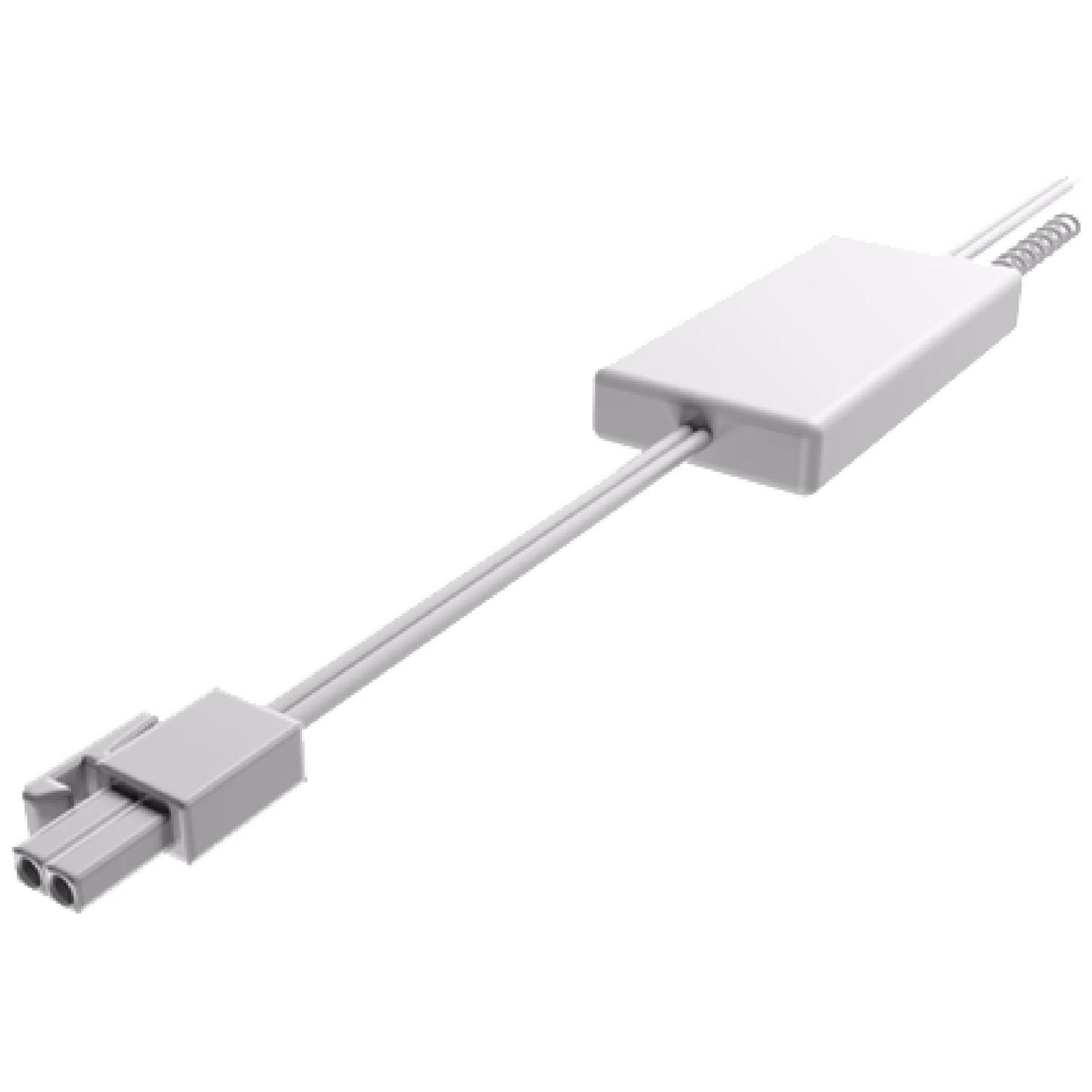

Dimmer

OL 181.90

Mini

12-24 V

L 67 × W 31 × H 10 mm

Also Available As.

LED module

OL 303.90

3 LEDs

357 lm / 3.7 W / 24 V

L 240 × W 20 × H 9 mm

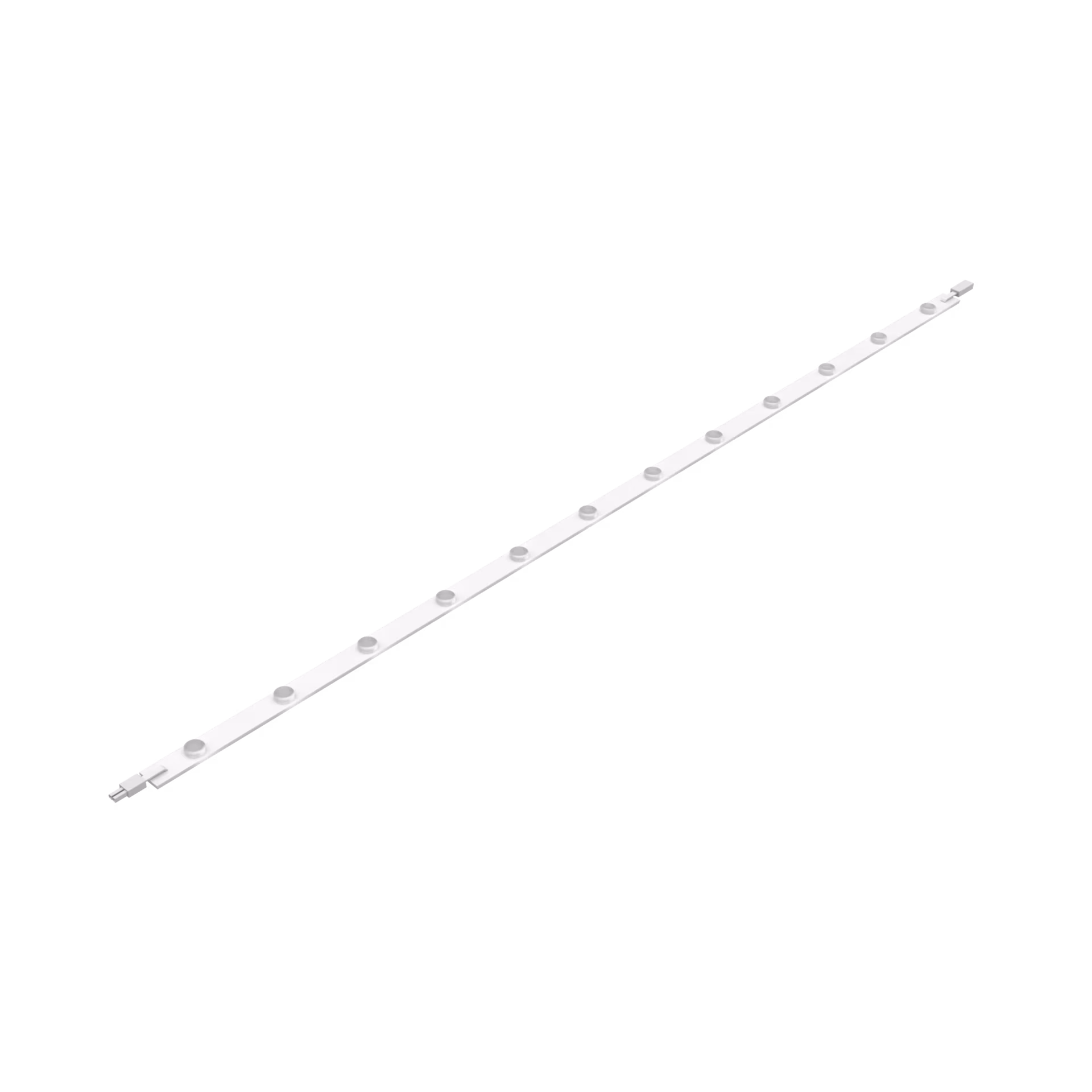

LED module

OL 312.90

12 LEDs

1375 lm / 15 W / 24 V

L 960 × W 20 × H 9 mm

Product Brochures

AW 887 / General Catalog / July 2026

Technical Info Brochures

AW 7950 T / octalumina Technical Info / June 2026

Technical Information

TI-OL-5.0 / octalumina 40 LED placement light frame / April 2019
