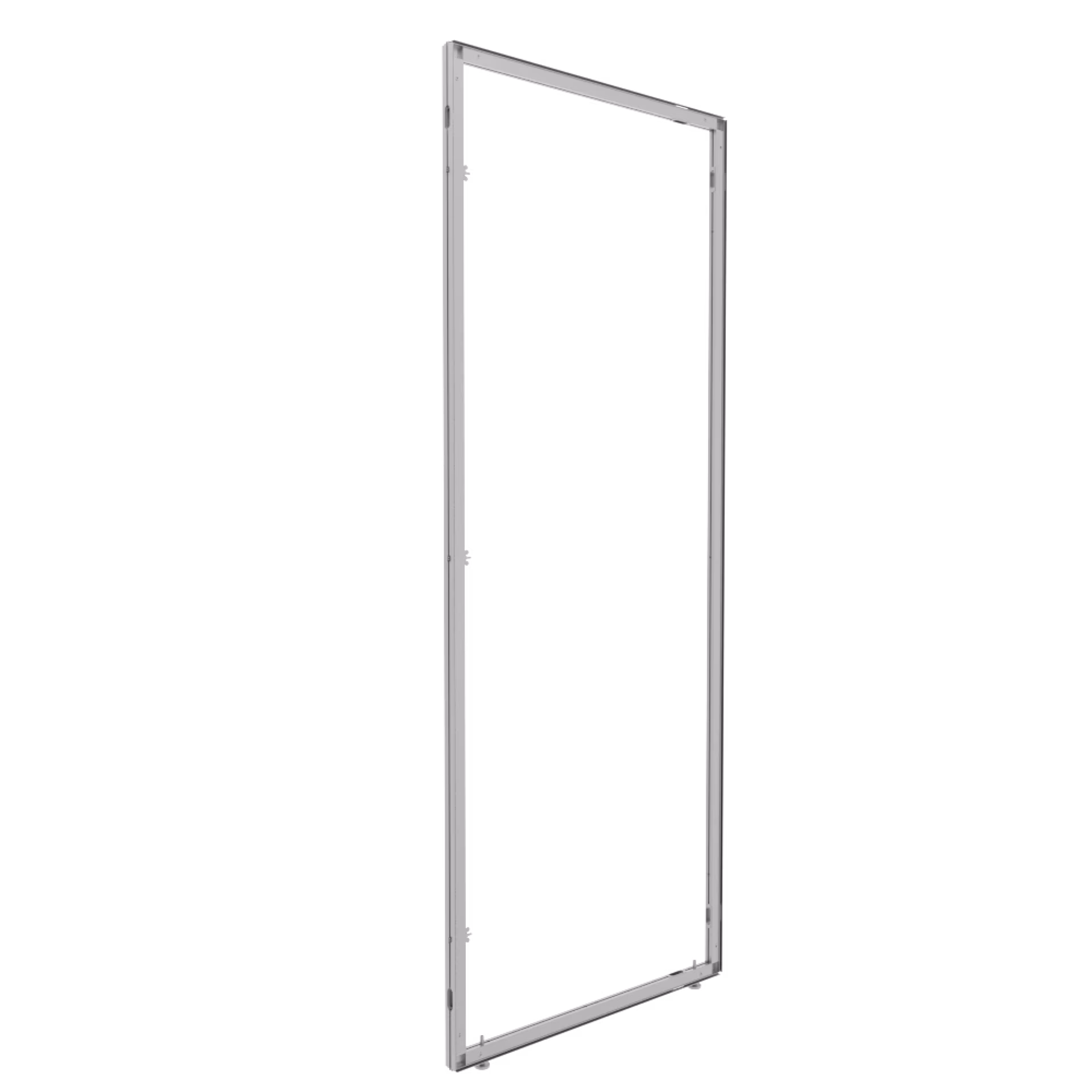

Frame | W 442/E.01

for double sided fabric / panel

aluminium

1 × frame of W 906 for double sided fabric/panel, for installation between 2 extrusions, incl. 2 × C 440/F adjustable foot and 6 × mounting-set M 1477, incl. hook tape W 840, with 4 × internal corner connector W 916 (no mitre needed), with drillings for M 1951 and M 1953, drillings for cable management possible on request

W 950 × H 2480 × D 40 mm

Available Material

matt anodized, silver (E6/EV1)

Order now.

!

fabric dimension = outer frame dimension

Technical Data.

Length:

40 mm

Weight:

7.76 kg

Width:

950 mm

Height:

2480 mm

Accessories.

Base plate

M 1951.21

side

L 600 × W 250 × H 301 mm

Base plate

M 1953.21

middle

L 600 × W 250 × H 12 mm

Also Available As.

Window element

W 414.01

for door W 425 / W 575

W 775 × H 1941 × D 40 mm

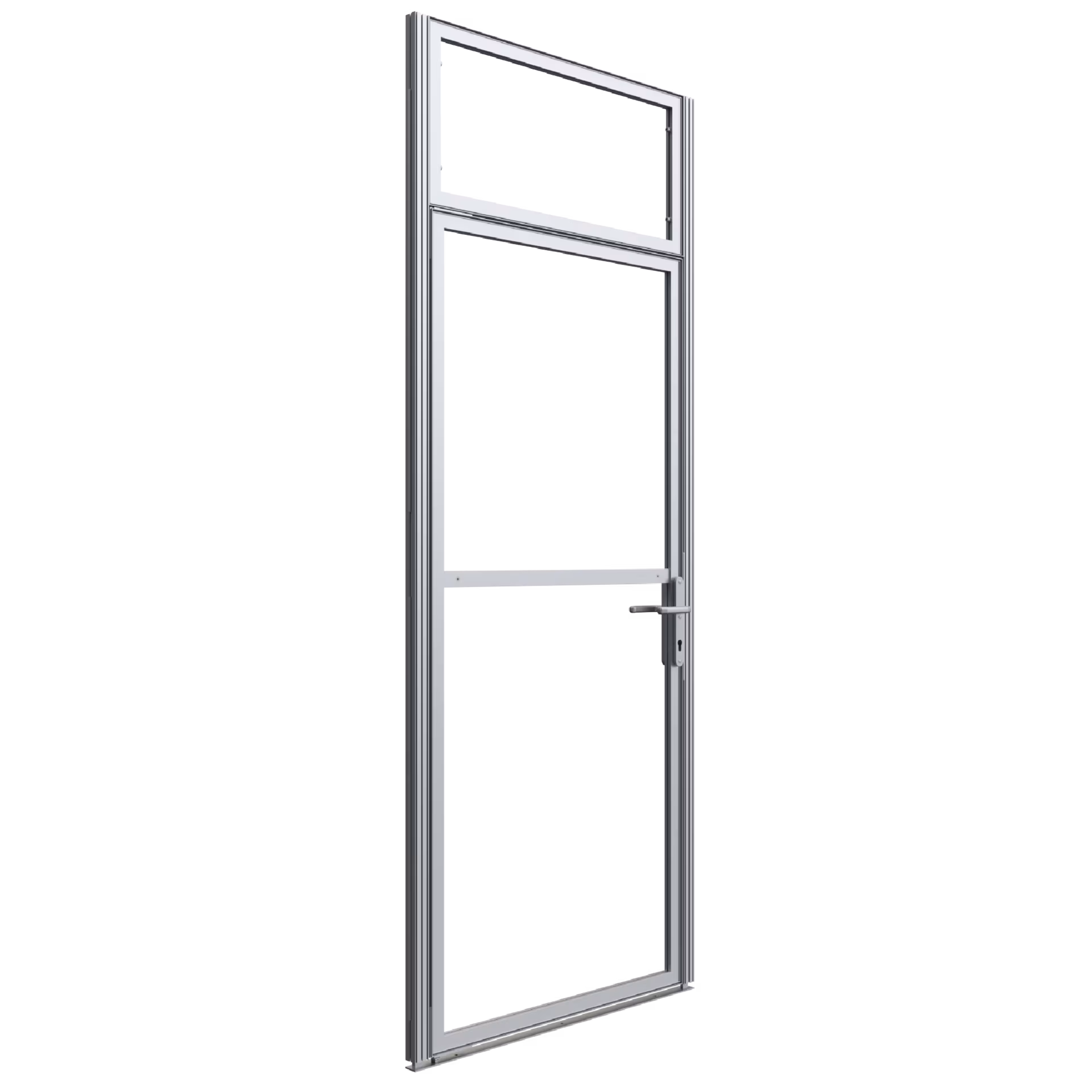

Door

W 425.01

DIN left/right

B 950 × W 2500 × D 40 mm

frame element curved

W 441/E.01

for double sided fabric / panel

W 515 × H 2480 × D 40 mm

Frame

W 449/E.01

for double sided fabric / panel

W 455 × H 2480 × D 40 mm

Frame

W 440/E.01

for fabric and panel

W 990 × H 2480 × D 40 mm
