U-channel extrusion | M 1312.00

for M 1302
aluminium
for bracing of tension fabric, extrusion M 1302
L 6000 × W 20 × H 15 mm

Available Material

raw / unfinished
Order now.

Technical Data.

Length:

6000 mm

Weight:

1.56 kg

Width:

20 mm

Height:

15 mm

M_1312.pdf
XM_1312.pdf
M_1312.dwg
M_1312.dxf

Accessories.

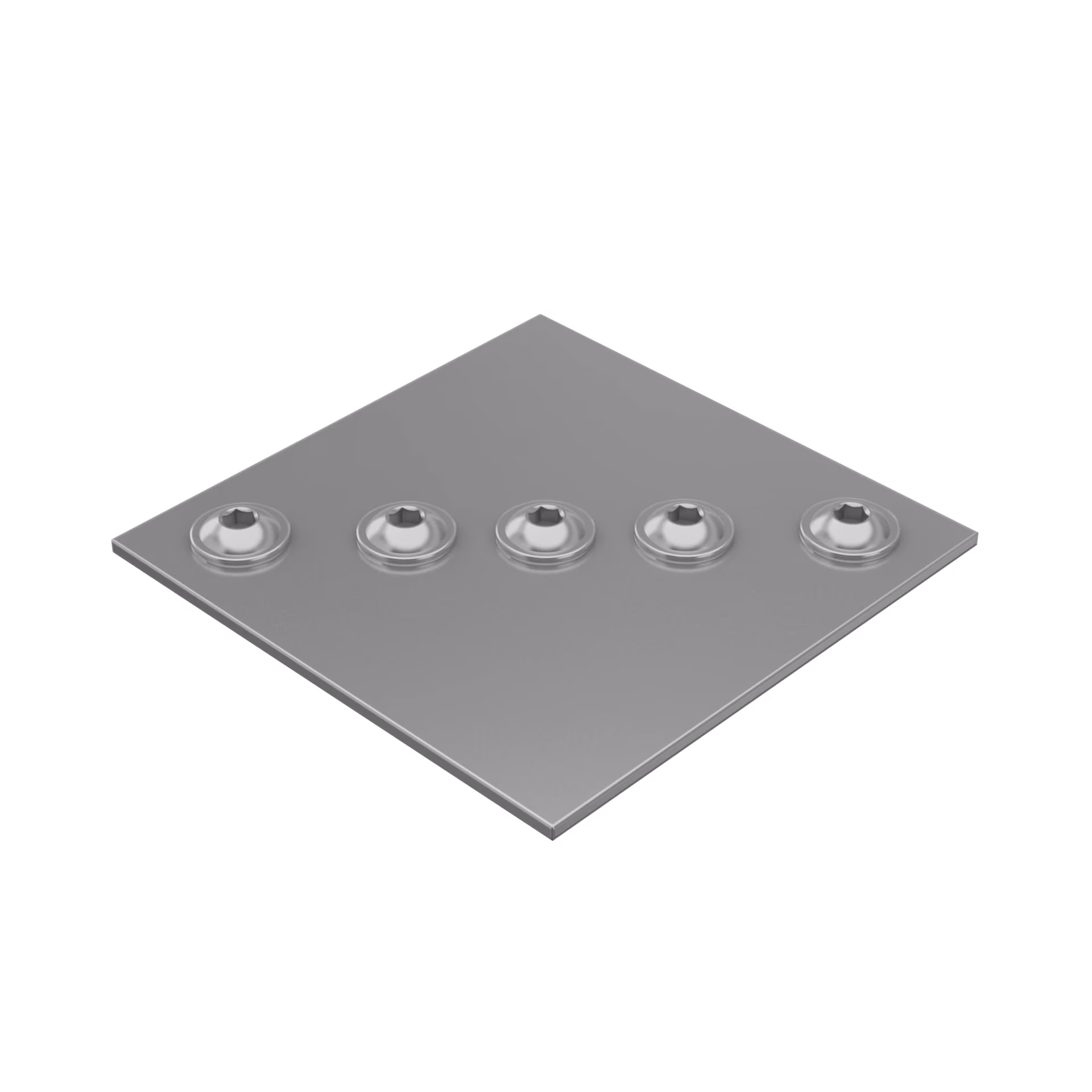

Internal connector

M 1314.37

bracing

for M 1302

L 80 × W 80 × H 2 mm

Product Brochures

AW 887 / General Catalog / June 2026

AW 8810 / Extrusions Catalog / October 2024

AW 601 / Tension Fabric Extrusions / August 2024

2D/3D Data

CAD 2.0 - OCTANORM Profile / 2D/3D Data - octanorm extrusions / May 2025

Technical Information

TI-M-54.1 / Bracing fabric frame extrusion M 1302 "one-sided fabric suspension" / April 2014
