Loop tape | W 841.30

for mounting of panels

polyamide

for mounting of panels, white, self-adhesive, 25 m roll

W 20 × H 2 mm

Available Material

white

Technical Data.

Length:

25000 mm

Weight:

0.391 kg

Width:

20 mm

Height:

2 mm

W_841.pdf

XW_841.pdf

Technical Informations.

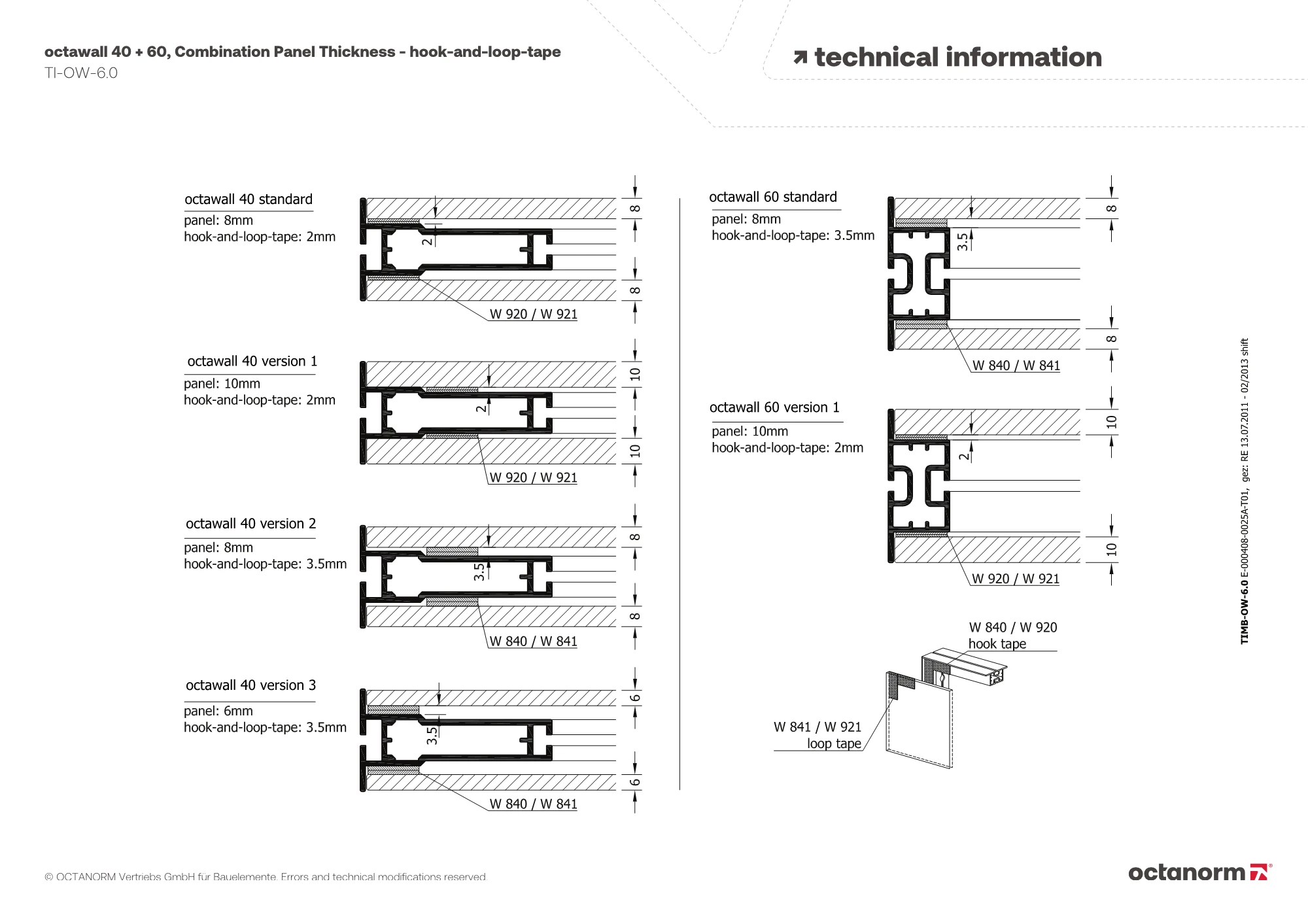

octawall 40 + 60, Combination Panel Thickness - hook-and-loop-tape

TI-OW-6.0 TI-OW-6.0

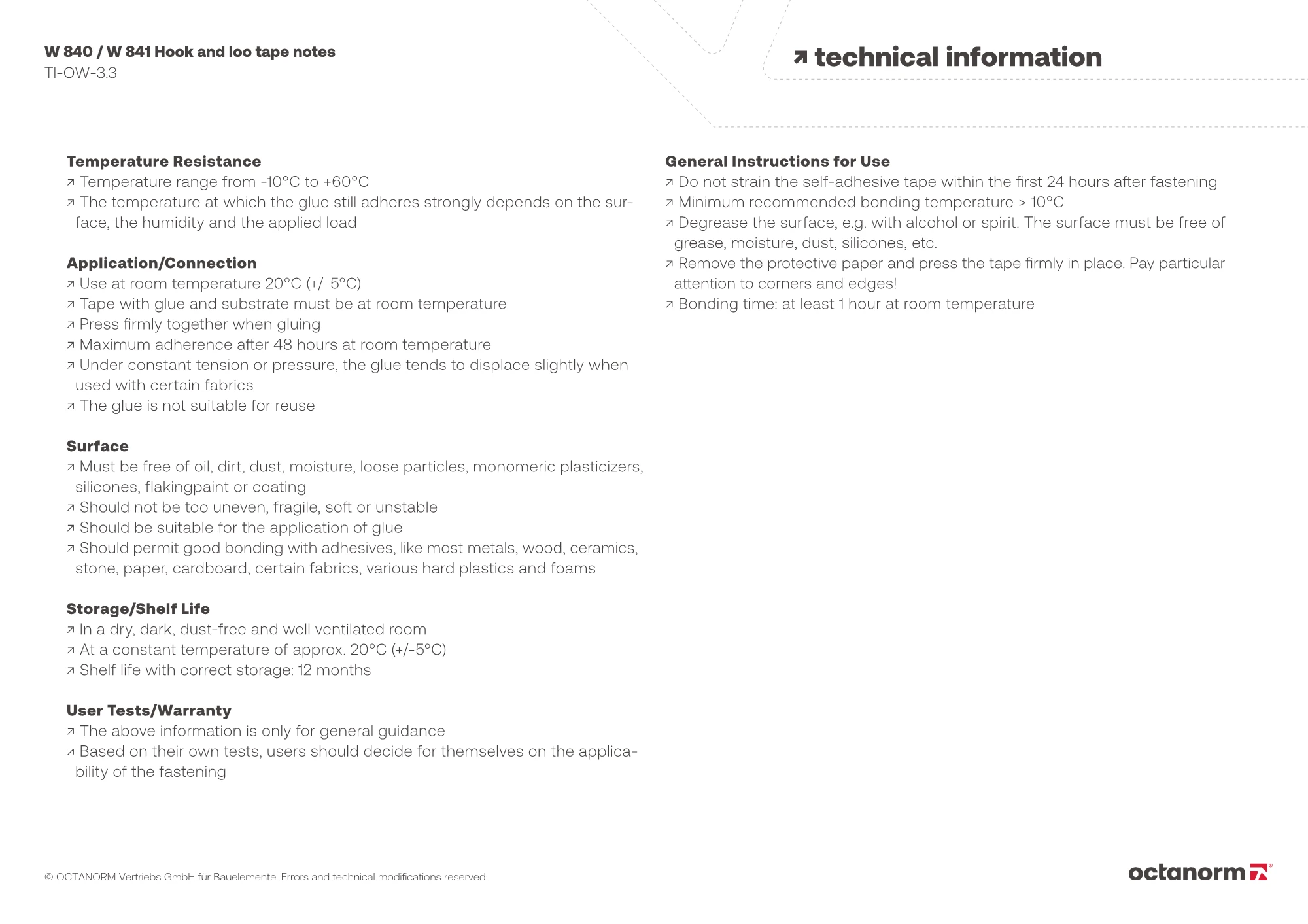

W 840 / W 841 Hook and loo tape notes

TI-OW-3.3 TI-OW-3.3

Contact Person.

Hadley

Weight

Technical Director

T +44 208 684 0455

Write E-Mail

Alistair

Weight

Commercial Director

T +44 208 684 0455

Write E-Mail

Carlo

Scola

Sales & Technical Manager

T +44 20 8545 2945

Write E-Mail

Laura

White

Sales administration manager

T +44 20 8545 2945

Write E-Mail

Della

Gibbons

Accounts manager

T +44 20 8545 2945

Write E-Mail

Downloads.

Product Brochures

General Catalog General Catalog

Assembly Instructions / User Manuals

octawall 40 W 840/W 841 hook and loop tape notes octawall 40 W 840/W 841 hook and loop tape notes

Technical Info Brochures

octawall pro Technical Info octawall pro Technical Info octawall 40 Technical Info octawall 40 Technical Info
