Hinged | E 292.38

for hinged glass doors

metal

for hinged glass doors 5-8 mm, incl. 2 × key E 292/Sch, key can only be removed when locked

L 30 × W 50 × H 25 mm

Available Material

nickel-plated

Technical Data.

Length:

30 mm

Weight:

0.066 kg

Width:

50 mm

Height:

25 mm

E_292.pdf

XE_292.pdf

Technical Informations.

Design examples: Hinged door, double-leaf with hinged bolt lock

TI-NL-14 TI-NL-14

Design examples: Hinged door, single-leaf with hinged bolt lock

TI-NL-4 TI-NL-4

Mounting instructions: Locking of a double-leaf hinged glass door

TI-NL-16 TI-NL-16

Design examples: Hinged door, single-leaf with hinged bolt lock

TI-NL-13 TI-NL-13

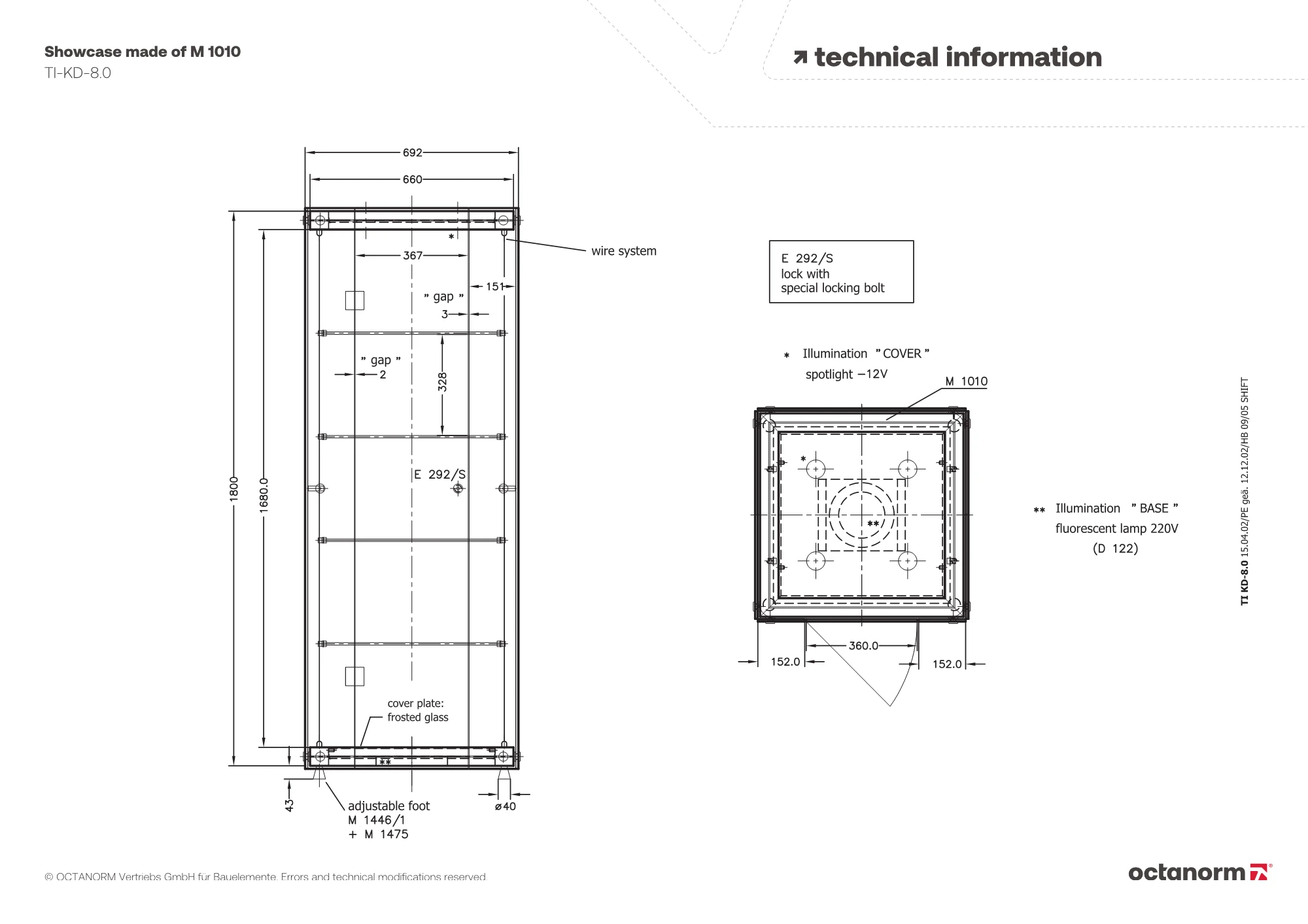

Showcase made of M 1010

TI-KD-8.0 TI-KD-8.0
