Fixing set | M 1345.37

for M 1310/M 1325/M 1330
steel
only for fixing of extrusions M 1310 / M 1325 / M 1330 to system groove 4.3 mm, with 1 × hammerhead screw M 1345/Ha "gunmetal finish"
L 28 × W 24 × H 24 mm

Available Material

zinc-plated

Technical Data.

Length:

28 mm

Weight:

0.039 kg

Width:

24 mm

Height:

16 mm

M_1345.pdf
XM_1345.pdf

Technical Informations.

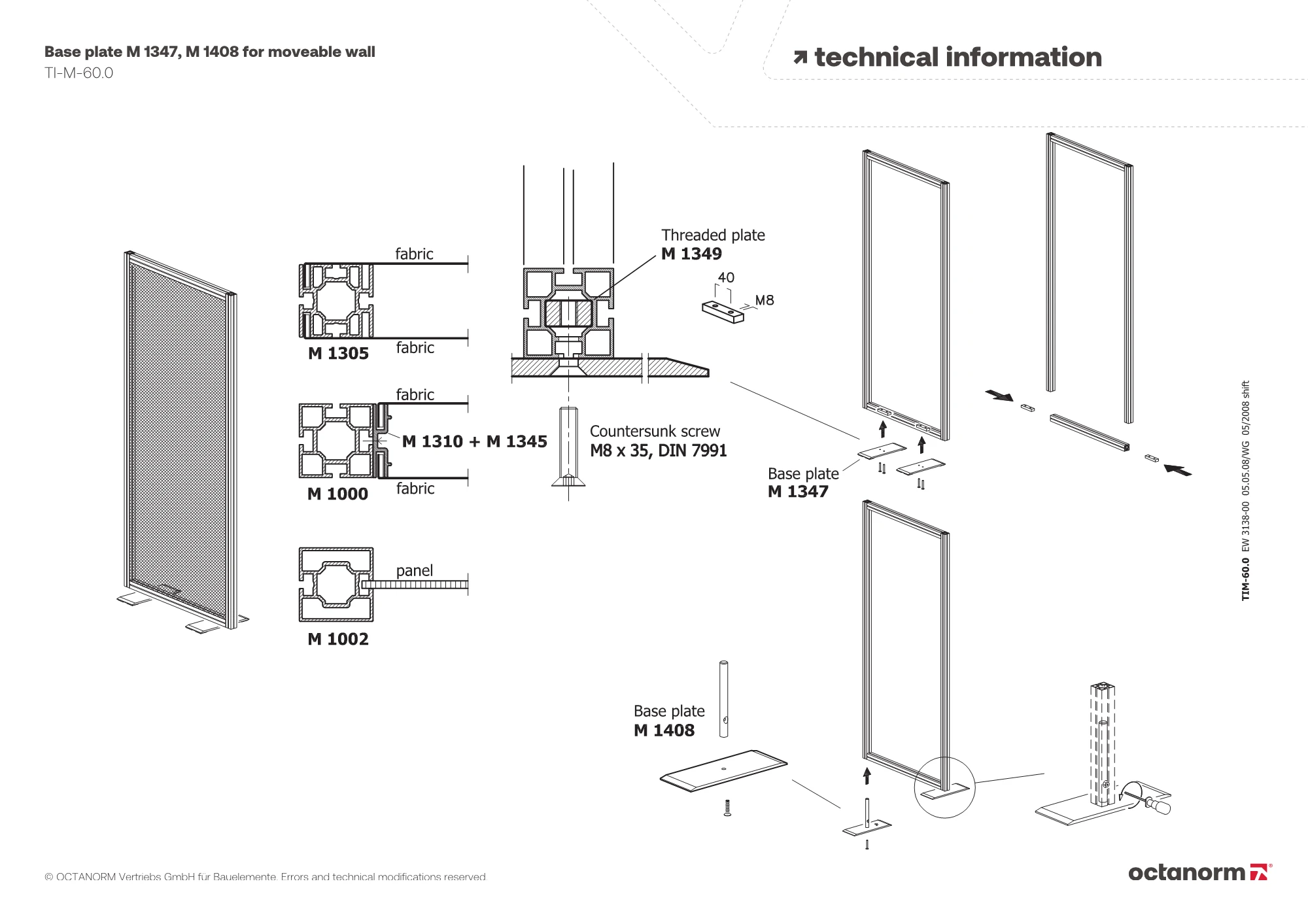

Base plate M 1347, M 1408 for moveable wall

TI-M-60.0 TI-M-60.0

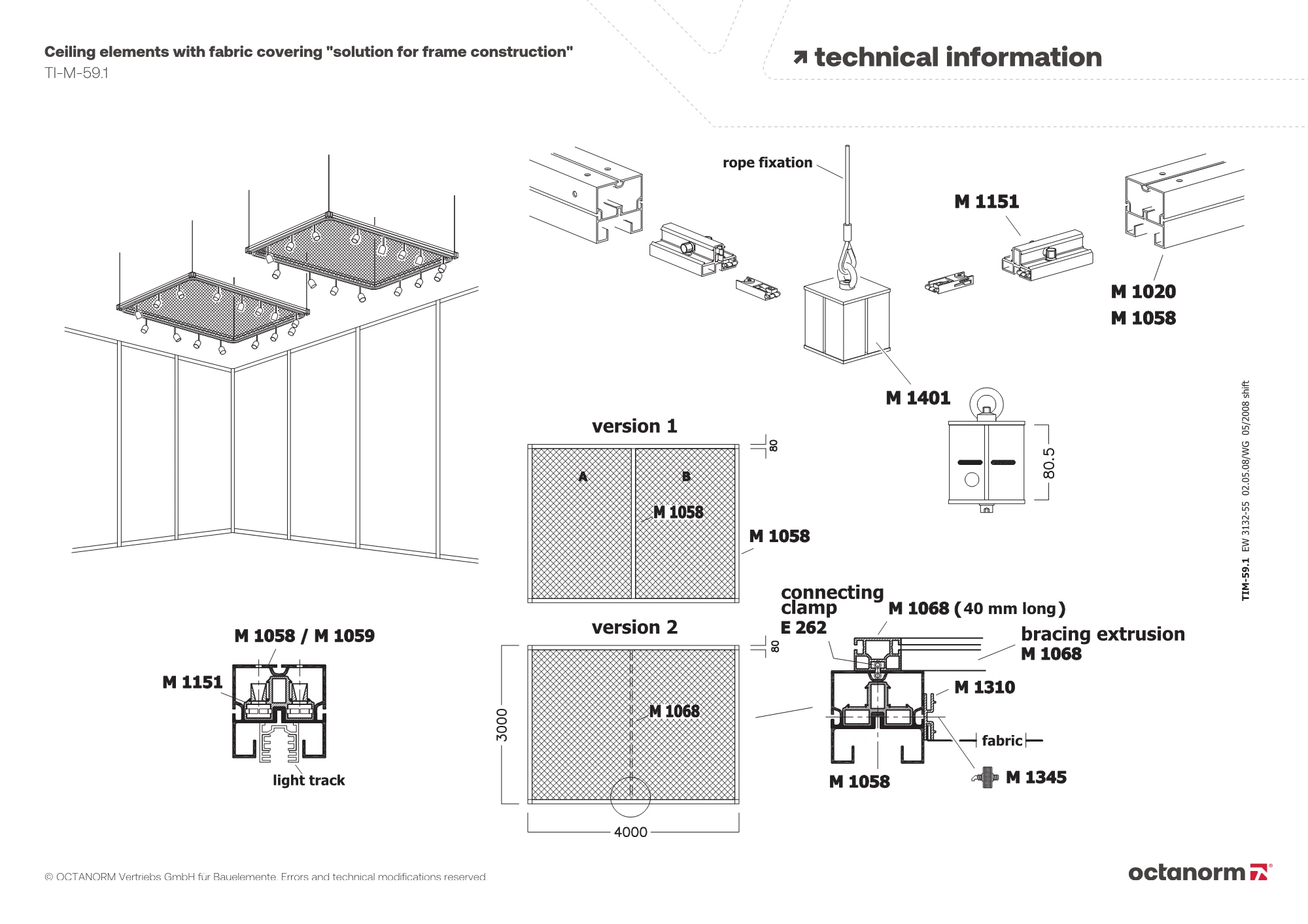

Ceiling elements with fabric covering "solution for frame construction"

TI-M-59.1 TI-M-59.1

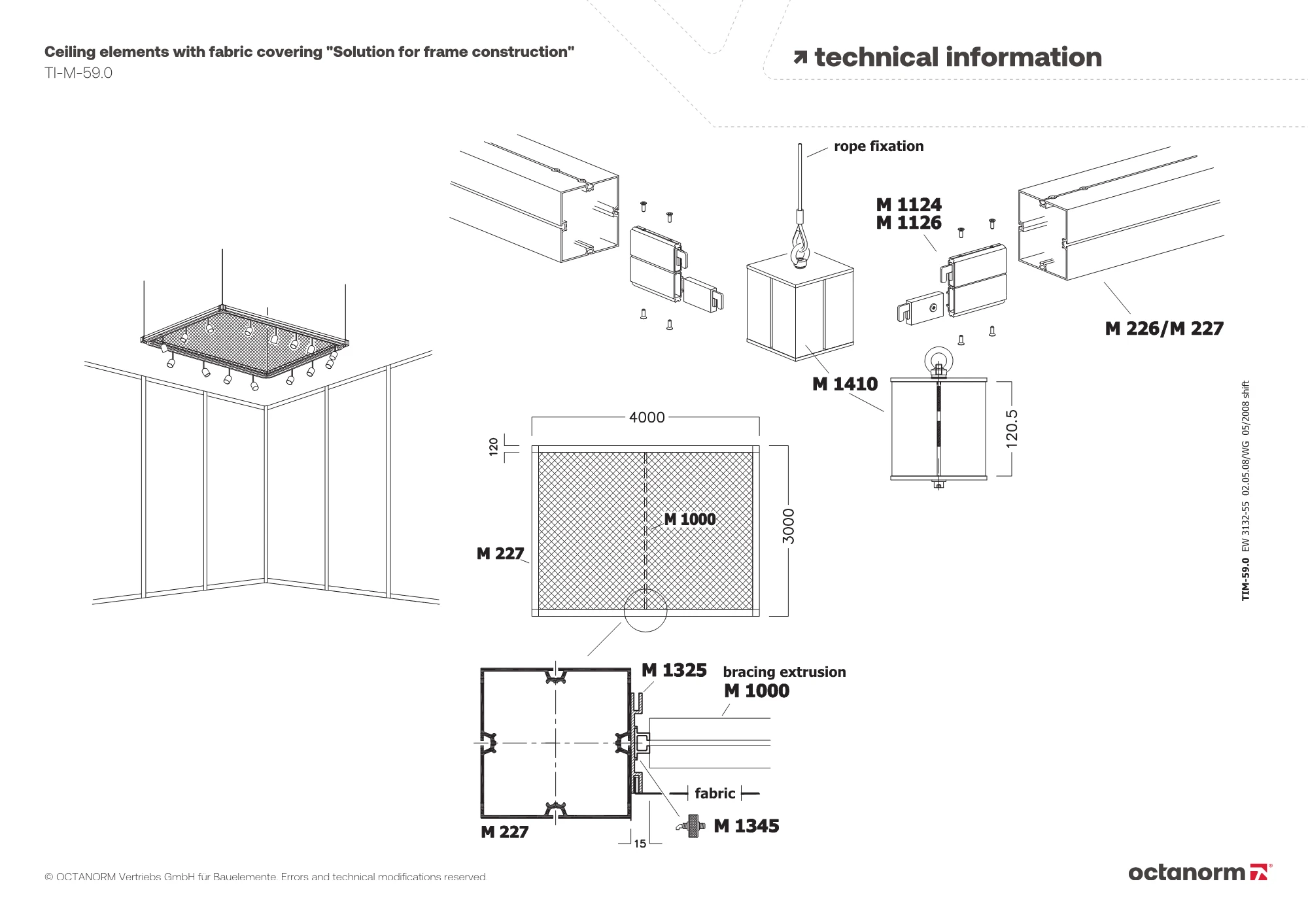

Ceiling elements with fabric covering "Solution for frame construction"

TI-M-59.0 TI-M-59.0
