Beam extrusion | W 101.11

aluminium
with supporting flange for 16 mm wall cladding on one side, tension lock Z 961/13 can be mounted
L 5000 × W 50 × H 16 mm

Available Material

polished, anodized, silver (E2/EV1, E4/EV1)

Technical Data.

Length:

5000 mm

Weight:

5.56 kg

Width:

16 mm

Height:

50 mm

W_101.pdf
W_101.dwg
W_101.dxf
XW_101.pdf

Accessories.

Panel retainer

W 108.00

top

L 30 × W 30 × H 22 mm

Tension lock

Z 961/13.00

13 mm

L 70 × W 21 × H 13 mm

Also Available As.

Beam

W 117/G.11

for internal corner

L 950 × W 50 × H 16 mm

950 mm long

Technical Informations.

Wall structure

TI-MB-VW5.1 TI-MB-VW5.1

Ceiling beam connection

TI-MB-VW6.0 TI-MB-VW6.0

Wallpanel 16 mm on one side

TI-MB-VW1.0 TI-MB-VW1.0

Conceiling of uproghts at wall ends

TI-MB-VW4.0 TI-MB-VW4.0

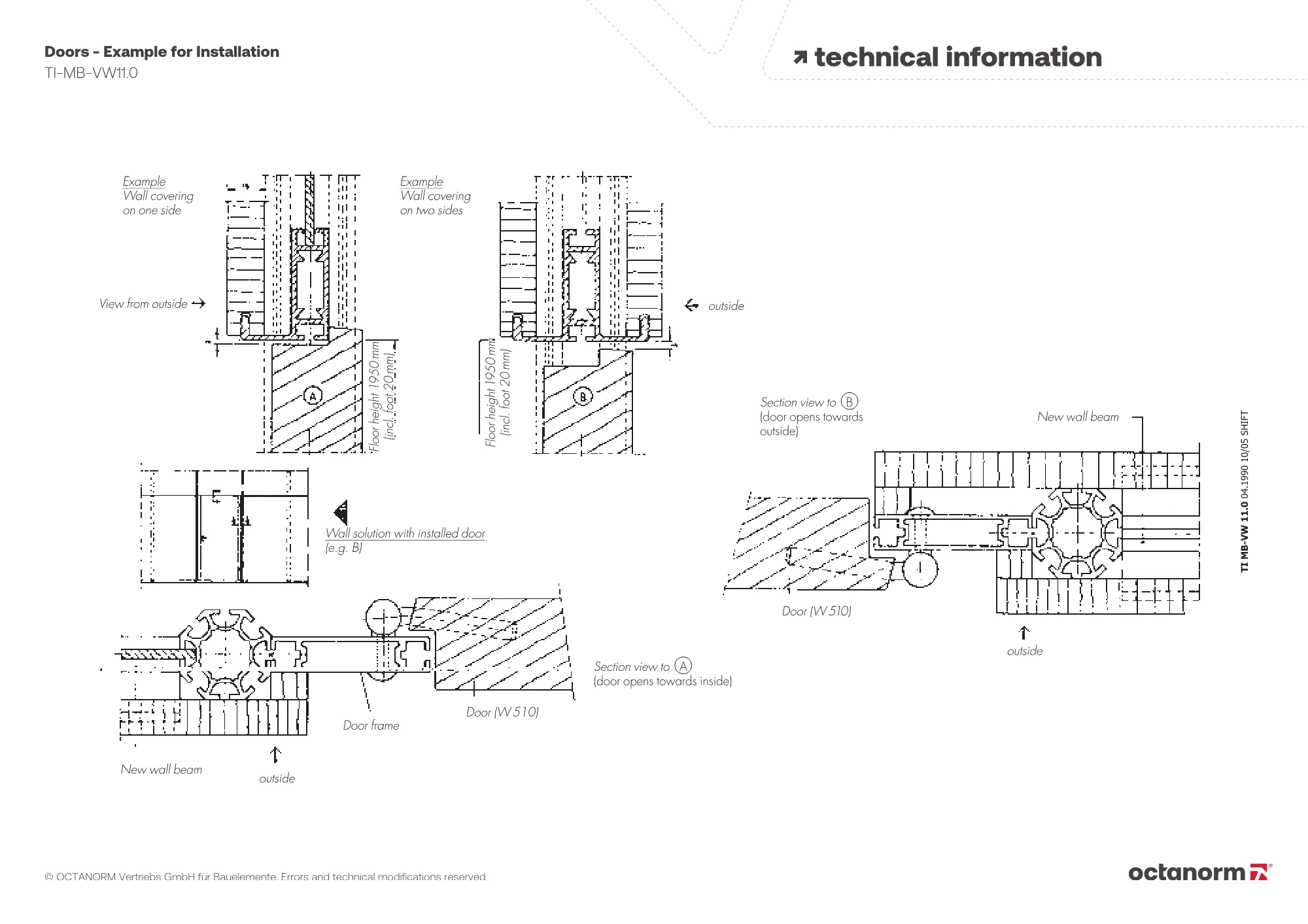

Doors - Example for Installation

TI-MB-VW11.0 TI-MB-VW11.0

Mounting instructions

TI-MB-VW5.0 TI-MB-VW5.0

Wallpanel 16 mm on both sides

TI-MB-VW3.0 TI-MB-VW3.0

Ceiling beam connection

TI-MB-VW7.0 TI-MB-VW7.0

Gaps running verticall

TI-MB-VW5.2 TI-MB-VW5.2
