Shop Fitting.
Basic extrusions.

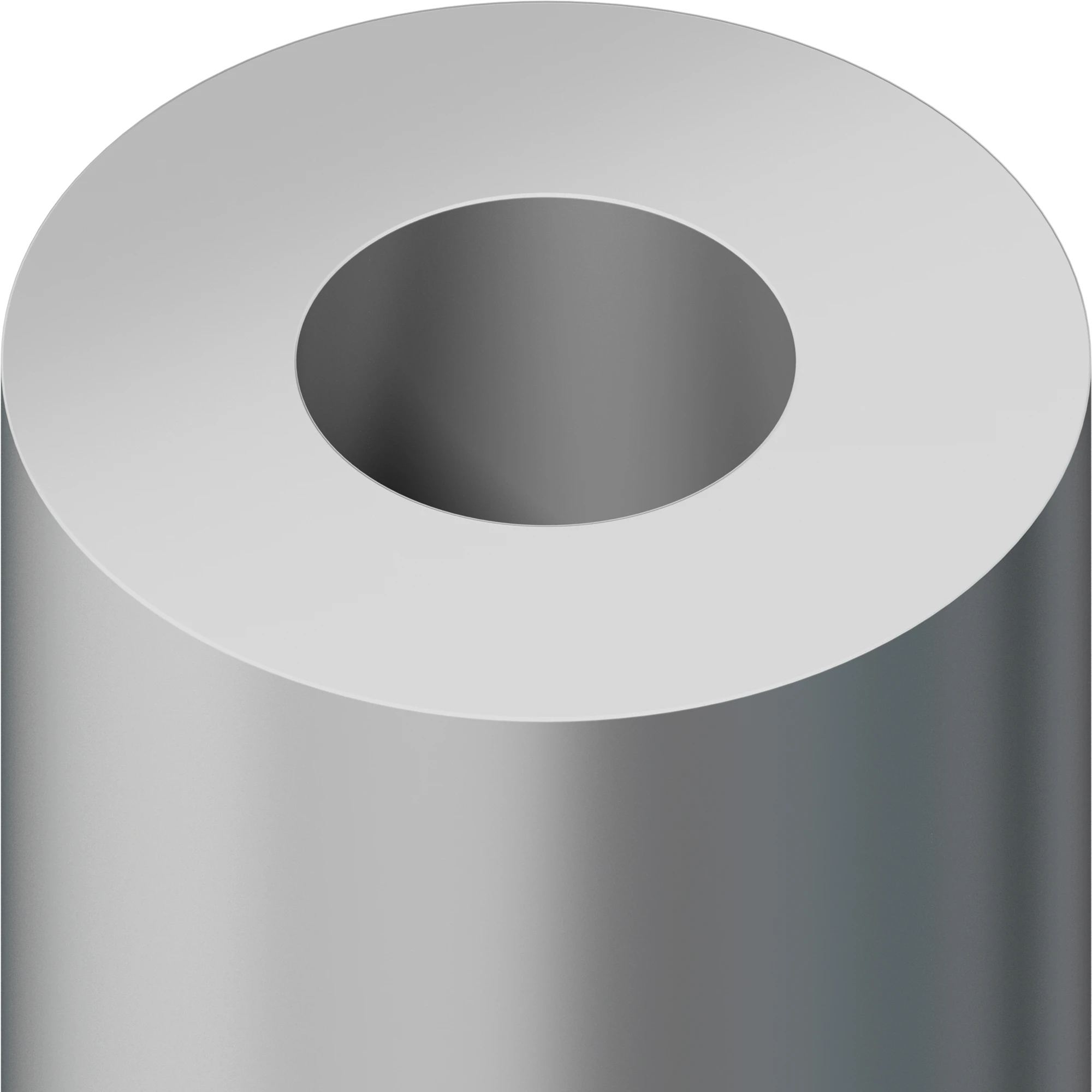

M 1140.01
L 5000 × W 24 × H 24 mm
5000 mm long
matt anodized, silver (E6/EV1)

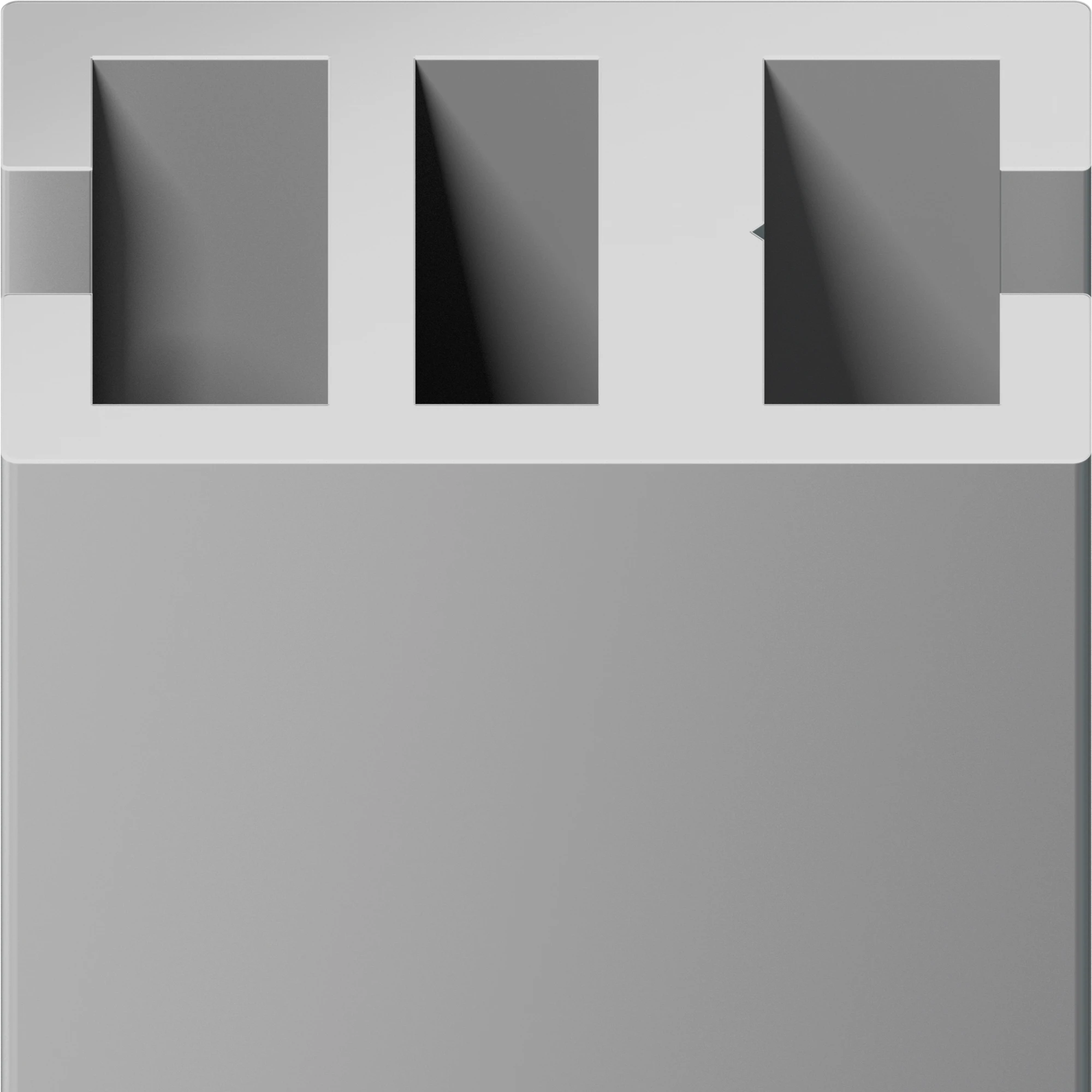

M 1602.01
2 system grooves
L 5000 × W 25 × H 16 mm
5000 mm long
matt anodized, silver (E6/EV1)

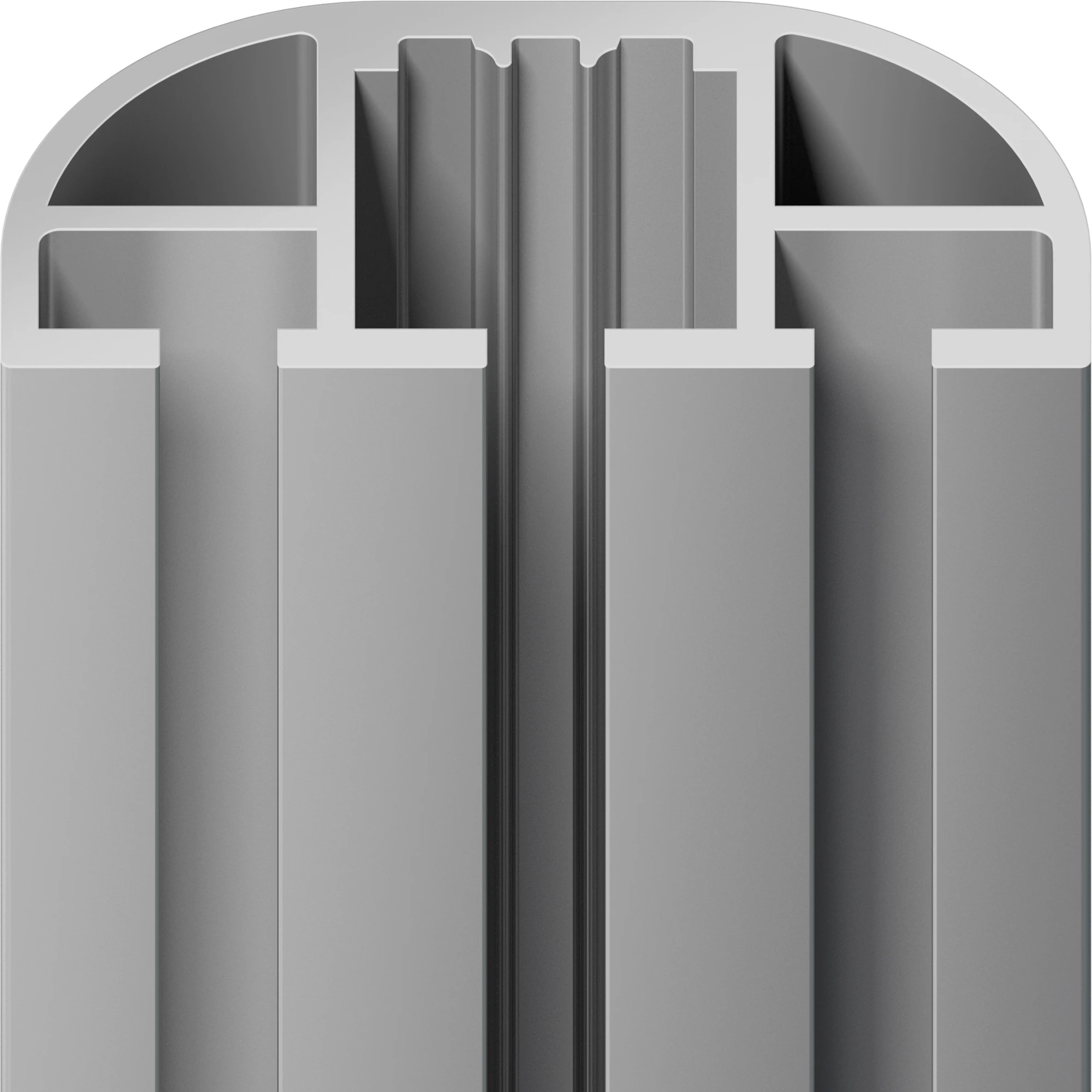

M 1606.01
2 system grooves
L 5000 × W 40 × H 20 mm
5000 mm long
matt anodized, silver (E6/EV1)

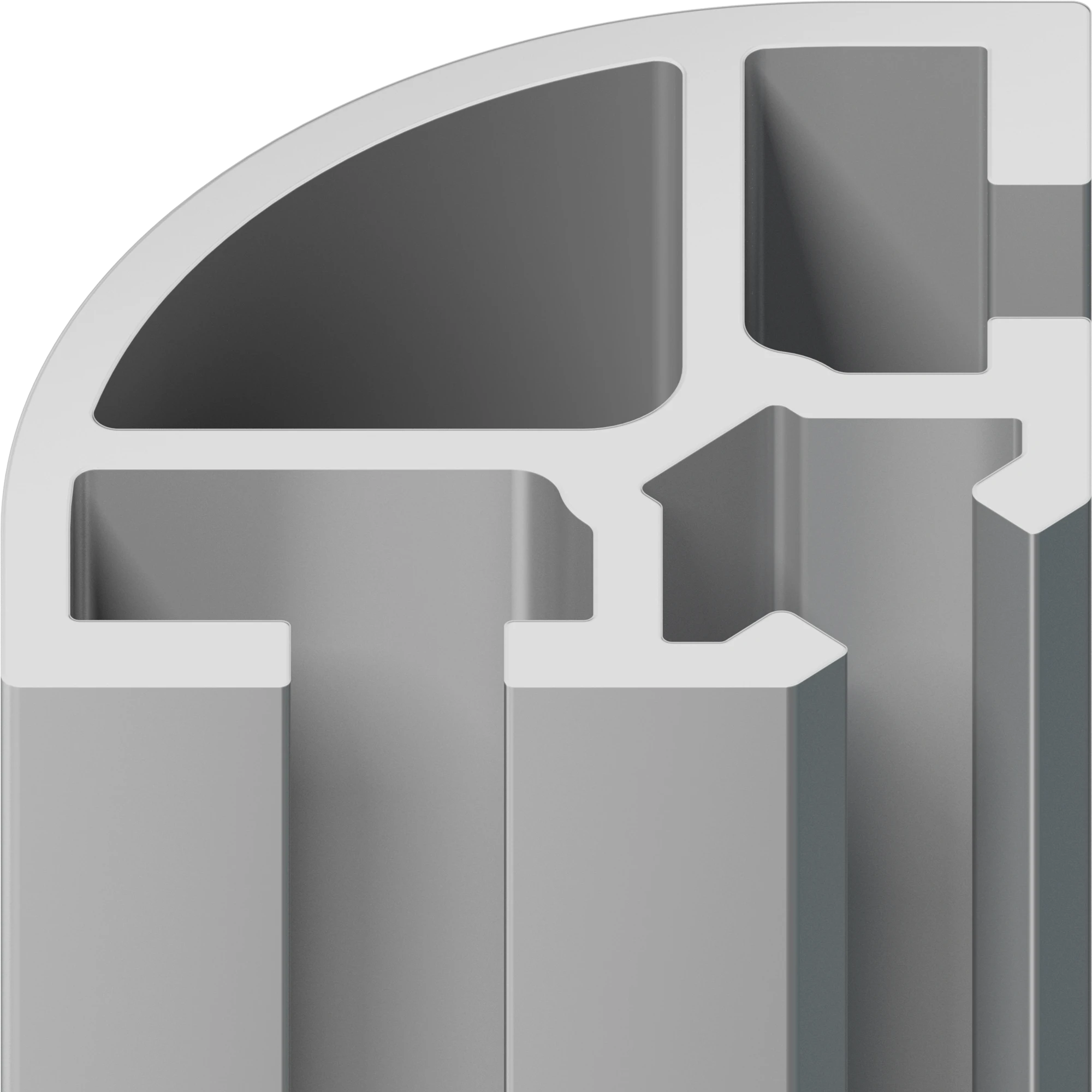

M 1620.01
2 system grooves
L 5000 × W 22 × H 22 mm
5000 mm long
matt anodized, silver (E6/EV1)

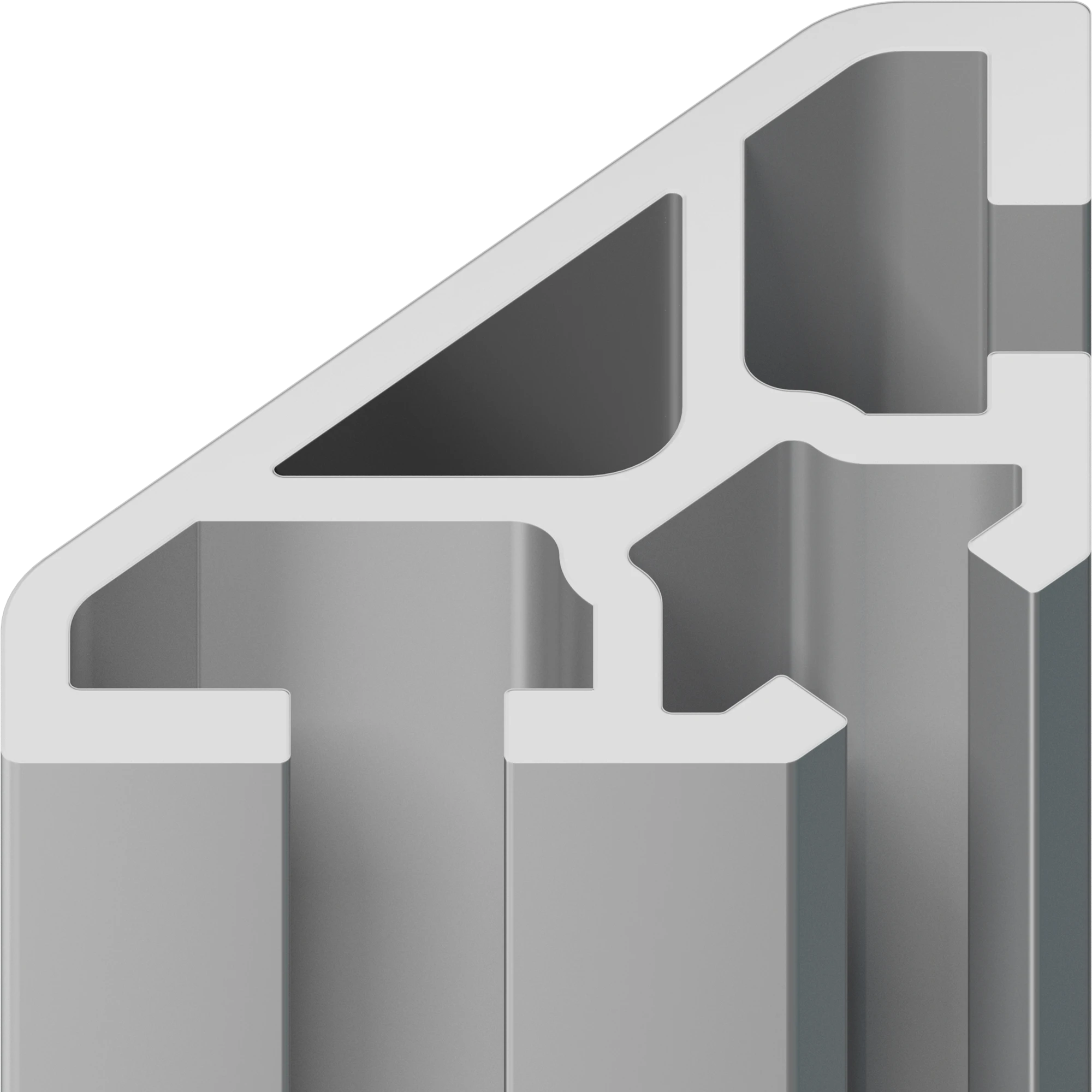

M 1622.01
2 system grooves
L 5000 × W 22 × H 22 mm
5000 mm long
matt anodized, silver (E6/EV1)
M 1622.41
2 system grooves
L 5000 × W 22 × H 22 mm
5000 mm long
polished chrome-plated

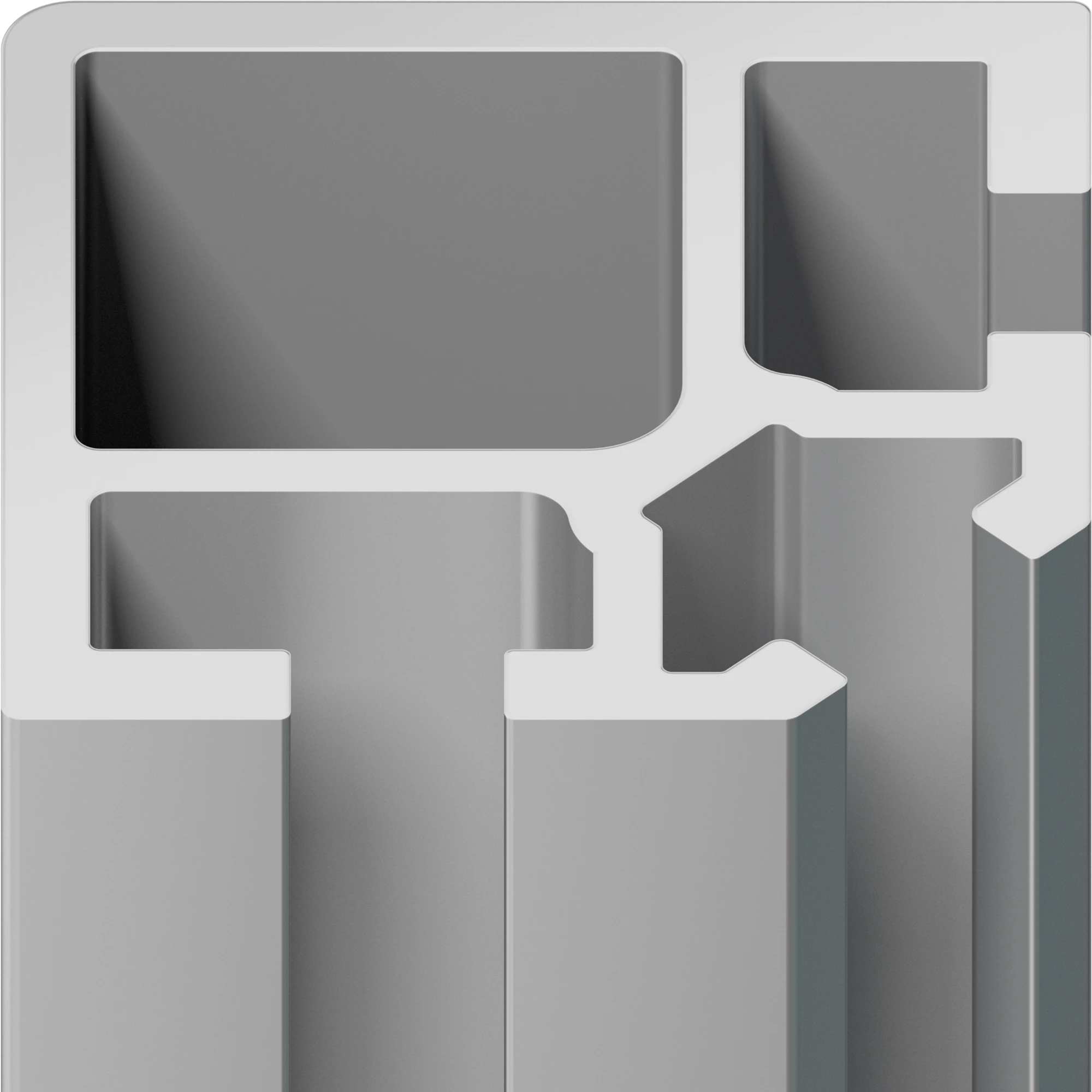

M 1625.01
2 system grooves
L 5000 × W 22 × H 22 mm
5000 mm long
matt anodized, silver (E6/EV1)

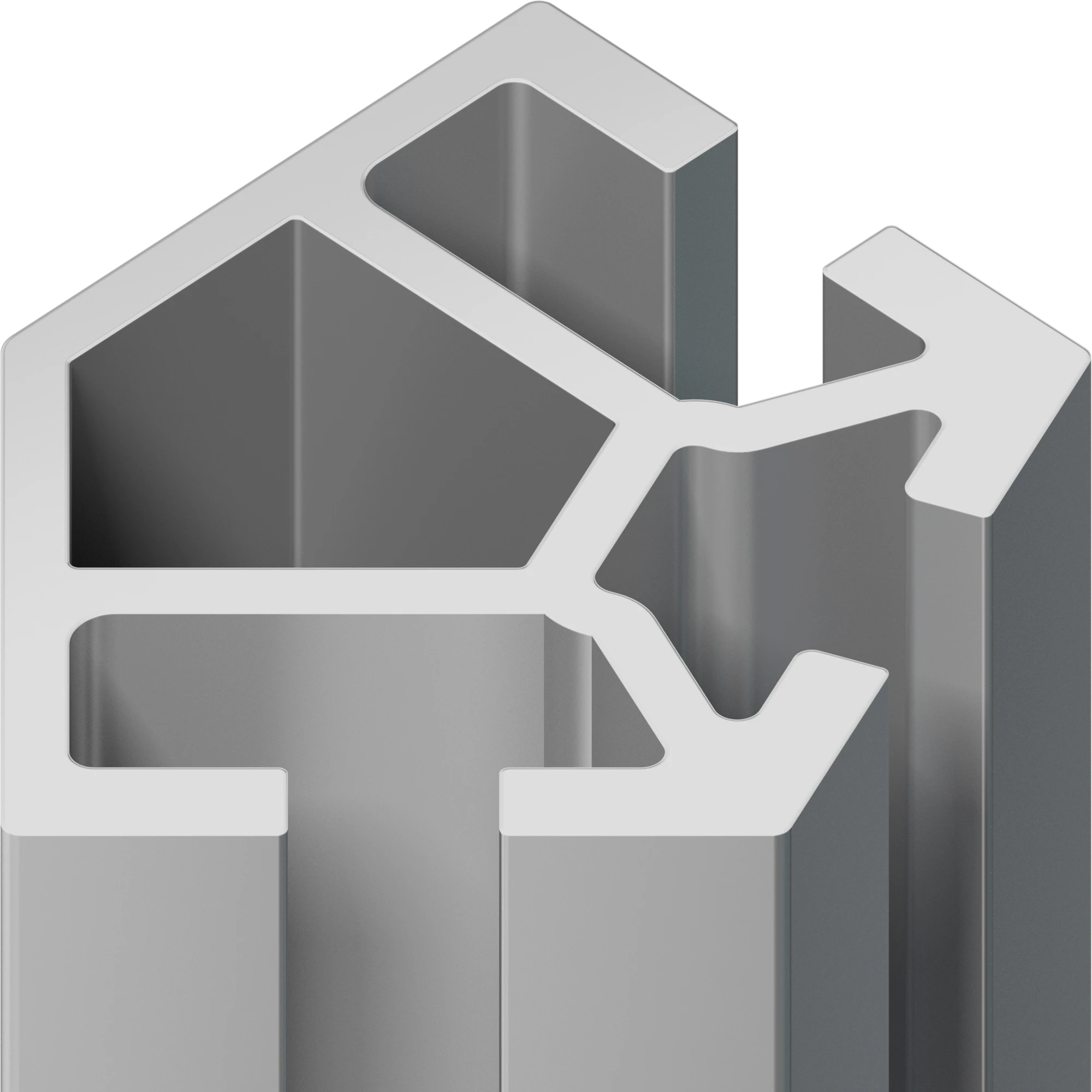

M 1629.01
135°
2 system grooves
L 5000 × W 16 mm
5000 mm long
matt anodized, silver (E6/EV1)
M 1629.41
135°
2 system grooves
L 5000 × W 16 mm
5000 mm long
polished chrome-plated

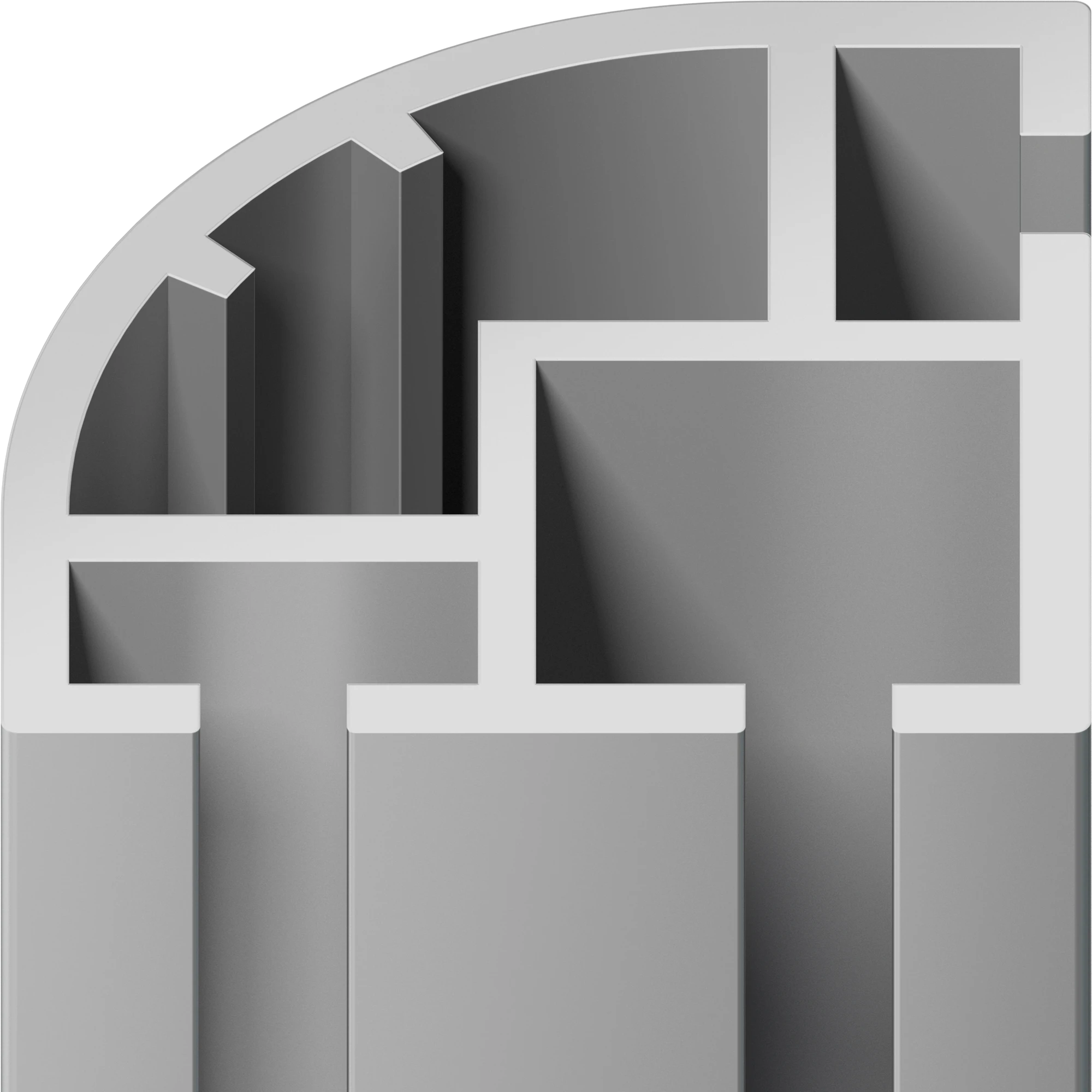

S 1105.01
3 system grooves
L 5000 × W 32 × H 32 mm
5000 mm long
matt anodized, silver (E6/EV1)

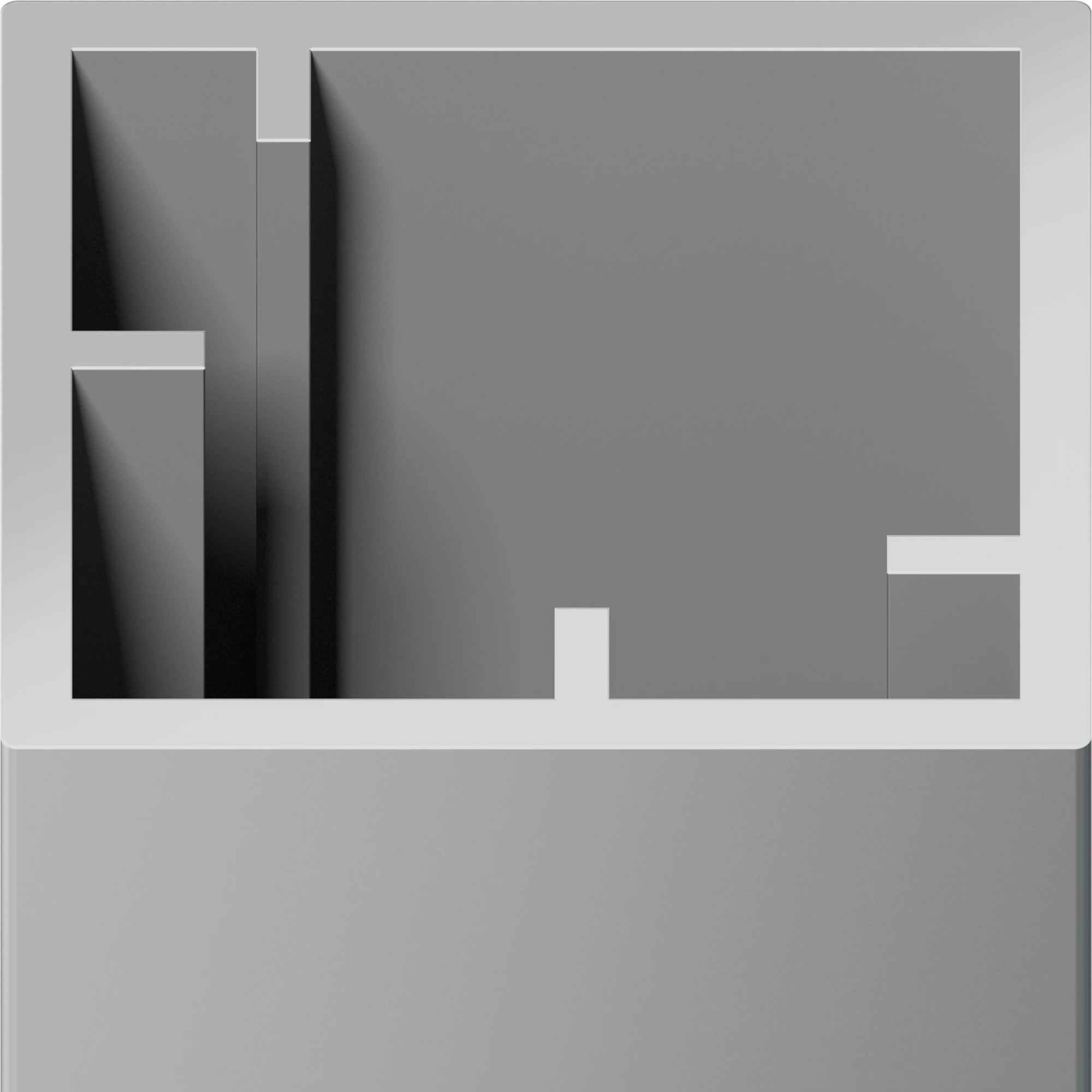

S 1123.01
without system groove
L 5000 × W 32 × H 32 mm
5000 mm long
matt anodized, silver (E6/EV1)

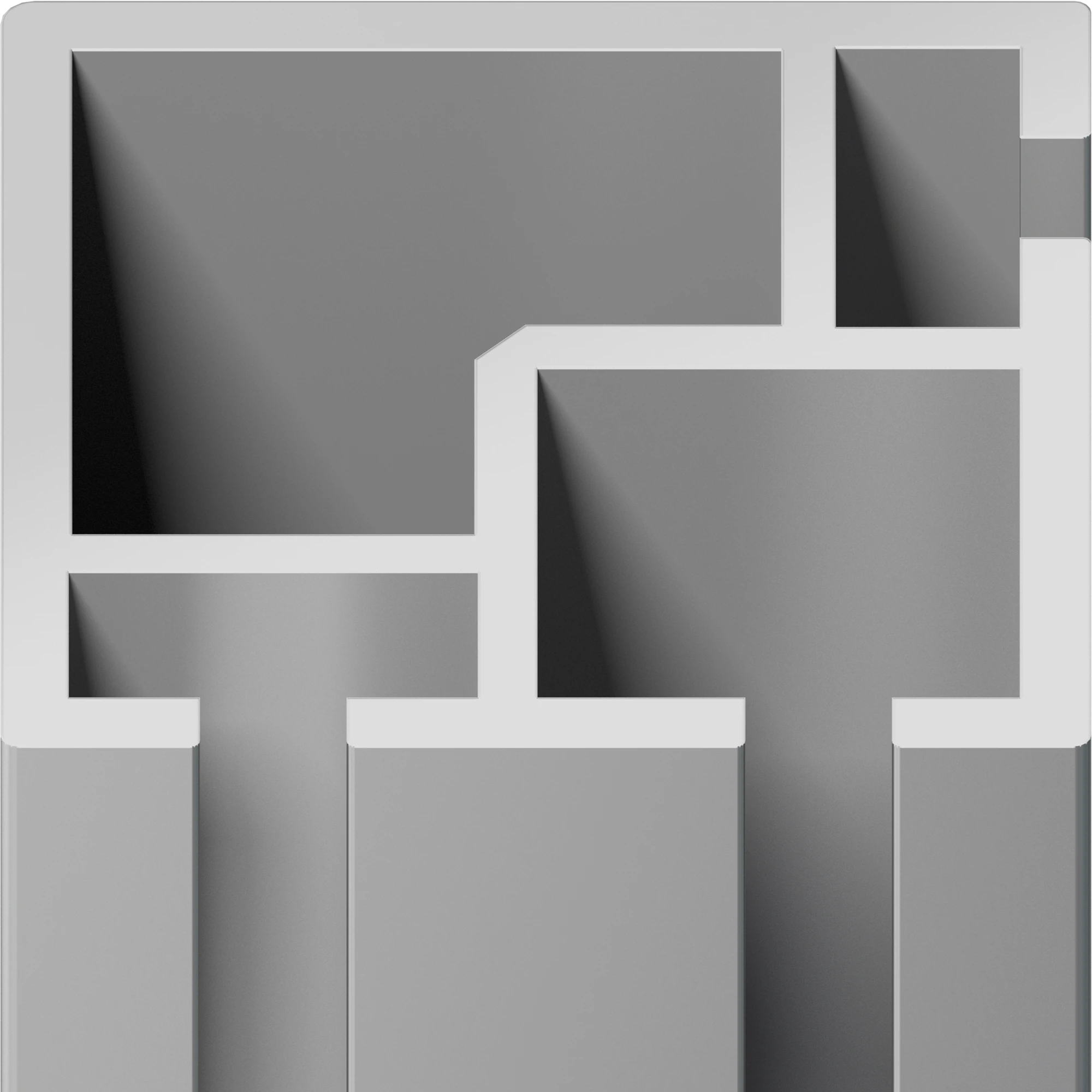

S 1125.01
3 system grooves
L 5000 × W 32 × H 32 mm
5000 mm long
matt anodized, silver (E6/EV1)
S 1303.01
3 system grooves
L 5000 × W 32 × H 32 mm
5000 mm long
matt anodized, silver (E6/EV1)

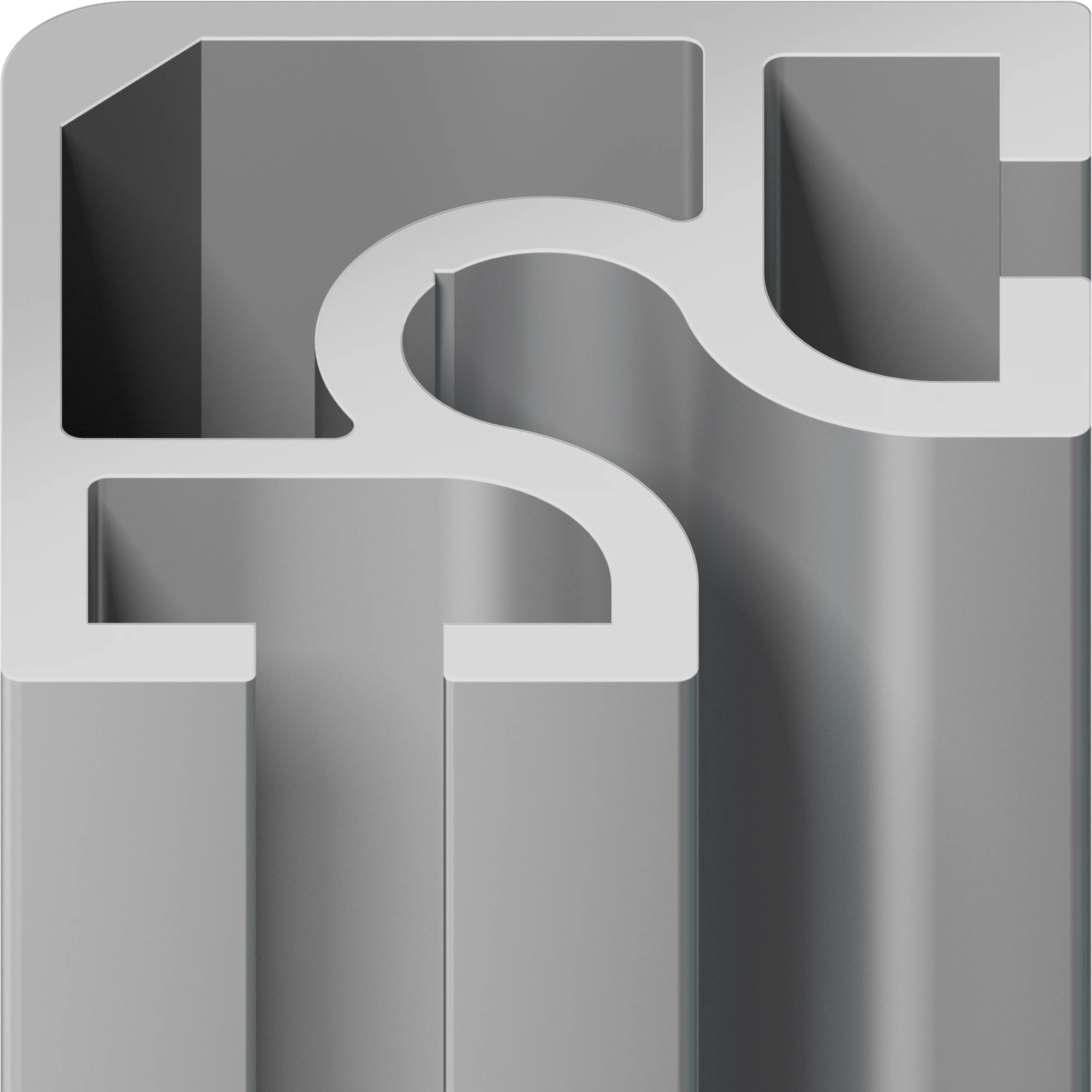

V 2000.01
2 system grooves
L 5000 × W 25 × H 25 mm
5000 mm long
matt anodized, silver (E6/EV1)
V 2040.01
L 5000 × W 25 × H 16 mm
5000 mm long
matt anodized, silver (E6/EV1)

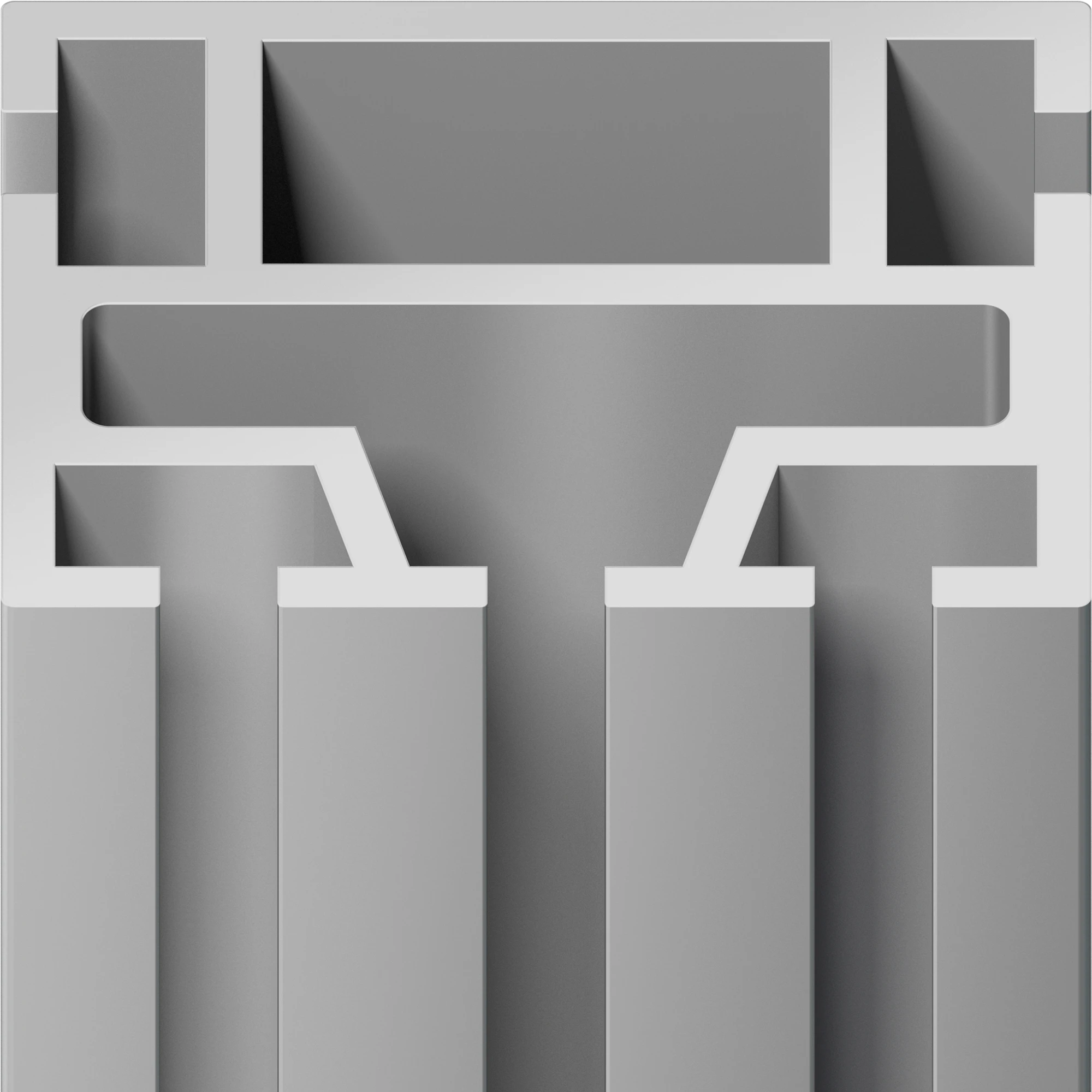

Z 2100.01
4 system grooves
L 5000 × W 40 × H 32 mm
5000 mm long
matt anodized, silver (E6/EV1)

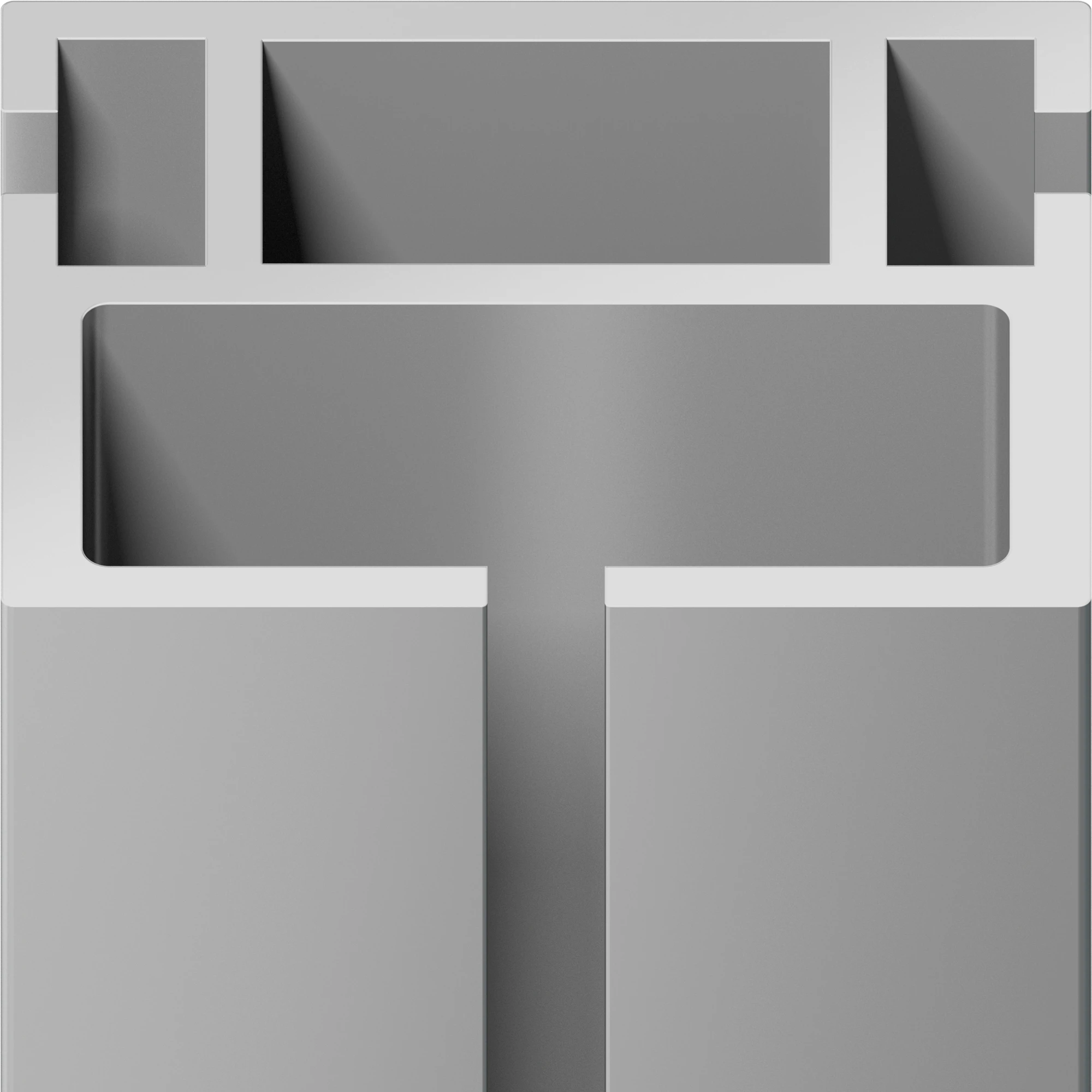

Z 2105.01
3 system grooves
L 5000 × W 40 × H 32 mm
5000 mm long
matt anodized, silver (E6/EV1)
Z 4100.01
2 system grooves
L 5000 × W 40 × H 38 mm
5000 mm long
matt anodized, silver (E6/EV1)

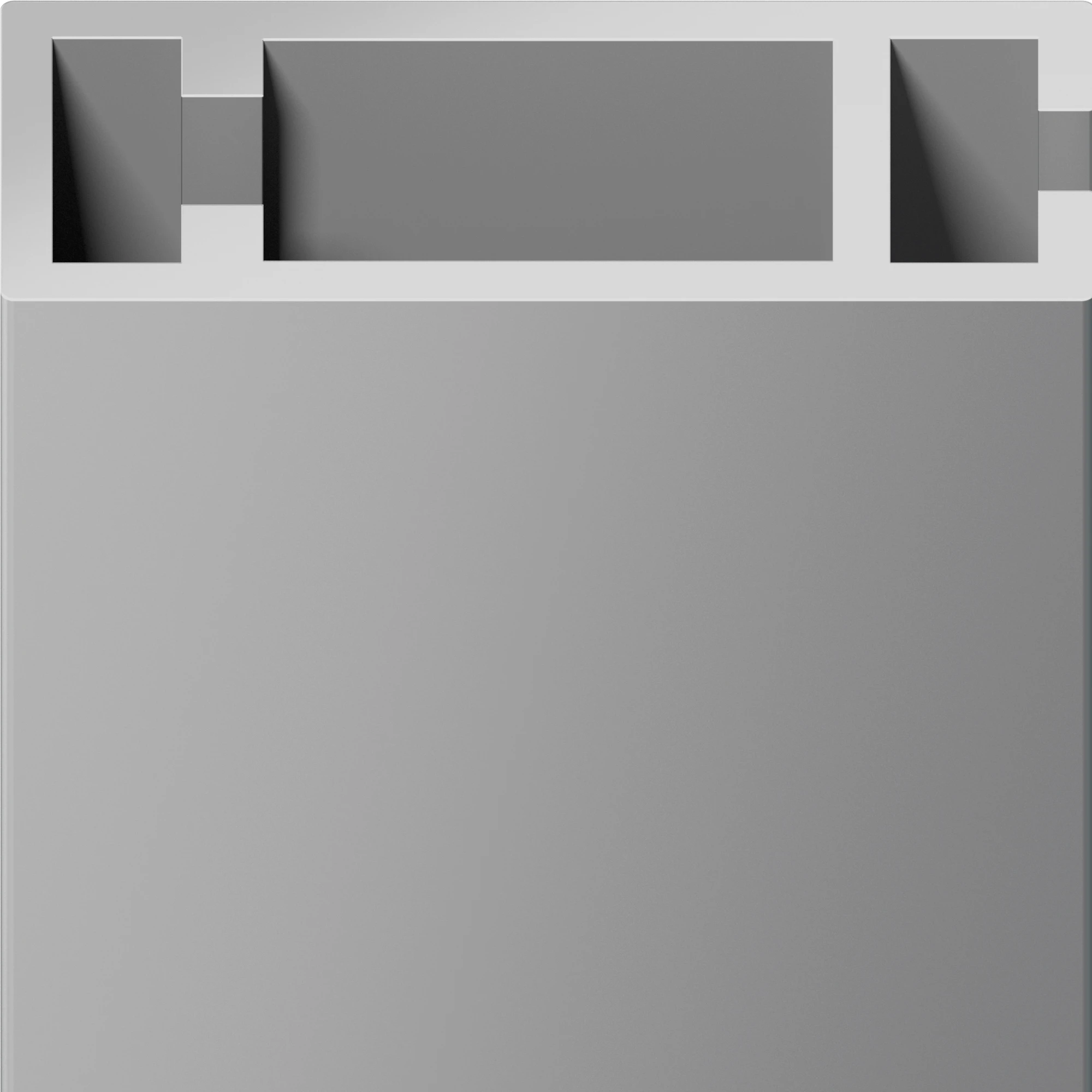

Z 4401.01
1 system groove
L 5000 × W 40 × H 16 mm
5000 mm long
matt anodized, silver (E6/EV1)
Accessories.

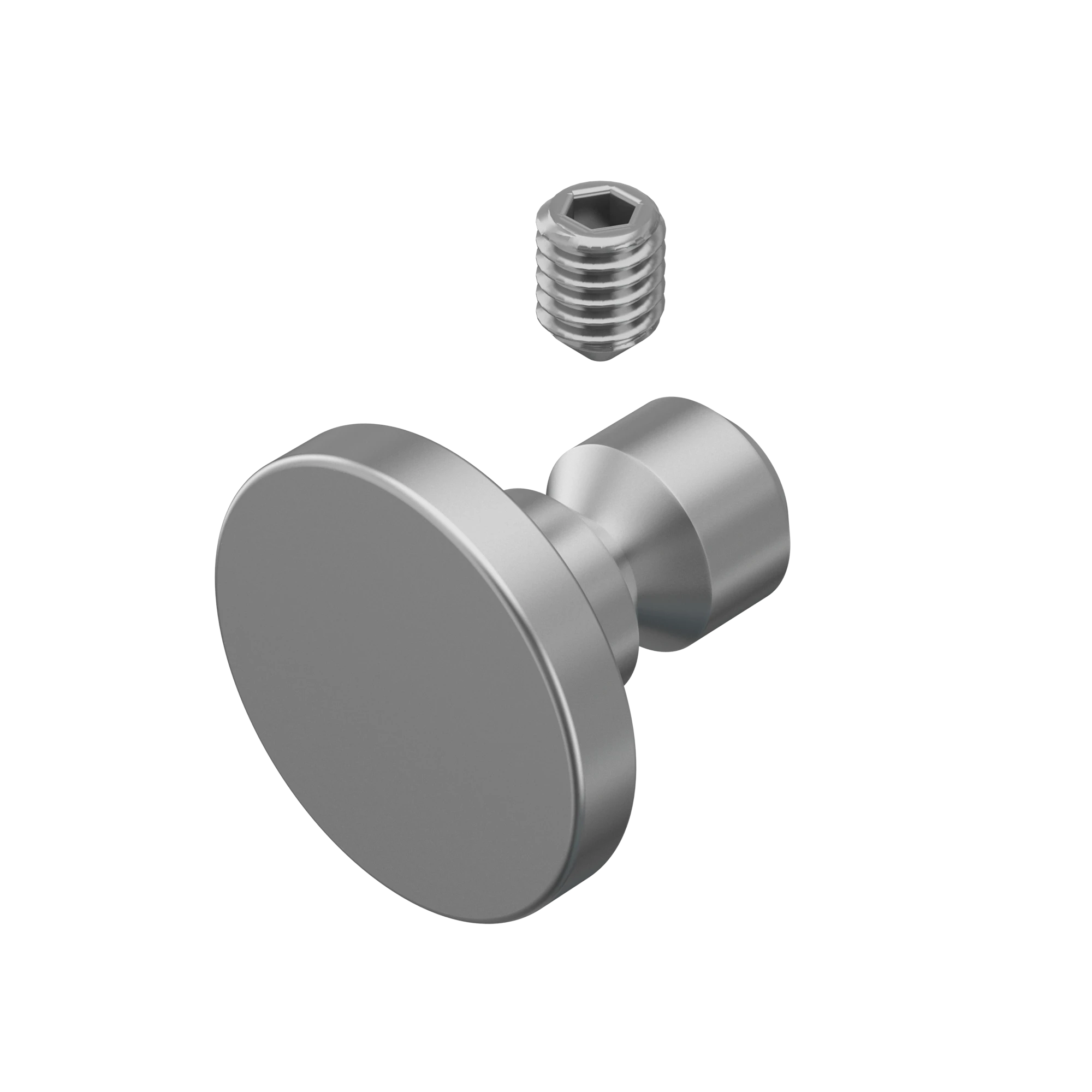

M 1149.39
L 24 × W 24 × H 23 mm
matt chrome-plated

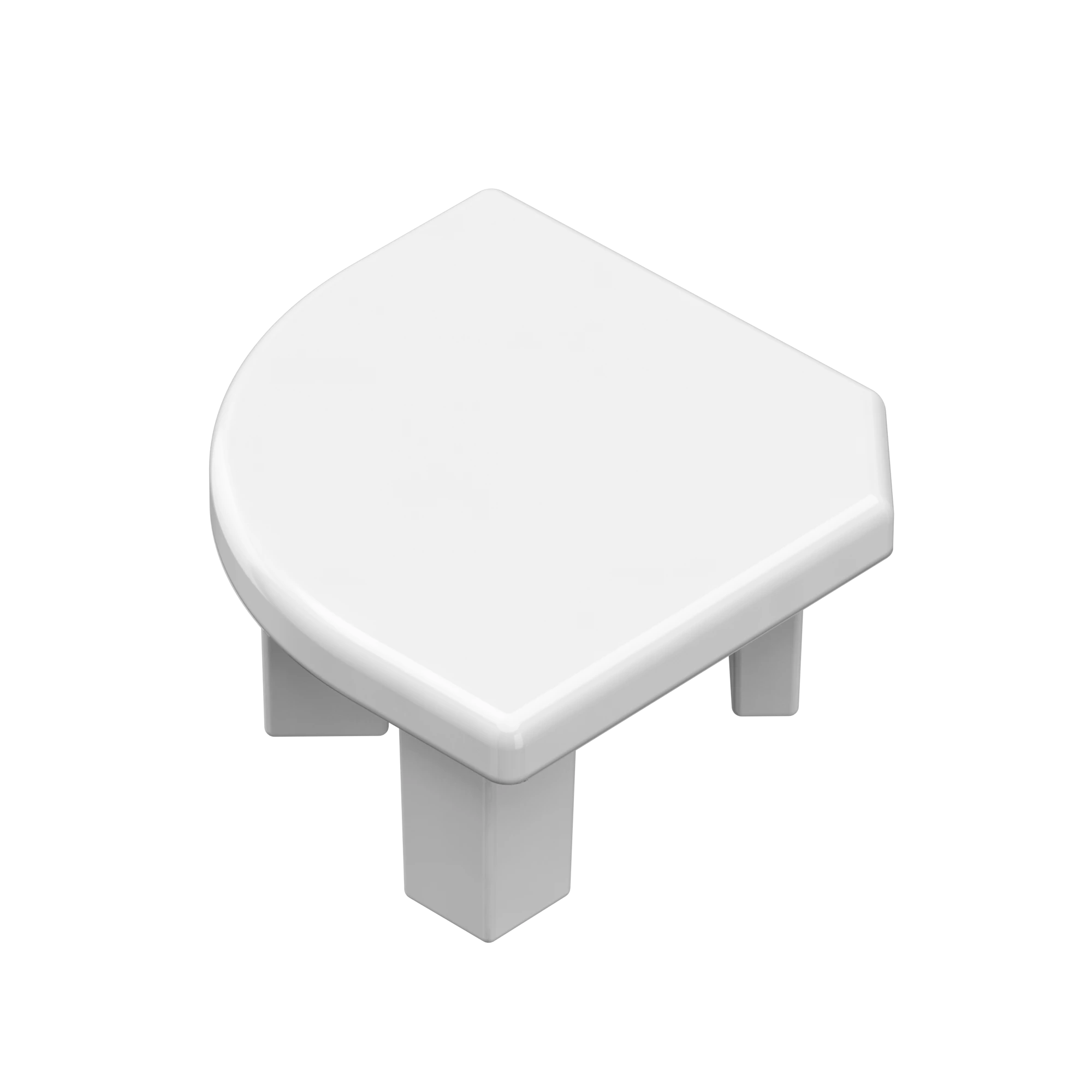

M 1630.35
for M 1600
L 21 × W 21 × H 10 mm
light grey

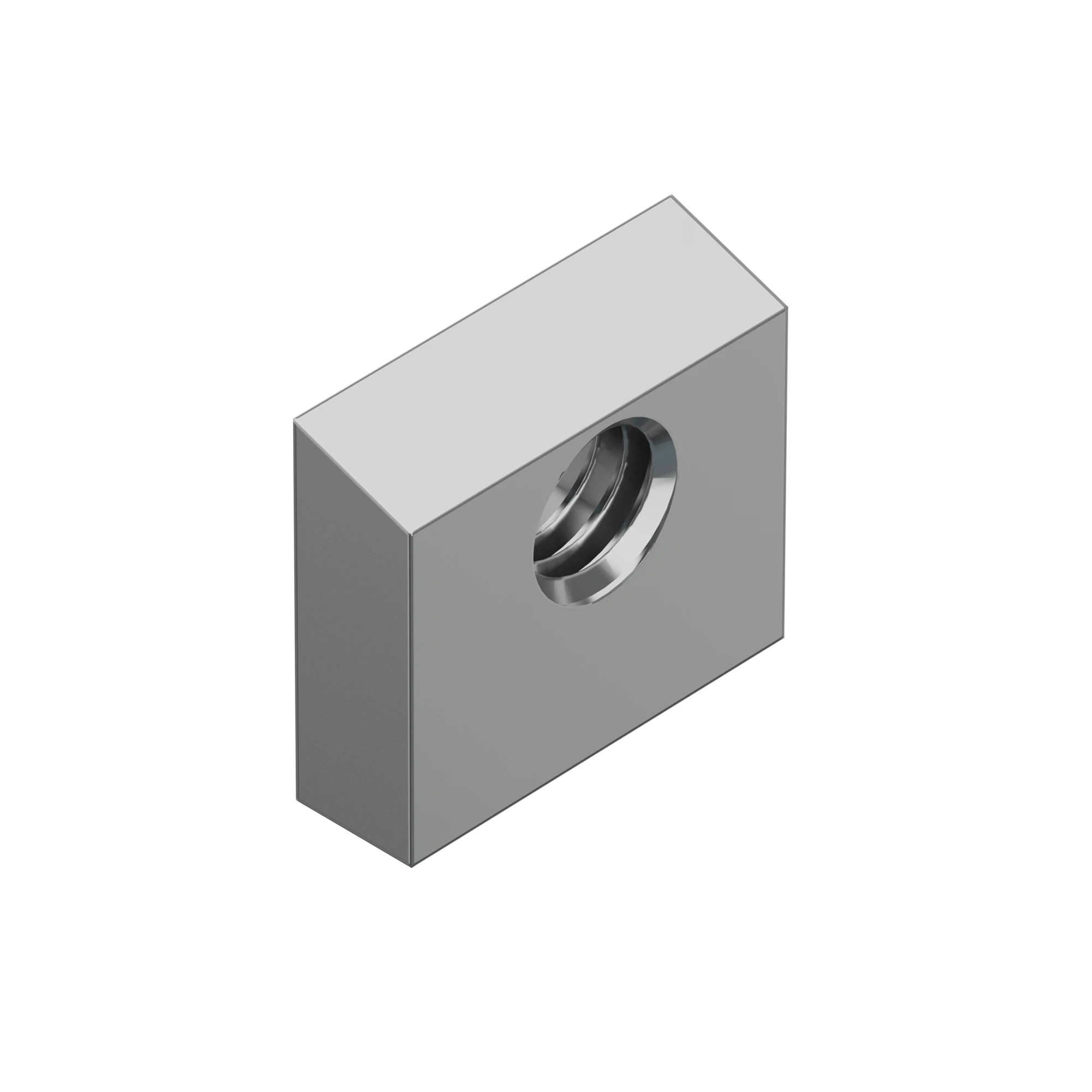

M 1636.37
for extrusions 20/22 mm
L 10 × W 8 × H 3 mm
zinc-plated

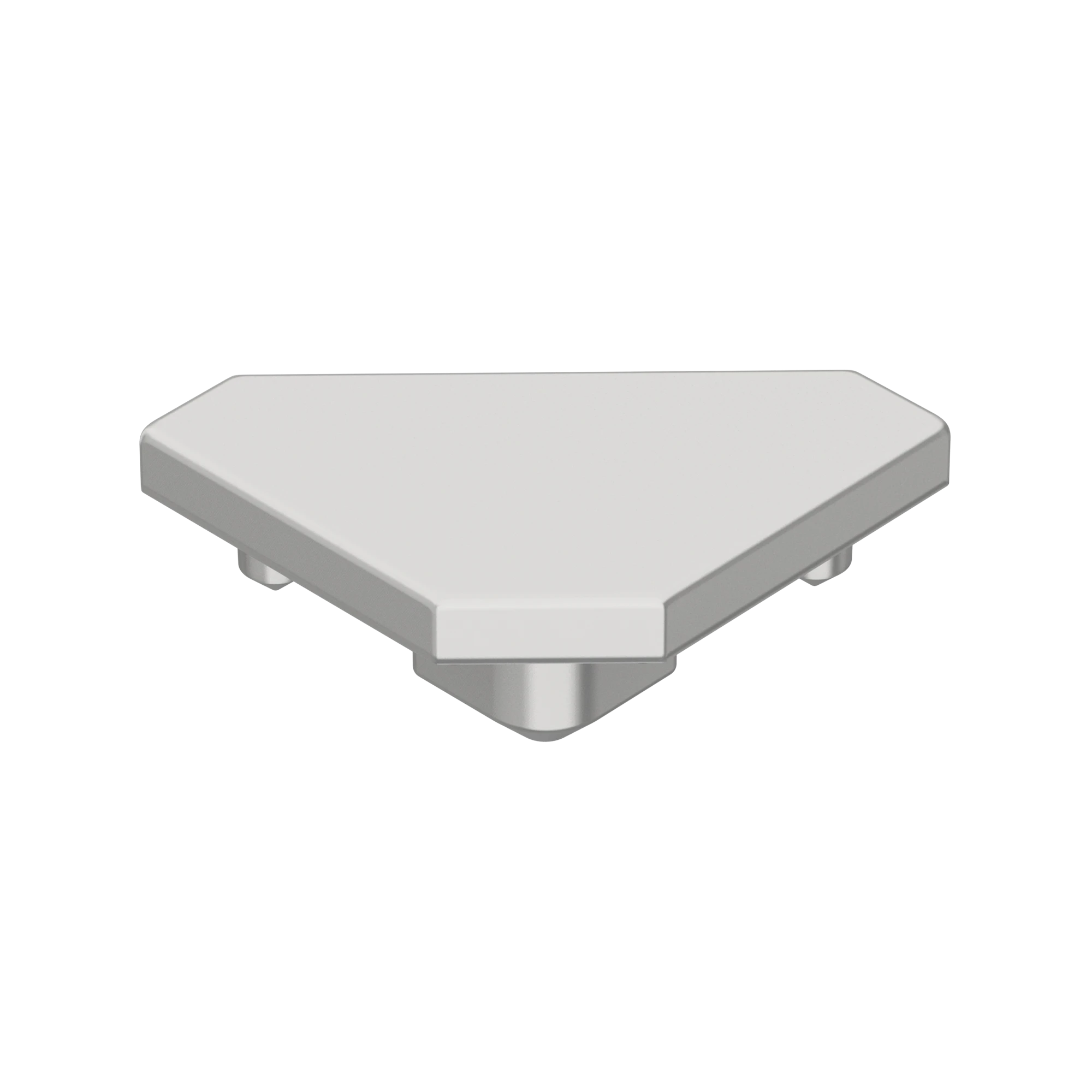

M 1650.39
for M 1622
L 22 × W 22 × H 15 mm
matt chrome-plated
M 1650.41
for M 1622
L 22 × W 22 × H 15 mm
polished chrome-plated

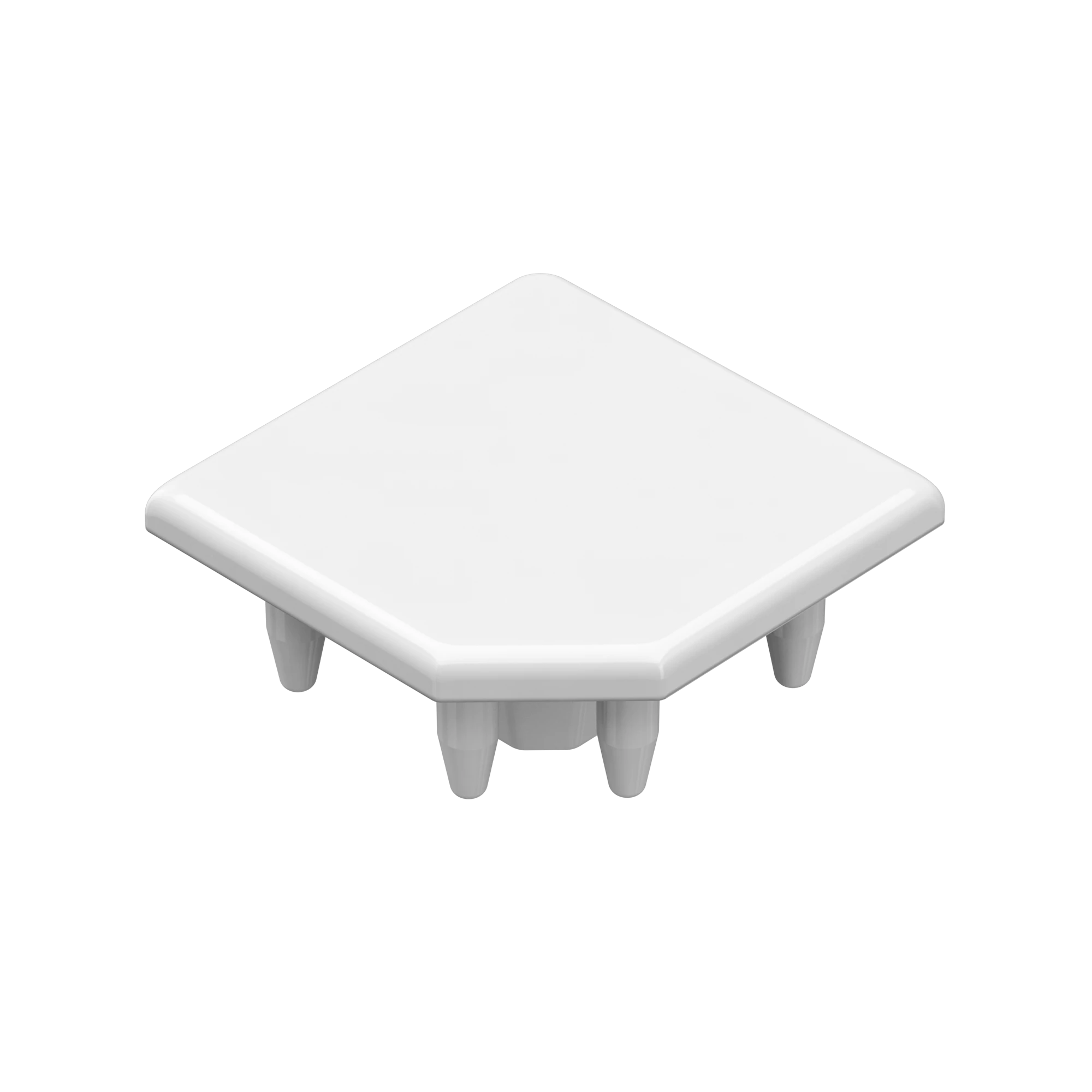

M 1665.35
for M 1625
L 22 × W 22 × H 12 mm
light grey

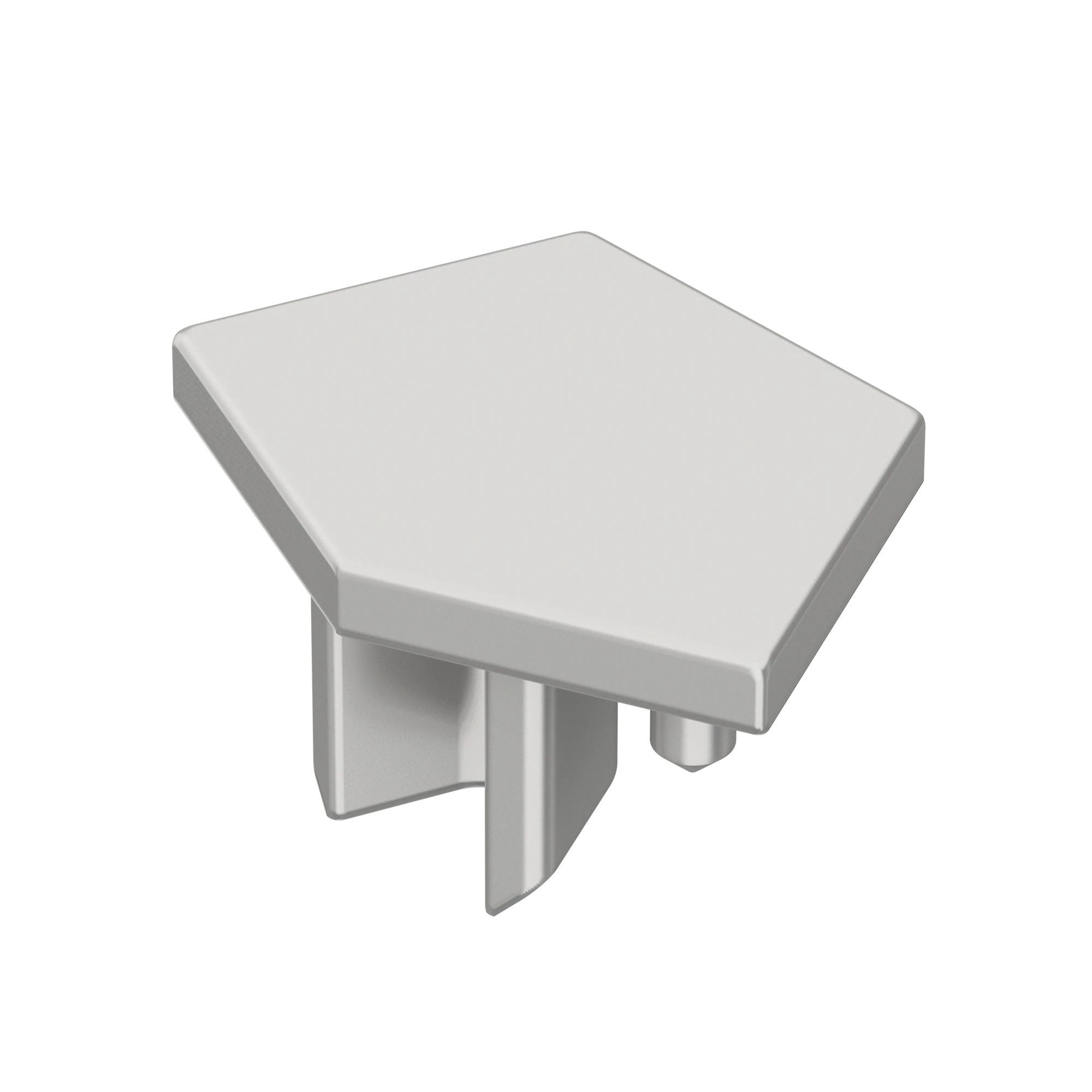

M 1685.41
135°
for M 1629
L 29 × W 21 × H 15 mm
polished chrome-plated

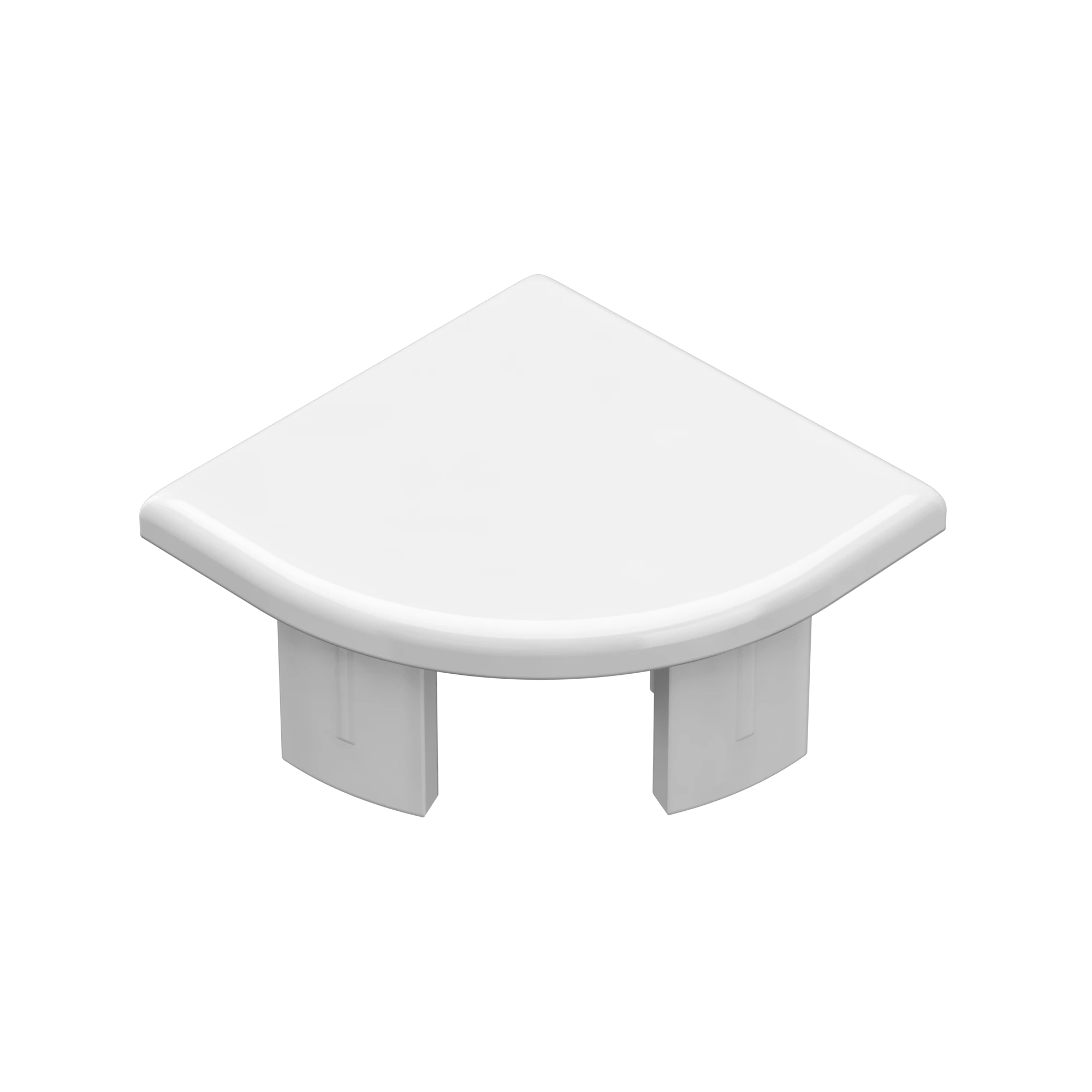

S 1130.35
for S 1100/S 1105
L 32 × W 32 × H 14 mm
light grey

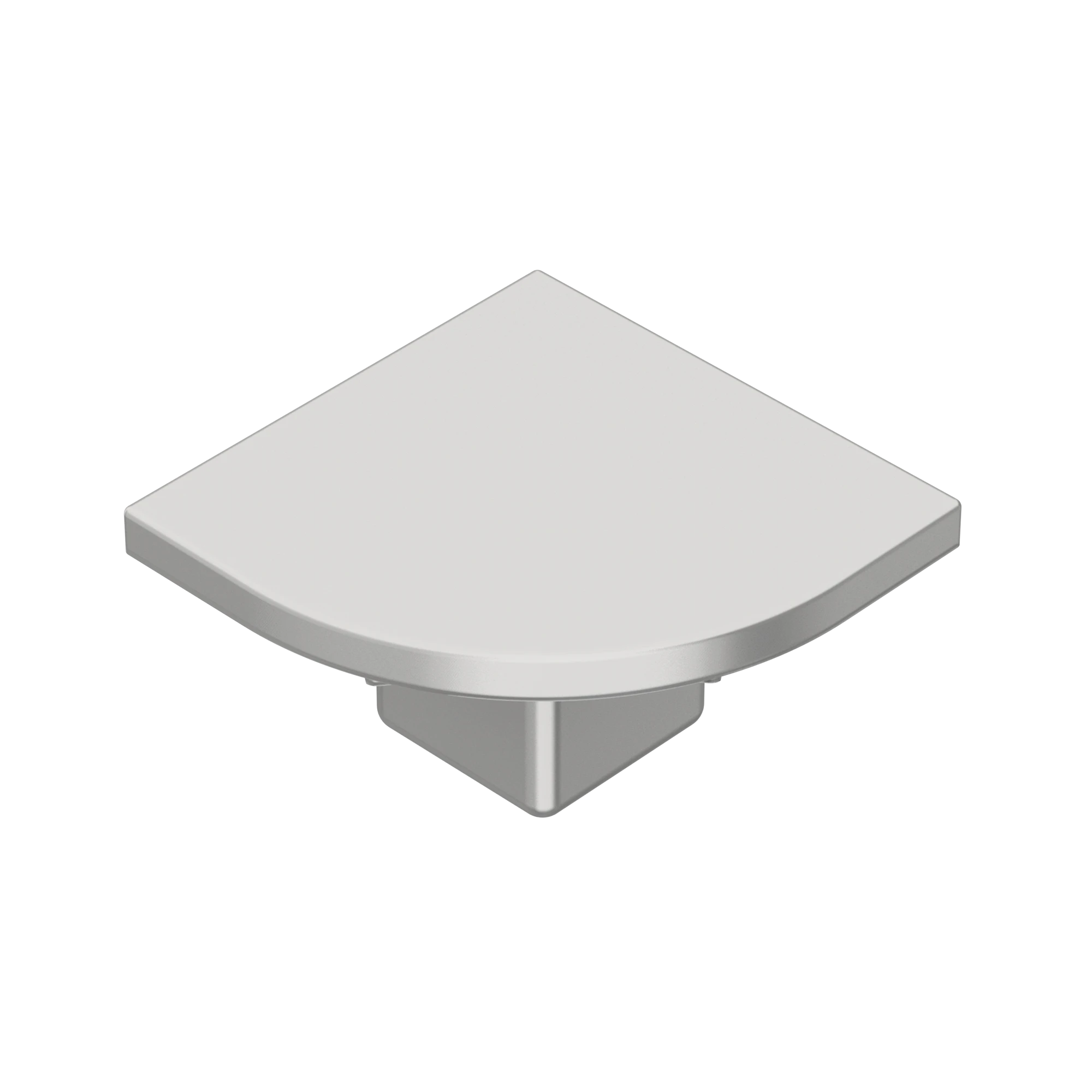

S 1131.39
for S 1100/S 1105
L 32 × W 32 × H 23 mm
matt chrome-plated
S 1132.00
M10
for S 1100/S 1105
L 14 × W 14 × H 36 mm
raw / unfinished

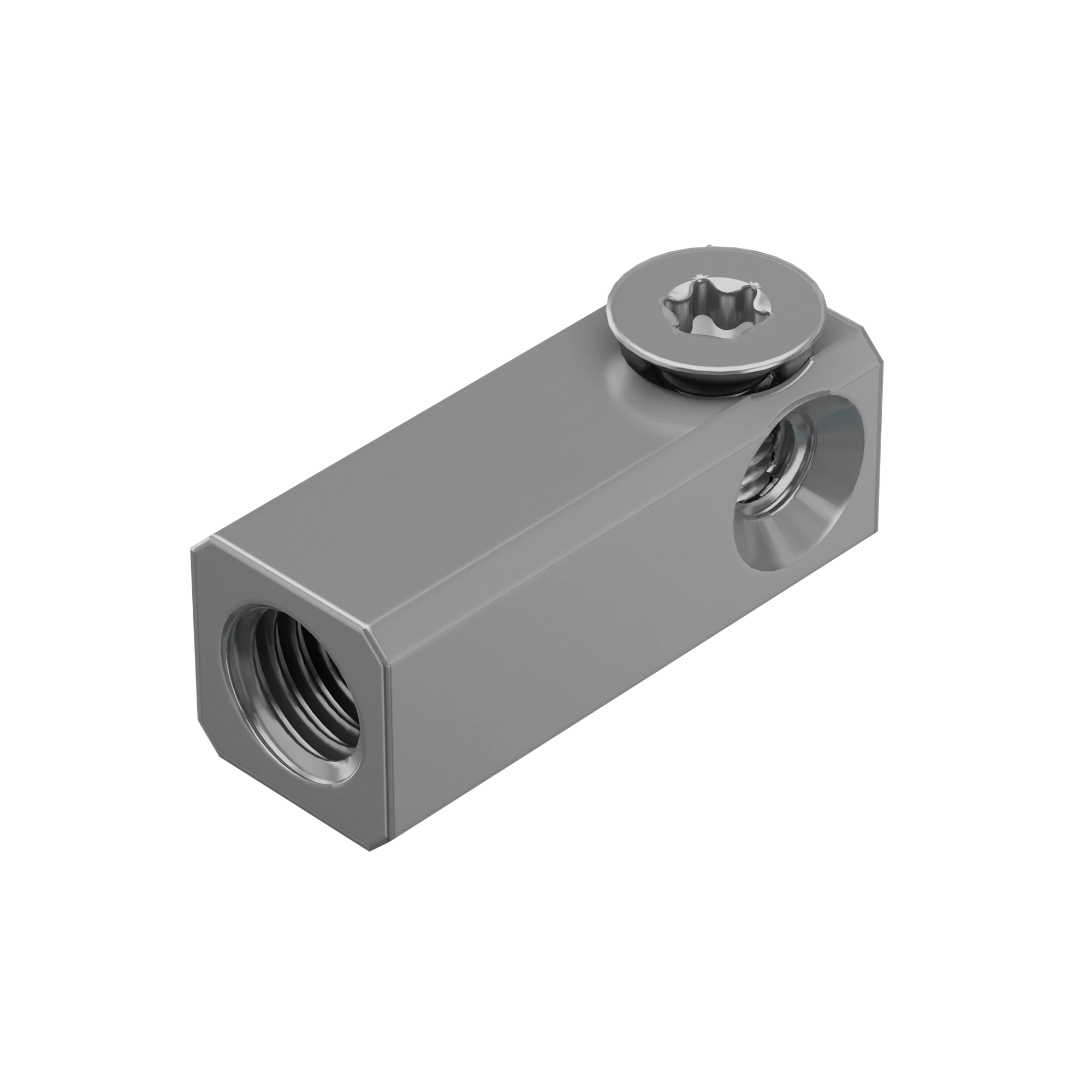

S 1133.37
M10
L 36 × W 14 × H 14 mm
zinc-plated
S 1140.41
20-28 mm
L 40 × W 40 × H 39 mm
polished chrome-plated

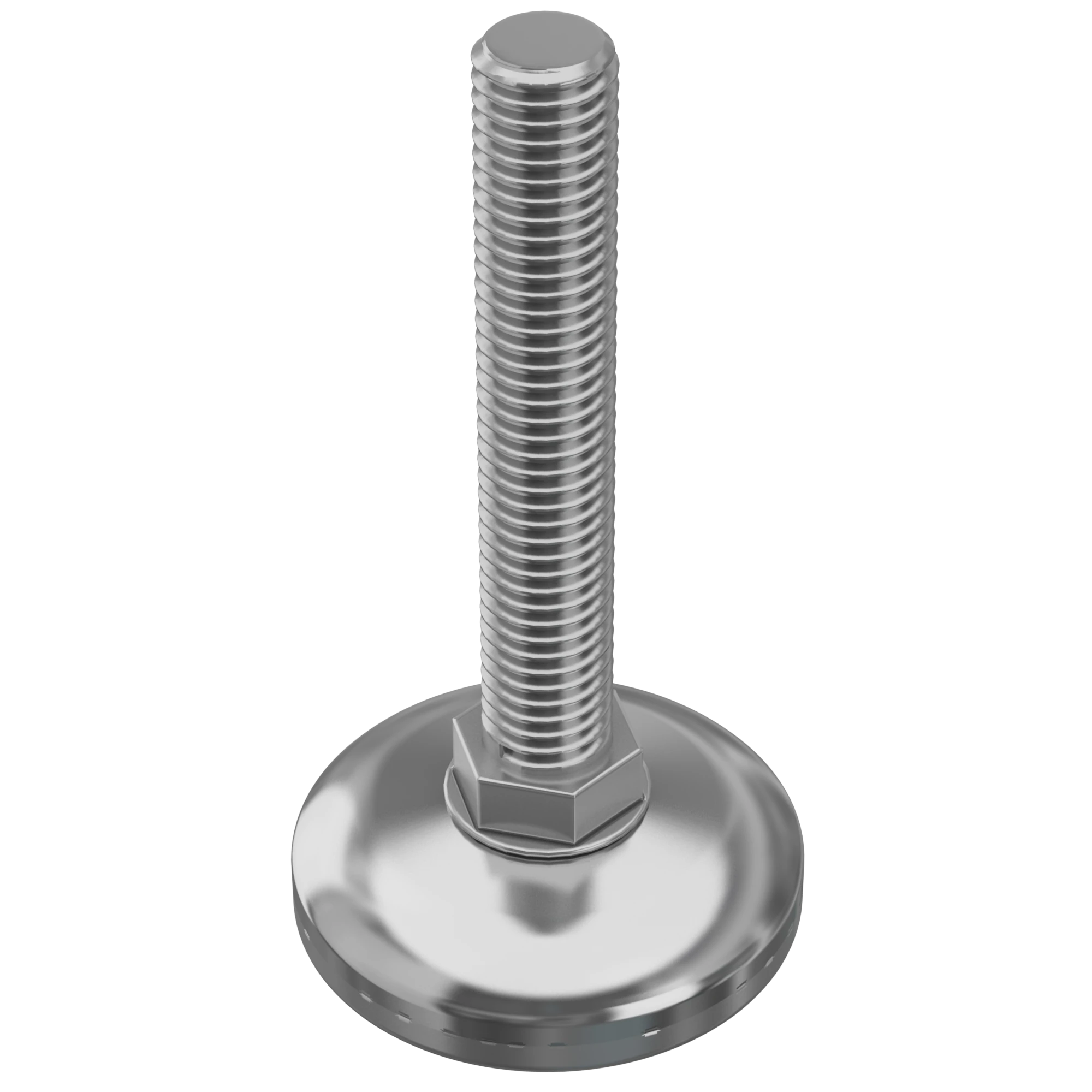

S 1141.41
20-45 mm
L 40 × W 40 × H 78 mm
polished chrome-plated

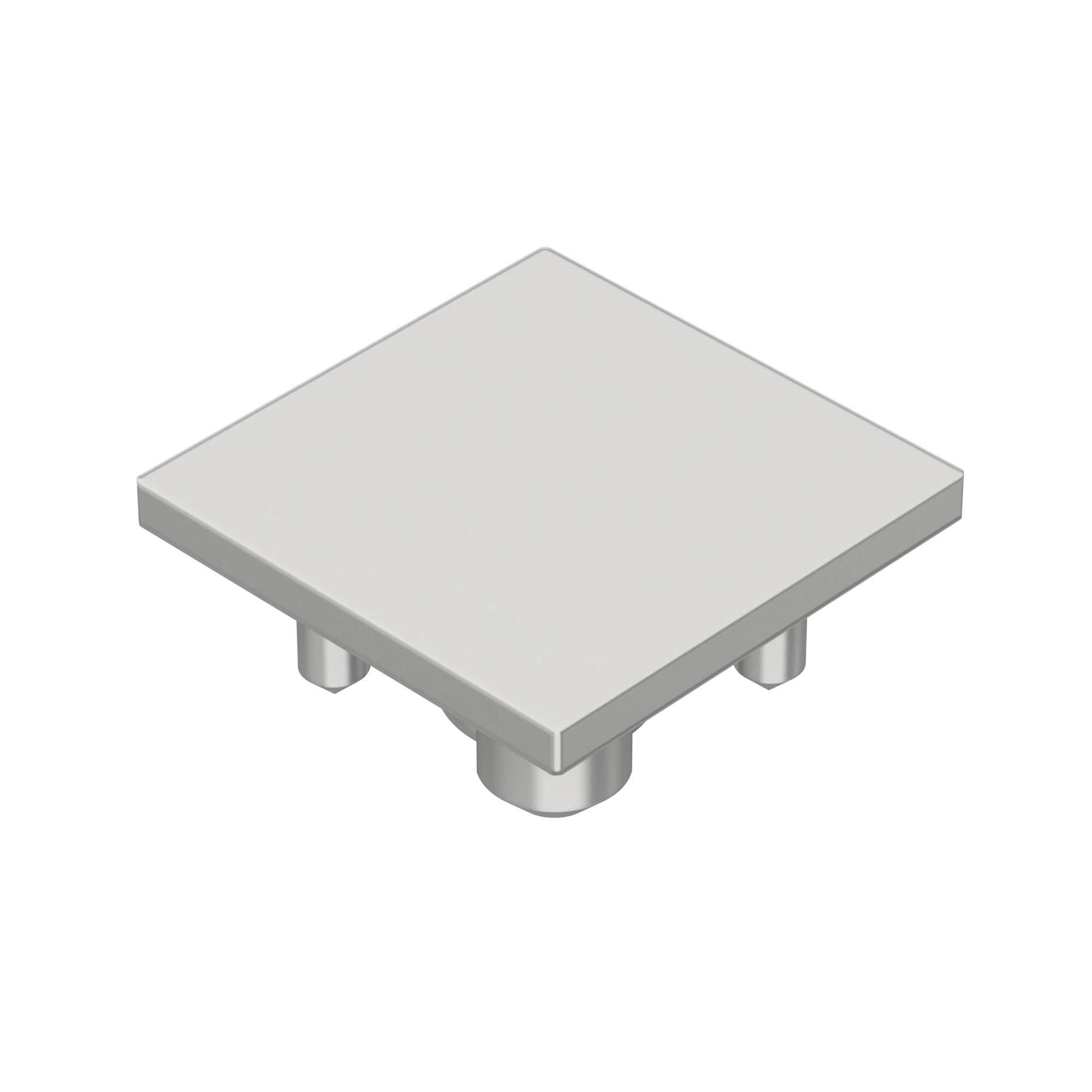

S 1142.39
for S 1125
L 32 × W 32 × H 23 mm
matt chrome-plated

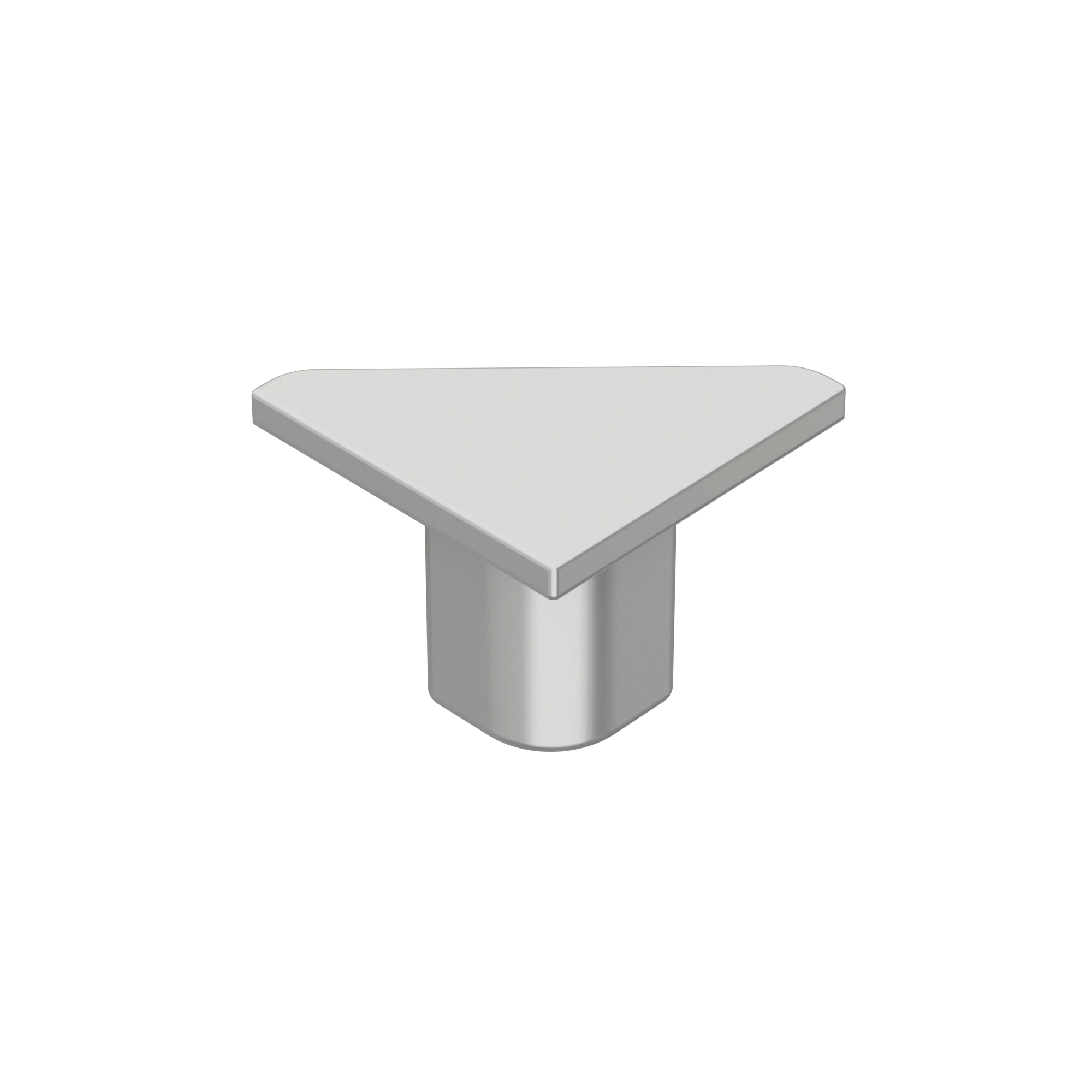

S 1334.39
for S 1303
L 33 × W 33 × H 23 mm
matt chrome-plated
S 1334.41
for S 1303
L 33 × W 33 × H 23 mm
polished chrome-plated

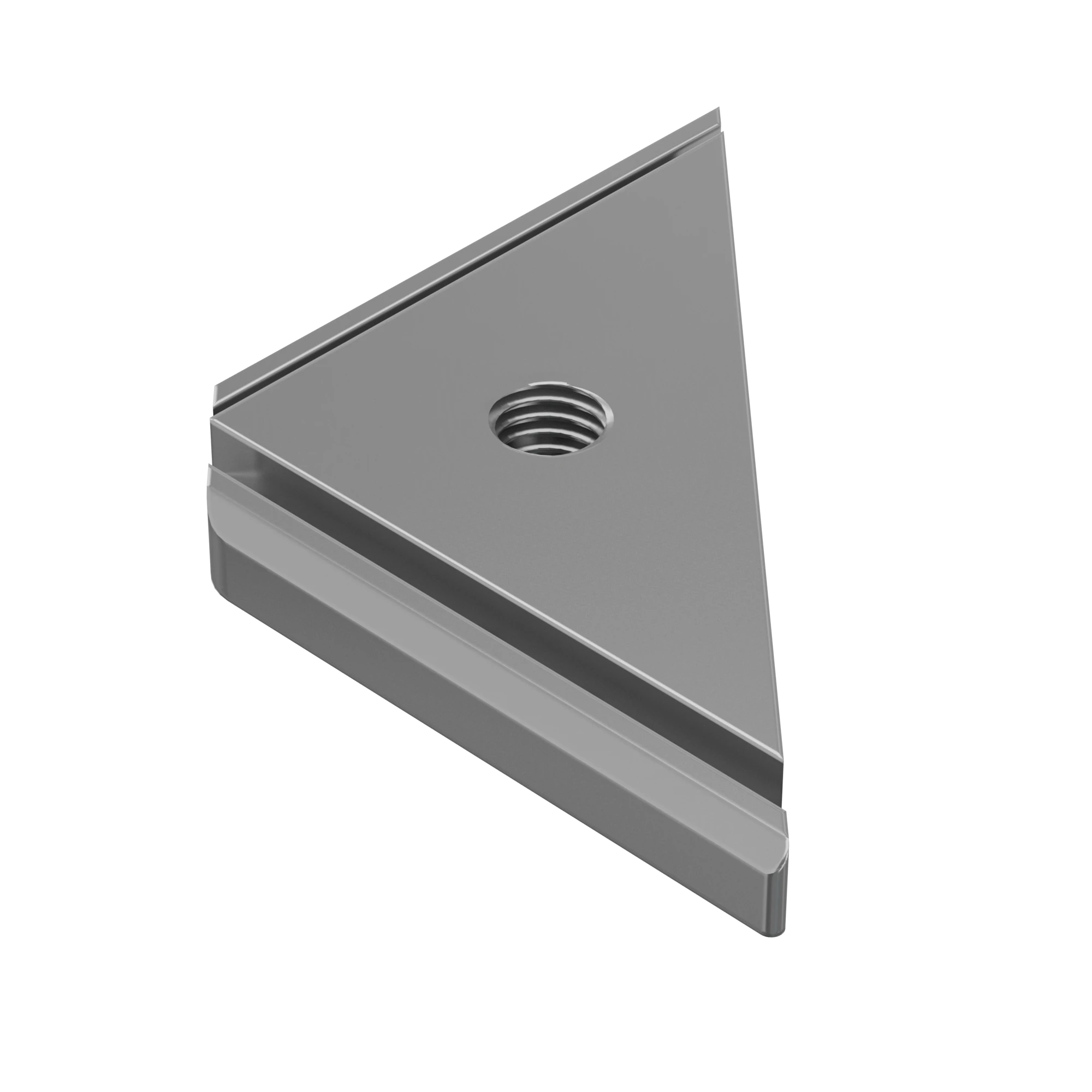

S 1335.00
M10
for extrusions 32 mm
L 96 × W 40 × H 9 mm
raw / unfinished

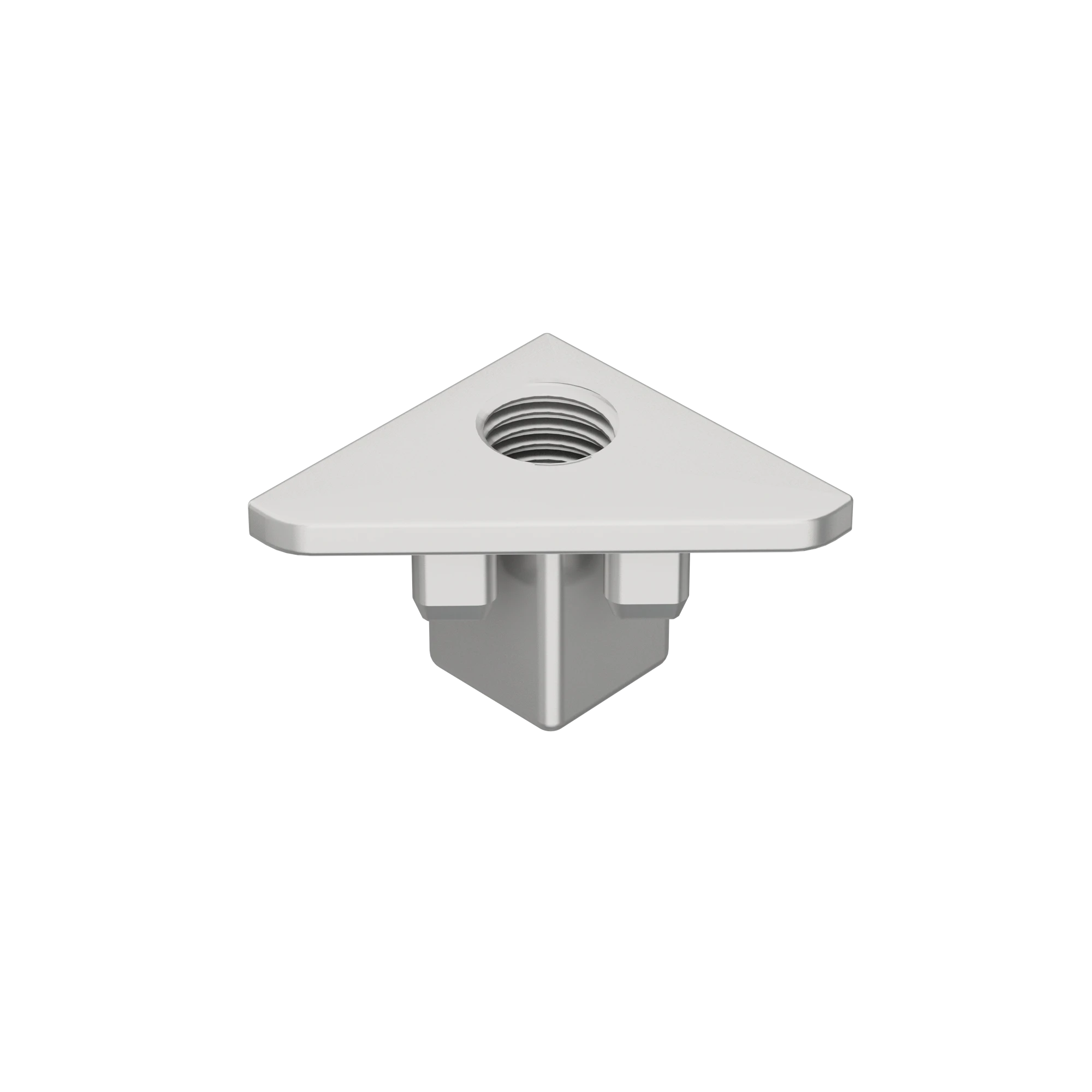

S 1336.00
M10
for S 1303
L 33 × W 33 × H 23 mm
raw / unfinished

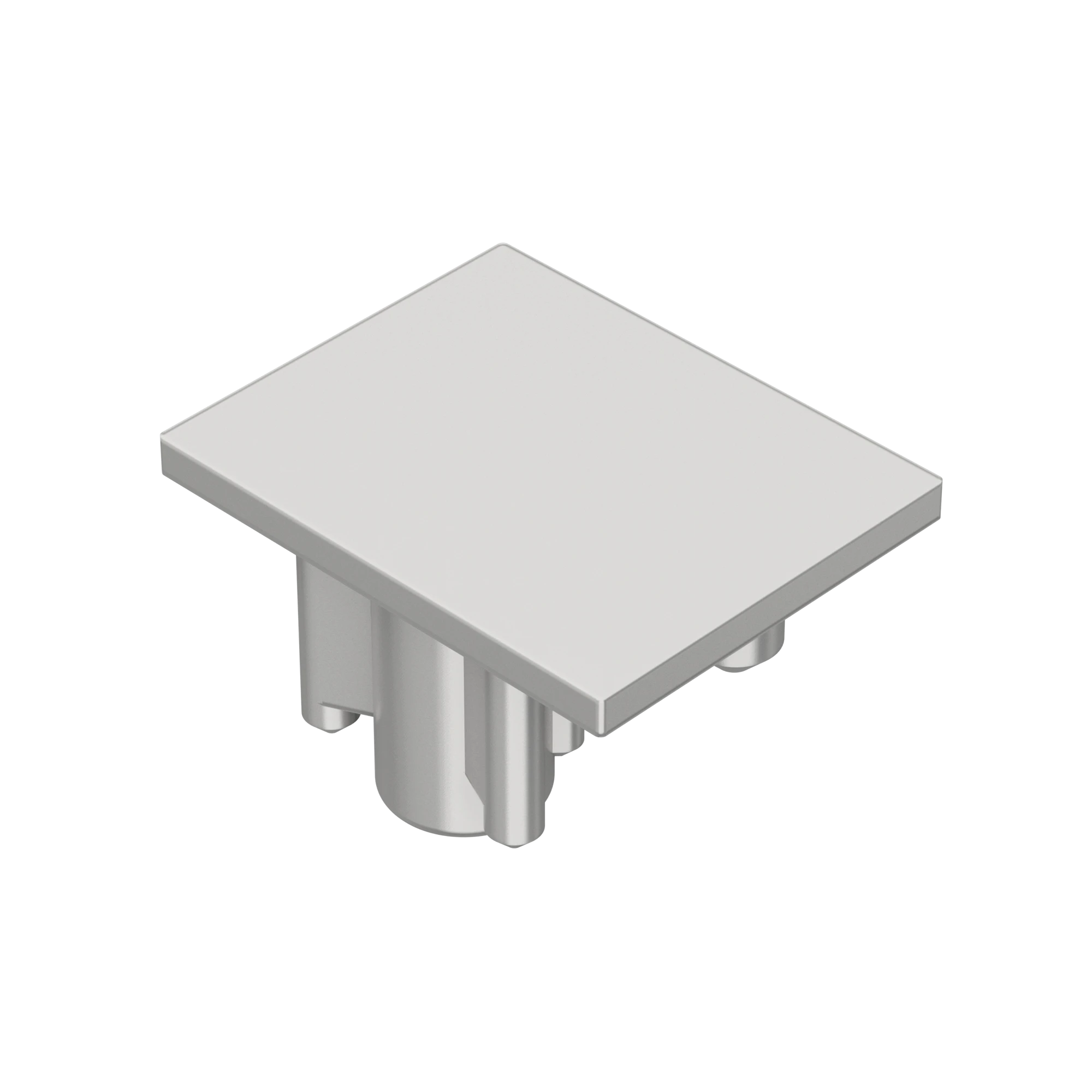

Z 2131.39
for Z 2100/Z 2105
L 40 × W 32 × H 23 mm
matt chrome-plated
Doors.

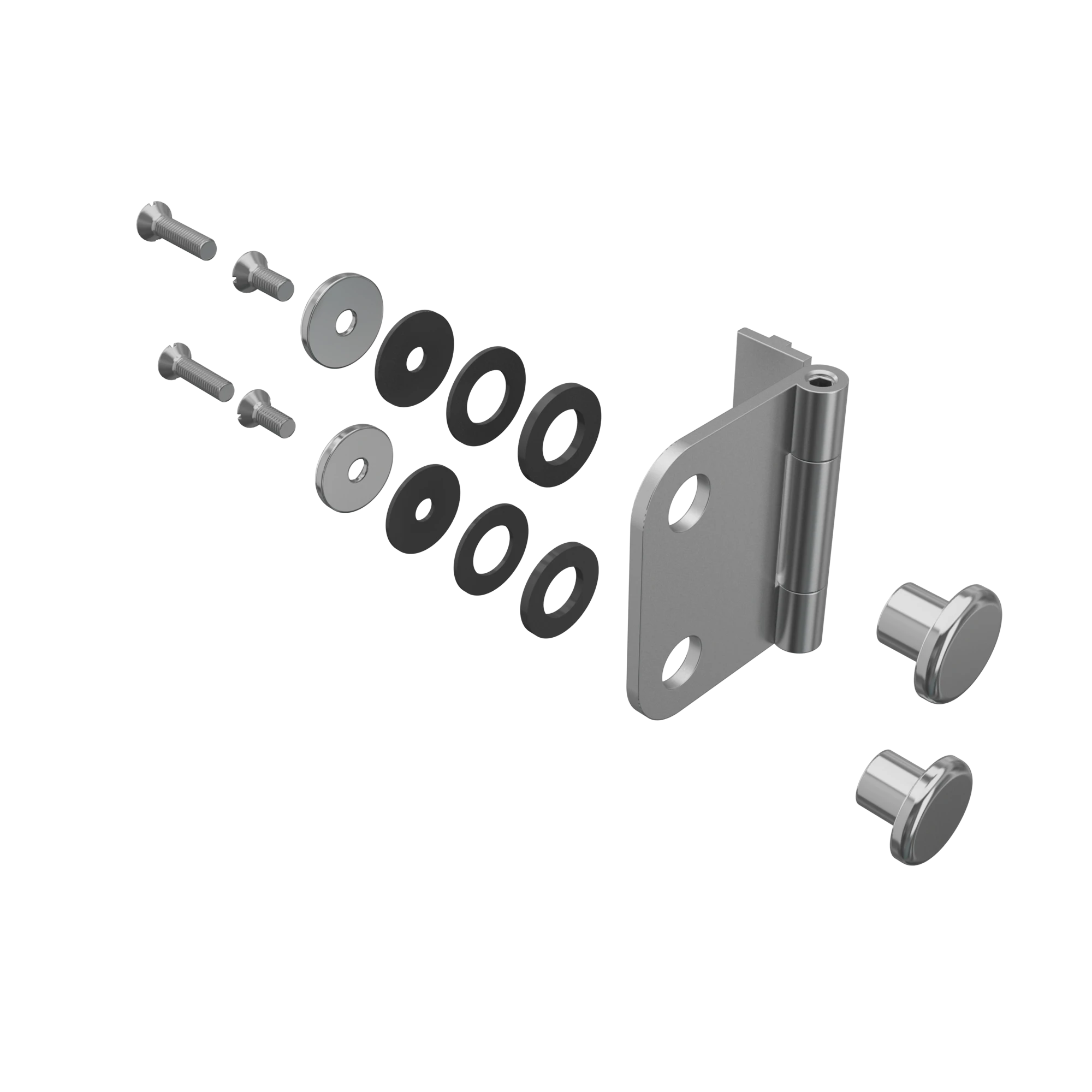

E 290.01
for hinged doors
L 60 × W 50 × H 4 mm
matt anodized, silver (E6/EV1)

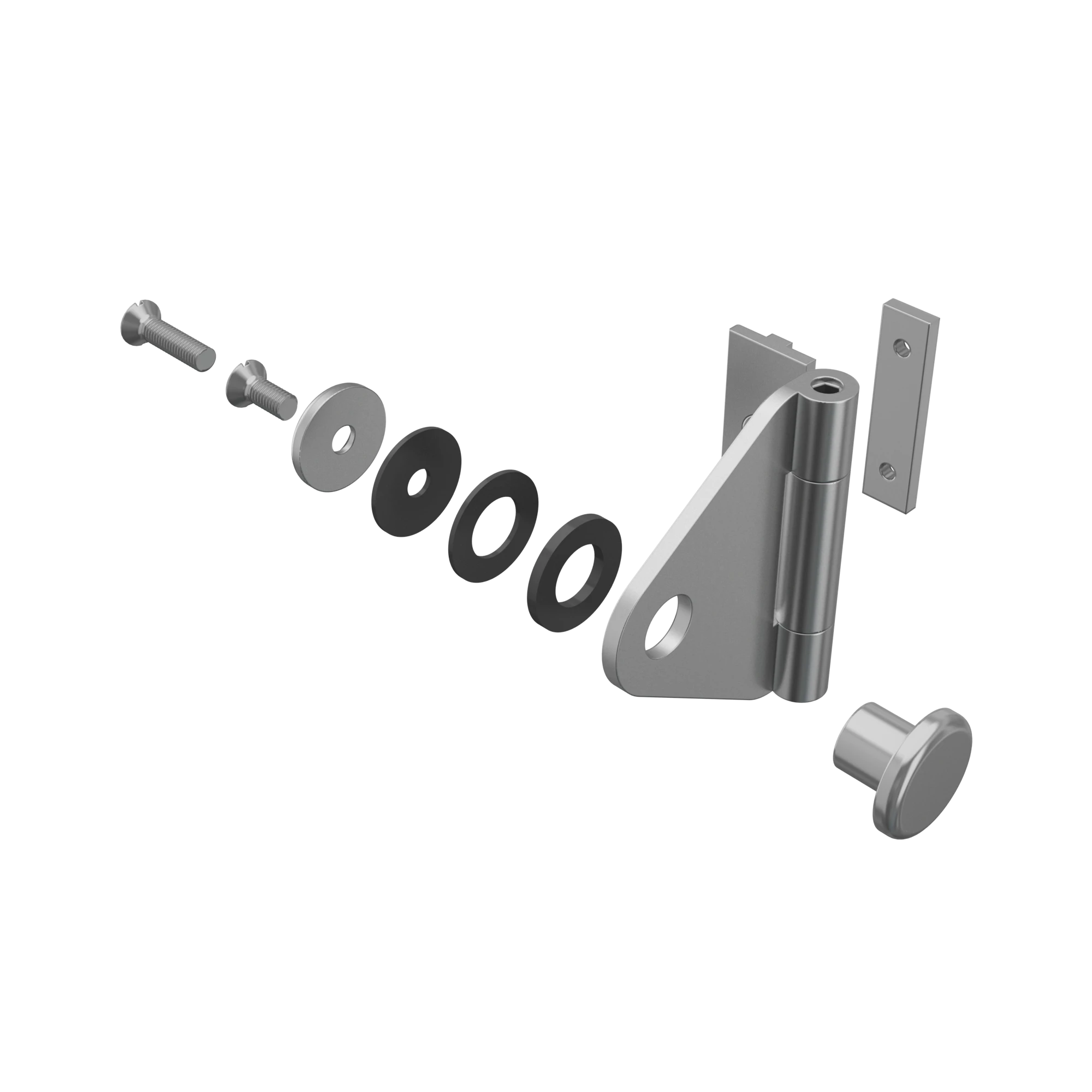

E 290/D.01
for hinged doors
L 140 × W 80 × H 11 mm
matt anodized, silver (E6/EV1)

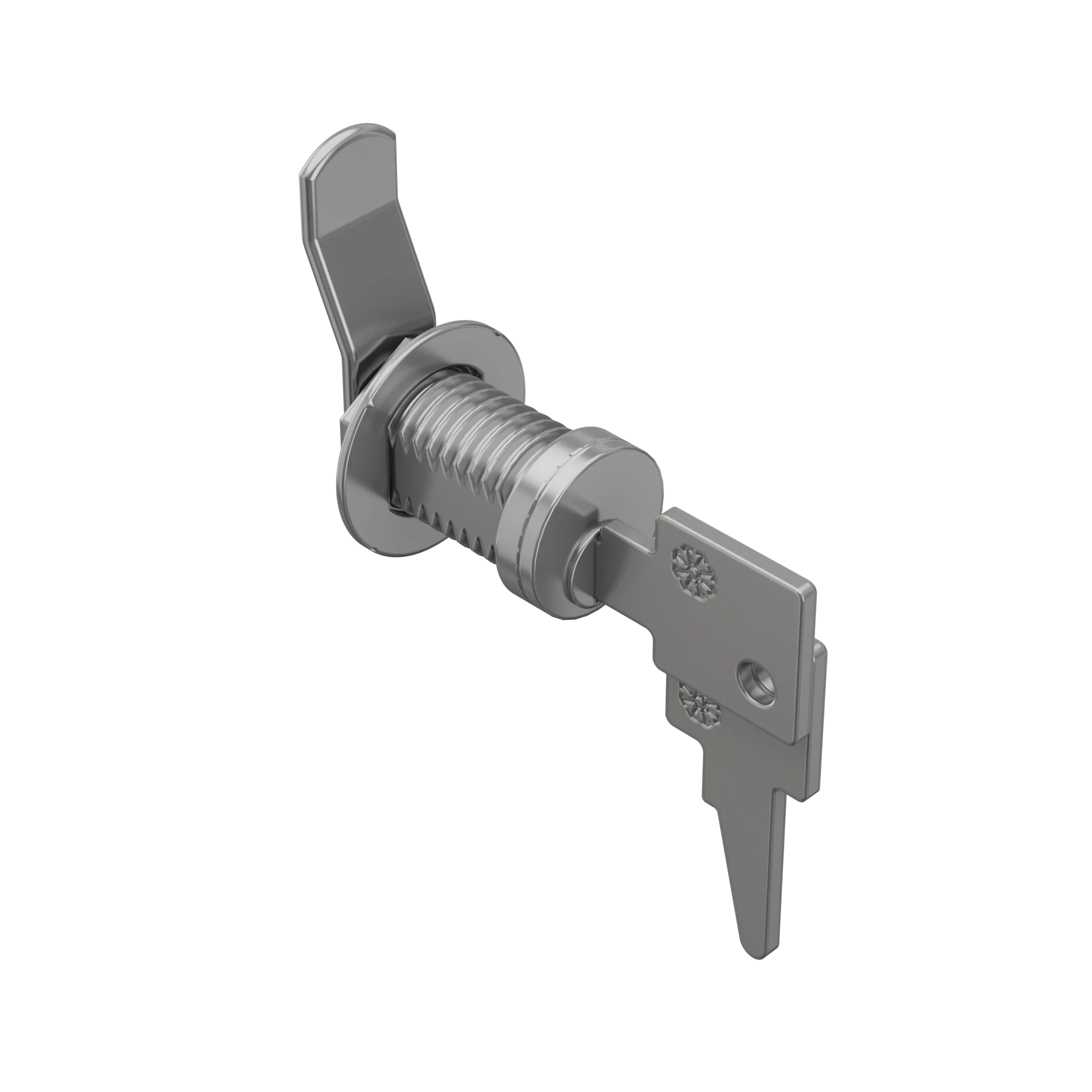

E 291.38
for hinged wooden doors
L 25 × W 15 × H 40 mm
nickel-plated

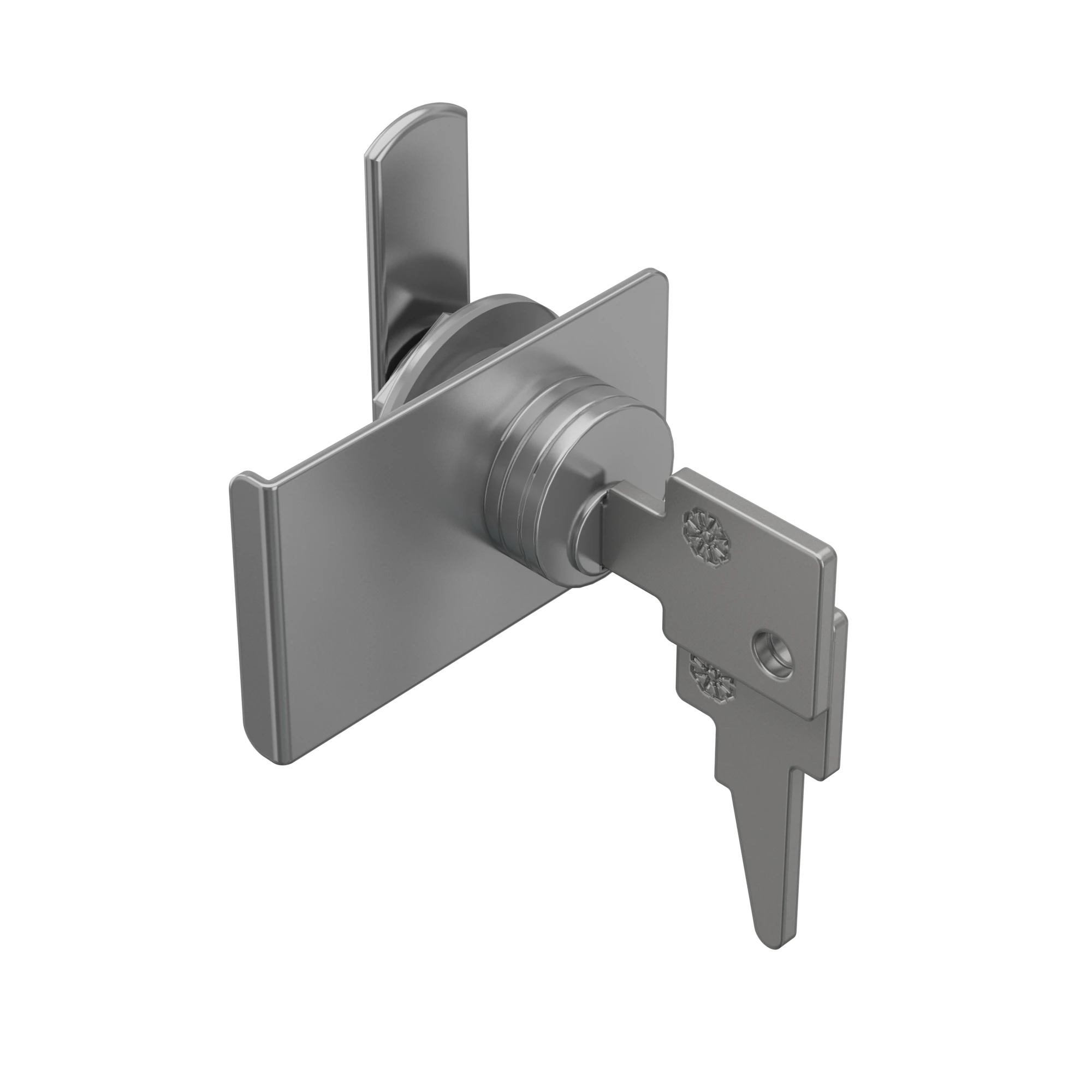

E 292.38
for hinged glass doors
L 30 × W 50 × H 25 mm
nickel-plated

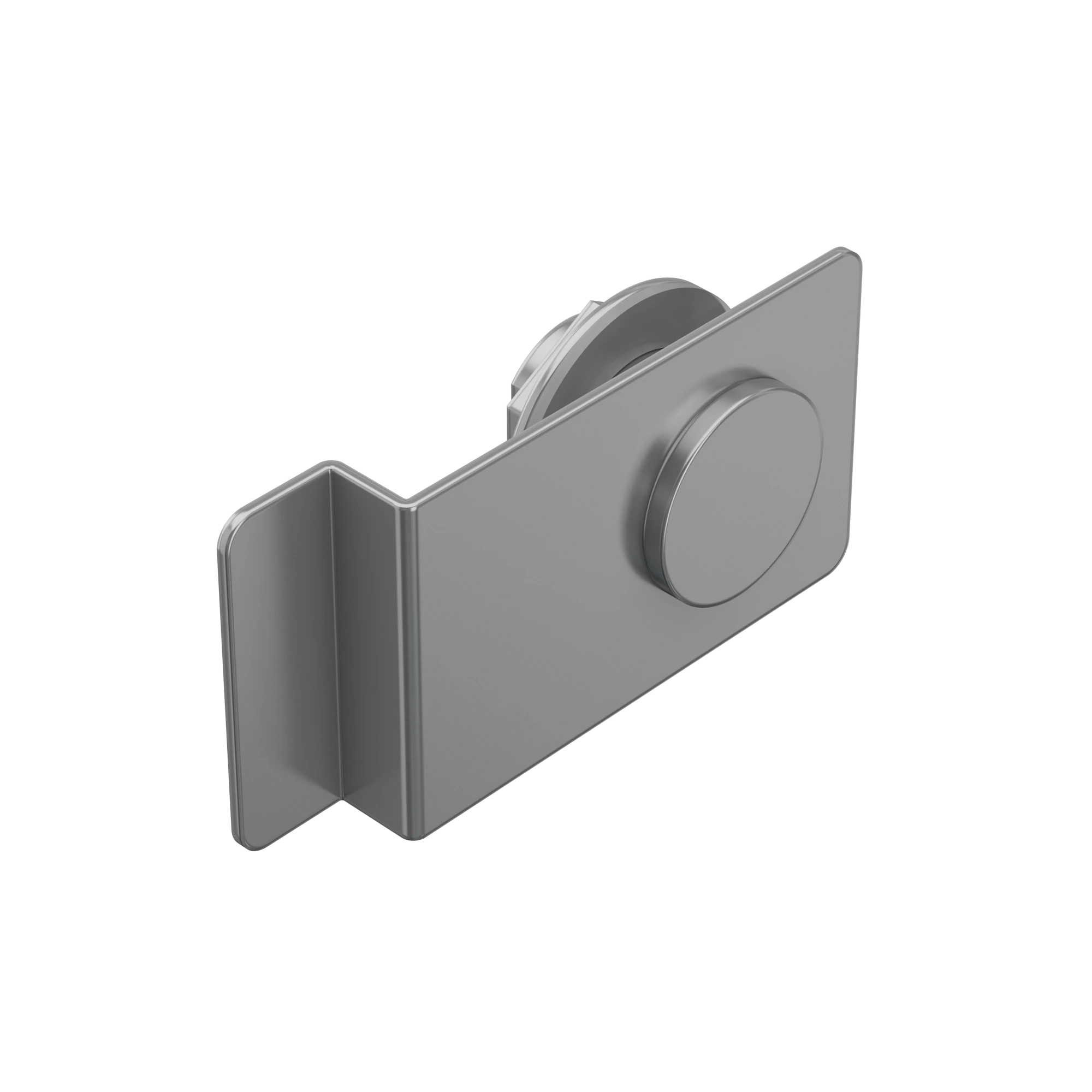

E 292/A.38
two winged
for hinged glass doors
L 140 × W 80 × H 9 mm
nickel-plated

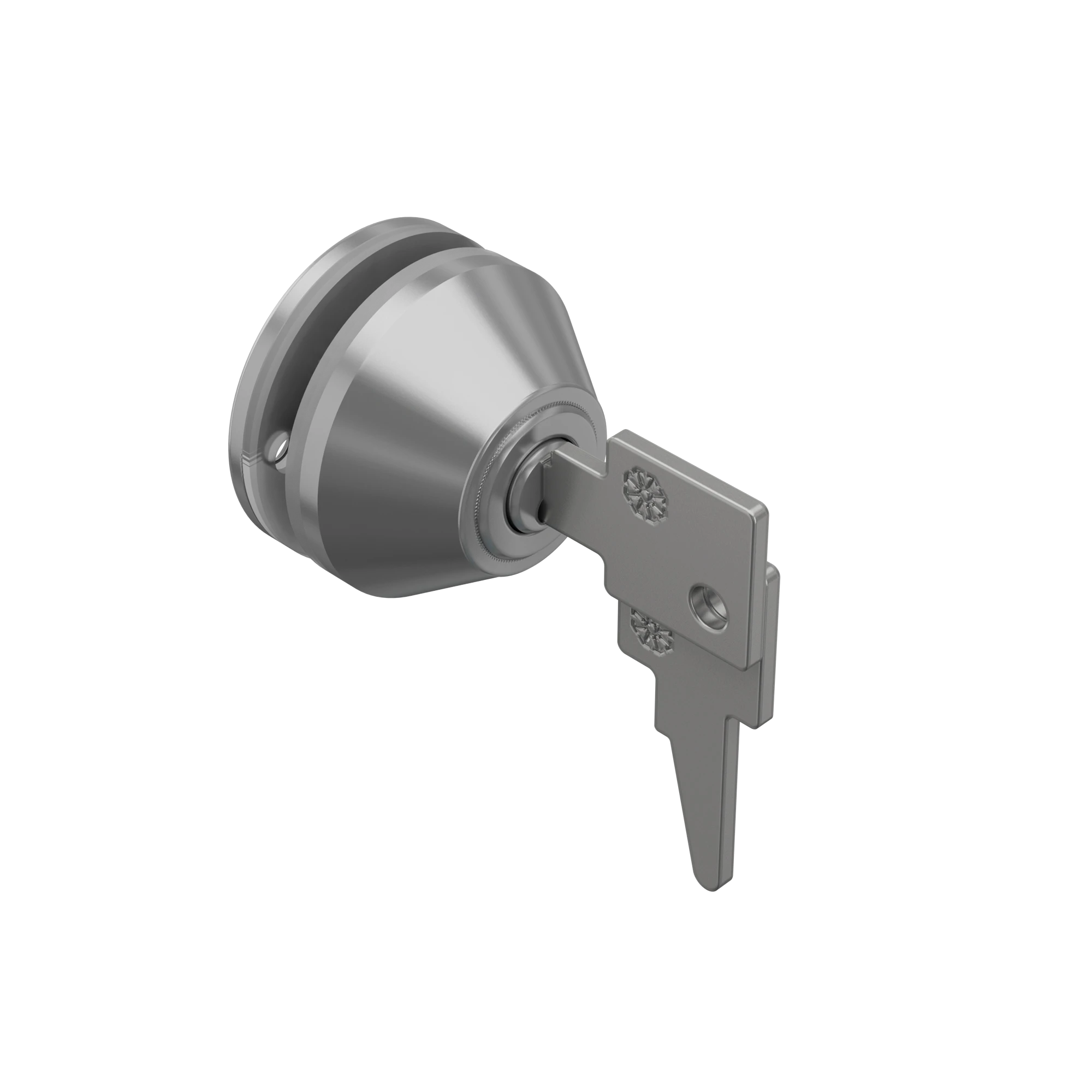

E 295/N.33
for panel 4-6 mm
L 140 × W 80 × H 35 mm
black

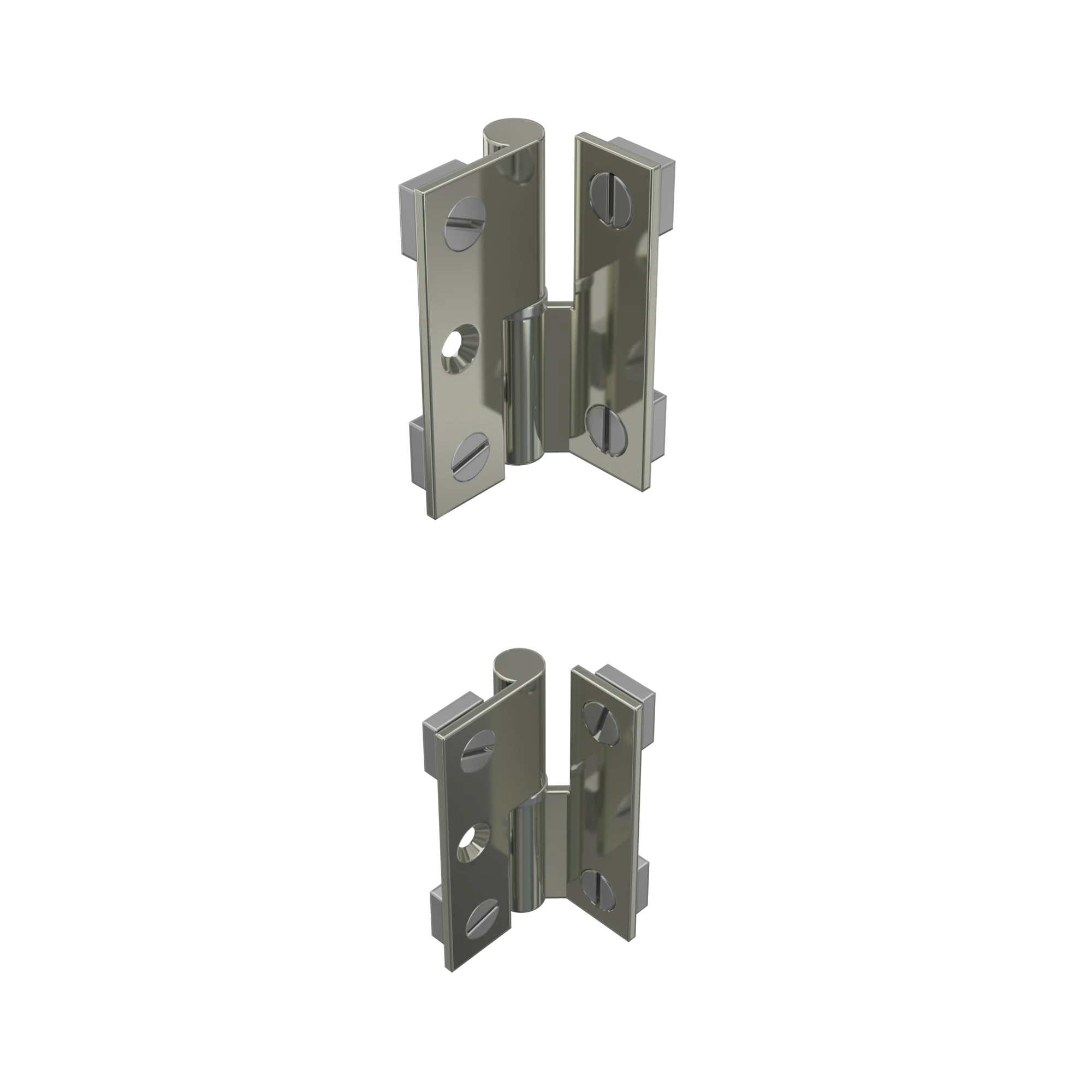

E 296/L.38
left
for hinged wooden doors
L 140 × W 80 × H 11 mm
nickel-plated

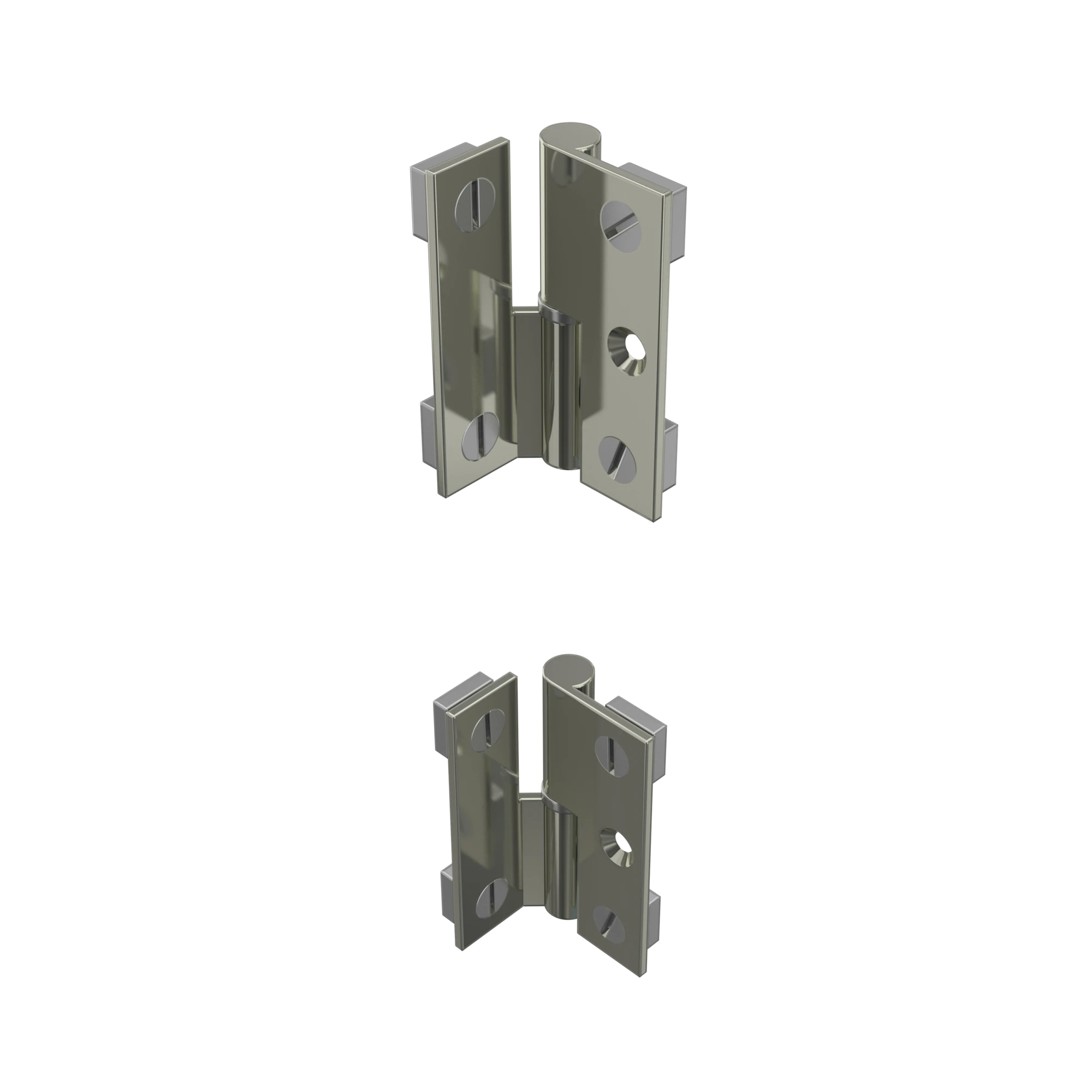

E 296/R.38
right
for hinged wooden doors
L 140 × W 80 × H 11 mm
nickel-plated

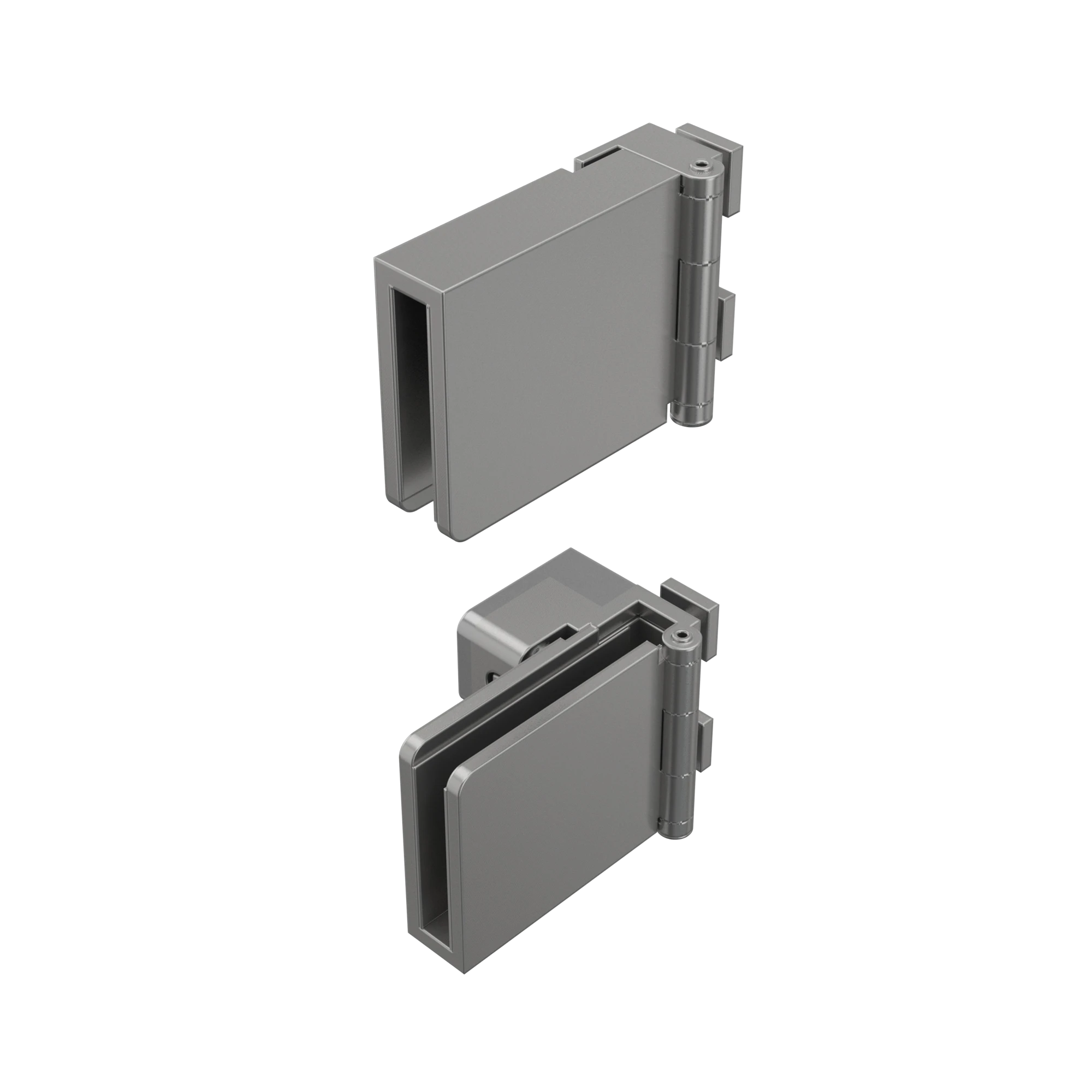

E 297.39
for glass 5-6 mm
L 80 × W 52 × H 32 mm
matt chrome-plated

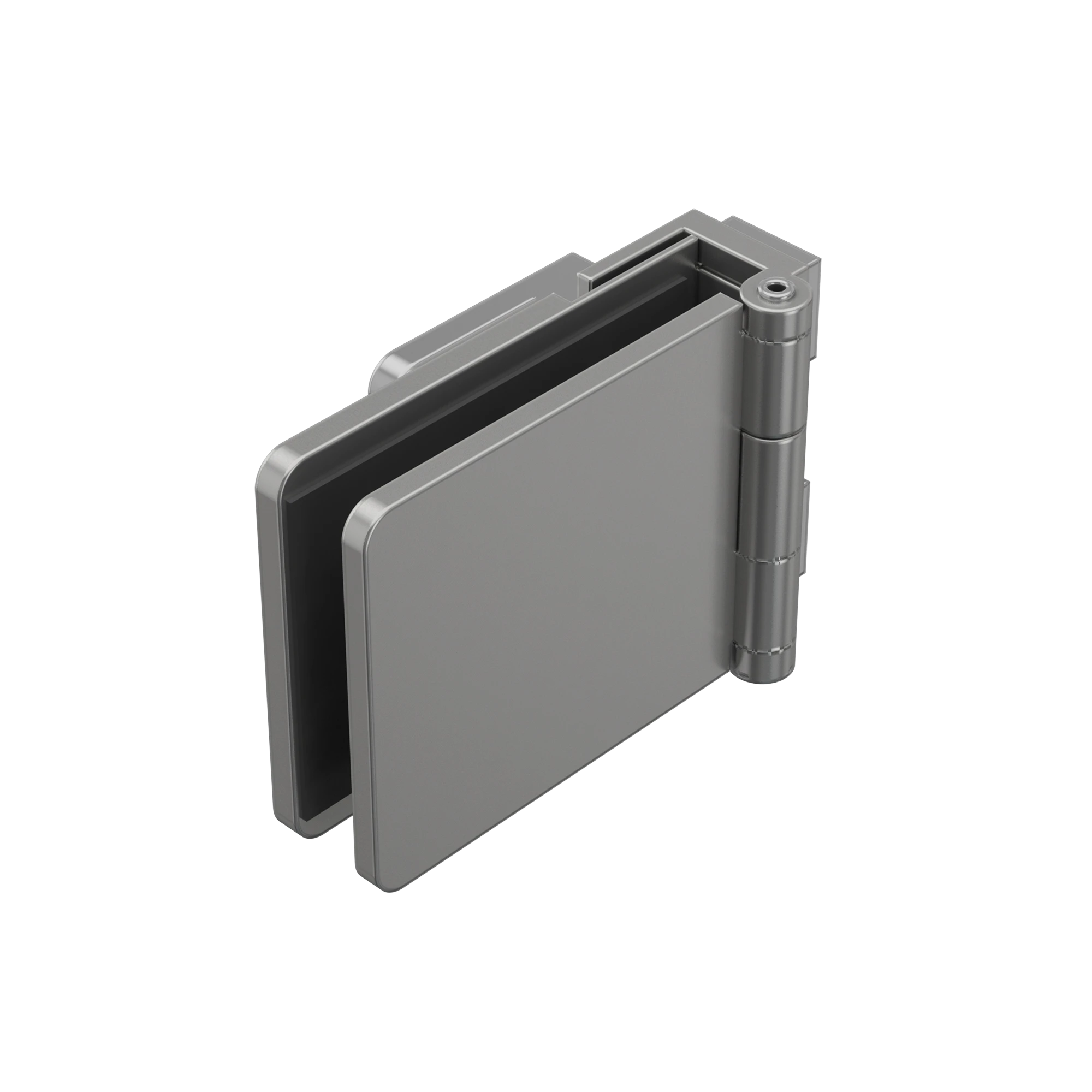

E 297/M.39
center
for glass 5-6 mm
L 50 × W 38 × H 32 mm
matt chrome-plated

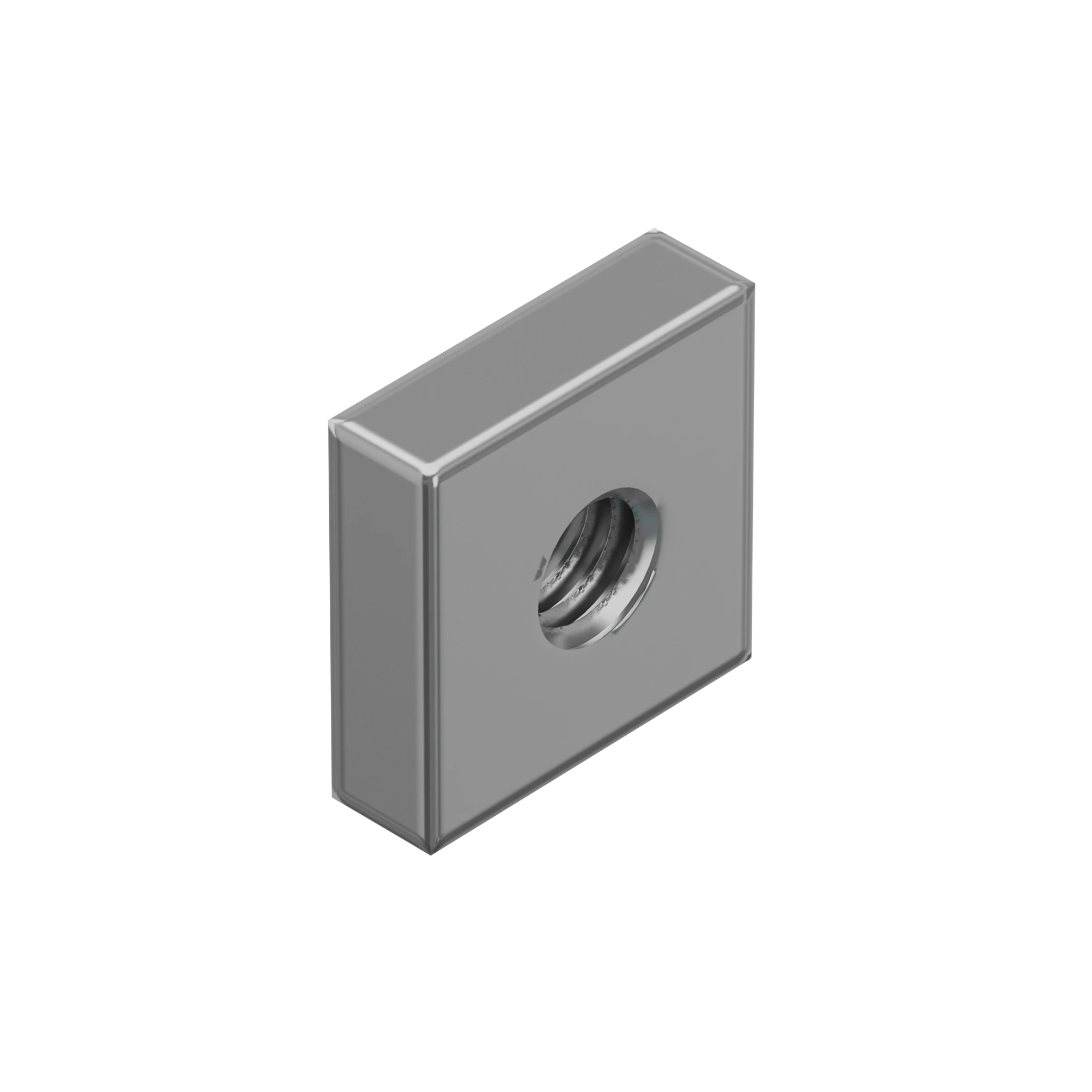

E 470/E.37
female thread M4
L 10 × W 10 × H 3 mm
zinc-plated

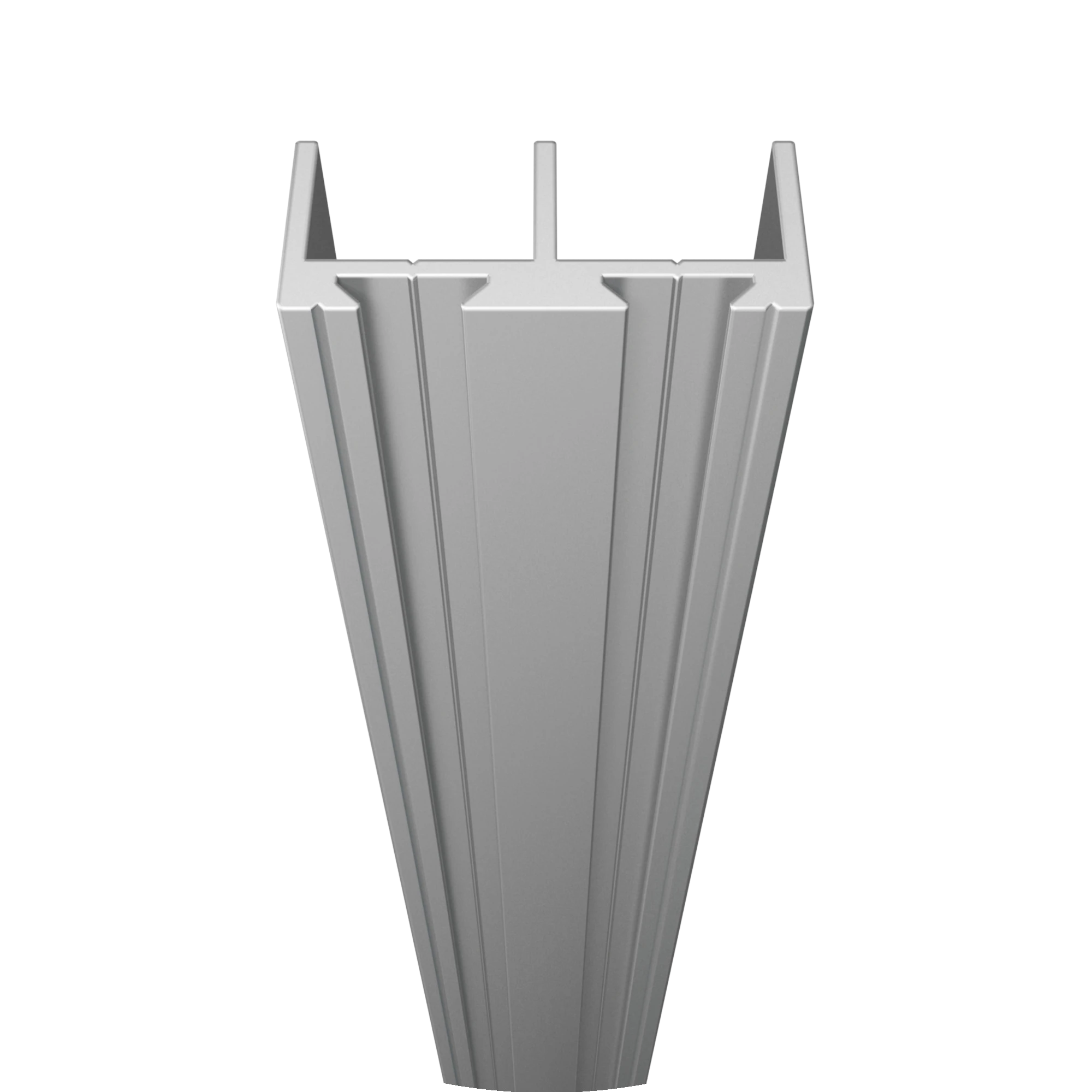

E 470/N.01
for glass sliding doors
L 5000 × W 32 × H 14 mm
5000 mm long
matt anodized, silver (E6/EV1)

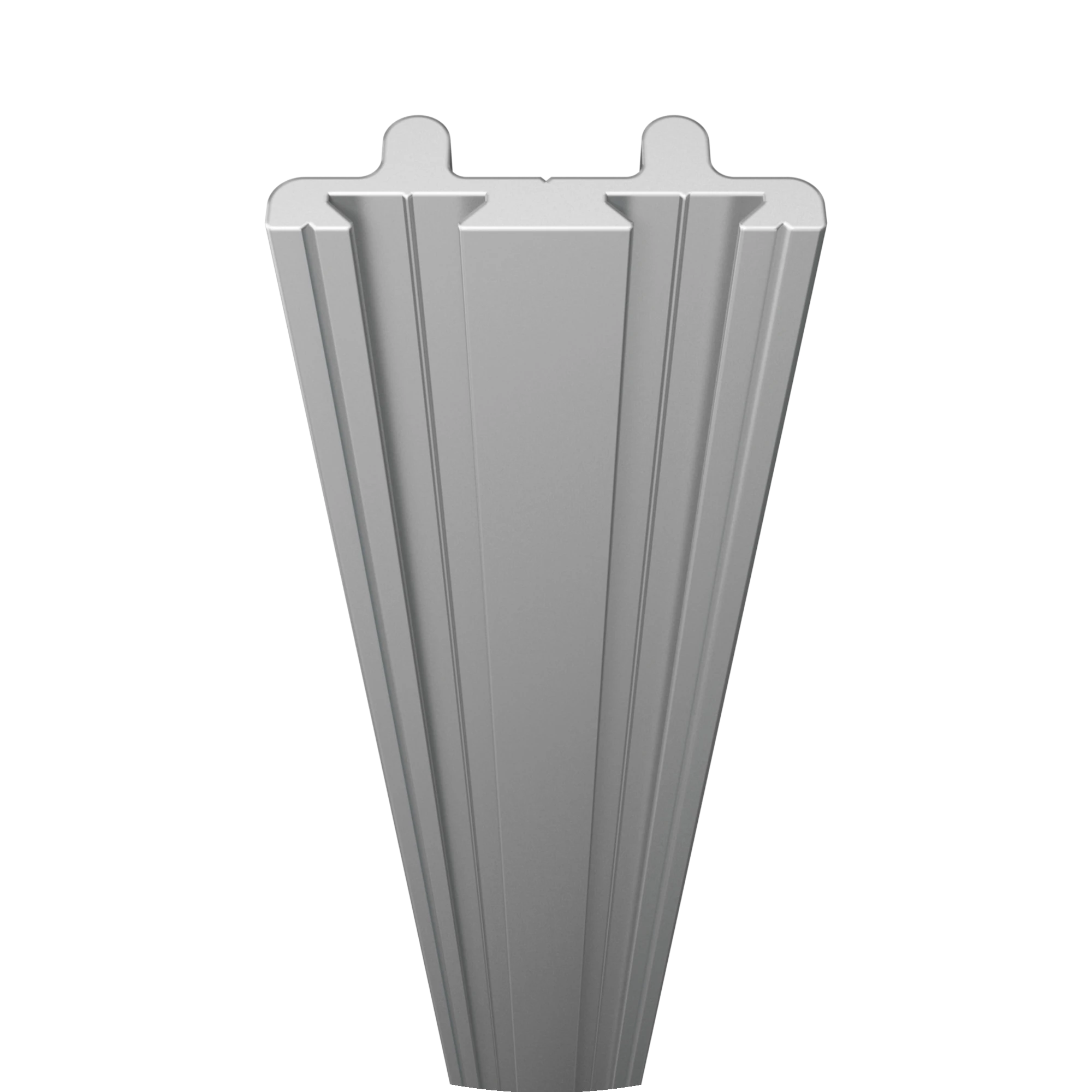

E 471/N.01
for E 472
L 5000 × W 32 × H 9 mm
5000 mm long
matt anodized, silver (E6/EV1)

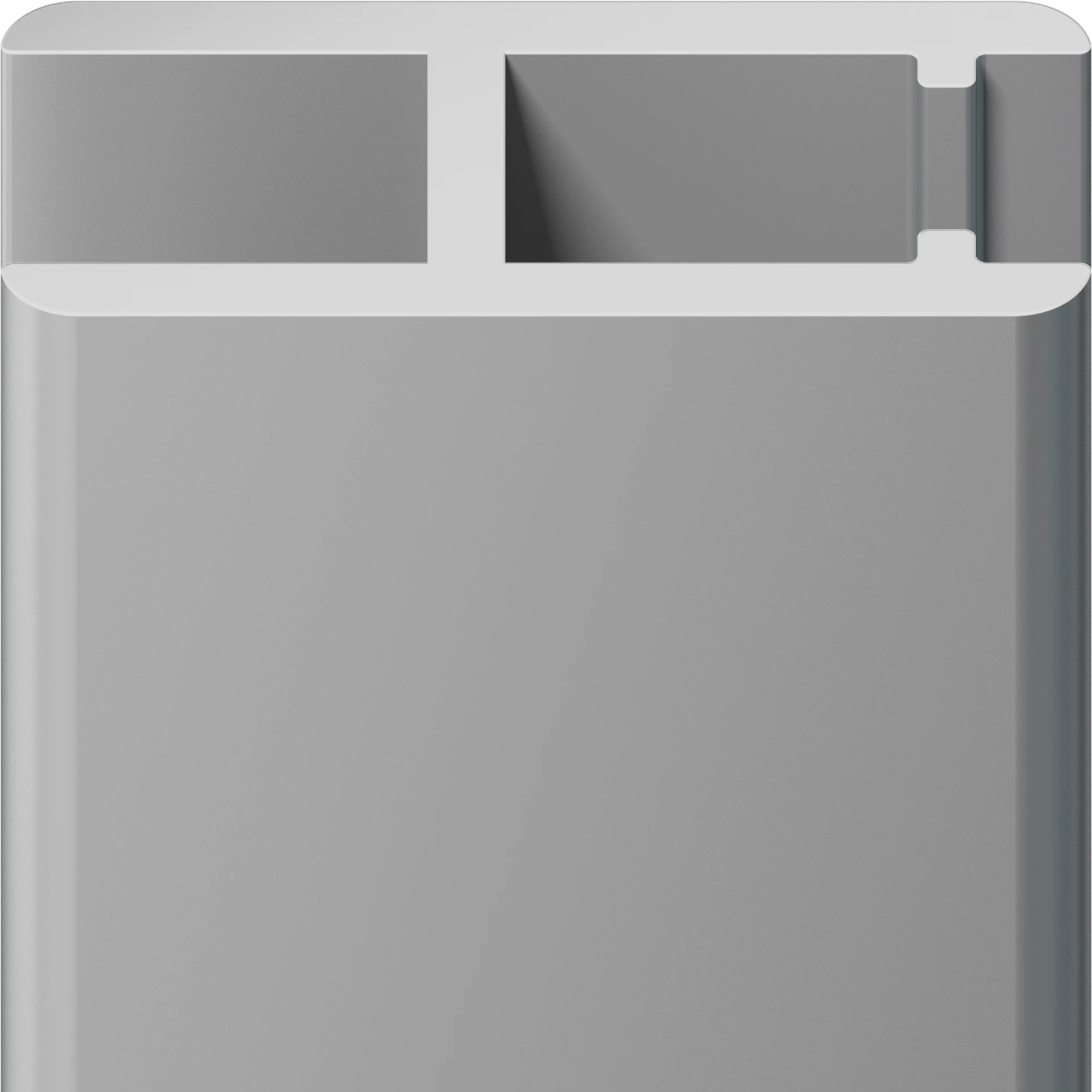

E 472.01
Sliding door
for glass 5-6 mm
L 5000 × W 12 × H 28 mm
5000 mm long
matt anodized, silver (E6/EV1)
E 473.37
for E 472
L 53 × W 13 × H 8 mm
zinc-plated

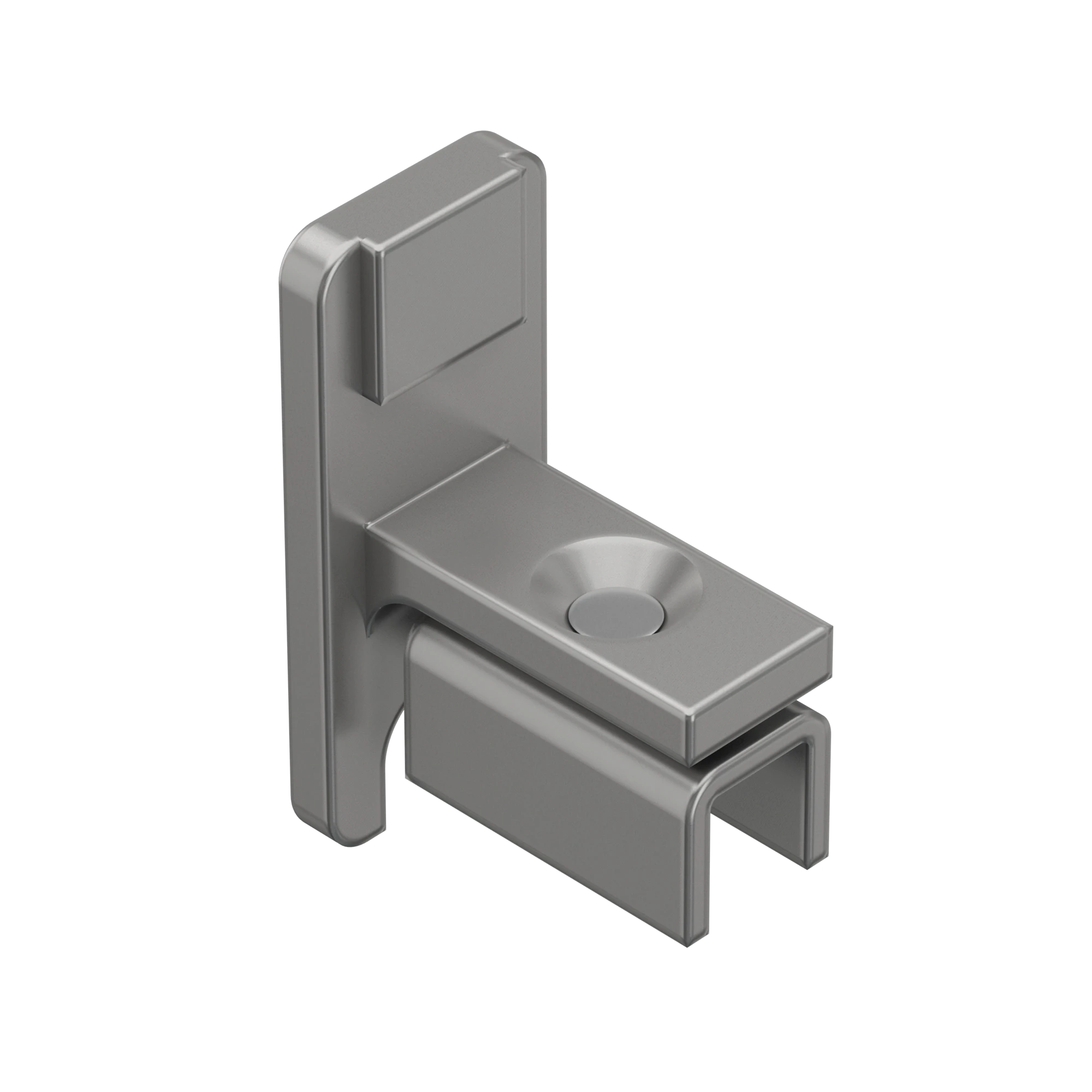

E 474.39
for E 472
L 28 × W 20 × H 12 mm
matt chrome-plated

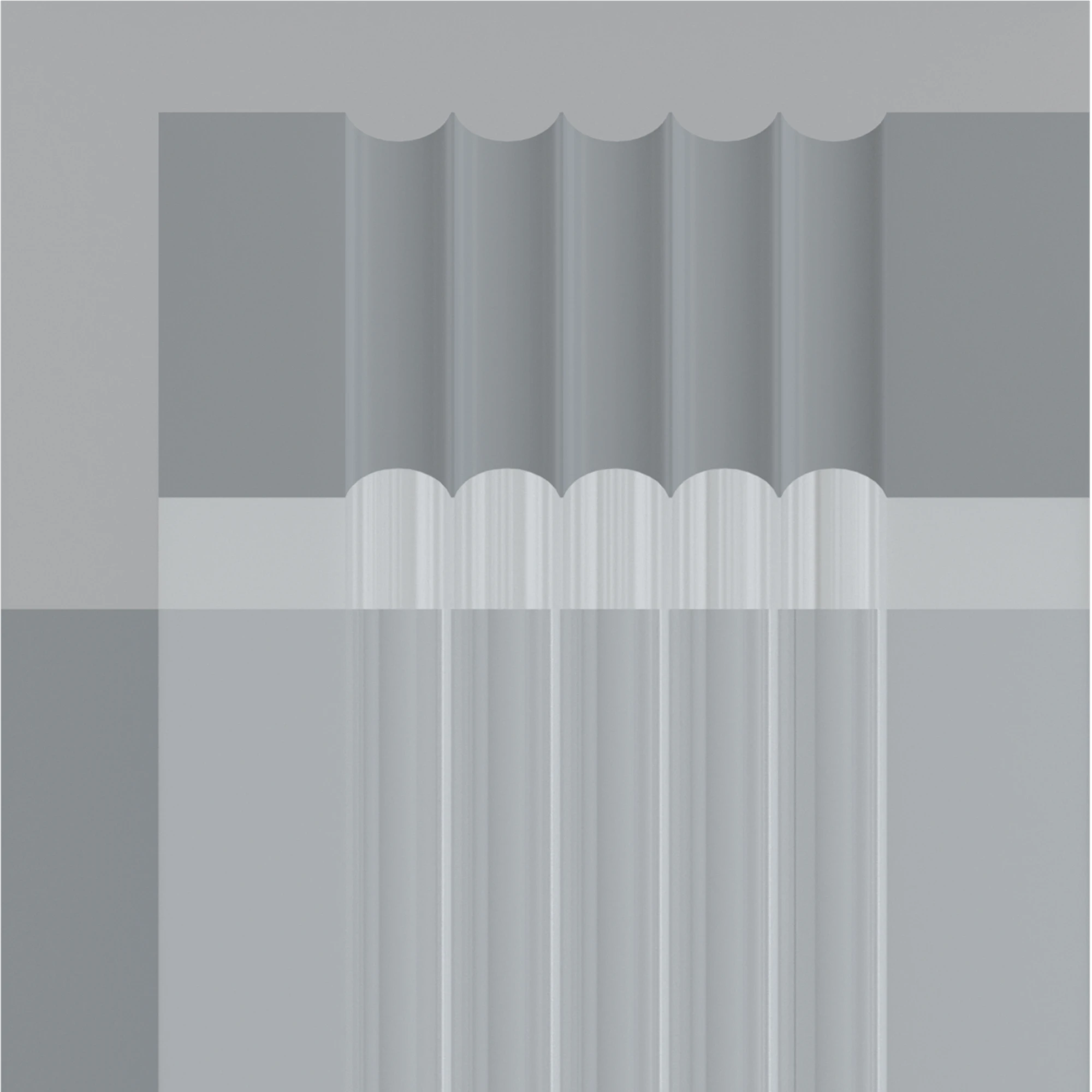

E 476.51
for glass 5 mm
L 5000 × W 8 × H 10 mm
5000 mm long
transparent

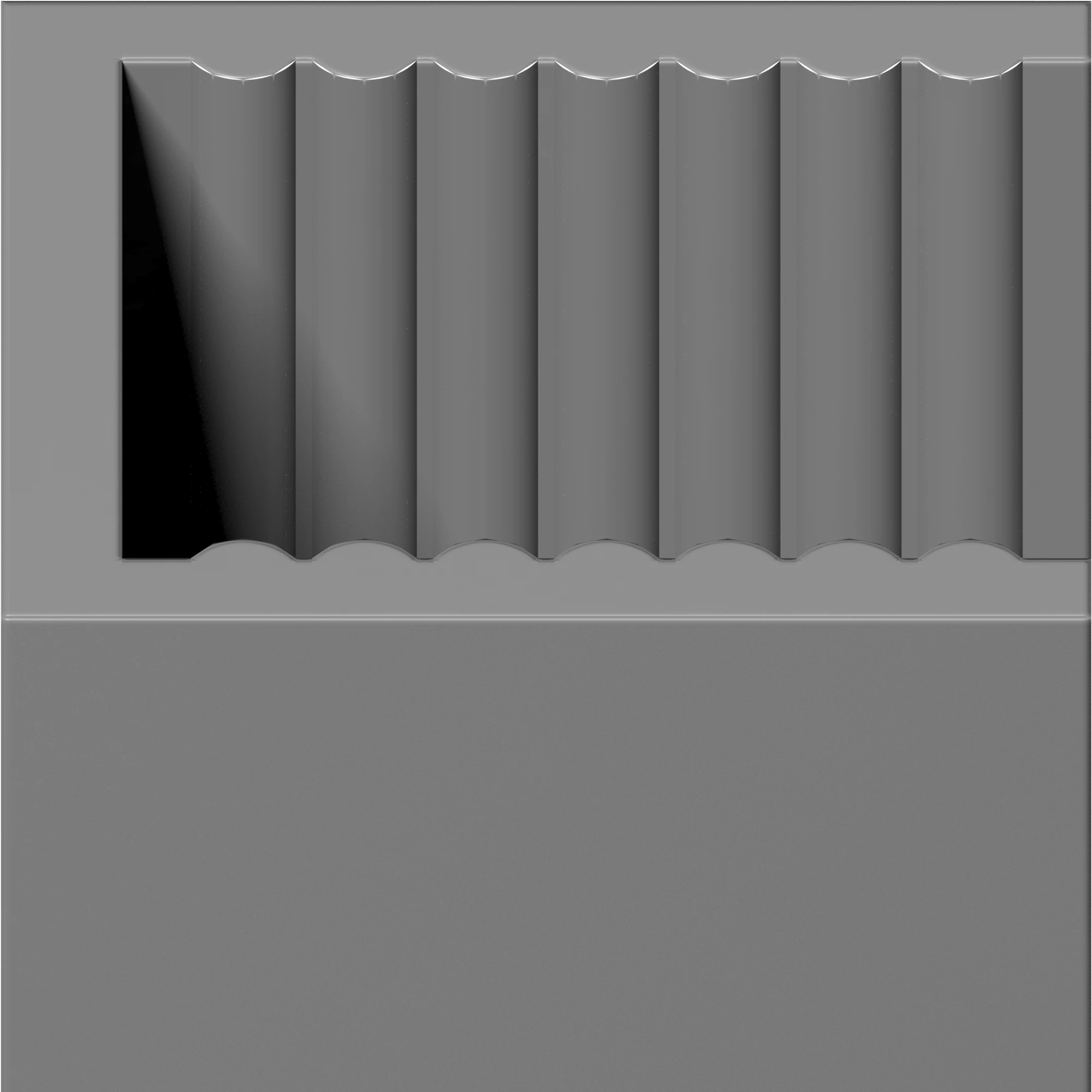

E 477.51
for glass 6 mm
L 5000 × W 6 × H 12 mm
5000 mm long
transparent

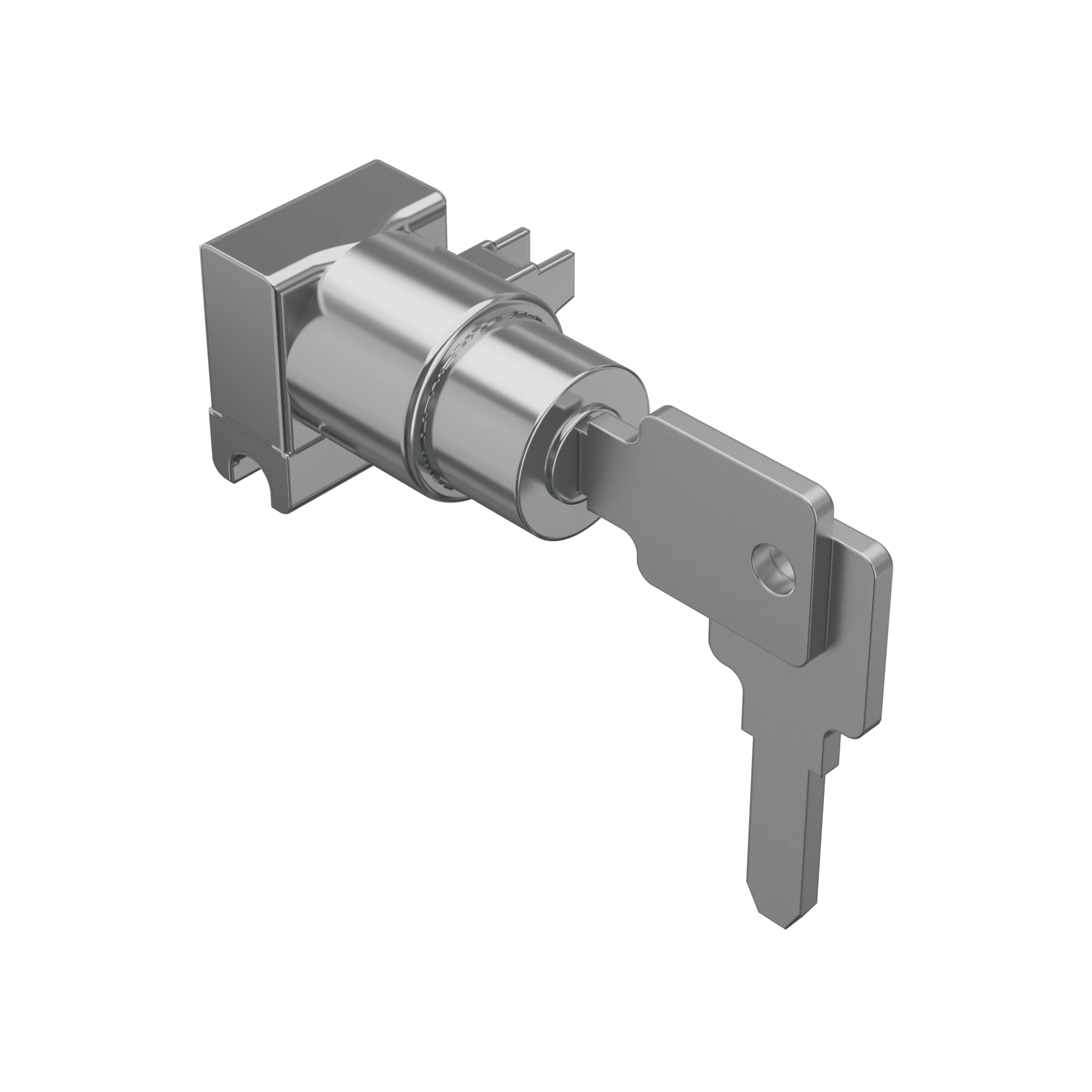

E 478.39
universal right/left
for E 472
L 695 × W 43 × H 28 mm
matt chrome-plated

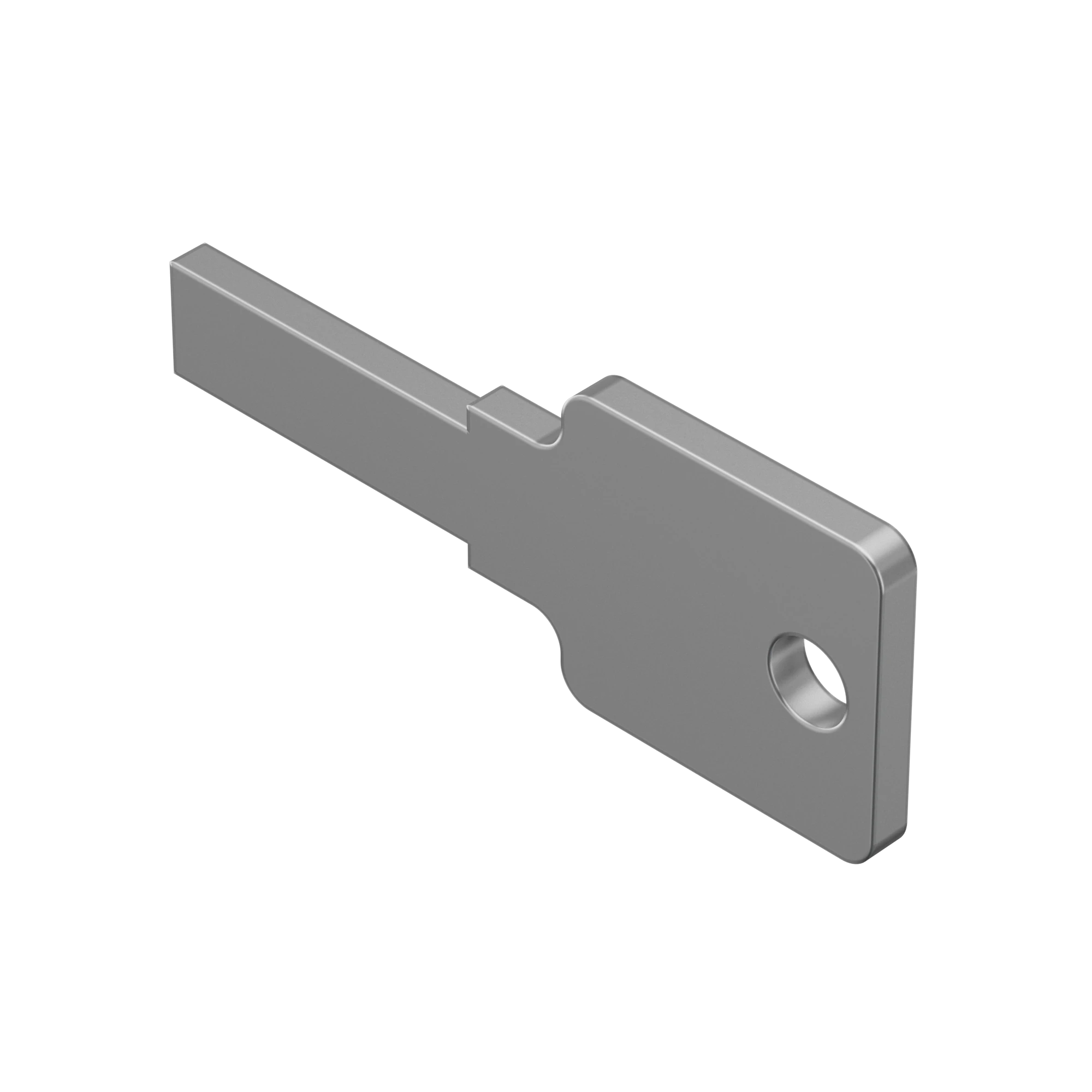

E 479.38
for E 478
L 49 × W 19 × H 2 mm
nickel-plated

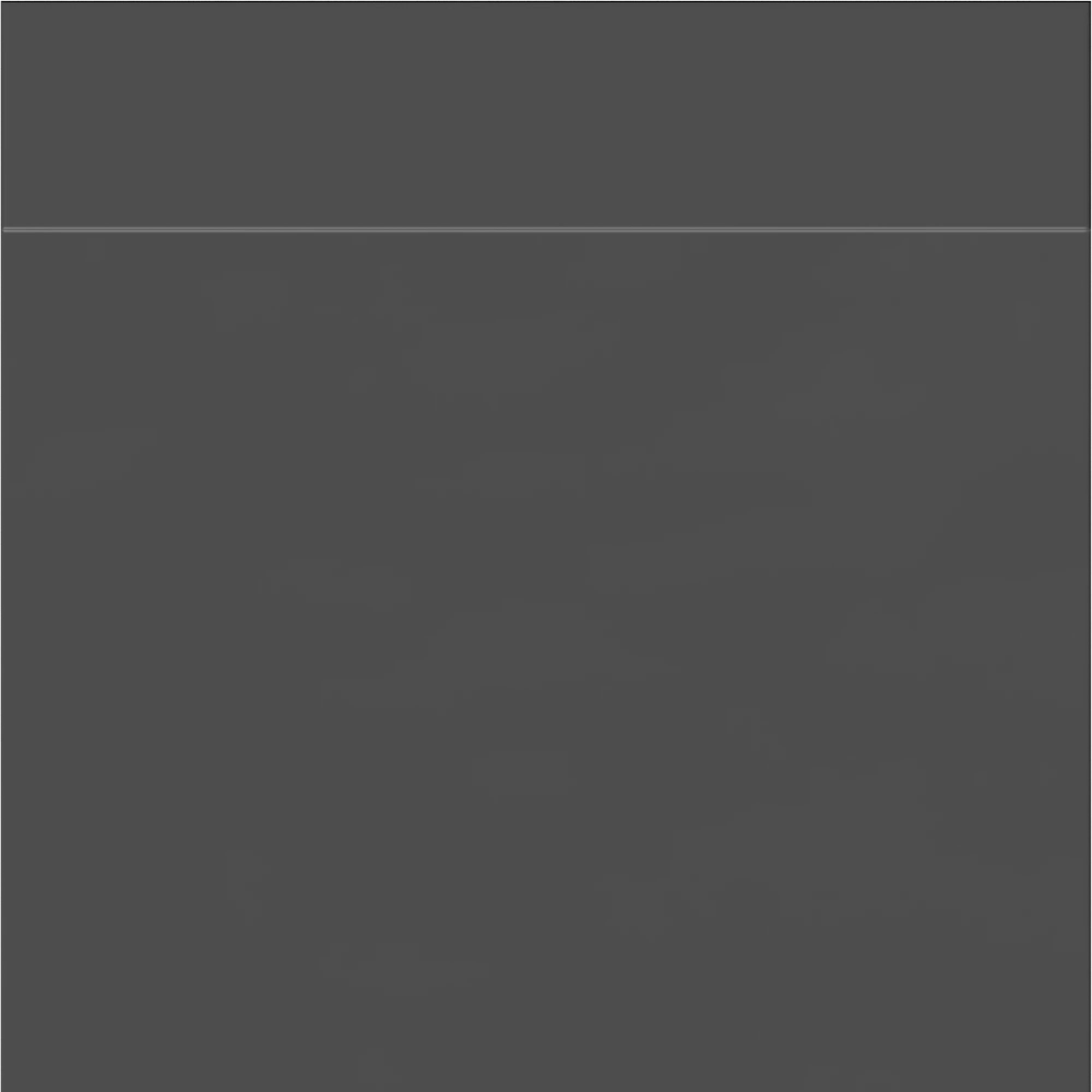

E 480.33
self-adhesive
for E 470/N
L 10000 × W 12 × H 4 mm
10000 mm long
black

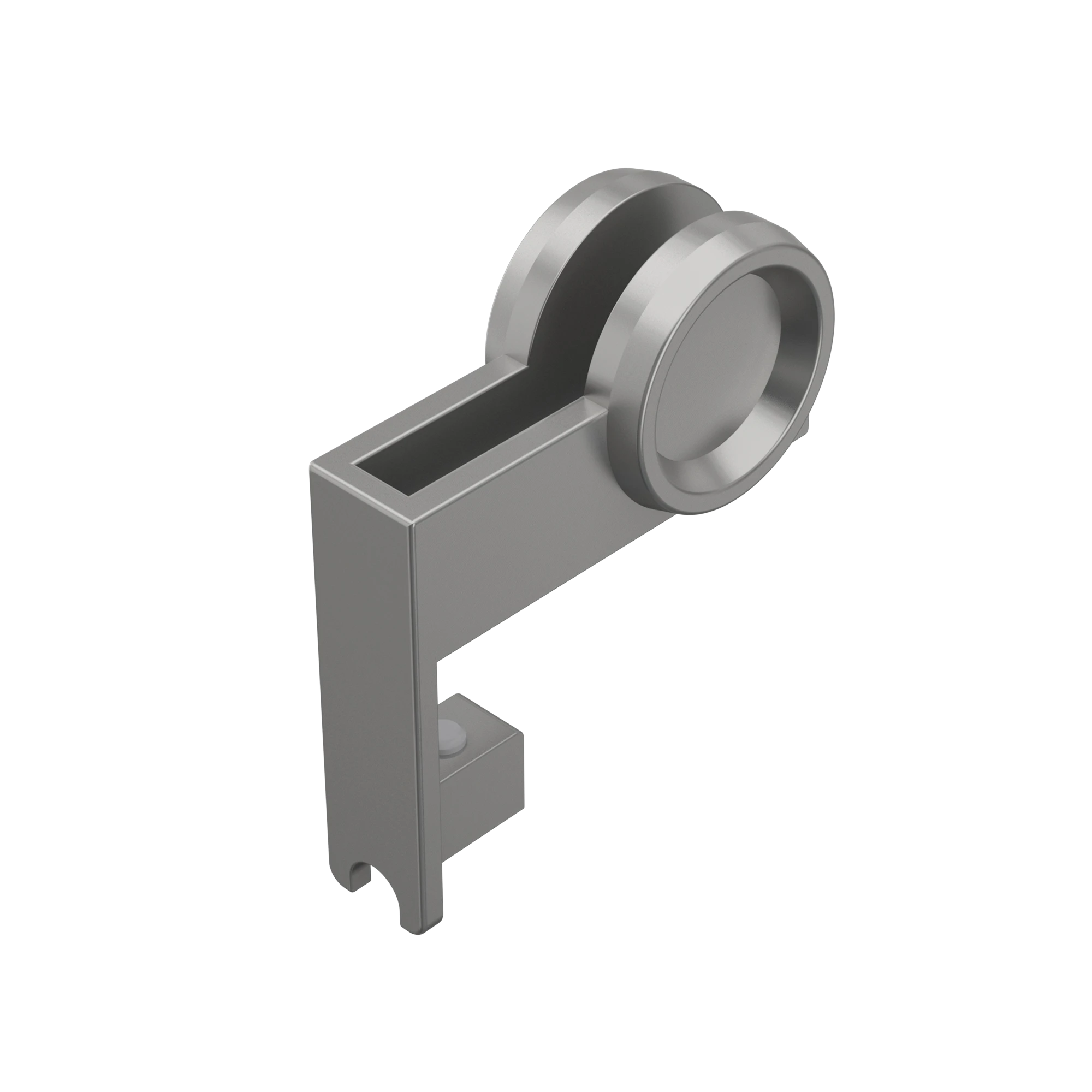

E 481.39
for glass 5/6 mm
fpr E 472
L 455 × W 53 × H 18 mm
matt chrome-plated

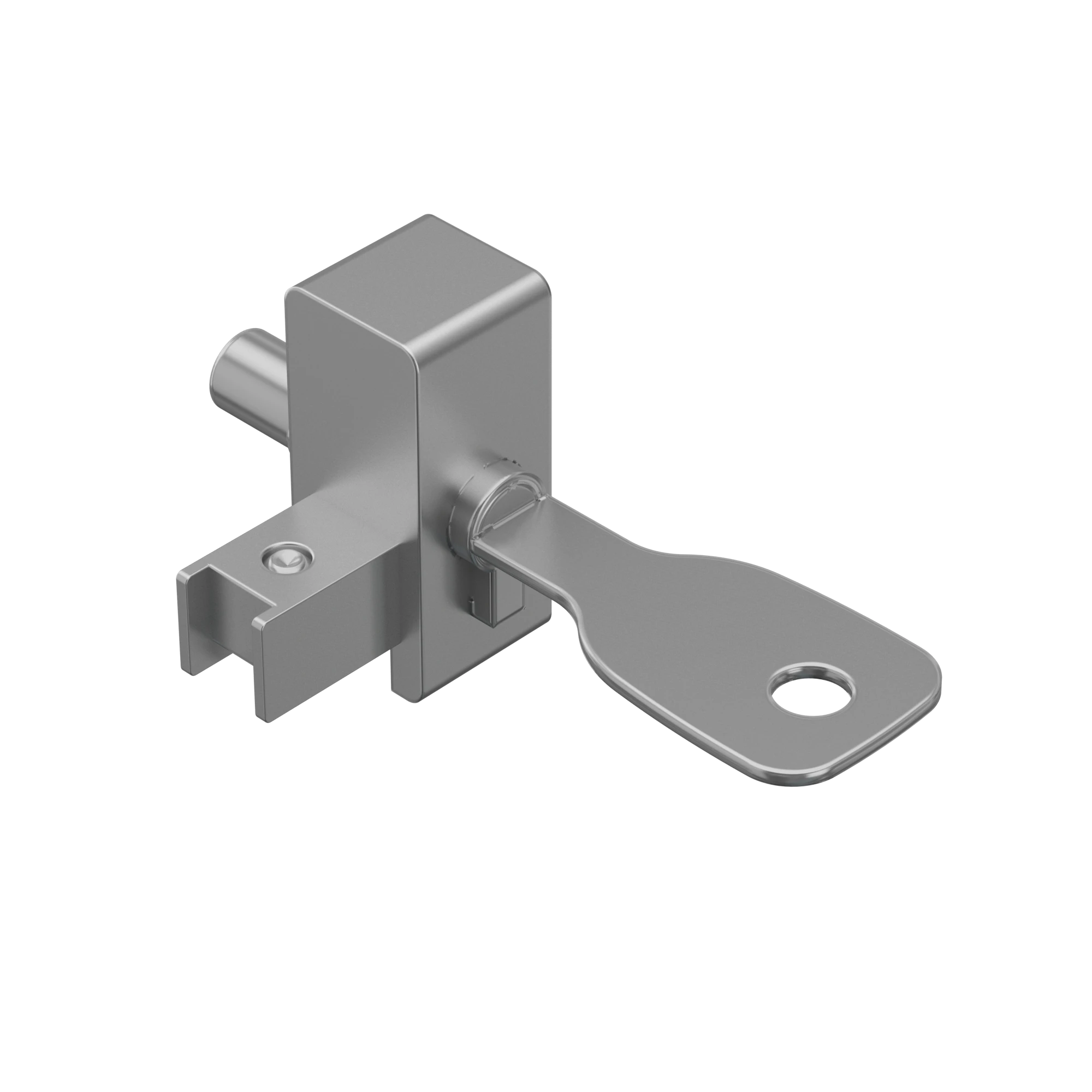

E 484.90
for E 472
L 140 × W 80 × H 10 mm
as catalogue desciption

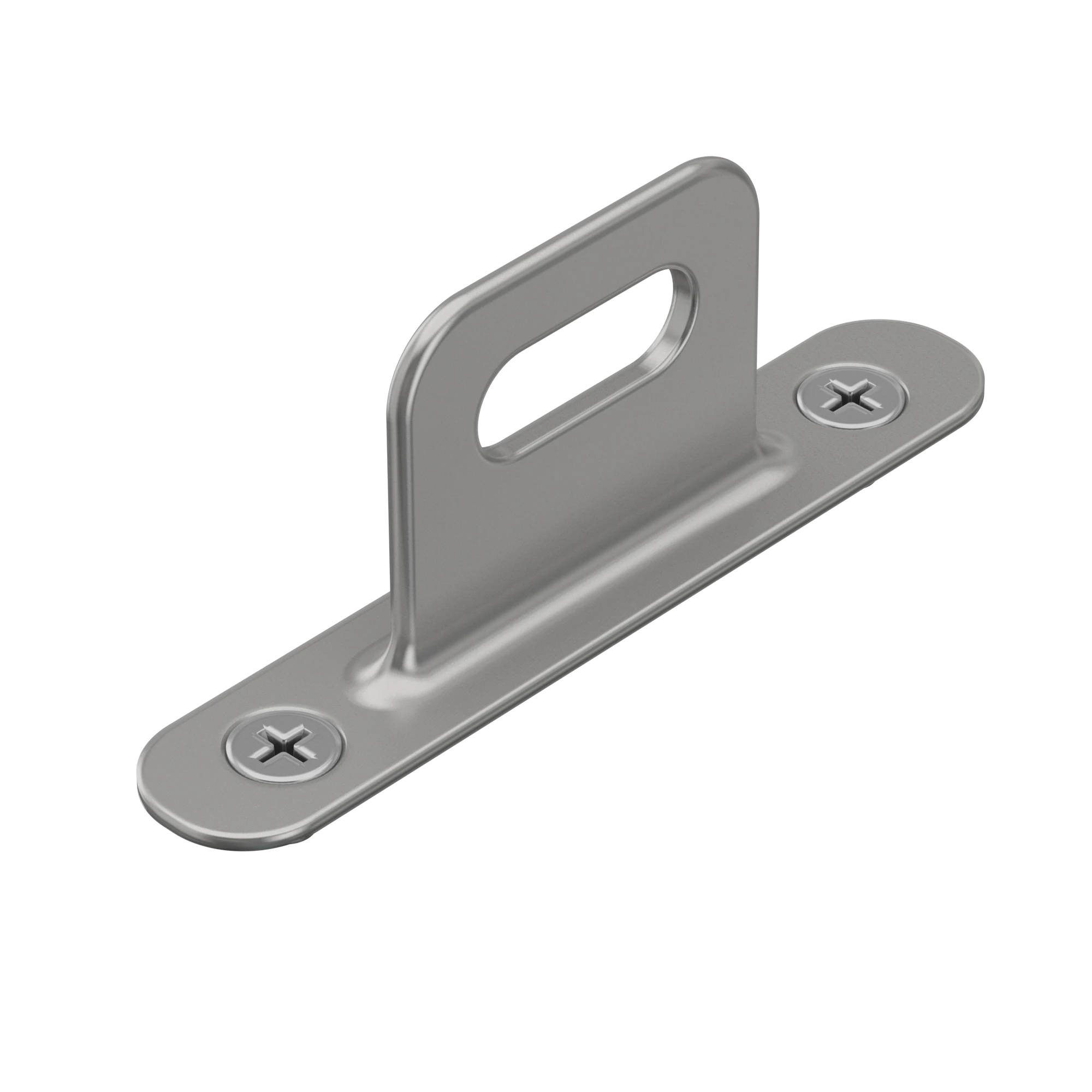

E 485.39
for E 478
L 55 × W 10 × H 21 mm
matt chrome-plated

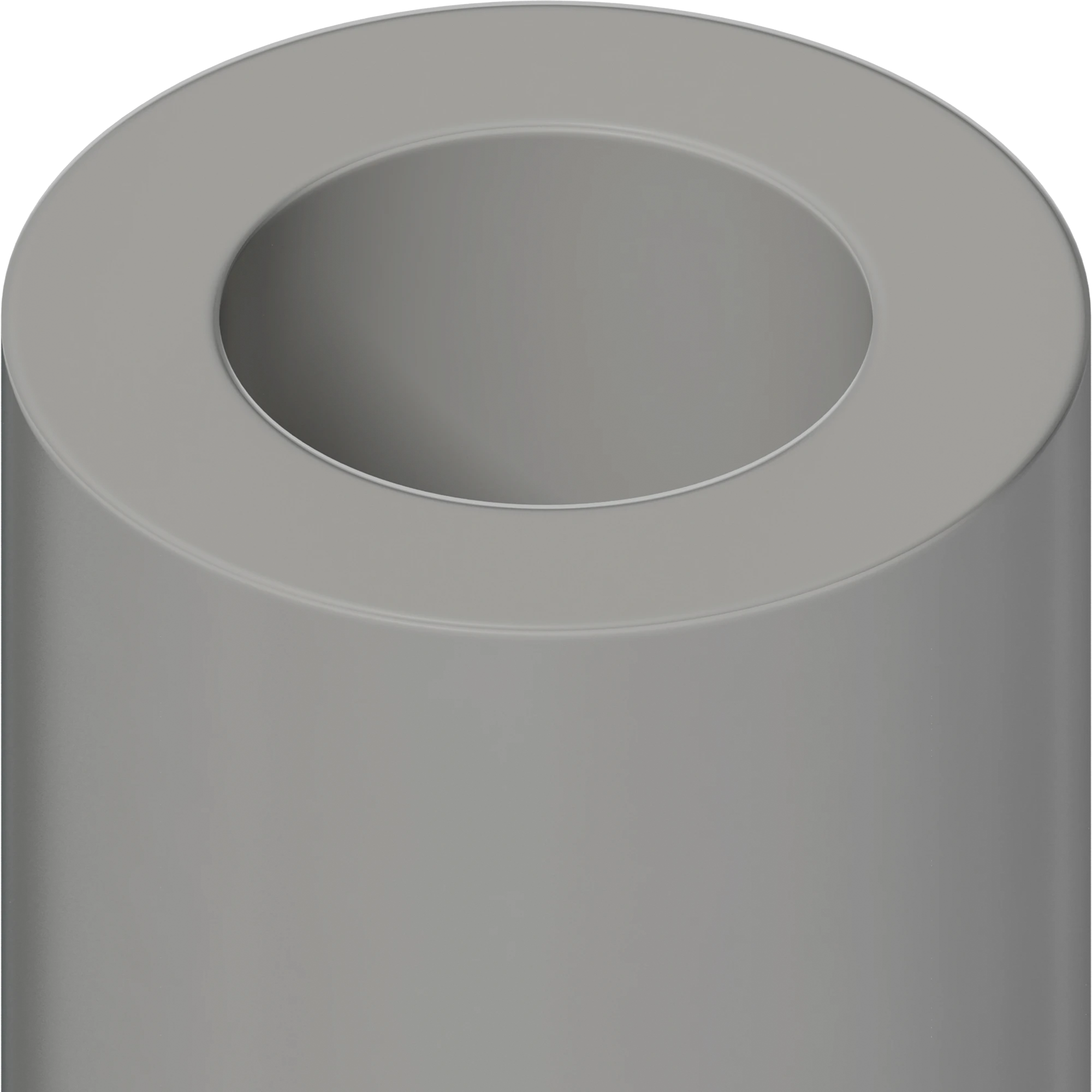

M 1643.51
25 mm long
for glass 4 mm
L 25000 × W 3 × H 3 mm
25 m long
transparent

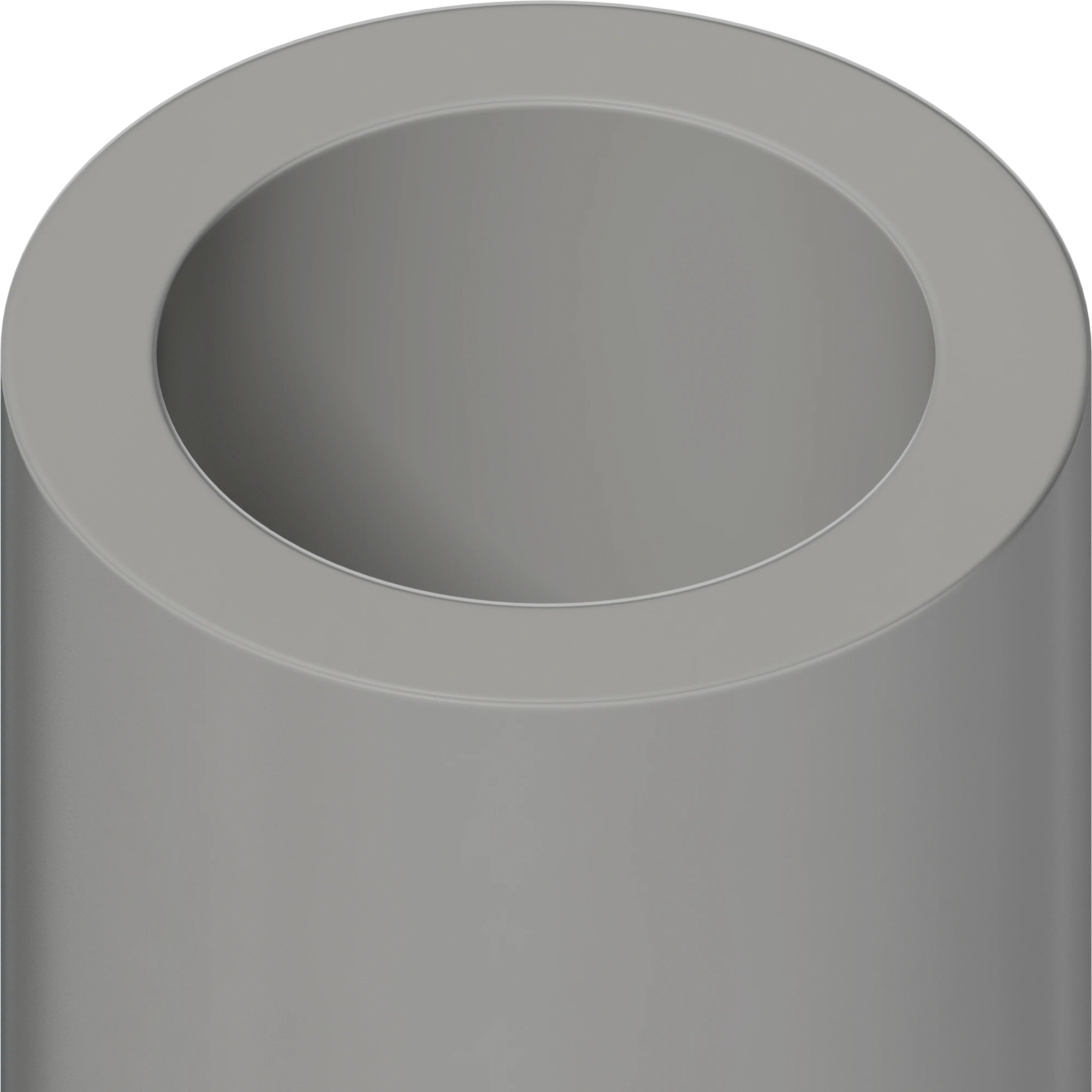

M 1644.51
50 m long
for glass 4 mm
L 50000 × W 5 × H 5 mm
50 m long
transparent

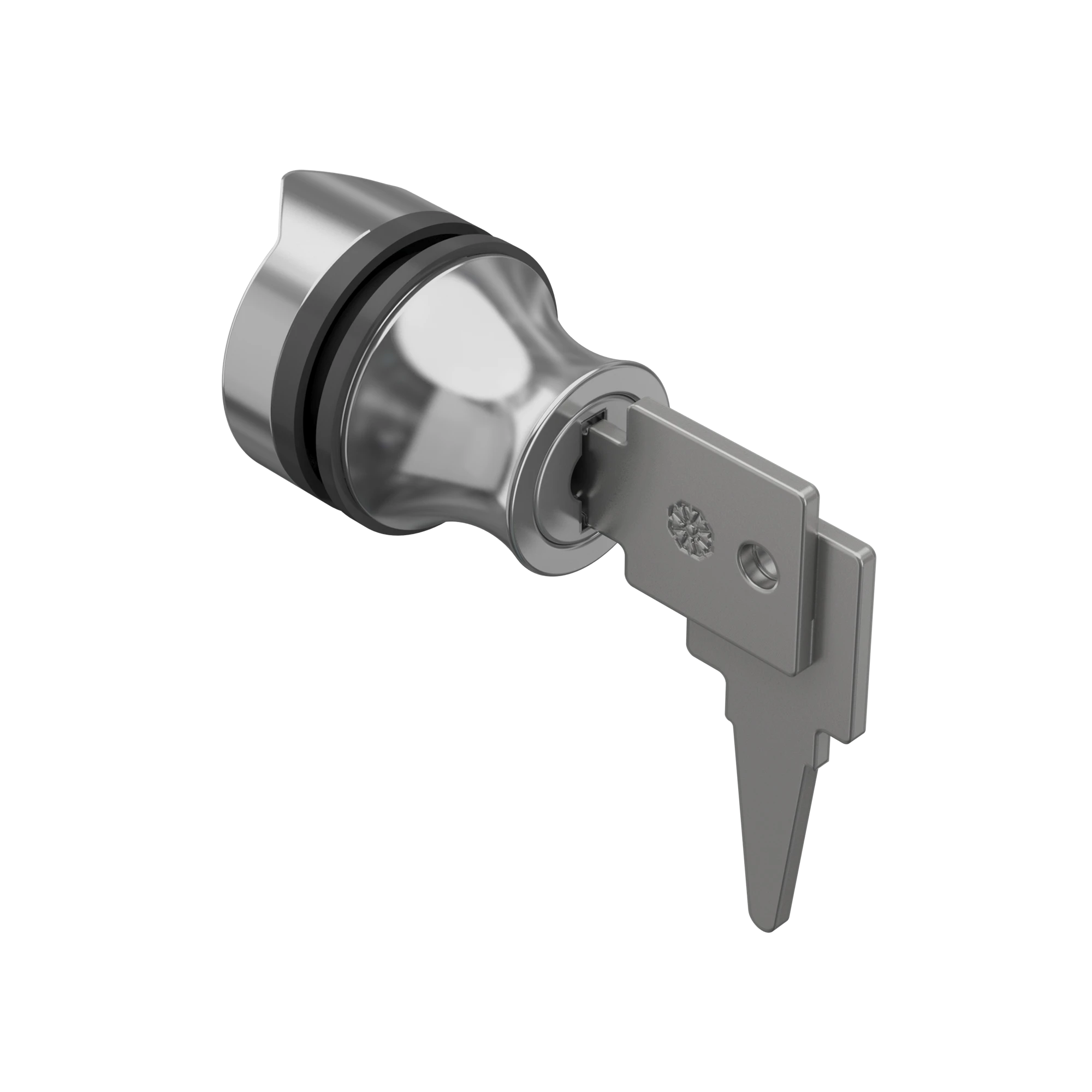

V 2226.38
for hinged glass doors
L 66 × W 30 × H 30 mm
nickel-plated
Connectors/Knuckles.

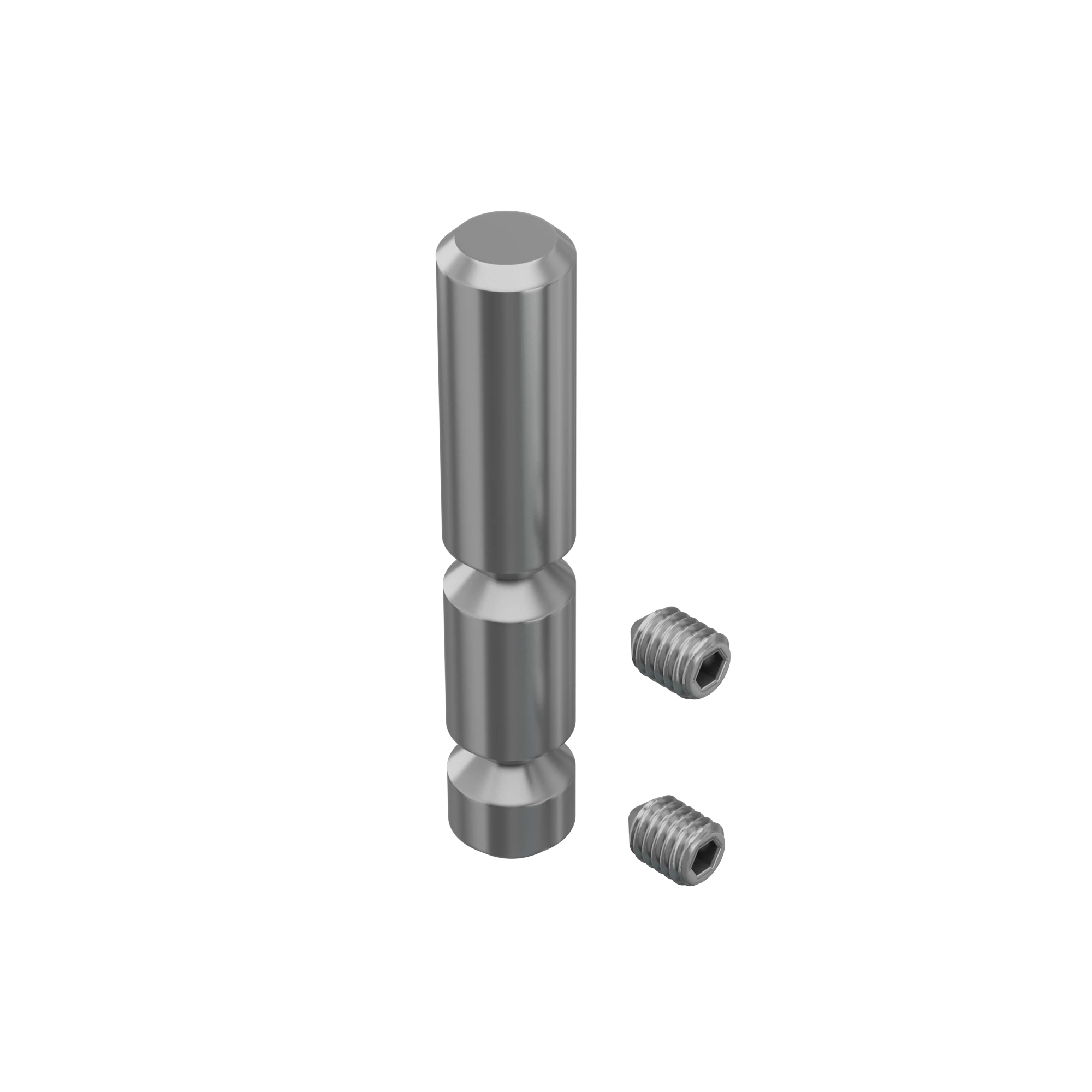

M 1144.37
for M 1140 + M 1457
L 60 × W 11 × H 11 mm
zinc-plated

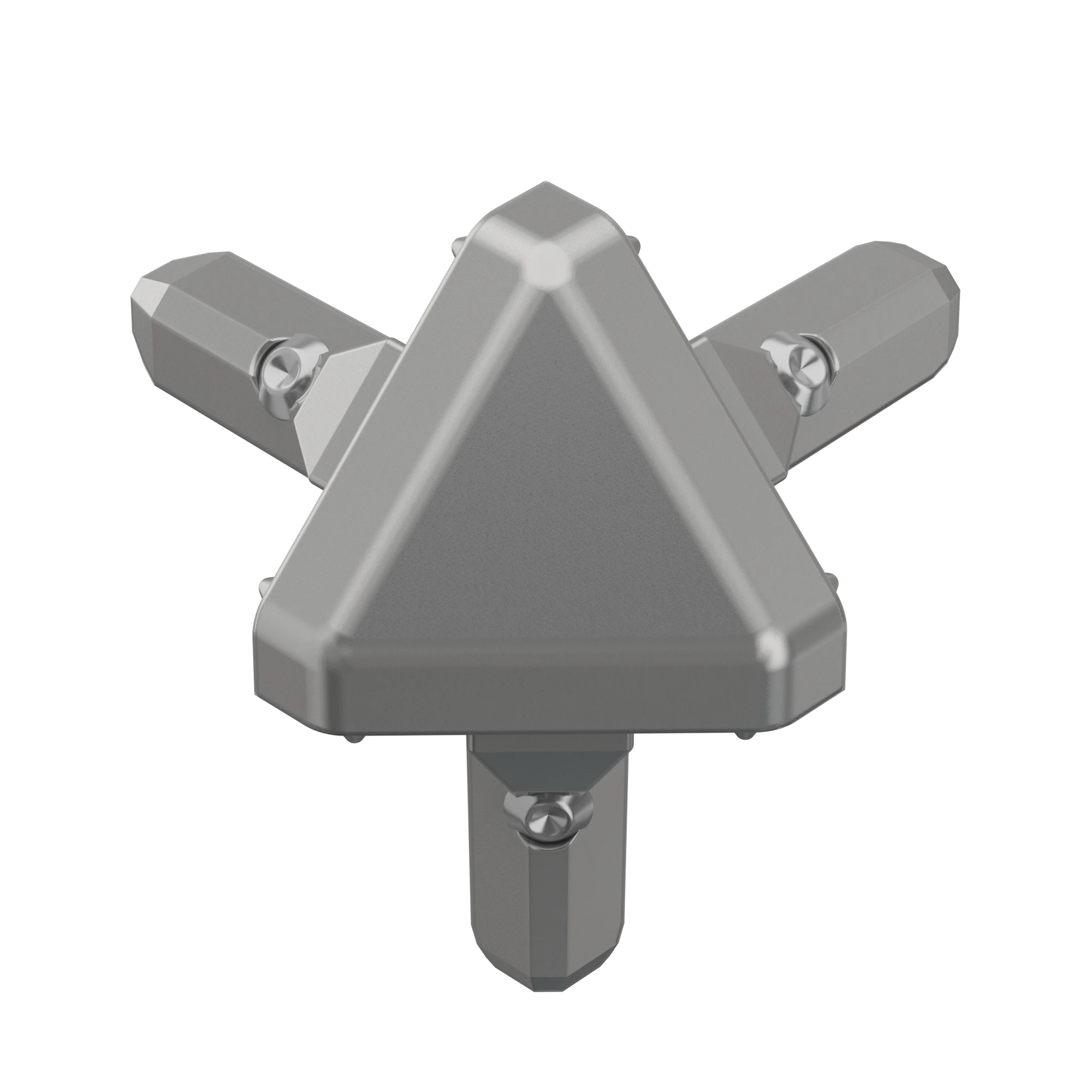

M 1653.39
90°
for 3 × M 1622
L 48 × W 48 × H 48 mm
matt chrome-plated
M 1653.41
90°
for 3 × M 1622
L 48 × W 48 × H 48 mm
polished chrome-plated

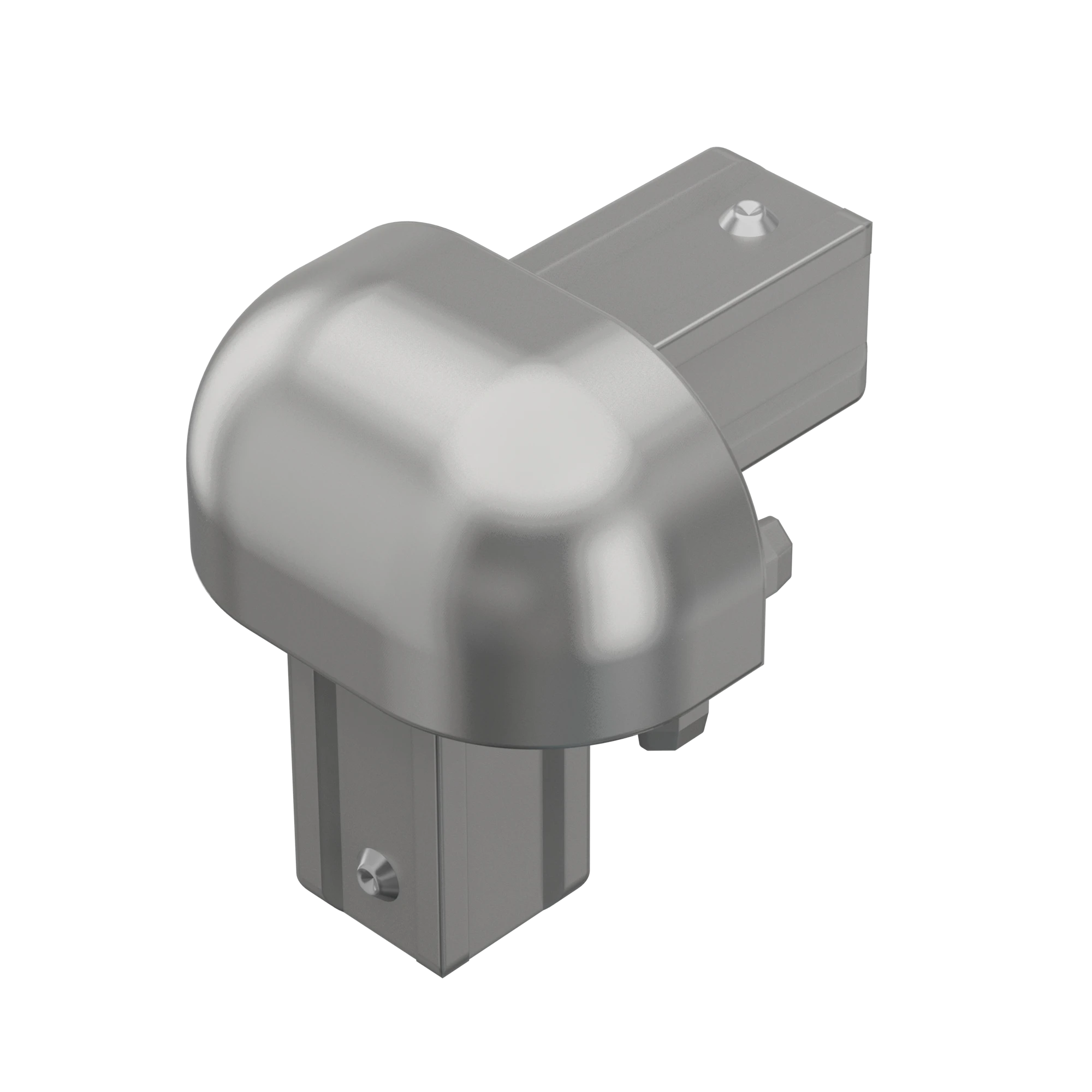

M 1662.39
90°
for 2 × M 1606
L 46 × W 46 × H 40 mm
matt chrome-plated
M 1662.41
90°
for 2 × M 1606
L 46 × W 46 × H 40 mm
polished chrome-plated

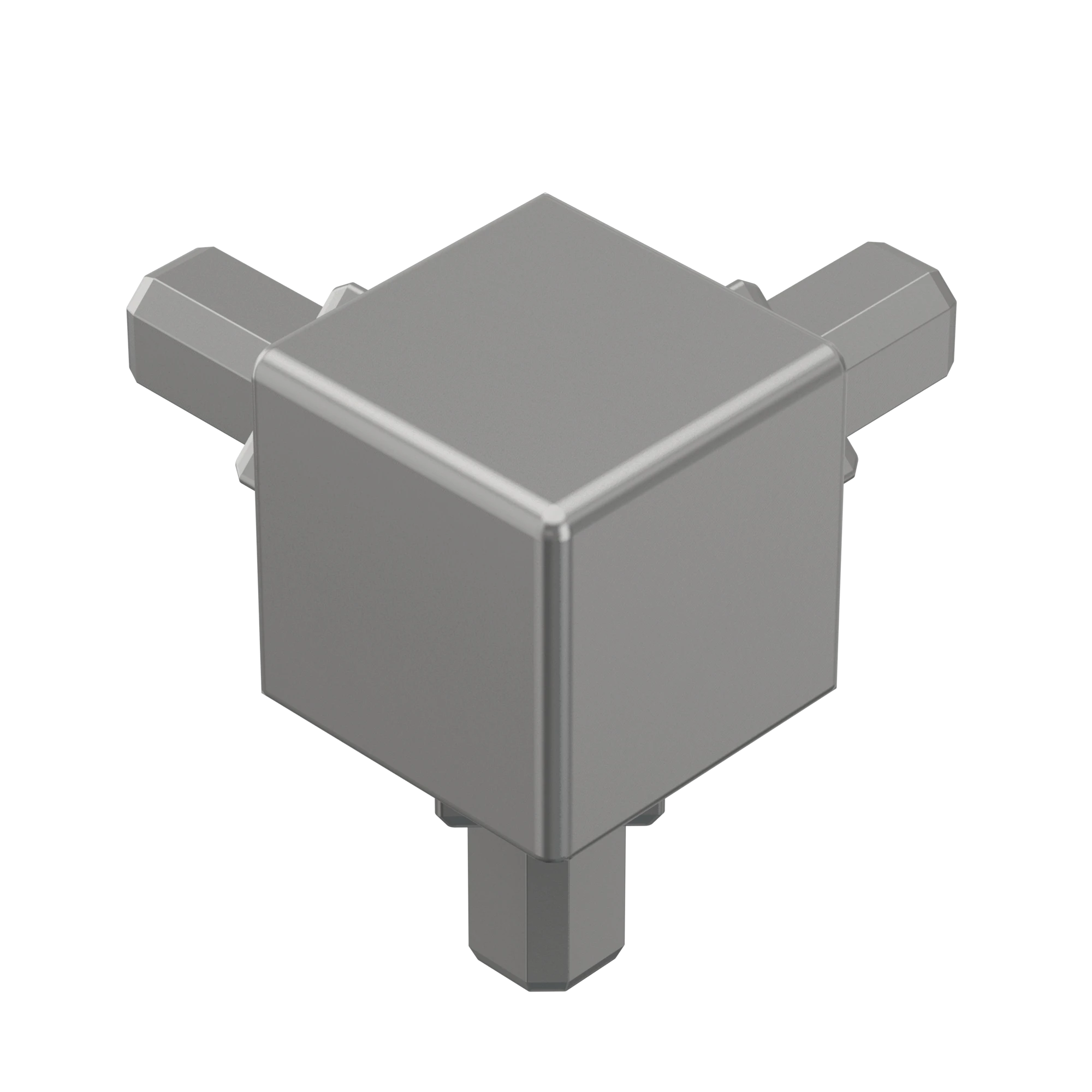

M 1683.39
90°
for 3 × M 1625
L 48 × W 48 × H 48 mm
matt chrome-plated

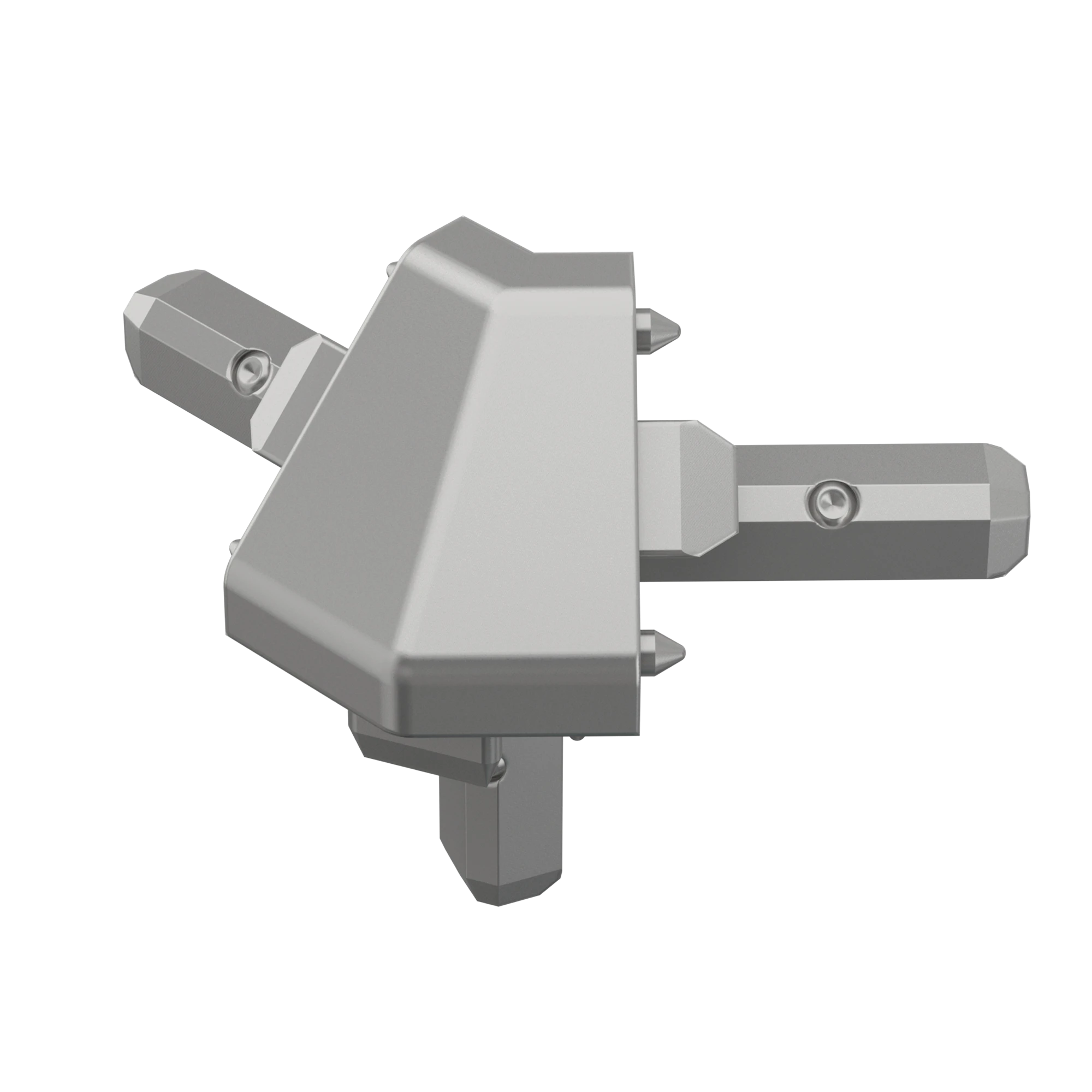

M 1689.39
135°
for M 1622/M 1629
L 65 × W 48 × H 30 mm
matt chrome-plated
M 1689.41
135°
for M 1622/M 1629
L 65 × W 48 × H 30 mm
polished chrome-plated

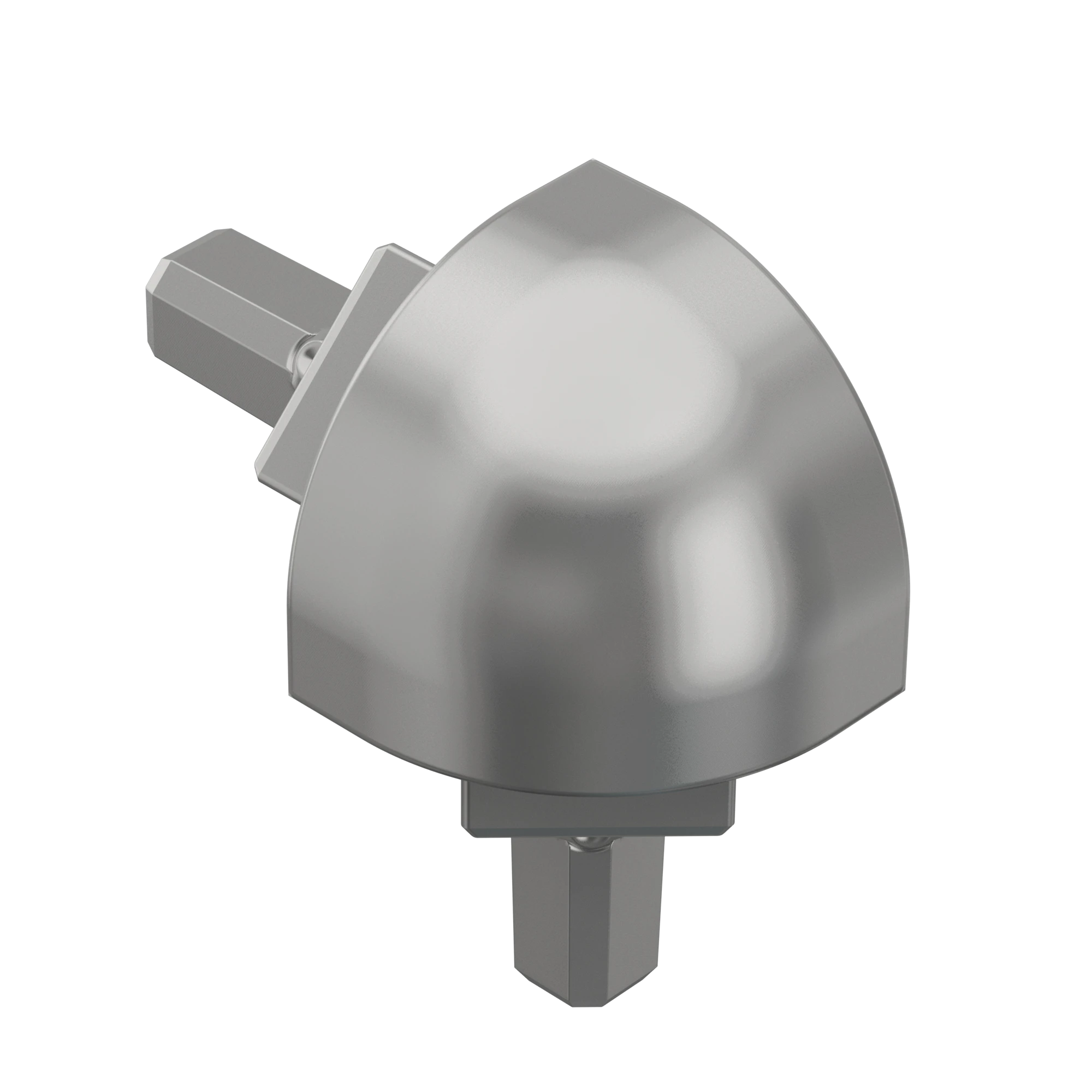

M 1692.39
90°
for 2 × M 1620
L 48 × W 48 × H 22 mm
matt chrome-plated
M 1693.39
90°
L 48 × W 48 × H 48 mm
for 3 × M 1620
matt chrome-plated

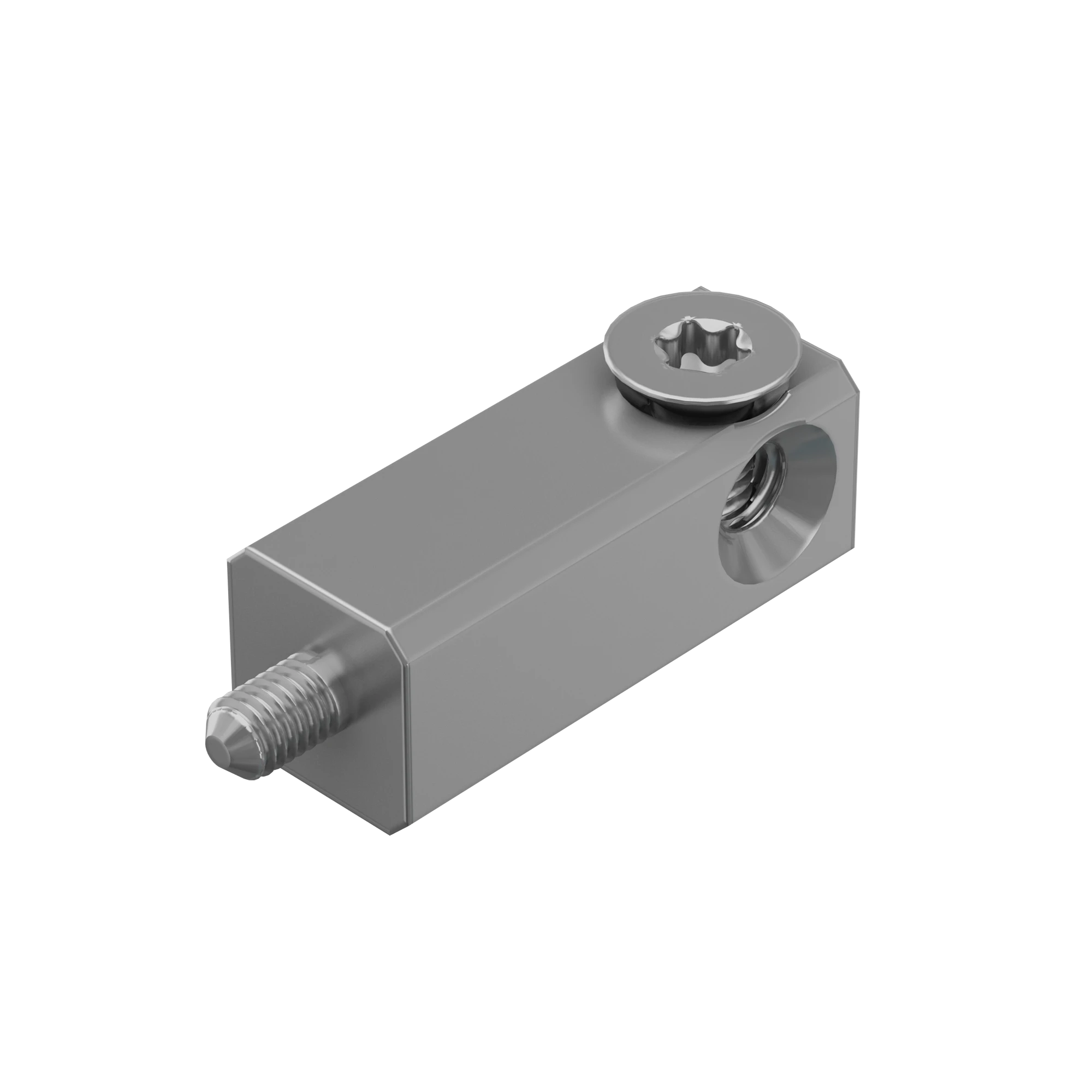

S 1151.37
for extrusions 32 mm
L 44 × W 14 × H 14 mm
zinc-plated

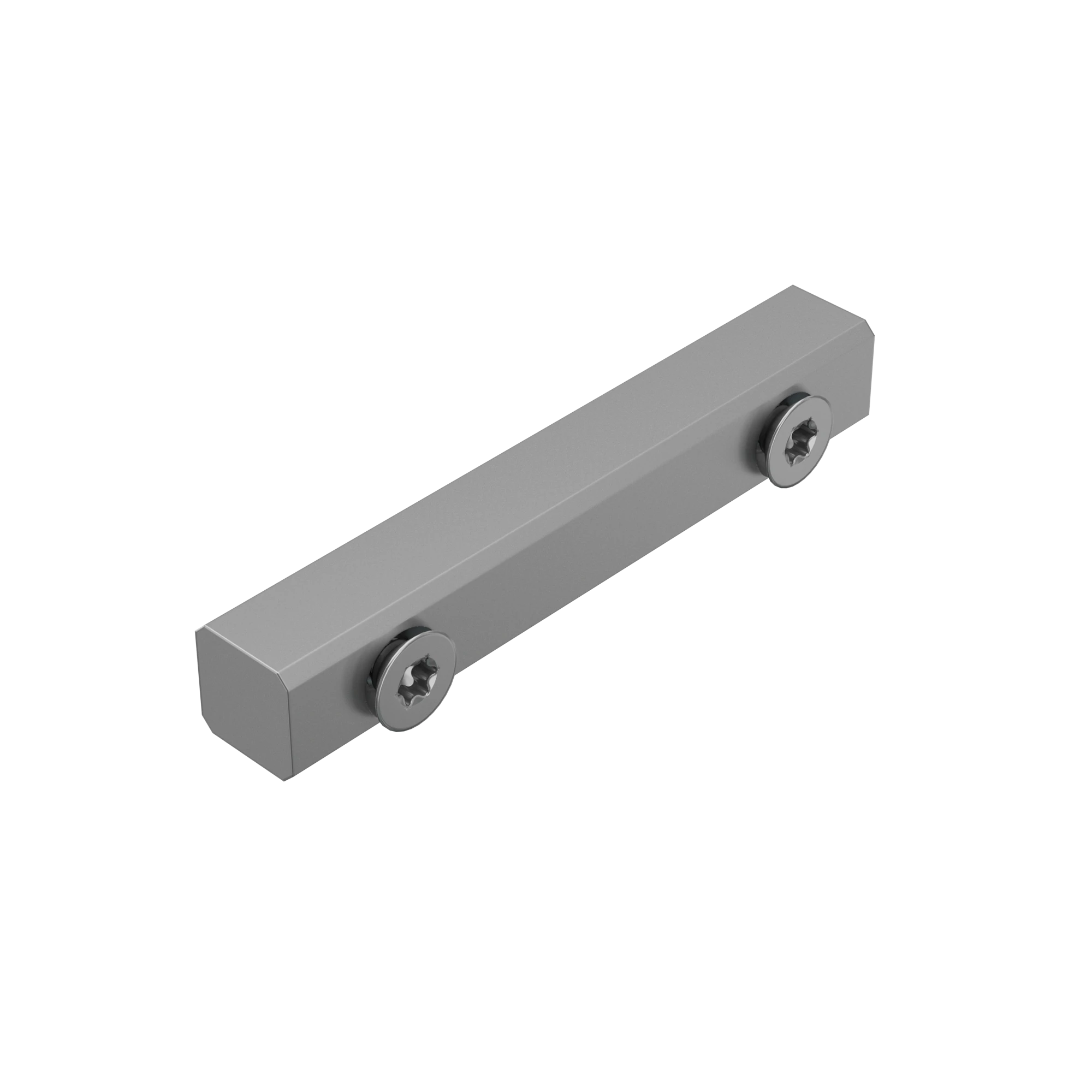

S 1155.00
straight
for extrusions 32 mm
L 90 × W 14 × H 14 mm
raw / unfinished

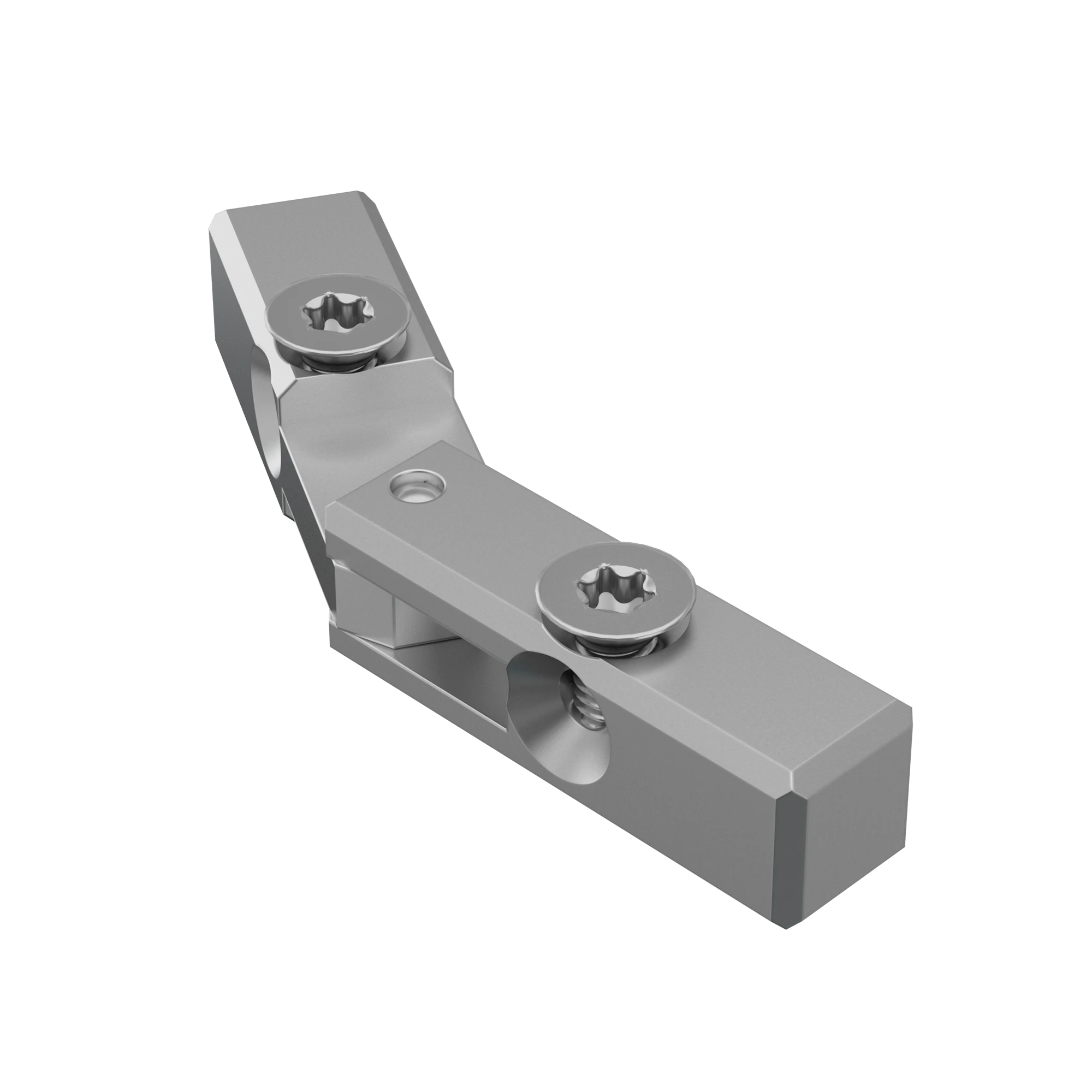

S 1156.00
90°-270°
for extrusions 32 mm
L 86 × W 14 × H 14 mm
raw / unfinished

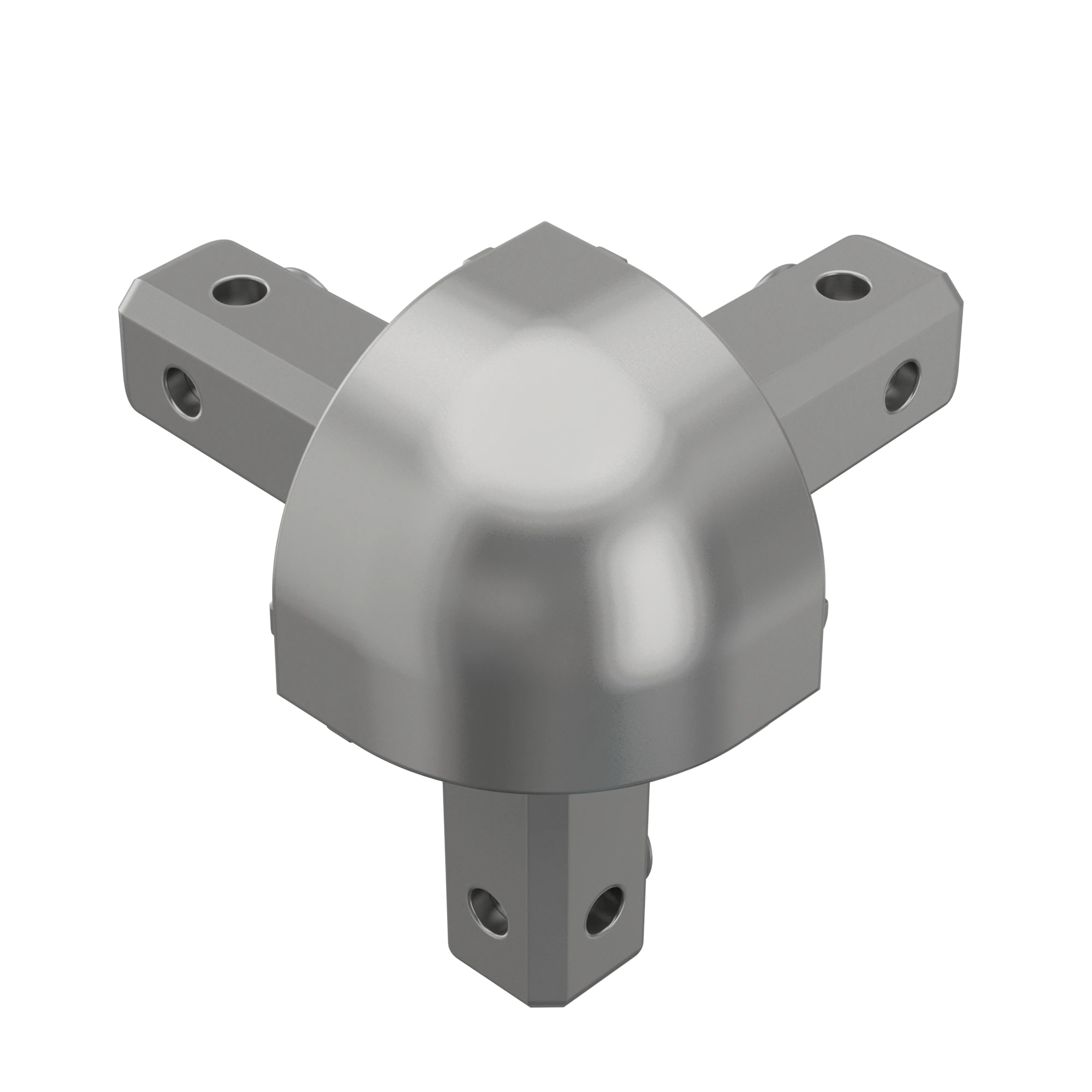

S 1170.39
90°
for 3 × S 1105
L 72 × W 72 × H 72 mm
matt chrome-plated

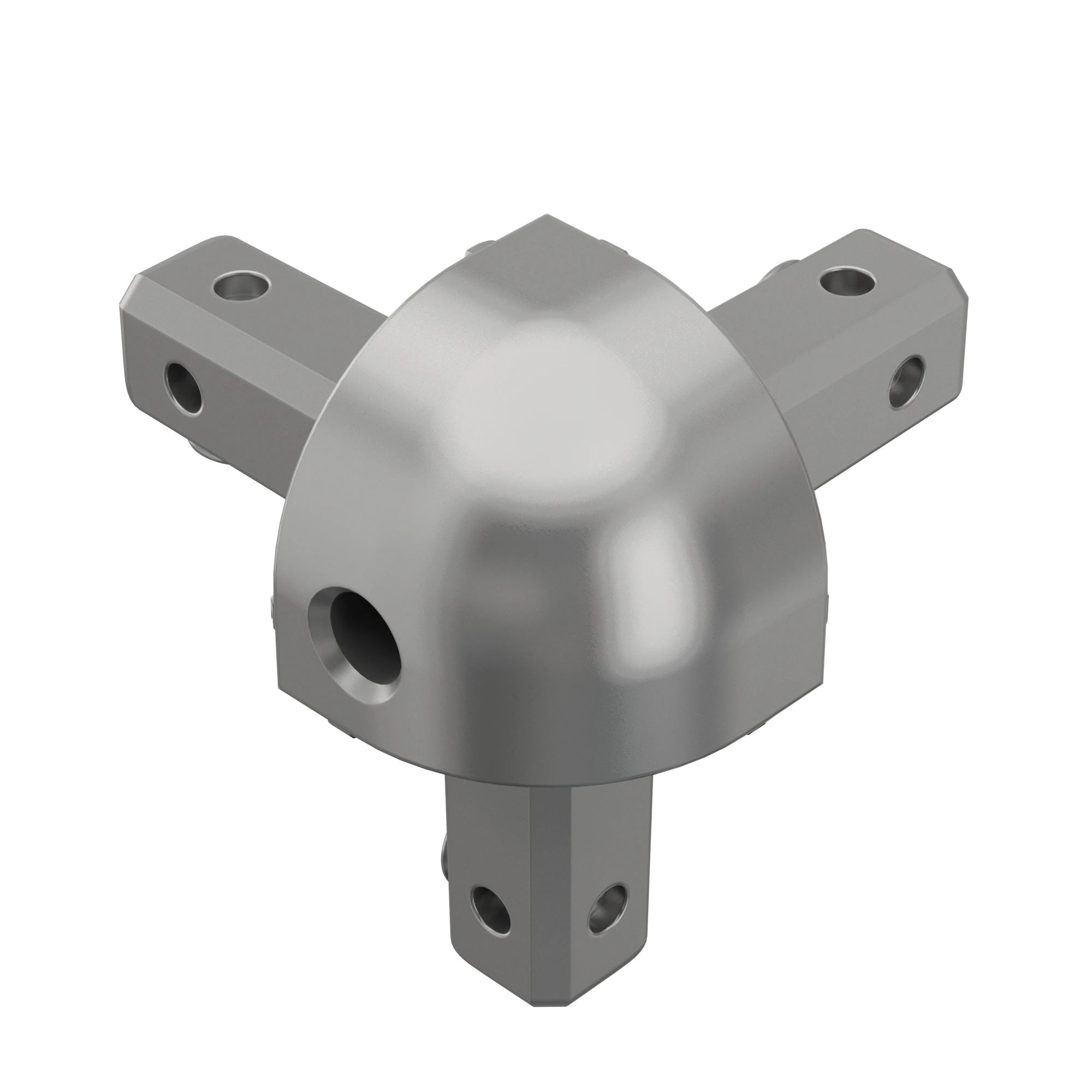

S 1171.39
90°, M10
for 3 × S 1105
L 72 × W 72 × H 72 mm
matt chrome-plated

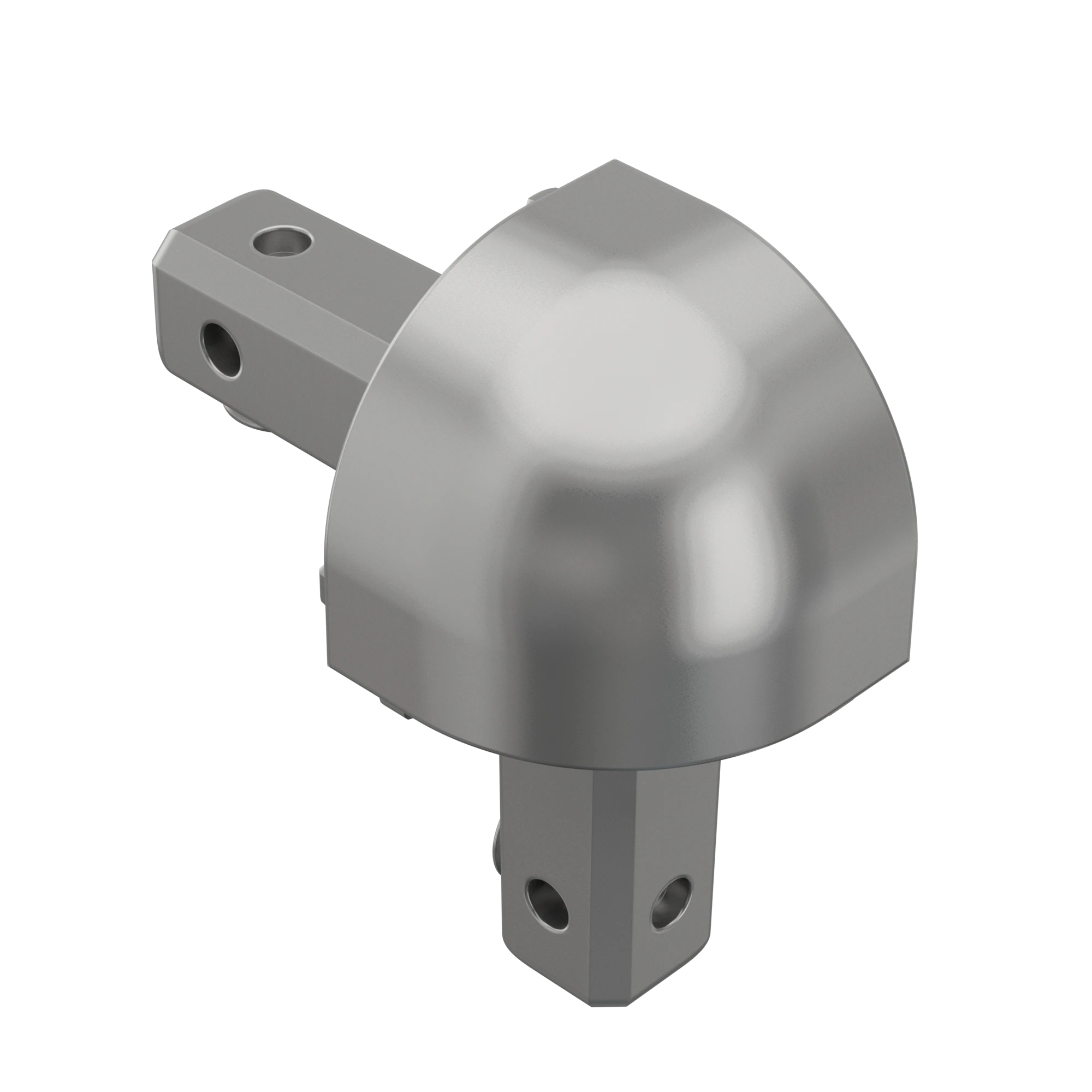

S 1173.39
90°
for 2 × S 1105
L 72 × W 72 × H 32 mm
matt chrome-plated

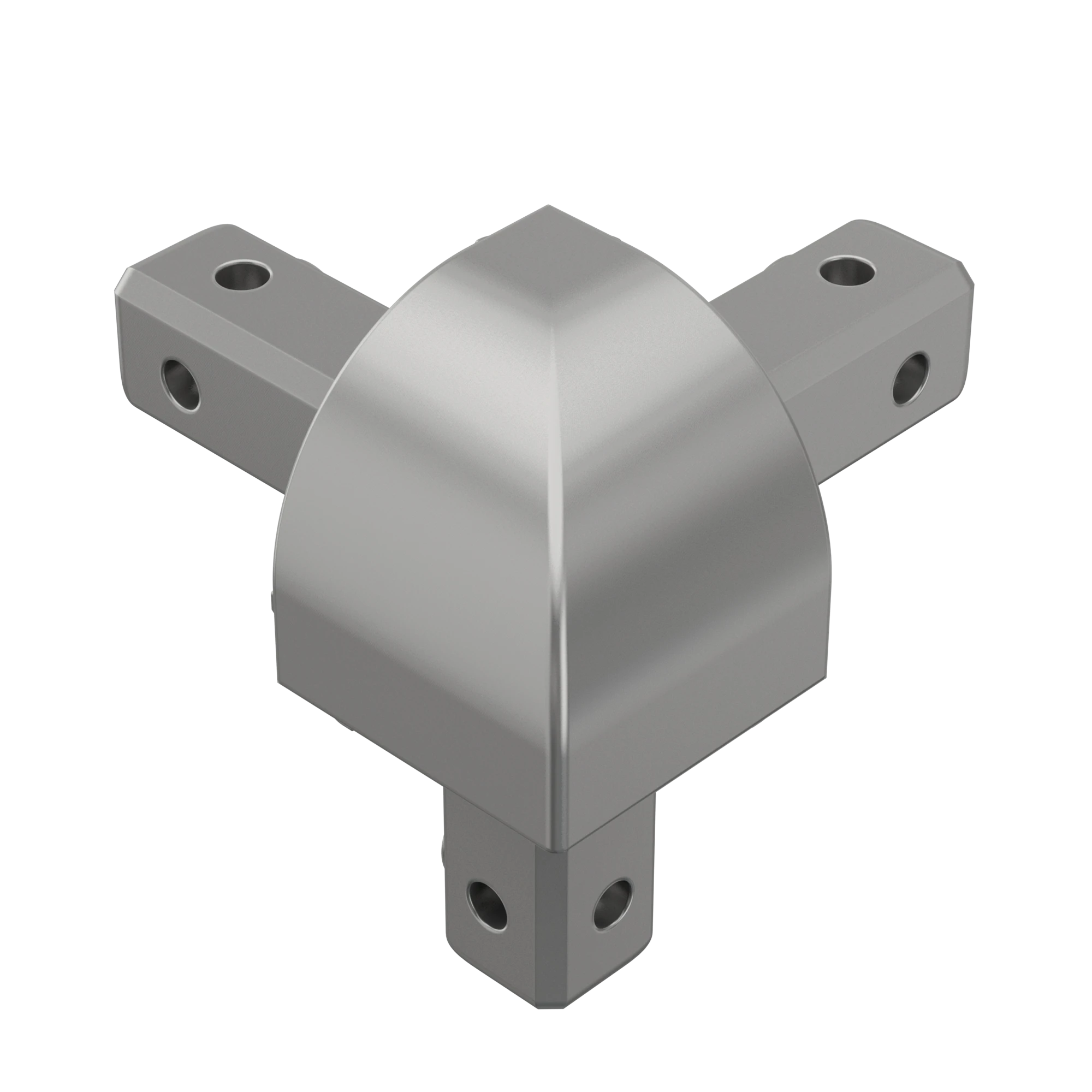

S 1175.39
90°
for S 1105/S 1125
L 72 × W 72 × H 72 mm
matt chrome-plated

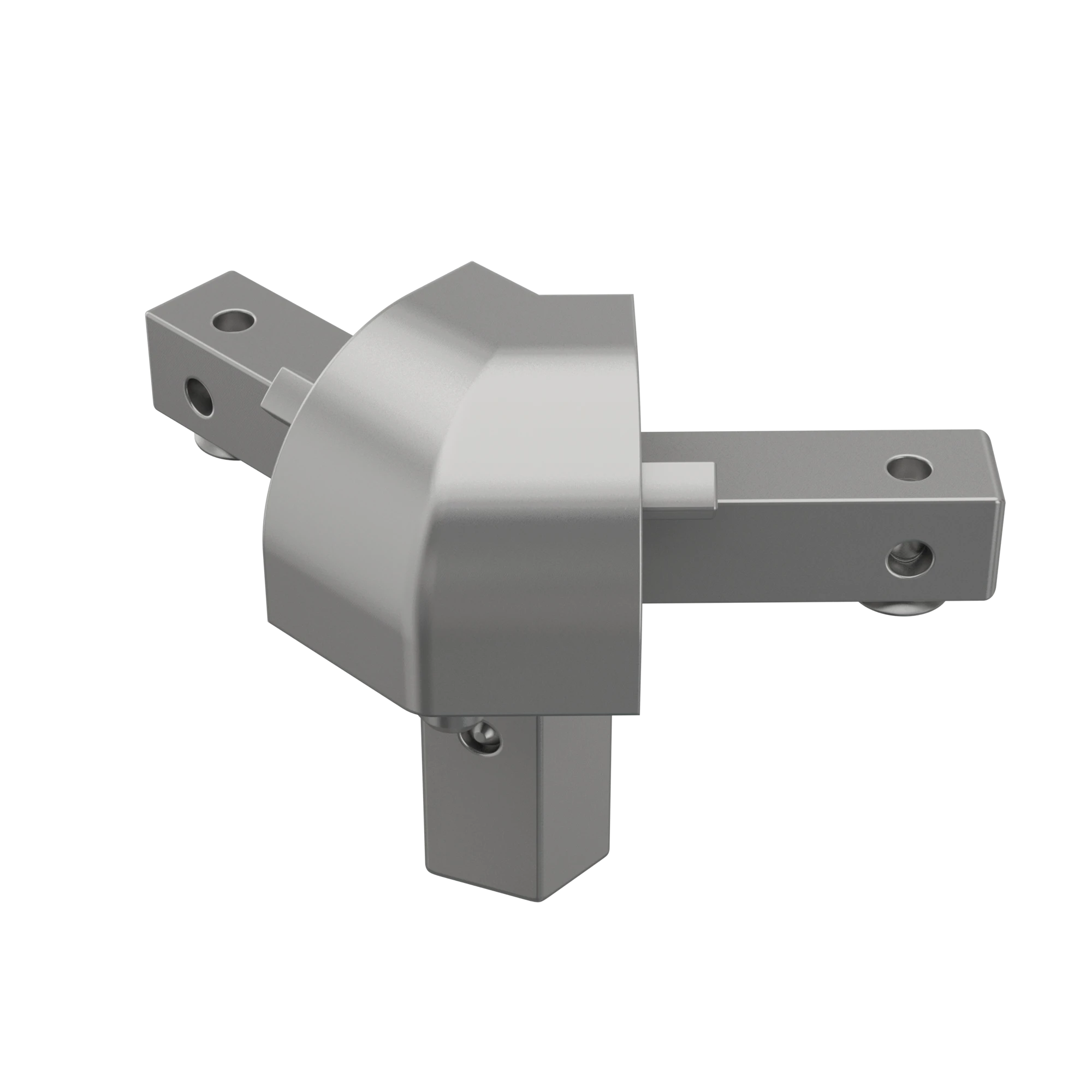

S 1179.39
135°
for S 1105
L 101 × W 73 × H 52 mm
matt chrome-plated

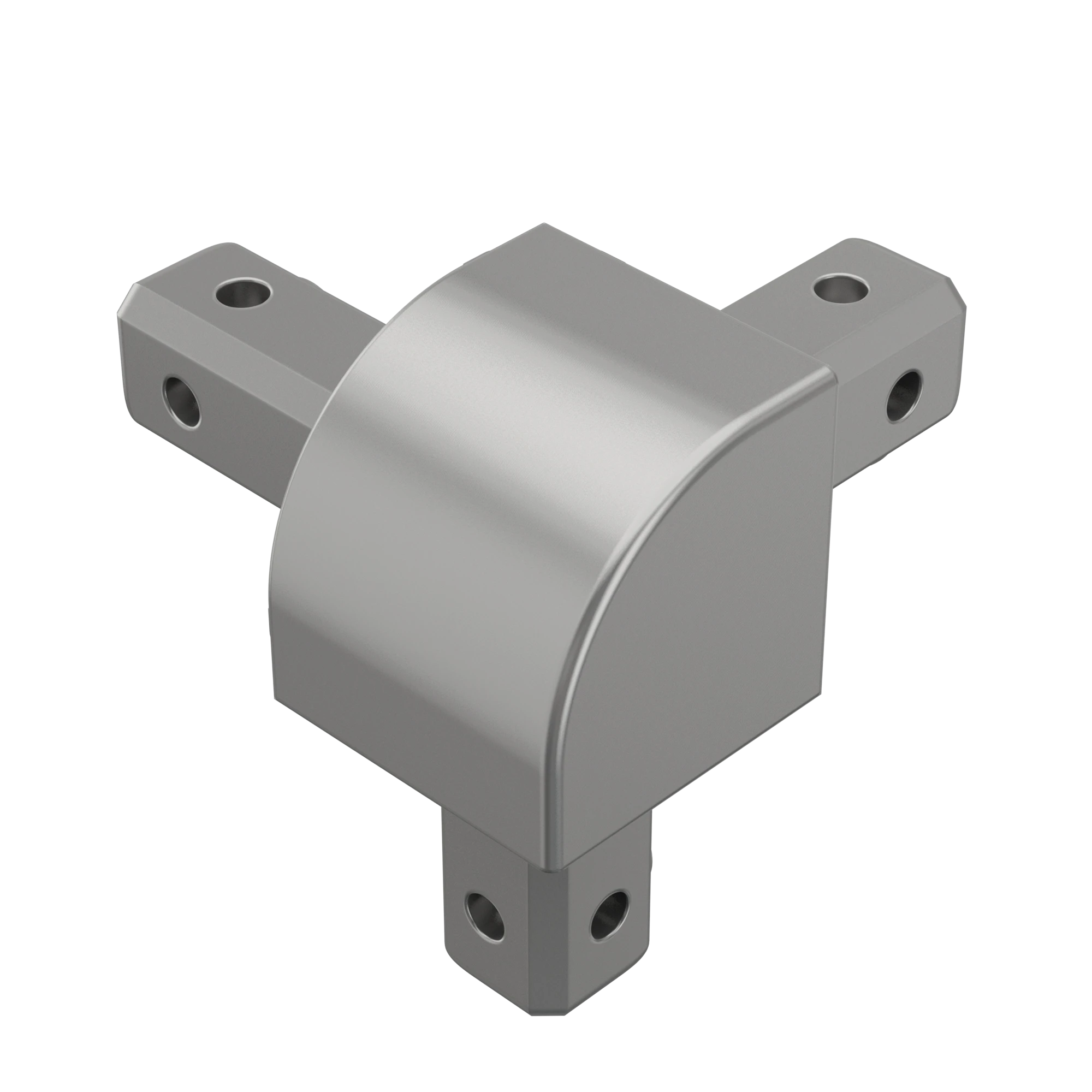

S 1180.39
90°
for S 1105/S 1125
L 72 × W 72 × H 72 mm
matt chrome-plated

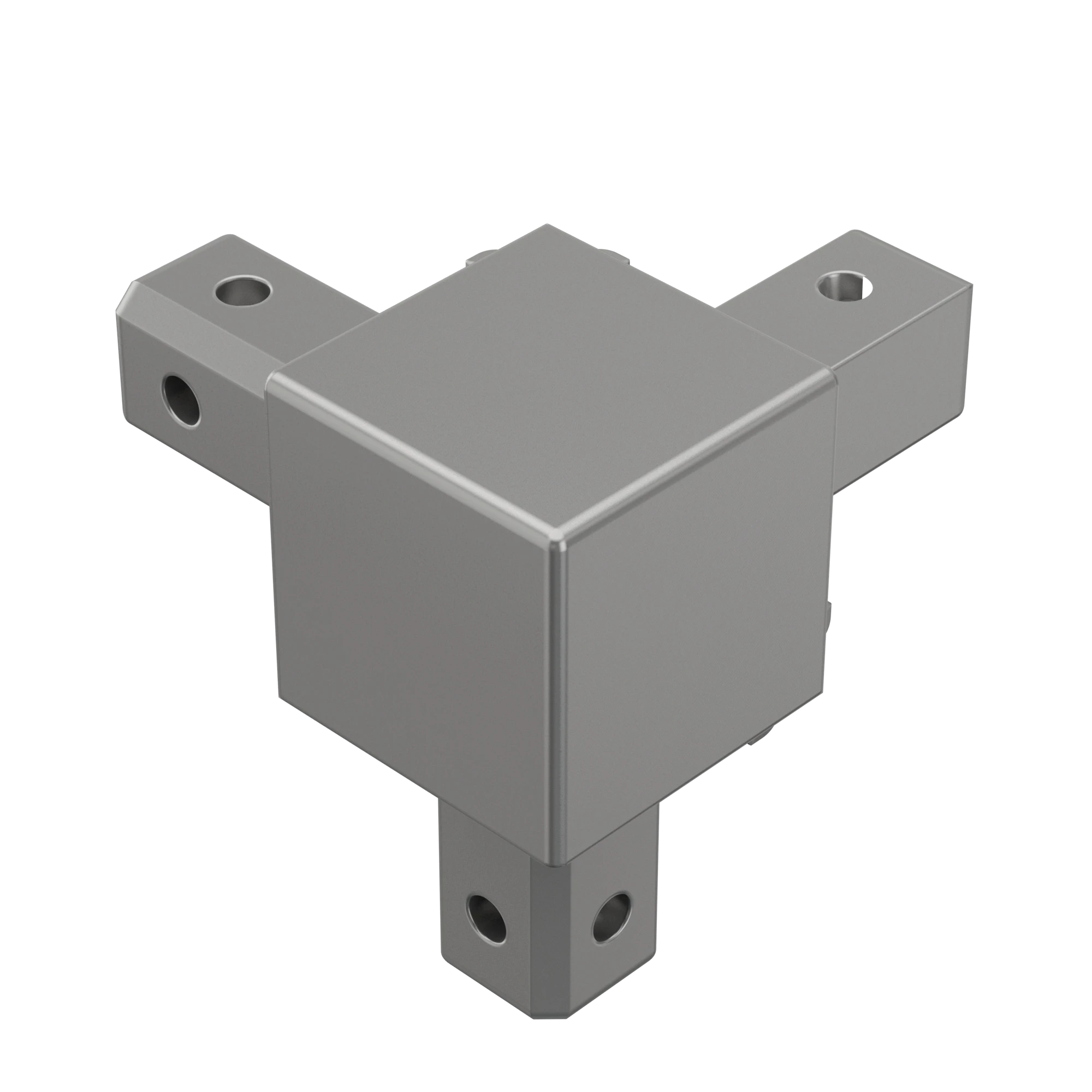

S 1190.39
90°
for 3 × S 1125
L 72 × W 72 × H 72 mm
matt chrome-plated

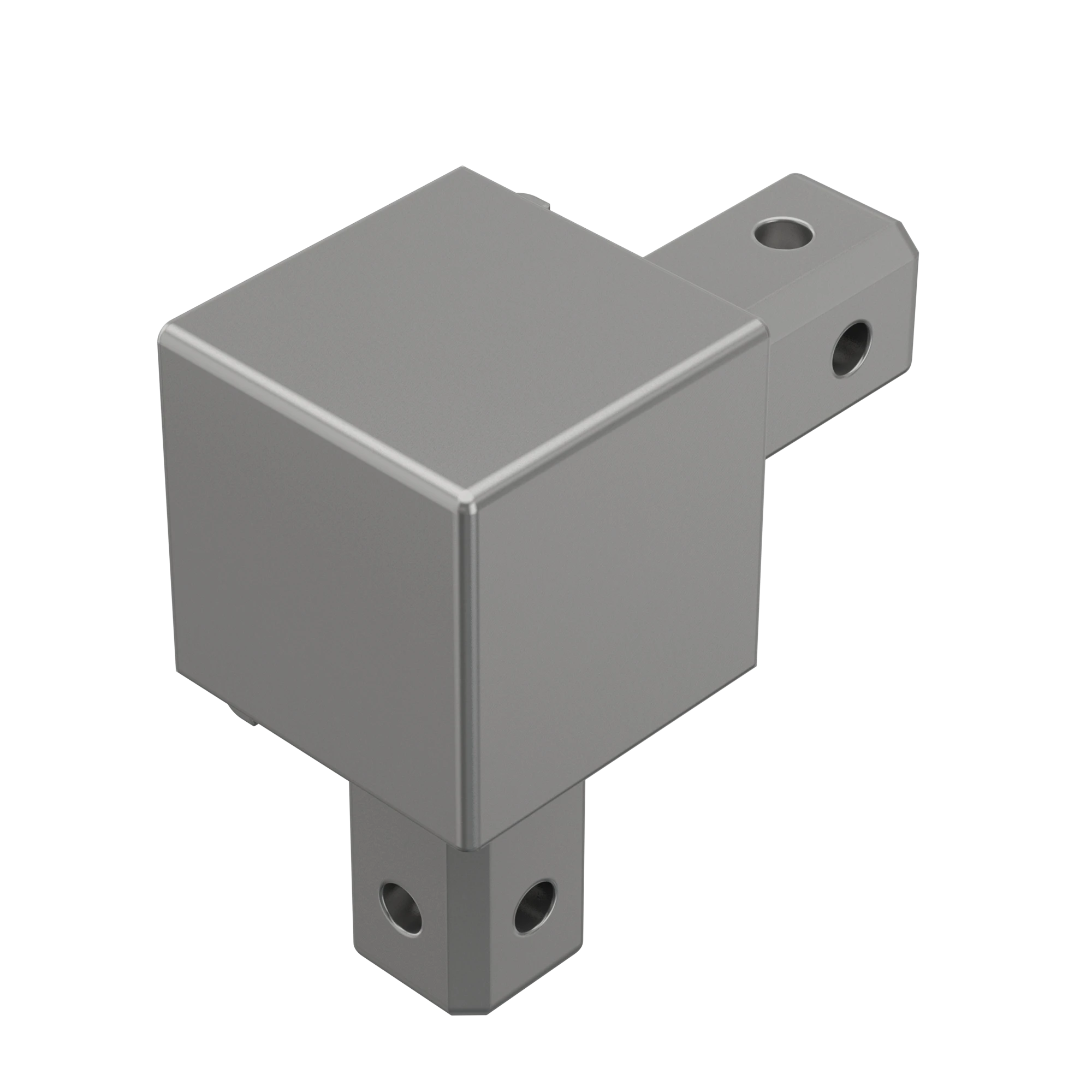

S 1192.39
90°
for 2 × S 1125
L 72 × W 72 × H 32 mm
matt chrome-plated

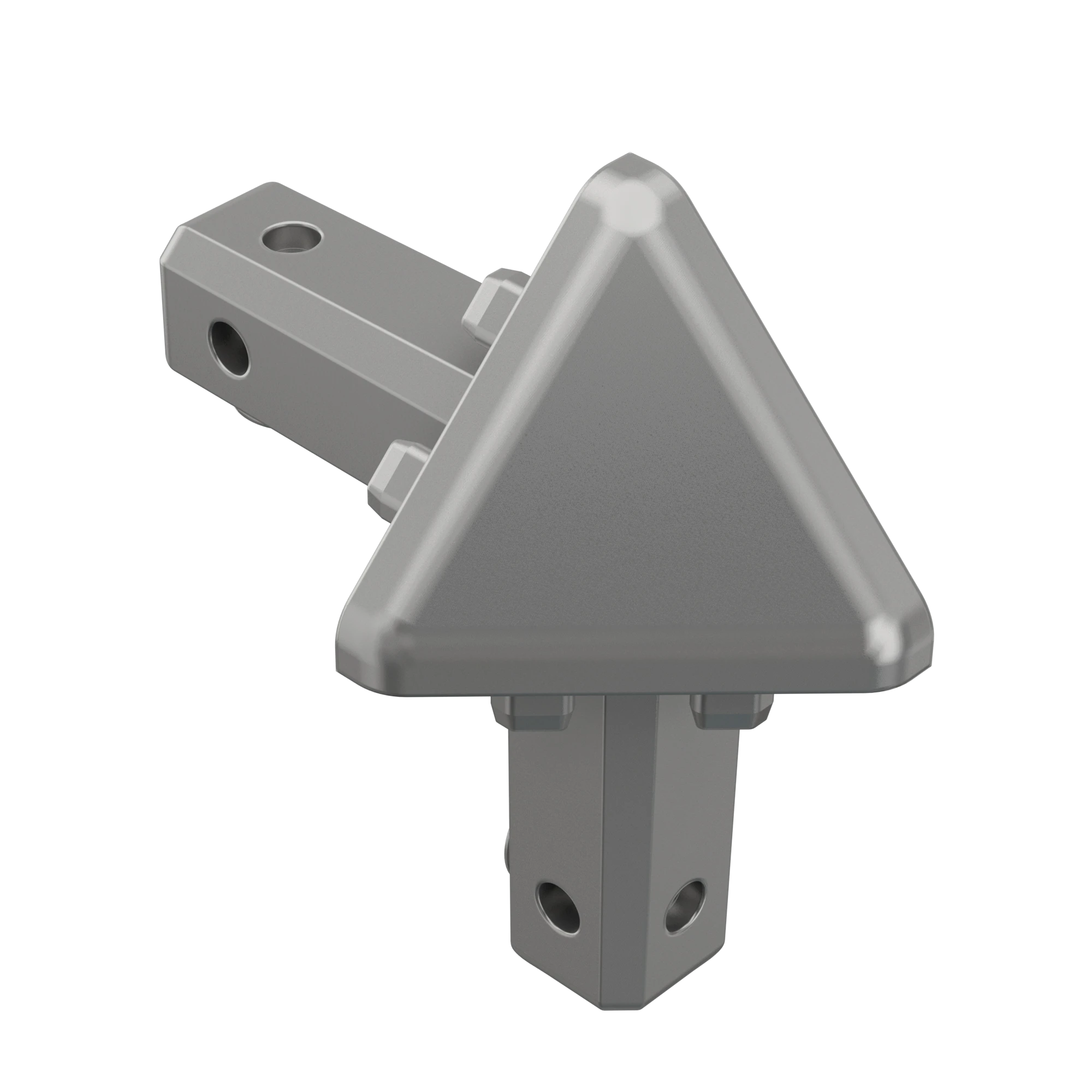

S 1332.39
90°
for 2 × S 1303
L 73 × W 73 × H 32 mm
matt chrome-plated
S 1332.41
90°
for 2 × S 1303
L 73 × W 73 × H 32 mm
polished chrome-plated

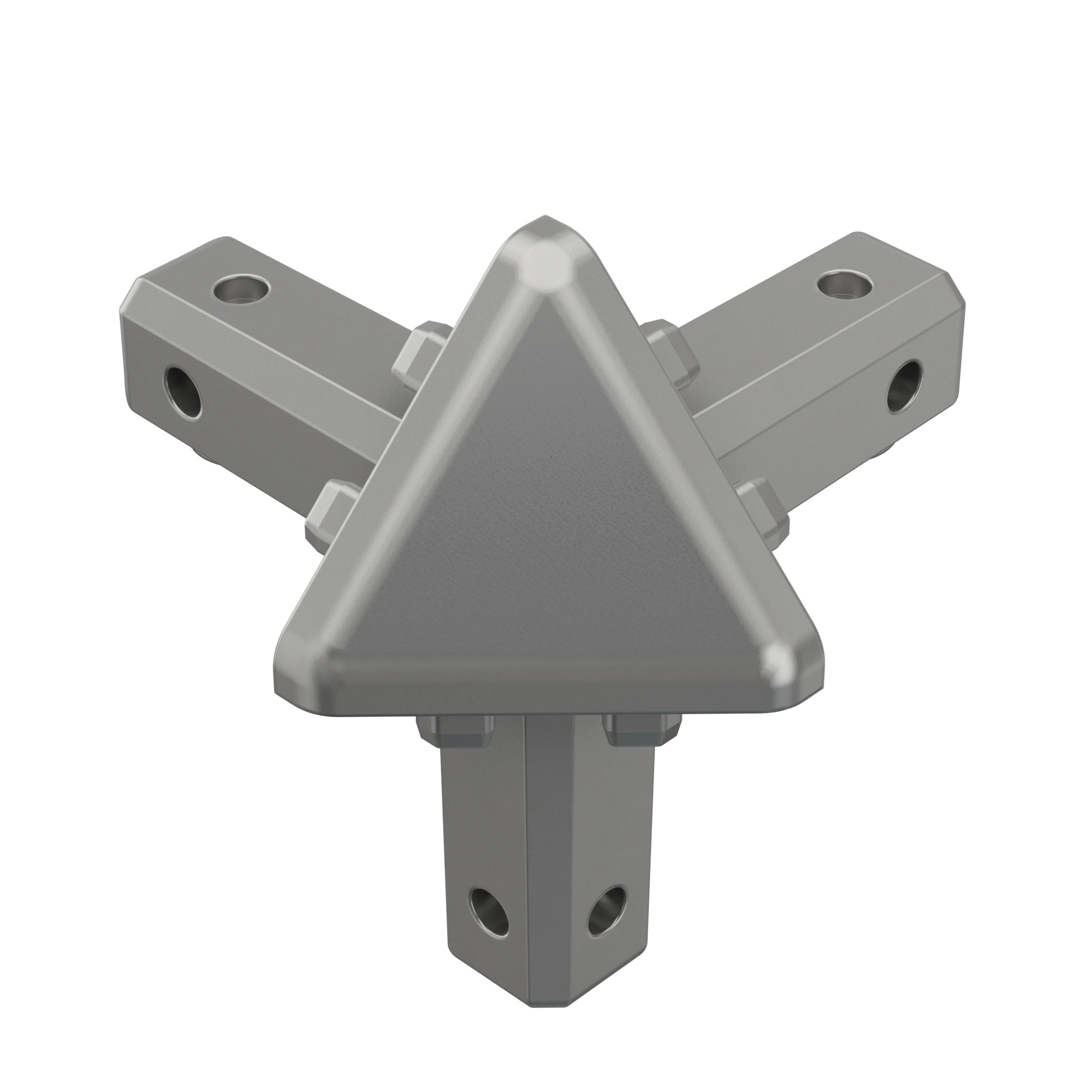

S 1333.39
90°
for 3 × S 1303
L 72 × W 72 × H 72 mm
matt chrome-plated
S 1333.41
90°
for 3 × S 1303
L 72 × W 72 × H 72 mm
polished chrome-plated

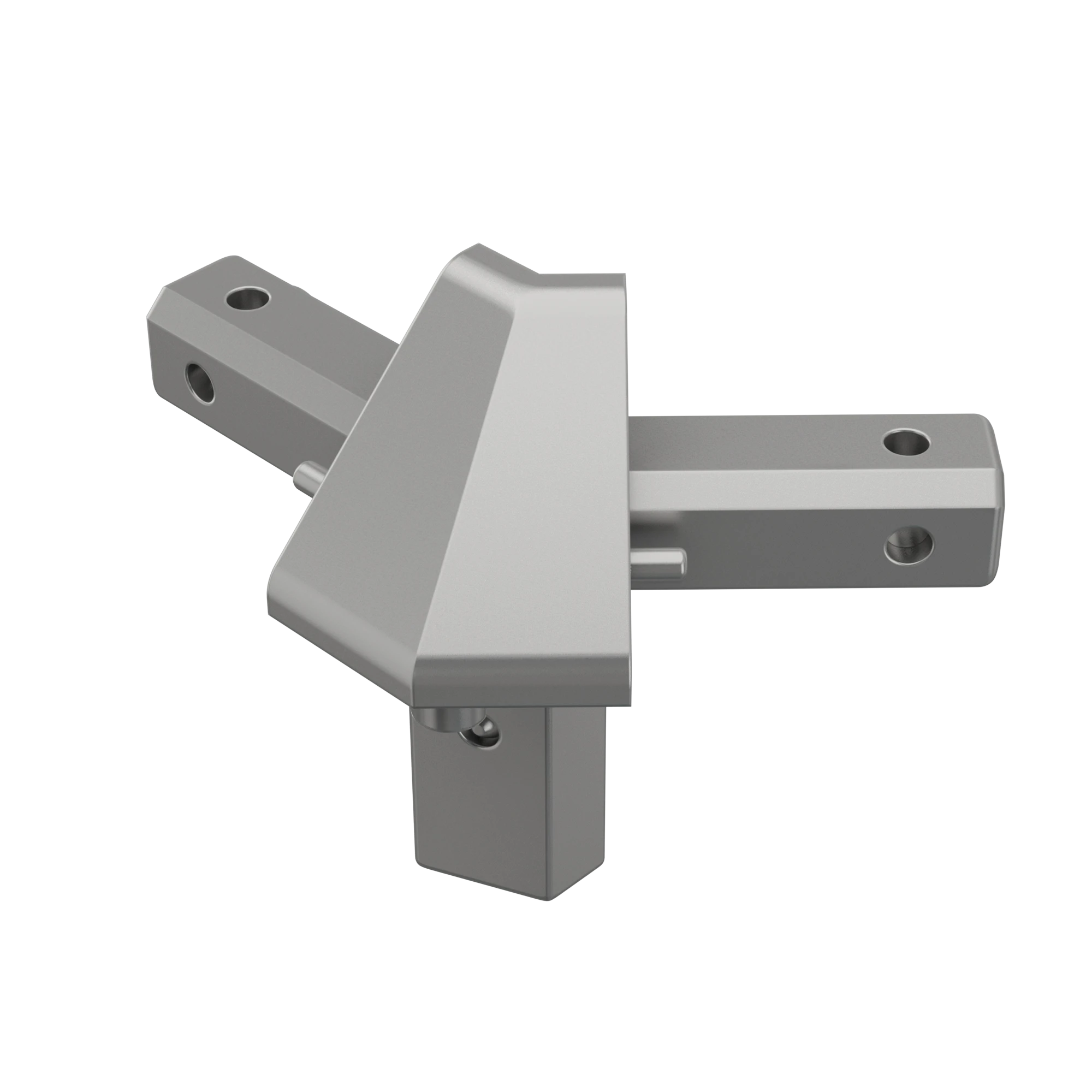

S 1339.39
135°
for S 1303
L 101 × W 49 × H 73 mm
matt chrome-plated
S 1339.41
135°
for S 1303
L 101 × W 49 × H 73 mm
polished chrome-plated

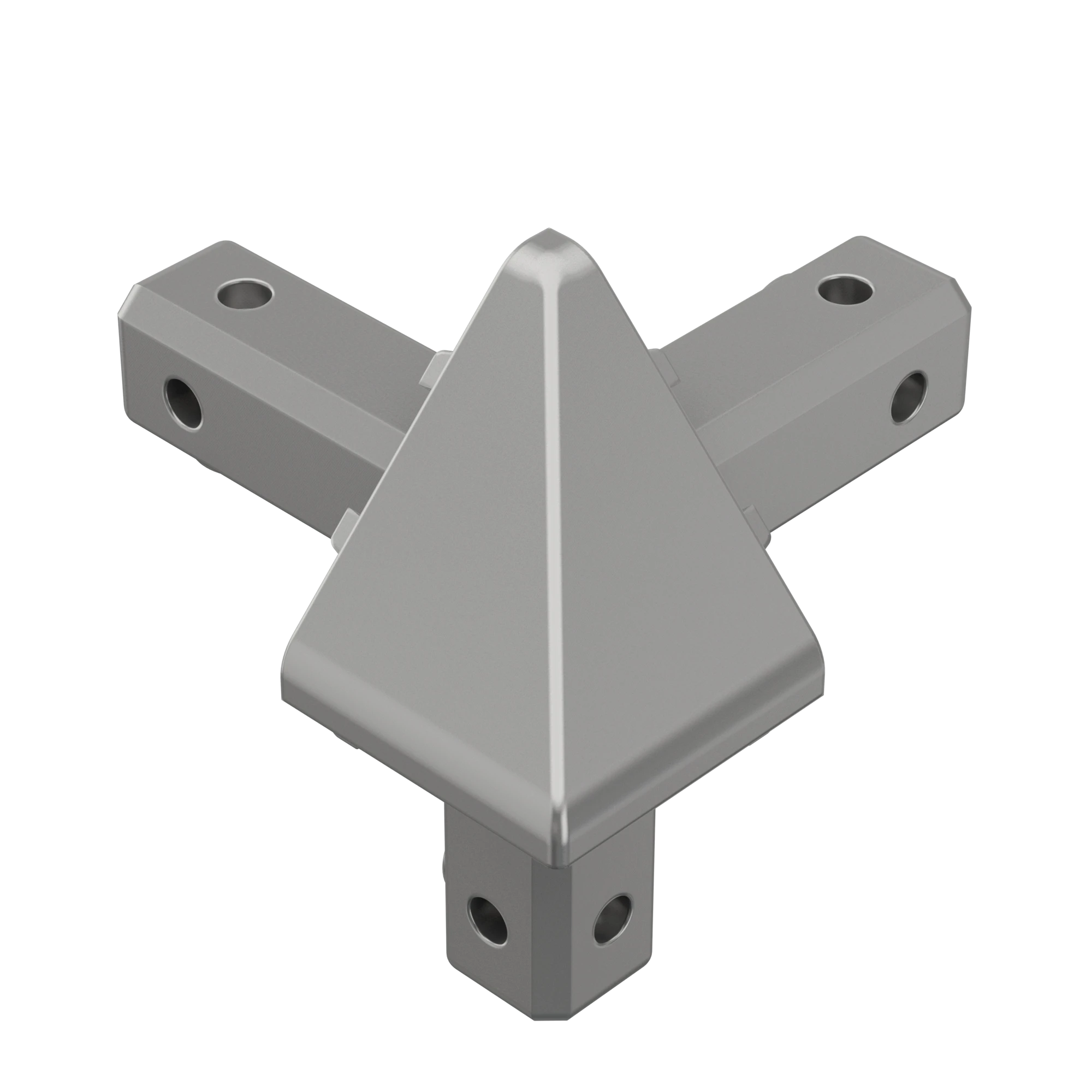

S 1340.39
90°
for S 1303/S 1125
L 75 × W 75 × H 75 mm
matt chrome-plated
S 1340.41
90°
for S 1303/S 1125
L 75 × W 75 × H 75 mm
polished chrome-plated
S 1341.39
90°
for S 1303/S 1125
L 72 × W 72 × H 72 mm
matt chrome-plated

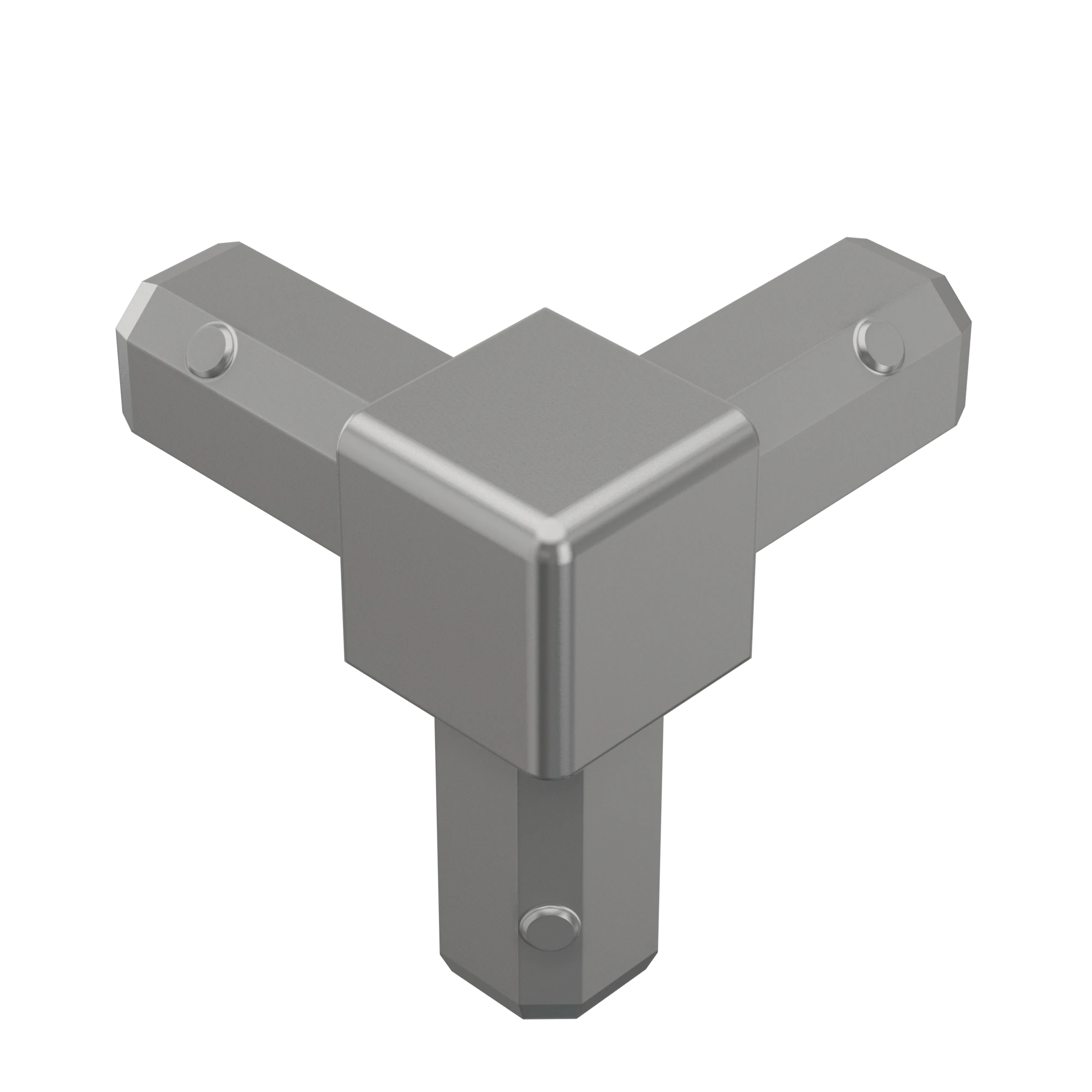

V 2070.39
90°
for 3 × V 2000
L 57 × W 57 × H 57 mm
matt chrome-plated

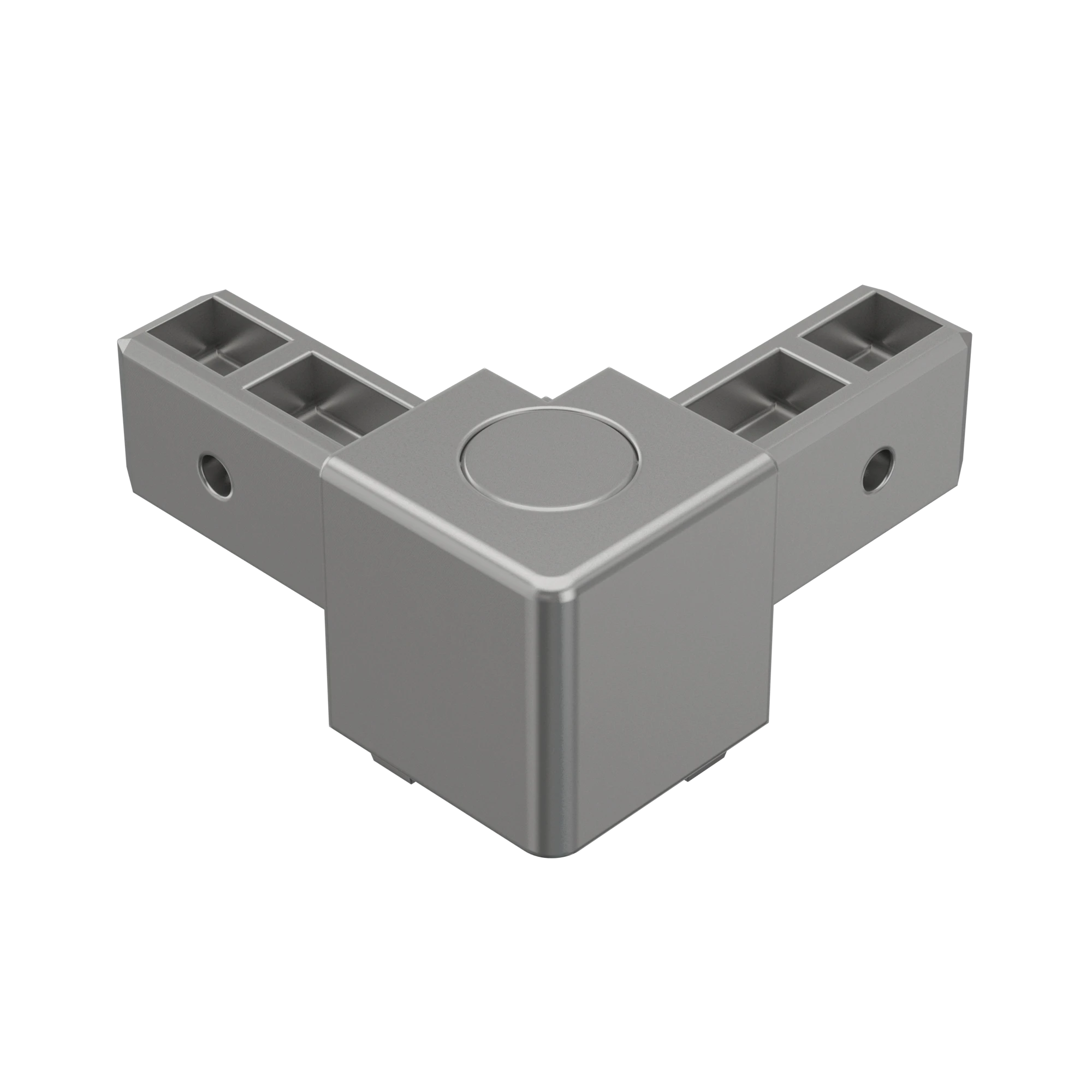

V 2200.35
90°
for V 2000/V 2100
L 53 × W 27 × H 16 mm
light grey
V 2200.36
90°
for V 2000/V 2100
L 53 × W 27 × H 16 mm
grey

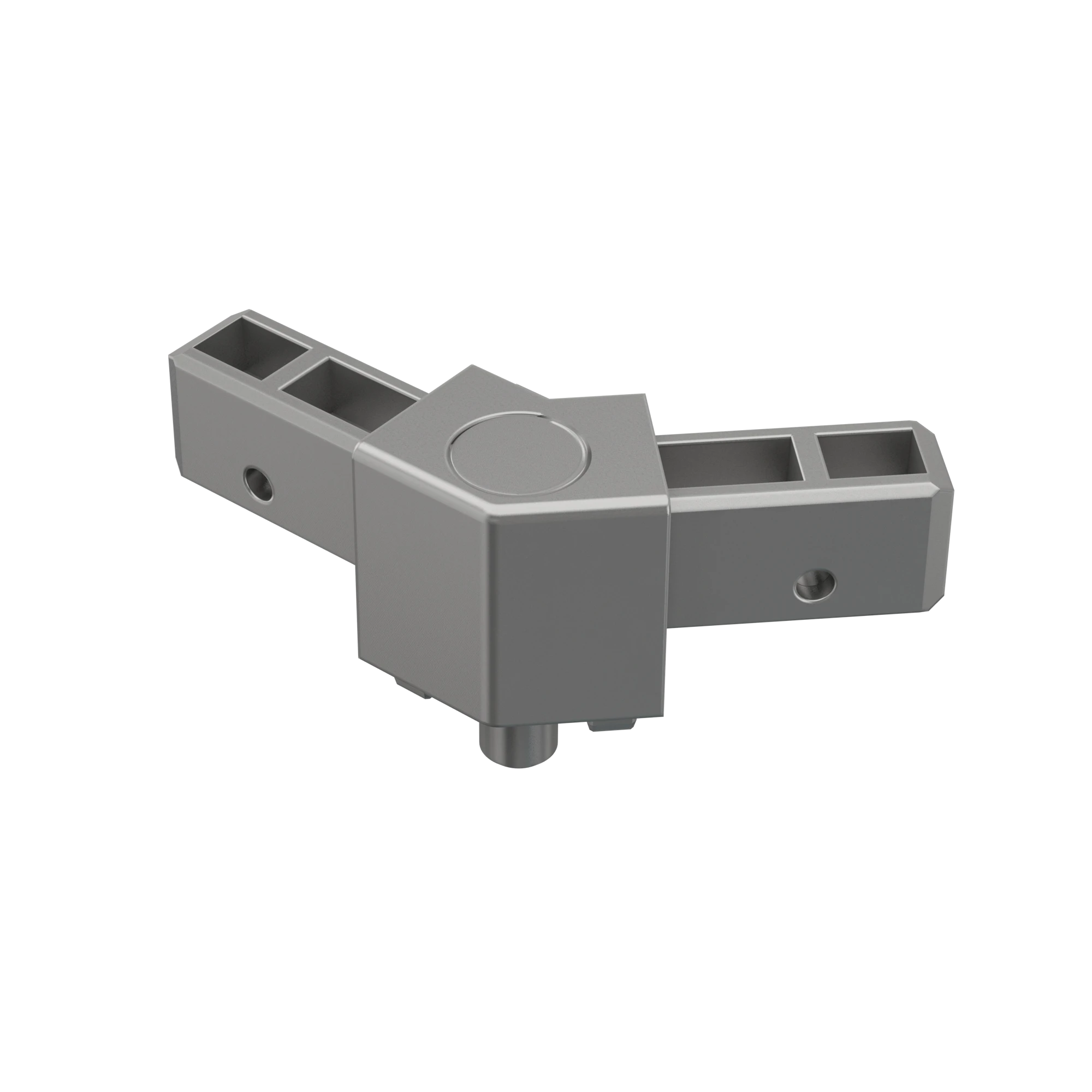

V 2202.36
135°
for V 2020
L 80 × W 30 × H 30 mm
grey
Holder/Screws.

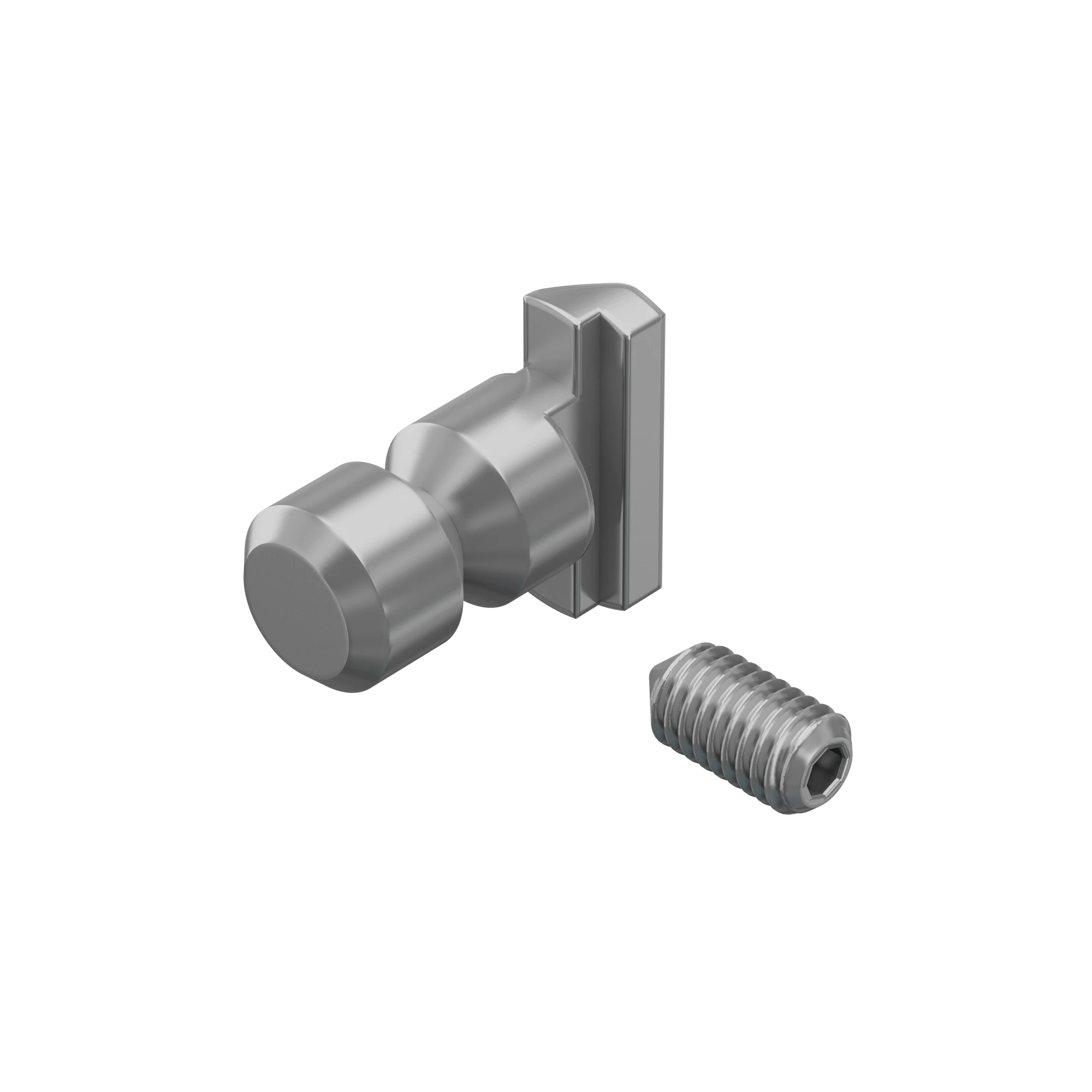

M 1142.37
for M 1140
L 24 × W 20 × H 11 mm
zinc-plated

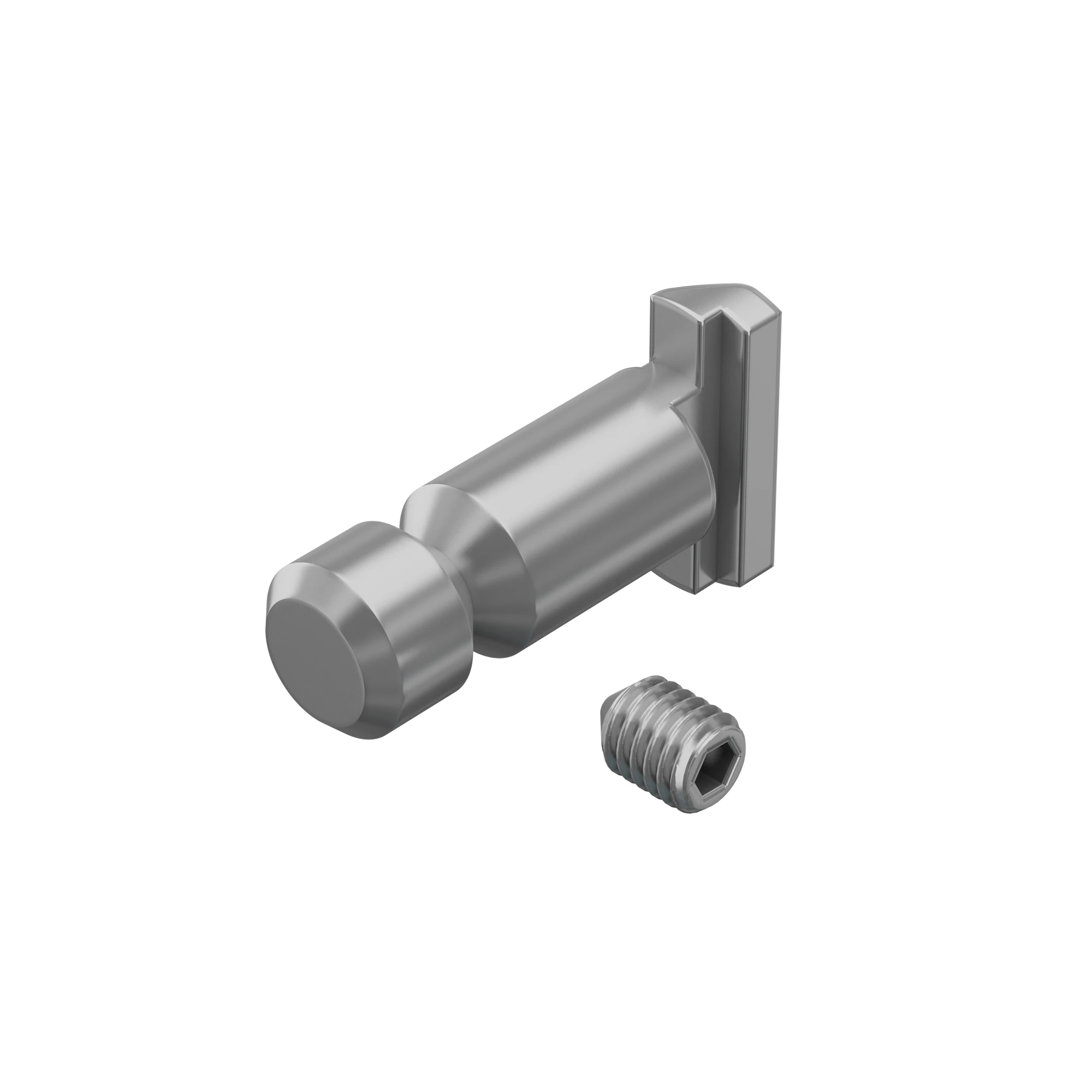

M 1145.37
for M 1140
L 31 × W 20 × H 11 mm
zinc-plated

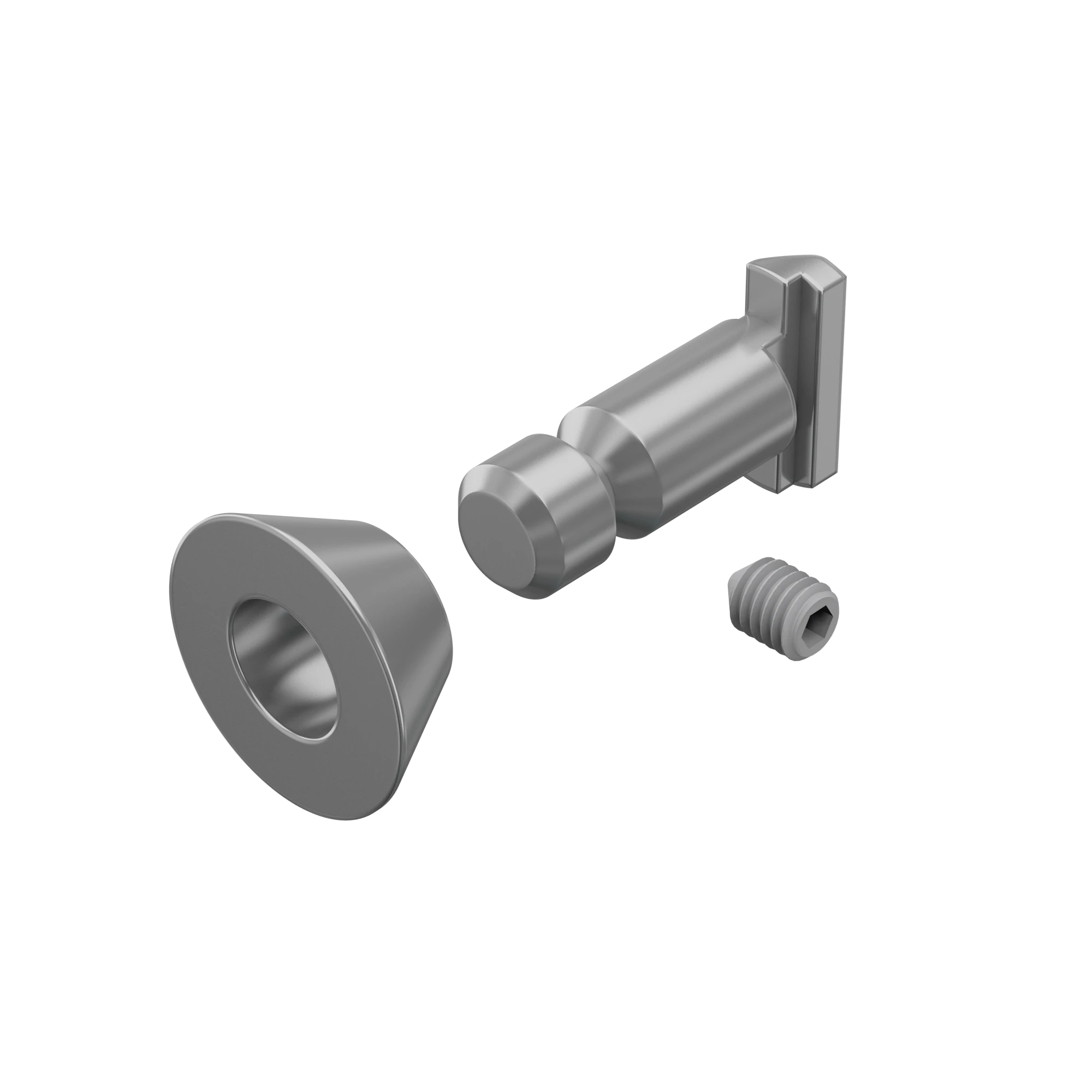

M 1147.37
for M 1140
L 31 × W 24 × H 10 mm
zinc-plated

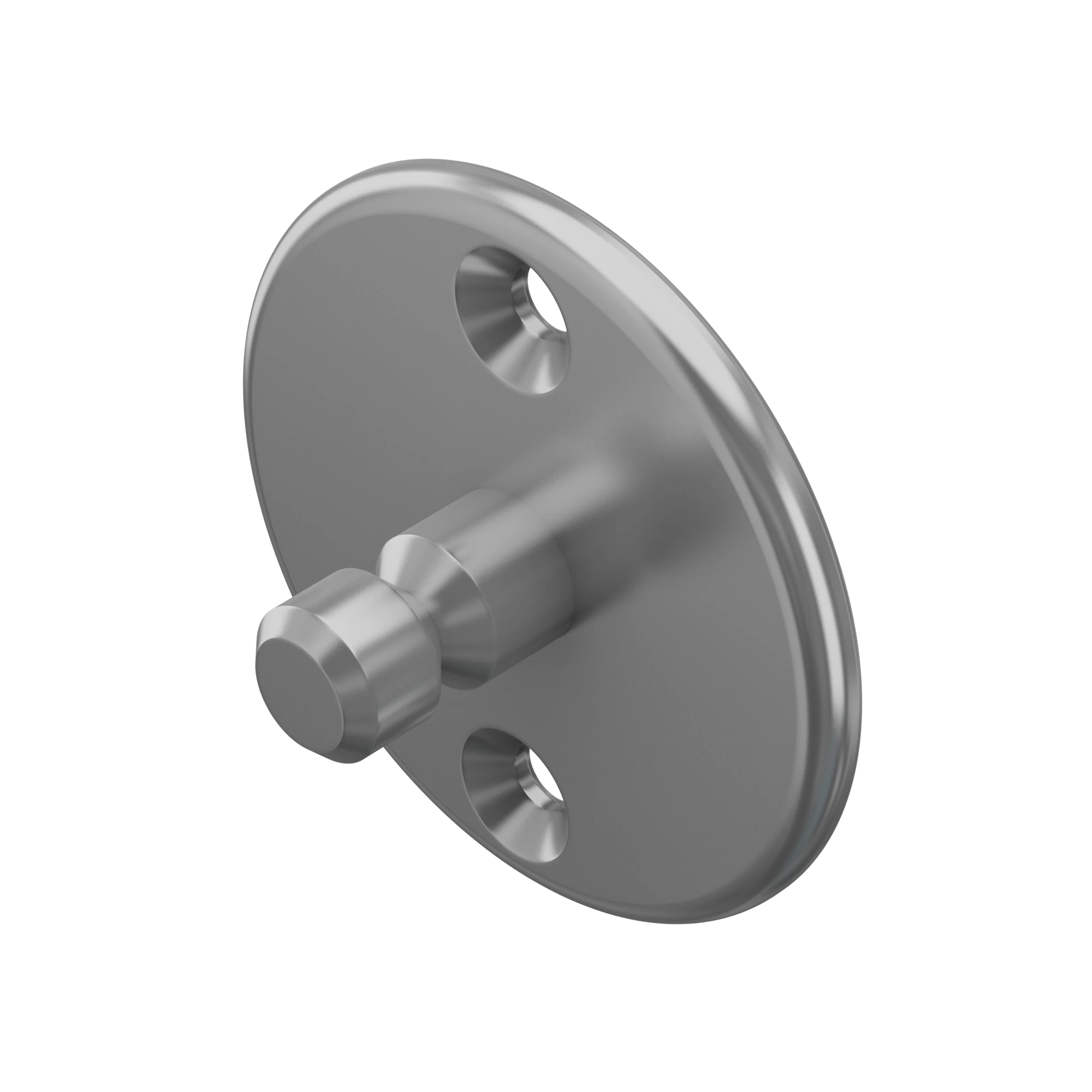

M 1148.37
wall fixing
for M 1140
L 29 × W 54 × H 54 mm
zinc-plated

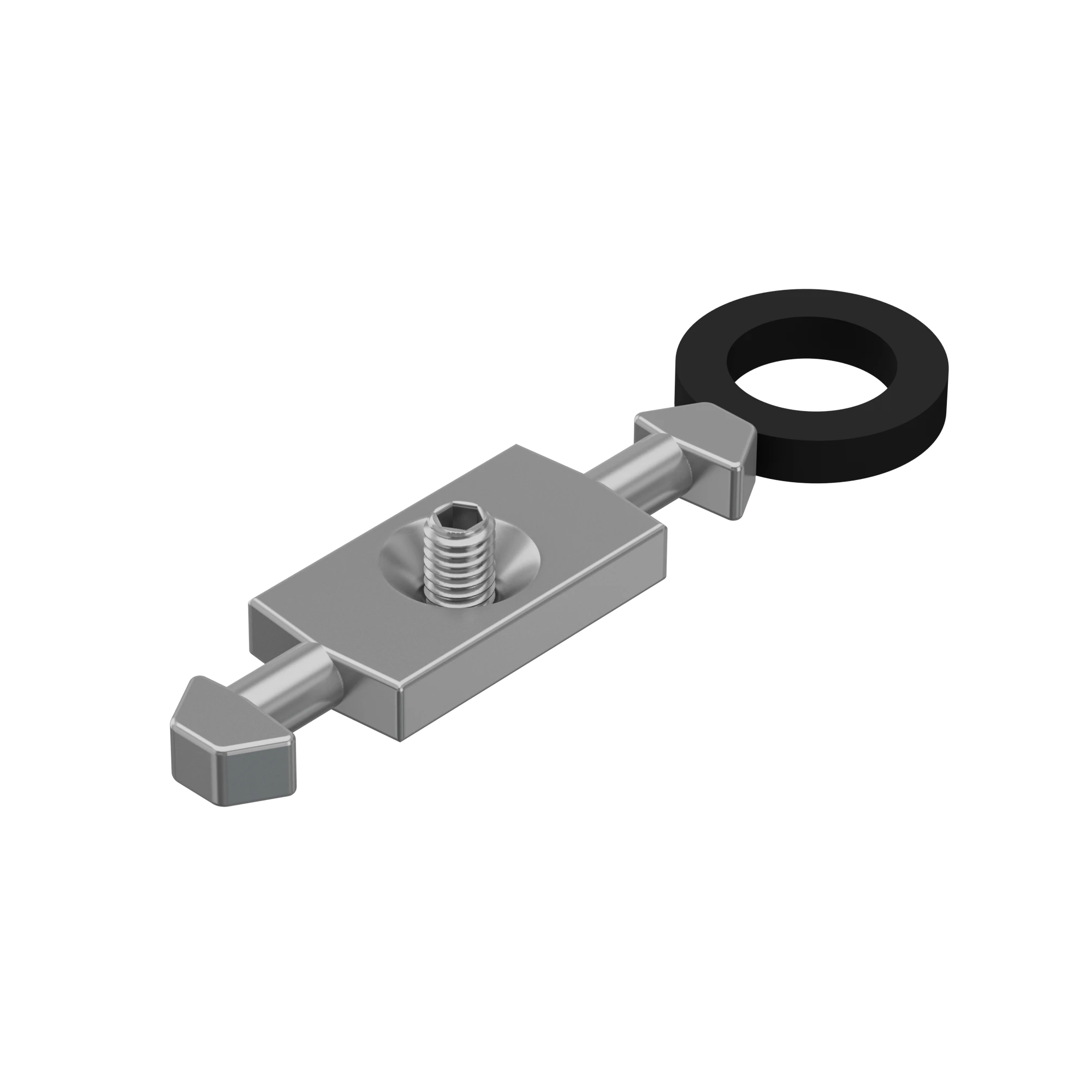

M 1610.37
for M 1602
L 43 × W 12 × H 4 mm
zinc-plated

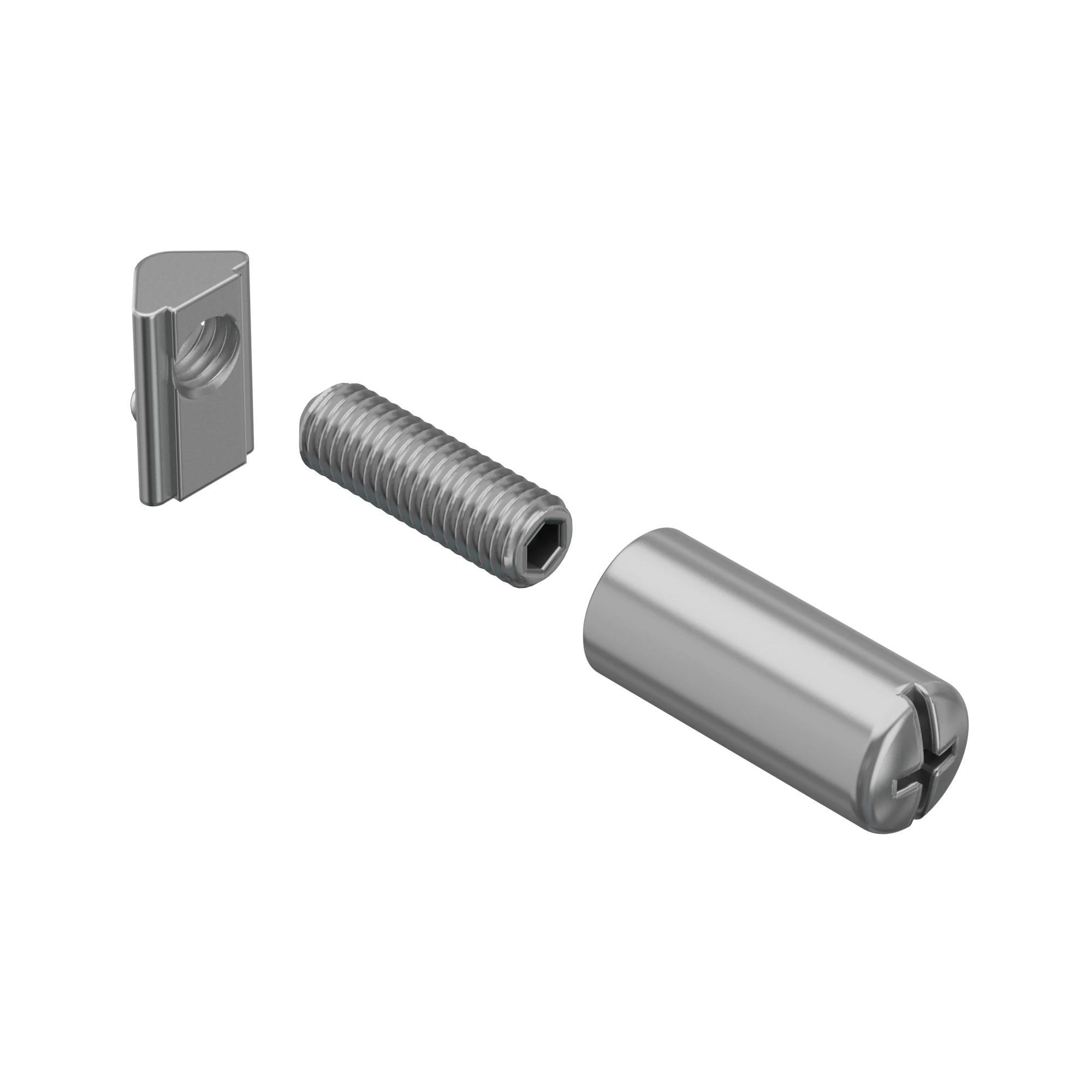

M 1671.37
with M 1671/G (M5)
L 19 × W 8 × H 15 mm
zinc-plated
S 4330.01
adjustable
L 70 × W 54 × H 54 mm
matt anodized, silver (E6/EV1)

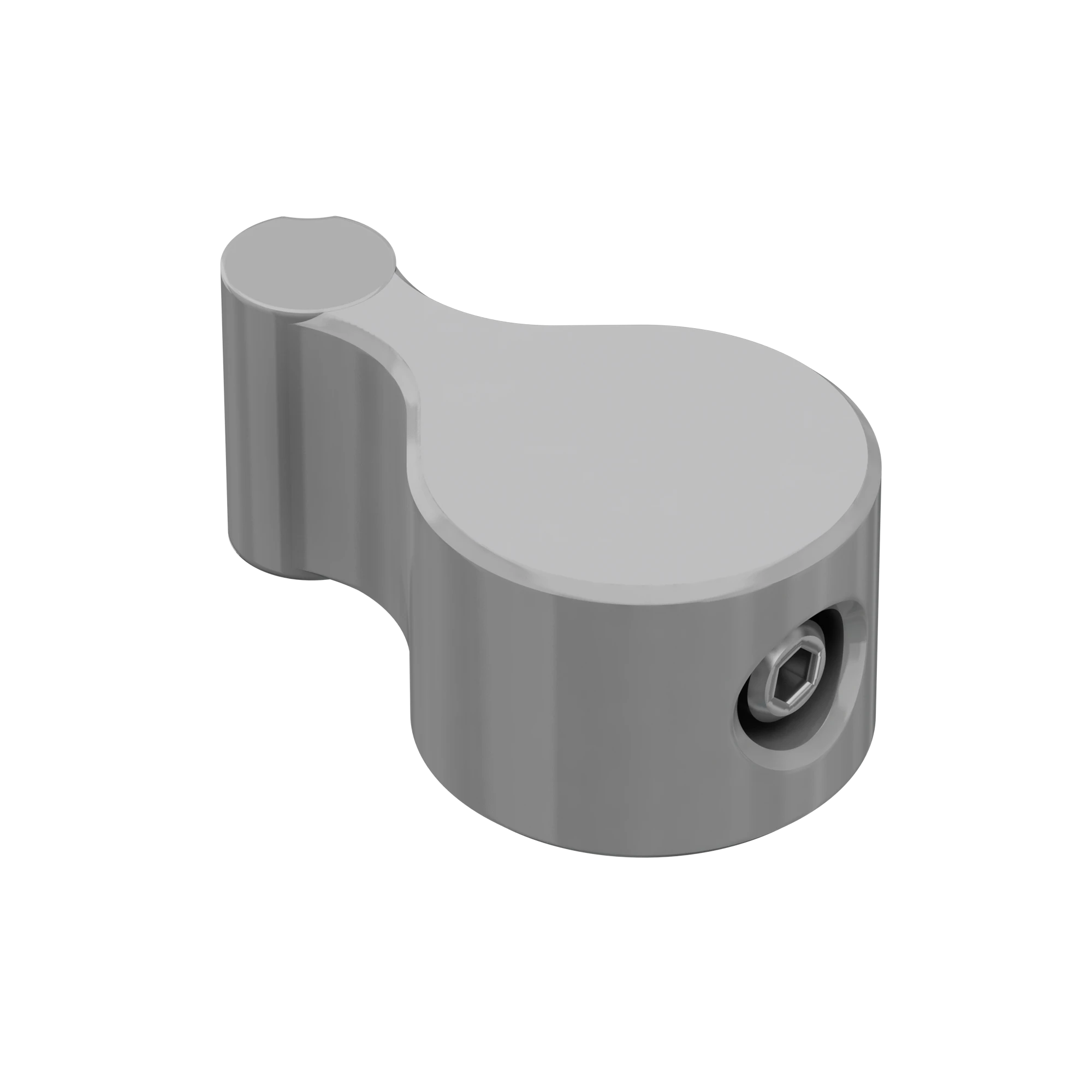

V 2220.35
with V 2220/G (M4)
L 28 × W 17 × H 12 mm
light grey
V 2220.36
with V 2220/G (M4)
L 28 × W 17 × H 12 mm
grey
