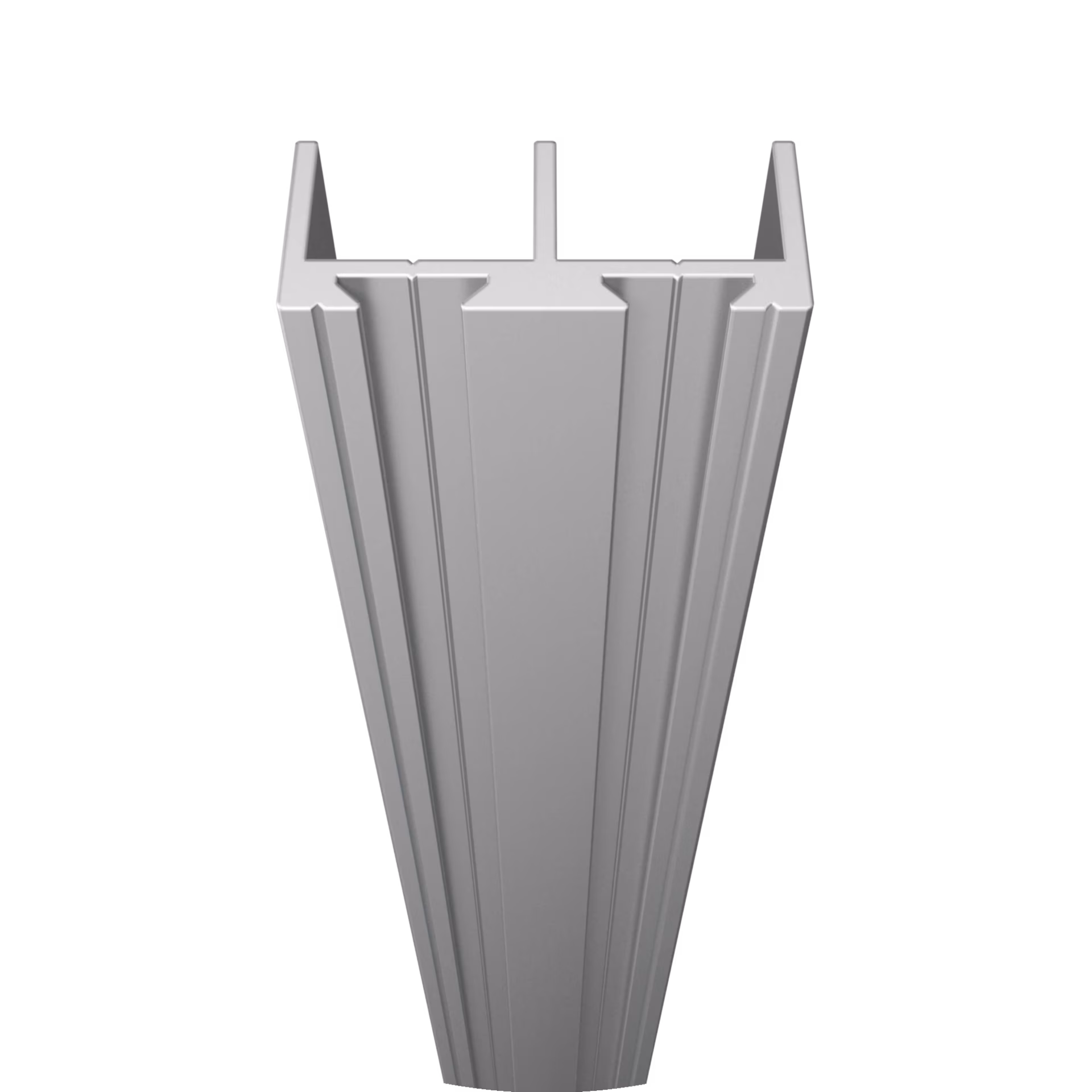

door slide fitting | E 470/N.01

for glass sliding doors

aluminium

for 5 and 6 mm glass sliding doors

L 5000 × W 32 × H 14 mm

Available Material

matt anodized, silver (E6/EV1)

Order now.

plastic clip E 470/C to be ordered separately

Technical Data.

Length:

5000 mm

Weight:

1.74 kg

Width:

32 mm

Height:

14 mm

E_470_N.pdf

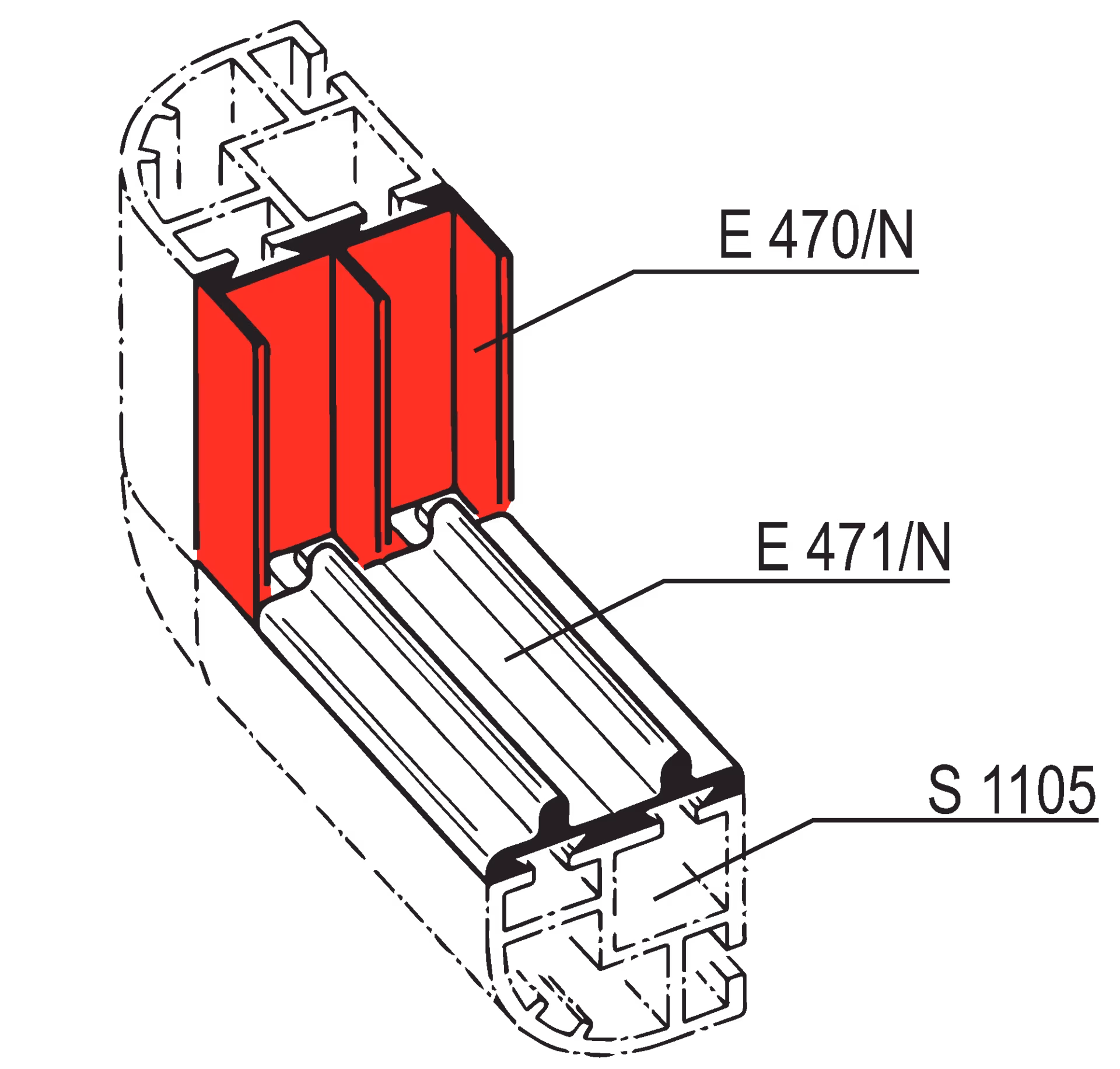

XE_470_N.pdf

Accessories.

Clip

E 470/C.30

for E 470/N / E 471/N

L 10 × W 9 × H 7 mm

Flat rubber

E 480.33

self-adhesive

for E 470/N

L 10000 × W 12 × H 4 mm

10000 mm long

Product Brochures

AW 887 / General Catalog / June 2026

AW 8810 / Extrusions Catalog / October 2024

Technical Information

TI-NL-63.3 / Wooden sliding door 13 mm mounting instuctions and functional dimensions / April 2014

TI-NL-63.1 / Glass sliding doors - Mounting instructions and functional dimensions / April 2014

TI-NL-63.4.2 / Calculation sheme for glass sliding doors (runner) / April 2014

TI-NL-63.4.1 / Calculation sheme for glass sliding doors (runner) / April 2014
