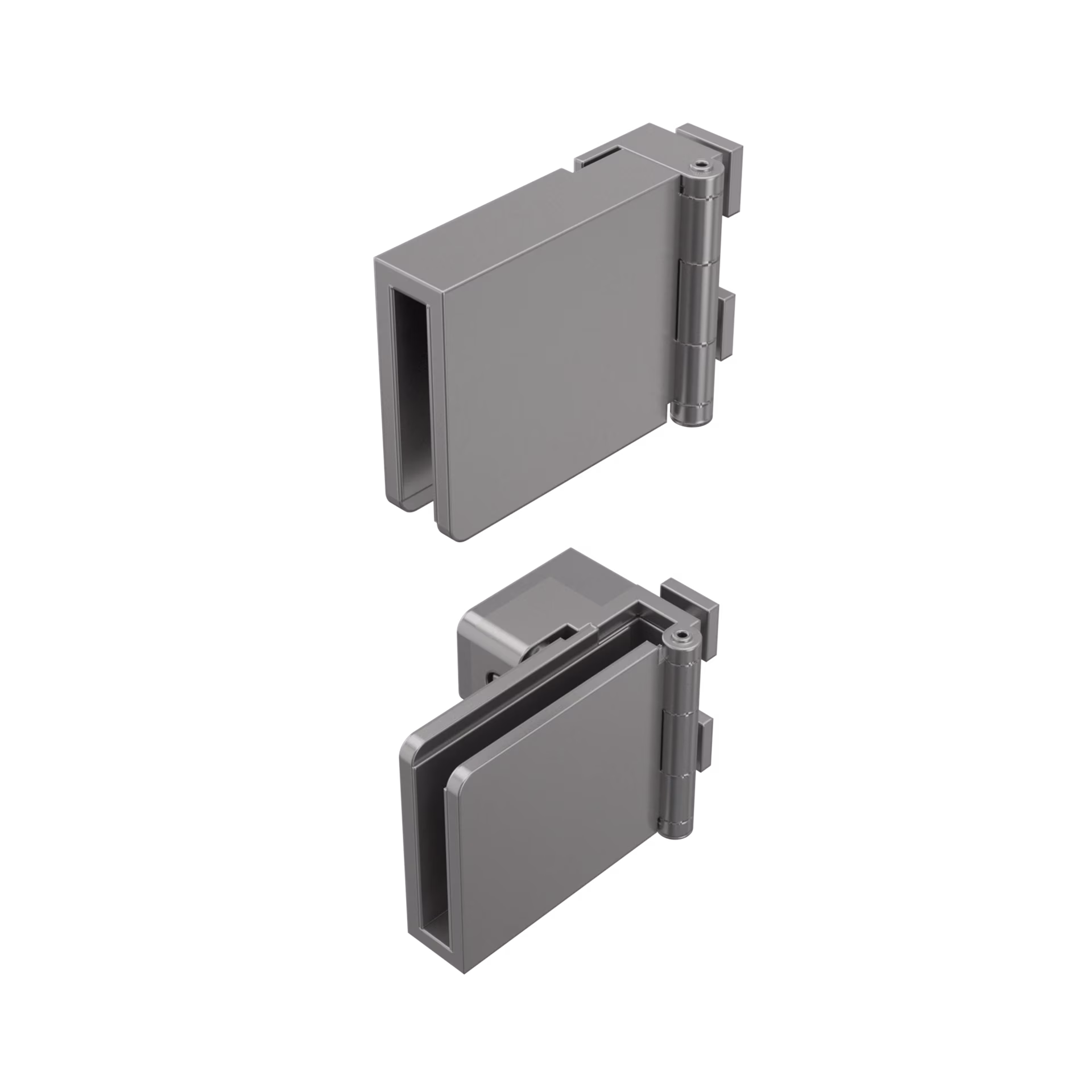

Glass | E 297/M.39

for glass 5-6 mm

zinc die cast

for glass doors 5-6 mm, incl. mounting parts, can be used on left hand and right hand side, also as middle hinge plate

L 50 × W 38 × H 32 mm

Available Material

matt chrome-plated

Order now.

Attention: drill hole 12 mm dia. in glass panel is necessary

Technical Data.

Length:

50 mm

Weight:

0.106 kg

Width:

38 mm

Height:

32 mm

E_297_M.pdf

XE_297_M.pdf

Similar Products.

Glass

E 297.39

for glass 5-6 mm

L 80 × W 52 × H 32 mm

Product Brochures

AW 887 / General Catalog / June 2026

Technical Information

TI-NL-14 / Design examples: Hinged door, double-leaf with hinged bolt lock / April 2014

TI-NL-11 / Mounting instructions for E 298 / April 2014

TI-NL-15 / Mounting instructions for E 297 / April 2014

TI-NL-13 / Design examples: Hinged door, single-leaf with hinged bolt lock / April 2014

TI-NL-53 / Middle glass door hinge E 297/M / April 2014
