octafloor.
Contact Person.Sandwich panel | SP 30.90
Available Material
!

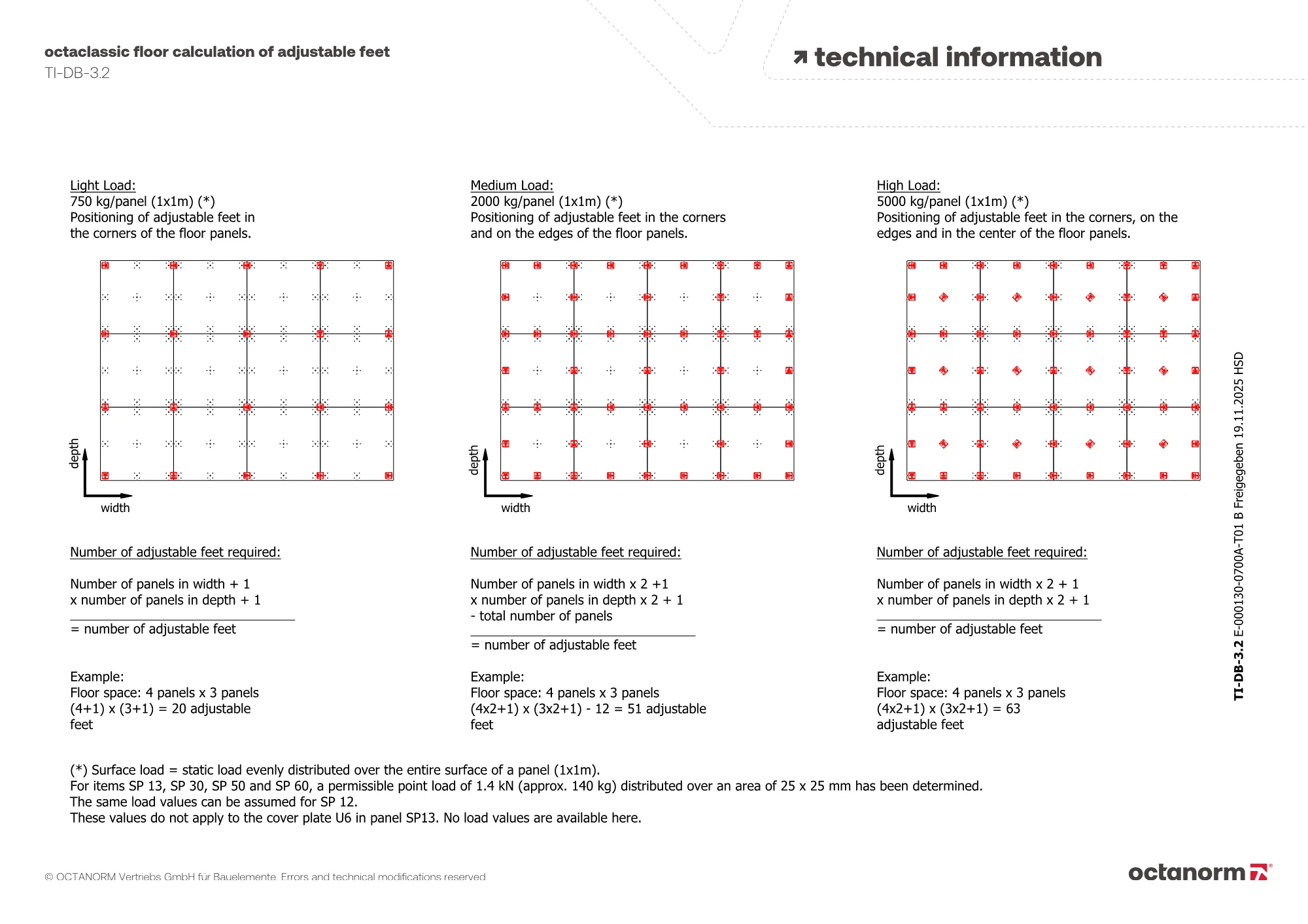

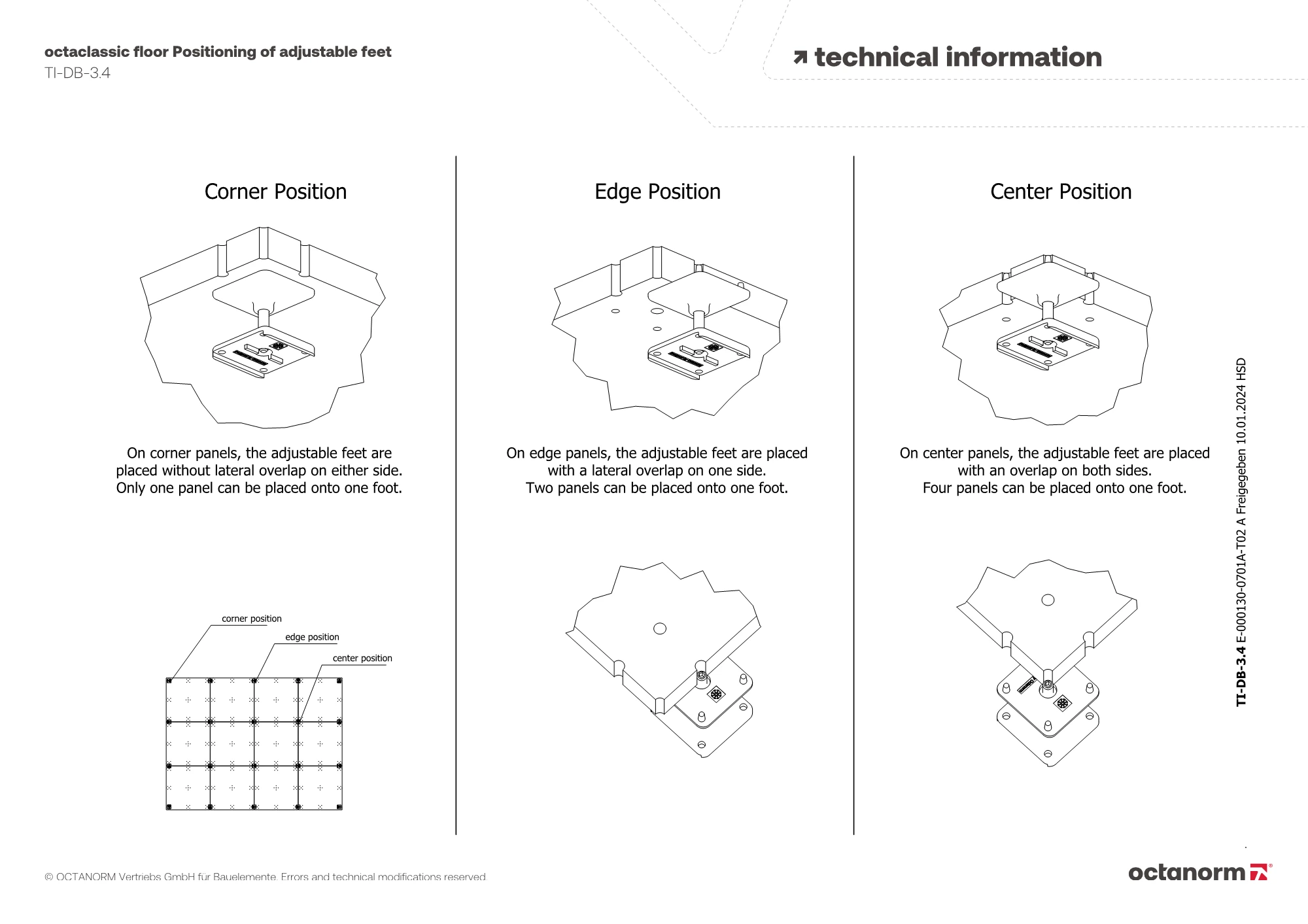

for higher load factor up to 9 adjustable feet can be usedTechnical Data.
Length:
998 mm
Weight:
13.573 kg
Width:
998 mm
Height:
40 mm
Accessories.
Skirting extrusion
SO 154/L.11
Miter 45°, left
L 1540 × W 40 × H 60 mm
Skirting extrusion
SO 154/R.11
Miter 45°, right
L 1540 × W 40 × H 60 mm
Skirting extrusion
SO 400.01
for floor panel F 304 Cfl S1
L 5000 × W 40 × H 40 mm
Skirting extrusion
SO 410/L.01
Miter 45°, left
for floor panel F 304 Cfl S1
L 1502 × W 40 × H 40 mm
Skirting extrusion
SO 410/R.01
Miter 45°, right
for floor panel F 304 Cfl S1
L 1502 × W 40 × H 40 mm

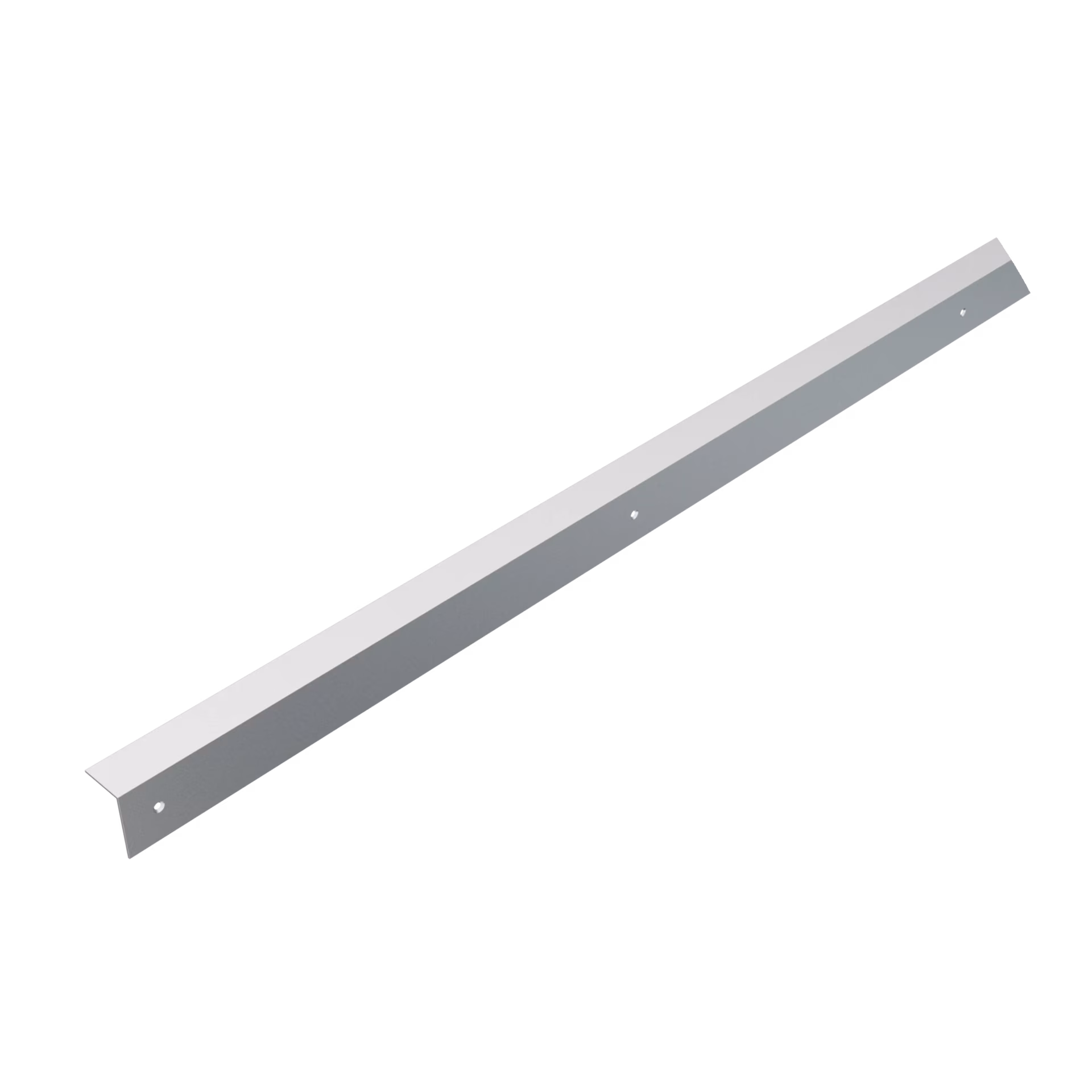

Skirting extrusion
SO 500.11
L 5000 × W 40 × H 60 mm

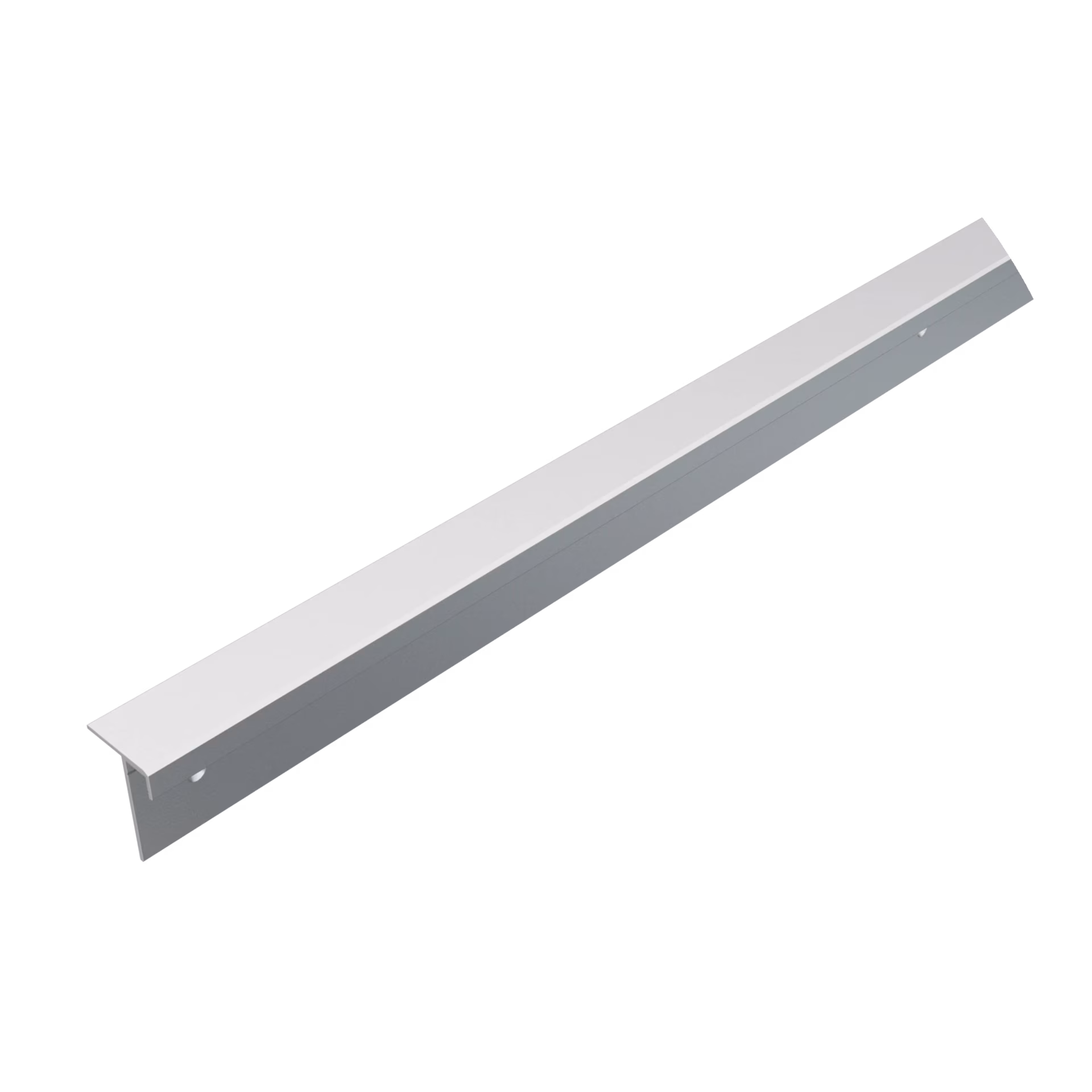

Skirting extrusion
SO 600.01
for LED module
L 5000 × W 40 × H 58 mm
Skirting extrusion
SO 610/L.01
for LED-module
Miter 45°, left
L 517.5 × W 40 × H 58 mm
517.5 mm long
Also Available As.
Similar Products.
Technical Informations.
Contact Person.
Serap
Eröz
Cornelia
Roediger
Downloads.
2D/3D Data
2D/3D Data - octaclassic floor
