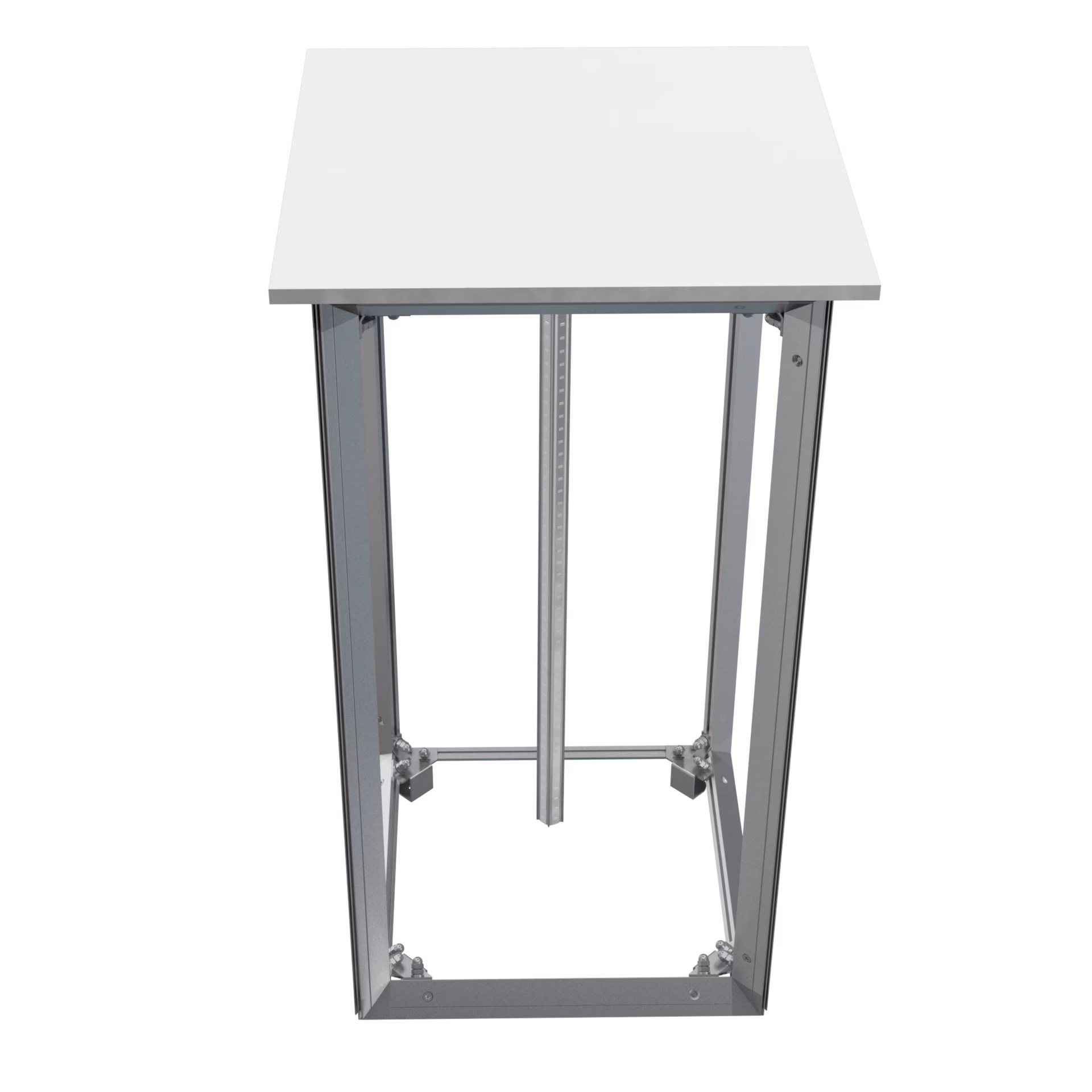

Bar table | OL T50.90

aluminium

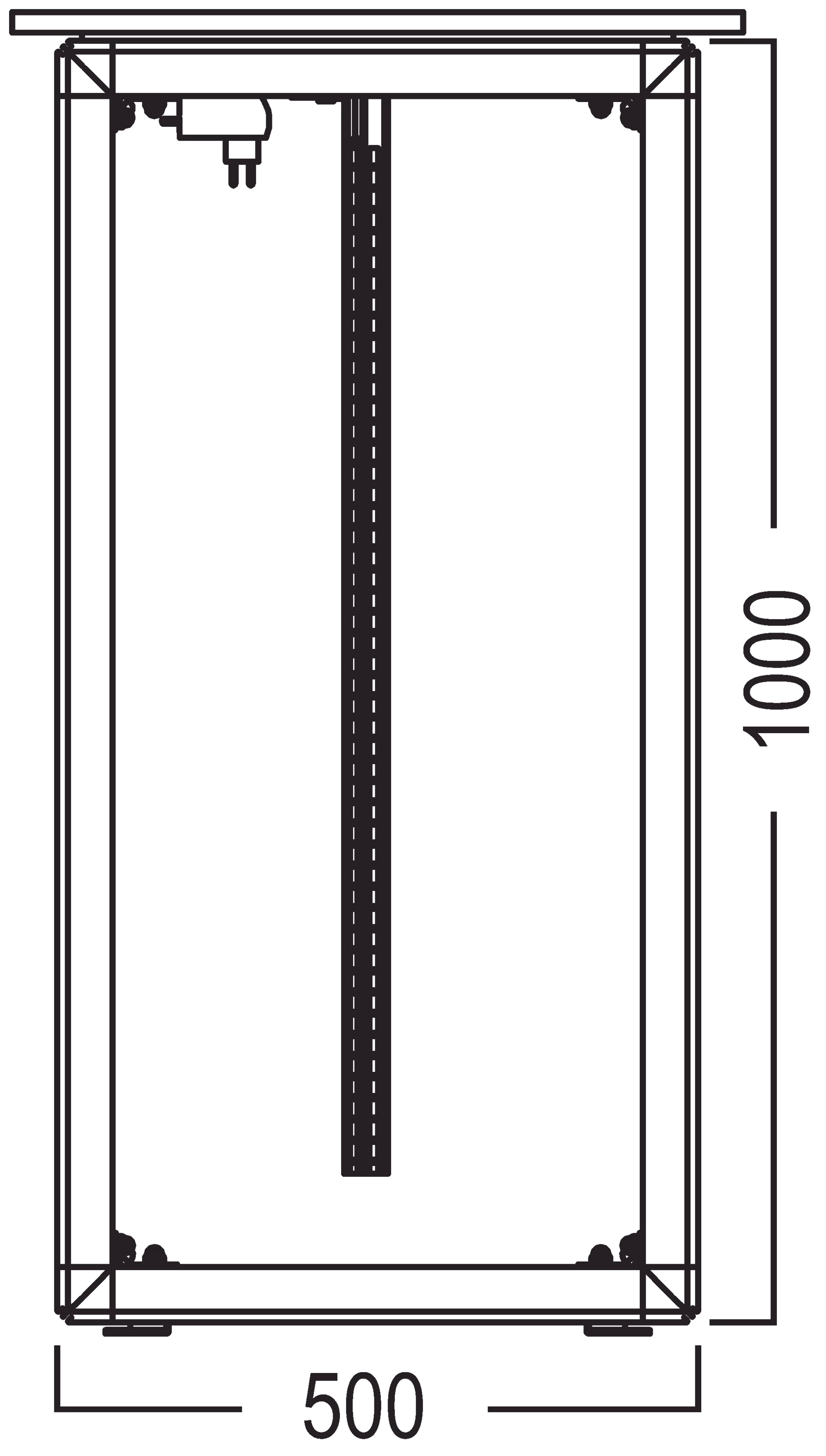

bar table with 4 illuminated sides, corners with no visible edges, with tabletop, Power: 19W, Power adapter: OL 191, Light color: 5600K, outer frame dimension: W 498 × H 998 mm

L 570 × W 570 × H 1031 mm

Available Material

as catalogue desciption

Order now.

fabric dimension = outer frame dimension

without fabric/graphics

Technical Data.

Length:

570 mm

Weight:

14.139 kg

Width:

570 mm

Height:

1031 mm

OL_T50.pdf

OL_T50.dwg

OL_T50.dxf

Accessories.

Power supply

OL 191.90

36 W

for LEDs

L 79 × W 54 × H 33 mm

Product Brochures

AW 887 / General Catalog / July 2026

AW 7950 / octalumina / June 2026

Technical Info Brochures

AW 7950 T / octalumina Technical Info / June 2026

AW 7978 / octawall 40 Technical Info / May 2026

Technical Information

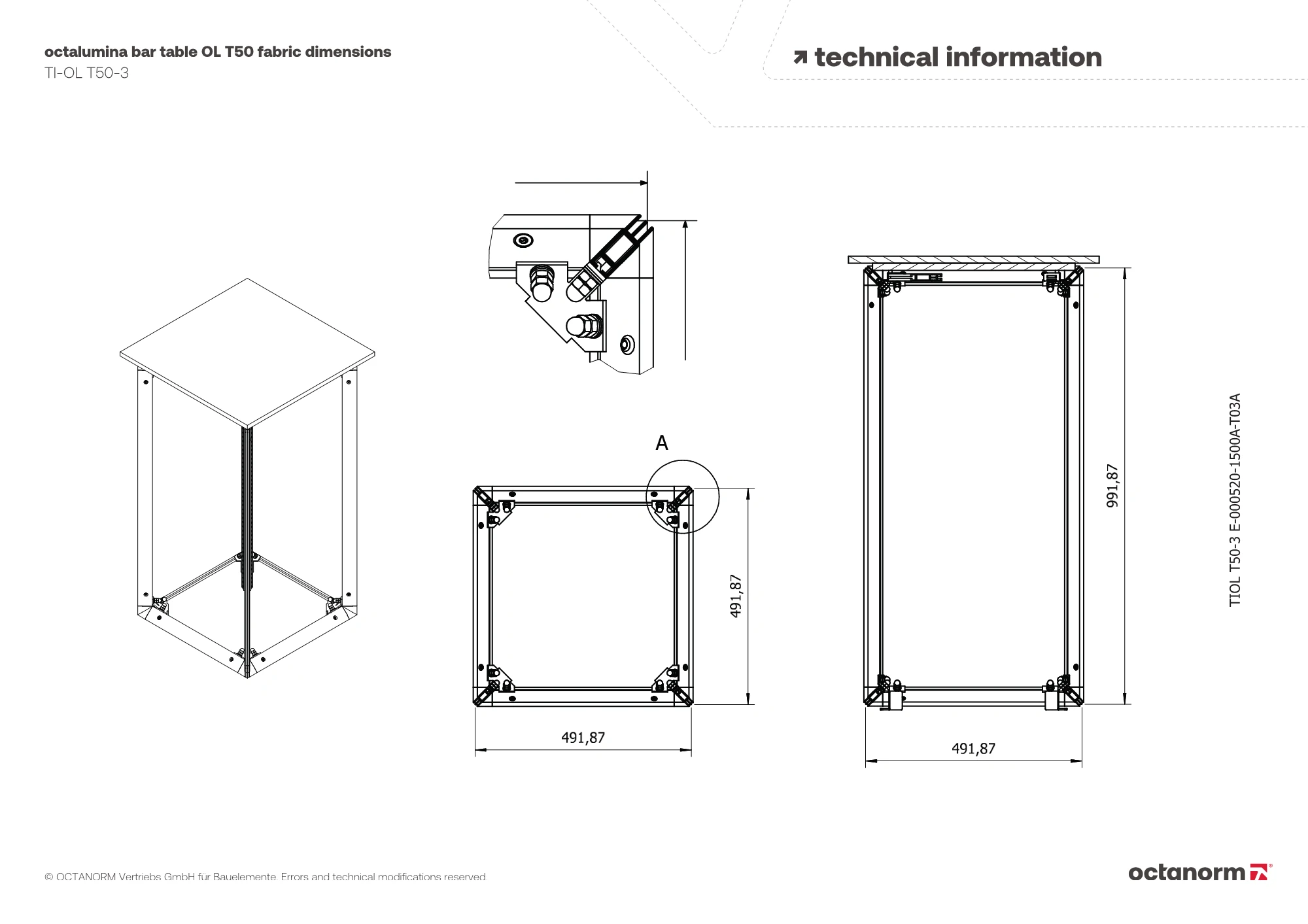

TI-OL T50-3 / octalumina bar table OL T50 fabric dimensions / April 2019

Assembly Instructions / User Manuals

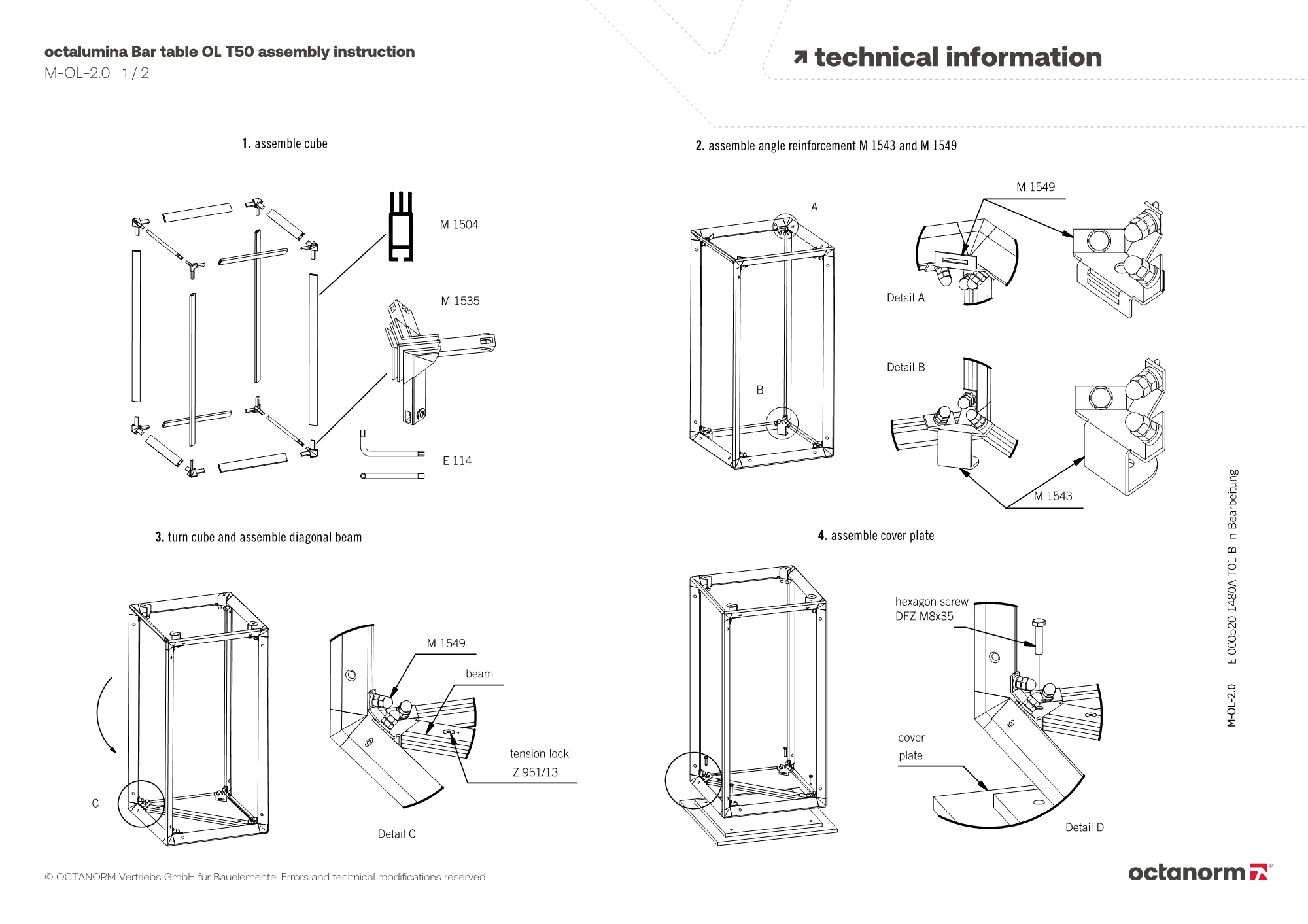

M-OL-2.0 / octalumina Bar table OL T50 assembly instruction / August 2017
