Sliding door extrusion | E 401.35

for panels 4 mm
plastic, hard
lower track, for panels 4 mm
L 5000 × W 16 × H 6 mm

Available Material

light grey

Technical Data.

Length:

5000 mm

Weight:

0.45 kg

Width:

16 mm

Height:

6 mm

Technical Informations.

Design example: Glass sliding door with sliding door safety lock (plastic runner)

TI-NL-17 TI-NL-17

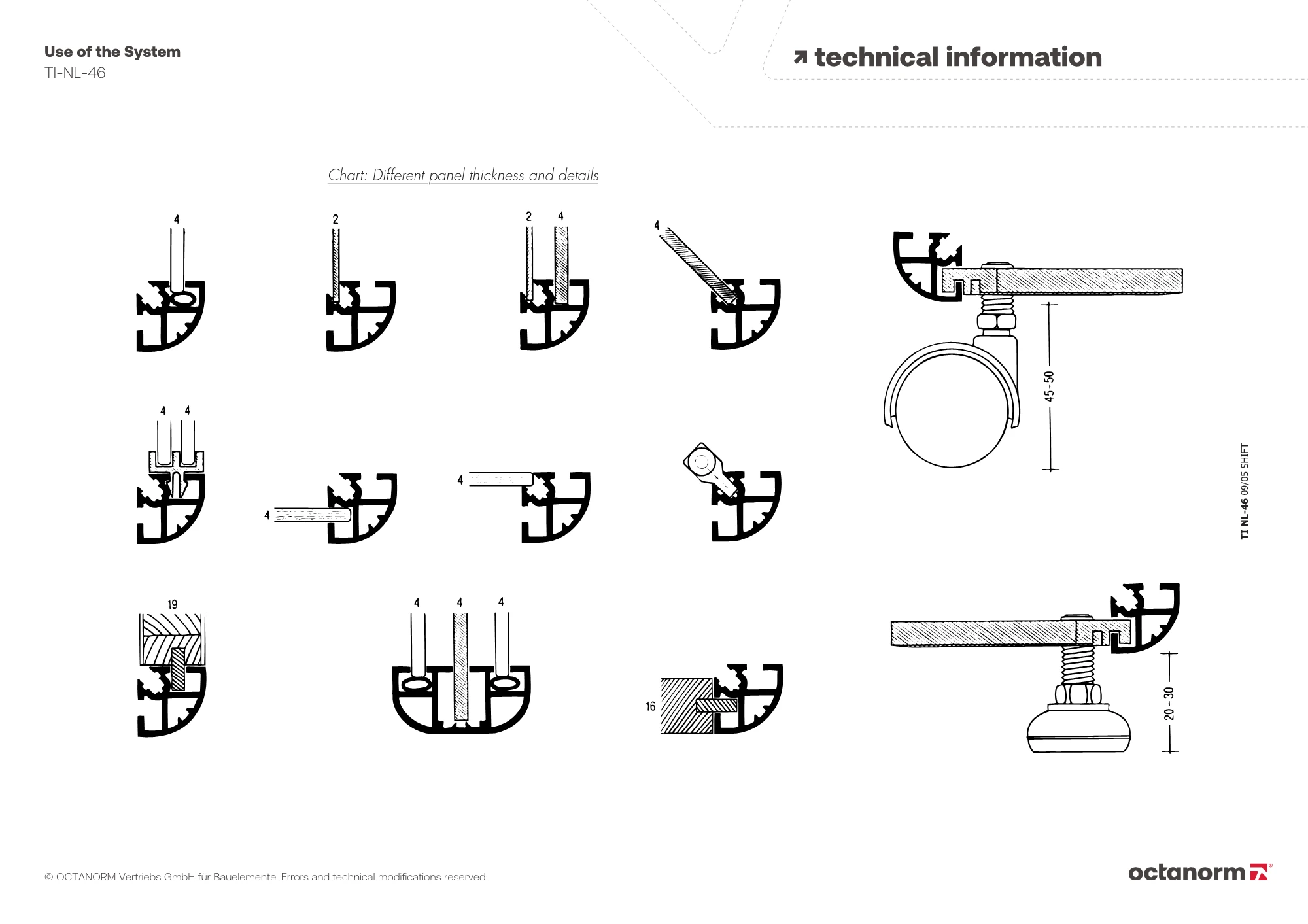

Use of the System

TI-NL-46 TI-NL-46

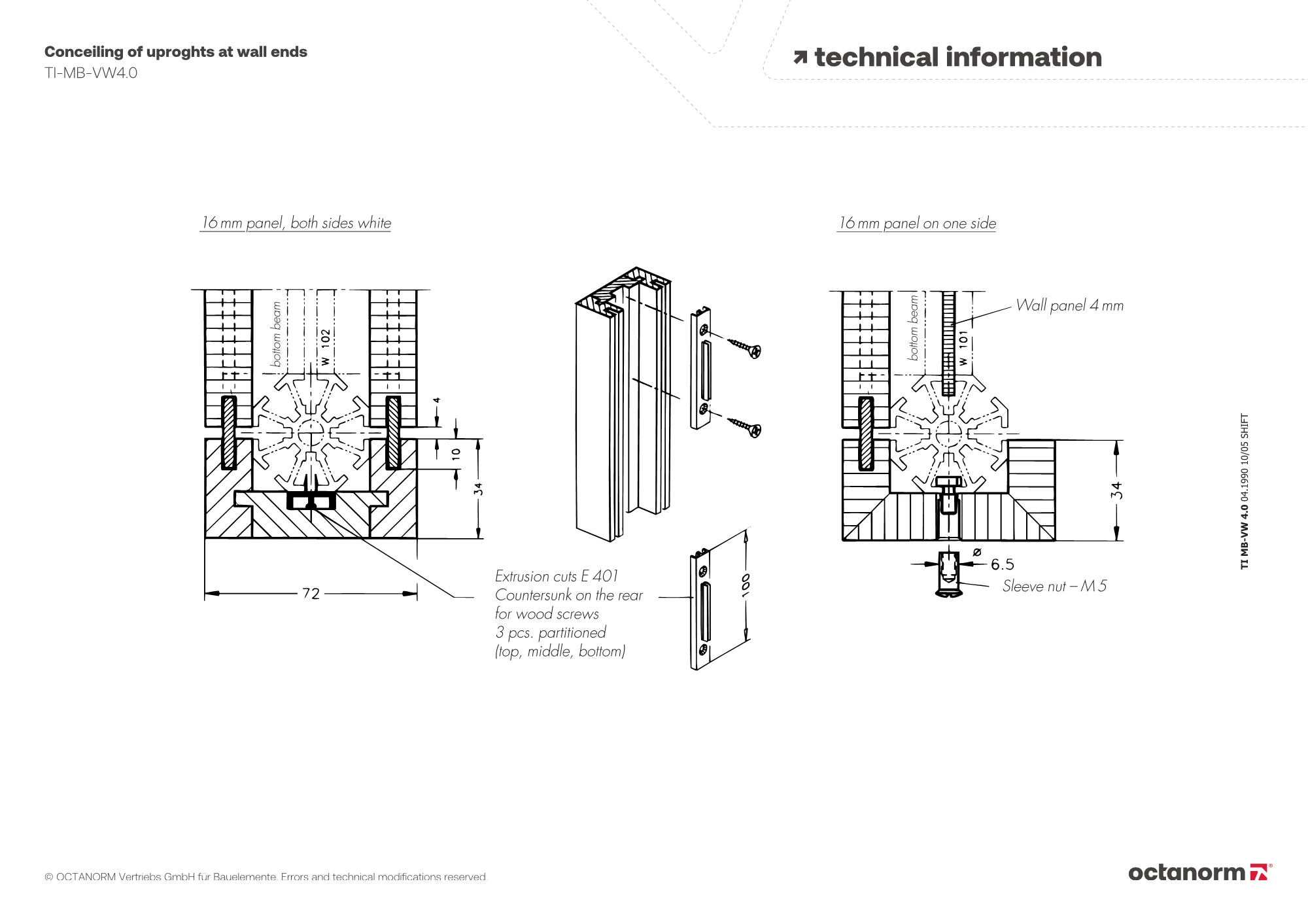

Conceiling of uproghts at wall ends

TI-MB-VW4.0 TI-MB-VW4.0

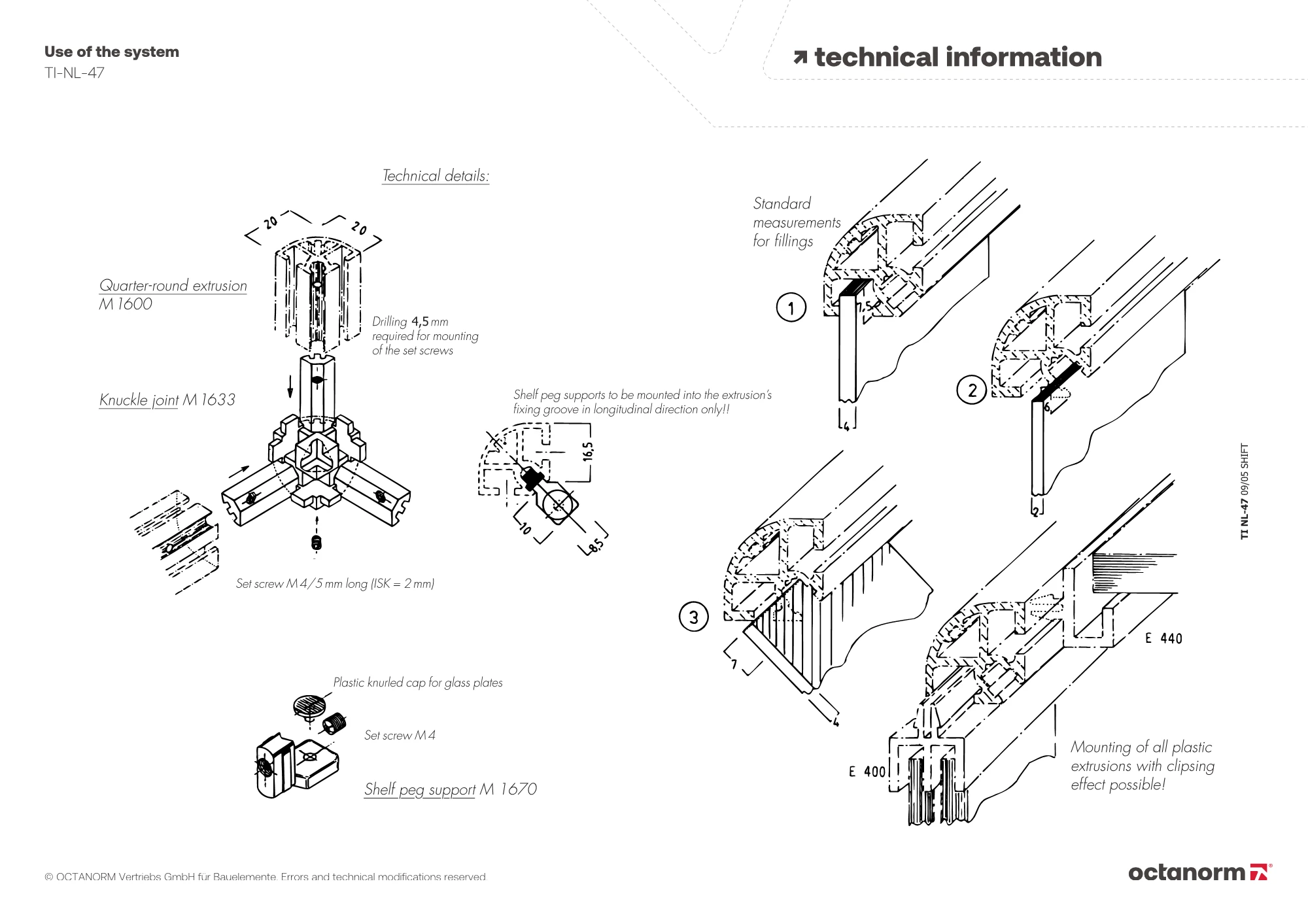

Use of the system

TI-NL-47 TI-NL-47

Glass door dimensions

TI-NL-4.1 TI-NL-4.1

Dimensions recommended for sliding doors 4 mm

TI-NL-17.1 TI-NL-17.1

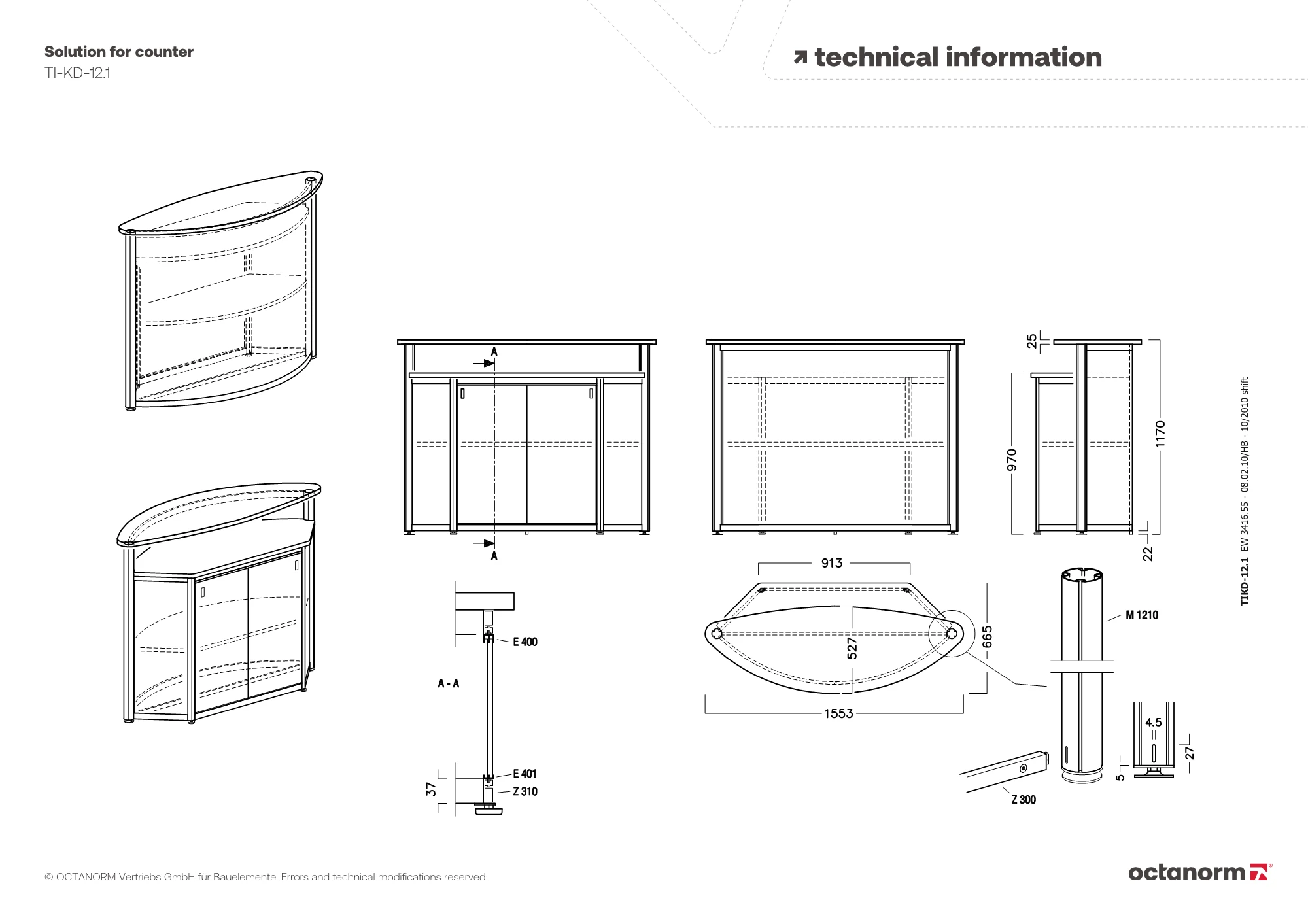

Solution for counter

TI-KD-12.1 TI-KD-12.1
