Door hinge | E 290.01

for hinged doors
aluminium
for hinged glass and wooden doors 5, 6, 8, 16, 19 mm, incl. mounting parts and distance washers
L 60 × W 50 × H 4 mm

Available Material

matt anodized, silver (E6/EV1)

Technical Data.

Length:

60 mm

Weight:

0.08 kg

Width:

50 mm

Height:

4 mm

Technical Informations.

Instructions for use of hinge plate E 290

TI-NL-5 TI-NL-5

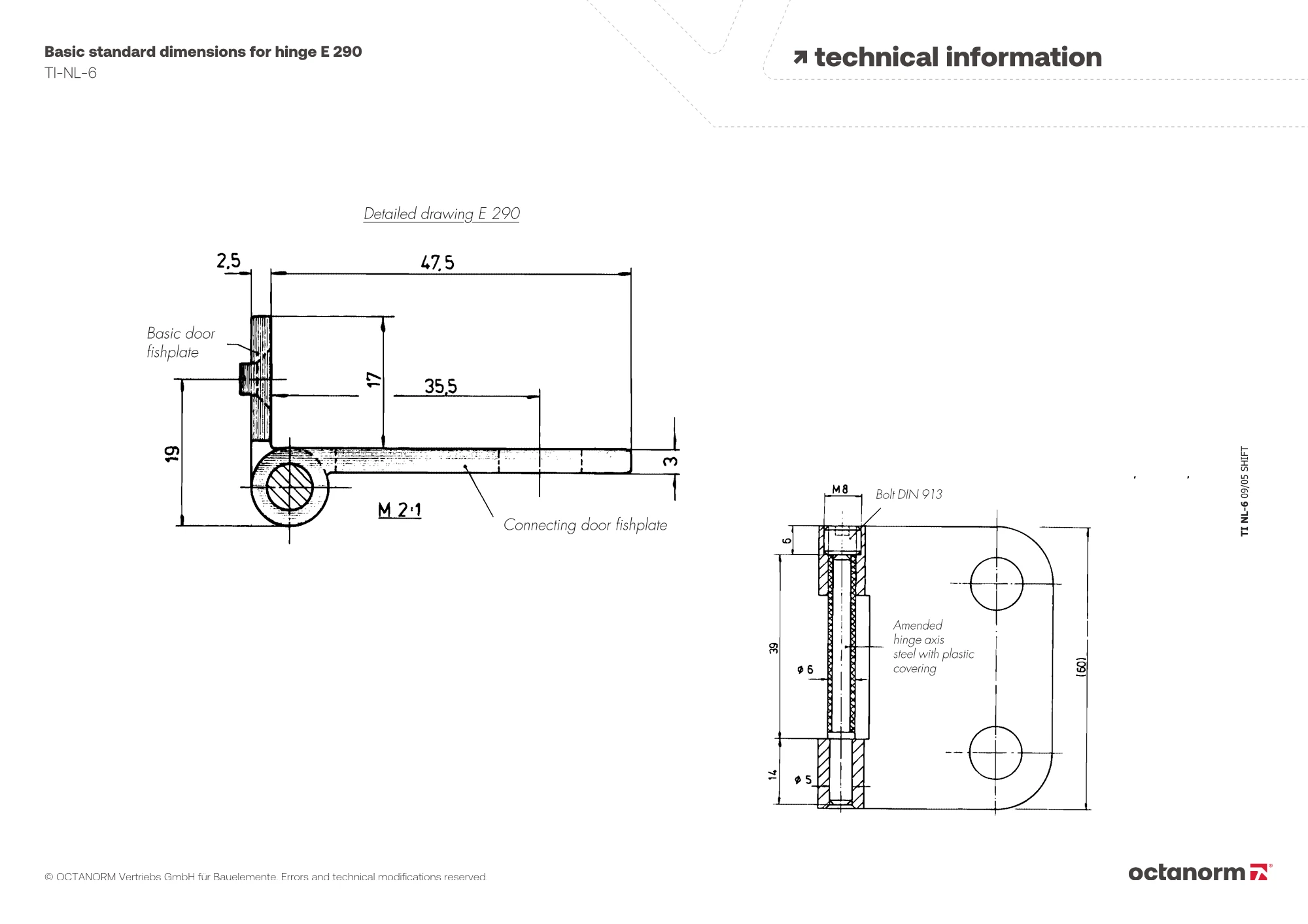

Basic standard dimensions for hinge E 290

TI-NL-6 TI-NL-6

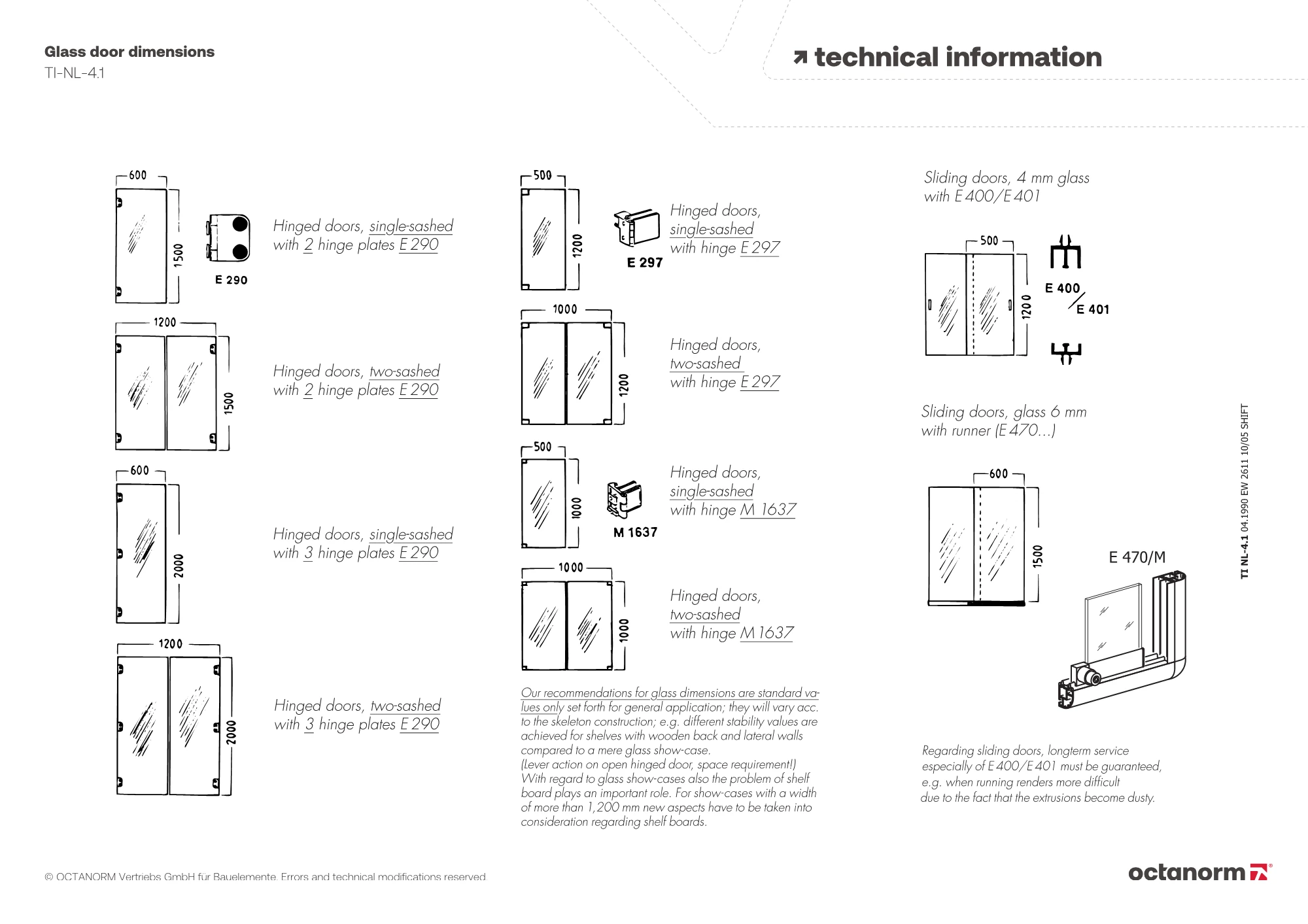

Glass door dimensions

TI-NL-4.1 TI-NL-4.1

Mounting instructions for hinge E 290

TI-NL-8 TI-NL-8

Design examples: Hinged door, single-leaf with hinged bolt lock

TI-NL-4 TI-NL-4

Mounting instructions for hinge E 290

TI-NL-7 TI-NL-7
