Adjustable foot | HF 3SP.00

zinc die cast
stepless height adjustment from 135 to 185 mm, adjustable from above with hexagon wrench SW 6, with upper retainer pins and anti rattle pad U 3

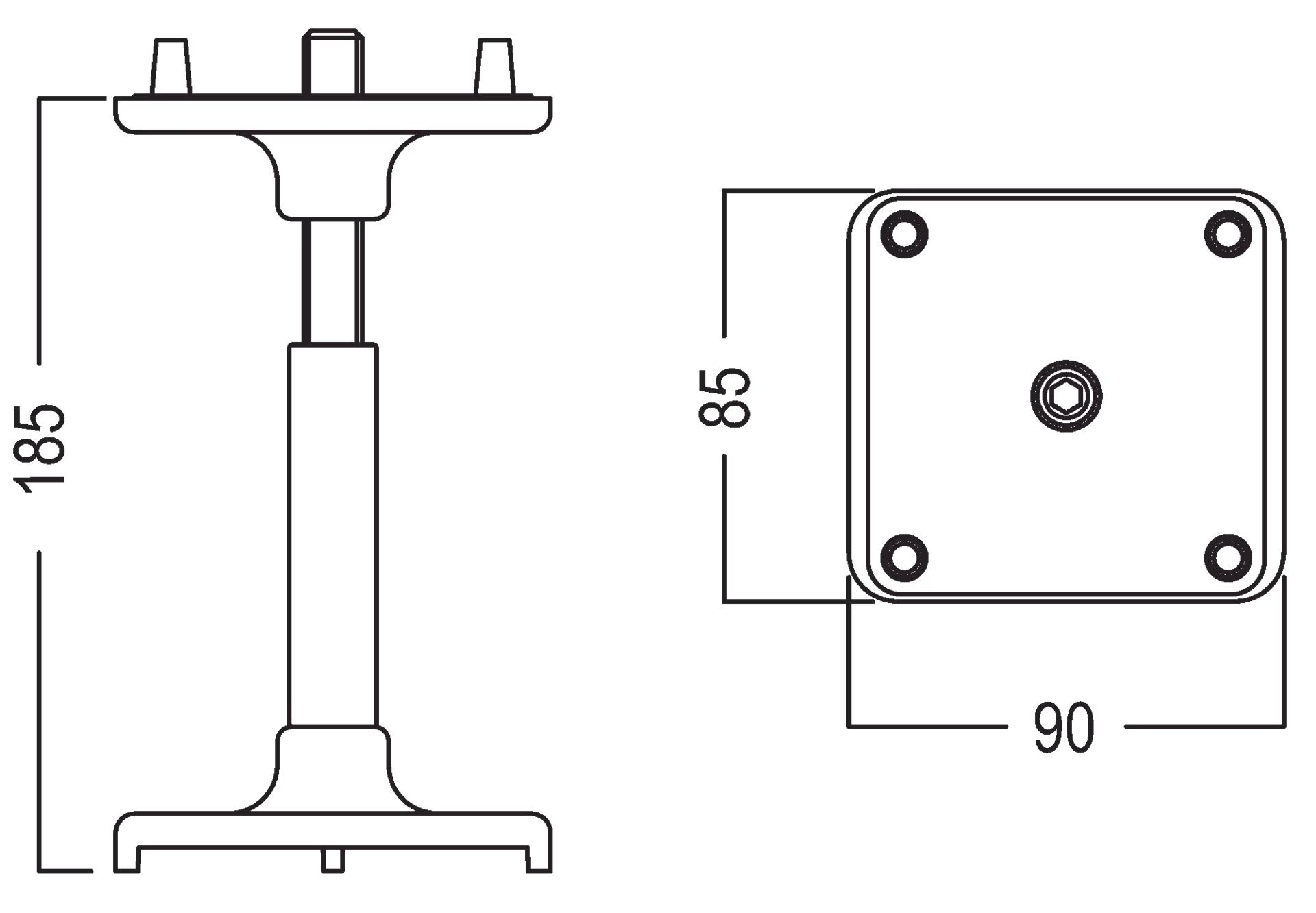

L 90 × W 85 × H 185 mm

Available Material

raw / unfinished
Order now.

!

load capacity max. 2000 kg

Technical Data.

Length:

90 mm

Weight:

0.965 kg

Width:

85 mm

Height:

185 mm

HF_3SP.pdf
HF_3SP.dxf
XHF_3SP.pdf
HF_3SP_01.dwg

Accessories.

Base plate

SP 12.90

L 998 × W 998 × H 39 mm

Sandwich panel

SP 13.90

with cutout

L 998 × W 998 × H 40 mm

Sandwich panel

SP 30.90

L 998 × W 998 × H 40 mm

Sandwich panel

SP 50.90

L 998 × W 498 × H 40 mm

Sandwich panel

SP 60.90

L 498 × W 498 × H 40 mm

Anti rattle

U 3.90

L 82 × W 82 × H 1 mm

Also Available As.

Adjustable foot

HF 1SP.00

55-105 mm

L 90 × W 85 × H 105 mm

Technical Informations.

octaclassic floor calculation of adjustable feet

TI-DB-3.2 TI-DB-3.2

octaclassic floor Positioning of adjustable feet

TI-DB-3.4 TI-DB-3.4
