Adjustable foot | HF 1SP.00

zinc die cast
height adjustable 55-105 mm, adjustable from top with hexagon wrench W 2, with upper retainer pins and anti rattle pad U 3
L 90 × W 85 × H 105 mm

Available Material

raw / unfinished
Order now.

!

load capacity max. 2000 kg

Technical Data.

Length:

90 mm

Weight:

0.815 kg

Width:

85 mm

Height:

105 mm

HF_1SP.pdf
XHF_1SP.pdf
HF_1SP_01.dwg
HF_1SP_01.dxf

Accessories.

Base plate

SP 12.90

L 998 × W 998 × H 39 mm

Sandwich panel

SP 13.90

with cutout

L 998 × W 998 × H 40 mm

Sandwich panel

SP 30.90

L 998 × W 998 × H 40 mm

Sandwich panel

SP 50.90

L 998 × W 498 × H 40 mm

Sandwich panel

SP 60.90

L 498 × W 498 × H 40 mm

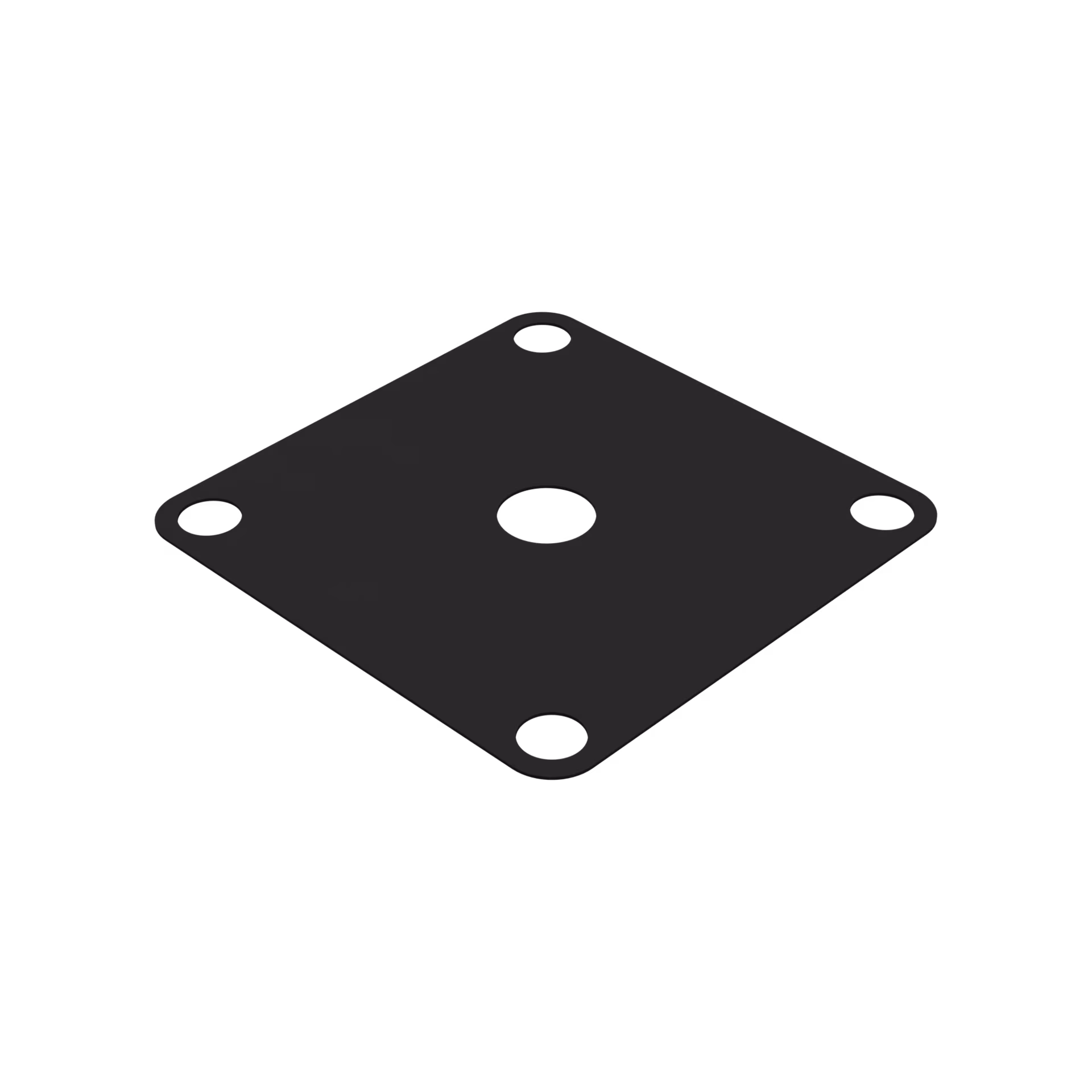

Anti rattle

U 3.90

L 82 × W 82 × H 1 mm

Also Available As.

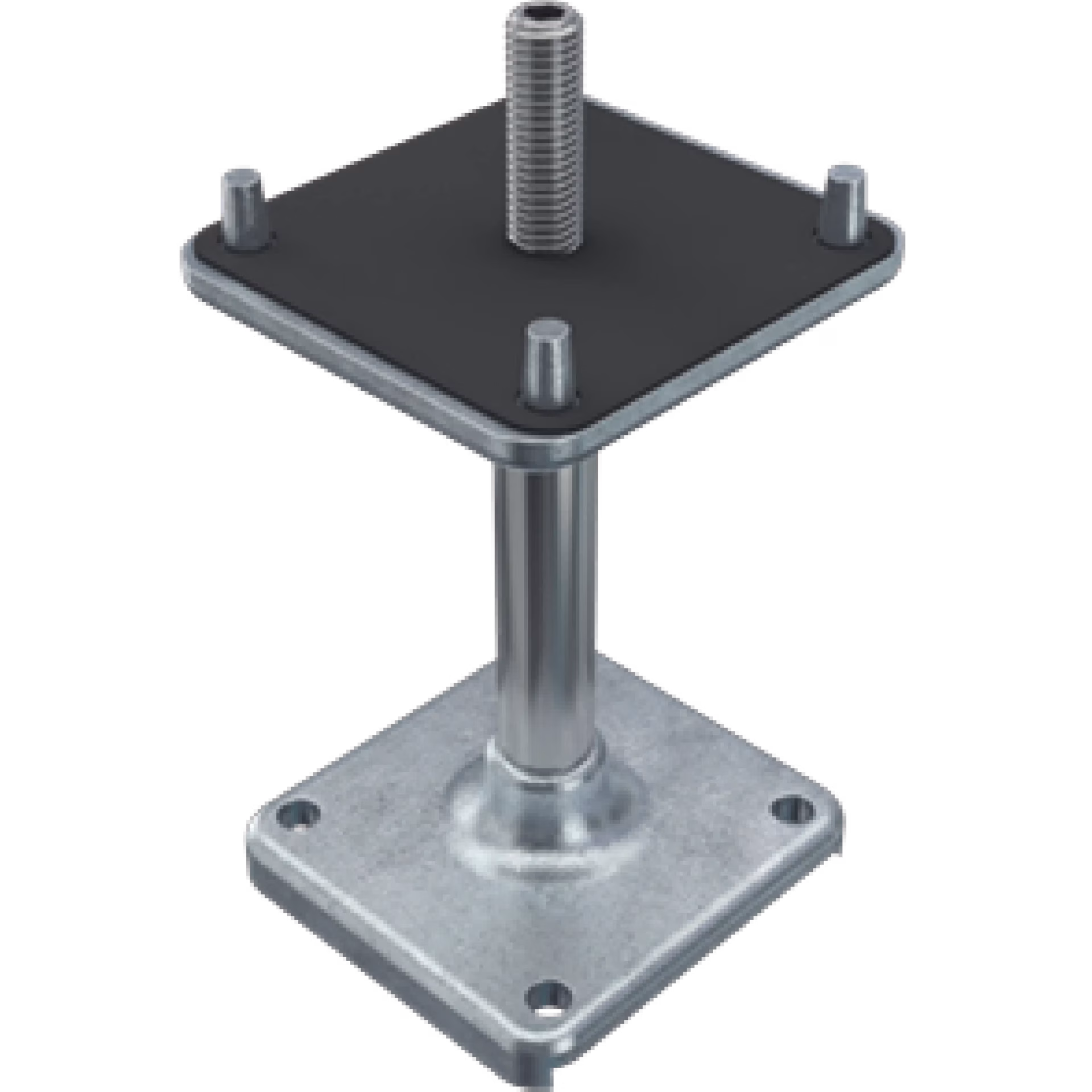

Adjustable foot

HF 3SP.00

135-185 mm

L 90 × W 85 × H 185 mm

Technical Informations.

octaclassic floor calculation of adjustable feet

TI-DB-3.2 TI-DB-3.2

octaclassic floor Positioning of adjustable feet

TI-DB-3.4 TI-DB-3.4

octaclassic floor adaption of EPL 2 to sandwich panel SP 30 (SP 13)

TI-DB-5.0 TI-DB-5.0

Animation.

octaclassic floor Installation
