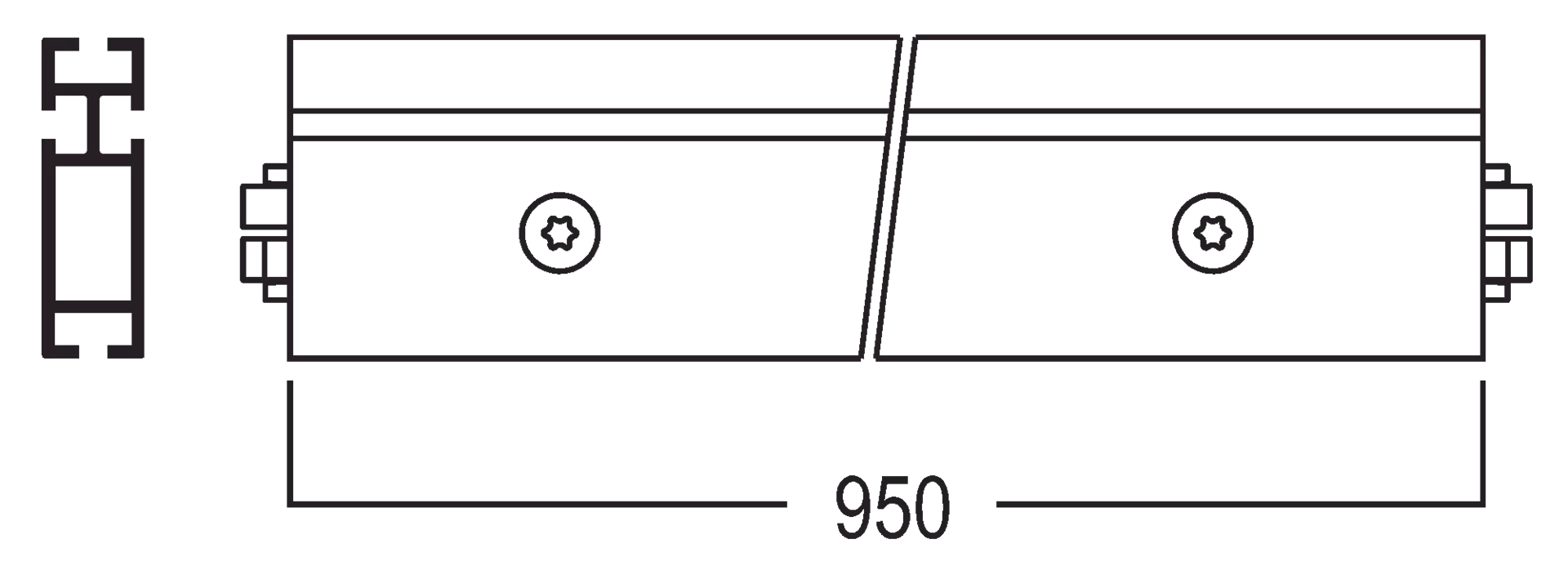

Beam | Z 426.11

with 2 × Z 961/13

aluminium

1 × beam made of extrusion Z 460, incl. 2 × built-in tension lock Z 961/13

L 950 × W 50 × H 16 mm

Available Material

polished, anodized, silver (E2/EV1, E4/EV1)

Order now.

Curved beams on request

Technical Data.

Length:

950 mm

Weight:

0.965 kg

Width:

16 mm

Height:

50 mm

Z_426.pdf

Accessories.

Tension lock

Z 961/13.00

13 mm

L 70 × W 21 × H 13 mm

Also Available As.

Beam extrusion

Z 460.11

groove depth 7 mm

L 5000 × W 50 × H 16 mm

Beam extrusion

Z 460.01

groove depth 7 mm

L 5000 × W 50 × H 16 mm

Technical Information

TI-MB-Z1.0 / Axis measurements / April 2014

TI-MB-W3.1 / Dimensions of wall fillings / April 2014

TI-MB-W4.0 / Dimensions of shelf boards / April 2014

TI-MB-W4.1 / Dimensions of shelf boards / April 2014

TI-MB-W3.0 / Dimensions of wall fillings / April 2014

Technical Info Brochures

AW 630 T / octaclassic Technical Info / March 2026
