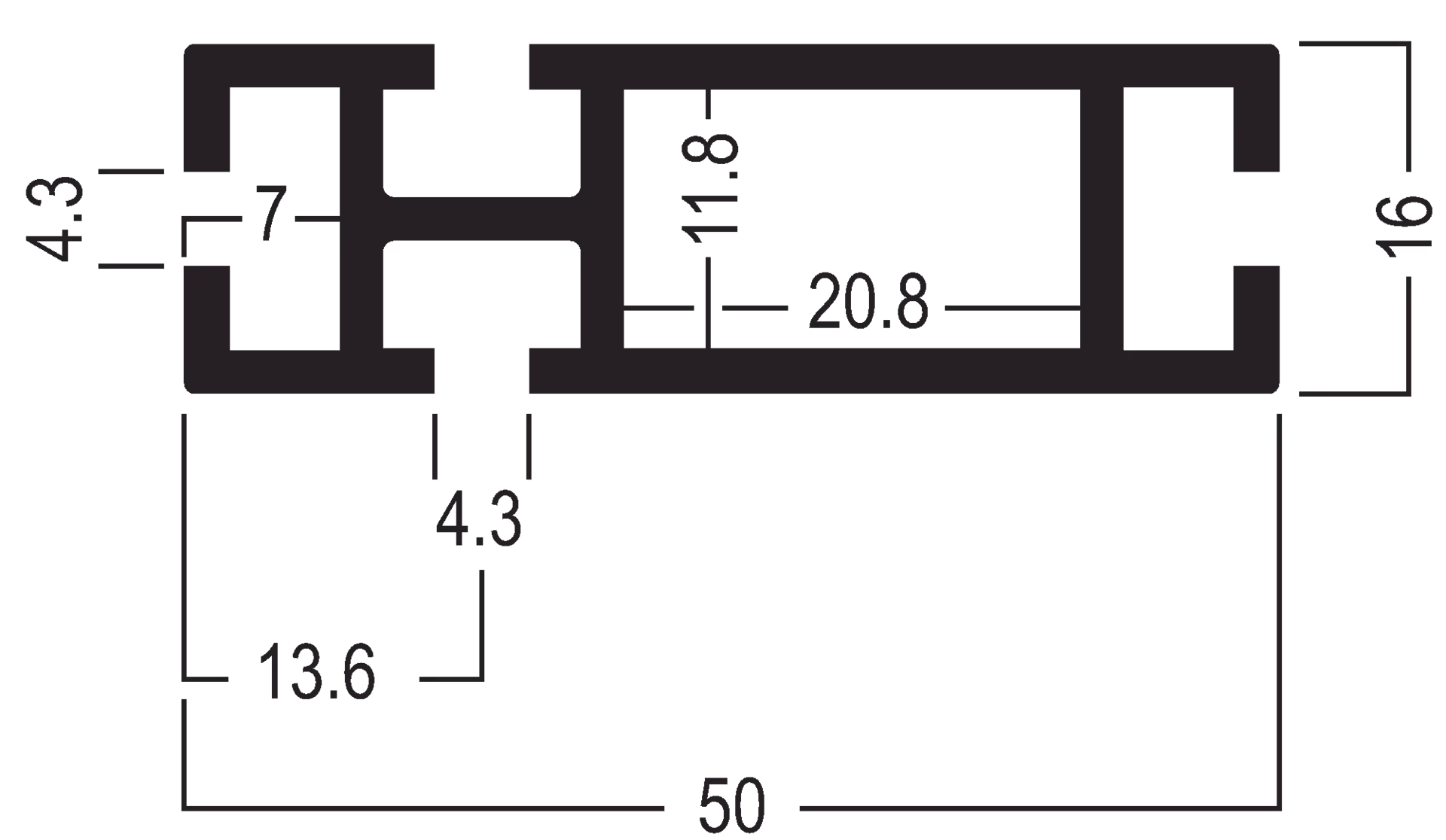

Beam extrusion | Z 460.11

groove depth 7 mm

aluminium

for installation of cube illumination, installation of Z 951/13 tension lock, groove depth 7 mm

L 5000 × W 50 × H 16 mm

Available Material

polished, anodized, silver (E2/EV1, E4/EV1)

Order now.

Technical Data.

Length:

5000 mm

Weight:

3.955 kg

Width:

16 mm

Height:

50 mm

Z_460.pdf

XZ_460.pdf

Z_460.dwg

Z_460.dxf

Accessories.

Extrusion connector

E 438.30

for system groove 4.3 mm

L 5000 × W 10 × H 10 mm

Tension lock

Z 961/13.00

13 mm

L 70 × W 21 × H 13 mm

Curved beam tension lock

Z 962/13.00

13 mm

for curved extrusions

L 70 × W 23 × H 13 mm

End cap

Z 975.35

for Z 400 / Z 402 / Z 460

L 51 × W 16 × H 12 mm

Also Available As.

Beam

Z 416.01

with 2 × Z 961/13

L 455 × W 50 × H 16 mm

455 mm long

Beam

Z 416.11

with 2 × Z 961/13

L 455 × W 50 × H 16 mm

455 mm long

Beam

Z 426.11

with 2 × Z 961/13

L 950 × W 50 × H 16 mm

950 mm long

Product Brochures

AW 887 / General Catalog / June 2026

AW 8810 / Extrusions Catalog / October 2024

AW 601 / Tension Fabric Extrusions / August 2024

Technical Information

TI-MB-Z3.2 / Use of the Tension Locks for 22,5° + 45° Miter Cuts / April 2014

TI-M-14.0 / Calculation formula for curved beams (special curves) / April 2014

TI-MB-Z3.3 / Use of the Tension Locks for 22,5° + 45° Miter Cuts / April 2014

TI-MB-Z4.0 / Smallest dimension of beam cuttings / April 2014

TI-MB-Z3.4 / Cutting Dimensions for Beams with 45° Miter Cuts / April 2014

TI-MB-Z3.1 / Cutting Dimensions for Beams with 22,5° + 45° Miter Cuts / April 2014

TI-MB-W3.2 / Dimensions of wall fillings / April 2014

TI-MB-Z3.0 / Cutting Dimensions for Beams with 22,5° + 45° Miter Cuts / April 2014

Technical Info Brochures

AW 7950 T / octalumina Technical Info / June 2026

AW 630 T / octaclassic Technical Info / March 2026

2D/3D Data

CAD 2.0 - OCTANORM Profile / 2D/3D Data - octanorm extrusions / May 2025
