Door set | W 805-SET.01

for 80 mm

aluminium/steel

1 × door element made of M 2120/W 906, for fabric/panel on both sides, DIN left/right, inward/outward opening, door leaf flush with door leaf frame on the outside or inside, incl. door leaf frame and dead lock cylinder W 514, without hook tape W 840, outer frame dimensions door leaf frame: 908 × 2442 mm

W 950 × H 2500 × D 80 mm

Available Material

matt anodized, silver (E6/EV1)

!

fabric dimension = outer frame dimension

!

Only use silicone edge 12 × 3 mm for door leaf frame

Technical Data.

Length:

80 mm

Weight:

18.222 kg

Width:

950 mm

Height:

2500 mm

W_805-SET_04.dwg

W_805-SET_04.dxf

Technical Informations.

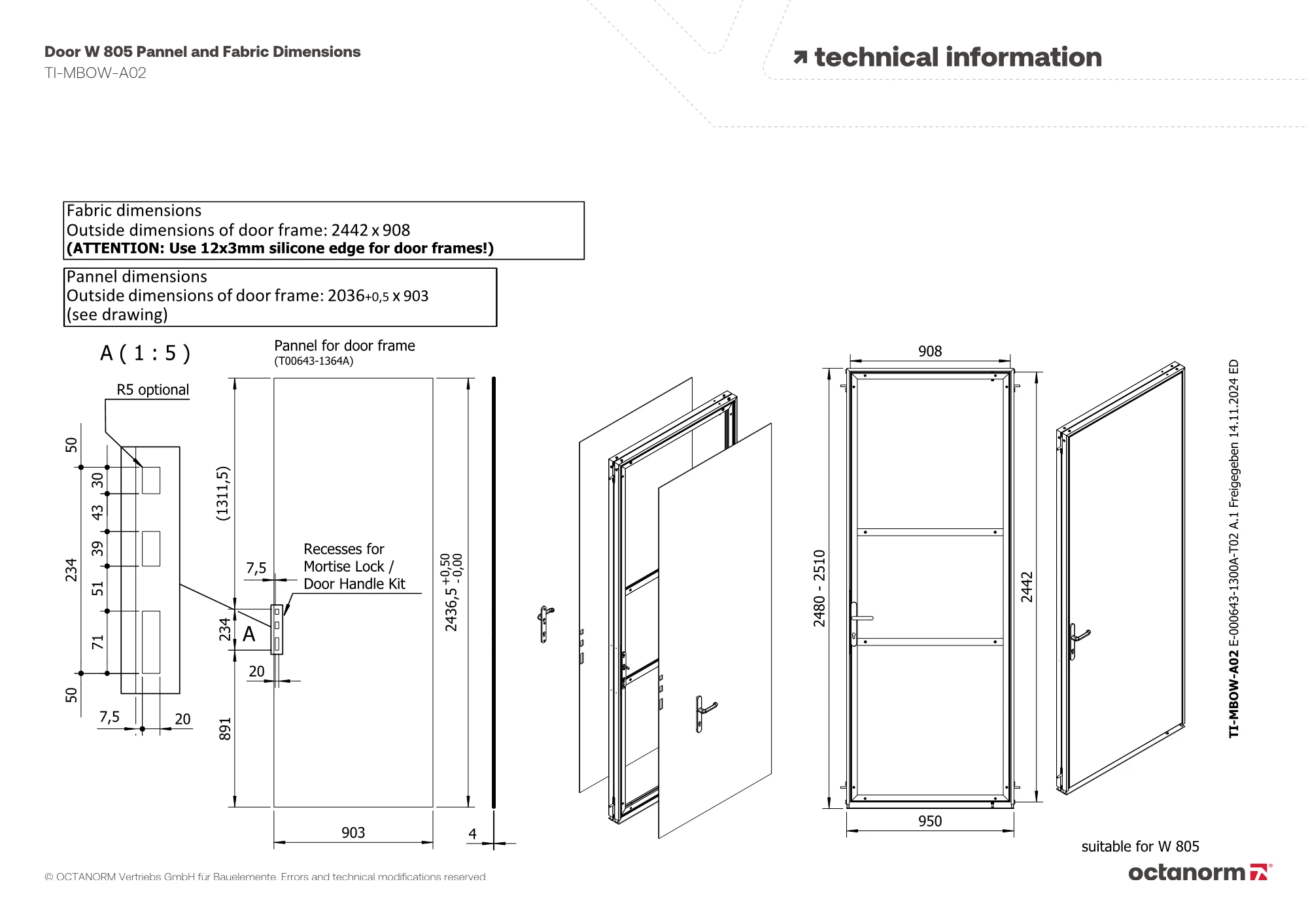

Door W 805 Pannel and Fabric Dimensions

TI-MBOW-A02 TI-MBOW-A02

Door W 805 Window Element W 809 Pannel and Fabric Dimensions

TI-MBOW-A03 TI-MBOW-A03

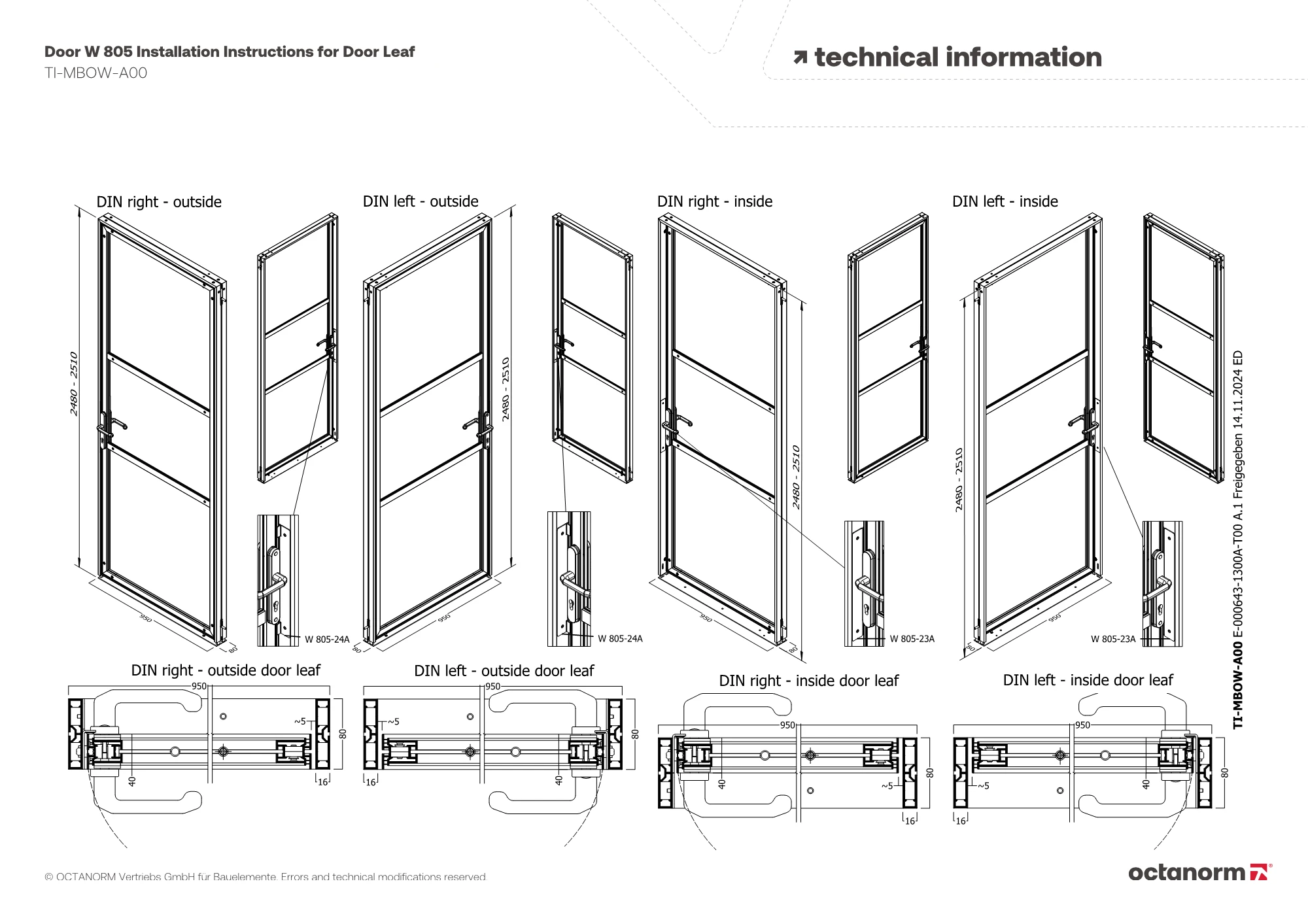

Door W 805 Installation Instructions for Door Leaf

TI-MBOW-A00 TI-MBOW-A00

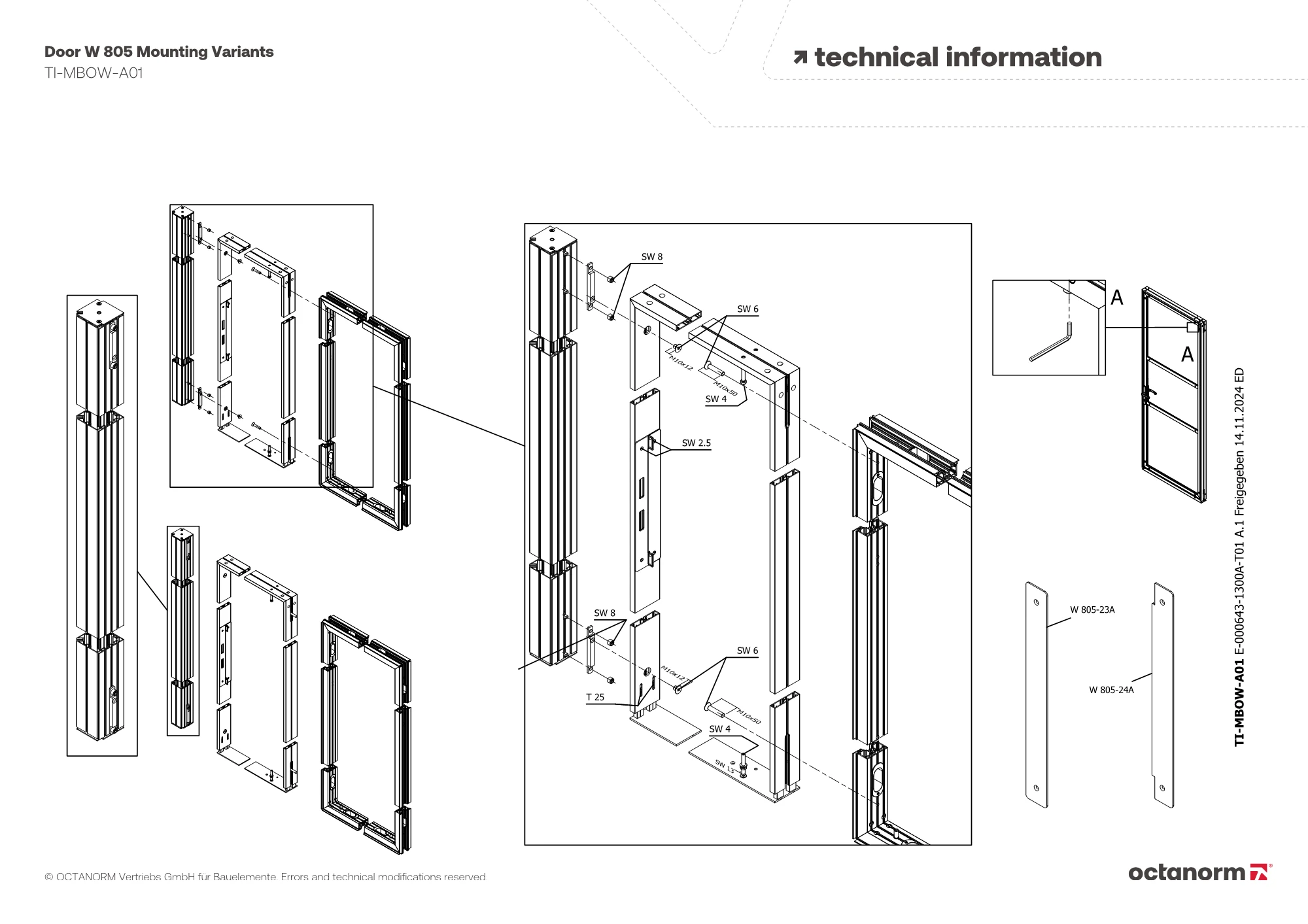

Door W 805 Mounting Variants

TI-MBOW-A01 TI-MBOW-A01

Animation.

Door W 805 Assembly

Door W 805 / W 575 Conversion lock case

Contact Person.

Roman

Gutowski

General Manager

T +48 22 773 0350

Anna

Gutowska

Product Manager

T + 48 22 773 03 50

Andrzej

Przybylski

Dział Techniczny

T + 48 22 773 03 50

Alina

Szczepańska

Księgowość

T + 48 22 773 03 50

Downloads.

Product Brochures

General Catalog General Catalog octawall pro octawall pro octawall pro starter kits octawall pro starter kits

Assembly Instructions / User Manuals

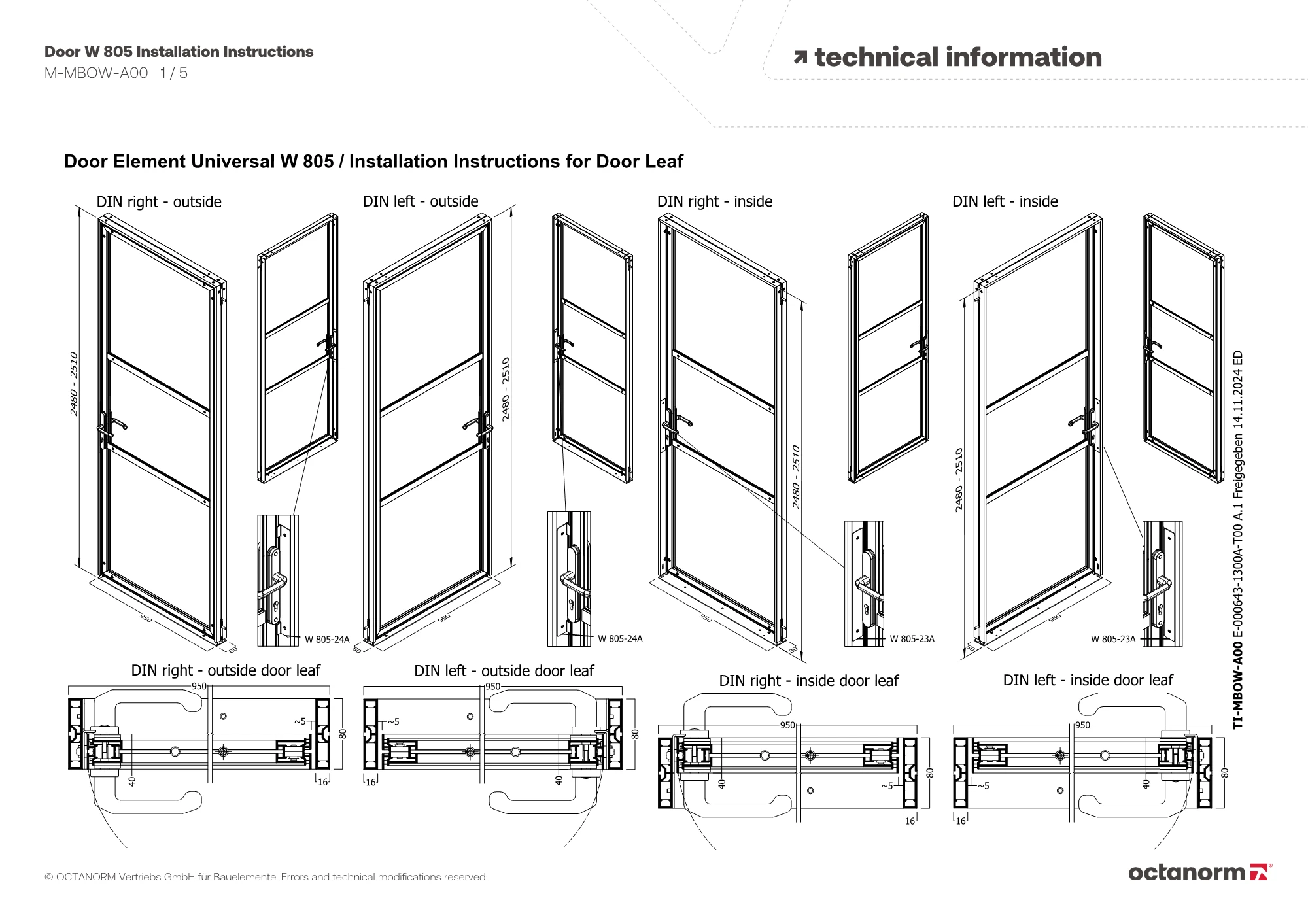

Door W 805 Installation Instructions Door W 805 Installation Instructions
