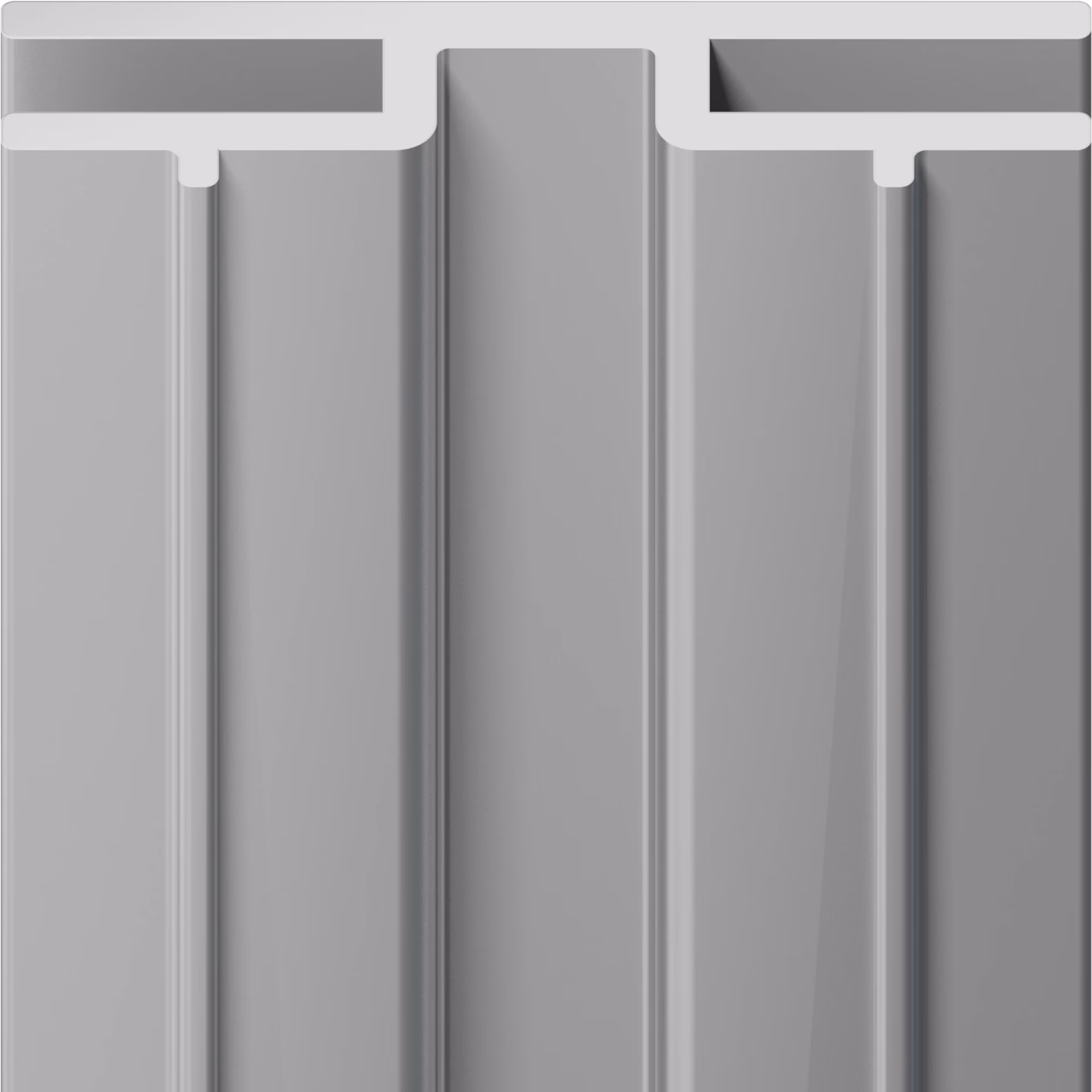

Tension fabric extr. | M 1310.01

for double sided fabric

aluminium

for double sided fabric (with silicone edge M 1313), for mounting in system groove with fixing set M 1345, with 13 × hole 18 mm dia.

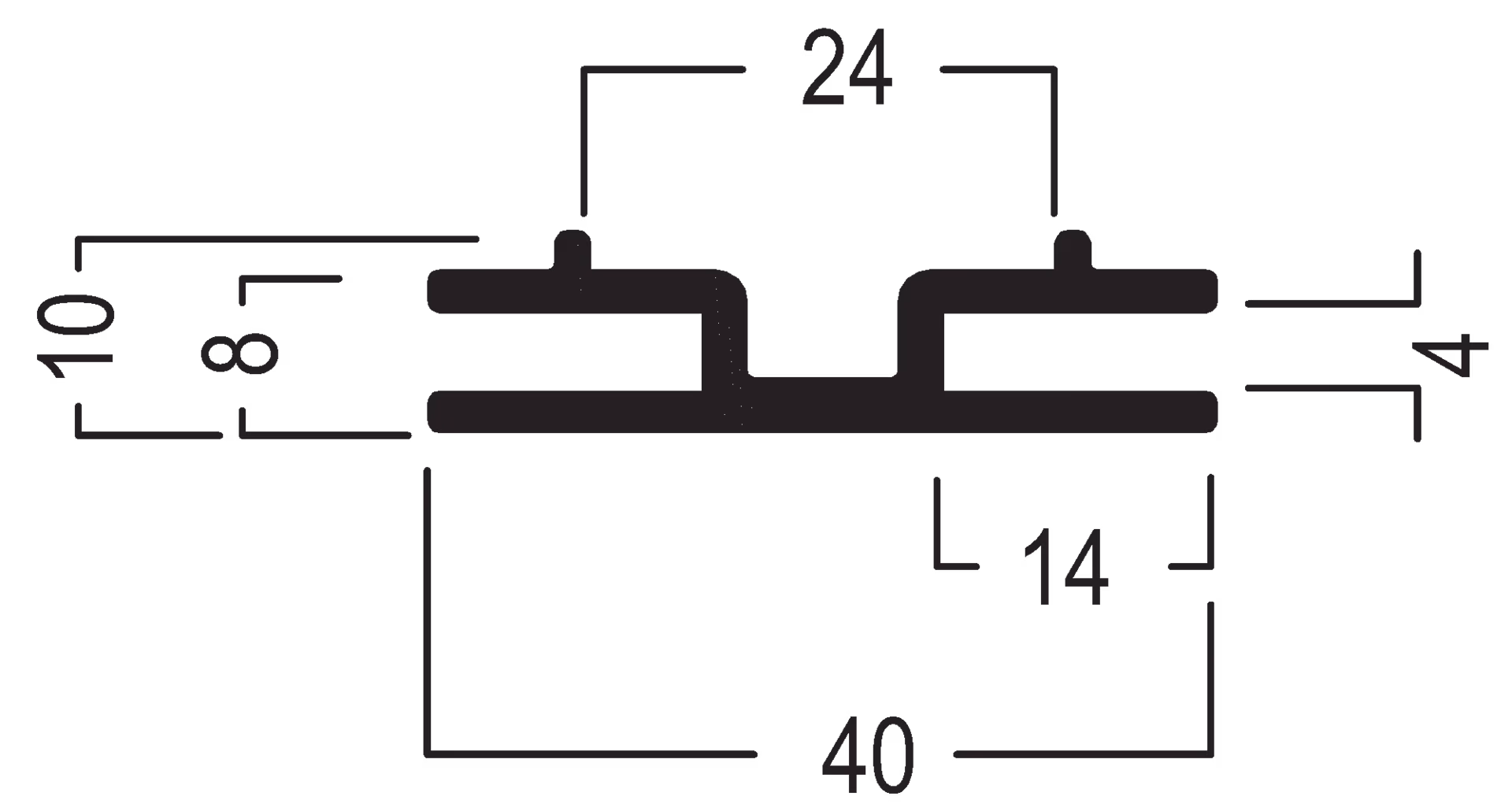

L 6000 × W 40 × H 10 mm

Available Material

matt anodized, silver (E6/EV1)

Order now.

in connection with M 1345

Technical Data.

Length:

6000 mm

Weight:

2.694 kg

Width:

40 mm

Height:

10 mm

M_1310.pdf

XM_1310.pdf

M_1310.dwg

M_1310.dxf

Accessories.

Silicone edge

M 1313.50

100 meter roll

for fabric

W 14 × H 3 mm

Fixing set

M 1345.37

for M 1310/M 1325/M 1330

L 28 × W 24 × H 24 mm

Product Brochures

AW 887 / General Catalog / June 2026

AW 8810 / Extrusions Catalog / October 2024

AW 601 / Tension Fabric Extrusions / August 2024

Technical Information

TI-M-60.0 / Base plate M 1347, M 1408 for moveable wall / April 2014

TI-M-59.1 / Ceiling elements with fabric covering "solution for frame construction" / April 2014

TI-M-57.0 / Extrusion frame for large-scale textile display / May 2014

TI-M-37.0 / Fabric tension extrusion M 1310, M 1325, M 1330 profile combinations / April 2014

Technical Info Brochures

AW 7948 T / octarig Technical Info / January 2025

AW 7990 T / maxima Technical Info / April 2026

2D/3D Data

CAD 2.0 - OCTANORM Profile / 2D/3D Data - octanorm extrusions / May 2025

Mounting Examples

ANI-MXL-44 / M 1310, M 1325, M 1330 Fabric suspension extrusion / October 2013
