Beam extrusion | Z 4400.01

2 system grooves
aluminium
2 system grooves, tension lock Z 961/13 can be mounted, groove depth 7 mm
L 5000 × W 40 × H 16 mm

Available Material

matt anodized, silver (E6/EV1)

Technical Data.

Length:

5000 mm

Weight:

3.2 kg

Width:

16 mm

Height:

40 mm

Z_4400.pdf
Z_4400.dwg
Z_4400.dxf

Accessories.

End cap

Z 4430.35

L 41 × W 16 × H 12 mm

Tension lock

Z 961/13.00

13 mm

L 70 × W 21 × H 13 mm

Internal corner connector

Z 966B/V.00

22.5° - 337.5°

lock chamber 21 × 12 mm

L 118 × W 85 × H 12 mm

Internal connector

Z 977.90

straight, toolless

lock chamber 21 × 12 mm

L 180 × W 21 × H 12 mm

Technical Informations.

Calculation formula for curved beams (special curves)

TI-M-14.0 TI-M-14.0

octamax - Solution for ceiling system

TI-DFL-2.0 TI-DFL-2.0

octamax - Solution for ceiling system

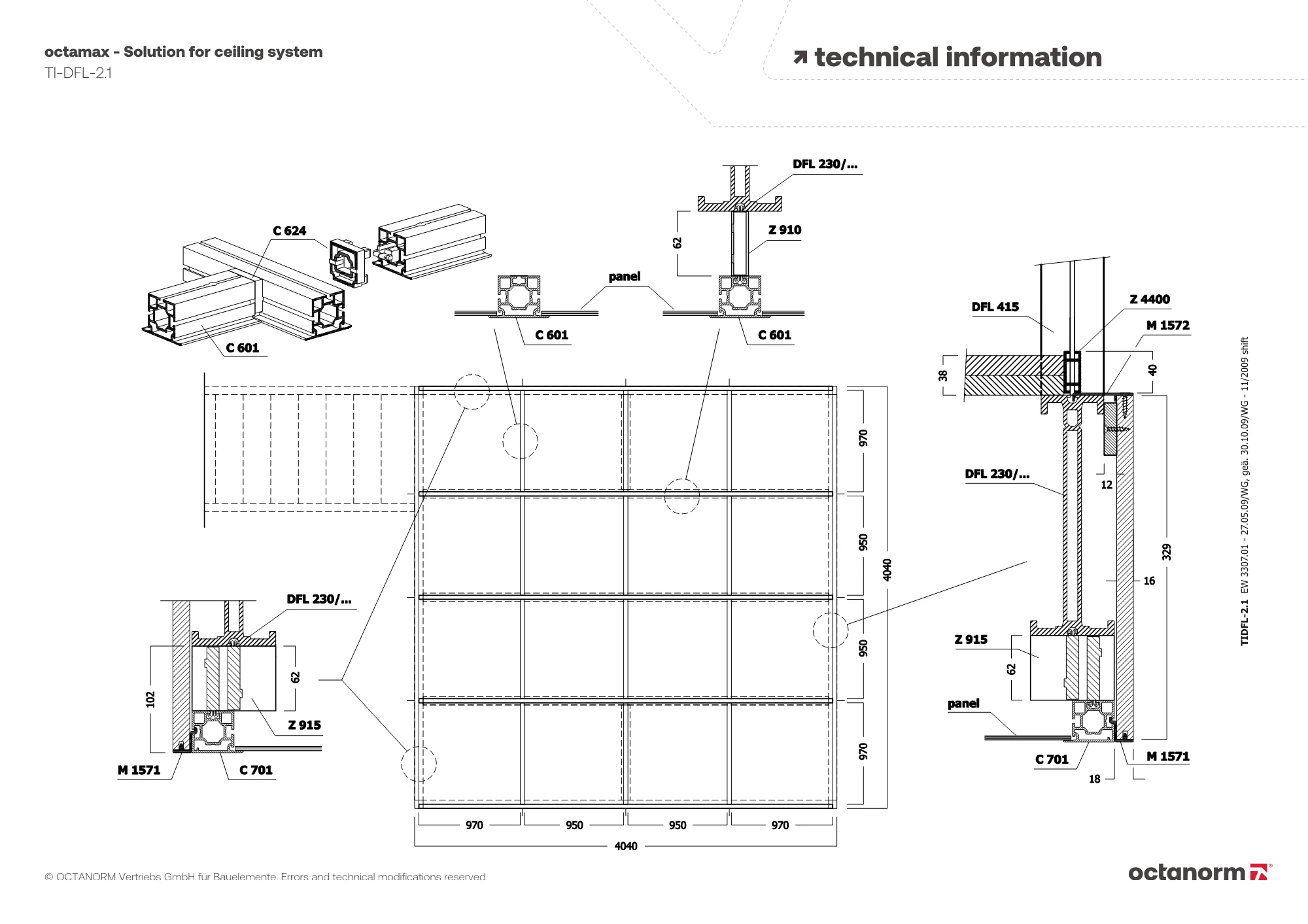

TI-DFL-2.1 TI-DFL-2.1

octawall 40 fabric, seamless graphic frame type

TI-OW-10.1 TI-OW-10.1

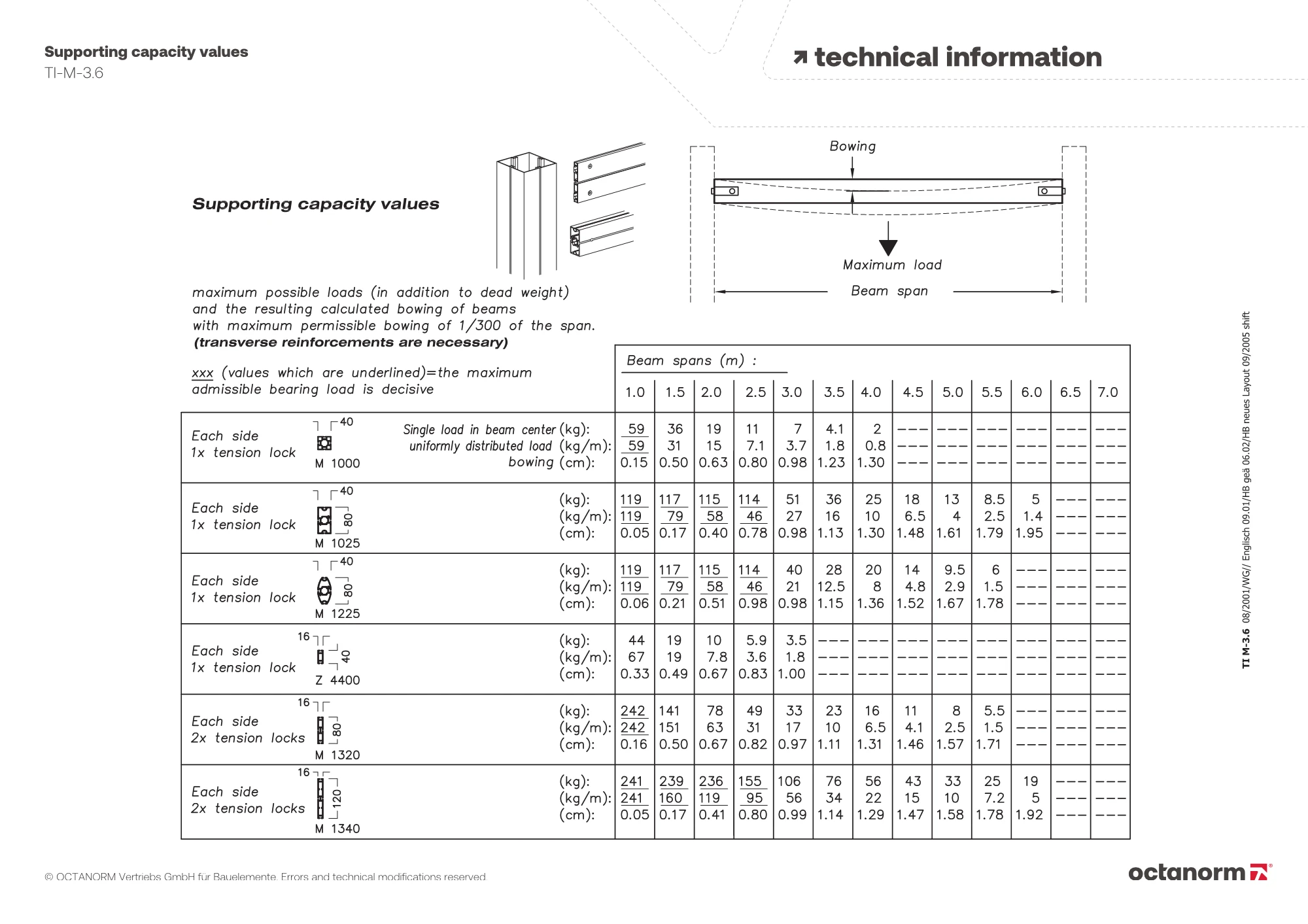

Supporting capacity values

TI-M-3.6 TI-M-3.6

Slot hole cutout in extrusions with 2mm wall thickness, "Tension Lock Adaption Groove"

TI-MB-Z10 TI-MB-Z10

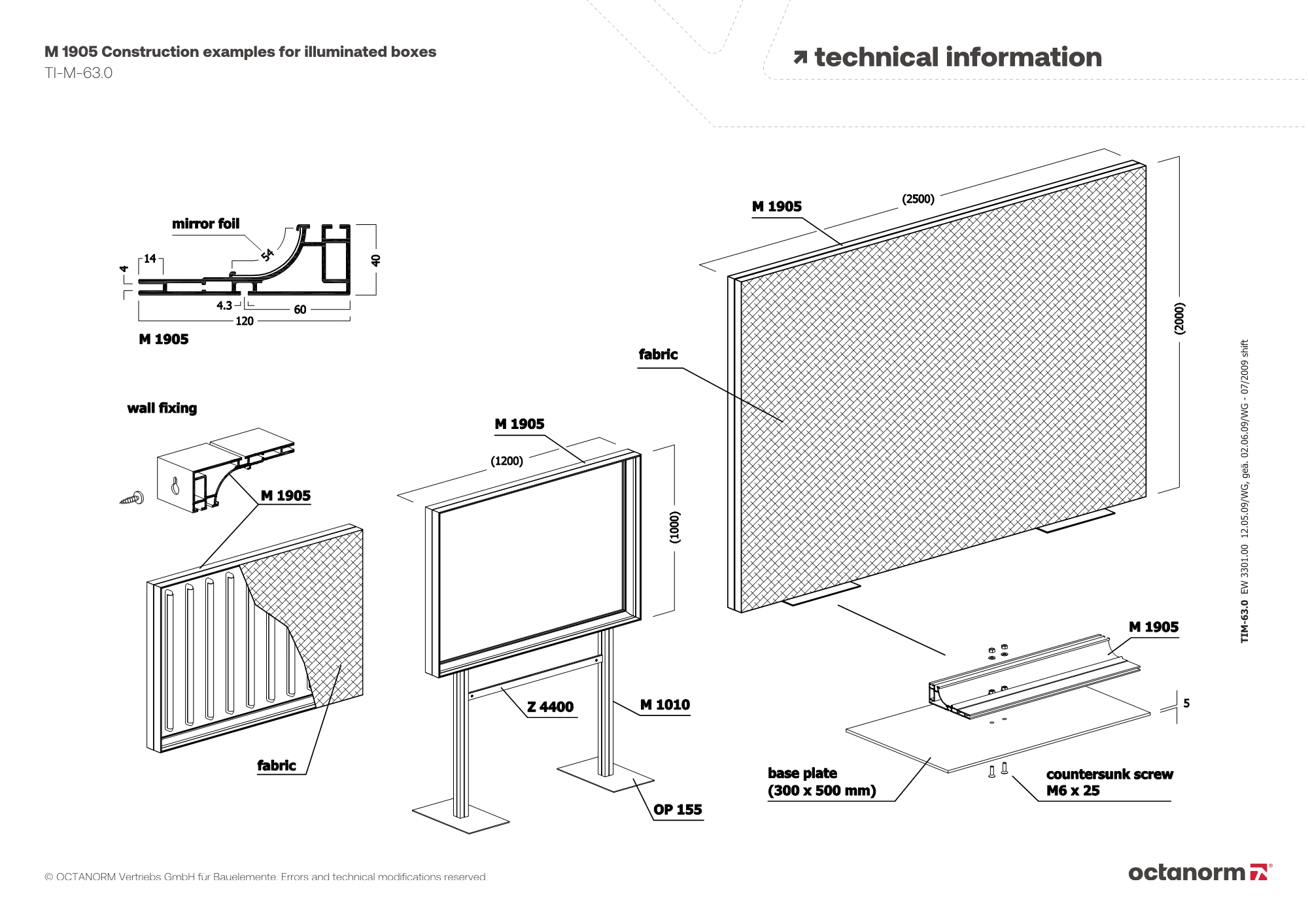

M 1905 Construction examples for illuminated boxes

TI-M-63.0 TI-M-63.0

Instructions for use of beam extrusions: Punching for tension lock mounting

TI-NL-34 TI-NL-34

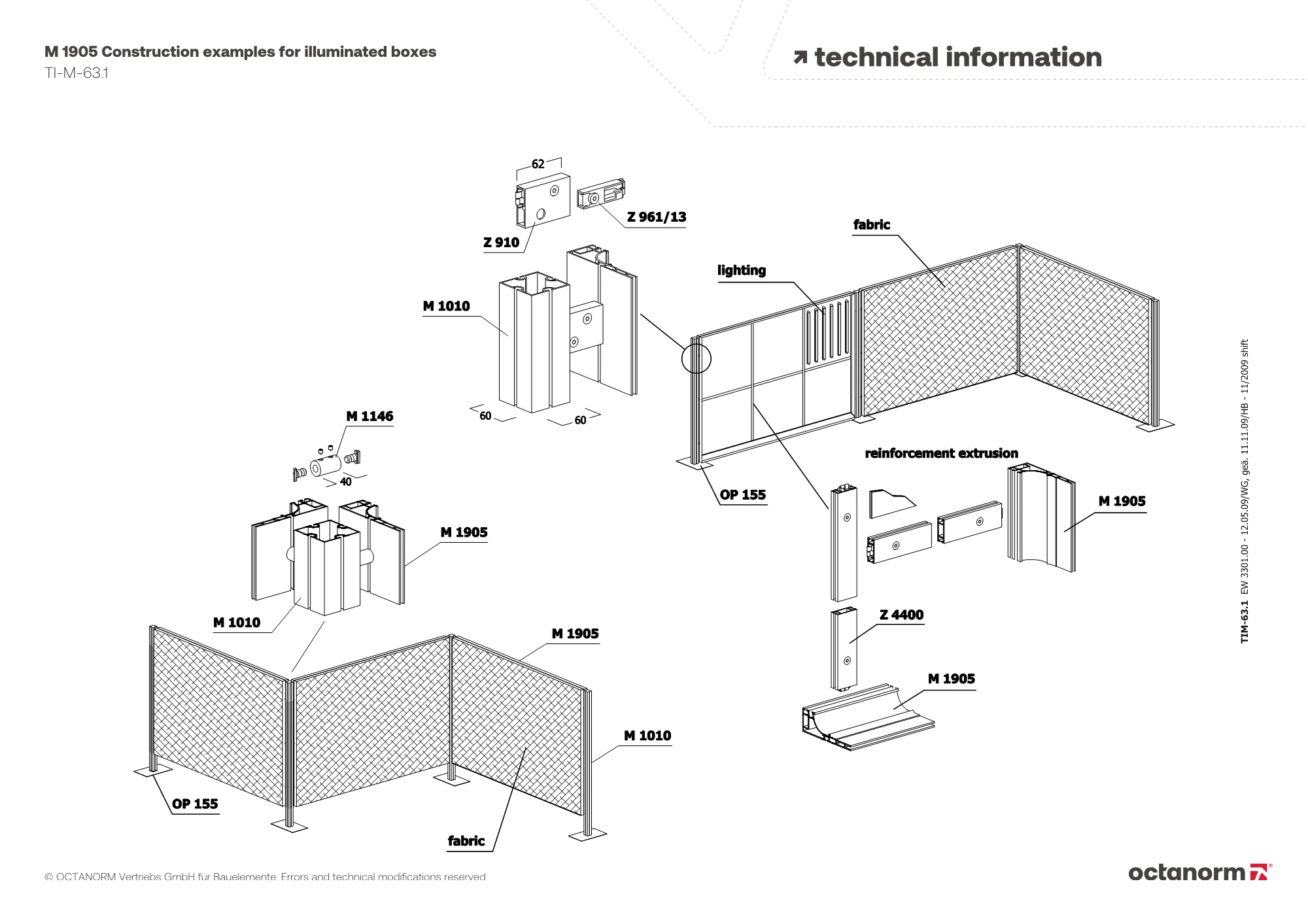

M 1905 Construction examples for illuminated boxes

TI-M-63.1 TI-M-63.1
