maxima 40.
Show contact personsBasic parts.
M 1000.01
4 system grooves
L 5000 × W 40 × H 40 mm
matt anodized, silver (E6/EV1)

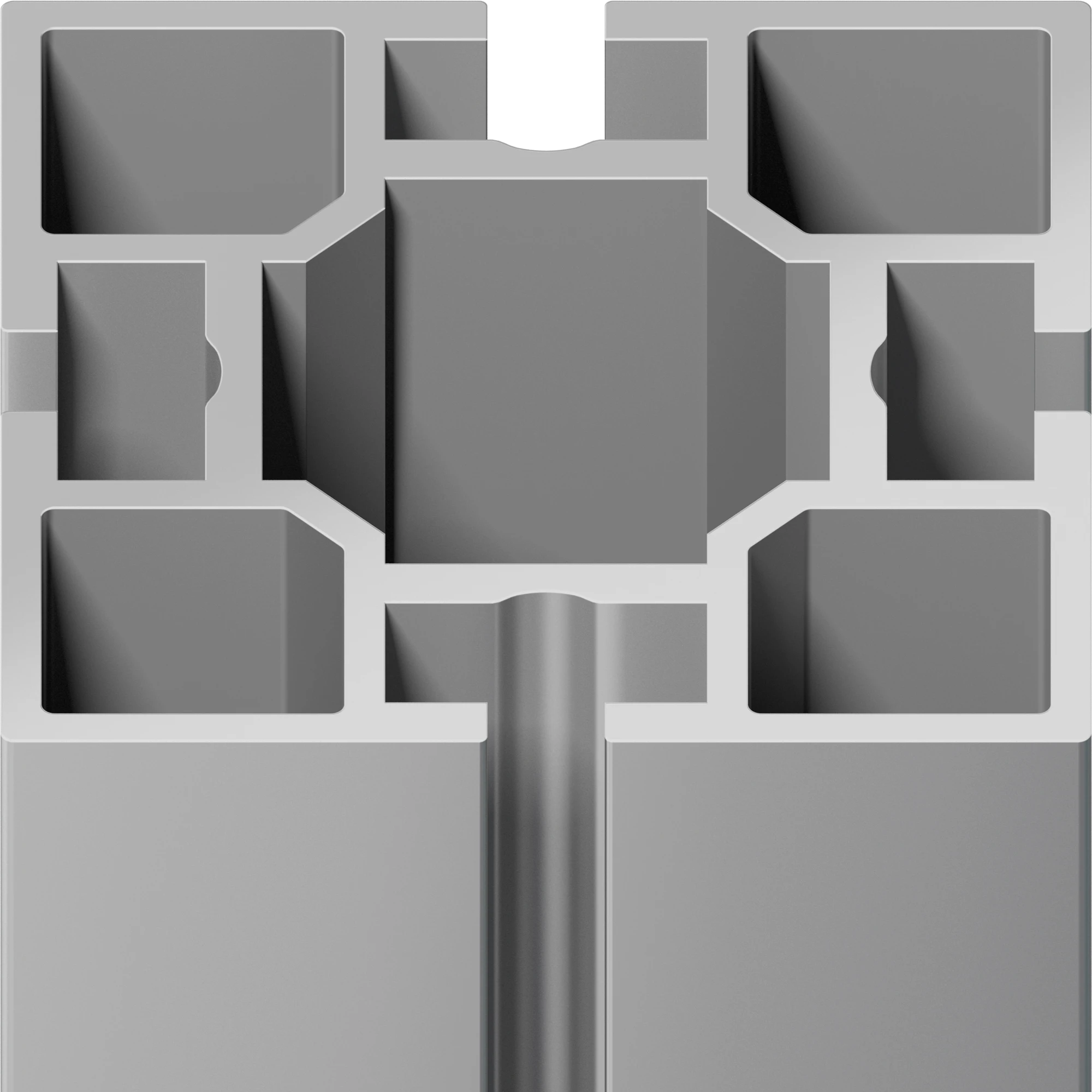

M 1001.01
4 system grooves
L 6000 × W 40 × H 40 mm
matt anodized, silver (E6/EV1)
M 1002.01
2 system grooves
L 5000 × W 40 × H 40 mm
5000 mm long
matt anodized, silver (E6/EV1)

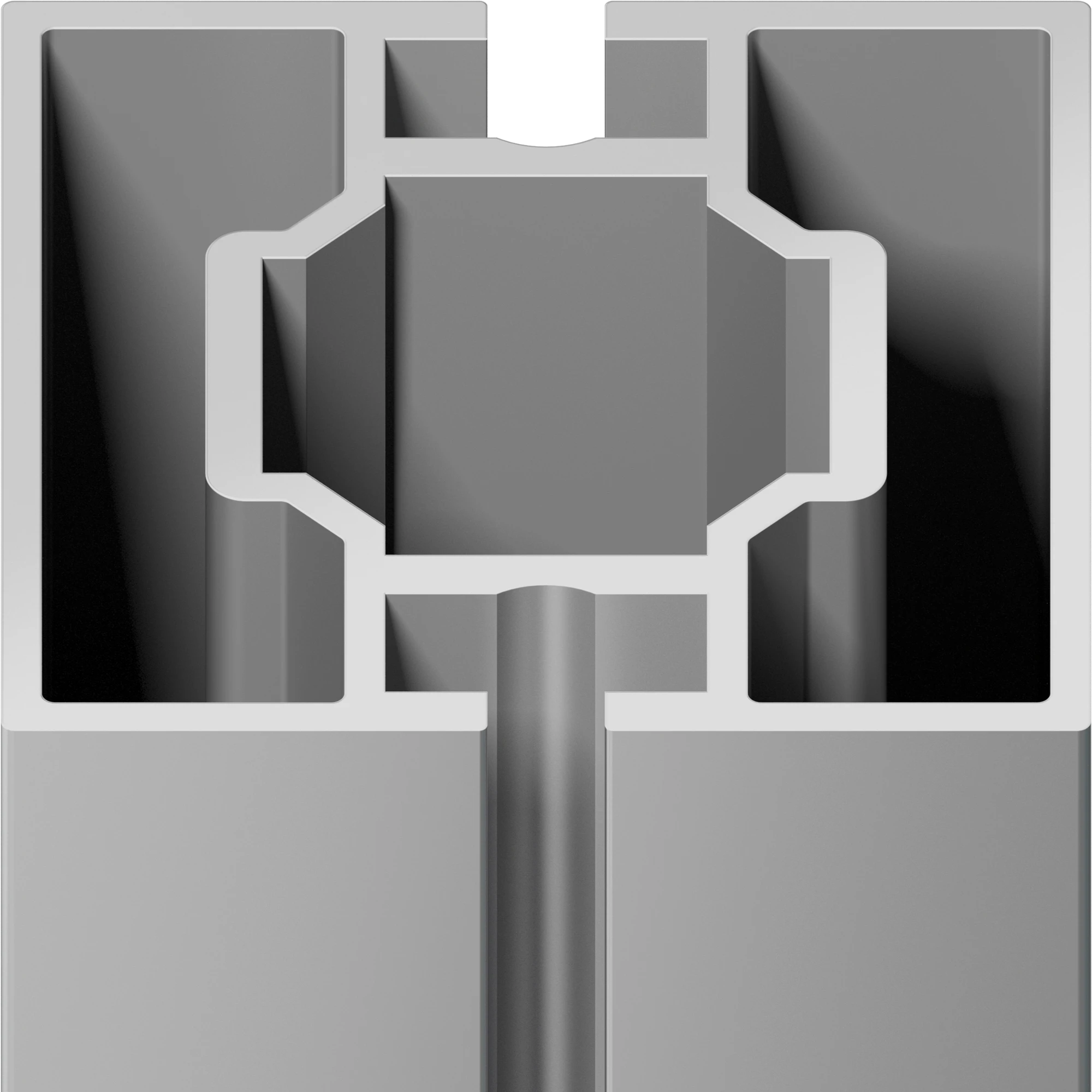

M 1003.01
2 system grooves
L 6000 × W 40 × H 40 mm
6000 mm long
matt anodized, silver (E6/EV1)

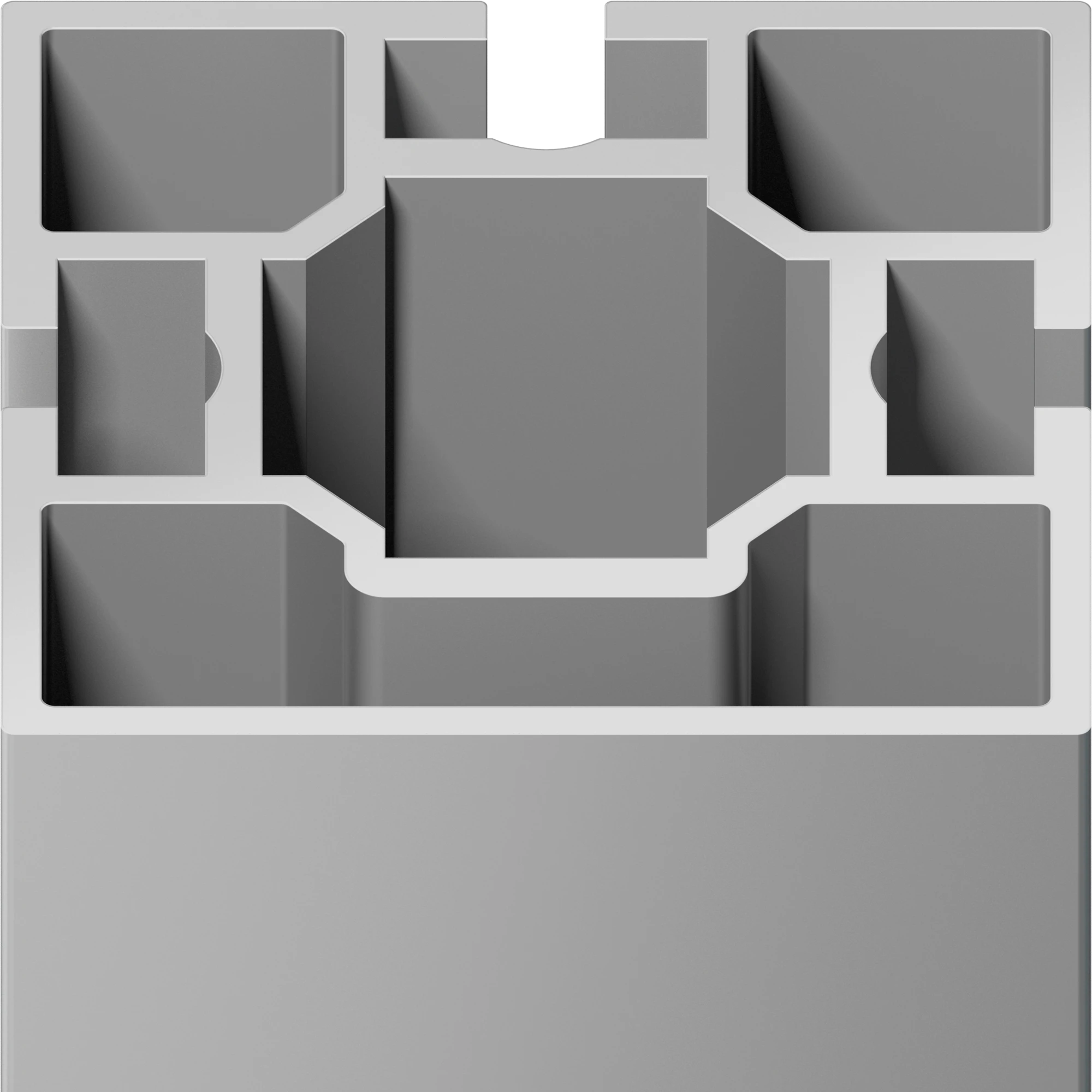

M 1005.01
3 system grooves
L 6000 × W 40 × H 40 mm
matt anodized, silver (E6/EV1)

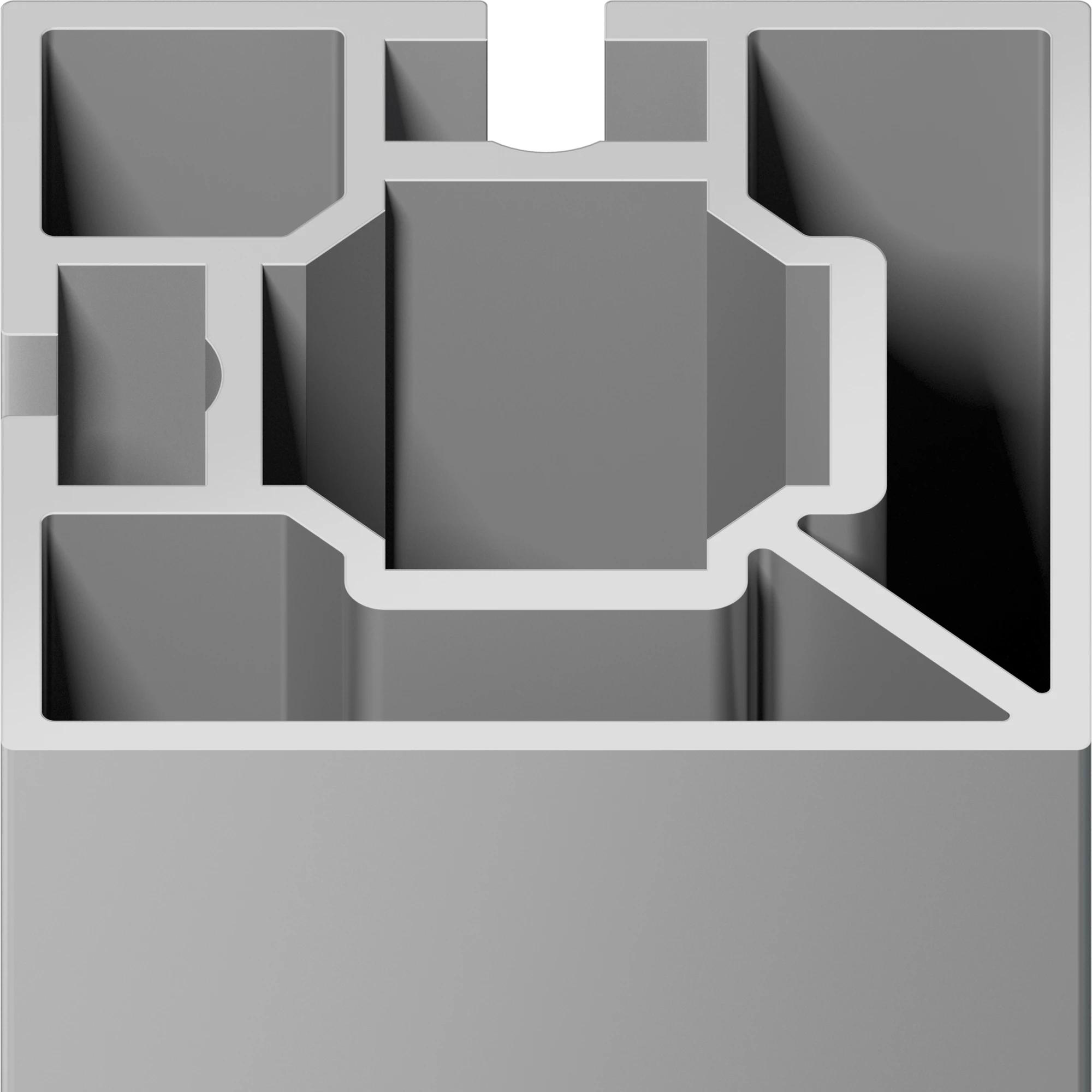

M 1007.01
2 system grooves
90° corner
L 6000 × W 40 × H 40 mm
matt anodized, silver (E6/EV1)

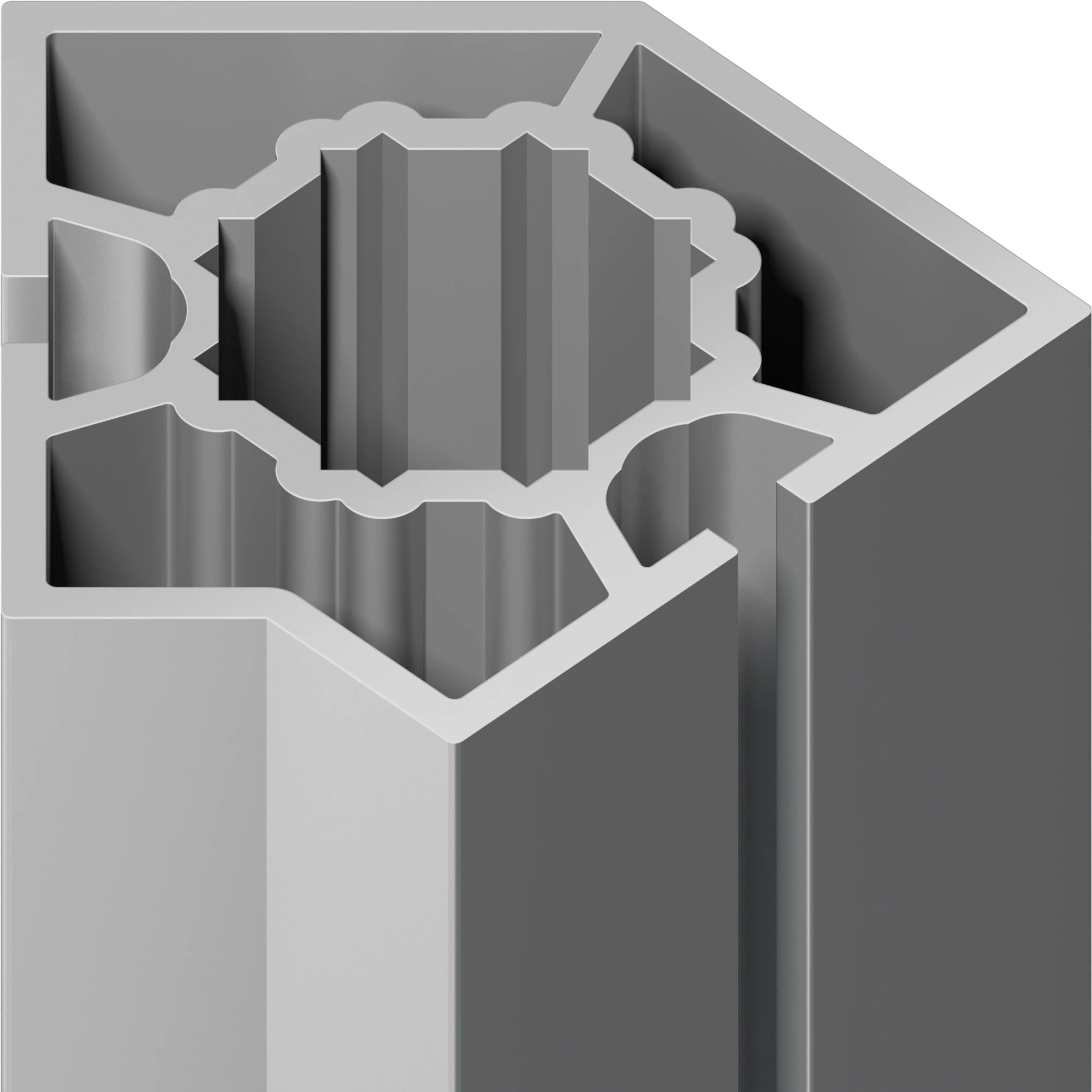

M 1009.01
135° corner
L 6000 × W 40 × H 50 mm
matt anodized, silver (E6/EV1)

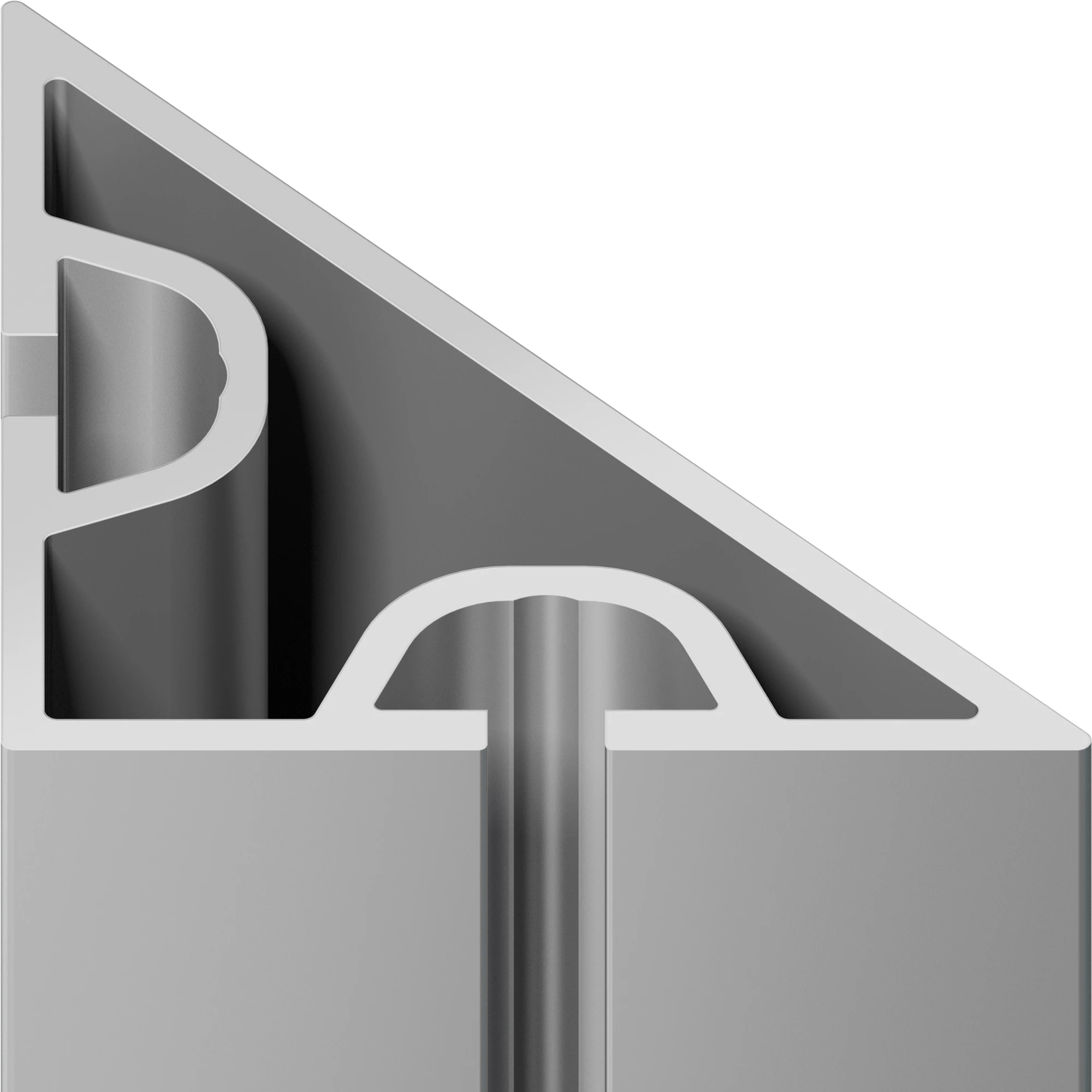

M 1072.01
corner
L 6000 × W 40 × H 56 mm
matt anodized, silver (E6/EV1)
M 260.01
90° corner, round
L 6000 × W 120 × H 120 mm
matt anodized, silver (E6/EV1)

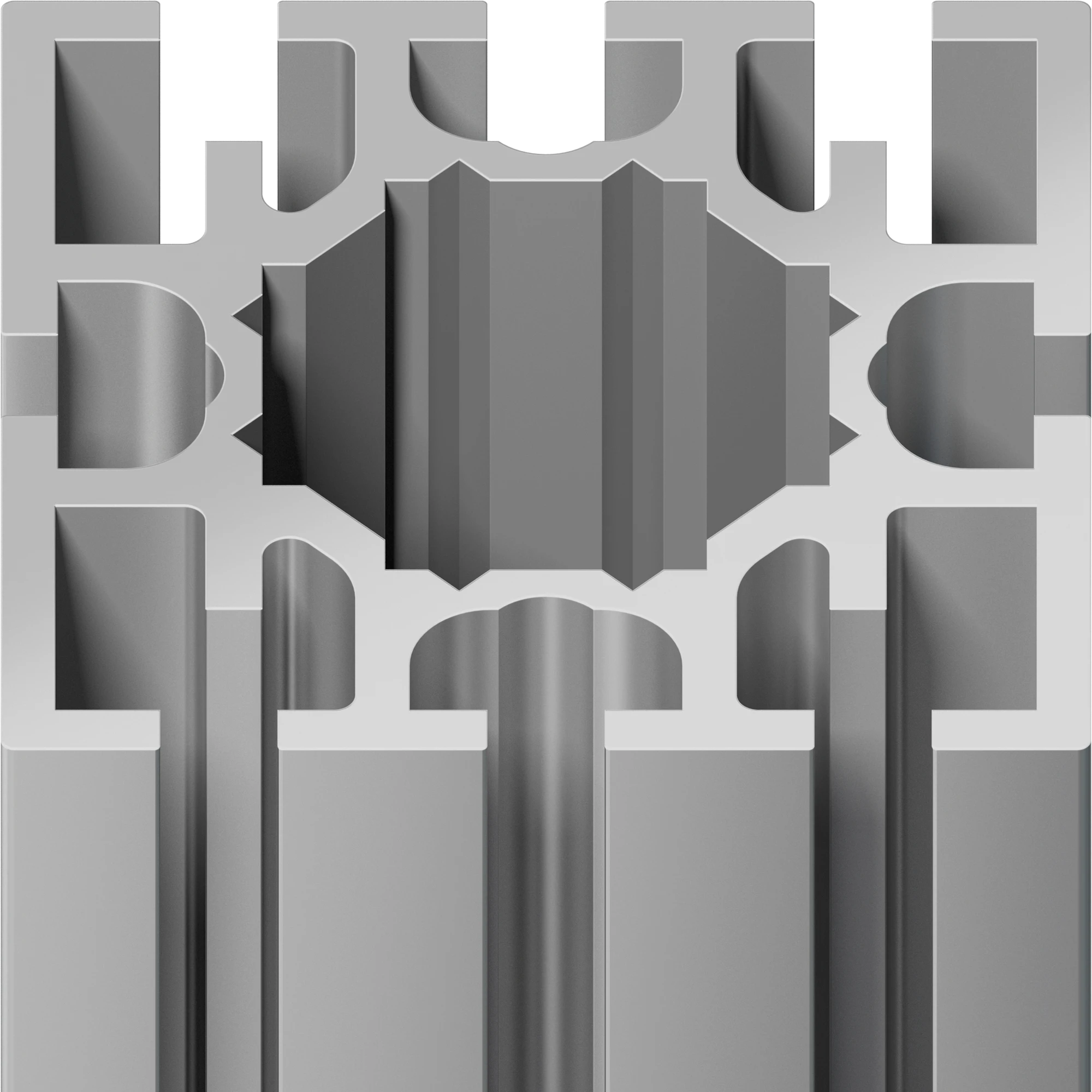

S 209.01
8 system grooves
L 6000 × W 40 × H 40 mm
6000 mm long
matt anodized, silver (E6/EV1)

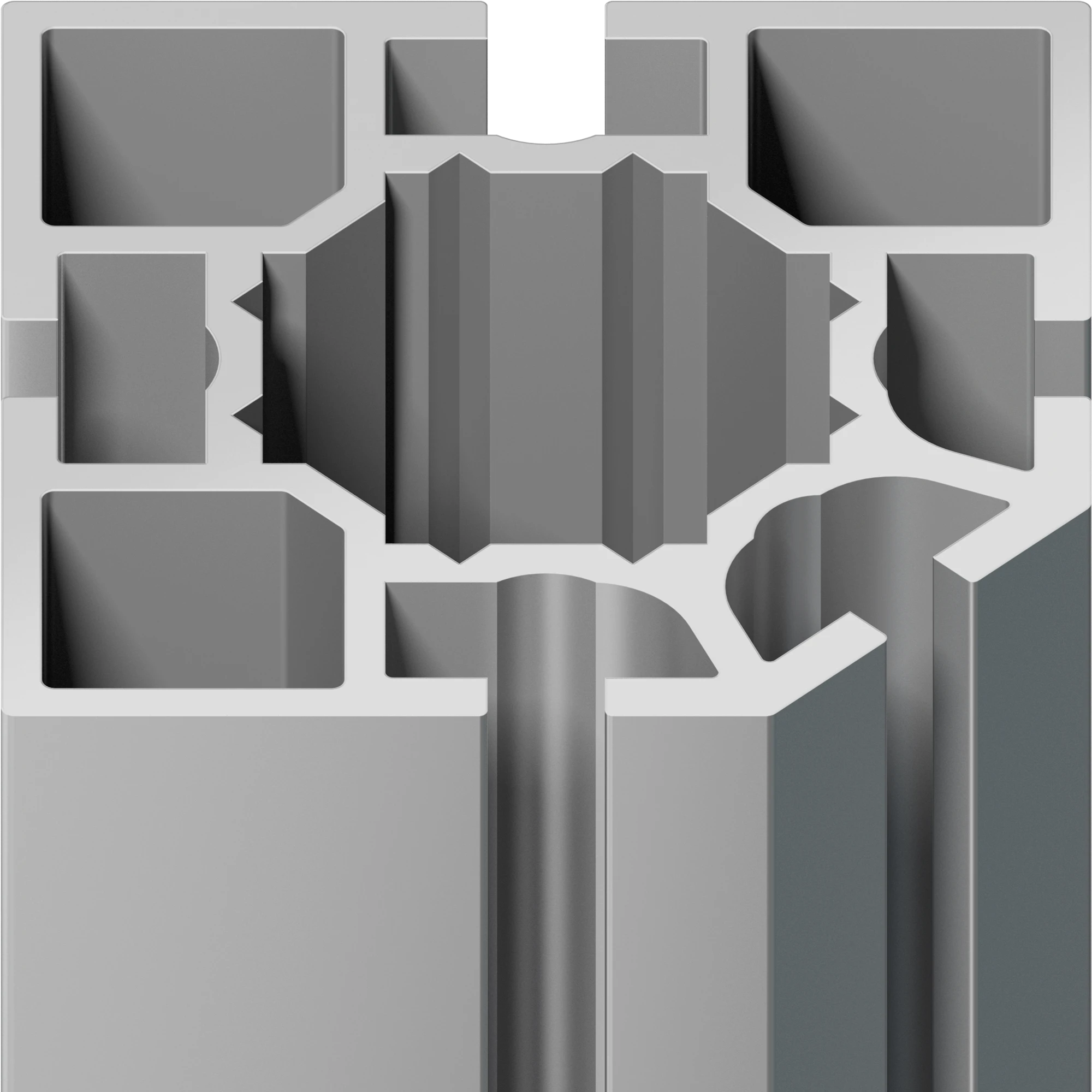

S 380.01
5 system grooves
L 5000 × W 40 × H 40 mm
5000 mm long
matt anodized, silver (E6/EV1)

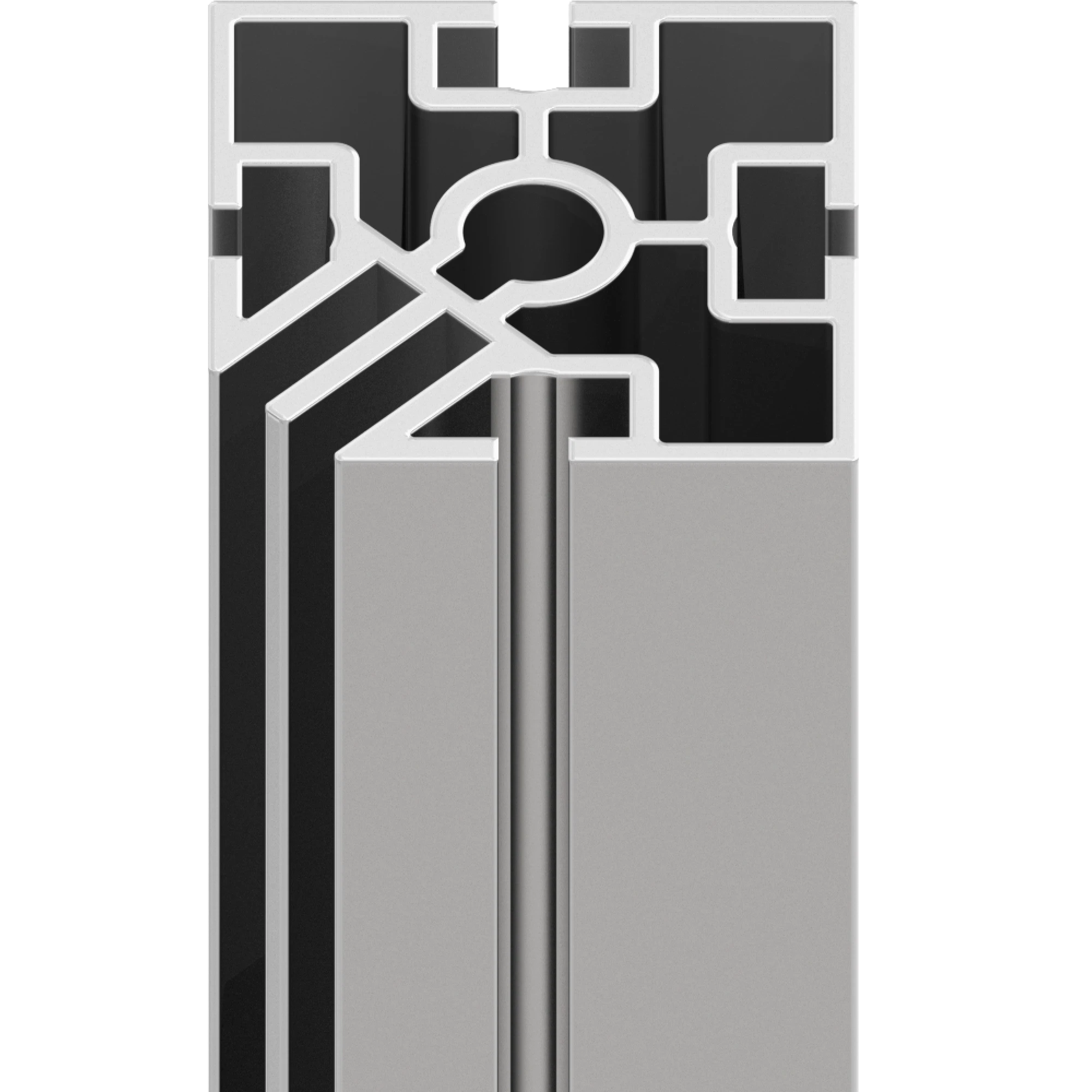

S 382.01
90° corner
with silicone edge groove
L 5000 × W 40 × H 40 mm
matt anodized, silver (E6/EV1)
Z 961/8.00
8 mm
L 70 × W 20 × H 12 mm
raw / unfinished

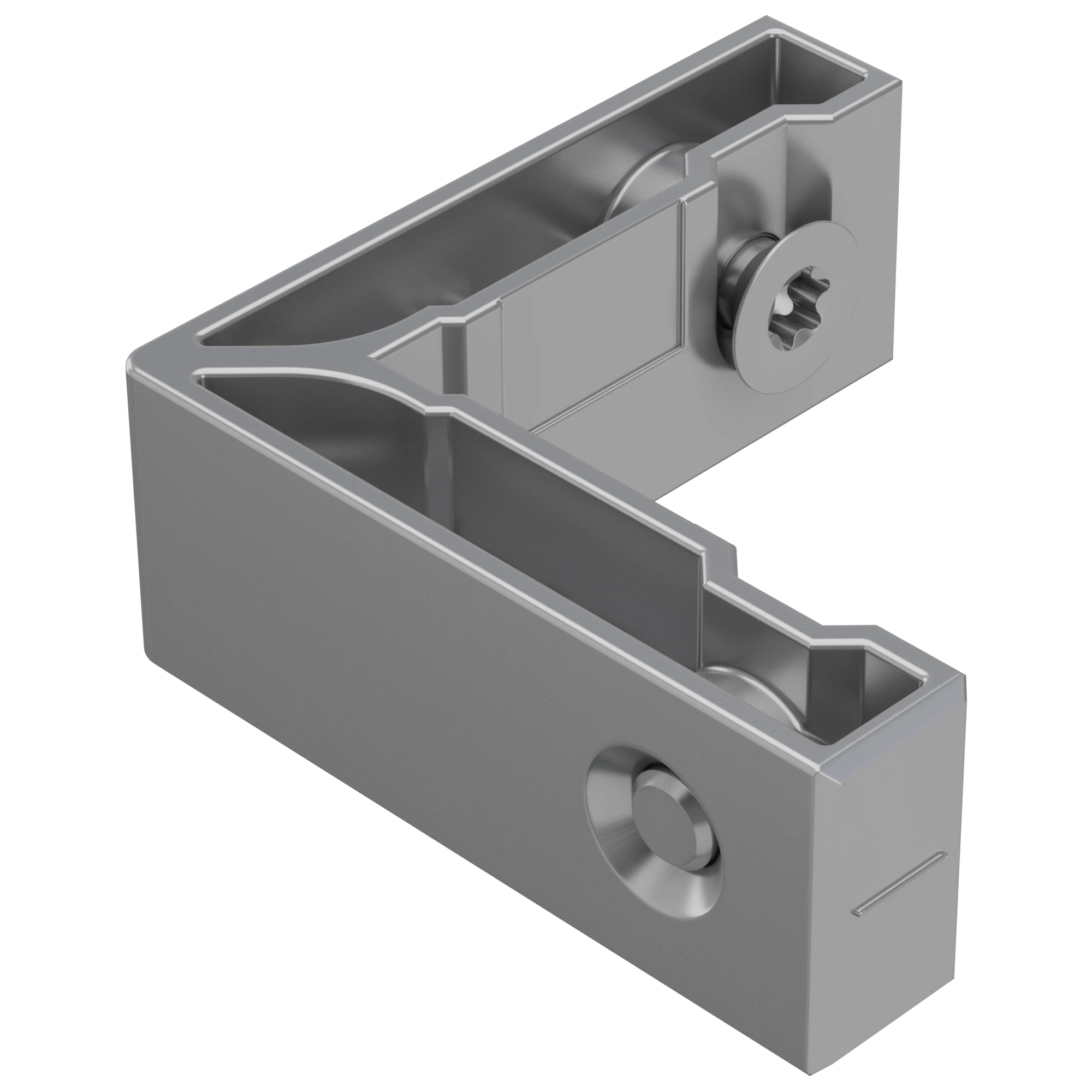

Z 965B.00
90°
lock chamber 21 × 12 mm
L 55 × W 21 × H 12 mm
raw / unfinished

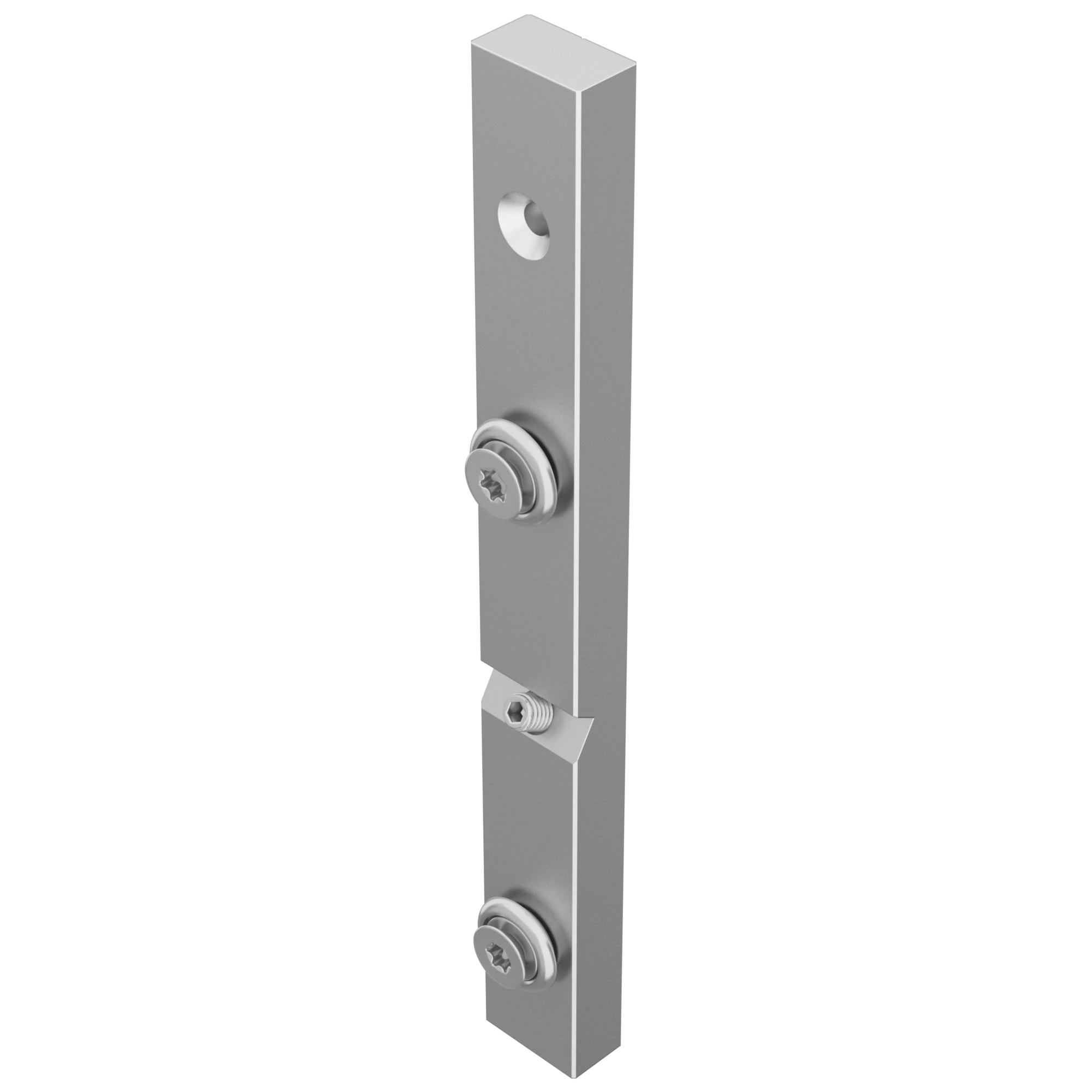

Z 967.00
straight
lock chamber 21 × 12 mm
L 181 × W 12 × H 21 mm
raw / unfinished

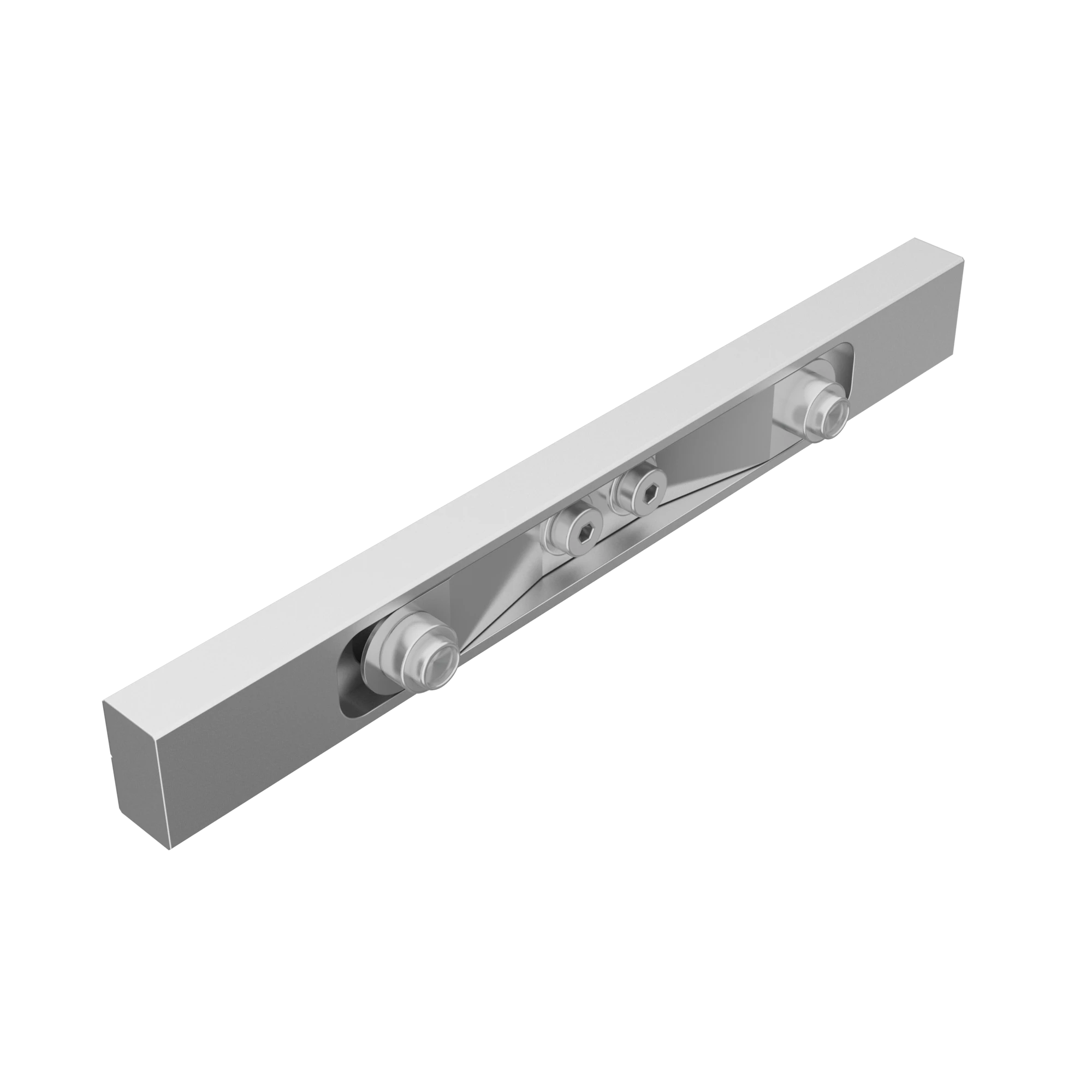

Z 978.90
straight, toolless
lock chamber 21 × 12 mm
L 180 × W 21 × H 12 mm
as catalogue desciption

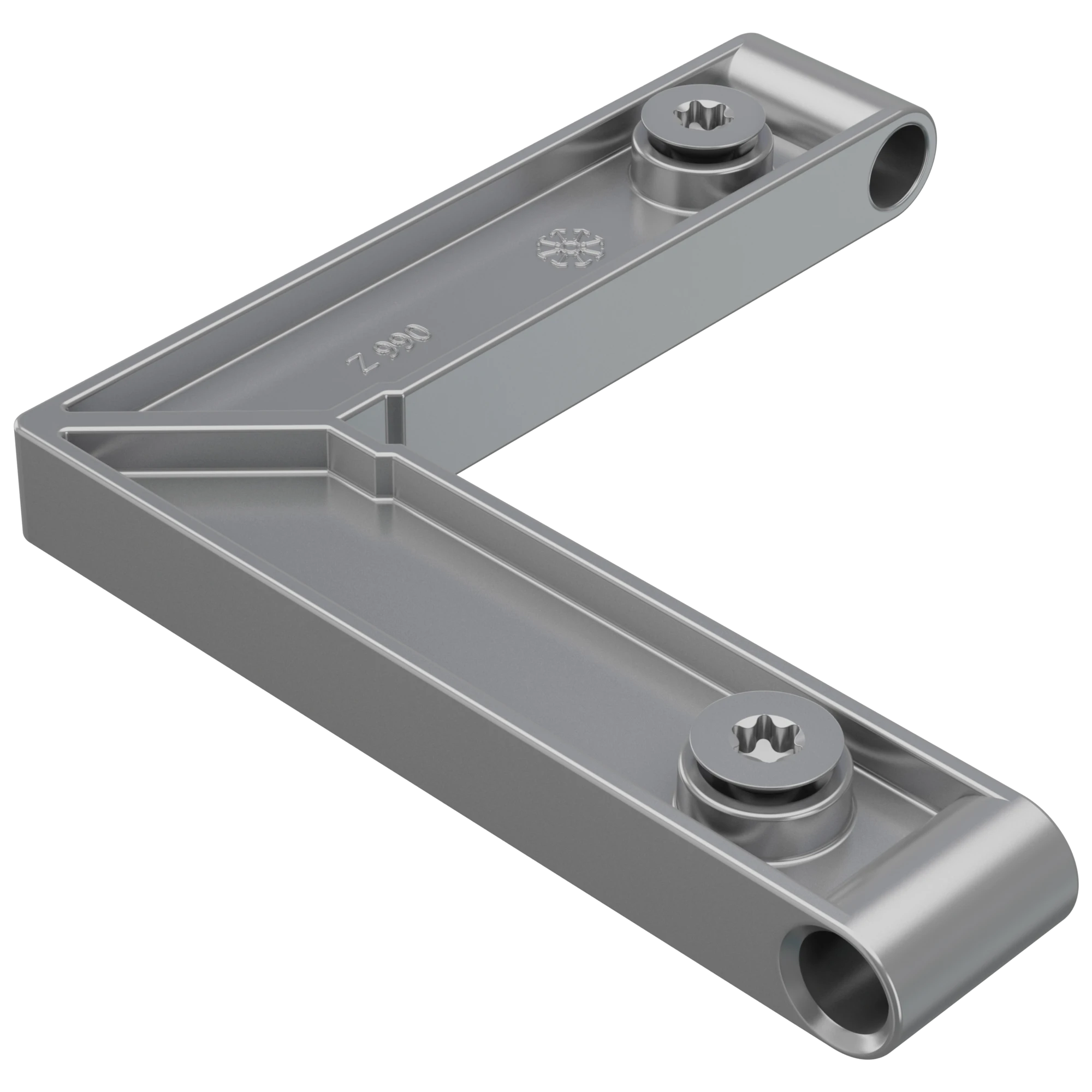

Z 990.00
90°
lock chamber 21 × 12 mm
L 96 × W 96 × H 12 mm
raw / unfinished
Accessories.

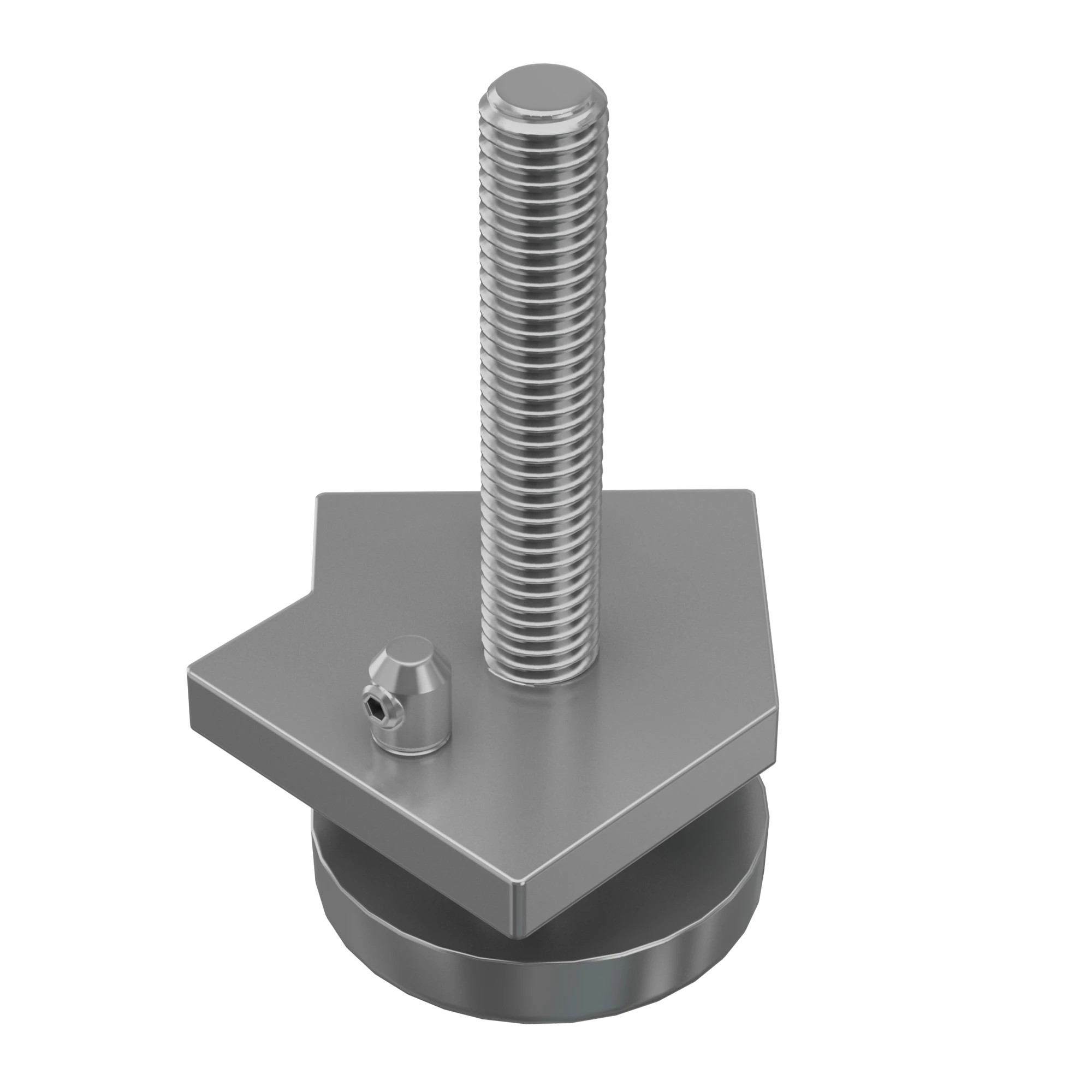

C 441.37
135° corner
for upright M 1009
L 53 × W 39 × H 80 mm
zinc-plated
E 185.01
for monitor 15" - 21"
L 120 × W 120 × H 16 mm
matt anodized, silver (E6/EV1)
E 218.41
max. 45 kg
Opening 12.3 mm dia.
L 28 × W 22 × H 12 mm
polished chrome-plated

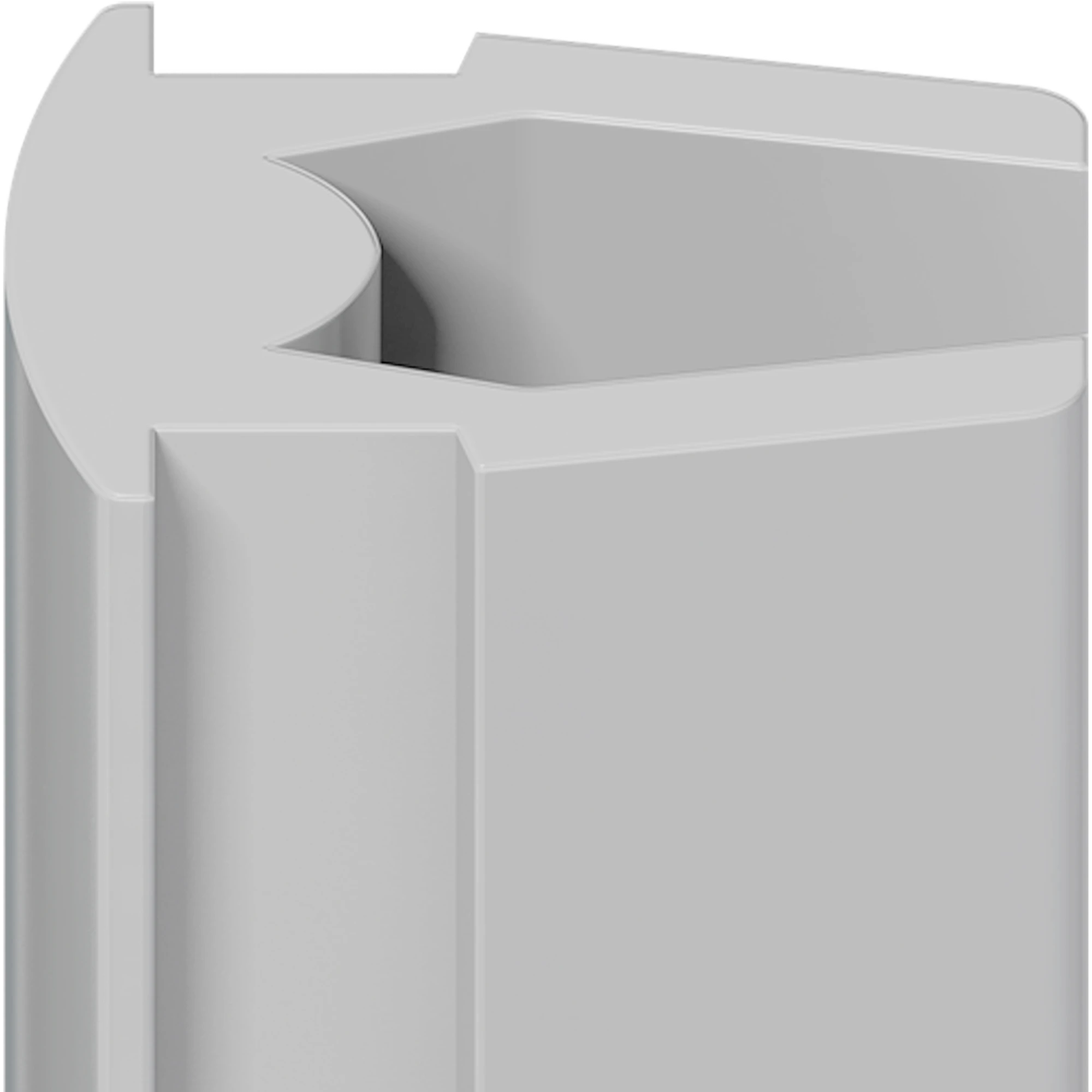

E 455.30
for system groove 4.3 mm
L 5000 × W 6 × H 1 mm
5000 mm long
white

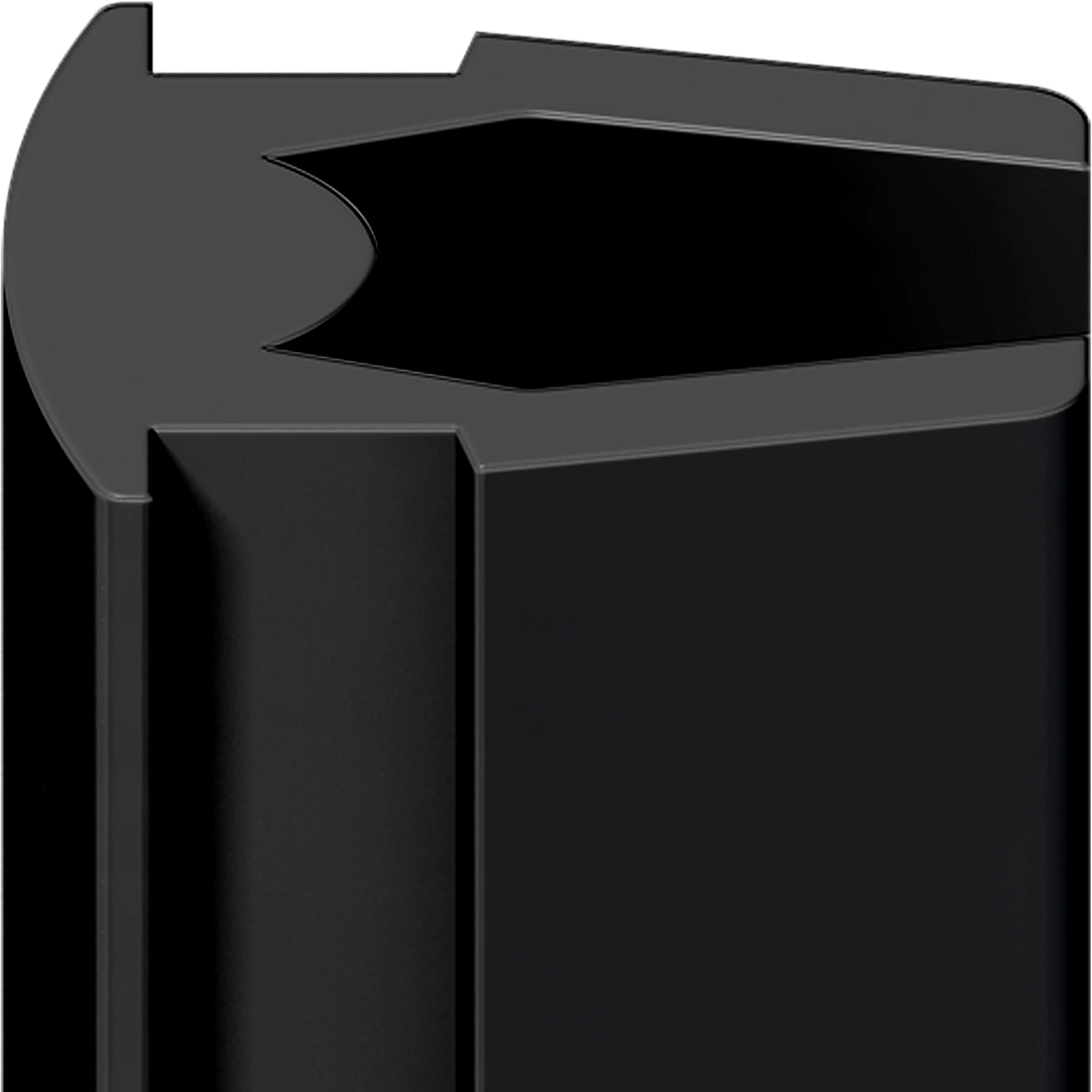

E 455.33
for system groove 4.3 mm
L 5000 × W 6 × H 1 mm
5000 mm long
black

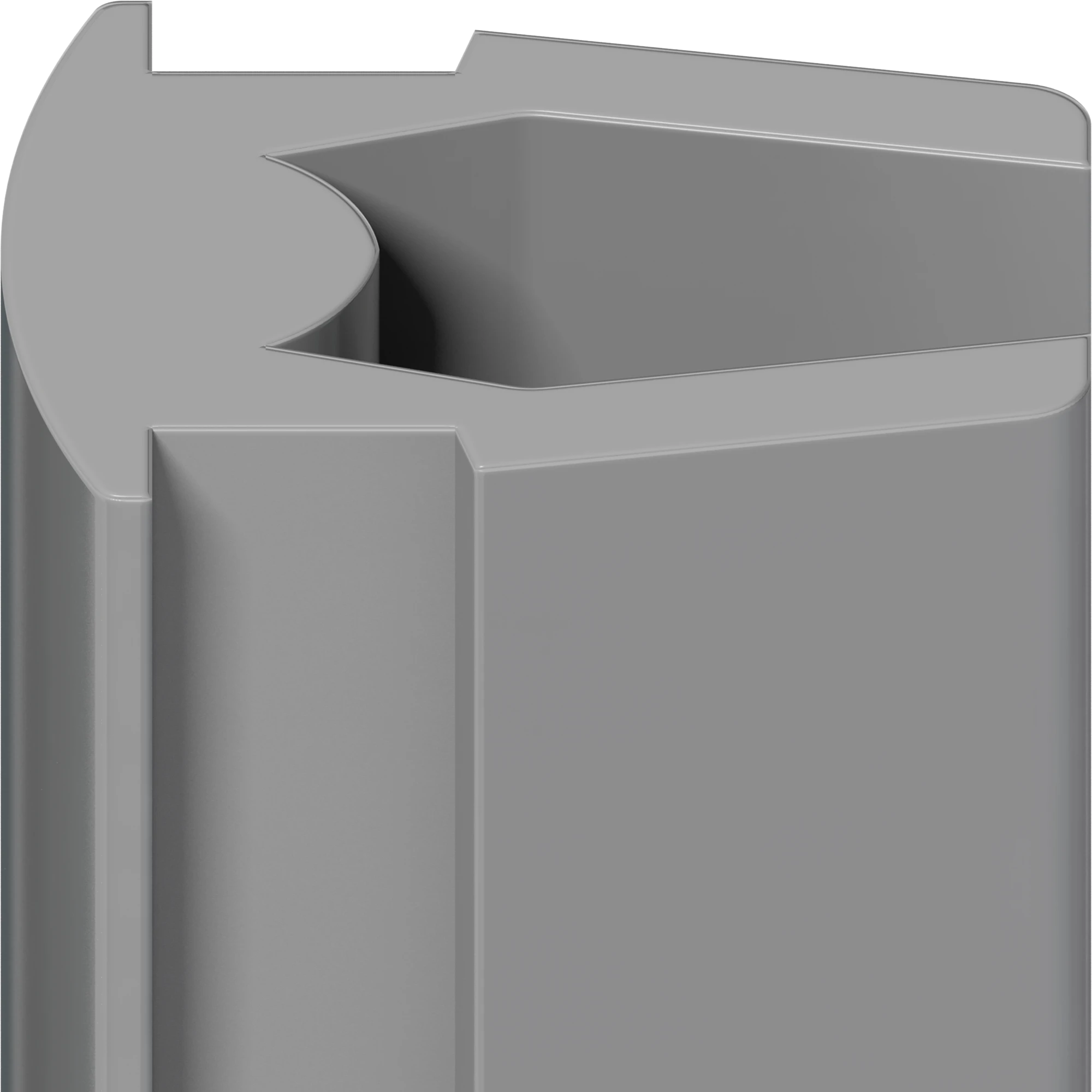

E 455.35
for system groove 4.3 mm
L 5000 × W 6 × H 1 mm
5000 mm long
light grey

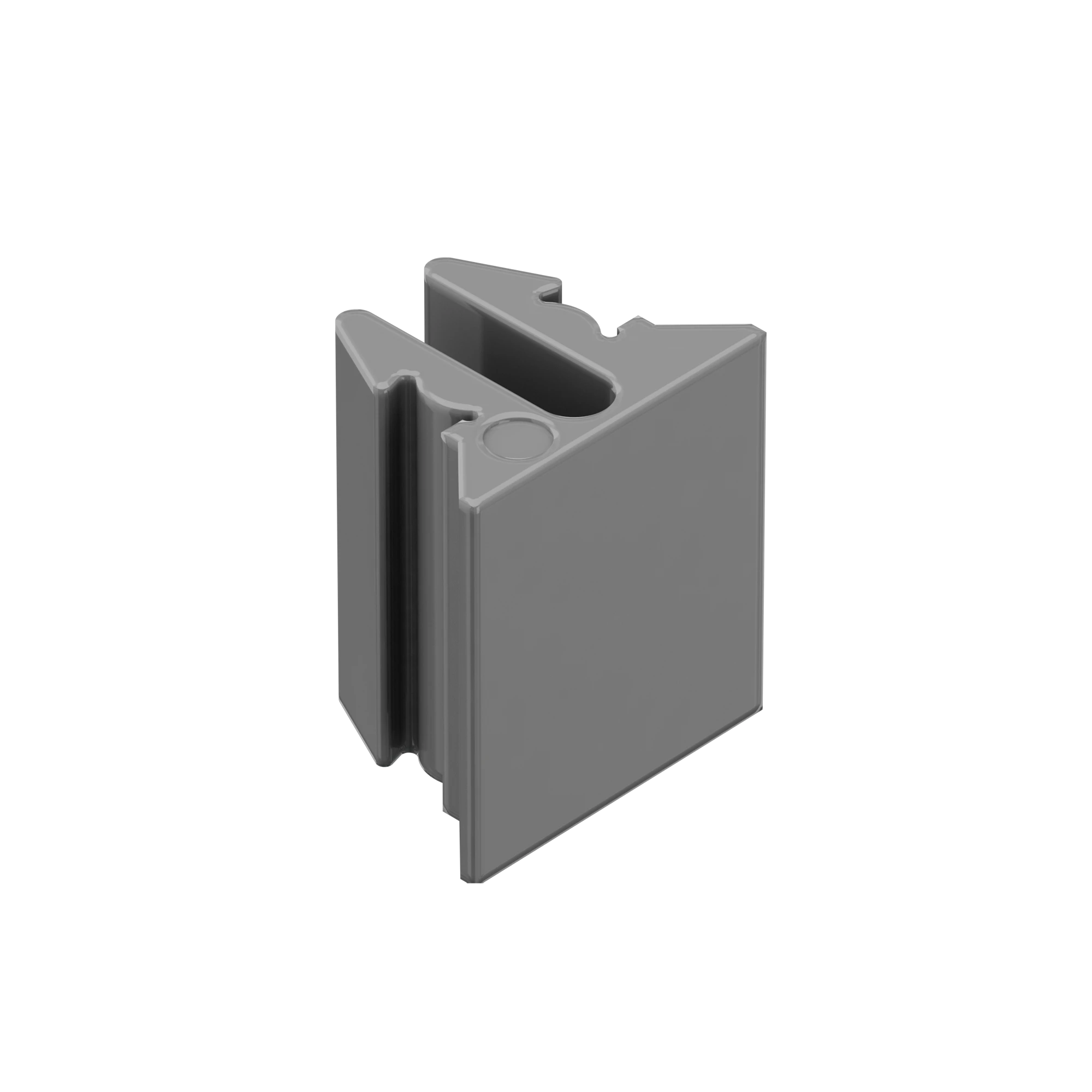

E 470/C.30
for E 470/N / E 471/N
L 10 × W 9 × H 7 mm
white
M 1014.35
for extrusions 40 × 40 mm
L 40 × W 40 × H 12 mm
light grey

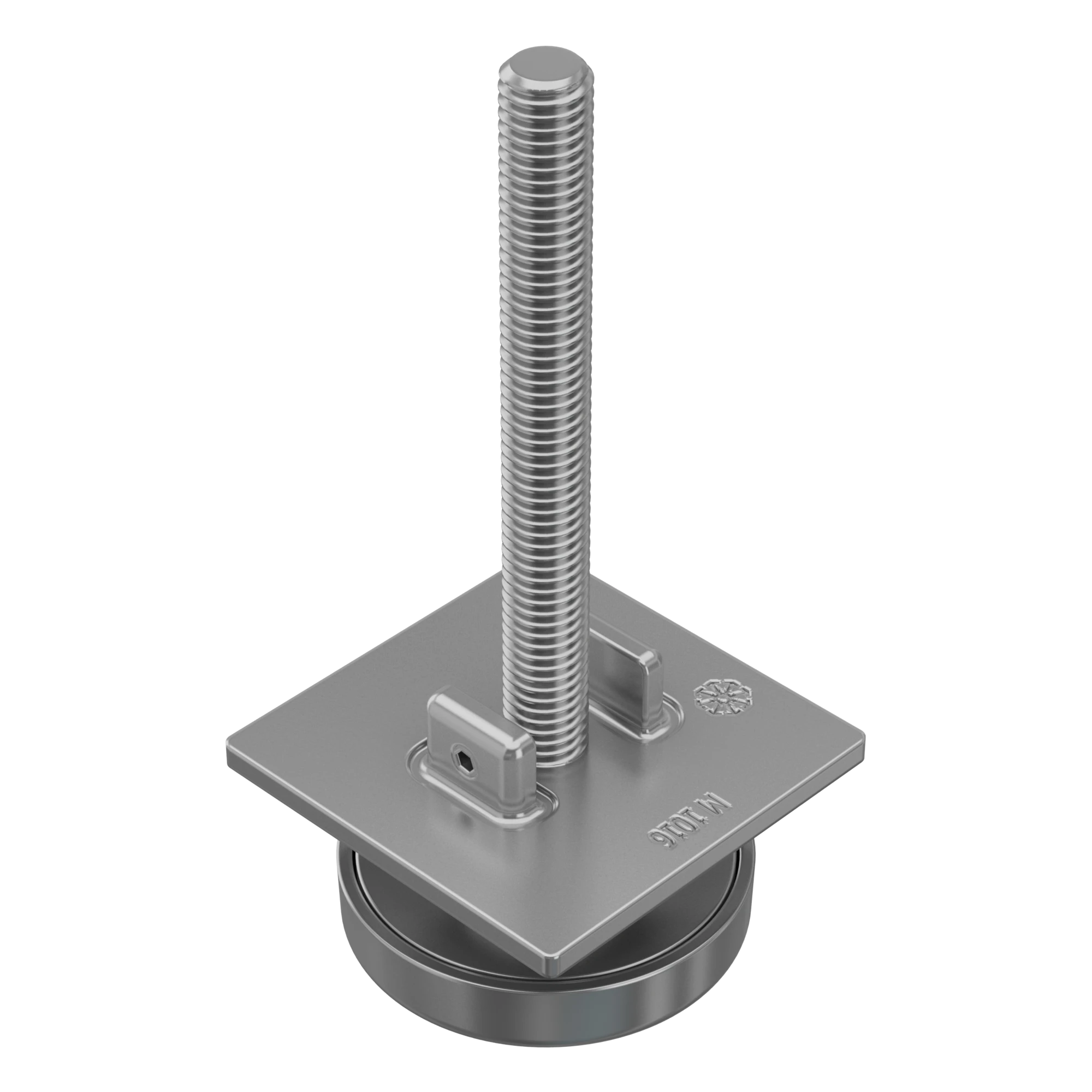

M 1016.37
M8
for extrusions 40 × 40 mm
L 43 × W 43 × H 94 mm
zinc-plated
M 1146.01
with 2 × M 1142
L 40 × W 24 × H 24 mm
40 mm long
matt anodized, silver (E6/EV1)

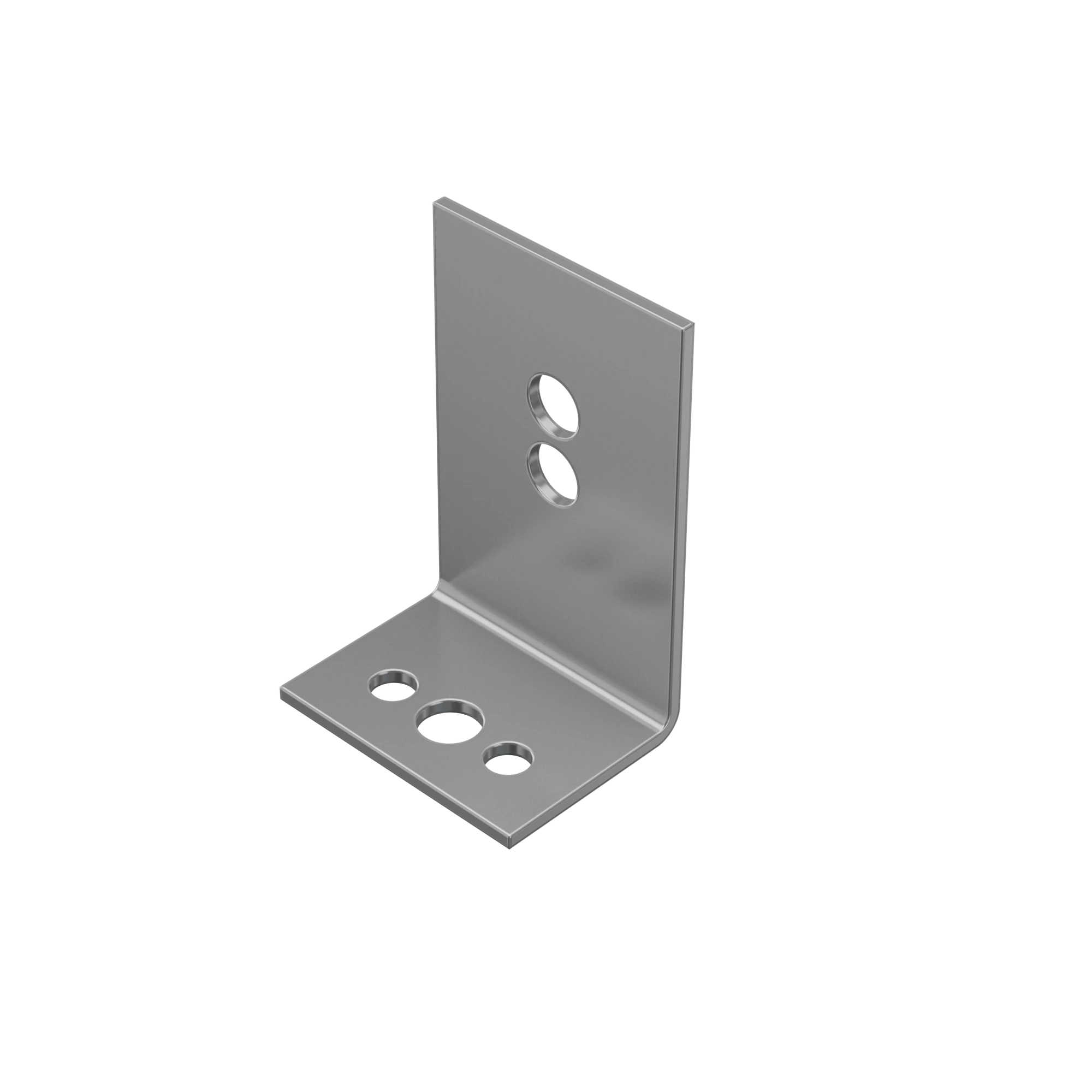

M 1160.37
for extrusions 40/80 mm
L 40 × W 40 × H 60 mm
zinc-plated
M 1174.37
max. 100 kg
for rope suspension
L 76 × W 66 × H 8 mm
zinc-plated
M 1233.37
max. 35 kg
Opening 20 mm dia.
L 36 × W 20 × H 36 mm
zinc-plated
M 1408.21
for upright extrusions
L 320 × W 120 × H 212 mm
silver powder-coated (RAL 9006/IG-54.9006-54)
M 1435.00
incl. 2 × M 1435/70
L 50 × W 56 × H 40 mm
raw / unfinished
M 261.21
for 80 mm extrusions
for M 260
L 120 × W 120 × H 6 mm
silver powder-coated (RAL 9006/IG-54.9006-54)
M 271.21
for 120 mm extrusions
for M 260
L 120 × W 120 × H 6 mm
silver powder-coated (RAL 9006/IG-54.9006-54)

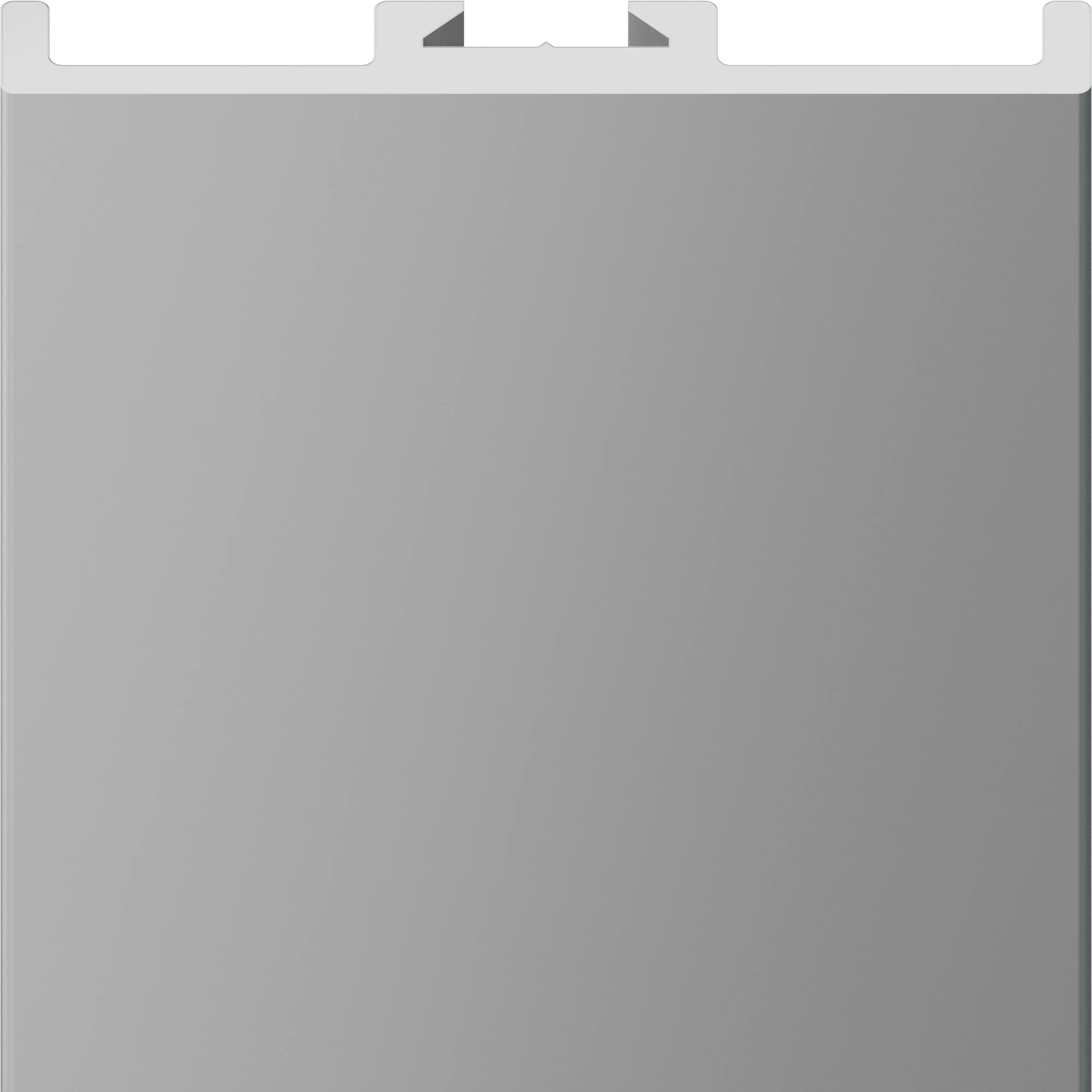

W 910.01
for extrusions 40 mm
L 5000 × W 40 × H 5 mm
matt anodized, silver (E6/EV1)

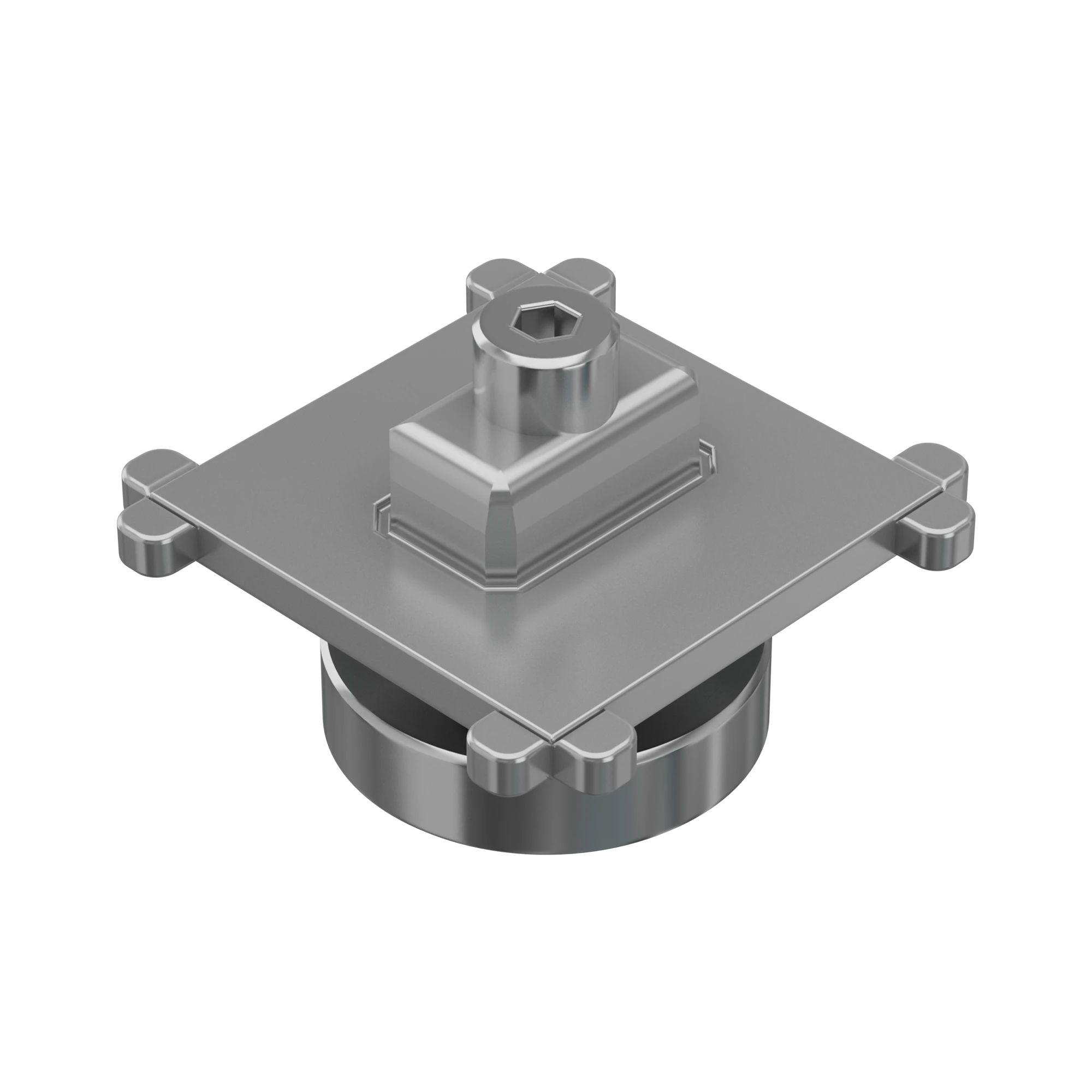

W 913.37
for uprights 40 × 40 mm
L 39 × W 39 × H 34 mm
zinc-plated
Z 910.01
with 2 × Z 961/13
L 62 × W 16 × H 50 mm
matt anodized, silver (E6/EV1)
Safety parts.
Doors.

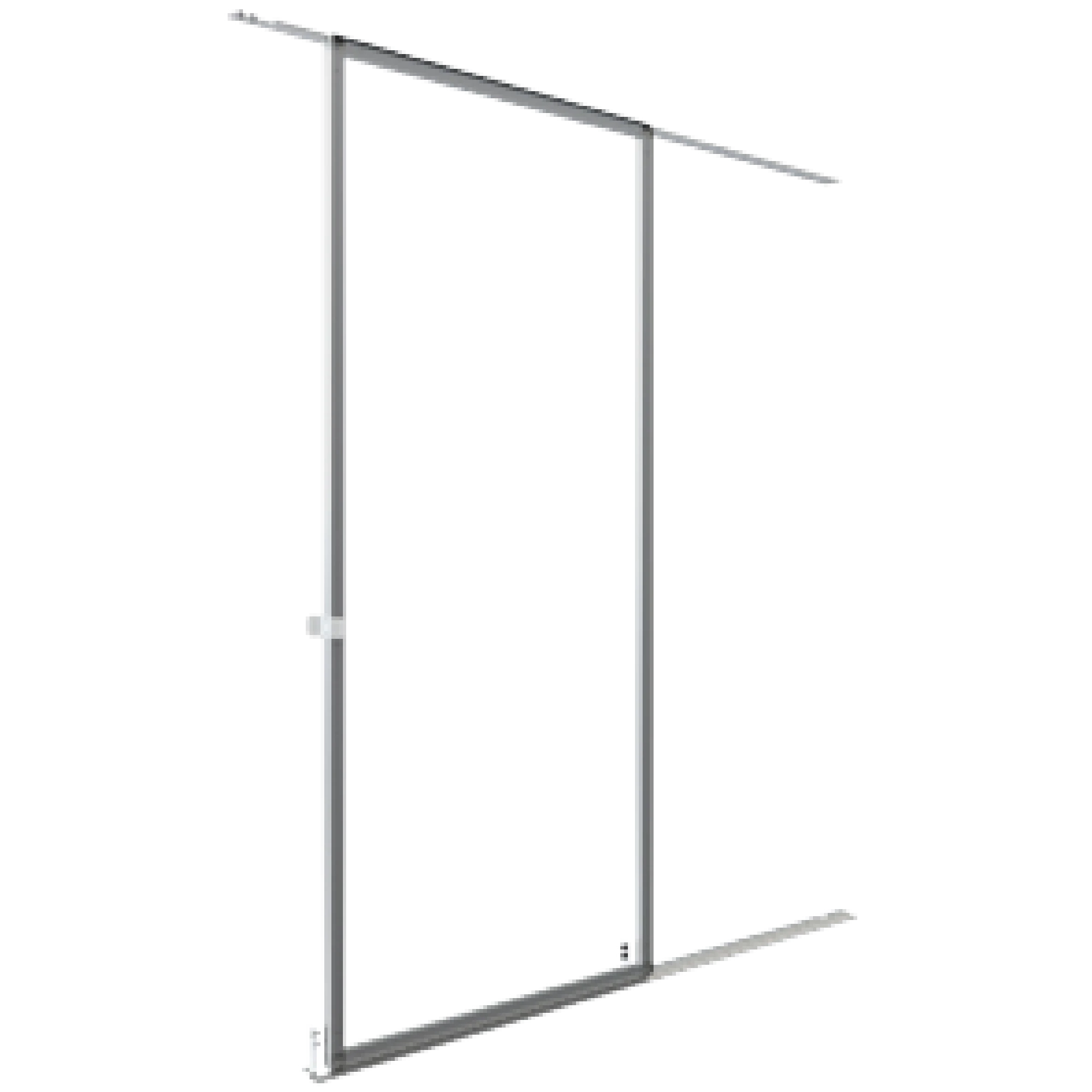

W 420.01
opening W 950 × H 2500 mm
W 1975 × H 2500 × D 80 mm
matt anodized, silver (E6/EV1)
W 514.38
for W 425 / W 575 / W 805
L 61 × W 42 × H 28 mm
nickel-plated
W 524.37
for axis measurement 990 mm
for W 510/Z / W 580/Z
L 1140 × W 50 × H 5 mm
zinc-plated

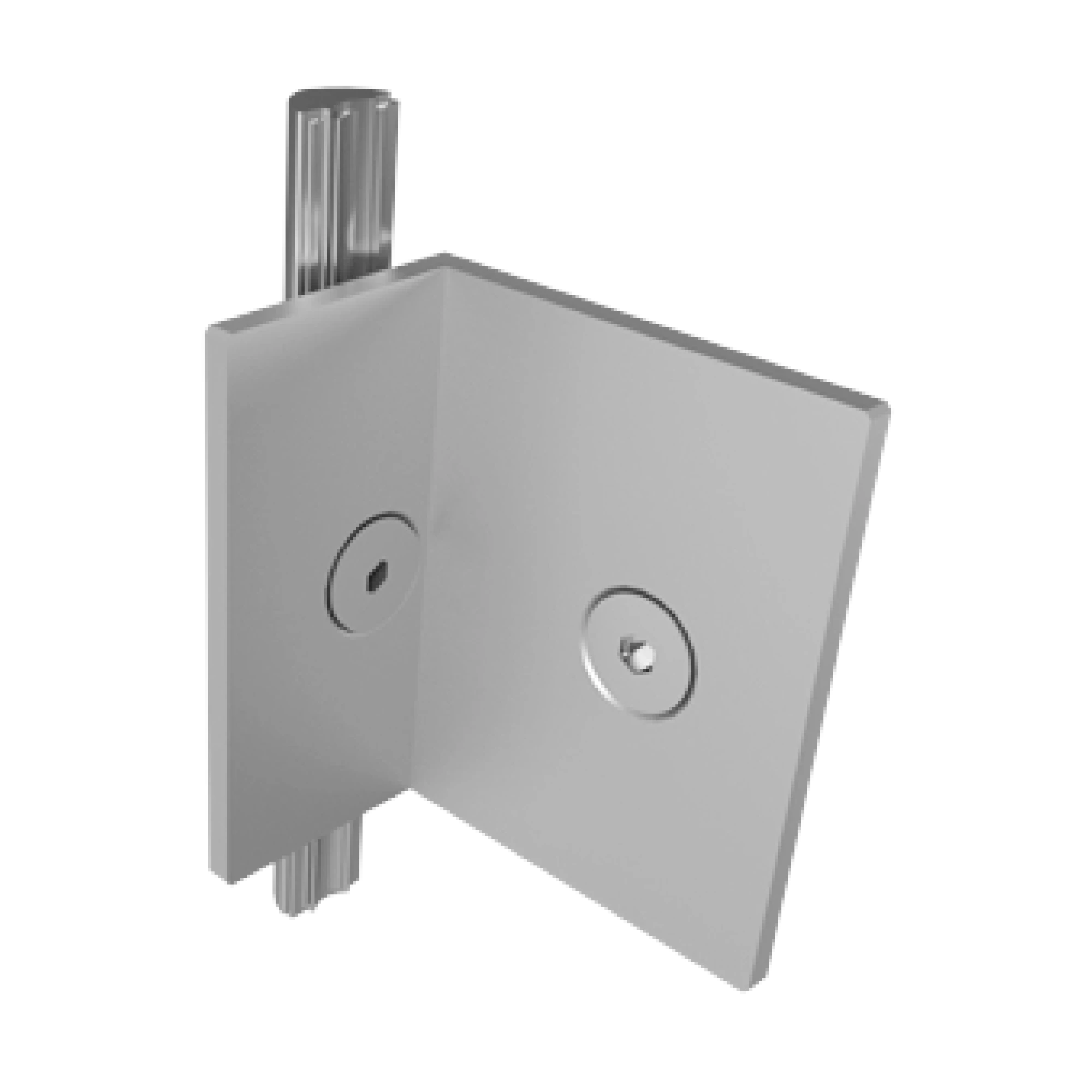

W 575-040.01
for door W 575
integration into 40 mm
L 20 × W 32 × H 60 mm
matt anodized, silver (E6/EV1)
W 575-SET.01
for 40/80/120 mm
W 950 × H 2500 × D 40 mm
matt anodized, silver (E6/EV1)
W 575So.01
for 40/80/120 mm
40 mm, custom size
matt anodized, silver (E6/EV1)
W 580-Set.30
Set right
W 860 × H 1985 × D 39 mm
white
W 580/Z.01
for door panel W 580 / W 581
W 950 × H 2030 × D 16 mm
matt anodized, silver (E6/EV1)
W 581-Set.30
Set left
W 860 × H 1985 × D 39 mm
white
Fabric/Panel/Glass.
E 420.30
for glass 4-8 mm
L 5000 × W 16 × H 16.5 mm
5000 mm long
white
E 420.33
for glass 4-8 mm
L 5000 × W 16 × H 16.5 mm
5000 mm long
black
E 420.35
for glass 4-8 mm
L 5000 × W 16 × H 16.5 mm
5000 mm long
light grey
E 424.30
for glass 4-6 mm
L 5000 × W 16 × H 10 mm
5000 mm long
white
E 424.35
for glass 4-6 mm
L 5000 × W 16 × H 10 mm
5000 mm long
light grey

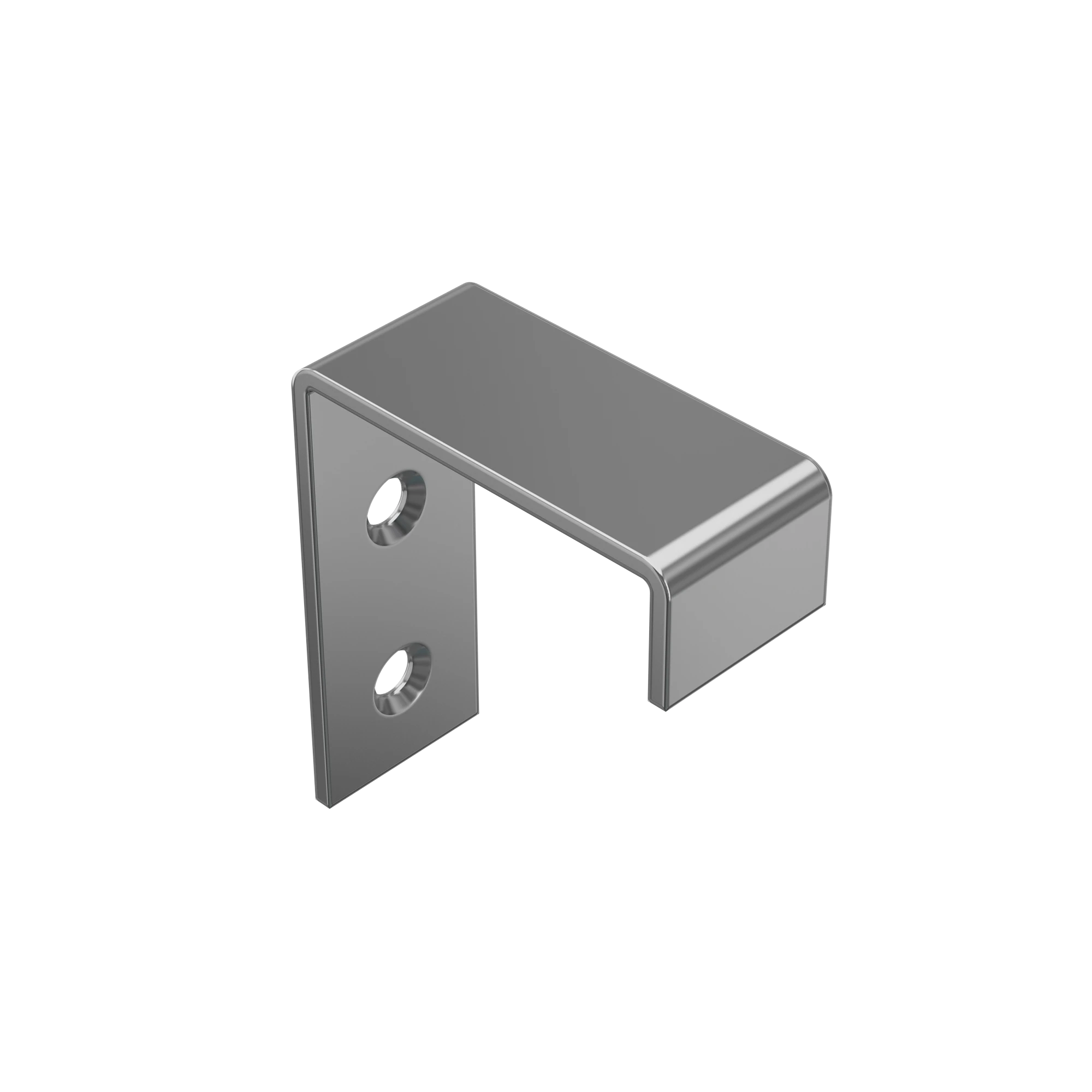

M 1050.38
for extrusions 40 × 40 mm
L 40.5 × B 20 × H 50 mm
nickel-plated

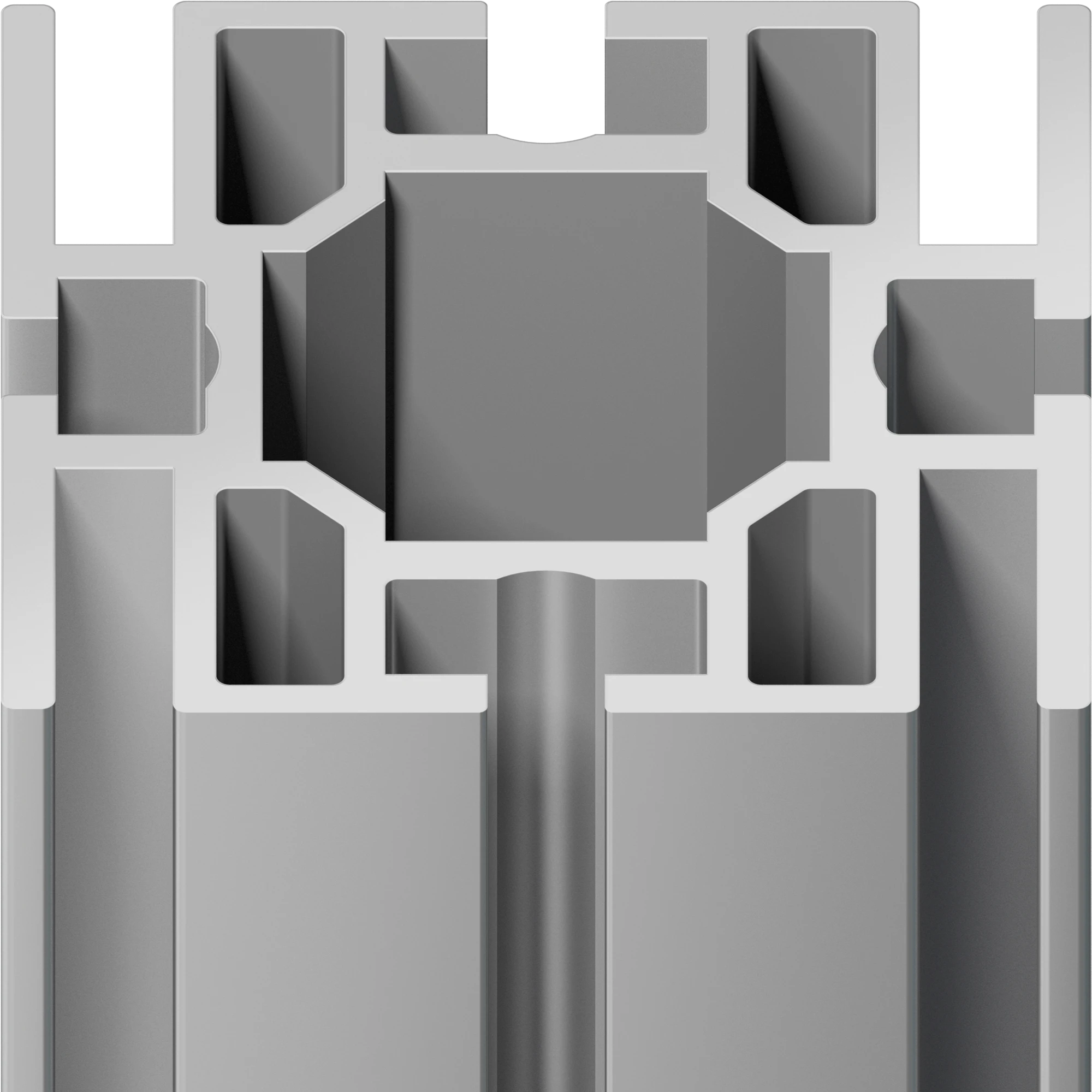

M 1305.01
for double sided fabric
L 6000 × W 40 × H 40 mm
matt anodized, silver (E6/EV1)
M 1310.01
for double sided fabric
L 6000 × W 40 × H 10 mm
matt anodized, silver (E6/EV1)
M 1319.35
for system groove 4.3 mm
for single sided fabric
L 6000 × W 15 × H 20 mm
6000 mm long
light grey
M 1321.01
45°
for single sided fabric
L 6000 × W 43 × H 20 mm
6000 mm long
matt anodized, silver (E6/EV1)
M 1322.01
for single sided fabric
L 6000 × W 28.5 × H 20 mm
6000 mm long
matt anodized, silver (E6/EV1)
M 1322/E.01
90° outer corner
for single sided fabric
L 6000 × W 48.5 × H 27.8 mm
6000 mm long
matt anodized, silver (E6/EV1)
M 1322/I.01
90° internal corner
for single sided fabric
L 6000 × W 56.3 × H 27.8 mm
matt anodized, silver (E6/EV1)
M 1345.37
for M 1310/M 1325/M 1330
L 28 × W 24 × H 24 mm
zinc-plated
M 1348.37
for M 1321 / M 1322/E/I
L 21 × W 24 × H 24 mm
zinc-plated
M 1391.90
for glass 5-6 mm
for panel max. 10 mm
L 30 × W 30 × H 8 mm
as catalogue desciption
M 1392.90
for glass 8-10 mm
for panel max. 14 mm
L 30 × W 30 × H 8 mm
as catalogue desciption
M 1445.39
for glass 8 mm
L 38 × W 23 × H 52 mm
matt chrome-plated
M 1447.39
for glass 10 mm
L 45 × W 27.5 × H 63 mm
matt chrome-plated
M 1467.39
for glass 12 mm
L 45 × W 27.5 × H 63 mm
matt chrome-plated

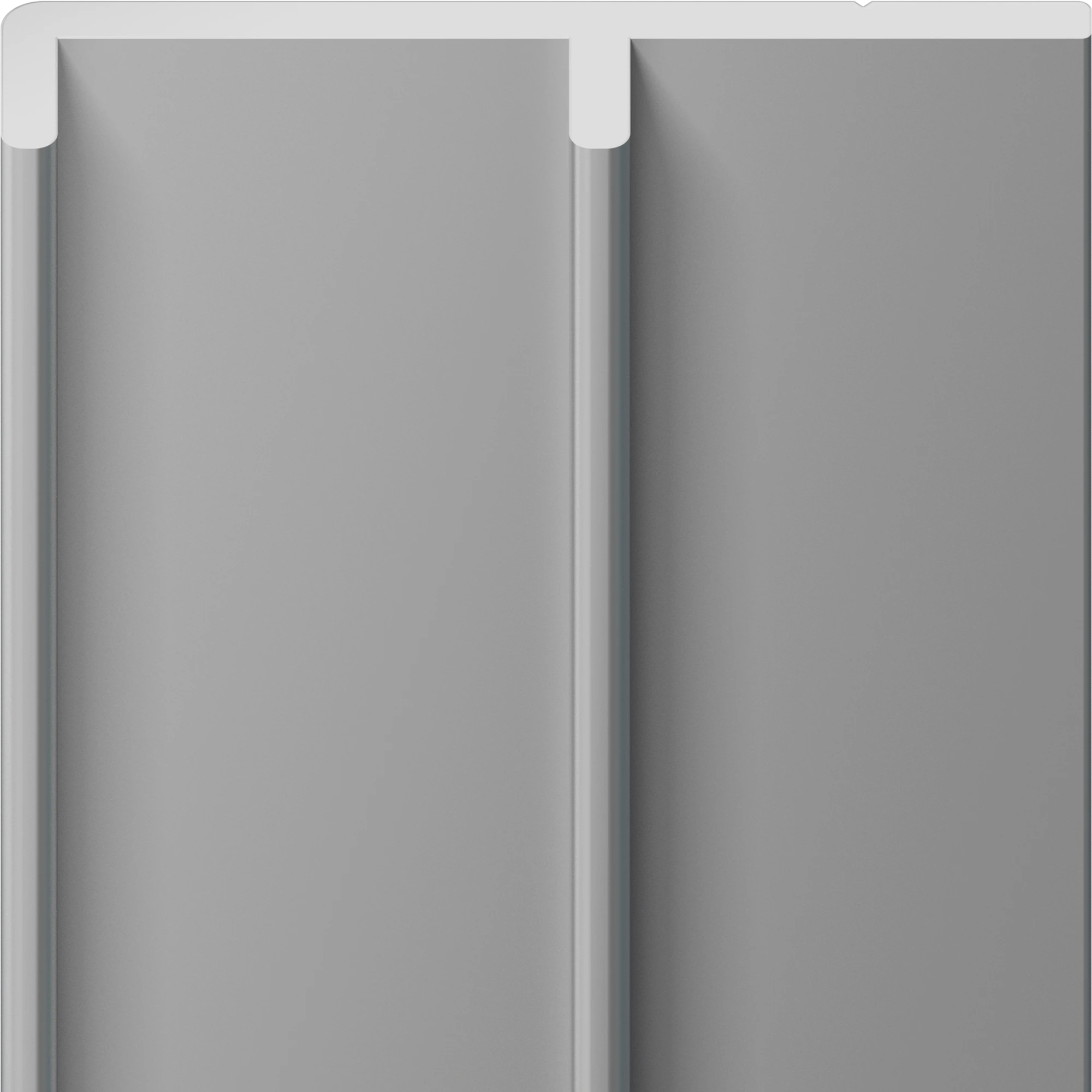

M 1562.00
top
for extrusions 40 × 40 mm
L 5000 × W 38 × H 6 mm
5000 mm long
raw / unfinished

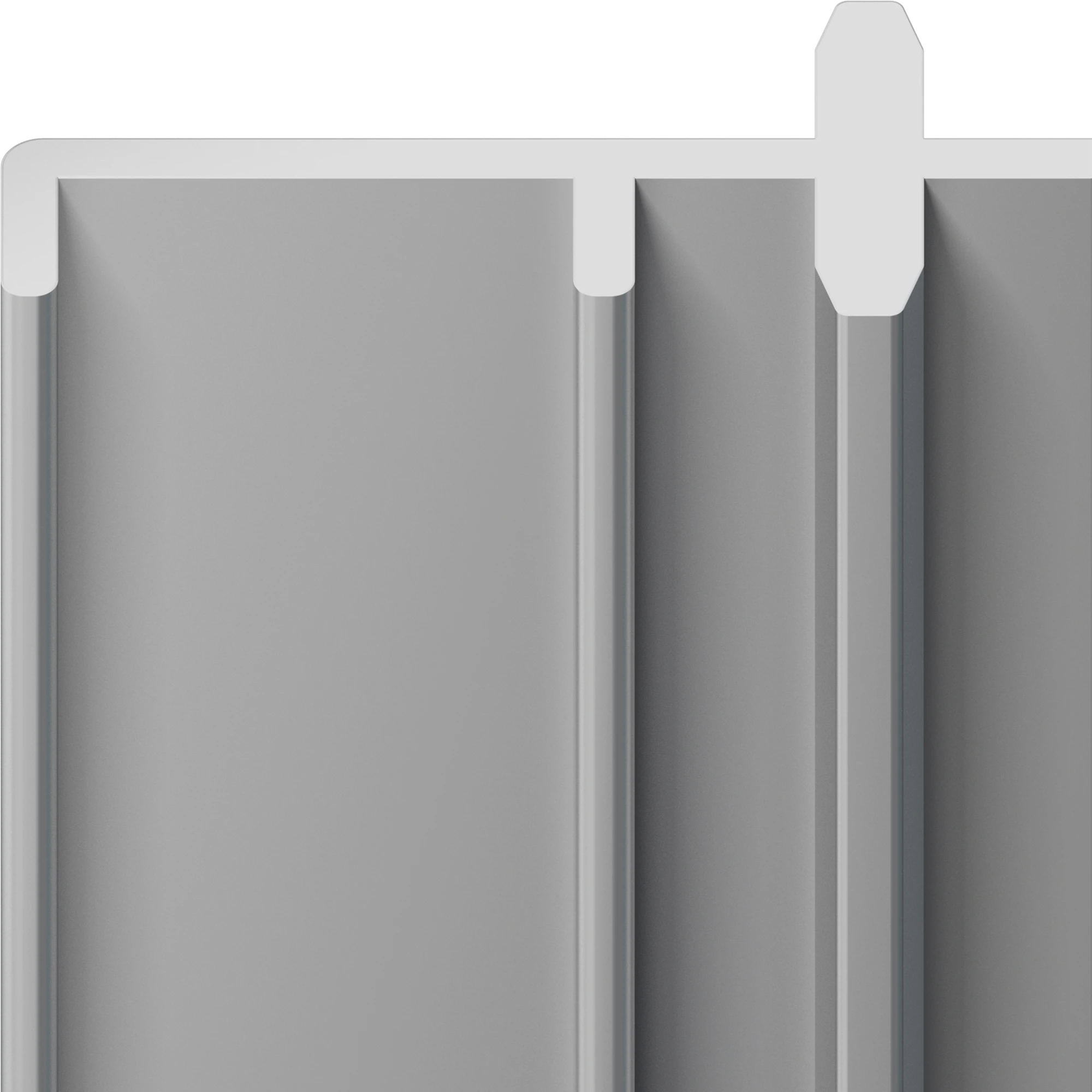

M 1567.00
centre
for extrusions 40 × 40 mm
L 5000 × W 38 × H 14 mm
5000 mm long
raw / unfinished

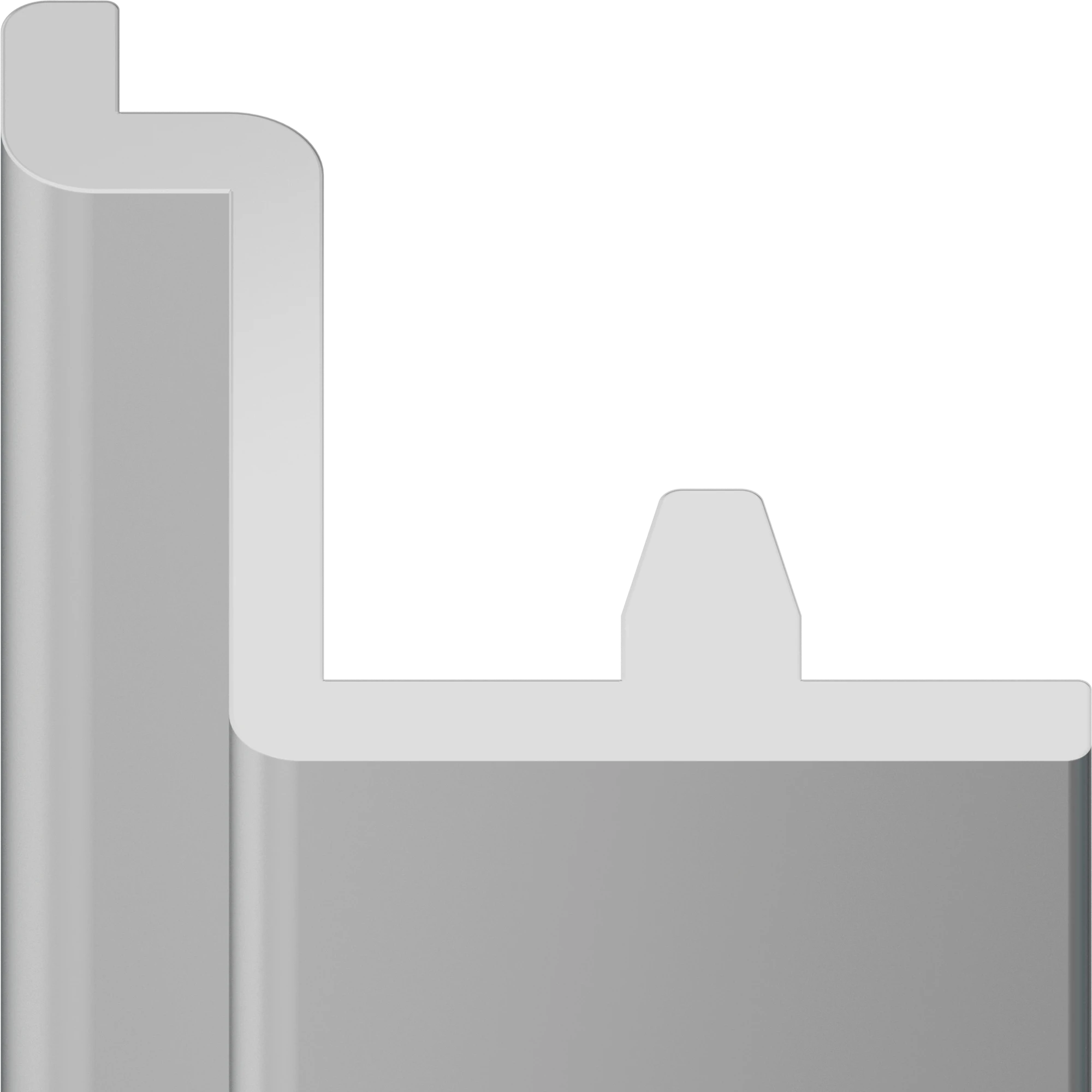

M 1571.00
bottom
for extrusions 40 × 40 mm
L 5000 × W 23 × H 24 mm
5000 mm long
raw / unfinished

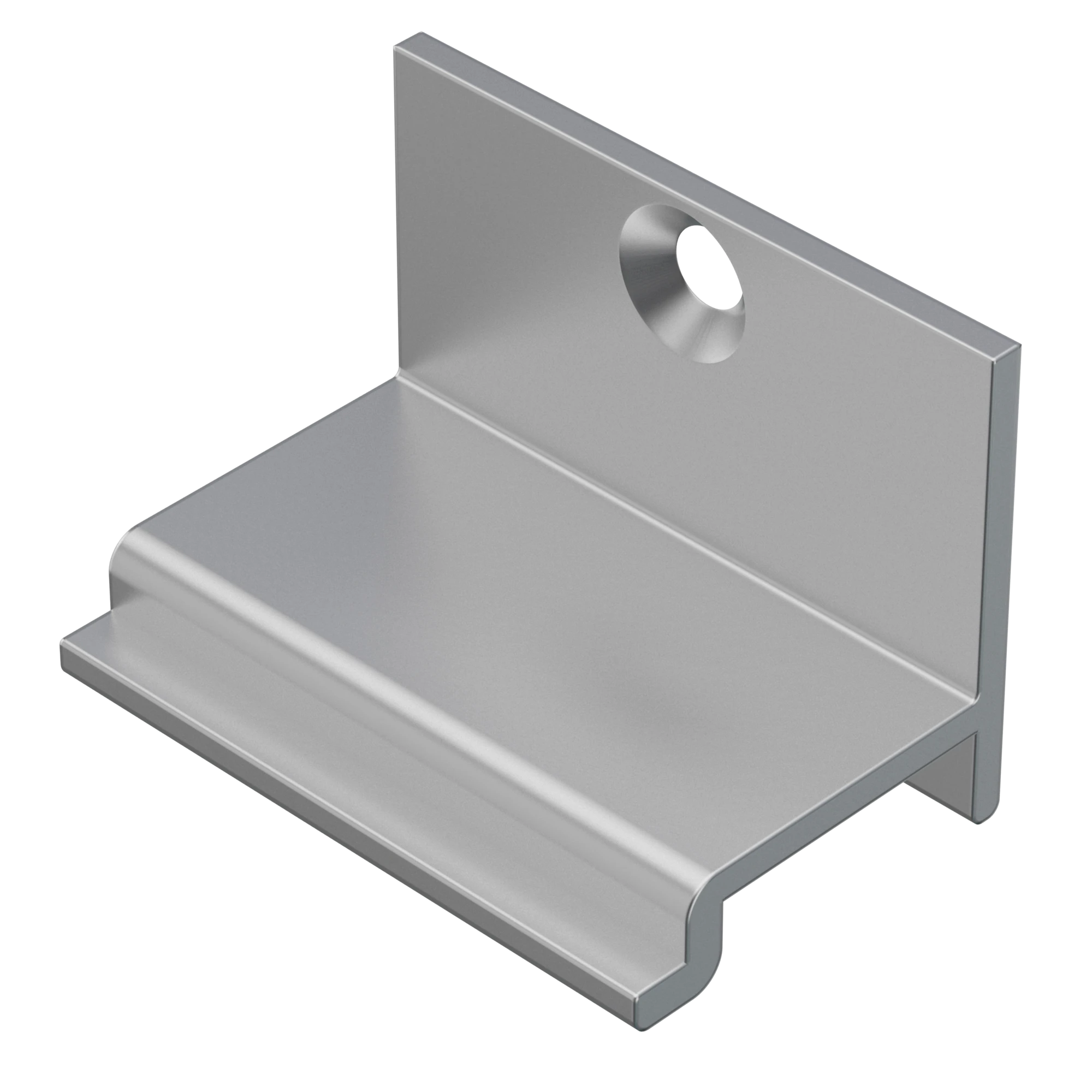

M 1575.00
for system groove 4.3 mm
for 40 mm extrusions
L 50 × W 28 × H 28 mm
raw / unfinished
Hinges.
M 1457.39
for system groove 4.3 mm
L 24 × W 24 × H 74 mm
matt chrome-plated

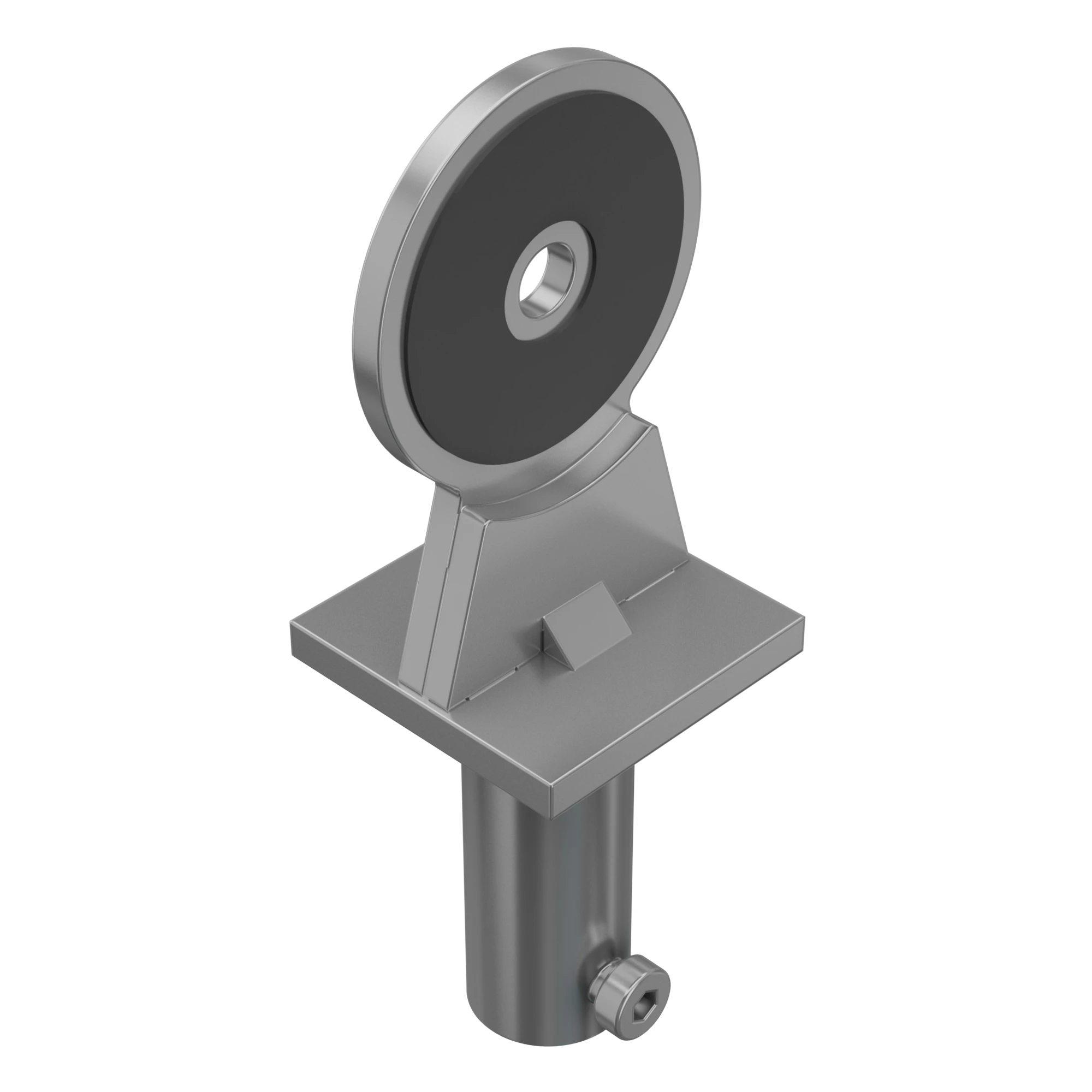

M 1541.21
for extrusions 40 × 40 mm
L 42 × W 42 × H 130 mm
silver powder-coated (RAL 9006/IG-54.9006-54)

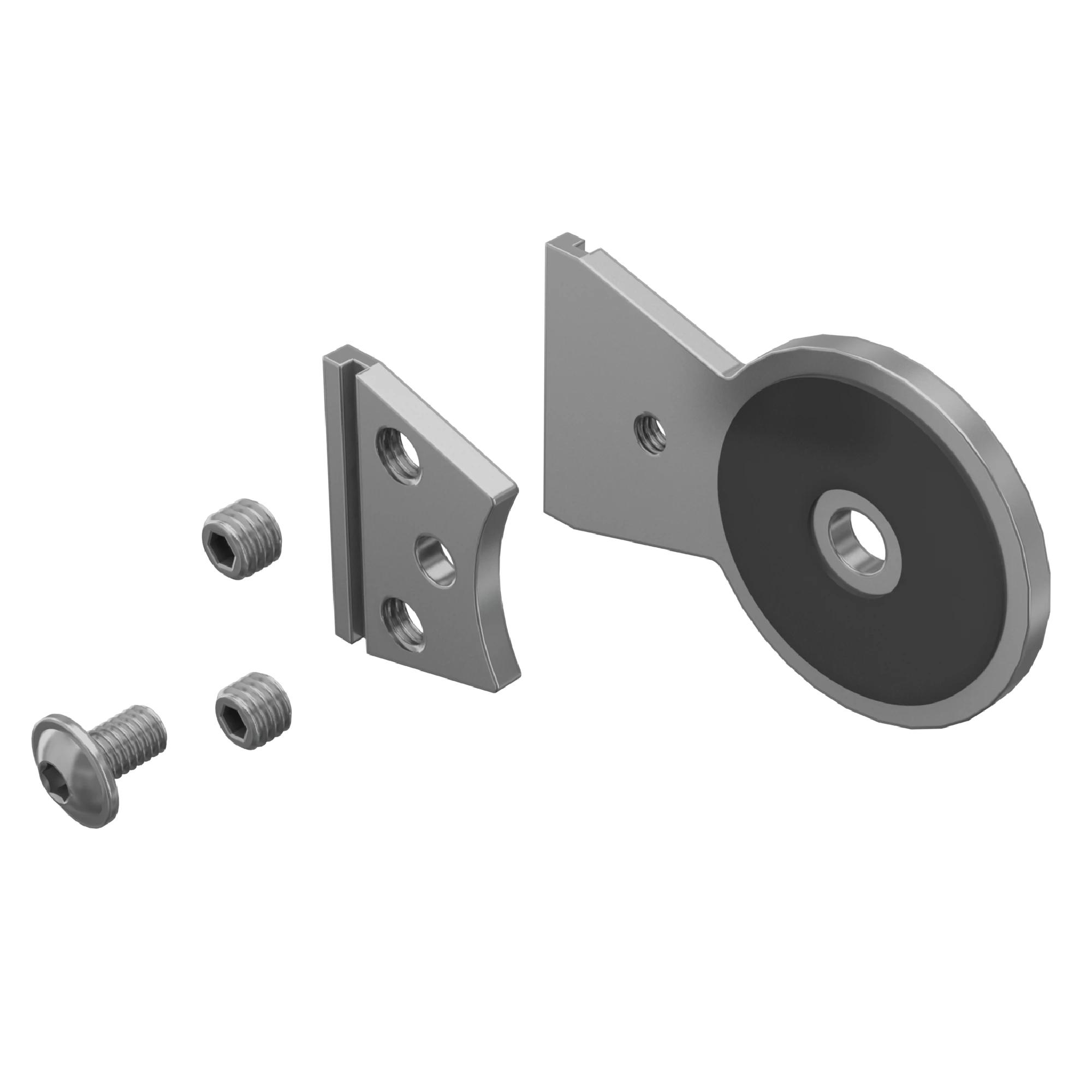

M 1557.21
for 49 dia.
L 75 × W 4 × H 49 mm
silver powder-coated (RAL 9006/IG-54.9006-54)

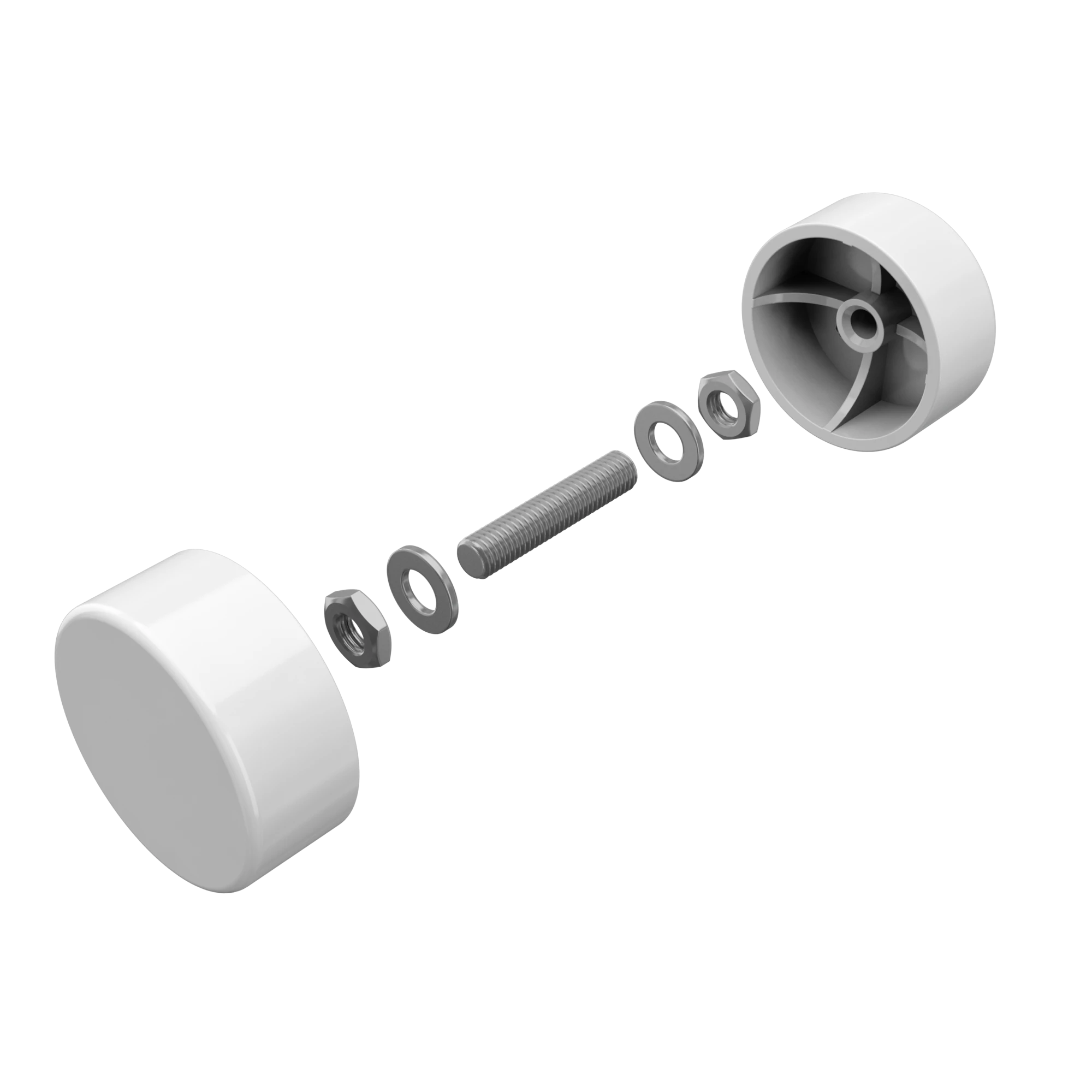

M 1558.35
for 49 mm dia.
L 50 × W 21 × H 50 mm
light grey

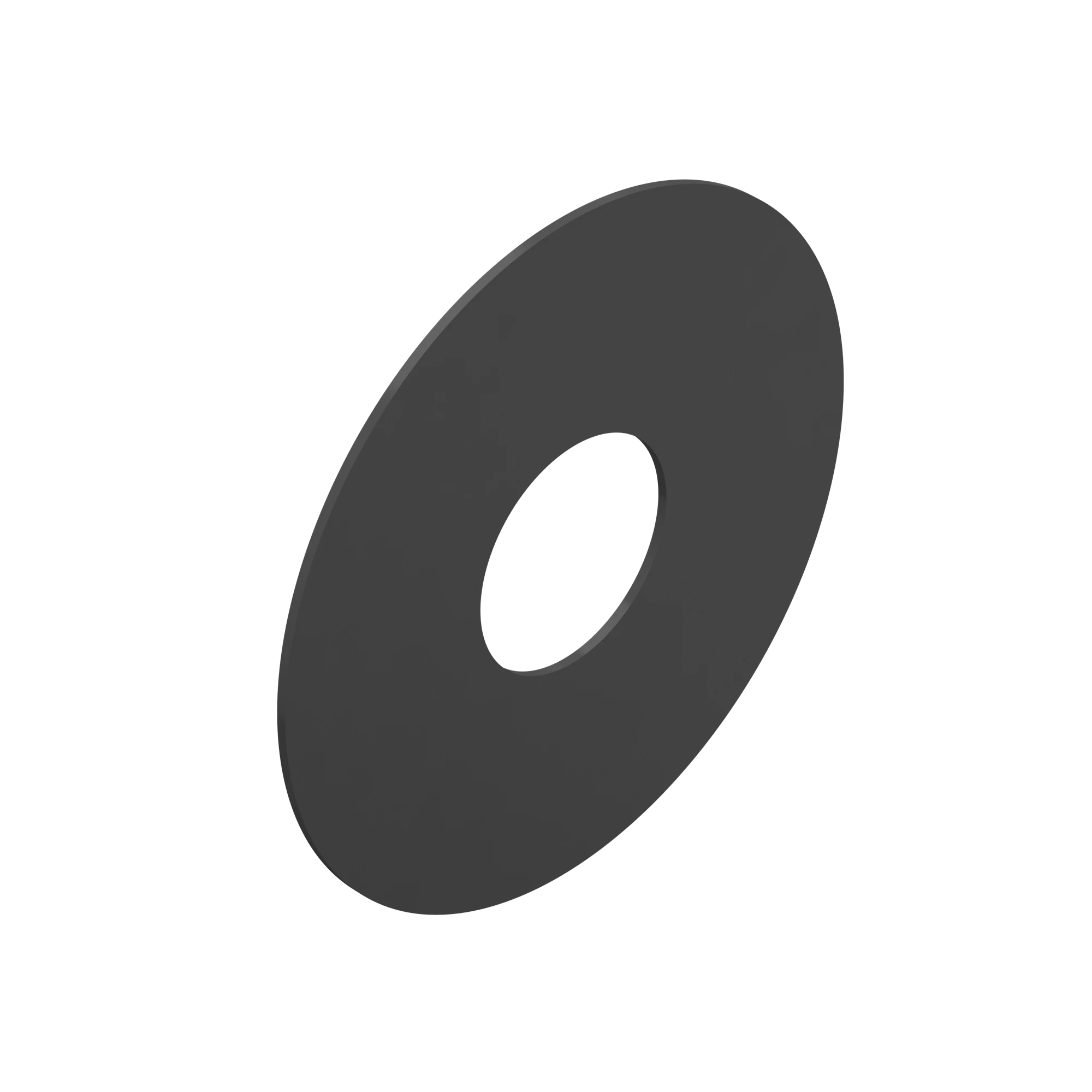

M 1599.33
for 49 mm dia.
L 42 × W 0.6 × H 42 mm
flocked

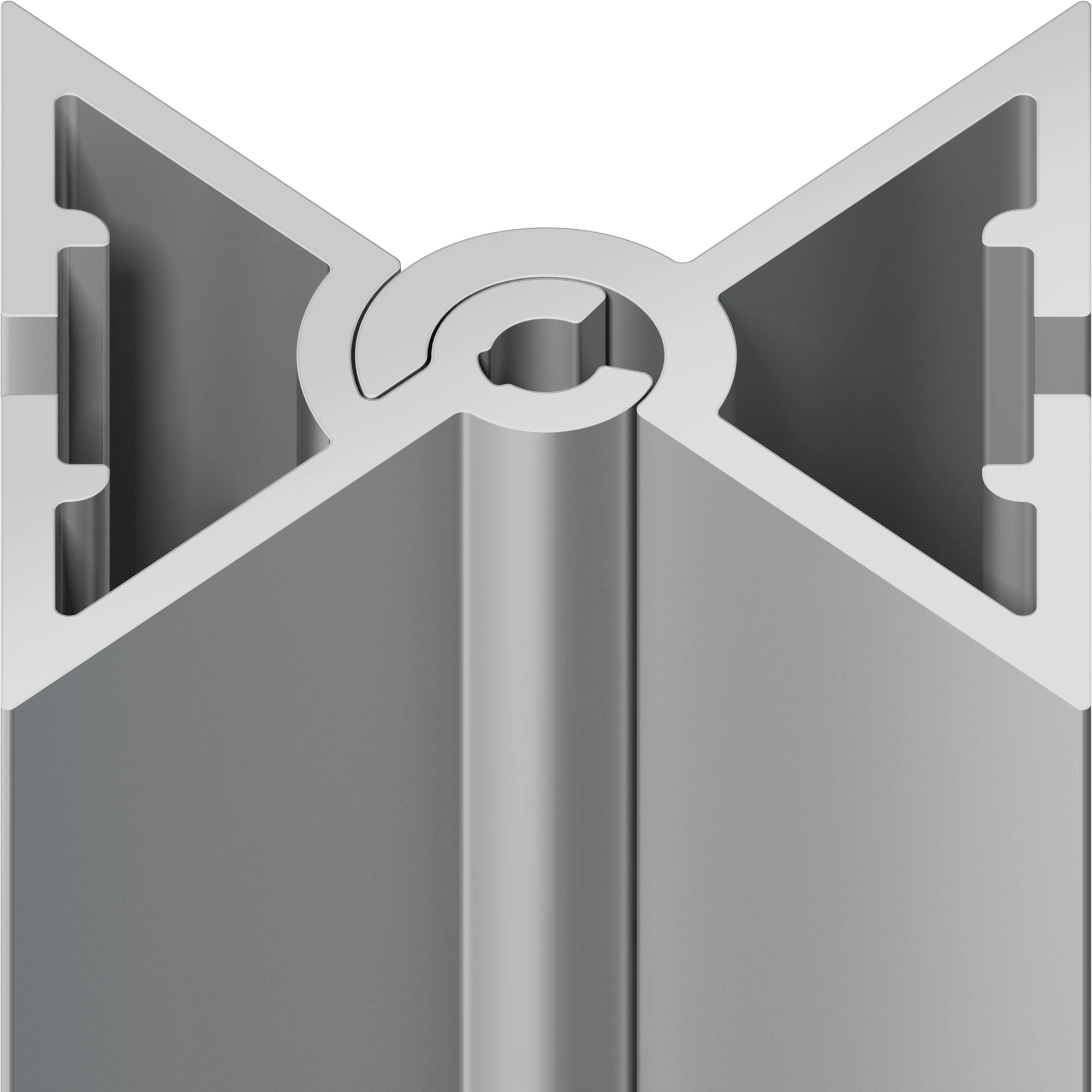

W 908.01
90°-180° angle
L 5000 × W 40 × H 40 mm
matt anodized, silver (E6/EV1)
Electrical parts.
E 460.30
small
for system groove 4.3 mm
L 5000 × W 16 × H 20 mm
white
E 460.35
small
for system groove 4.3 mm
L 5000 × W 16 × H 20 mm
light grey
E 463.35
big
for system groove 4.3 mm
L 5000 × W 30 × H 30 mm
5000 mm long
light grey
M 1481.01
for long-arm floodlight M 1498
L 26 × W 35 × H 16 mm
matt anodized, silver (E6/EV1)
M 1494-1000.33
for M 1494
1000 mm long
black
M 1494-2000.33
for M 1494
2000 mm long
black
M 1494-3000.33
for M 1494
3000 mm long
black
M 1494.31
25 W
L 490 × W 232 × H 40 mm
silver-grey
M 1494.33
25 W
L 490 × W 232 × H 40 mm
black
M 1497-1.33
for wallwasher M 1497
3000 mm long
black
M 1497-11.90
for wallwasher M 1497
L 1175 × W 72 × H 35 mm
as catalogue desciption
M 1497-12.90
for wallwasher M 1497
2500 mm long
black
M 1497-3.90
Y-Splitter
for wallwasher M 1497
300 mm long
black
M 1497-4.90
for wallwasher M 1497
L 150 × W 40 × H 20 mm
as catalogue desciption
M 1497-H.33
LED / 56W / 230V
L 818 × W 150 × H 35 mm
matt powder-coated
M 1497.31
LED / 28W / 230V
L 812 × W 166 × H 263 mm
silver-grey
M 1497.33
LED / 28W / 230V
L 812 × W 166 × H 263 mm
black
M 1498.31
LED / 12W / 230V
L 535 × W 119 × H 250 mm
silver-grey
OL 3100.01
1 illuminated side
L 1000 × W 80 × H 80 mm
matt anodized, silver (E6/EV1)
OL 3100.03
1 illuminated side
L 1000 × W 80 × H 80 mm
matt anodized, black (E6/3180)
OL 3200.01
1 illuminated side
L 2000 × W 80 × H 80 mm
matt anodized, silver (E6/EV1)
OL 3200.03
1 illuminated side
L 2000 × W 80 × H 80 mm
matt anodized, black (E6/3180)
OL 3300.01
1 illuminated side
L 3000 × W 80 × H 80 mm
matt anodized, silver (E6/EV1)
OL 3300.03
1 illuminated side
L 3000 × W 80 × H 80 mm
matt anodized, black (E6/3180)
