Panel retainer

E 221.38

with drill hole 4.5 mm dia.

L 24 × W 25 × H 17 mm

Tension lock

Z 961/8.00

8 mm

L 70 × W 20 × H 12 mm

Foot plate

S 150.21

for upright extrusion S 100

L 335 × W 335 × H 16 mm

335 mm dia.

Adjustable foot

S 140.37

M8

for S 100 / S 108 / M 1204

L 43 × W 43 × H 94 mm

Threaded plug

S 137/K.00

M10

L 35 × W 21 × H 12 mm

Internal connector

S 137.37

straight

for S 100 / S 108

L 84 × W 21 × H 12 mm

Adaptor

S 135.35

for S 108/S 201/S 208/S 408

L 16 × W 40 × H 13 mm

End cap

S 132.30

for extrusion S 100/S 108

L 40 × W 40 × H 17 mm

End cap

S 132.35

for extrusion S 100/S 108

L 40 × W 40 × H 17 mm

Panel retainer

M 1575.00

for system groove 4.3 mm

for 40 mm extrusions

L 50 × W 28 × H 28 mm

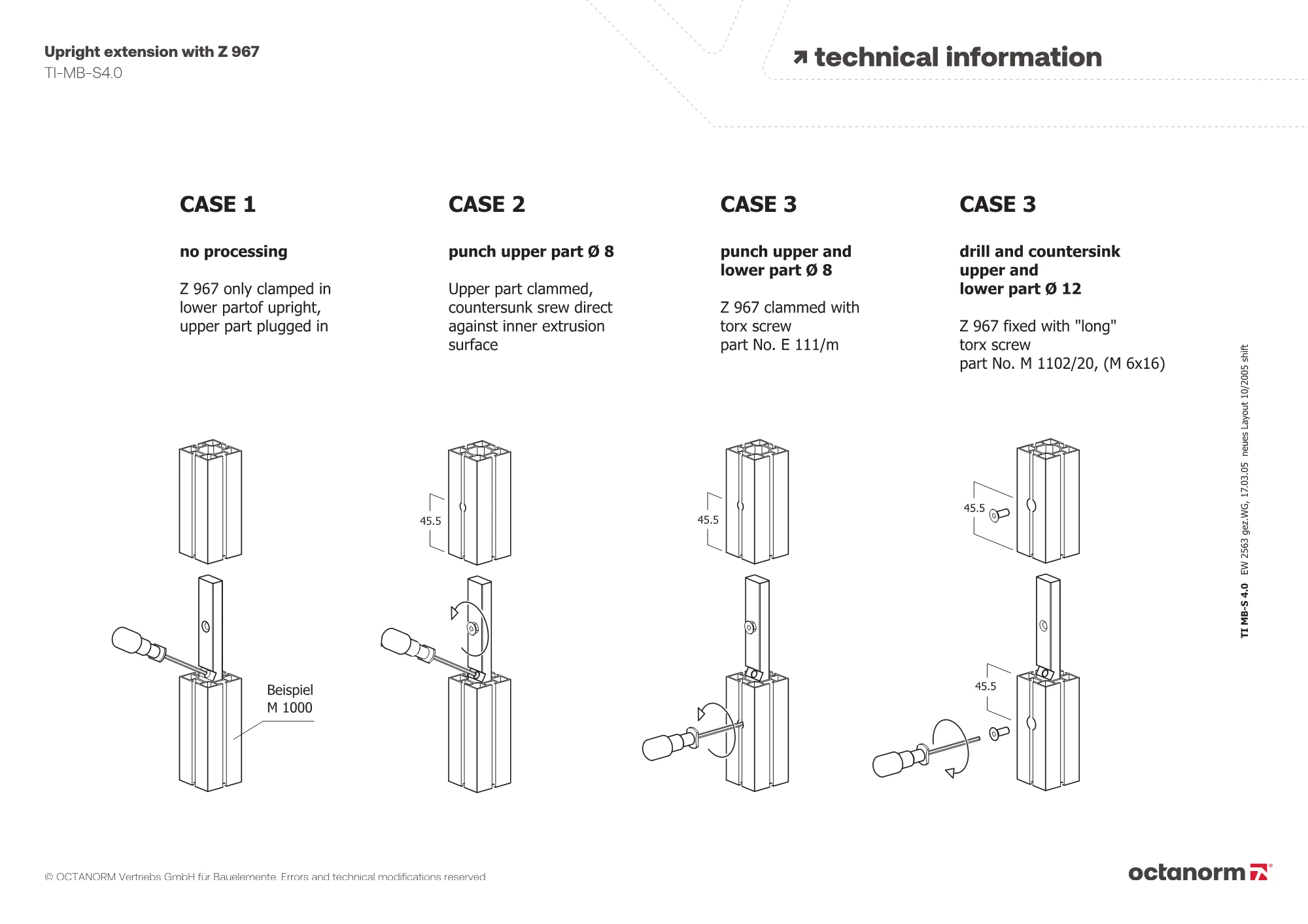

Internal connector

Z 967.00

straight

lock chamber 21 × 12 mm

L 181 × W 12 × H 21 mm
