Tension lock | Z 961/13.00

zinc die cast/steel
13 mm, for all beam extrusions with lock chamber 21 × 12 mm as well as in conjunction with adaptor Z 161/A, for beam extrusions with lock chamber 39 × 12 mm
L 70 × W 21 × H 13 mm

Available Material

raw / unfinished

Technical Data.

Length:

70 mm

Weight:

0.052 kg

Width:

21 mm

Height:

13 mm

Technical Informations.

Slot hole cutout in extrusions with 2mm wall thickness, "Tension Lock Adaption Groove"

TI-MB-Z10 TI-MB-Z10

Smallest dimension of beam cuttings

TI-MB-Z4.0 TI-MB-Z4.0

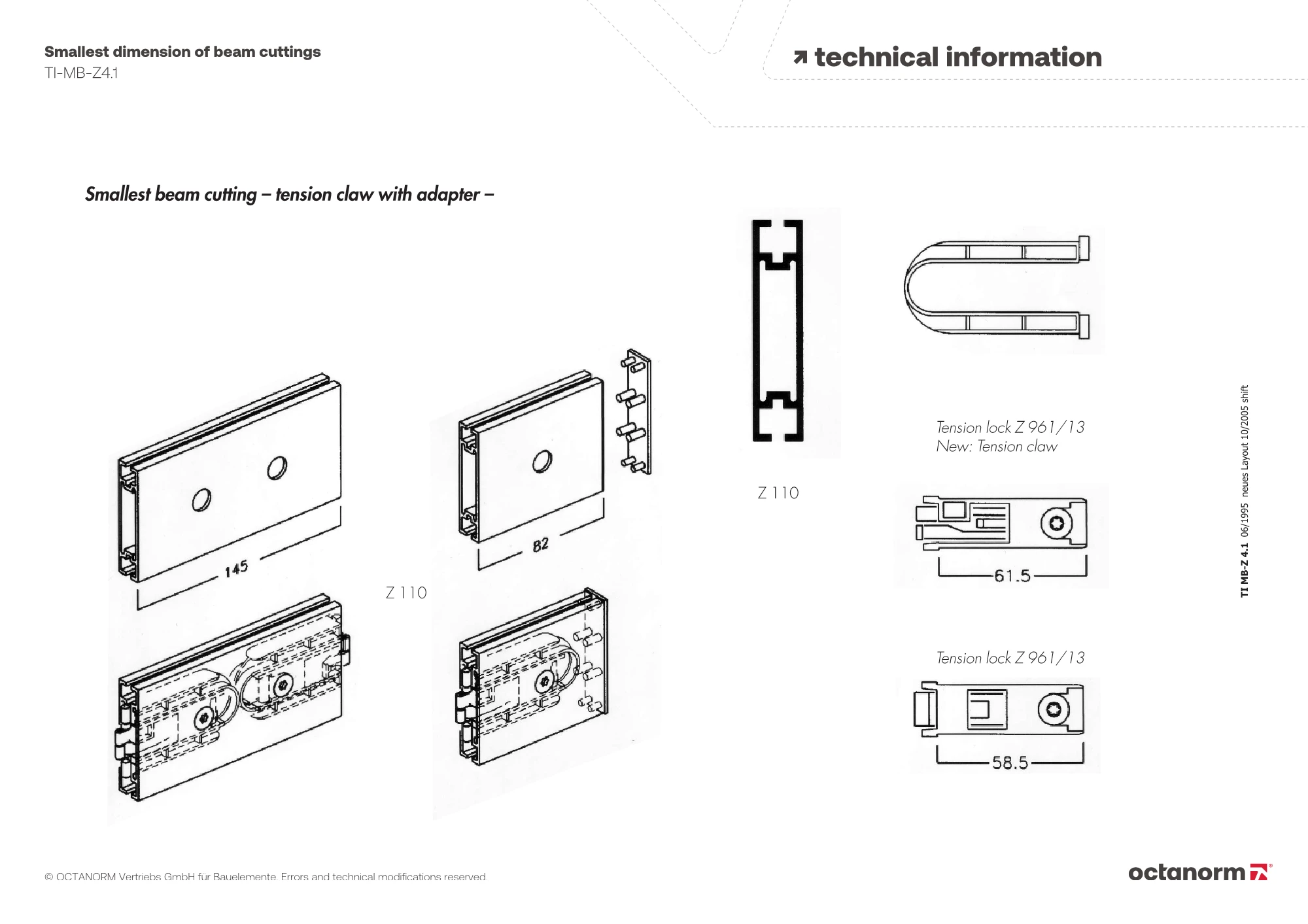

Smallest dimension of beam cuttings

TI-MB-Z4.1 TI-MB-Z4.1

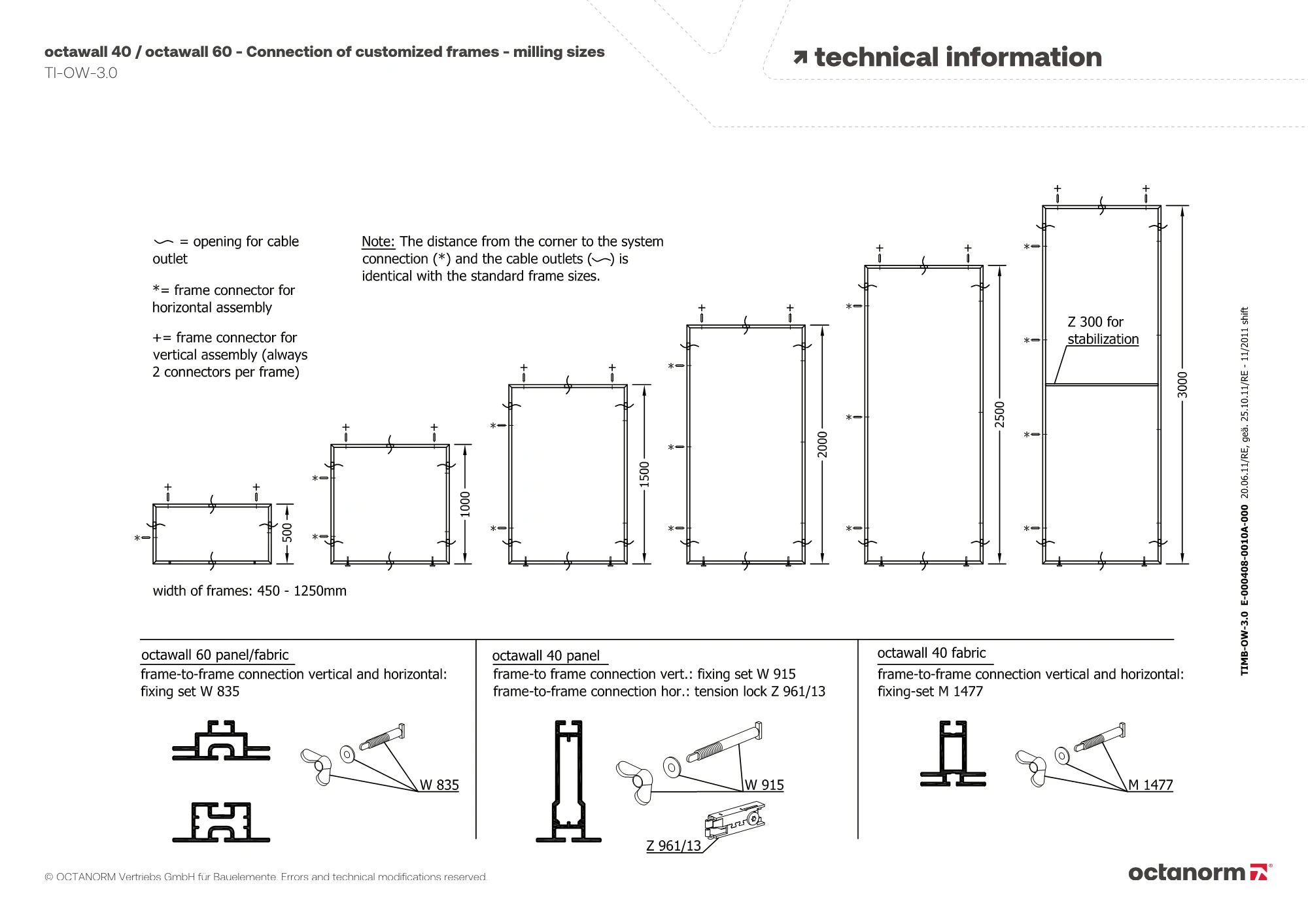

octawall 40 / octawall 60 - Connection of customized frames - milling sizes

TI-OW-3.0 TI-OW-3.0

Instructions for use of beam extrusions: Punching for tension lock mounting

TI-NL-34 TI-NL-34

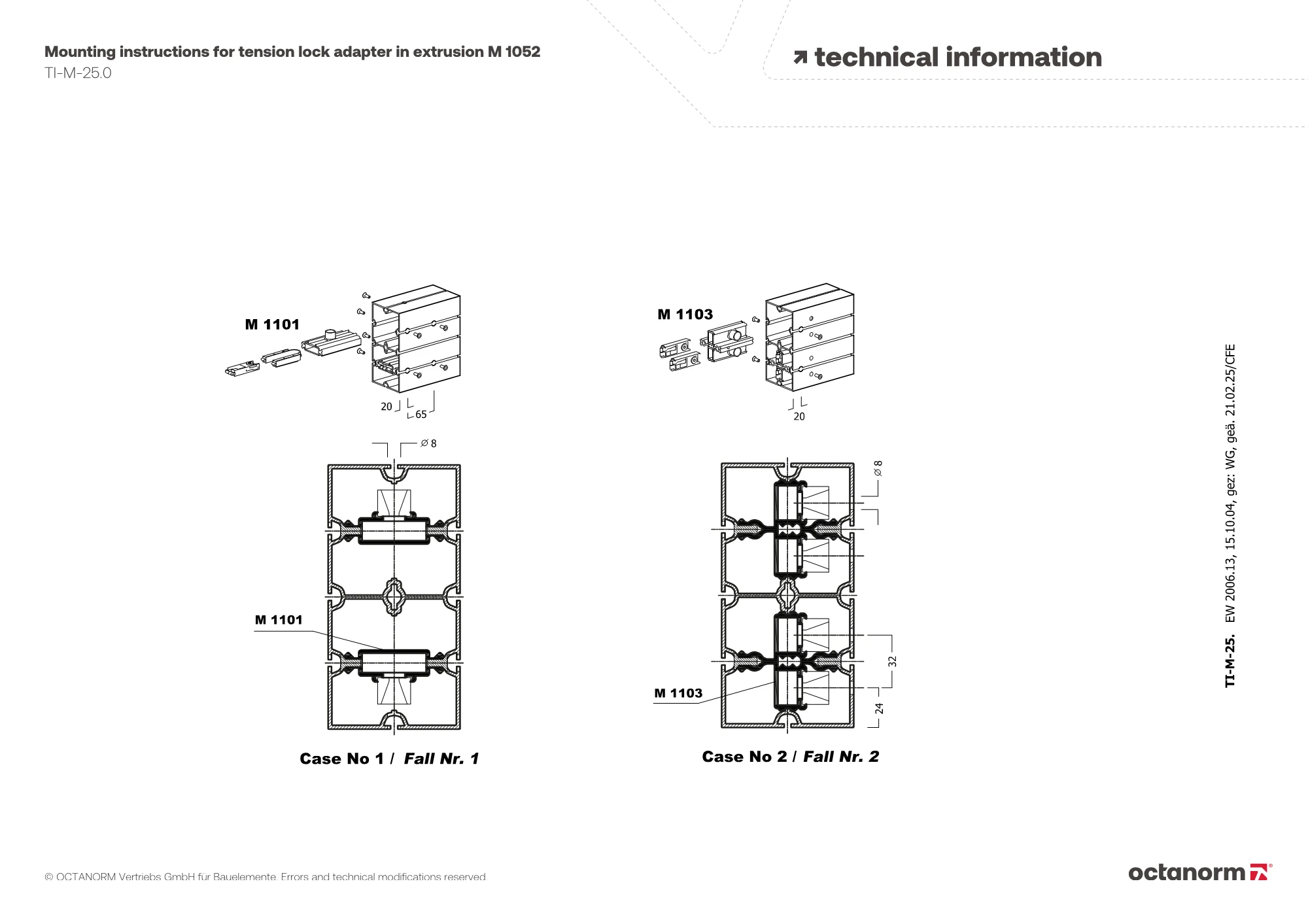

Mounting instructions for tension lock adapter in extrusion M 1052

TI-M-25.0 TI-M-25.0

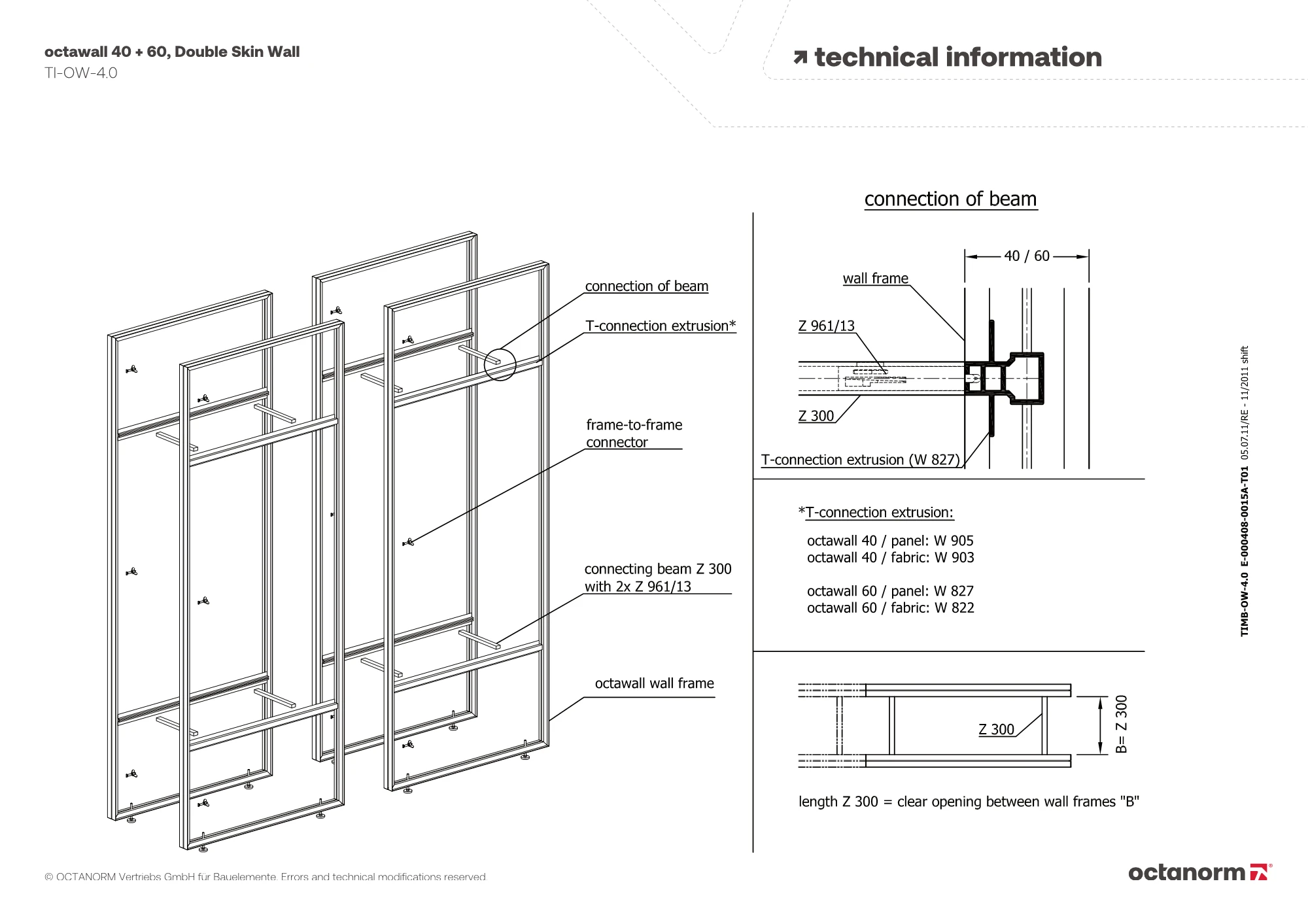

octawall 40 + 60, Double Skin Wall

TI-OW-4.0 TI-OW-4.0

M 1905 Construction examples for illuminated boxes

TI-M-63.1 TI-M-63.1

octamax - Solution for ceiling system

TI-DFL-2.2 TI-DFL-2.2
