Anti-slipping device | M 1141.37

steel
for system groove 4.3 mm, incl. 3 × hammerhead screw M 1473
L 120 × W 25 × H 6 mm

Available Material

zinc-plated
Order now.

!

Attention: to be used for safety reasons

Technical Data.

Length:

120 mm

Weight:

0.126 kg

Width:

25 mm

Height:

6 mm

M_1141.pdf
M_1141_03.dwg
M_1141_03.dxf
XM_1141.pdf

Technical Informations.

Assembly instruction for Beam with tie rod tensioning, 9.78 m long ("Version 1")

TI-M-34.8 TI-M-34.8

Beam with tie rod tensioning, 9.78 m long

TI-M-34.2 TI-M-34.2

Assembly instruction for Truss girder, 6.81 m long (Version 2)

TI-M-43.4 TI-M-43.4

Assembly instruction for Truss girder, 6.85 m long (Version 4)

TI-M-45.3 TI-M-45.3

Assembly instruction for Truss girder, 13.74 m long (Version 2)

TI-M-43.0 TI-M-43.0

Assembly instruction for Truss girder, 5.86 m long (Version 4)

TI-M-45.4 TI-M-45.4

Assembly instruction for Truss girder, 7.84 m long (Version 5)

TI-M-46.2 TI-M-46.2

Beam with tie rod tensioning, 6.81 m long

TI-M-34.4 TI-M-34.4

Beam with tie rod tensioning, 7.8 m long

TI-M-34.3 TI-M-34.3

Assembly instruction for Truss girder, 6.85 m long (Version 6)

TI-M-47.1 TI-M-47.1

Assembly instruction for Truss girder, 7.84 m long (Version 3)

TI-M-44.2 TI-M-44.2

Assembly instruction for Beam with tie rod tensioning, 6.81 m long (Version No. 1)

TI-M-34.10 TI-M-34.10

Assembly instruction for Truss girder, 11.76 m long (Version 2)

TI-M-43.1 TI-M-43.1

Assembly instruction for Truss girder, 6.85 m long (Version 5)

TI-M-46.3 TI-M-46.3

Assembly instruction for Truss girder, 9.78 m long (Version 2)

TI-M-43.2 TI-M-43.2

Assembly instruction for Truss girder, 9.82 m long (Version 5)

TI-M-46.1 TI-M-46.1

Assembly instruction for Truss girder, 6.85 m long (Version 3)

TI-M-44.3 TI-M-44.3

Beam with tie rod tensioning, 11.76 m long

TI-M-34.1 TI-M-34.1

Assembly instruction for Beam with tie rod tensioning, 7.8 m long ("Version 1")

TI-M-34.9 TI-M-34.9

Assembly instruction for Truss girder, 7.84 m long (Version 4)

TI-M-45.2 TI-M-45.2

Assembly instruction for Truss girder, 4.87 m long (Version 6)

TI-M-47.3 TI-M-47.3

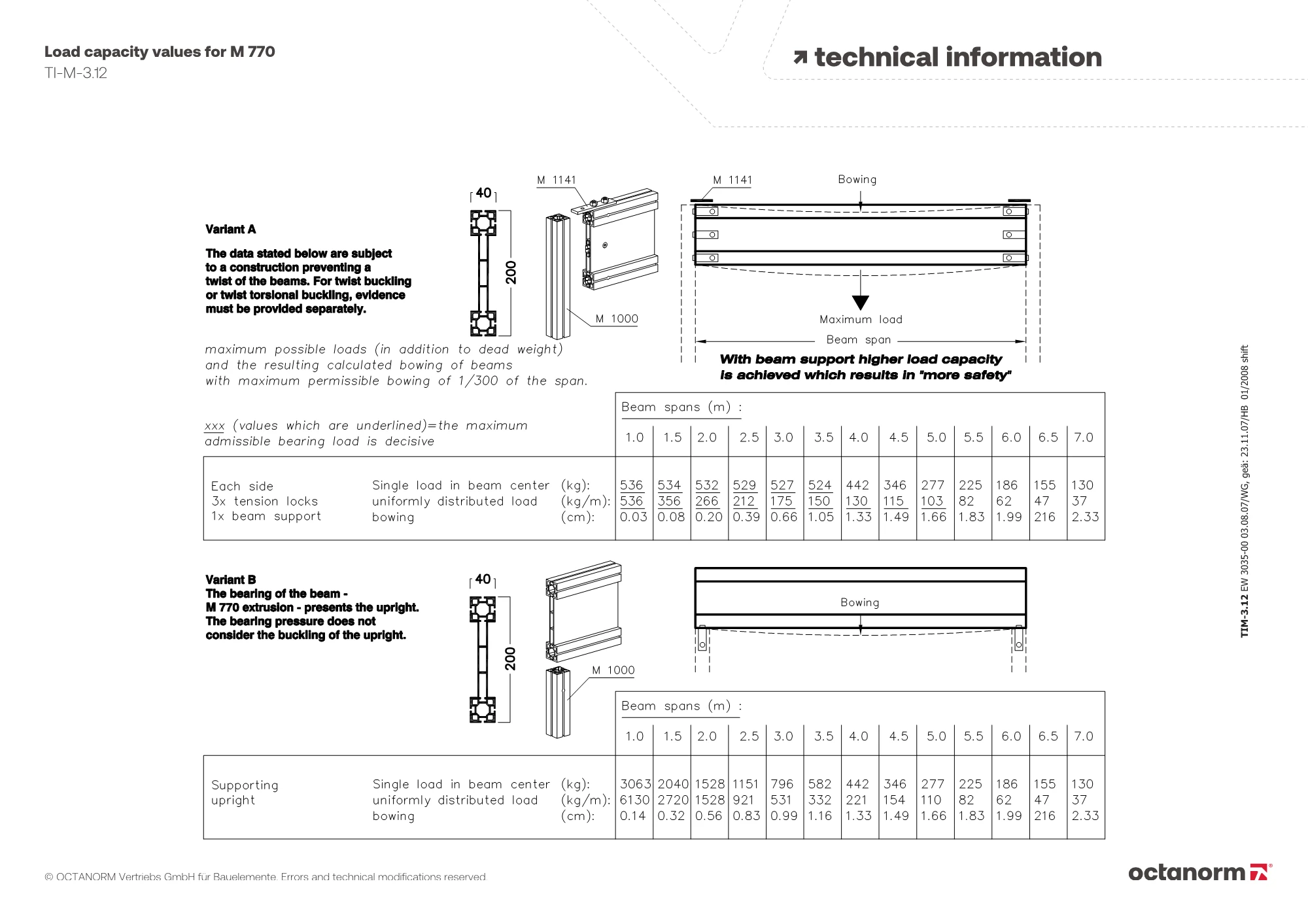

Load capacity values for M 770

TI-M-3.12 TI-M-3.12

Assembly instruction for Beam with tie rod tensioning, 13.74 m long ("Version 1")

TI-M-34.6 TI-M-34.6

Assembly instruction for Truss girder, 7.8 m long (Version 2)

TI-M-43.3 TI-M-43.3

Beam with tie rod tensioning, 13.74 m long

TI-M-34.0 TI-M-34.0

Assembly instruction for Truss girder, 5.86 m long (Version 3)

TI-M-44.4 TI-M-44.4

Assembly instruction for Truss girder, 5.86 m long (Version 5)

TI-M-46.4 TI-M-46.4

Assembly instruction for Truss girder, 5.86 m long (Version 6)

TI-M-47.2 TI-M-47.2

Assembly instruction for Beam with tie rod tensioning, 11.76 m long ("Version 1")

TI-M-34.7 TI-M-34.7

Assembly instruction for Truss girder, 9.82 m long (Version 3)

TI-M-44.1 TI-M-44.1

Assembly instruction for Truss girder, 9.82 m long (Version 4)

TI-M-45.1 TI-M-45.1
