Square extrusion | M 1010.01

aluminium
4 system grooves, adaptor M 1100 can be mounted
L 5000 × W 60 × H 60 mm

Available Material

matt anodized, silver (E6/EV1)
Order now.

Technical Data.

Length:

5000 mm

Weight:

8.133 kg

Width:

60 mm

Height:

60 mm

M_1010.pdf
M_1010_01.pdf
M_1010.dwg
M_1010.dxf

Accessories.

Internal connector

M 1064.01

straight

for extrusions 60 × 60 mm

L 320 × W 16 × H 42 mm

320 mm long

End plate

M 1065.21

for extrusion M 1010

L 60.5 × B 60.5 × H 3 mm

Adjustable foot

M 1067.37

M 10

for extrusions 60 × 60 mm

L 62 × W 62 × H 74 mm

Adaptor

M 1100.00

with tension lock Z 961/13

for extrusions 60 × 60 mm

L 16 × W 80 × H 42 mm

Anti-slipping device

M 1141.37

with 3 × M 1473

L 120 × W 25 × H 6 mm

Reinforcement

M 1150.37

with 2 × M 1435/70

L 67.6 × W 8 × H 67.6 mm

Technical Informations.

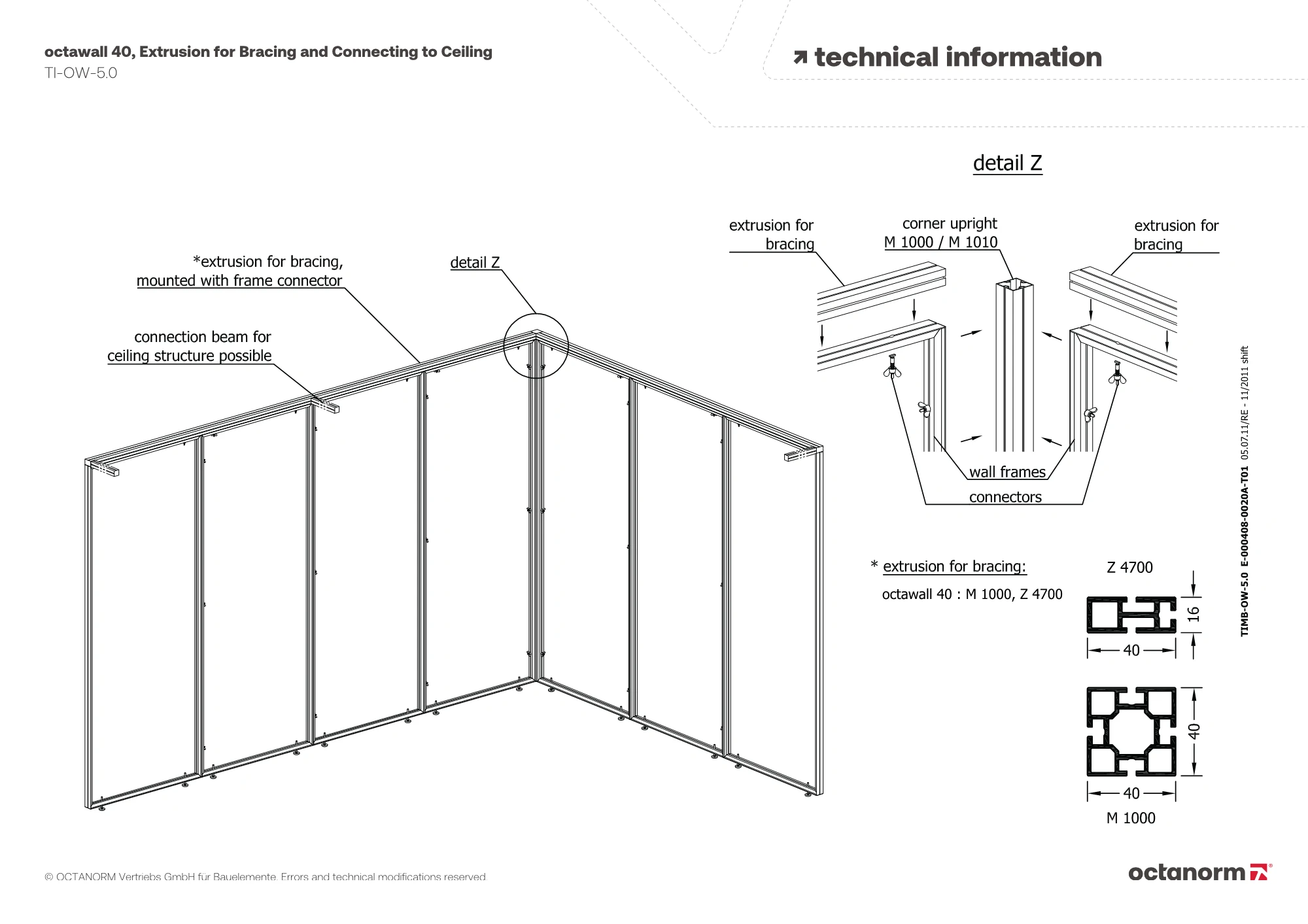

octawall 40, Extrusion for Bracing and Connecting to Ceiling

TI-OW-5.0 TI-OW-5.0

Assembly instruction for Beam with tie rod tensioning, 9.78 m long ("Version 1")

TI-M-34.8 TI-M-34.8

Beam with tie rod tensioning, 9.78 m long

TI-M-34.2 TI-M-34.2

Assembly instruction for Truss girder, 6.81 m long (Version 2)

TI-M-43.4 TI-M-43.4

Assembly instruction for Truss girder, 6.85 m long (Version 4)

TI-M-45.3 TI-M-45.3

Assembly instruction for Truss girder, 13.74 m long (Version 2)

TI-M-43.0 TI-M-43.0

Assembly instruction for Truss girder, 5.86 m long (Version 4)

TI-M-45.4 TI-M-45.4

Beam with tie rod tensioning, 6.81 m long

TI-M-34.4 TI-M-34.4

Beam with tie rod tensioning, 7.8 m long

TI-M-34.3 TI-M-34.3

Assembly instruction for Truss girder, 6.85 m long (Version 6)

TI-M-47.1 TI-M-47.1

Assembly instruction for Truss girder, 7.84 m long (Version 3)

TI-M-44.2 TI-M-44.2

Assembly instruction for Beam with tie rod tensioning, 6.81 m long (Version No. 1)

TI-M-34.10 TI-M-34.10

Assembly instruction for Truss girder, 11.76 m long (Version 2)

TI-M-43.1 TI-M-43.1

Assembly instruction for Truss girder, 9.78 m long (Version 2)

TI-M-43.2 TI-M-43.2

M 1905 Construction examples for illuminated boxes

TI-M-63.0 TI-M-63.0

Assembly instruction for Truss girder, 6.85 m long (Version 3)

TI-M-44.3 TI-M-44.3

Assembly instruction for Beam with tie rod tensioning, 7.8 m long ("Version 1")

TI-M-34.9 TI-M-34.9

Assembly instruction for Truss girder, 7.84 m long (Version 4)

TI-M-45.2 TI-M-45.2

Assembly instruction for Truss girder, 4.87 m long (Version 6)

TI-M-47.3 TI-M-47.3

Assembly instruction for Beam with tie rod tensioning, 13.74 m long ("Version 1")

TI-M-34.6 TI-M-34.6

Assembly instruction for Truss girder, 7.8 m long (Version 2)

TI-M-43.3 TI-M-43.3

Beam with tie rod tensioning, 13.74 m long

TI-M-34.0 TI-M-34.0

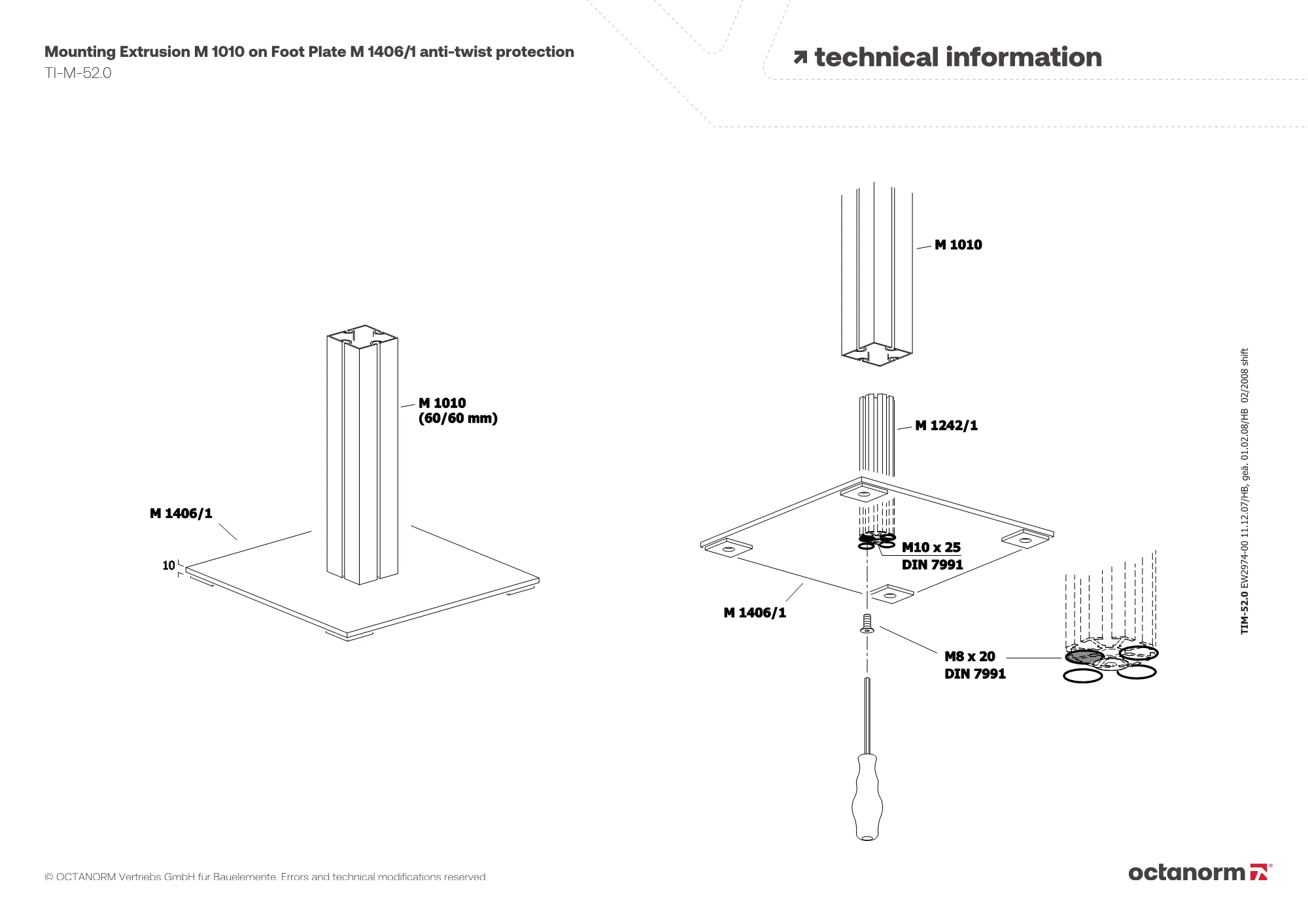

Mounting Extrusion M 1010 on Foot Plate M 1406/1 anti-twist protection

TI-M-52.0 TI-M-52.0

Fabric tension extrusion M 1310, M 1325, M 1330 profile combinations

TI-M-37.0 TI-M-37.0

Assembly instruction for Truss girder, 5.86 m long (Version 3)

TI-M-44.4 TI-M-44.4

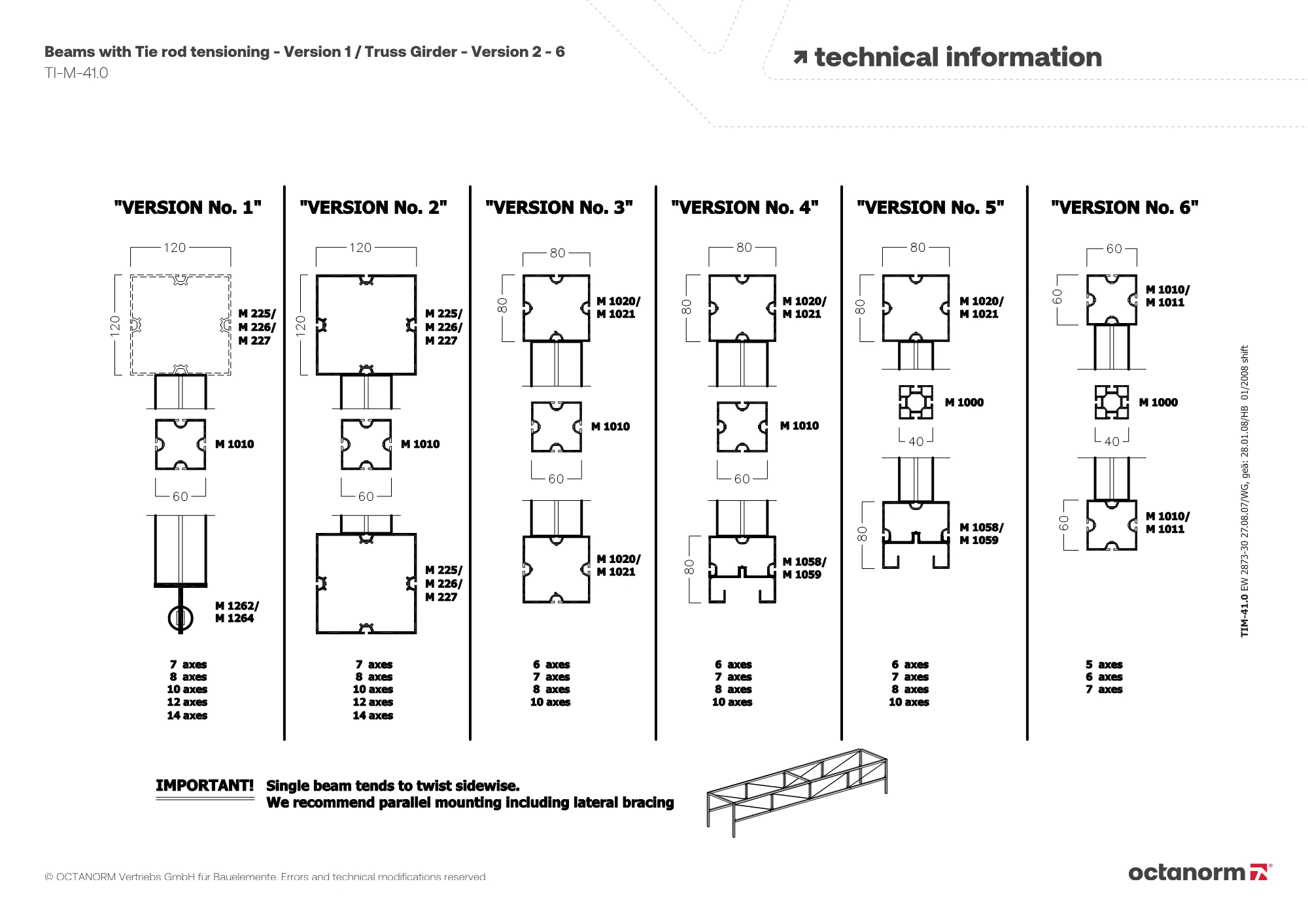

Beams with Tie rod tensioning - Version 1 / Truss Girder - Version 2 - 6

TI-M-41.0 TI-M-41.0

Assembly instruction for Truss girder, 5.86 m long (Version 6)

TI-M-47.2 TI-M-47.2

Assembly instruction for Beam with tie rod tensioning, 11.76 m long ("Version 1")

TI-M-34.7 TI-M-34.7

Assembly instruction for Truss girder, 9.82 m long (Version 3)

TI-M-44.1 TI-M-44.1

M 1905 Construction examples for illuminated boxes

TI-M-63.1 TI-M-63.1

Assembly instruction for Truss girder, 9.82 m long (Version 4)

TI-M-45.1 TI-M-45.1

Showcase made of M 1010

TI-KD-8.0 TI-KD-8.0

Base Plates - overview (Square and rectangular)

TI-M-67 TI-M-67
